Realfit DIZO GoPods Neo DA2105 User manual

This guide contains important information, please read it
carefully before using the product.
DIZO GoPods Neo

TIPS FOR USE
Wear the earbuds (the schematic
diagram shows the right earbud)
1. Keep the earbud tips inclined
downward.
2. Put the earbuds into the ear canal
and rotate it left and right until your
ear feels comfortable.
Instructions for touch control
1. Please try to use your finger pulp
with a large area to touch the touch
area.
2. The success rate of touch
recognition can be improved by
properly increasing the strength of
the finger pulp touch on the touch
area.
EN
ES
DE
JPN
IT
FR
RU

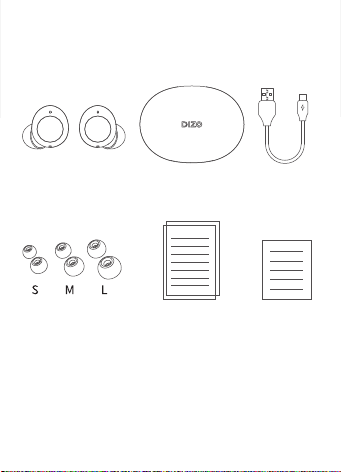

PACKING LIST
Earbuds
Left Right Charging box
Earbud tips
*The M-size tips have been
pre-installed on the earbuds
Type-C cable
Getting started
guide
Choose suitable earbud tips
According to the actual situation of your left and right
choose the one that suits you. The appropriate tips will
bring you better noise cancelling experience, better music
quality and more comfortable wearing experience.
Tips card

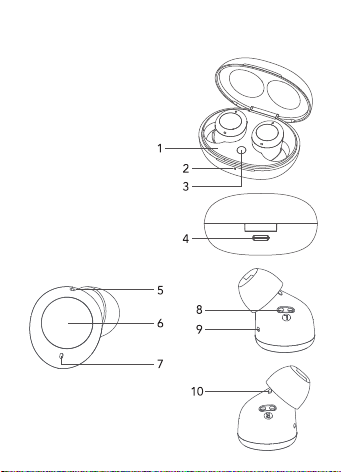

PRODUCT INTRODUCTION
1. Charging box
2. Indicator lamp
3. Multi-function key
4. Type-C charging port
5. Call microphone
6. Earbud touch area
7. Noise cancelling microphone
8. Charging contact
9. Back tone hole
10. Front tone hole

INSTRUCTIONS FOR USE
First use
Open the cover of the charging box, put two earbuds into
the charging box, press and hold the multifunction key for 3
seconds, and when the indicator lamp flashes in green, the
earbuds will automatically enter the pairing state. Touch
“DIZO GoPods Neo” in the Bluetooth list to pair.
Power on
Open the cover of the charging box, and the earbuds will
be turned on automatically and reconnected to the
previously paired device.
* When the earbuds are automatically shut down outside the box, put
them in the charging box, close the cover of the charging box, and
after it is opened again, the earbuds will be turned on and reconnected
automatically.
Shut down
Put the earbuds in the charging box, close the box cover
and the earbuds will be shut down automatically.
* If the earbuds in the pairing state fail to be connected to other device
automatically.
Pairing with a new device
Keep the earbuds in the charging box, press and hold the
multifunction key for 3s, and when the indicator lamp
flashes in green, the earbuds will enter the pairing state
and can be paired with a new device.
Earbud charging
After the two earbuds are put in the charging box, close
the cover of the charging box, and the earbuds will enter
the charging state.

INSTRUCTIONS FOR USE
Charging of charging box
Please use the Type-C cable provided with the product for
charging. If the indicator lamp is on after the cable is
inserted, it indicates that the charging box has entered the
charging state.
* The indicator lamp flashes during charging and is normally on after
the product has been fully charged.
The indicator lamp is red –
the battery level is below
20%
The indicator lamp is
green – the battery level is
higher than 20%
Touch functions
1. Touch twice:
Play/pause music;
Answer/hang up.
2. Touch three times:
Next Song.
3. Press and hold for 2s:
Reject incoming call.
4. Press and hold both left and right earbuds for 2s:
Switch between the noise cancelling mode and
transparency mode.
Restore factory settings
Keep the earbuds in the charging box, press and hold the
multifunction key for 10s until the indicator lamp flashes in
red and green alternately, and the factory setting will be
restored.

BASIC PARAMETERS
Product name
Product model
Interface of charging box
Earbud endurance in music
mode
Charging box based music
playing endurance
Charging time/input
Bluetooth version
Bluetooth protocol
Bluetooth code
Communication distance
Operating temperature
Frequency
Power
DIZO GoPods Neo
DA2105
Type-C
Noise cancelling is disabled:
About 7H
Noise cancelling is enabled:
About 5H
Noise cancelling is disabled:
About 28H
Noise cancelling is enabled:
About 20H
About 2H/5V 500mA
Bluetooth 5.2
HFP, HSP, A2DP, AVRCP
SBC
≤ 10m
0°C~45°C
2.4GHz-2.4835GHz
(BDR+EDR) BT: 10dbm
(BLE) BT: 9dbm

WARRANTY
Thank you for purchasing DIZO products.
1. We will provide comprehensive warranty services
according to local laws and regulations.
2. From more details about our warranty policy, please visit
https://www.dizo.net/global
Matters Needing Attention:
1. When you buy the product, the sales unit will issue a valid
proof of purchase.
2. The warranty card and the proof of purchase should be
kept by the user properly, and it will not be replaced if lost.
3. If the product fails due to non-human factors, the user can
present the warranty card and proof of purchase to the
DIZO customer service center for free maintenance during
the warranty period.
Non-warranty situation:
This warranty does not cover the following cases:
1. Out of warranty period.
2. Damage caused by use not in accordance with the
instructions.
3. Damage caused by man-made causes.
4. Failure caused by unauthorized disassembly,
maintenance, or modification of the product.
5. Damage caused by force majeure factors (such as floods,
earthquakes, lightning, etc.).
6. There is no warranty card, invoice, or warranty card that
does not match the invoice information.
7. The product wears naturally.
8. Other failures and damages that are not caused by the
quality of the product itself.
https://www.dizo.net/global

WARRANTY CARD (Stub Copy)
Dear user, thank you for using the product of our company.
Please read and keep properly the warranty card after
purchasing the product so that we can provide better
services to you.
User Information
Name
Phone Number
Address
Email
Product Information
Product Model
Product Serial Number
Sales Information
Purchase Date
Invoice Number
Sales Unit
Phone Number
Address

WARRANTY CARD (Customer Copy)
Dear user, thank you for using the product of our company.
Please read and keep properly the warranty card after
purchasing the product so that we can provide better
services to you.
User Information
Name
Phone Number
Address
Email
Product Information
Product Model
Product Serial Number
Sales Information
Purchase Date
Invoice Number
Sales Unit
Phone Number
Address
