REALINN RL6200 User manual
In order to correctly use the bar code scanner, please read the instruction
carefully and do not arbitrarily scan the settings code otherwise some settings
may not be available.
Please keep this instruction for reference in the future.
If you have any question or concern about the operation of the scanner, please
contact us at Email:
Contents
Product Specification
.....................................
1
Packing List
.....................................
2
Quick Guide
....................................
2
FAQs
....................................
2
Optional Function settings
....................................
4
1. Scanning Mode Setting
................................................
4
2. Beep Setting
................................................
6
3. Anti-duplication Setting
................................................
6
4. Aiming & LED Light Setting
................................................
8
5. Case Sensitivity Setting
................................................
9
6. Restore factory setting
................................................
9
7. Identity Barcode Type
................................................
10
8. Frequently-used End Character Setting
................................................
11
9. Interface Setting
................................................
12
10.Keyboard Language Setting
................................................
12
11. Enable / Disable Barcode Type
................................................
14
12.Insert and Delete Character
................................................
25
Appendix 1:Number bar code
................................................
29
Appendix 2:Character comparison table
................................................
30
1
Product Specification
Model-Number
RL6200
Connection
wired
Voltage
DC 5V
Printing Contract
>25%
Light source
624nm LED
LED life
12000 hours
Button life
8000,000 times
Camera
640*480 CMOS
Illumination
6500K LEDs
Indication
Buzzer & LED
Resolution
4 mil
CPU
ARM 32-bit Cortex
Decoding speed
500 times/sec
Scanning angle
Angle of rotation360°, inclination± 65°,declination ± 60°
Anti-interference
0-100000Lux Max
Drop test
2.0m
Certificate
CE，FCC，RoHS ，IP54
Applicable 1D barcode
UPC-A，UPC-E，EAN-8，EAN-13，Code 128， Code 39，Code 93，
Code 11，Interleaved 2 of 5，Standard 2 of 5，Industrial 2 of 5,Codabar ,
MSI，etc.
Applicable 2D barcode
QR Code, Data Matrix，PDF417，Aztec code，etc.
2
Packing List
•Bar code scanner*1
•USB Cable*1
•Instruction Manual*1
Quick Guide
Step 1. Connect the scanner to your computer via USB cable.
Step 2. Open notepad on computer, move cursor to the blank, scan a barcode to see if
it can be uploaded.
FAQs:
Q1. If I scan a product bar code, will it include the name of the product in the file
automatically?
Answer：
The scanner works like a keyboard. It does not interpret what the bar code is, it just
"types" out a string of alphabet numeric characters that the bar code represents.
it's up to the database software you are using to interpret what that string of characters
means. Once you acquire the bar codes, you have to correlate them to something more
meaningful by either purchasing a software service that will interpret the barcode and
relate it to a product, or you can use your own internal inventory system like excel to
assign the bar codes to specific products.
After creating the relationship between your bar code and the corresponded
information ,when you enter the bar code into the software by the scanner,your
software will look up the bar code and then output the related information of your
product.
3
Q2. Why does scanner not read the bar code exactly. When I use the scanner to read
a bar code of an item, I get a different result from the barcode itself.
Q3. Some bar codes can not be read, why?
Answer：
A. Incomplete and unclear bar codes might not be read.
B. It is possible that the setting is off by default for some bar code types which are not
commonly used. You need activate a specific bar code type (on page 14) to get it
working. Please feel free to contact our Customer Service Team for further assistance if
you don't know the exact type of bar code that you are referring to.
Q4. Is there any bar codes to remove auto-enter after every scanning?
Answer: To remove the auto-enter, please scan the code “ Disable end
character”on page 11.
If that is not your case, please send us a clear picture of the bar code and the result you
get, our customer service will help you to solve the problem.
Example 1: We use Code 39. it puts an * at the beginning and a * at the end. How do
we program the scanner to read whole bar code? The bar code the computer received
is 123456789. The bar code we need is *123456789*.
Solution： To show the start and stop digit of code39, please scan the code“Code39
start&stop digit -On”on page 21.
Example 2: The original bar code is “ abc12345 ” ， the scanning result is
“+A+B+C12345”，the scanner put“+”between character.
Solution：Please scan the code“Code39 Full ASCII-On”on page 21.
Example 3：There are two separate bar codes together， it scanned the first 12digits
in the barcode but not the last five.
Solution：please scan the code“UPCA- additional 2 digits-On”on page 15.
4
Optional Function settings
You can change the settings of the scanner by scanning the setup bar codes included
in this manual.
1. Scanning Mode Setting
Supporting three kinds of scanning modes.
1.1. Manual Trigger mode (default) :
Press the trigger, the scanner will emit light and read the barcode. Release the trigger,
the scanner will stop reading barcode and the light will go off.
** Scan the following codes to set the scanner to Manual trigger mode .
Manual trigger mode (default)
1.2. Continuous Scanning Mode
There’s no need to press the trigger in this mode. The green light of the scanner will be
on at a certain frequency.
The green scanning light will go off once the scanner scans barcode successfully and
the scanner will enter into next scanning automatically after a intermittent time . And
the green scanning light of the scanner will be on again once the waiting time passes.
5
** Scan the following codes to set the scanner to Continuous Scanning Mode.
Continuous Scanning Mode
1.3. Auto-Sensing Mode
There’s no need to click the trigger under the Auto-sensing Mode. Just move the
barcodes in front of the scanner, a green light band will show up to read the barcode.
The green light band will go off once the scanner scans barcode successfully or pre-set
timeout expires.
** Scan the following codes to set the scanner to Auto-sensing Mode .
.
Auto-sensing Mode
6
2. Beep Setting
Only scan”Restore default code”(on page 9) can open sound
under”Beep-Off”mode.
3.Anti-duplication Setting
In continuous scanning mode or auto-sensing mode, the scanner might read the same
barcode repeatedly.
Here you can set the time interval to avoid this issue.

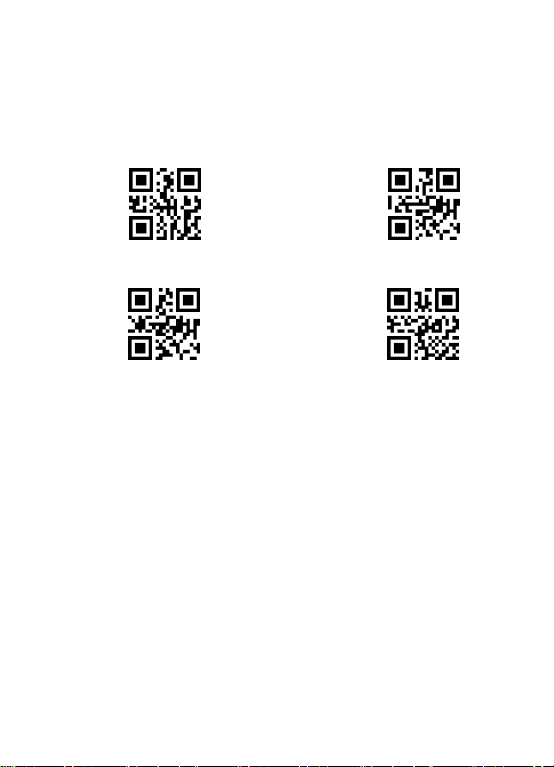

** Scan one of the following code to set the time interval.
After reading a bar code, at the pre-set time interval, the scanner can not read the same
bar code.
The scanner can read the same bar code only when pre-set time interval passes.
Beep-Off
Low volume
Medium volume
High volume -Default
7
1s
3s
5s
7s
None
8

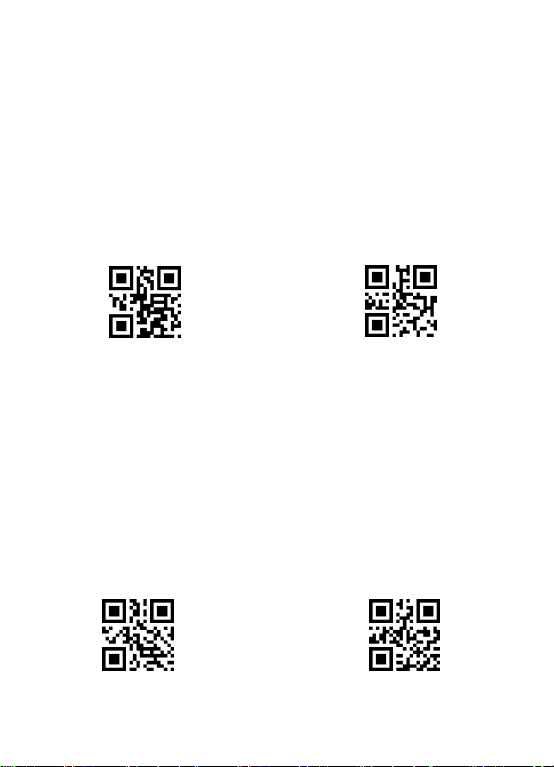

4. Aiming & LED Light Setting
4.1 Aiming Mode
The green beam that projected by the scanner can help user to find out the best
reading distance.
Normal mode：green beam appears when the user press the trigger
Always on：green beam always appears when the scanner is electrified
** Scan one of the following code to select the Aiming mode
Normal mode(default)
Always on
4.2 White LED light Mode
The white beam offers auxiliary lighting for reading.
When the white beam projects on the target object, it can improve the decoding
performance and the adaptability of weak ambient light.
Normal mode：white beam appears when the user press the trigger
Always on：white beam always appears when the scanner is electrified
** Scan one of the following code to select the led light mode
Normal mode(default)
Always on
9
5. Case Sensitivity Setting
The scanner can change all the letter cases of barcode into uppercase or lowercase.
It takes“Not Altering the Letter Case of barcodes”as default, letter case of barcodes
can be altered through scanning correspondent bar code below.
Note:
Please deactivated caps lock on keyboard first.
** Scan one of the following code to select the letter case
All upper case
All lower case
No transformation（default）
6.Restore factory setting
To set the scanner back to factory setting, please scan the following code:
Restore default code
10

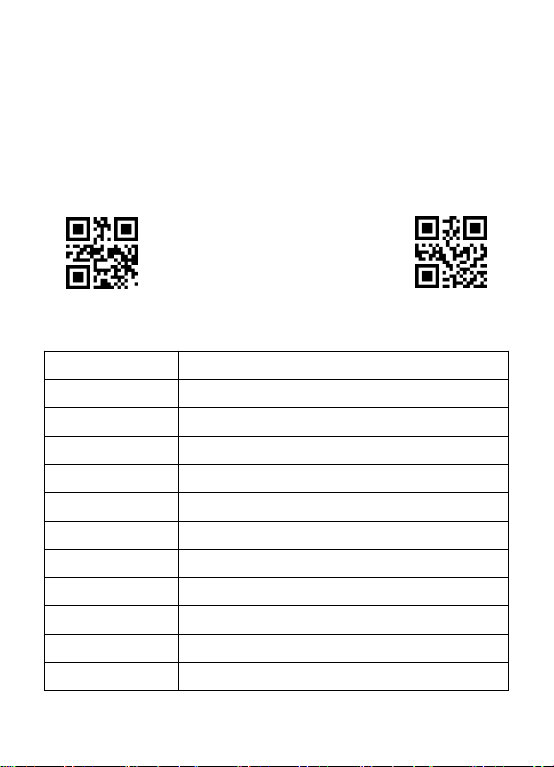

7. Identify Barcode Type
This is to identify what type of the barcode is, follow the steps below to confirm:
Scan code "Add Code ID " below, then scan your goal barcode, there will be a
character BEFORE the barcode you scanned, and this character states your Barcode
Type. After that, if you don't need this ID any more, scan the code "Turn off ID
(default)" to hide it.
Add Code ID
Scan
Goal Barcode
Turn off ID (default)
Code character
Code type
A
UPC-A, UPC-E, EAN-8, EAN-13
B
Code 39, Code 32
C
Codabar
D
Code 128, ISBT 128
E
Code 93
F
Interleaved 2 of 5/ITF, ITF14
G
Industrial 2 of 5, Standard 2 of 5
H
CODE11
J
MSI, MSI/Plessey
R
GS1 DataBar-14, GS1 DataBar Limited,
V
Matrix 25
11
r
PDF417
u
DataMatrix(DM)
q
QR
a
Aztec Code
8. Frequently-used End Character Setting
By default，the scanner is sending a 'carriage return' after scanning a code (the same
as pressing the 'enter' key) .
To add TAB Key, please scan the code “ TAB ”
Disable end character
Carriage Return
TAB
12
9. Interface Setting
9.1 USB-HID mode （default）
In the HID protocol, there are 2 entities: the "host" and the "device".
The host communicates with the device and receives input data from the device on
actions performed by the human. The most common example of a "host" is a PC.
The "device" is the entity that directly interacts with a human, such as a keyboard or
mouse.
If you want to set the scanner as a keyboard to enter the barcode , please read code
“ USB-HID”
USB-HID
9.2 USB virtual COM mode
In USB virtual COM mode, the scanner needs to work with driver and serial software.
Expected final behavior is that even if you open up another page , the scanned
information will show up in the window of serial software.
Please let us know if you need to set it to USB virtual COM mode，we will send you the
driver.
10. Keyboard Language Setting
The scanner support 15 international keyboards:
You are suggested to set the keyboard language of the scanner to be in agreement
with that in real use by scanning the correspondent barcode listed below.
13
American Keyboard Germany France
Belgium Finland Sweden
Russia Turkey_Q Portugal
England Denmark Norway
Spain Italy Japan
14
11.Enable / Disable Barcode Type
The code ending with word ”*”is the default settings.
One-dimensional code
White in black background-On
White in black background-Off*
UPC-A
UPCA-On*
UPCA-Off
UPCA Check digit-On*
UPCA Check digit-Off
UPCA -system digit - On*
UPCA -system digit - Off
15
UPCA- additional 2 digit-On
UPCA- additional 2 digit-Off*
UPCA- additional 5 digit-On
UPCA- additional 5 digit-Off*
UPCA additional digit required-On
UPCA additional digit required-Off*
Note: after scanning the “ UPCA additional digit required- ON “, the UPCA code without
additional digit can not be read.
UPCA to EAN13-On
UPCA to EAN13-Off*
16
UPC-E
UPCE-On*
UPCE-Off
UPCE Check digit-On*
UPCE Check digit-Off
UPCE - system digit - On*
UPCE - system digit - Off
UPCE- additional 2 digit-On
UPCE- additional 2 digit-Off*
UPCE- additional 5 digit-On
UPCE- additional 5 digit-Off*
