Realtronix M 10 User manual

porfessional audio

M 8M 8
features
!Compact two-way passive system
!Multi-angle birch ply enclosure
!User rotatable x horn
!Top hat fitting for tripod mounting
!One year limited Warranty
applications
!Liveclubperformance
!Floor monitor
!Club Installs
90 50
Compact two-way passive system
The M8 is a versatile,2-way passive system designed for
applications where highoutput is requiredfrom an ultra-compact
enclosure.It features along-excursion 8 (200mm) low frequency
driver and a 1 (25mm) HF compression driver mounted on a
constant directivity 90 x 50 horn.The horn isuser rotatable to
,
allow the M8s multi-angle enclosure tobe used ineither its
vertical or horizontal orientation , depending on the application.
(W)240 x (H)435 x(D)285 mm

M 8M 8
240mm240mm
435mm435mm
285mm285mm
240 x 435 x 285 mm

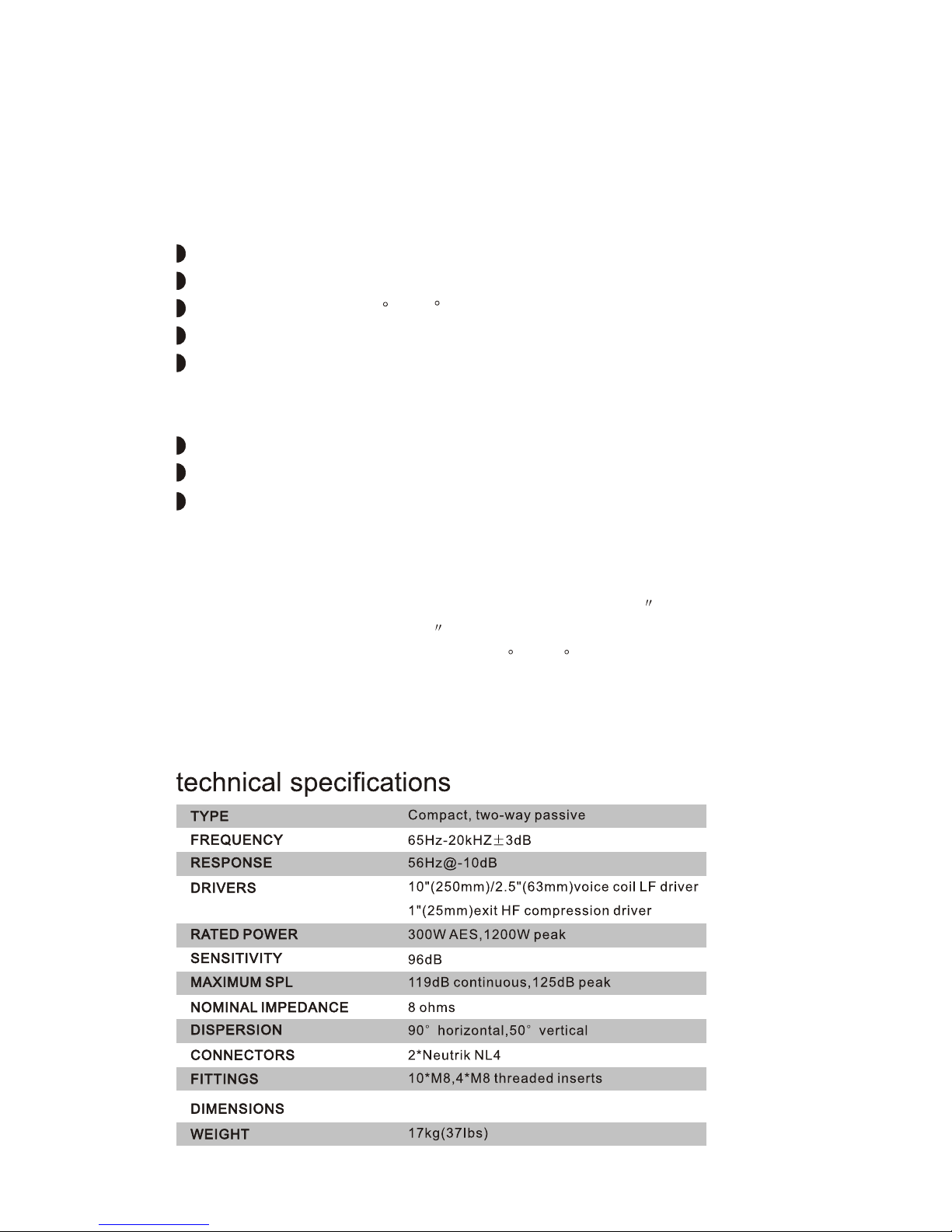

M 10M 10
features
!Compact two-way passive system
!Multi-angle birch ply enclosure
!User rotatable x horn
!Top hat fitting for tripod mounting
!One year limited Warranty
applications
!Liveclubperformance
!Floor monitor
!Club Installs
90 50
Compact two-way passive system
The M10 is a versatile,2-way passive system designed to provide
exceptional club sound reinforcement and stage monitoring from
a very compact enclosure. It features a powerful 10 (250mm)
low frequency driver and a 1 (25mm) HF compression driver
mounted on a constant directivity 90 x 50 horn.The HF horn,
,
can be rotated to allow the M10 s multi-angle enclosure to be
used in either its vertical or horizontal orientation , depending
on the application.
(W)300 x (H)500x (D)315mm

M 10M 10
300300
315315
500500
M10
300 x 500 x 315mm

M 12M 12
Compact two-way passive system
features
!Compact two-way passive system
!Multi-angle birch ply enclosure
!User rotatable x horn
!Top hat fitting for tripod mounting
!One yearlimited warranty
applications
!Liveclubperformance
!Floor monitor
!Club Installs
80 50
(W)360 x (H)570x (D)378mm

M 12M 12
M12
360 x 570 x 378mm
360
570
378

M 12+M 12+
Compact two-way passive system
features
!Compact two-way passive system
!Multi-angle birch ply enclosure
!User rotatable x horn
!Top hat fitting for tripod mounting
!One yearlimited warranty
applications
!Liveclubperformance
!Floor monitor
!Club Installs
80 50
+
(W)360 x (H)570x (D)404 mm

M 12+M 12+
M12+
360
570
404
360 x 570 x 404 mm

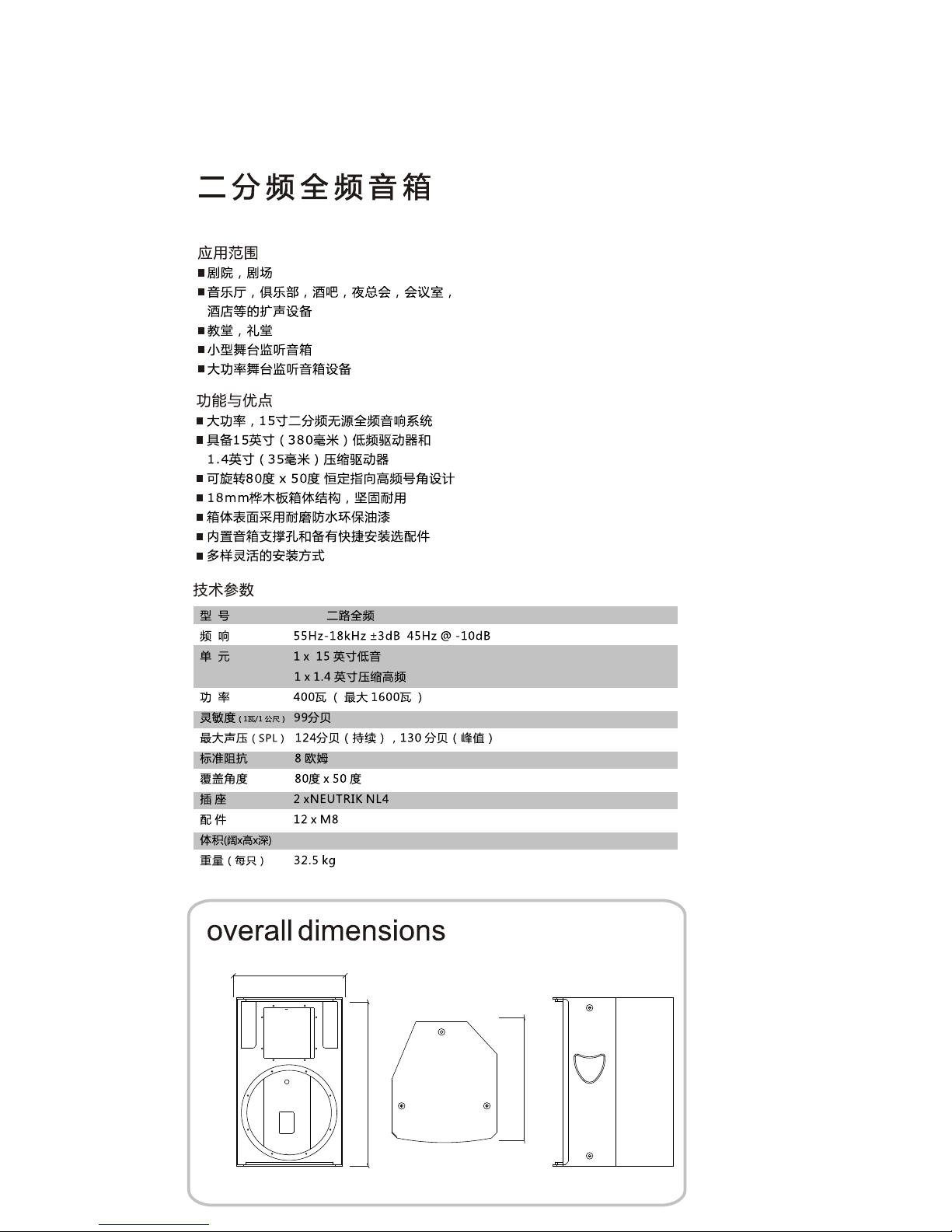

M 15M 15
Wide-bandwidth system
features
Multi-angle birch ply enclosure
User rotatable x horn
Top hat fitting for tripod mounting
One year limited warranty
applications
Liveclubperformance
80 50
Wide-bandwidth system
1.4 (35mm)compression driver
High powered stage monitoring
Club installs
The high power M15 is a high performance,wide-bandwidth
system in an incredibly compact and efficient package.Extended
frequency response is provided by a 15 (380mm) lf driver teamed
with a 1.4 (35mm) exit compression driver mounted on a rotatable
80 x 50 constant directivity HF horn.the M15 is perfect for higher
power applications where easy of installation or speed of deployment
are important factors.
(W)430 X (H)690X(D)492mm

M 15M 15
M15
430 x 690 x492mm
430
690
492

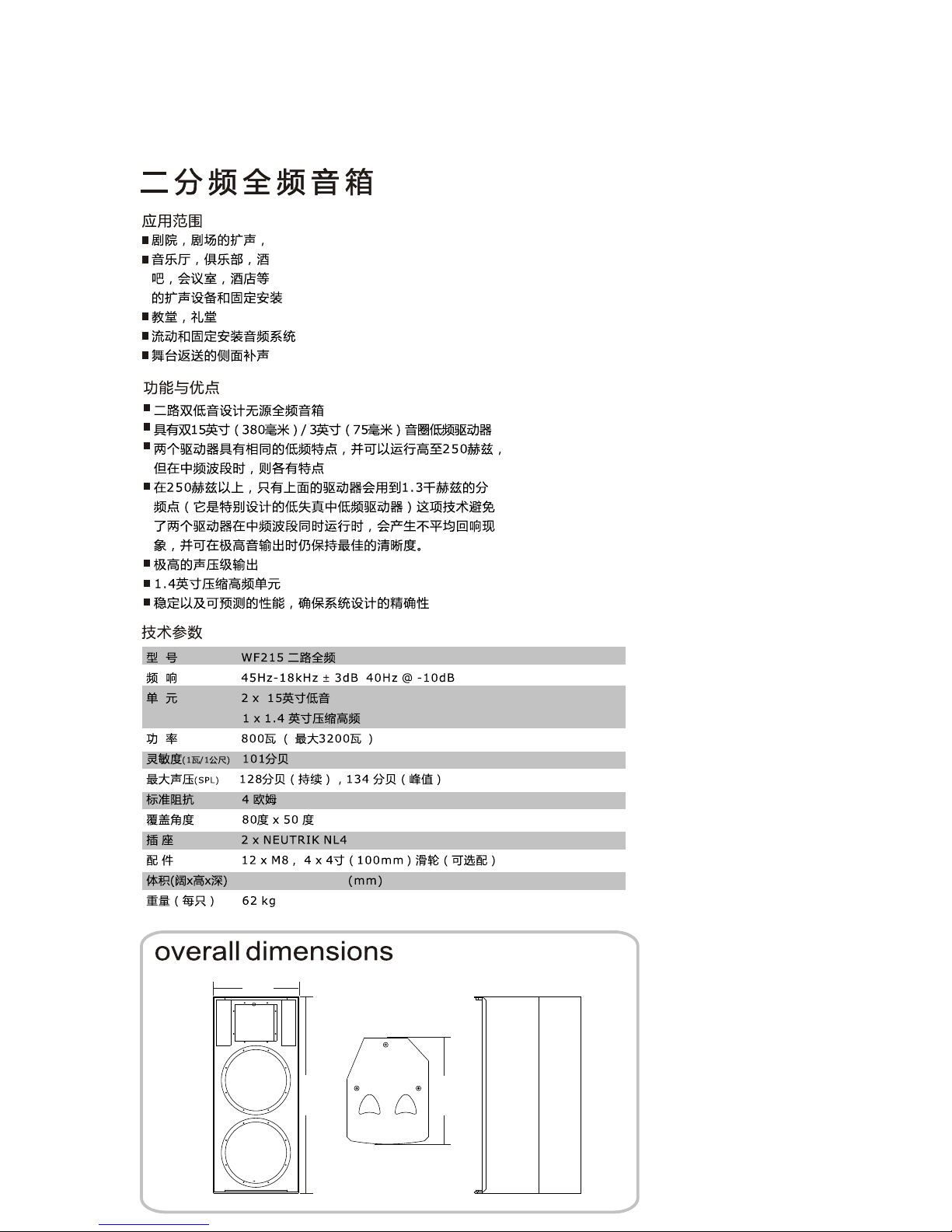

M 215M 215
Dual-drivet vented sub-bass system
features
applications
Direct radiating drivers15"(380mm)
High temperature voice coil3"(75mm)
Fitted with handles
Five year limited warranty
Large Scale Club performance
Large Club installs
The M215 is a two-way passive,trapezoidal enclosure with dual 15
(380mm)/3 (75mm) voice coil low frequency driversand a 1.4 (35mm) exit titanium
diaphragm compression driver,mounted on a proprietary, rotatable, 80 x 50
constant directivity horn.
Below 250Hz, both LF drivers operatetogether to produce low frequencies, whilst
above 250Hz, only the upper LFdriver is used to reproduce themidrange up to the
crossover point. This technique avoidsthe uneven response which would occurif
both drivers were allowed to operatetogether over the midband.
''
'' ''
TYPE: Two-way passive reflex withdual bass drivers
DRIVERS: 2 x 15"(380mm)/ 3"(75mm) voicecoil LF driver
1 x 1.4'' (35mm) exit HFcompression driver
FREQUENCY RESPONSE: 45Hz-18k Hz 3dB
RATED POWER: 800W AES,3200W Peak
IMPEDANCE: 4 ohms
SENSITIVITY: 101dB
MAXIMUM SPL: 128dB continuous, 134dBpeak
CONNECTORS: 2 x NeutrilkNL4
PROTECTIVE GRILLE: Black perforated steel
DIMENSIONS: (W) mm * (H)1106 mm * (D) 600mm
WEIGHT: 63 kg
DISPERSION : 80 horizontal, 50 Vertical
460

M 215M 215
460
1106
600
460 x 1106 x 600

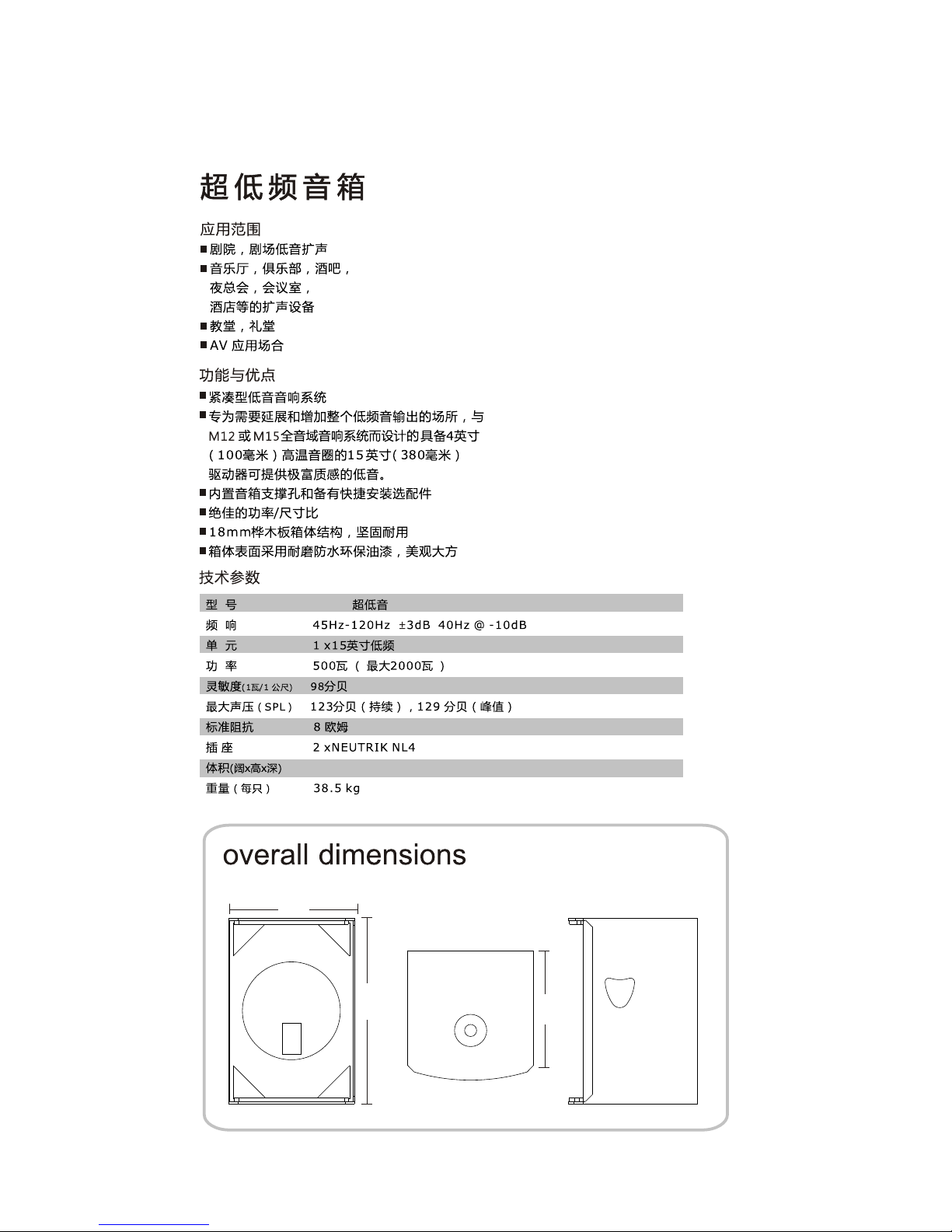

M 15BM 15B
Compact vented sub-bass
features
applications
Live club performance
Club installs
AV presentations
Compact vented sub-bass
Direct radiating 15 (380mm) driver
High temperature 4 (100mm) voice coil
Large ports ensure low air noise
Top hat fitting for pole mounting
One year limited warranty
The compact M15B sub-bass system has been designed to be
used with M12 or M15 full-range systems to extend and increase
the total low frequency output power. The M15B provides good
bass punch from a new, long-excursion, 15 (380mm)/4
(100m m) voice coil driver with a water resistant cone and triple
rollsurround.TheM15B is provided with a top hat fitting that can
be used to pole mount an M10 or M12 above the enclosure.
TYPE Compact, vented sub bass system
DRIVERS 1x15" (380mm) / 4" (100mm) bass driver
FREQUENCY RESPONSE 45 Hz -1 20 Hz 3d B
RATED POWER 500WAES, 2000W peak
IMPEDANCE 8 ohms
SENSITIVITY 98dB
MAXIMUM SPL 123 dB continuous, 129 dB peak
CONNECTOR 2 x Neutrilk NL4
PROTECTIVE GRILLE Black perforated steel
DIMENSIONS (W) 470mm x (H) 690 mm x(D) 483mm
WEIGHT 38.5kg
TYPE
DRIVERS
FREQUENCY RESPONSE
RATED POWER
IMPEDANCE
SENSITIVITY
MAXIMUM SPL
CONNECTOR
PROTECTIVE GRILLE
DIMENSIONS
WEIGHT

M 15BM 15B
470
483
690
M15B
470 x 690 x 483mm

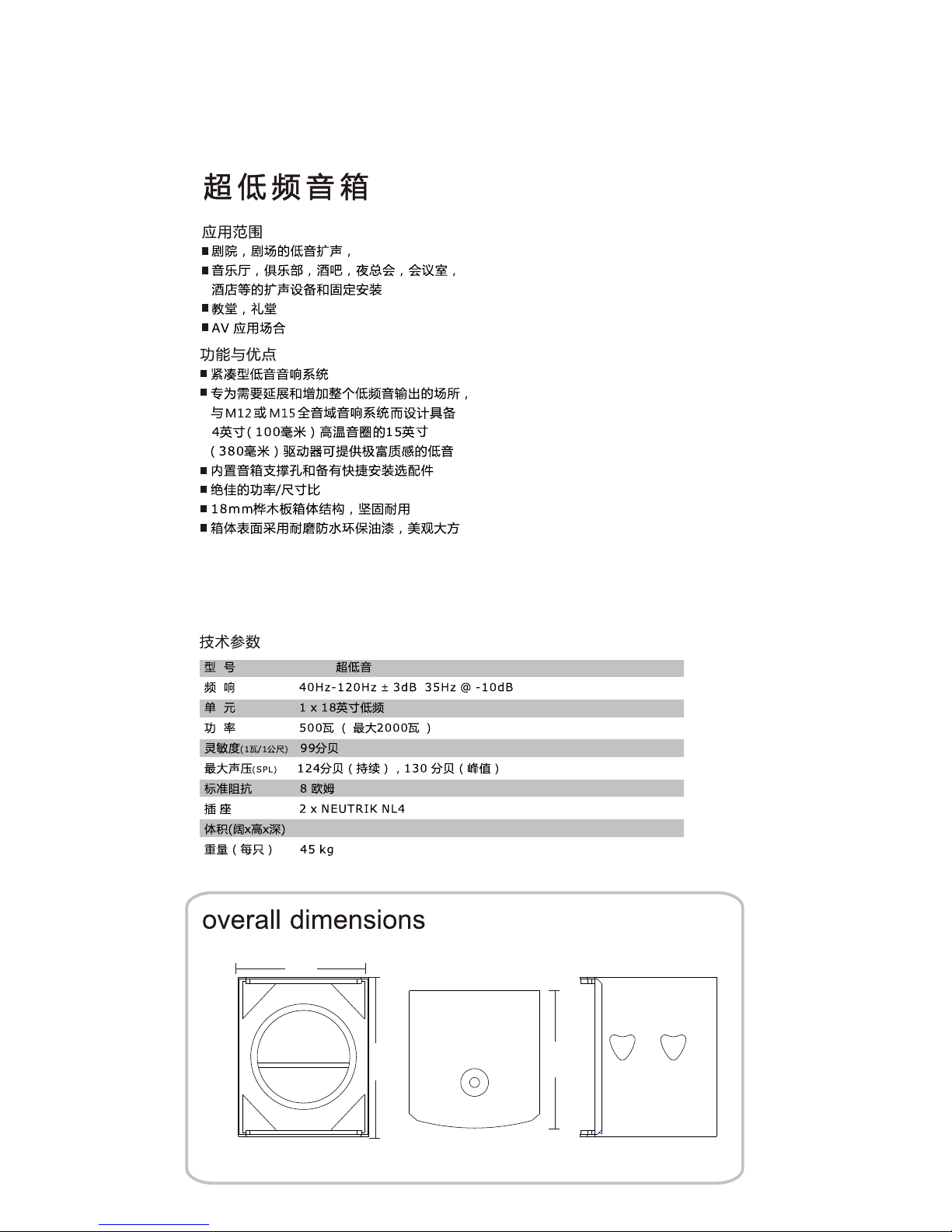

M 18BM 18B
features
applications
Live club performance
Club installs
AV presentations
Compact vented sub-bass
Direct radiating 18 (460mm) driver
High temperature 4 (100mm) voice coil
Large ports ensure low air noise
Top hat fitting for pole mounting
One year limited warranty
The M18B sub-bass system has been designed to be used
with M12 and M15 full-range systems to extendand increase
the total low frequency output power. The M18B provides good
mid-bass punch with extended sub-bass output from a direct
radiating 18 (460mm) driver with a 4 (100mm) high
temperature voice coil.
Compact vented sub-bass
TYPE Compact, vented sub-bass system
FREQUENCY
RESPONSE 40Hz-120Hz 3dB
DRIVERS 18" (460mm) bass driver
RATED POWER 500W AES,2000W peak
SENSITIVITY 99dB
MAXIMUM SPL 124dB continuous, 130dB peak
IMPEDANCE 8 ohms nominal
ENCLOSURE multi-laminate ply
FINISH Textured black paint
PROTECTIVE GRILLE Black perforated steel
CONNECTORS 2 x Neutrik NL4
FITTINGS Top hat fitting
DIMENSIONS (W)564 x (H)690x (D)592mm
WEIGHT 54kg
TYPE
FREQUENCY
RESPONSE
DRIVERS
RATED POWER
SENSITIVITY
MAXIMUM SPL
IMPEDANCE
ENCLOSURE
FINISH
PROTECTIVE GRILLE
CONNECTORS
FITTINGS
DIMENSIONS
WEIGHT

M 18BM 18B
564
592
690
M18B
45?
564 x 690 x 592mm

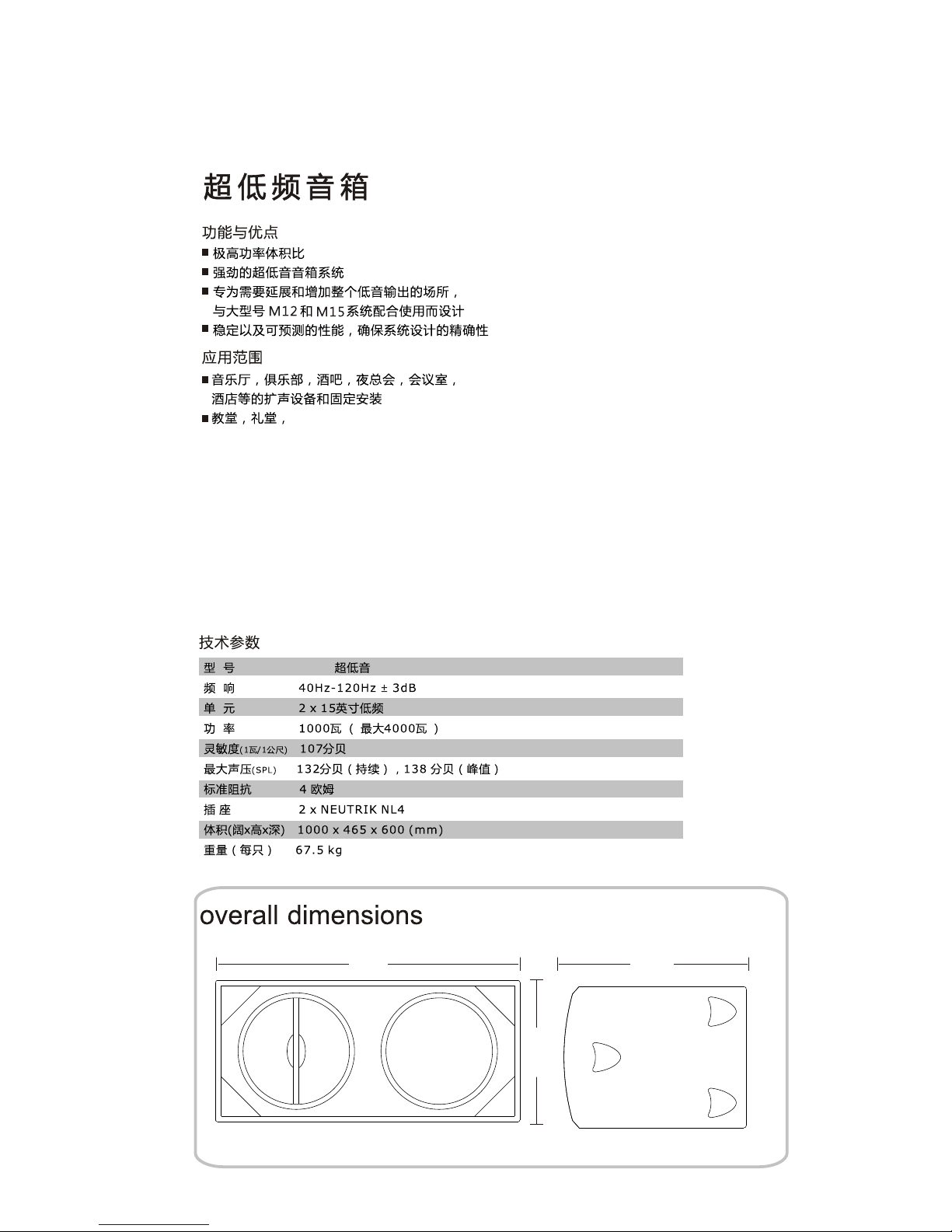

M 215BM 215B
Features
Applications
Clubs, bars and restaurants
Concert halls
Live sound in places of worship
Very high efficiency 107dB/W/m half space
Dual 15" (380mm) direct radiating LF drivers with
4" (100mm) voice coils
Compact low profile styling
Generously sized, low noise ports
One year limited warranty
The M215B is a dual driver, direct radiating sub-bass in a heavily
braced vented enclosure. It features two very efficient 15" (380mm)
long-throw bass drivers with high power 4" (100mm) voice coils and
generously sized low frequency ports for low noise, high power operation.
The M215 s extended low-bass response and high efficiency make
it the ideal partner for M Series full-range loudspeakers where high
power, extended bass is required from a relatively compact enclosure.
Compact, dual driver, vented sub-bass systemCompact, dual driver, vented sub-bass system
FREQUENCY RESPONSE 40Hz-120Hz 3dB
DRIVERS 2 x15" (380mm)/4" (100mm) voice coil LFdrivers
RATED POWER 1000WAES, 4000W peak
SENSITIVITY 101dB (open space), 107dB (half space)
MAXIMUM SPL 132dB continuous, 138dBpeak (half space)
NOMINAL IMPEDANCE 4 ohms
CROSSOVER 120Hz active
ENCLOSURE 207 litre,braced 18/24mm MDF
FINISH Textured light greypaint
PROTECTIVE GRILLE Lightgrey perforated steel
CONNECTORS Low profile 20 amp push-lock
DIMENSIONS (W) 1000mmx (H) 465mm x (D) 600mm
WEIGHT 67.5kg
FREQUENCY RESPONSE
DRIVERS
RATED POWER
SENSITIVITY
MAXIMUM SPL
NOMINAL IMPEDANCE
CROSSOVER
ENCLOSURE
FINISH
PROTECTIVE GRILLE
CONNECTORS
DIMENSIONS
WEIGHT

M 215BM 215B
M215
1000
465
600

M 218BM 218B
features
!
!Multi-angle birch ply enclosure
!
One year limited warranty
applications
High Output Subwoofer
18"Subwoofer
The M218B subwoofer with its high output bandpass horn design and
extremely high SPL is ideal for extended bass requirements.The cabinet
is constructed from birch plywood, has an impact resistant paint finish and
eight integral steel handles. The front of the subwoofer cabinet is fitted with
catches at the sides for securing an optional transport lid, and mounted on
the rear are four heavy duty wheels.
Live-music
Playback
Speech
Stage monitor
Subwoofer
High output bandpass horn design
Extremely high spl
(W)1066 x (H)561 x (D)769mm
