Rear view safety Rear View Camera Systems User manual

product manual installation instructions
ReaR View CameRa
SyStemS
© 2009-2013 Rear View Safety, Inc.

2
Introduction ......................................................... 03
Safety Information ................................................ 04
Installation Guide ................................................. 06
Features ............................................................... 11
Multiplexer Specs .................................................12
Positioning ...........................................................13
Monitor Dimensions ..............................................14
Camera Dimensions .............................................15
Camera Specs .......................................................16
Monitor Specs .......................................................17
LCD Parametres ....................................................17
Splitting and Installing the Embedded Monitor........18
Troubleshooting ..................................................... 19
Warranty................... ............................................ 20
contents

3
introduction
Please read all of the installation instructions carefully
before installing the product. Improper installation will
void manufacturer’s warranty.
Congratulations on purchasing a Rear View Backup Camera System. With this manual
you will be able to properly install and operate the unit.
The Backup Camera System is intended to be installed as a supplement aid to your
standard rear view mirror that already exists in your vehicle. The Backup Camera System
should not be used as a substitute for the standard rear view mirror or for any other
mirror that exists in your vehicle.
In some jurisdictions, it is unlawful for a person to drive a motor vehicle equipped with
a TV viewer or screen located forward of the back of the driver’s seat or in any location
that is visible, directly or indirectly, to the driver while operating the vehicle.
1. To prevent electrical shock, DO NOT OPEN THE MONITOR CASE.
2. Avoid exposing monitor to water, rain, moisture etc. It is NOT water proof. Any moisture inside the monitor could cause
extensive damage.
3. Do not disassemble the camera. This voids the warranty. Disassembling the camera will compromise the waterproof seal.
WARNING

4
safety info.
Place the monitor away from direct sun light,
heat, water or moisture.This product is made
with precise electronic components. Handle with
care. Improper use can cause a malfunction.
Firmly x the monitor stand to secure location.
While installing the Rear View System be careful
with the wire positioning in order to avoid wire
damage.
The Rear View System should only be used
when the vehicle is in reverse. Do not watch
movies or operate the monitor while driving,
It may cause an accident.
Do not install the monitor where it may
obstruct drivers view or obstruct an air
bag device.
Do not attempt to service this product on
your own. If the system has any problem,
disconnect the power and contact
customer service.
Dropping the unit may cause possible
mechanical failure.
If you have any questions about this product,
please contact our Customer Service:
Rear View Safety, Inc.
1680 Atlantic Ave #301
Brooklyn NY 11213
800-764-1028
IN NO EVENT SHALL SELLER OR
MANUFACTURER BE LIABLE FOR
ANY DIRECT OR CONSEQUENTIAL
DAMAGES OF ANY NATURE, OR
LOSSES OR EXPENSES RESULTING
FROM ANY DEFECTIVE PRODUCT
OR THE USE OF ANY PRODUCT.

5
before you begin
installation
Step 1 Choose the monitor and camera locations.
Step 2 Install all cables in vehicle, when necessary a 0.8 (20mm) hole should be drilled
for passing camera cable through vehicles walls. Install split grommets where applicable
Step 3 Once all cables and wiring have been properly placed routed, perform a system
function test by temporarily connecting the system. If the system seems to not be operating
properly see troubleshooting
Before drilling please check that no cable or wiring is on the other side of the wall.
Please clamp all wires securely to reduce the possibility of them being damaged
while vehicle is in use. Keep all cables away from hot or moving parts and electrical
noisy components.
We recommend doing a benchmark test before installation to insure that all
components are working properly.

6
installation diagram
DC12V(RED)
Ground (black)
Port #3 (blue)
Port #2 (white)
Port #1 (yellow)
Power Cable

7
Camera
1. Attach camera bracket close to rear marker lights, centered on vehicle.
2. Attach camera to bracket using screws provided and adjust the angle.
Cable
1. Be sure to position the cable properly. The aviation camera cable uses aircraft grade
connectors which means the camera cable can be exposed to all weather elements, do not
run the cable over sharp edges, do not kink the cable and keep away from HOT and rotating
parts.
2. Fasten all cable and secure all excess cable.
Monitor
1. To Attach the Pedestal mount to the dashboard or to the headliner using self-tapping
screws and/or adhesive pad.
2. Attach monitor to mount, and adjust mounting angle to allow
optimum driver viewing comfort.
(see figure 1.1 on page 8)
Note: THE FOLLOWING INSTRUCTIONS ARE FOR TYPICAL REAR-VIEW APPLICATION.
installation
instructions

8

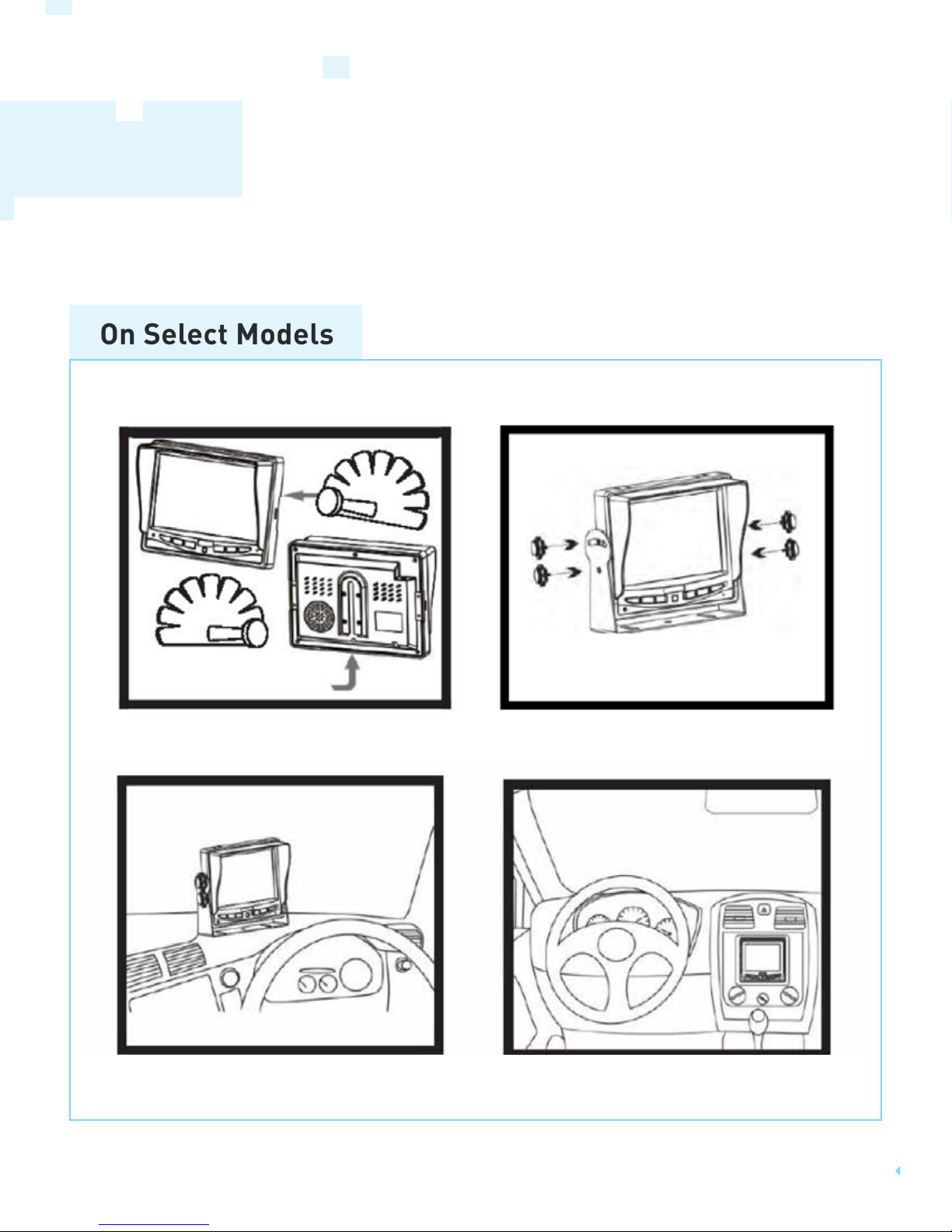

installing of
the
monitor
On Select Models
Connection of U Bracket Connection of Flushmount Bracket
Figure 1.1 Figure 1 .2
Figure 1.3 Figure 1.4

9
Note: IF CONNECTING POWER DIRECTLY
TO BATTERY, THE CAMERA IS ALWAYS
ON AND THEREFOR CAN DRAIN BATTERY,
THEREFORE ITS RECOMMENDED TO
CONNECT POWER TO AN IGNITION
SWITCHED ACCESSORY POWER SOURCE.
When installing a ONE (1) camera setup, connect
camera extension cable from the rear view camera
to port # labeled “backup” (most systems port #3)
Connect red 12V+ wire to ignition power source
and black wire 12V- to chassis ground. Do not use
white and yellow wires.
The blue wire is the REVERSE trigger wire. In
typical rear-view installations, connecting this
wire to the vehicle’s backup light circuit will
activate the rear-view image whenever the
vehicle shifts into reverse.
Before drilling, be sure no cable or wire is on
the other side.
Feed as much cable as possible into vehicle
and clamp securely. This reduces the possibility
of cable being hooked or snagged.
Camera: Drill a 20mm (0.8in) diameter hole into
vehicle body near the camera and bracket. Insert
camera cable into vehicle (be careful not to kink
cable) and t grommet into hole. Apply sealant
around grommet to increase resistance to water
penetration. Connect camera to the camera
extension cable which runs inside the vehicle.
The camera system can be wired to be powered
“ON” the entire time the vehicle is activated
and this is typical in RV and some Commercial
applications.
The camera and monitor can always be
activated by manually pushing the power button
on monitor this is in addition to utilizing the
positive triggers.
wiring camera &
monitor

10
Audio works on two ports of multiplexer and
positive triggers must be triggered for audio to
operate. #3 Port labeled “backup” (blue trigger)
#2 port labeled “DVD” (white Trigger)
When installing a TWO (2) camera setup, use ports
#3 and #2 and use positive triggers Blue and White
installation
There is a built in voltage regulator for our systems
which can handle 12-24 volts real consumption is
10 to 30 Volts
When installing all THREE (3) cameras, use all
three
ports and connect all positive triggers to
appropriate connections.
To automatically have camera and monitor
turn ON when vehicle activates, simply twist
BLUE positive trigger 12V+ to Red Power line
12V+ and wire to ignition power which can be
an accessory switch/fuse line and black wire
12V- to chasis ground.
Infra-red technology built into camera IR’s
are activated automatically according to the
lighting conditions
When using the postive trigger functions (blue,
yellow and white wires) each trigger function
needs to work on a seperate 12V+ source i.e.
the Yellow and White wires can be wired to a
turn signal circuit etc.
Grid lines function can be turned on/off by
pushing menu 8 times and than select ON/OFF

11
camera diagram
In some models, to remove gridlines from camera, cut green wire

12

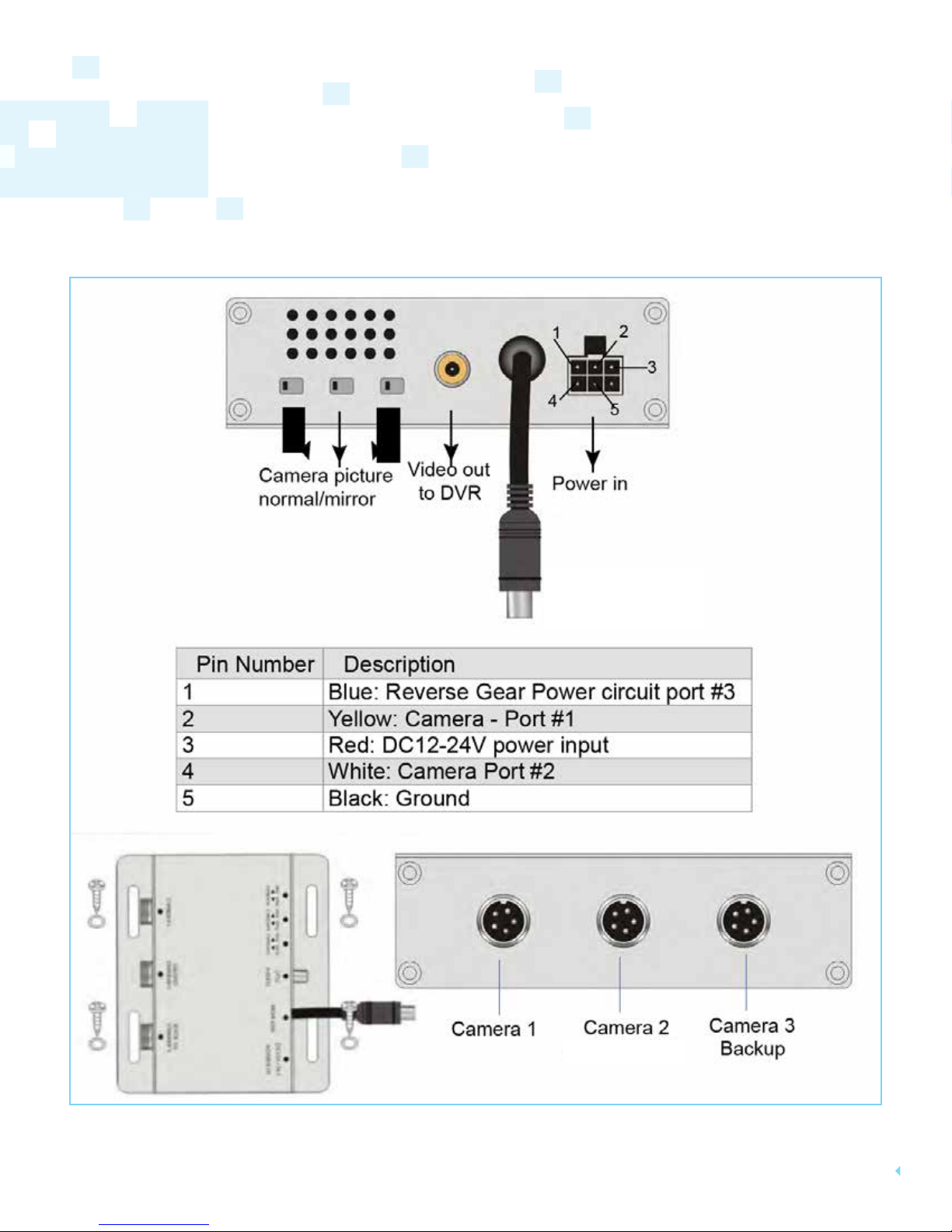

multiplexer
or DVD

13
positioning

14

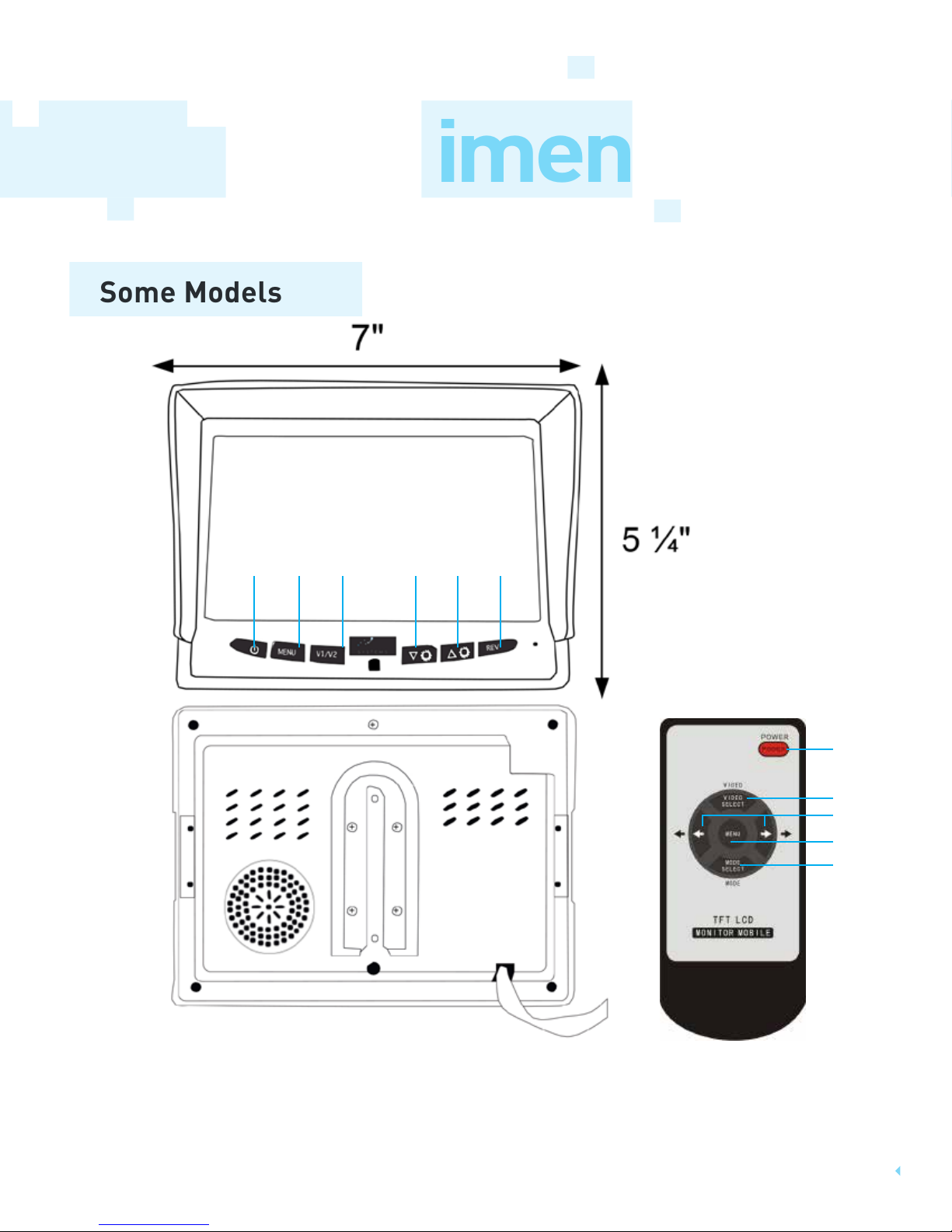

monitor dimensions
Some Models
power
power
video select
down/up
menu
mirror/
normal
menu channel
selection
with sun shade
down up
mirror/
normal

15
camera dimensions

16
Camera
Picture Elements
Gamma Correction
Image Sensor
Lens
View Angle
Sync System
Infra-red distance
Usable Illumination
Power Source
S/N Ratio
Electronic Iris
Video Output
IR Switch Control
Impact / Shock Rating
Operating Temperature
Storage Temperature
Waterproof Rating
camera specs.
1/4 Sharp® Color CCD
250,000 pixels
r=0.45 to 1.0
480TV lines
2.1mm
130°
Internal Synchronization
50 Feet (18 Infrared)
0 Lux (IR On)
DC 12V-24V (+/- 10%)
More than 48dB
1/50, 160-1/100,000sec
1Vp.p 75ohm
CDS Automatic Control
20G Vibration / 100G Shock
-30°C - 70°C / RH 95% Max
-30°C - 70°C / RH 95% Max
IP68K

17
TFT LCD Digital Monitor
Screen Size
Dot Resolution
Display Format
Display Brightness
Viewing Angle
Video Input
Video Source
Power Supply
Power Consumption
Operating Temperature
Video System
Overall Dimensions
Weight
Impact Rating
DOT PITCH
Sync System
Monitor Weight
monitor specs.
7”
800 X 3 (RGB) X480
16:9 / 500:1
400cd/m²
U:50/D:60 L/R:70
3 channel
1Vp-p, 75Ω
DC 12V-24V(+/-10%)
5W
30°C ~ +80° C
Auto NTSC/PAL
7” (L) x 5” (H) x 1” (D)
400G
5G
0.192 ( H)X 0.1805 (V )
Internal
520g

18
splitting & installing
the embedded monitor
Installing sun shield: put shade cover on the display. Installing
back cover: Put the monitor with shade cover in the back cover
(only for embedded monitor)
Installing
Splitting Splitting back cover: hold monitor with two hands, and detach by
ngers as indicated by the arrow
(only for embedded monitor, see below)
Splitting sun shield: Take the monitor on the left hand detach by
right hand as indicated by the white arrow (see below )
Sun Shield
Monitor
Monitor
Sun
Shield

19
troublshooting
Do a hard reset, unplug all cables and power
cables from multiplexer (silver box) leave out for
1 minute and then re-connect them.
Check to ensure that the connection to the
camera is tight.
Monitor displays Blue screen & displays No Signal
Check fuse
Check 12v+ to monitor
Monitor will not power up (no backlight on power button)
Check ground connection
Verify camera is on correct camera input
Verify cable is connected to monitor
Verify camera is connected to cable
Connect known working camera and cable
to monitor.
No image on screen
Verify Blue trigger is receiving power.
If image appears, connect cable to existing camera
If image remains, replace original cable
If image disappears, replace original camera
Verify camera cable is plugged into port labeled
“Backup Camera”.
Verify that the blue positive trigger on power harness is
put to power 12v+
If the problem still persists, verify that alternate
ports work. If alternate ports do not work,
remove Blue Trigger wire from 12V+ and select
alternate channels.
Verify selected camera has audio
Verify volume setting
Monitor will not power up (no backlight on power button)
Conrm that the Blue audio trigger is connected to 12v+

20
1 Year Warranty
This warranty is void if: defects in materials or workmanship or damages result from repairs or alterations which have
been made or attempted by others or the unauthorized use of nonconforming parts; the damage is due to normal ware
and tear, this damage is due to abuse, improper maintenance, neglect or accident: or the damage is due to use of the
Rear View Safety, Inc. after partial failure or use with improper accessories.
Rear View Safety, Inc. warrants this product against material defects for a period of
one year from date of purchase. We reserve the right to repair or replace any such
defective unit at our sole discretion. Rear View Safety, Inc. is not responsible for a defect
in the system as a result of misuse, improper installation, damage or mis-handling of
the electronic components. Rear View Safety, Inc. is not responsible for consequential
damages of any kind.
WARRANTY PERFORMANCE
DURING THE ABOVE WARRANTY PERIOD, SHOULD YOUR REAR VIEW SAFETY, INC. PRODUCT EXHIBIT A
DEFECT IN MATERIAL OR WORKMANSHIP, SUCH DEFECT WILL BE REPAIRED WHEN THE COMPLETE REAR
VIEW SAFETY, INC. PRODUCT IS RETURNED, POSTAGE PREPAID AND INSURED, TO REAR VIEW SAFETY, INC.
OTHER THAN THE POSTAGE AND INSURANCE REQUIREMENT, NO CHARGE WILL BE MADE FOR REPAIRS
COVERED BY THIS WARRANTY.
WARRANTY DISCLAIMERS
NO WARRANTY, ORAL OR WRITTEN, EXPRESSED OR IMPLIED, OTHER THE ABOVE WARRANTY IS MADE WITH
REGARD TO THIS REAR VIEW SAFETY, INC. REAR VIEW SAFETY, INC. DISCLAIMS ANY IMPLIED WARRANTY
OR MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE OR PURPOSE AND ALL OTHER WARRANTIES. IN
NO EVENT SHALL REAR VIEW SAFETY, INC. BE LIABLE FOR ANY INCIDENTAL, SPECIAL, CONSEQUENTIAL, OR
PUNITIVE DAMAGES OR FOR ANY COSTS, ATTORNEY FEES, EXPENSES, LOSSES OR DELAYS ALLEGED TO BE
AS A CONSEQUENCE OF ANY DAMAGE TO, FAILURE OF, OR DEFECT IN ANY PRODUCT INCLUDING, BUT NOT
LIMITED TO, ANY CLAIMS FOR LOSS OF PROFITS. IN SOME JURISDICTIONS, IT IS UNLAWFUL FOR A PERSON
TO DRIVE A MOTOR VEHICLE EQUIPPED WITH A TV VIEWER OR SCREEN LOCATED FORWARD OF THE BACK OF
THE DRIVER’S SEAT OR IN ANY LOCATION THAT IS VISIBLE, DIRECTLY OR INDIRECTLY, TO THE DRIVER WHILE
OPERATING THE VEHICLE.
