Jensen Vx6628 User manual

VX6628

6.2" Multimedia Receiver

DVD / NAV / SiriusXM Ready™ / Built-In Bluetooth /

iPhone® - iPod® / Pandora® / USB / AV In

Operation Manual

160

Watts Peak

40wx 4

“Made for iPod” and “Made for iPhone” means that an electronic accessory has

been designed to connect specically to iPod or iPhone, respectively, and has

been certied by the developers to meet Apple performance standards. Apple

is not responsible for the operation of this device or its compliance with safety

or regulatory standards. Please note that the use of this accessory with iPod or

iPhone may aect wireless performance.

Android is a trademark of Google Inc.

The Bluetooth® word mark and logos are registered trademarks owned by

Bluetooth SIG, Inc. and any use of such marks by the Dual Electronics Corporation

is under license. Other trademarks and trade names are those of their respective

owners.

microSD is a trademark or registered trademark of SD-3C, LLC in the United States,

other countries or both.

Pandora is a registered trademark of Pandora Media, Inc.

Sirius, XM and all related marks and logos are registered trademarks of Sirius XM

CONTENTS

FEATURES ��5

CONTROLS AND INDICATORS ��8

EXTERNAL DEVICES ��10

QUICK START GUIDE ��11

EQUALIZER CONTROL MENU ��.��.14

SYSTEM SETTINGS ��16

DISC OPERATION ��25

RADIO TUNER OPERATION ��37

USB OPERATION ��42

iPod®/iPhone® OPERATION ��47

AV-In1/AV-In2 OPERATION ��..��50

BLUETOOTH OPERATION ��51

REAR CAMERA OPERATION ��.��58

STEERING WHEEL CONTROLS (SWC) OPERATION ��.��59

PANDORA RADIO OPERATION ��.��60

SiriusXM® RADIO OPERATION ��.��64

WALLPAPER...........................��.��.��76

SPECIFICATIONS ��.��82

TROUBLESHOOTING ��.�� 77

BLUETOOTH CALL WHILE NAVIGATING..... ��..��...57

COMMON REPLACEMENT PARTS��.��84

FCC Statement

1. This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference

that may cause undesired operation.

2. Changes or modications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for

a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation.

This equipment generates,uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined

by turning the equipment o and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an

uncontrolled environment. This equipment should be installed and operated with

minimum distance of 20 centimeters between the radiator and your body.

Thank you for choosing an Jensen product. We hope you will find the instructions

in this owner’s manual clear and easy to follow. If you take a few minutes to look

through it, you’ll learn how to use all the features of your new VX6628 Multimedia

Receiver for maximum enjoyment. Please save this manual for future reference.

We recommend having your VX6628 Multimedia Receiver installed by a reputable

installation shop.

FEATURES

DVD

•Audio Equalizer

•Next Chapter and Previous Chapter

•Play/Pause

•Track Direct Entry

•Disc Menu

•Selection Repeat / Track Repeat

•Disc Audio

•Disc Language

•Picture Control

CD / MP3 / WMA

•CD-Text Compatible

•ID3 Tag Compatible

•Directory Search (MP3 / WMA Only)

•Audible Forward / Reverse Track Search (CD-DA Only)

•Random, Repeat and Intro

•Play, Pause, Stop, Next Track and Previous Track

AM-FM

•USA, China, Japan, Europe, Europe (LW) and Orient (OIRT)

•30 Station Presets (18 FM / 12 AM)

•Auto Stereo / Mono

•Local / Distance

•Auto Store (AS)

iPod®/iPhone®

•iPod®/ iPhone® via USB

•High Speed Direct Connect Interface to Access iPod® Playlists, Artists, Albums

and Songs.

•Power Management Charges iPod® while Connected

SiriusXM-Ready®

•Satellite Channel Name, Artist, Song, and Categories Displayed on Monitor

(Vehicle Tuner / Subscription Required and Sold Separately)

Chassis

•2.0 DIN (Import / ISO-DIN Mountable)

•Fixed Front Panel

•6.2” High Definition 800h x 480v WVGA TFT, LED Backlight

General

•Beep Tone Confirmation

•Built-In Bluetooth® providing Hands-Free operation for safety and convenience

and A2DP for streaming music from your smartphone or other Bluetooth®

device.

•One Composite Video Output for Additional Screens

•Front Panel 3.5mm AV Input

•Rear Chassis RCA AV Input

•Front Panel USB - Playback Music / Video Files via Portable Hard Drives / USB

Sticks, 1 Amp Charging

•10 Band EQ w/ Loudness Control

•4VRMS Front / Rear / Subwoofer RCA Line Output

•Rear Camera Input

•Rotary Encoder Audio Control

Rear Camera

•The VX6628 is “Camera Ready.” Before accessing any camera features, you must

purchase and install a rear video camera.

Navigation

•iGo Primo Next Gen w/ Text to Speech (TTS)

•US, Alaska, Hawaii, Puerto Rico, USVI Map Data (TomTom)

•Over 10 Million Points of Interest (POI)

•4GB microSD Card w/ Navigation Software

•Latest Map Guarantee (Must Be Redeemed within 30 Days of Initial

Activation)

WARNING

Never install this unit where operation and viewing could interfere with

safe driving conditions.

To reduce the risk of a traffic accident (except when using the rear view

video camera) do not view the video display while driving the vehicle. This

is a violation of federal / state / local laws in most states.

Never disassemble or adjust the unit. No user serviceable parts inside.

To prevent injury from electric shock or fire, never expose this unit to moisture

or water.

Never use irregular sized discs.

Using an improper fuse may cause damage to the unit and result in fire.

CONTROLS AND INDICATORS

AV INPUT

EJECT

MUTE

OPEN

Controls and Indicators

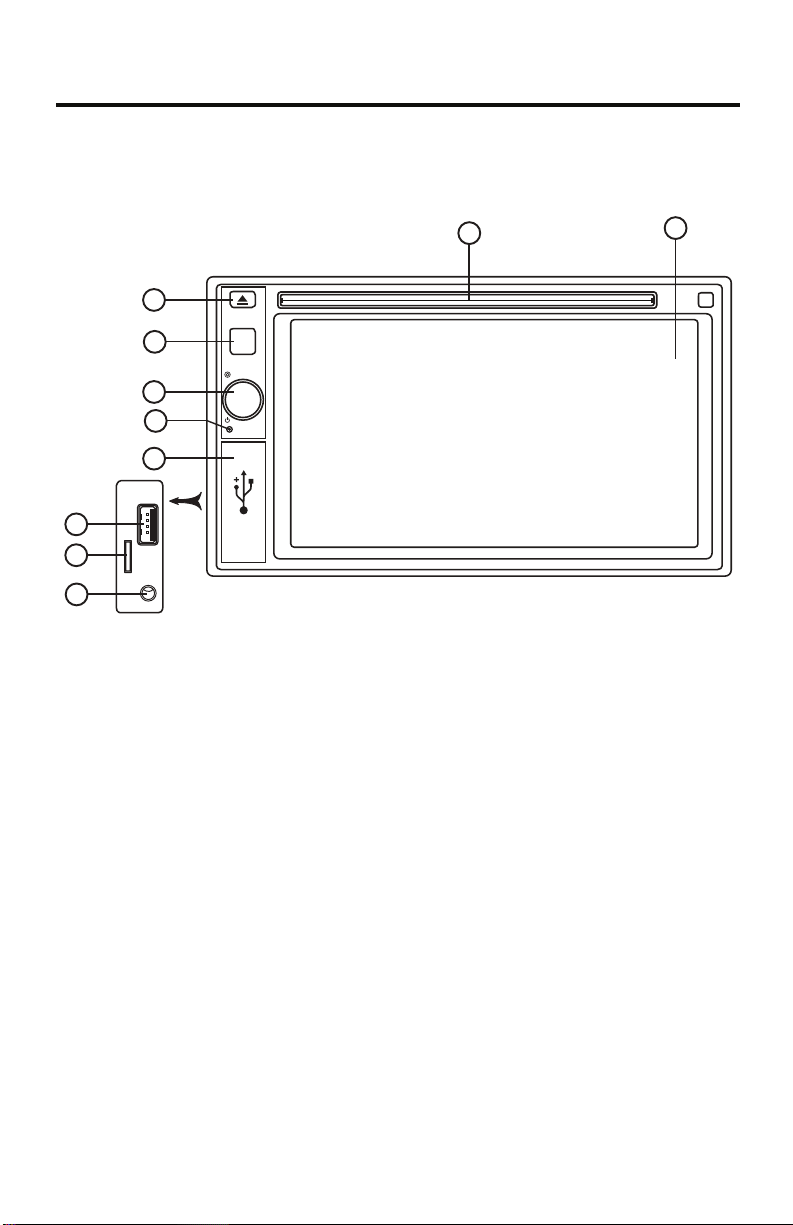

1. Disc Slot:

Accepts DVD/CD/MP3 discs. If the unit is turned on, playback begins when a

disc is inserted.

2. LCD Screen and Touch Screen:

Touch icons on this screen to access menus or control functions.

3.3�5mm AV IN Port:

This connector accepts a 3.5 mm connector through which signals from

various audio/video devices can be sent to the unit.

4.microSD Card Slot (For navigation use only):

Contains microSD card with navigation software. Do not remove SD card.

Do not delete / modify SD card folder structure.

5.USB Port:

Connect an Apple device (iPhone/iPod). For playback of audio/video files

from USB memory drives or portable hard drives. 1 Amp charging support.

6.Interface Cover:

Covers the AV IN connector, microSD card and USB slot.

7.Reset Button:

Press this button to reset the system settings (except password and parental

lock settings) and to correct a system halt or other illegal operation. Use the

tip of a pen to press the reset button.

8.Power On/Off ( ) / Rotary Control ( ) / Mute Button: Press to turn the

unit ON. Press and hold to turn the unit OFF.

Rotate the control to adjust the volume from 0 to 50.

Press the control momentarily to mute the audio. Press the control again to

restore the audio.

9.Menu Button:

Press this button to access the Main Source Menu.

10.Eject ( ) Button:

Press this button to eject a DVD/CD/MP3 disc. Disc play is stopped, the disc is

ejected and the unit will change to radio operation. If the disc is not removed

from the unit and the button is pressed again, the disc will be re-loaded. If the

disc is not removed from the disc slot within 10 seconds of being ejected, it

will be automatically reloaded to prevent it from being accidentally damaged.

EXTERNAL DEVICES

Connecting External Devices to AV 1 or AV 2

External devices, which include a composite video output and left / right audio

outputs can be connected to this unit using its front 3.5mm port (AV In 1) or the

rear RCA connectors (AV In 2).

You cannot directly control external devices connected to the AV Input using the

front panel controls.

AV In 1

AV In1 is used for playback of audio/video from an external device connected to

the unit through a 3.5mm port. The unit can increase or decrease the volume of

the connected device; all other controls are done on the connected device.

Select “AV In 1” to access the connected device.

AV In 2

AV In 2 is used for playback of audio/video from an external device connected

through RCA connectors located on the back of the unit (see the VX6628

Installation Guide). The unit can increase or decrease the volume of the

connected device; all other controls are done on the connected device. Select

“AV In 2” to access the connected device.

AV INPUT

Bluetooth

OPEN

3.5mm AV Cable (not included)

V ideo

Left Audio

Right Audio

Ground

USB Cable (not included)

Connecting External Devices

Front Panel

2. Touch the desired source icon on one of the two main menu screens.

Screen 1 of 2: Disc, Radio, USB, AV IN1, Settings, Bluetooth (BT) or Camera.

Touch Next at the bottom of the screen to access Screen 2 of 2: AV IN2,

Pandora or SiriusXM (SXM).

Source Menu Page 1 Source Menu Page 2

Main Menu Screen

QUICK START GUIDE

Turning the Unit ON or OFF

Press the front panel rotary control to turn the unit ON. Press and hold the rotary

control > 1 second to turn the unit OFF.

Selecting an Audio/Video Source, Phone, Backup

Camera or Pandora

To select a source:

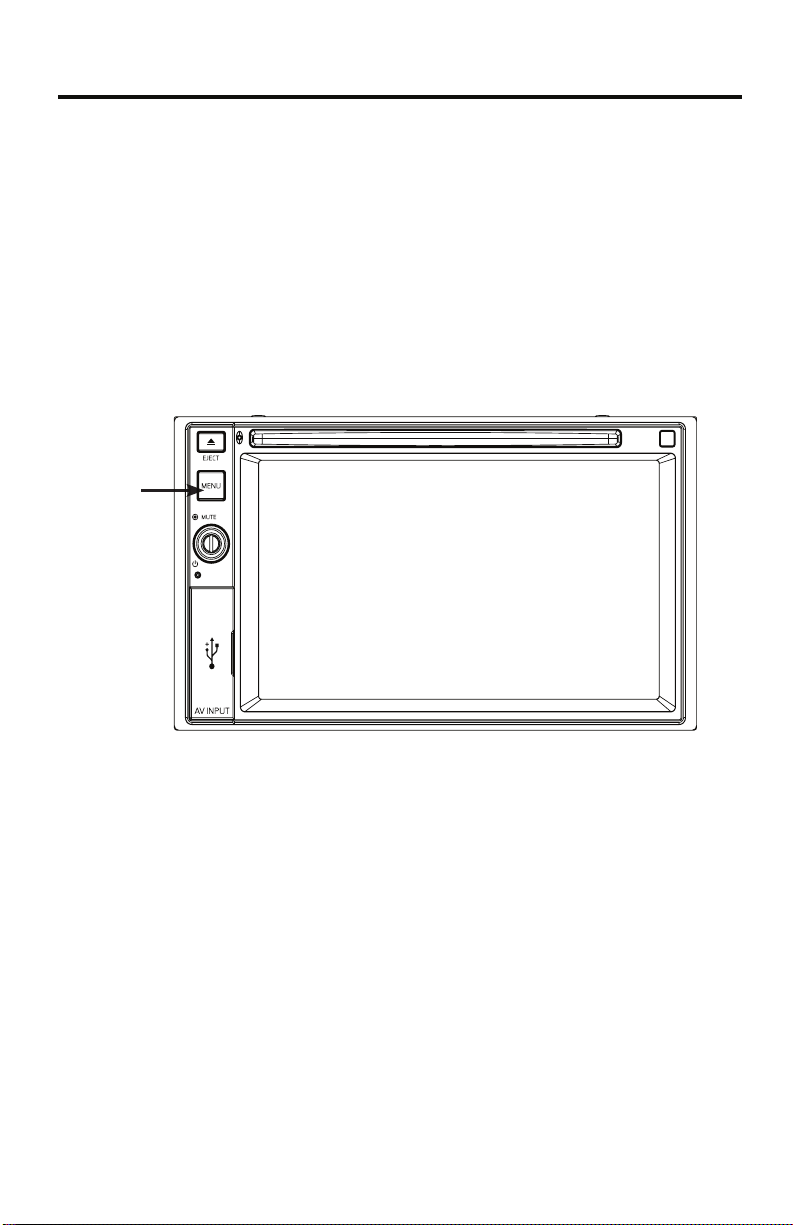

1. Press the front panel MENU button or touch the SRC icon to view the Main

Source Menu

Button

System Settings Adjustment

To access and adjust system settings:

1. Touch the Settings ( ) icon on the Main Menu screen to enter the SETTINGS

MENU. Sub-menus where adjustments can be made will be highlighted.

Volume Adjustment

To increase or decrease the volume level, rotate the rotary control. The unit’s front

panel screen will display the volume level for 2 seconds. The volume level ranges

from 0 to 50.

Programmable Turn-On Volume

To set the Turn-On Volume, rotate the rotary control (Volume control) to the

desired volume level, then press and hold the rotary control while the volume bar

is shown on the screen.

Audible Beep Conrmation

An audible beep tone confirms each function selection. The beep tone can be

didisabled through the Setup Menu.

Muting the Audio

Press the front panel rotary control ( ) to mute the audio from the unit. Mute

icon is displayed on the LCD screen. Press the front panel rotary control again to

restore the audio volume to its previous level. Adjusting the volume cancels the

mute function.

Equalizer Controls

Equalizer (EQ): Adjustments can be made after entering one of the audio/video

sources (Disc, Radio, USB, AV IN 1, or AV IN 2) Touch the Equalizer (EQ) icon to

view the equalizer control screen to make adjustments to the audio Balance and

Fader levels. Touch the return icon to return to the current source.

Playing a Disc

To begin playback of an Audio/Video Disc:

1. Press the front panel Power On/Off ( ) / rotary control ( ) /Mute button

to turn the unit ON.

2. Insert a disc with the label side facing up. Playback will begin automatically.

To eject a disc:

1. Press the front panel Eject ( ) button.

Resetting the System

Soft Reset - To correct a system halt or other illegal operation, use the tip of a pen

to press and release the reset button located just below the front panel interface

cover.

Reset

System Reset Button

After a system reset, the unit restores all factory default settings.

Note: If the unit is reset while a DVD is playing, the unit will return to Main Menu

once the reset is complete.

Parking Brake Inhibit

When the pink “Parking” wire is connected to the vehicle parking brake circuit, the

front TFT monitor will display video when the parking brake is engaged.

EQUALIZER CONTROL MENU

Adjusting Equalizer Controls

The Equalizer adjustment screen allows the user to easily adjust the audio system

to meet the acoustical characteristics of the vehicle. The acoustical characteristics

vary depending on the type of vehicle and measurements.

The Balance/Fader levels and Loudness On/Off option of a selected audio/video

source (Disc, Radio, USB/iPod®, AV IN1, AV IN2 or SXM) is also adjusted through

the Equalizer adjustment screen.

Equalizer (EQ) (10 Band)

Equalizer Adjustment Screen

2. Select a desired frequency range to be adjusted (31.5, 62.5, 125, 250, 500, 1K,

2K, 4K, 8K or 16K).

3. Touch and move the slide bar Up / Down to adjust the amount of boost/cut

from +12/-12dB.

Reset

Touch the Reset icon to reset the 10 equalizer band frequencies to the mid point.

Loudness

Touch the Loudness icon to turn the loudness option On / Off. The loudness

option automatically alters the frequency response curve of the music to make it

more natural when played at a lower volume level.

Exiting the Equalizer

To exit the Equalizer menu touch the SRC icon to return to the current source.

Fader-Balance

Balance - Touch the FAD-BAL icon on the left side of the equalizer screen to

display the balance/fader screen.

Fade-Balance Adjustment Screen

Balance - This feature is used to balance the audio output levels between the

left and right side of the vehicle. Touch the  or  icons to change the balance

control settings -20 (Left) to +20 (Right). The setting can also be changed by

touching screen within the grid to move the sphere.

Fader - This feature is used to fade the audio output levels between the front and

rear of the vehicle. Touch the  or  icons to change the fade control settings -20

(Rear) to +20 (Front). The setting can also be changed by touching screen within

the grid to move the sphere.

Sub (Subwoofer) - This feature is used to reduce or increase the subwoofer sound

level. Touch the slide bar  or  icons to adjust the settings.

Exiting the Balance-Fader

To exit the balance-fader touch the SRC icon on the top left corner of the screen.

SYSTEM SETTINGS

To access System Settings, touch the icon on the Main Menu screen. There are

seven System Settings Sub-menus (General, Audio, Time, Language, Bluetooth,

DVD or Volume) that are used to adjust the performance of each option of the

VX6628. The Version Sub Menu is for information only. Touch a desired Sub

Menu and the Sub Menu will appear highlighted. The features available for

adjustment will appear on the screen.

System Settings Screens

Adjusting a Sub Menu Feature

1. Touch the Sub Menu feature to be adjusted.

2. Touch the por qicon to view the previous or next feature page, if

applicable. An options list appears on the right.

3. Touch the desired feature option once to make selection then touch again to

confirm the selection.

General Sub Menu Features - Radio Region/Frequency Spacing

USA - FM - 200kHz / AM - 10kHz

China - FM - 50kHz / AM - 9kHz

Japan - FM - 100kHz / AM - 9kHz

Europe - FM - 50kHz / AM - 9kHz

Europe (LW) - FM - 50kHz / AM - 9kHz / LW - 30kHz

OIRT - FM - 50kHz / AM - 9kHz / OIRT - 30kHz

Radio Lo/Dx - Touch the Distance or Local to increase or decrease radio tuning

sensitivity to receive local or distant stations.

TFT Standby - Touch OFF, 10s or 20s to set the unit’s front panel TFT LCD screen

to stay ON continuously or to turn off the screen after 10 or 20 seconds.

Display Adjust - Touch Night, Dark, Normal or Bright to set the unit’s front panel

TFT LCD screen to be adjusted for day and night conditions.

Beep - Touch On / Off to turn the confirmation beep Onor Off.

Wallpaper - Touch to select the desired wallpaper selection. Touch again to

confirm and set the wallpaper.

Calibration- The touch screen calibration adjustment is used to set the

parameters of the touch screen to ensure that when the screen is touched, it

corresponds to the feature desired.

Note: Never use a pen or sharp object to calibrate the touch screen as

this will damage the panel.

1. Touch the calibrate icon and the first screen will appear with instructions.

2. Follow the instructions on the screen touching and momentarily holding

finger or a stylus to the center of the target for 2 seconds. Repeat as the target

moves to each corner of the screen and finally to the center.

Calibration Screen

3. The second screen will appear:

Calibration Screen Confirm tion

4. If the screen is touched, the new calibration parameters will be accepted. If

the screen is not touched within thirty seconds, the new parameters will be

disregarded.

Illumination - Touch to access the Illumination color pallete. Touch a color to set

the front panel display to the selected color.

UI Color - Touch to select the user interface color. Touch again to confirm and set

the color.

Demo - Touch On / Off to turn the Demonstration Mode Onor Off. The factory

default setting is On. This mode is useful when the unit is mounted in a display

for sales opportunities.

Audio Sub Menu Features

The Audio Sub Menu is used to turn the Subwoofer output ON or OFF and

to select a Subwoofer crossover frequency.

Audio Sub Menu Screen

Subwoofer - Touch ON or OFF to turn the subwoofer output ON or OFF.

Subwoofer Crossover - Touch a crossover frequency (80Hz, 120Hz or 160Hz) to

set a cut-off frequency for the subwoofer’s low-pass filter (LPF).

Time Sub Menu Features

The clock appears in the top right corner of the screen during certain operations.

Note: The AM/PM indication will change as you continue to adjust the hour

past 12.

Time Sub Menu Screen

Date - Touch the Date icon and use the por qicons to set the day, month, and

year. After setting the date, touch Save. The date will appear to the right of the

Date option.

Clock Mode - Touch 12Hr to set the clock display to 12 hour time intervals using

AM and PM. Touch 24Hr to set the clock display to a 24 hour time interval (or

military time).

Time - Touch the Time icon and use the por qicons to set the hour, minute, and

either AM or PM. After setting the time, touch Save. The time will appear to the

right of the Date option.

Date Settings Time Settings

Date and Time Setting Screens

Language Sub Menu Features

If a DVD supports more than one Subtitle or Audio language, all the languages are

available for selection during playback. If the selected language is not supported

by the DVD, then the default language is used.

Language Sub-Menu Screen

On Screen Display (OSD) - Touch English, Spanish or French to select the

language for the OSD Display.

DVD Audio - If available, this feature allows the user to select one of the

languages contained on the disc for the DVD audio.

DVD Subtitle - If available, this feature allows the user to select one of the

languages contained on the disc for the DVD subtitles.

Disc Menu - Allows the user to select one of the languages contained on the disc

menu�

Other manuals for VX6628

Table of contents

Jensen VX6628 User manual

Popular Car Video System manuals by other brands
