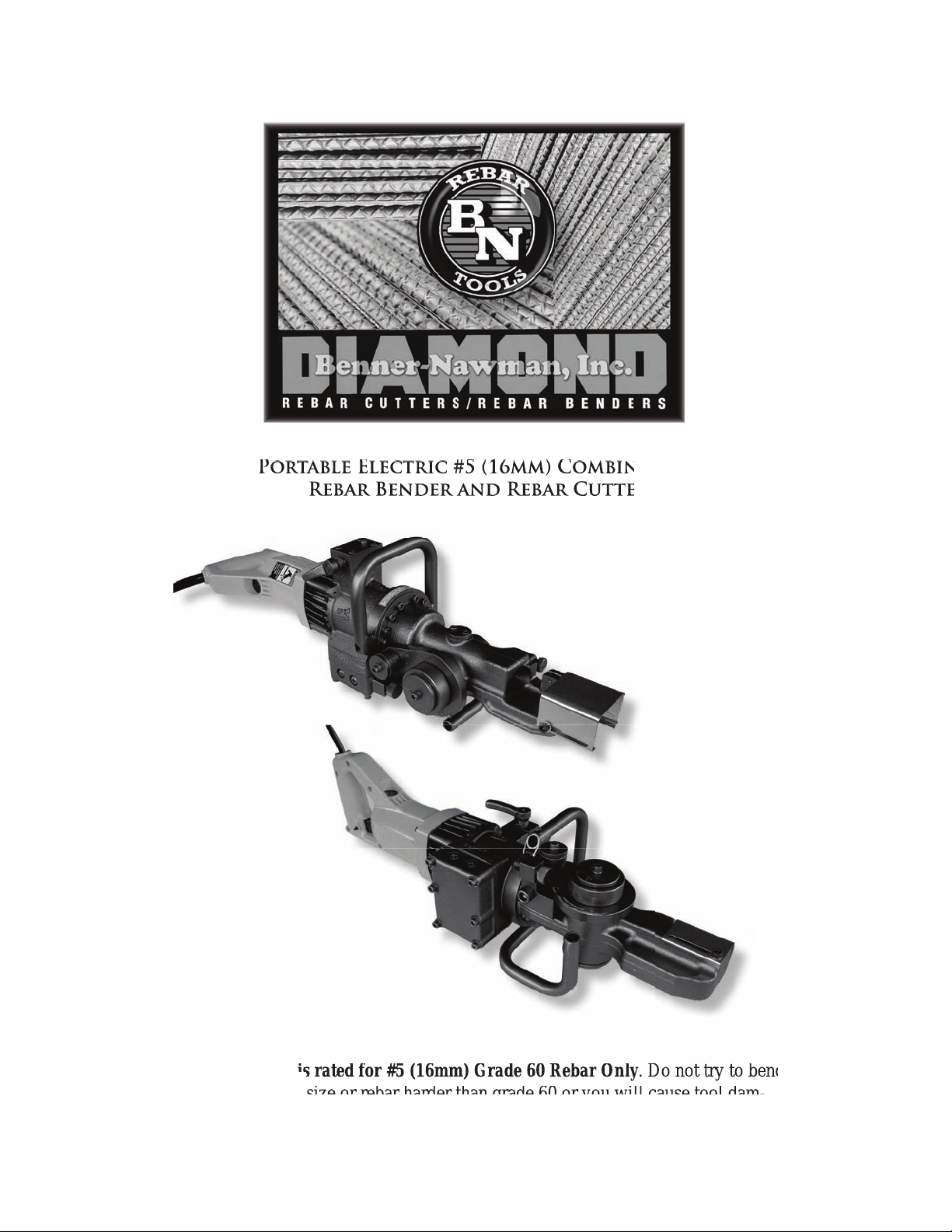

Rebar Tools Diamond DBC-16H User manual

DBC-16H
Portable Electric #5 (16mm) Combination
Rebar Bender and Rebar Cutter
Portable Electric #5 (16mm) Combination
Rebar Bender and Rebar Cutter
Please note:
This tool is rated for #5 (16mm) Grade 60 Rebar Only
This tool is rated for #5 (16mm) Grade 60 Rebar Only
This tool is rated for #5 (16mm) Grade 60 Rebar Only
This tool is rated for #5 (16mm) Grade 60 Rebar Only
. Do not try to bend
. Do not try to bend
. Do not try to bend
or cut material larger in size or rebar harder than grade 60 or you will cause tool dam
or cut material larger in size or rebar harder than grade 60 or you will cause tool dam
-
age or machine failure.
(DECEMBER 2007)

2

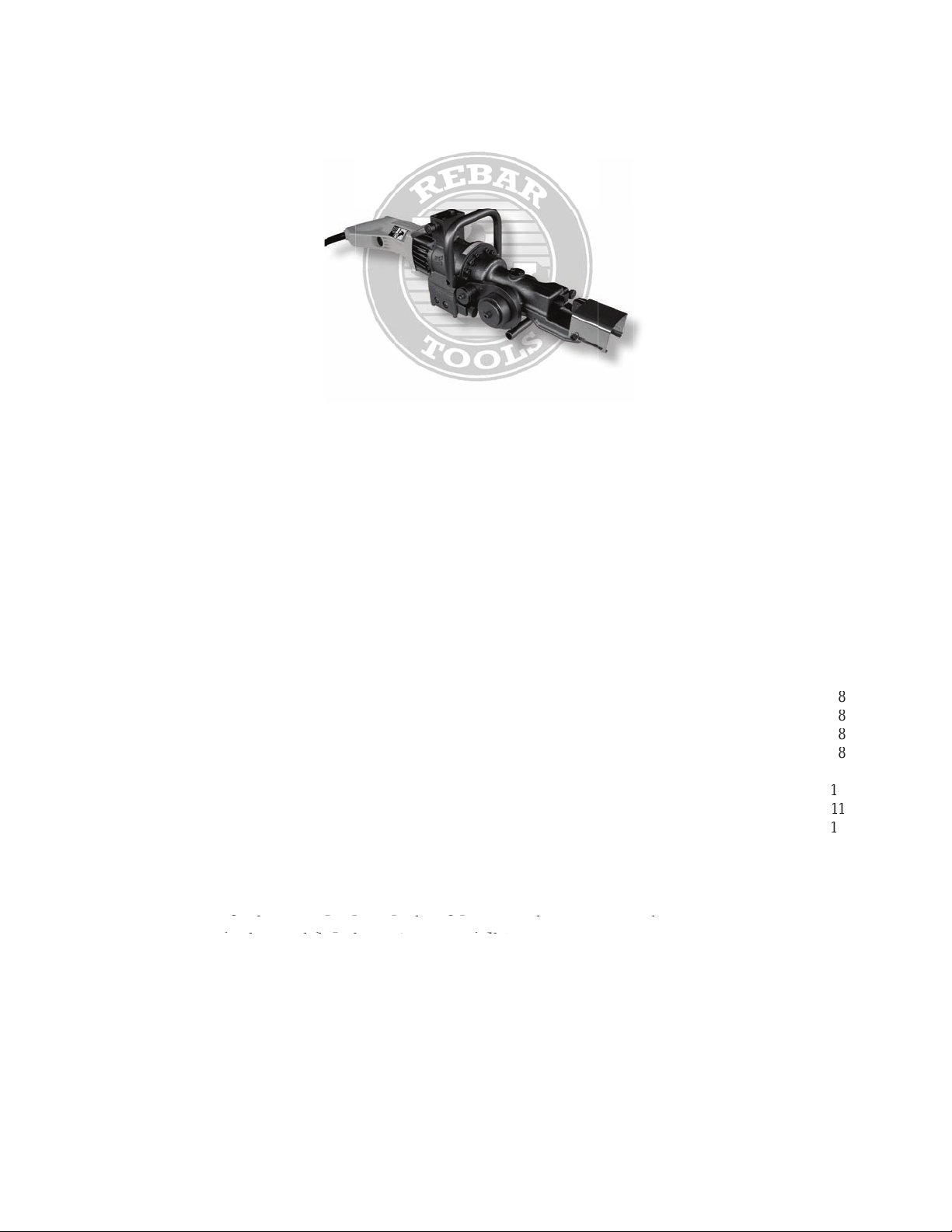

IMPORTANT: READ THESE INSTRUCTIONS
CAREFULLY BEFORE ATTEMPTING
TO USE YOUR TOOL!
Ignorance of proper operating procedures can lead to accidents. If
you have any questions about any procedures, contact the nearest
Ignorance of proper operating procedures can lead to accidents. If
you have any questions about any procedures, contact the nearest
Ignorance of proper operating procedures can lead to accidents. If
authorized distributor/agent or call Benner-Nawman, Inc.
you have any questions about any procedures, contact the nearest
authorized distributor/agent or call Benner-Nawman, Inc.
you have any questions about any procedures, contact the nearest
Benner-Nawman, Inc.
3450 Sabin Brown Road
Wickenburg, Arizona 85390
[phone] or [phone]
Fax: [phone]
www.bnrebartools.com
GENERAL SAFETY RULES
3
WORK AREA SAFETY
3
ELECTRICAL SAFETY
3
PERSONAL SAFETY
3
POWER TOOL USE AND CARE
3
SERVICE
3
BASIC BENDING INSTRUCTIONS
4
CUTTING REBAR
4
BASIC CUTTING INSTRUCTIONS
4
BENDING REBAR
4
BENDER ROLLER CHART
4
BENDING/ CUTTING
5
REBAR IN-PLACE
5
SAFETY PRECAUTIONSAND OPERATING TIPS
5
GENERAL SAFETY
5
CUTTING SHORT PIECES
5
DESIGNATED MATERIALS
5
USE EYE PROTECTION
5
PROVIDE SAFETY BARRIERS
5
EXERCISE PROPER CONTROL
5
GUARD AGAINST ELECTRIC SHOCK
5
UNPLUG TOOL
5
INSPECTION
6
BLEEDING INSTRUCTIONS
6
GENERAL OPERATING INSTRUCTIONS
6
PRE-USE CHECKS
6
WARM-UP
6
STOPPER BOLTADJUSTMENT
7
CUTTING
7
BENDING
7
POINTS OF ATTENTION
7
GENERAL MAINTENENCE
7
CUTTER BLOCK MAINTENANCE
7
CLEANING
7
OIL-LEVEL CHECK
7
OIL-CHANGE
8
BOLT TIGHTNESS
8
CARBON BRUSHES
8
OVERHAUL
8
TOOL SPECIFICATIONS
9

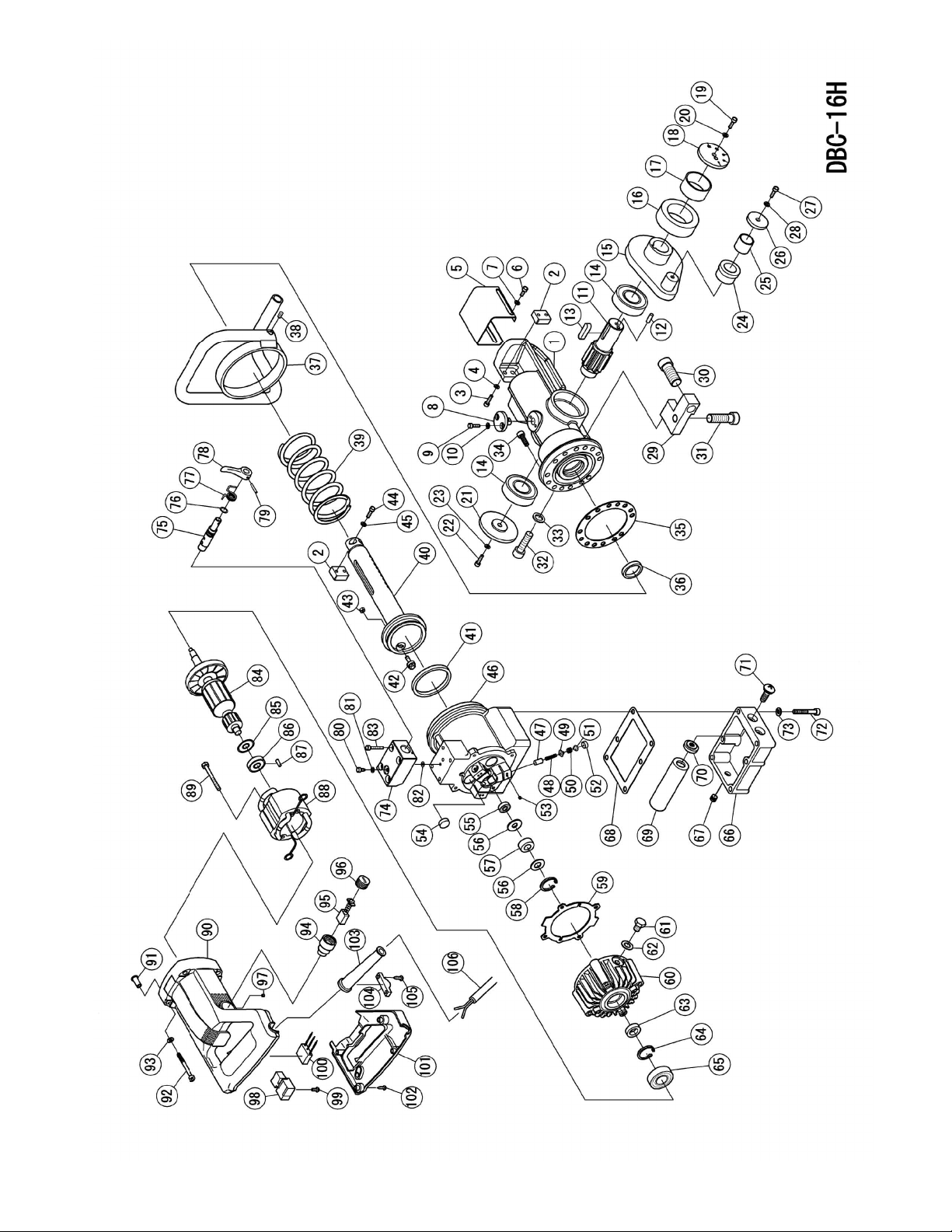

PARTS DRAWING
1
0
PARTS LIST
1
1
MANUFACTURER REPRESENTATIVES
1
2

3
GENERAL SAFETY RULES
WARNING: Read all instructions. Failure to follow all instruc
-
tions listed below may result in electric shock, fire and/or serious
injury. e term “power tool” in all of the warnings listed below
refers to your main-operated (corded) power tool or battery-op
-
erated (cordless) power tool.
SAVE THESE INSTRUCTIONS
WORK AREA SAFETY
• Keep work area clean and well lit. Cluttered or dark areas in
-
vite accidents.
• Do not operate power tools in explosive atmospheres, such as
in the presence of flammable liquids, gases or dust. Power tools
create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating a power
tool. Distractions can cause you to lose control.
ELECTRICAL SAFETY
• Power tool plugs must match the outlet. Never modify the plug
in any way. Do not use any adapter plugs with earthed (ground
-
ed) power tools. Unmodified plugs and matching outlets will re
-
duce risk of electric shock.
• Avoid body contact with earthed or grounded surfaces such as
pipes, radiators, ranges and refrigerators. ere is an increased
risk of electric shock if your body is earthed or grounded.
• Do not expose power tools to rain or wet conditions. Water
entering a power tool will increase the risk of electric shock.
• Do not abuse the cord. Never use the cord for carrying, pull
-
ing or unplugging the power tool. Keep cord away from heat,
oil sharp edges or moving parts. Damaged or entangled cords
increase the risk of electric shock.
• When operating a power tool outdoors, use an extension cord
suitable to outdoor use. Use a cord suitable for outdoor use re
-
duces the risk of electric shock.
PERSONAL SAFETY
• Stay alert, watch what you are doing and use common sense
when operating a power tool. Do not use a power tool while you
are tired or under the influence of drugs, alcohol or medication.
A moment of inattention while operating power tools may result
in serious personal injury.
• Use safety equipment. Always wear eye protection. Safety
equipment such as dust mask, non-skid safety shoes, hard hat, or
hearing protection used for appropriate conditions will reduce
personal injuries.
• Avoid accidental starting. Ensure the switch is in the o-po
-
sition before plugging in. Carrying power tools with your nger
on the switch or plugging in power tools that have the switch on
invites accidents.
• Remove any adjusting key or wrench before turning the power
tool on. A wrench or a key left attached to a rotating part of the
power tool may result in personal injury.
• Do not overreach. Keep proper footing and balance at all times.
is enables better control of the power tool in unexpected situ
-
ations.
• Dress properly. Do not wear loose clothing or jewelry. Keep
your hair, clothing and gloves away from moving parts. Loose
clothes, jewelry or long hair can be caught in moving parts.
• If devices are provided for the connection of dust extraction
and collection facilities, ensure these are connected and properly
used. Use of these devices can reduce dust-related hazards.
POWER TOOL USE AND CARE
• Do not force the power tool. Use the correct power tool for
your application. e correct power tool will do the job better
and safer at the rate for which it was designed.
• Do not use the power tool if the switch does not turn it on and
o. Any power tool that cannot be controlled with the switch is
dangerous and must be repaired.
• Disconnect the plug from the power source and/or the battery
pack from the power tool before making any adjustments, chang
-
ing accessories, or storing power tools. Such preventative safety
measures reduce the risk of starting the power tool accidentally.
• Store idle power tools out of the reach of children and do not
allow persons unfamiliar with the power tools or these instruc
-
tions to operate the power tool. Power tools are dangerous in the
hands of untrained users.
• Maintain power tools. Check for misalignment or binding or
moving parts, breakage of parts and any other condition that may
aect the power tools operation. If damaged, have the power
tool repaired before use. Many accidents are caused by poorly
maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained cut
-
ting tools with sharp cutting edges are less likely to bind and are
easier to control.
• Use the power tool, accessories and tool bits etc., in accor
-
dance with these instructions and in the manner intended for
the particular type of power tool, taking into account the work
-
ing conditions and the work to be performed. Use of the power
tool for operations dierent from those intended could result in
a hazardous situation.
SERVICE
• Have your power tool serviced by a qualied repair person us
-
ing only identical replacement parts. is will ensure that the
safety of the power tool is maintained. For service questions and
information please call [phone] or [phone].
email us:
[e-mail]

4
BASIC BENDING INSTRUCTIONS
Important: Always read, understand and obey the safety in
-
structions included with your new DBC-16H #5 Combination
Rebar Cutter and Bender before operating this tool or any
other power tool.
CUTTING REBAR
(maximum #5, 16 mm, 5/8” grade 60 capacity):
~Step #1 ~
Place the rebar between the cutting blocks where you want to
make your cut, make sure you always adjust the stopper bolt to
keep the rebar at a right angle to the cutting blocks.
~Step #2~
Make sure the unit is plugged into the proper outlet 115V
50/60 Hz, pull the trigger switch which advances the piston
forward to cut the rebar. Be careful to watch when cutting
small pieces of rebar, always wear safety glasses and proper
clothing during use.
~Step #3~
e release valve retracts the piston at anytime during the cut
-
ting or bending operation. (Do not push the trigger switch
and release valve at the same time.) When doing repeated
cuts, only retract the piston as far back as needed to place an
-
other piece of rebar between the cutting blocks. is will save
you time because the piston does not have to fully retract in
order to do repeated cuts.
NOTE: CAUTION
e bending roller rotates 180 degrees during the cutting op
-
eration. Do not try to bend and cut rebar at the same time.
BASIC CUTTING INSTRUCTIONS
Important: Always read, understand and obey the safety in
-
structions included with your new DBC-16H #5 Combination
Rebar Cutter and Bender before operating this tool or any
other power tool.
BENDING REBAR
(maximum #5, 16 mm, 5/8” grade 60 capacity):
~Step #1~
Place the rebar between the bending rollers (small moving
roller and larger xed bending roller) where you want to make
your bend, make sure you always adjust the stopper bolt to
keep the rebar at a right angle to bending rollers.
~Step #2~
Make sure the cutting cover is closed while bending the rebar.
(Do not attempt to bend and cut rebar at the same time.)
~Step #3~
Markings on the center roller indicate approximate bending
angles. When the marking is pointing towards the user the
angle of the bend will be approximately the angle indicated on
the center roller.
~Step #4~
After bend is complete, push the release valve in the direction
of the arrow in order to bring the rollers back to the start posi
-
tion. (Do not push trigger at the same time as using the release
valve.)
BENDER ROLLER CHART
Rebar Diameter
Size
Fixed Center
Roller
Fixed Moving
Roller
# of Grade 60
Rebar Bent
# 3 (3/8”) (10mm)
2.44” (62 mm)
1.30” (33 mm)
2 pieces at one time
# 4 (1/2”) (13 mm)
2.44” (62 mm)
1.30” (33 mm)
1 piece at one time
# 5 (5/8”) (16 mm)
2.44” (62 mm)
1.30” (33 mm)
1 piece at one time

5
Notes: Be cautious on projects that strictly require meeting
CRSI bending specications.
Benner-Nawman offers other rebar benders that can meet
current CRSI specications.
Current CRSI specications are for standard bends up to
180 degrees, they should be bent around a center roller 6
times (6D) the diameter of the rebar. And for stirrup hooks
or seismic stirrup hook or ties should be bent around a roll
-
er 4 times (4D) the diameter of the rebar. More informa
-
tion can be found on their website: www.crsi.org

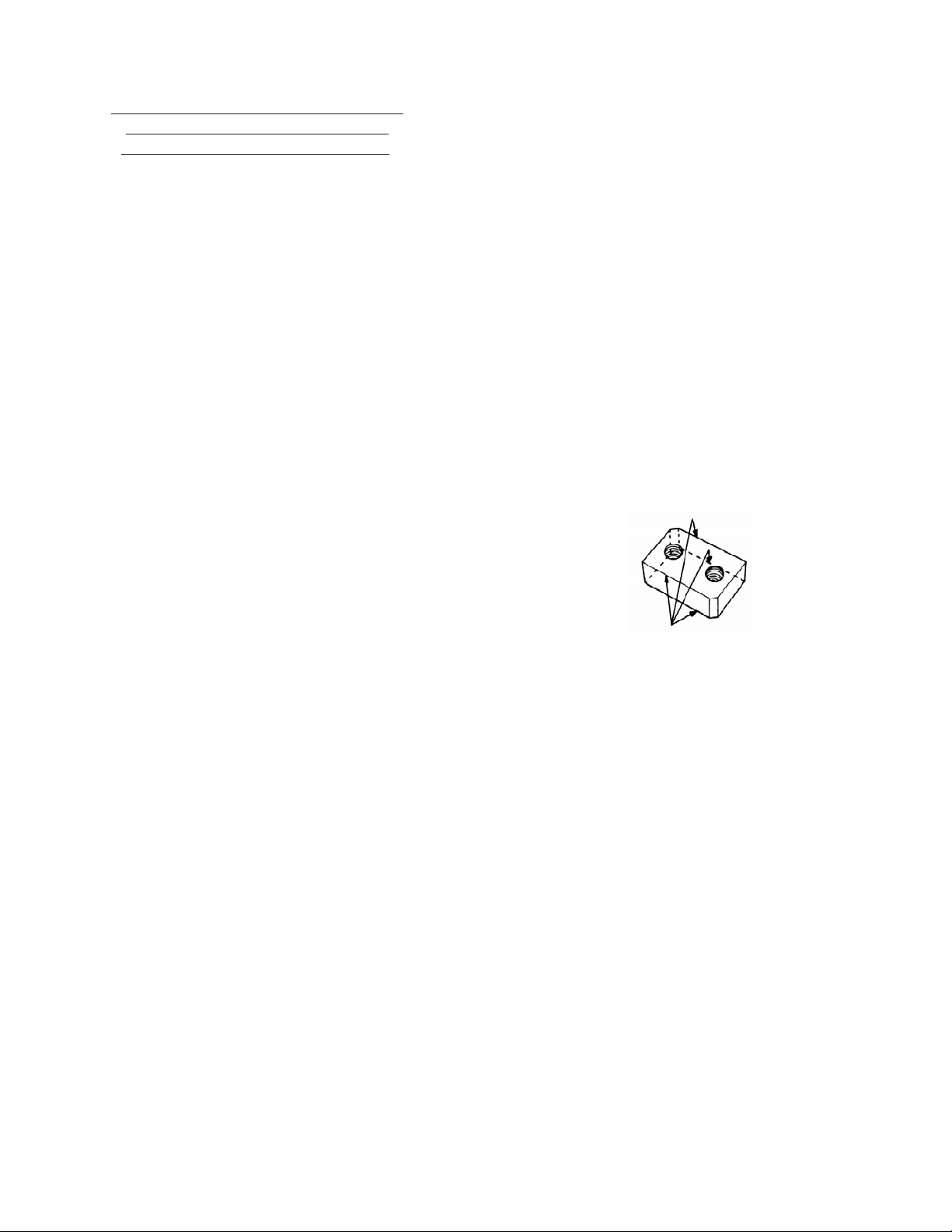

BENDING/ CUTTING
REBAR IN-PLACE
The DBC-16H can be used for bending rebar in-place, pro
-
truding from a wall, oor or column. The closest bend to
the surface would be a minimum of 4.5” or 115 mm, see
drawing below. Please make sure there is adequate space
for the bending and cutting unit to complete the bend.
SAFETY PRECAUTIONS
AND OPERATING TIPS
It is extremely important to adjust the stopper bolts to keep
the rebar parallel to with the bending rollers or at a right angle
to the cutting blocks. Replace damaged stopper bolts.
When positioning the rebar between the rollers, make sure
that the rebar lies flat on the unit’s surface. If the rebar is not
flat on the surface, the action of the rollers may cause the rebar
to fly out or may cause damage to the stopper bolt.
Do not try to bend or cut materials harder than grade 60 rebar
as they will either cause the cutting blocks to crack or bring
about machine failure. Benner-Nawman oers other rebar
cutters with special cutting blocks for grade 75 rebar.
Place this unit on plywood or an elevated surface when op
-
erating. Do not operate this unit directly on a dirty, dusty or
sandy surface. is will allow the cooling fan on the armature
to intake dirt, sand and or dust into the electrical system caus
-
ing premature wear and ultimately machine failure. Keep your
unit clean; remove rebar debris with a soft brush after operat
-
ing machine.
GENERAL SAFETY
Use rebar cutters on maximum Grade 60 steel reinforcing
bars only. ese tools are not to be used in cutting other
kinds of metal or materials. Do not cut ungraded rebar.
CUTTING SHORT PIECES
ere is always a chance that the cut end may shoot out, es
-
pecially if less than 30cm (1 foot) in length.
DESIGNATED MATERIALS
Exceeding designated material specications greatly increas
-
es this risk and will also damage the tool. Do not attempt to
cut rebars harder, thicker or thinner that those specified).
USE EYE PROTECTION
Wear safety goggles, safety glasses with side shields or a face
shield when using cutter.
PROVIDE SAFETY BARRIERS
Erect safety screens to protect coworkers from possible y
-
ing ends. Place a safety screen under the rebar when working
in high places.
EXERCISE PROPER CONTROL
Hold cutter rmly and maintain proper footing and balance.
Do not overreach. When working in a high place, secure cut
-
ter to scaolding with a safety rope. Check that power cord
is not fouled and keep cord away from sharp edges and heat.
Check that all adjusting wrenches have been removed before
using cutter.
GUARD AGAINST ELECTRIC SHOCK
To avoid possible shock, do not handle cutter with wet hands
or use cutter in the rain or damp places. Be aware of all power
lines, electric circuits and other hazards that may be contact
-
ed, especially those that are below the surface or otherwise
hidden from view. Never attempt to pick the tool up by use
of the electric cord.
UNPLUG TOOL
Disconnect cutter from outlet when not in use and before
cleaning, adjusting or servicing. Do not disconnect plug
from outlet by pulling the cord. Always check that the switch
lock is OFF before plugging in.
DO NOT CUT
UNGRADED REBAR
4.5” or 115 mm
from concrete surface
to bottom of rebar
Concrete Surface

6
INSPECTION
Inspect cutter before each application. Faulty or loose cutter
blocks could result is personal injury. Keep handle dry, clean
and free from oil and/or grease. Keep housing and piston
free of dirt and iron lings. Check that no screws or bolts
are loose or missing. Follow instructions for maintenance.
Inspect switch, cord, plug and any extension cable at regu-
lar intervals. It is a good idea to inspect the housing for any
cracks before operating.
DO NOT EXCEED MAXIMUM CUTTING PRESSURE BY
ADDING TO OR MODIFYING THE HYDRAULIC PUMP.
BLEEDING INSTRUCTIONS
You may have to bleed the hydraulics on your cutter if the
tool runs unusually slow or doesn’t have the pressure to cut
normally. Do not run tool with low or no oil. For best results
please follow these directions:
1. If piston is still moving, run the tool for 2 minutes to warm
the oil inside. If the piston is not moving, add oil before
warming up for 2 minutes.
2. When the oil is warm, run the piston out to full extsion
3. Remove the oil plug and top it o with oil.
4. Make a seal with your thumb over the oil plug opening.
5. Push the release valve to return piston.
6. When the piston is completely retracted in the open posi-
tion, gently roll your thumb to let the unwanted air escape.
7. Repeat step #5 and #6 at least three times.
8. Add oil only when the piston is fully extended.
9. If you have to add additional oil, repeat #5 and #6.
10. Replace the oil plug and tighten it.
11. e operation is now complete.
We recommend the following 20-wieght Non-Detergent Hy-
draulic Oils for use with our tools (anti-foam anti-abrasion):
Tellus 68 (Shell), Rando HD 68 (Texaco) or Chevron AW 68
(Chevron). Hydraulic oil can also be ordered in quart con-
tainers from your Diamond Tool Distributor.
GENERAL OPERATING INSTRUCTIONS
CAUTION: Indicates hazard that could result in
minor personal injury and/or product damage.
CARE: Indicates hazard that will result
in product damage.
PRE-USE CHECKS
1. Check oil level. (See Maintenance)
2. Check condition of cutter blocks and tightness of cutter
block bolts. (See Maintenance) - CHECK FOR CRACKS IN
HOUSING
CAUTION: Using loose or cracked cutter blocks
may result in injury to operator as well as damage
to the tool.
3. Check that the power source is appropriate to the cutter.
CARE: If voltage is too high, the motor will burn
out. If voltage is too low, insufficient power will be
generated. Never use DC current.
4. Check that power supply is properly grounded.
CAUTION: Failure to ground power supply may
result in electric shock to operator (DC-16LZ,
DC-16W, DBD-16H and DC-32WH have double-
insulated motors and do not require grounding.)
5. Check that cord is undamaged and that plug is not loose.
CAUTION: Cut or abraded covering could result
in a short and Electric shock to operator.
6. If an extensions cable is to be used, make sure that it is
undamaged and that it is the proper wire gauge thickness for
the length. See table below.
WARM-UP
In cold weather you should warm up the tool unit for 30-60
seconds so that the hydraulic oil reaches the proper viscosity.
Pull trigger-switch to extend piston and release when it has
reached its full stroke. Repeat 15-20 times.
Length 110/115 50/60 Hz
Cable Size (AWG)
Up to 15mm (50 ft.) 14
Up to 30mm (100 ft.) 12
Up to 45mm (150 ft.) 10

7
STOPPER BOLT ADJUSTMENT
THE STOPPER BOLT IS PROBABLY
THE MOST IMPORTANT PART
OF YOUR PORTABLE CUTTER...
CUTTING
e adjustable stopper functions to maintain the rebar in the
correct position during cutting and must be properly set for
each size of rebar before use.
1. Screw in stopper to provide sucient clearance for rebar.
2. Insert rebar fully into U-shaped support. Make sure that
rebar is resting on the base of the support.
3. Keeping rebar at right angles (90 degrees) to front cutter
block, screw out stopper until it is just touching the rebar.
Once set, the stopper needs no further adjustment while cut-
ting rebar of the same diameter, but must be reset for a dif-
ferent size rebar.
CAUTION: Failure to correctly set the stopper bolt
will result in excessive wear of cutter blocks and
may cause cut end to fly out. is will also lead to
piston and cylinder damage.
BENDING
1. Screw in stopper bolt to provife sucient clearance for re-
bar.
2. Place rebar between the bending rollers (small moving
roller and the larger xed roller.)
3. Adjust the stopper bolt to keep the rebar at a right angle
(90 degrees) to bending rollers.
POINTS OF ATTENTION
1. Be especially careful when cutting o short lengths
(30cm/12” or less) as the cut end tends to fly out.
CAUTION: Flying ends are a hazard to all per-
sonnel in the vicinity. Erect safety screens.
2. Do not cover air vents or operate the tool on dirt – use a
plywood base under the rebar cutter to keep armature and
fan clean
CARE: If the vents are covered, the motor will
overheat and may burn out.
3. If hydraulic oil exceeds 70 degrees C (158 degrees F) in
temperature, power will drop. Allow unit to cool before re-
suming operation. (Be particularly careful in summer, when
the aluminum pump case heats up quicker.)
4. If a drop in power is observed and motor is unusually hot,
check carbon-brushes. (See maintenance)
5. If piston should ever fail to retract completely, push rear
cutter block backwards to manually retract piston or check
under piston to remove and debris keeping the piston from
retracting.
CAUTION: Use a rebar or flat metal bar for this
purpose. Never push cutter block with any part of
the hand, even if gloved.
GENERAL MAINTENENCE
CUTTER BLOCK MAINTENANCE
Before using, always check that the two bolts on each cutter
block are properly tightened. Using a loose block will result
in damage to block and housing. Also check condition of cut-
ter blocks. If either cutting edge is dull or chipped, remove
retaining bolts and rotate both blocks so that two new edges
come into use. Replace and tighten bolts. (Each block has
four cutting edges.) When all four cutting edges have been
used or if either block is cracked or otherwise damaged, re-
place both blocks.
CAUTION: A loose or cracked block may result in
injury to operator.
CLEANING
Clean your tool every day, preferably immediately after use.
CAUTION: Wear gloves to protect hands from
metal splinters.
Do not use an air gun: blasting with air can cause metal l-
ings and/or dust to get into eyes and respiratory system.
Disconnect the unit. Wipe or brush away all dirt and metal
filings. Pay particular attention to the lower half of the pis-
ton, where dirt is more easily accumulated.
NEVER USE YOUR CUTTER
TO CUT REBAR IN
WET CONCRETE.
OIL-LEVEL CHECK
As the cutters are hydraulically operated, the oil-level must
be checked at frequent intervals, preferably every day. Failure
to maintain the oil at the proper level results in a drop in
pressure and loss of cutting power.
CAUTION: Hydraulic oil is highly flammable.
Keep away from sparks and naked flame.
Do not smoke.

8
CAUTION: Hydraulic oil may cause inflammation
of the eyes and skin. If ingested, it will cause diar-
rhea and vomiting. In case of eye contact, rinse in
clean water for at least 15 minutes and consult a
physician. In case of skin contact, wash thoroughly
with soap and water. In case of ingestion, consult a
physician immediately. Do not induce vomiting.
1. Oil should be warm but not hot. Warm up unit if cold.
2. Adjust stopper and make three or four cuts, noting exactly
at what point the rebar is actually breaking.
3. Pinch a short piece of rebar, stopping just before it breaks
o. Unplug unit from power source.
4. With partially severed rebar in place, oil-plug should be
straight up. (If unit is hot, allow cooling down.)
5. Remove oil-plug and seal-washer (packing).
CAUTION: Never remove oil-plug when unit is hot
or oil will spurt out.
6. Check that oil is level with bottom of plug hole (i.e. that
pump case if full to the brim).
If oil level is too low, top up with 20-weight hydraulic oil with
anti-foam and anti-abrasion properties (ISO viscosity grade
VG46, e.g. Shell oil Tellus 68, Mobil oil DTE-25 or Esso Uni
power SQ46).
7. After topping o, extract air from system. Gently tilt cutter
lengthwise and return it to a level position. Top o again and
tilt in the opposite direction. Repeat this process until all air
has been extracted.
CARE: Cutter cannot function properly if oil con-
tains air bubbles.
8. Replace seal washer (packing) and oil plug. Connect cutter
to power source and completely sever rebar.
OIL-CHANGE
e hydraulic oil should be changed at least once a year, soon-
er if it appears dirty.
NOTE: Hydraulic oil should be warm
before draining
1. Unplug unit from power source. Remove oil-plug and pack-
ing. Turn cutter over and drain oil into a suitable receptacle.
When oil ceases to drain out, tilt unit to rear so that oil trapped
in the piston housing can run out. When housing is empty,
tilt unit in the opposite direction to empty the residue in the
pump case.
2. With drain-hole uppermost, slowly fill the unit with fresh
oil. Replace plug and lightly tighten. Connect unit to power
source and advance piston two or three times. Unplug unit
and remove oil-plug. Top o oil-level and replace plug.
3. Finally, follow procedure for oil-level check. (Steps 2-8).
NOTE: Dispose of hydraulic oil in accordance with
local regulations. Do not pour into the sea, a river, a
lake or drains.
BOLT TIGHTNESS
Once a week, or after every 500 cuts, check the tightness of all
bolts; especially those bolts securing the housing to the cylin-
der. Loose bolts will result in a loss of power. Make sure that
the bolts holding both cutter blocks are also tight
CARBON BRUSHES
Inspect the two carbon brushes at least once every two months.
(Nominal brush life is 200 hours).
CARE: Worn brushes will result in power loss, cause
the motor to run hot and irreparably damage the
armature.
1. Disconnect unit.
2. Unscrew both brush caps and pull out carbon brushes.
3. Replace brushes if less than 6mm or1/4” in length.
OVERHAUL
Return the unit to an authorized agent for overhaul at least
once every two years, sooner if subjected to heavy use. Call
[phone]

9
Center Roller
Not Applicable
2.42” (62 mm)
Diameter (R 31)
Clearance
(In-place)
1-3/4” (44.5
mm) from
Surface
4.5” (115 mm)
from Surface
Rebar Capacity
Grade 60 / Up to
#5 (16mm)
Grade 60 / Up to #5
(16mm)
Power Supply
Electric motor
115v, 50/60 Hz –10 amps, 1,050 Watt
Total Weight
(kg)
40 lbs. (18.2)Tool Weight ,
62lbs. (28.2) Shipping Weight
Tool Dimensions
25-1/8” L x 6-3/8” W x 8-5/8” H
including lifting handles (cutter up)
Carton Size
27-3/4” L x 10-1/2” W x 10-1/2” H
or 3,060 cubic inches
Speed
3 seconds
180 degree bend in
7 seconds
Model No.
DBC-16H
Cutting Mode
DBC-16H
Bending Mode
Cut / Bend
3 seconds
180 degree bend in
TOOL SPECIFICATIONS

10
PARTS DRAWING

11
No. Part No. Part Name Qty.
1 1BC1025700 HOUSING 1
2 1BC4208000 CUTTER BLOCK 2
3 7CB05015 CAP BOLT M5X15 2
4 7GW005 LOCKING WASHER M5 2
5 1BC4209800 GUARD 1
6 7CB06010 CAP BOLT M6x10 2
7 7PW006 P. WASHER M6 2
8 1BC4208400 KEY 1
9 7CB05012 CAP BOLT M5x12 2
10 7GW005 LOCKING WASHER M5 2
11 1BC4208500 PINION 1
12 7SP05015 SPRING PIN 5X15 1 13 1BC4208700 KEY 1 14 762052RS BEARING 2 15 1BC3111700 SWIVELARM 1 16 1BC4208800 CENTER COLLAR 1 17 7DUB3820 DU BUSH 1 18 1BC4208900 WASHER 1 19 7CB06015 CAP BOLT M6X15 1 20 7SW006 SPRING WASHER M6 1 21 1BC4208600 PINION WASHER 1 22 7CB06020 CAP BOLT M6X20 1 23 7SW006 SPRING WASHER M6 1 24 1BC4209000 BENDING ROLLER 1 25 7DUB2020 DU BUSH 1 26 1BC4209100 WASHER 1 27 7CB06015 CAP BOLT M6X15 1 28 7SW006 SPRING WASHER M6 1 29 1BC4208100 STOPPER STAY 1 30 1BC4208200 STOPPER 1 31 7CB12035 CAP BOLT M12x35 1 32 7CB08025 CAP BOLT M8X25 3 33 7GW008 LOCKING WASHER M8 3
34 7CB06022 CAP BOLT M6X22 14 35 1BC4209200 CYLINDER PACKING 1 36 1C16021 PISTON SEAL
PACKING 1
37 1BC2063100 HANDLE 1
38 7SS06015 SET SCREW M6X15 3 39 1BC4208300 RETURN SPRING 3 40 1BC2063200 PISTON 1 41 1C1604 SEAL PACKING 1 42 1HB2032 RETURN VALVE 1 43 1HB4208300 Valve Nut 1 44 7CB05010 CAP BOLT M5X10 1 45 7GW005 LOCKING WASHER M5 1 46 1BC2063300 CYLINDER 1 47 1C1327 RAM 3 48 1C1330 RUM RETURN SPRING 3 49 1C13281 DELIVERY VALVE 3 50 1C1331 DELIVERY VALVE
SPRING 3
51 1C13352 SPRING GUIDE 3 52 1C13292 PUMP HEAD SEAL 3 53 7SS04004 SET SCREW M4X4 6 54 3P1044 MAGNET FILTER 3 55 1CW0003 BALL BEARING 698 1 56 1C1325 BEARING GUIDE 2 57 1C13401 NEEDLE BEARING 1 58 1C1326 SNAP RING H27 1 59 1C1615 PUMP CASE PACKIONG 1 60 4V0001A PUMP CASE 1 61 7B10015 BOLT M10X15 1 62 1C1305 SEAL WASHER 1 63 1C1342 OIL SEAL SC15-257 1 64 7SRH26 SNAP RING H26 1 65 76002VV BEARING 6002VV 1 66 1HB207 AIR BAG COVER 1 67 7PT1/8 PLUG PT1/8 1 68 1HB208 AIR BAG COVER
PACKING 1
69 1C1958 AIR BAG 2 70 1CM2027 AIR BAG NUT 2 71 1C1357 AIR BAG SET BOLT 2 72 7CB06040 CAP BOLT M6X40 4
73 7SW006 SPRING WASHER M6 4
74 1DBR2925 VALVE CASE 1 75 1DBR2921 ROTARY VALVE 1 76 1DBR2946 O RING P10A 1 77 1DBR2923 VALVE LEVER SPRING 1 78 1DBR2922 VALVE LEVER 1 79 7SP03020 SPRING PIN 3X20 1 80 1DBR5012 GUIDE BOLT M5X12 1 81 1HB1631 SEAL WASHER 1 82 1HB1630 O RING 2 83 7CB06030 CAP BOLT M6X30 4 84 4V0001B ARMATURE 1 85 4V0001J DUST SEAL 1 86 7608VV ARMATURE BEARING 1 87 4V0001G BEARING ROCK 1 88 4V0001C STATOR 1 89 7WNS05060 TAPPING SCREW 5X60 2 90 4V0001H MOTOR HOUSING 1 91 4V0001K SLEEVE 1 92 7CB05080 CAP BOLT M5X80 4 93 7PW005 P WASHER M5 4 94 4V0001D BRUSH HOLDER 2 95 4V0001F CARBON BRUSH 2 96 4V0001E BRUSH CAP 2 97 7SS04005 SET SCREW M4X5 2 98 4V0001N TRIGGER SWITCH 1 99 7WB035006 WING BOLT M3.5X6 1
100 4V0001P CONDENSER 1 101 4V0001M MOTOR HANDLE
COVER 1
102 7WNS04020 TAPPING SCREW 4X20 1 103 4V0001X CORD ARMOR 1 104 4V0001R CORD CRIP 1 105 7FNS04016 TAPPING SCREW D4X16 2 106 4V0001V CORD 1
PARTS LIST

12
MANUFACTURER REPRESENTATIVES
W.G. WRIGHT
Territory:AK, WA, OR,
MT & ID
503-232-3480
Fax: [phone]
www.wgwright.com
LARRABEE COMPANY
Territory: Northern CA,
Northern NV & HI
800-260-9430
Fax: [phone]
www.larrabeeco.com
EBBERT CO.
Territory: Southern CA
& Southern NV
800-EBBERTS
Fax: [phone]
Email: [email protected]
McCLELLAND MARKETING
Territory: ND, SD, MN, IA, NE,
KS & MO
800-444-0490
Fax: [phone]
www.mmktinc.com
LEW HUDSON SALES
Territory:AR, LA, OK, TX, WY,
UT, CO, AZ, NM, FL, GA,Al, SC,
NC, TN & MS
800-394-6443
Fax: [phone]
www.lewhudson.com
M.J. MILLER
Territory: IL, IN, KY, MI, OH, WI
& WV
815-790-8437
Fax: [phone]
www.mjmillercc.com
CARDINAL SALES
Territory: ME, VT, NH, MA, CT,
RI, NY, NJ, PA, MD, DE, VA&
Washington D.C.
800-222-4344
Fax: [phone]
www.cardinalreps.com
BORDERLAND ENTERPRISES
Territory: Mexico, Belize,
Guatemala, El Salvador, Hon
-
duras, Nicaragua, Costa Rica,
Panama, Ecuador & Peru.
623-935-3090 (USA)
Fax: [phone] (USA)
www.borderlandexport.com
JMC INTERNATIONAL
Territory: Colum bia, Puerto
Rico, Dominican Republic &
The Virgin Islands
787-487-9294 (PR)
Fax: [phone] (PR)
Email: [email protected]
• • • • • • • • • • • •
Benner-Nawman, Inc.
3450 Sabin Brown Road
Wickenburg,AZ 85390
[phone]
Fax: [phone]
Email: [email protected]
www.bnrebartools.com
