RED-RING LWSS STAINLESS STEEL User manual

R
LWSS STAINLESS STEEL
UNVENTED WATER STORAGE HEATER
APPLIED ENERGY PRODUCTS LTD
TEL: [phone]
THIS UNIT IS SUPPLIED BY
INSTALLATION
COMMISSIONING
MAINTENANCE
New Stainless imp_alt 2/15/05 12:15 PM Page 1

INSTALLING THE LWSS UNIT
Choose a flat even surface. Wooden bearers are not essential as the unit sits on a ring stand. The unit
must be installed vertically.
Please install in an area that will be accessible in the future. When first fixing take into account that
the connections and controls will be front facing to facilitate access.
Check that the floor will support the unit when it is full of water. See page 14 for weights.
COLD FEED
Minimum mains pipework of 25mm MDPE or 22mm copper is advised. If 15mm copper or 1/2" lead is
the only mains feed then the decision to install rests with the installer or specifier of the product. Flow
rates will be compromised, even at appropriate pressures, ensure that you have at least 18 litres per
minute at the bath tap. Maximum inlet pressure is 12 bar.
If multiple bath filling or showering is required, mains feed may need to be 32mm MDPE or 28mm copper.
The unit operates at 3 bar and pressures from 2 bar upwards are suitable. Lower pressure will result in
a fall in flow rate. A flow rate of 20 litres per minute is a minimum requirement for single bath
applications and must rise proportionately for greater demands.
1
PRESSURE AND
TEMPERATURE
RELIEF VALVE

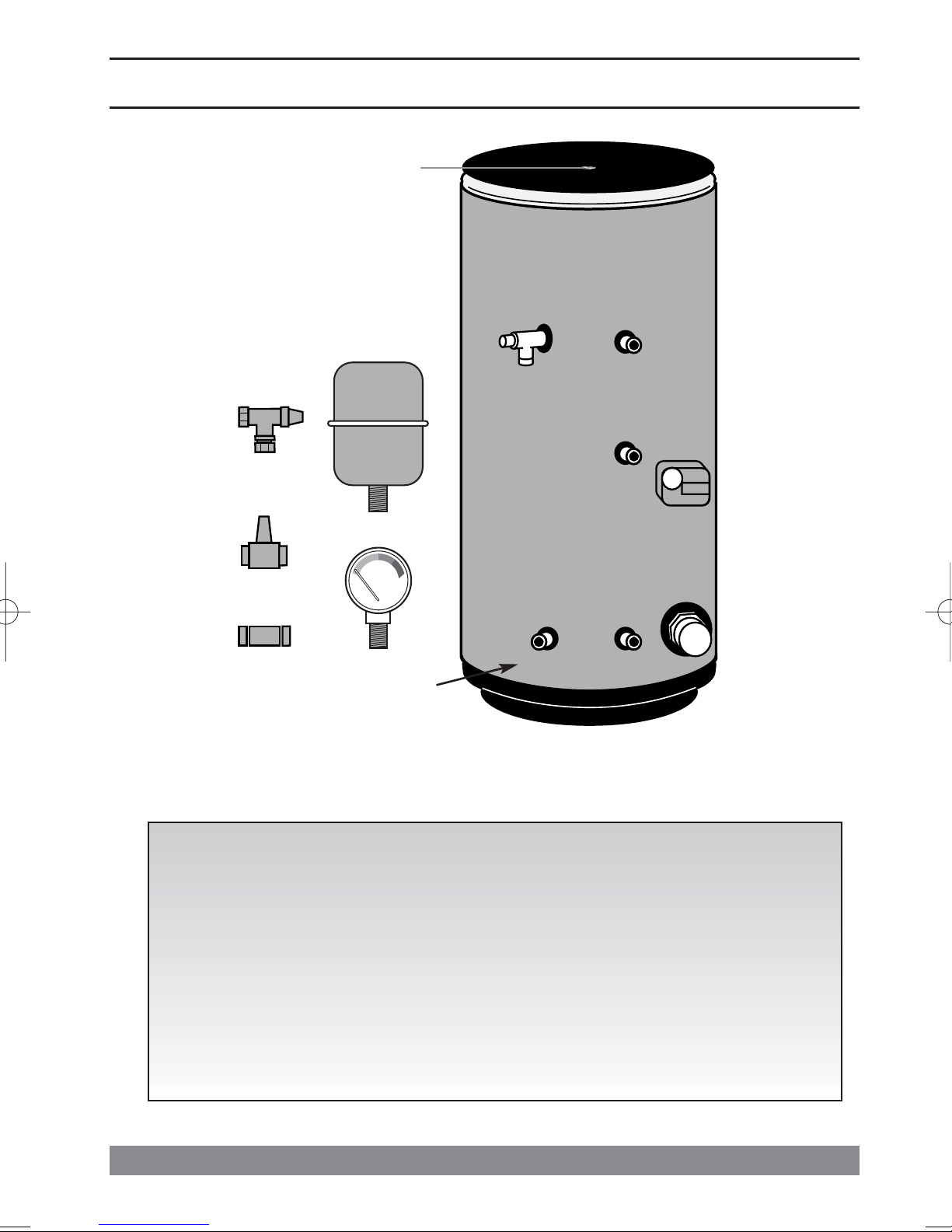

INSULATION
COLD MAINS
VIA GROUPSET
HOT DOMESTIC
WATER
IMMERSION
HEATERS
EXPANSION
VESSEL
(SUPPLIED LOOSE)
APPLIED ENERGY PRODUCTS LTD
STAINLESS STEEL UNVENTED HOT WATER STORAGE UNITS
PRESSURE AND
TEMPERATURE
RELIEF VALVE
INSULATION
COLD MAINS
VIA GROUPSET
HOT DOMESTIC
WATER
PRIMARY
TAPPINGS
DUAL
THERMOSTAT
IMMERSION
HEATER
EXPANSION
VESSEL
(SUPPLIED LOOSE)

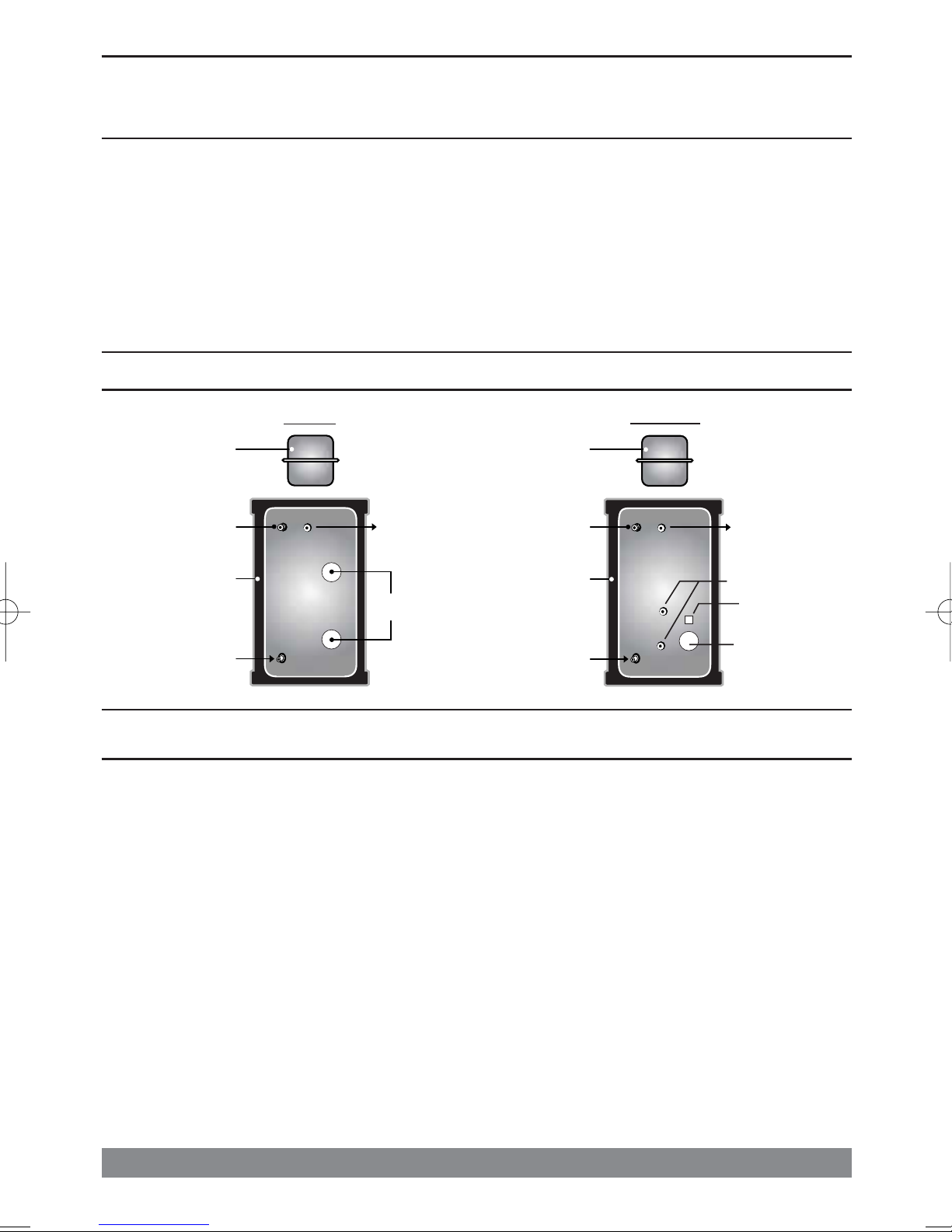

INDIRECT
DIRECT
Please read the following carefully before installation of the product. You should be competent to install
the unvented system as defined by the regulations. Special attention must be paid to maintenance and
service.
Please keep the unit packaged until you are ready to commence installation. Store the unit in a dry area,
keep it vertical and ensure that all safety components are kept in the box.
IT IS A REQUIREMENT THAT THIS UNIT IS SERVICED AND MAINTAINED ANNUALLY – THE BENCHMARK
LOG BOOK MUST BE COMPLETED AND UPDATED. FAILURE TO DO SO WILL INVALIDATE GUARANTEES.
THE DIRECT & INDIRECT UNITS
New Stainless imp_alt 2/15/05 12:15 PM Page 2

Please also take into account any fitting that could restrict flow such as water meters, softeners etc.
Connection to the unit – Use 22mm compression for all connections. Use gunmetal, DZR or brass fittings,
noting local water conditions.

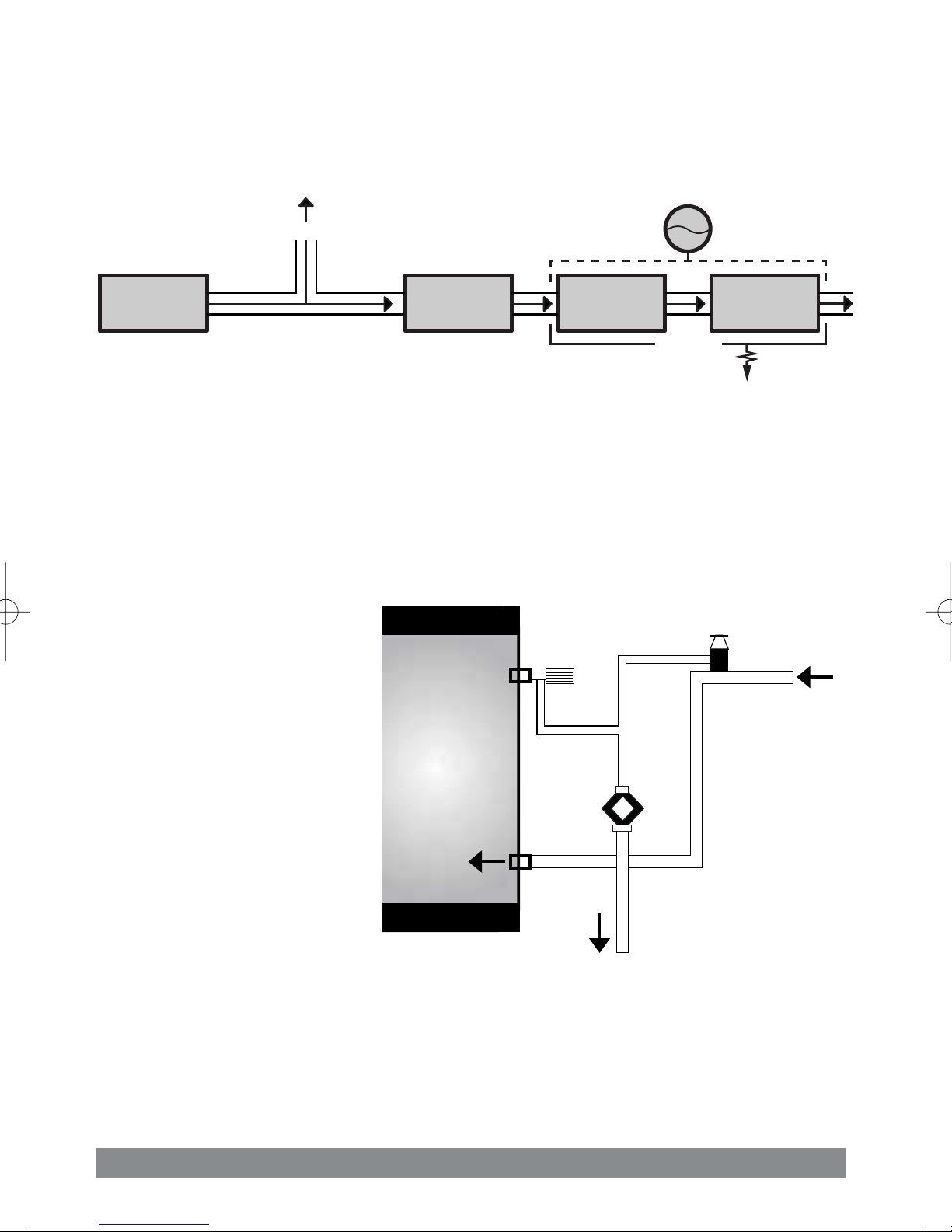

COLD MAINS COMPONENT LAYOUT
No valve is to be fitted between the expansion valve and the cylinder, except a drain point.
It is recommended that a stop cock is fitted to the above to facilitate servicing. Install before the
pressure reducing valve. Always fit a drain tap in an appropriate position for drain down as low as
possible.
DON’T USE MONOBLOC MIXERS IF THE COLD SERVICE IS UNEQUALISED AS IT WILL BACK – PRESSURISE
THE UNIT AND RESULT IN DISCHARGE.
PRESSURE REDUCING
VALVE/FILTER NON RETURN VALVE PRESSURE GAUGE
EXPANSION VESSEL
(OPTIONAL)
DRAIN POINT
EXPANSION VALVE
COLD TAPS
COLD FEED
22mm
EXPANSION
VALVE
22mm
TUNDISH
15mm
15mm
PRESSURE AND
TEMPERATURE
RELIEF VALVE
2
DISCHARGE
Both the pressure and temperature
relief valve fitted to the unit and
the expansion valve supplied loose
must be arranged to comply with
G3 regulations and each discharge
into an open (visible) tundish.
A 300mm vertical drop of 22mm
diameter pipe must be fitted to the
tundish.
NB: THE TUNDISH AND DRAIN
MUST BE POSITIONED AWAY FROM
ELECTRICAL DEVICES.
ALWAYS CONSULT THE REGULATIONS!
IMPORTANT: Discharge arrangements are the responsibility of the installer and reference to current
building regulations should always be made. Applied Energy Products Ltd. offers the foregoing as
guidelines only.
The main purpose of discharge pipework is to allow full flow from relief valves to be accumulated and
safely routed to a point outside the building at low level.
New Stainless imp_alt 2/15/05 12:15 PM Page 3

3
TUNDISH DISCHARGE
The unit is supplied with two mechanical safety devices. An expansion relief valve, supplied loose, and
a temperature/pressure relief valve fitted to the unit, both discharging into a tundish (supplied loose).
Discharge pipes must be left open to atmosphere, not blocking the tundish.
The responsibility for supplying and fitting the discharge pipe from the tundish is that of the certified
installer. In general, installation practice should be in accordance with the approved document G3 of
schedule 1 of the building regulations 1991, VIZ:
3.9 The discharge pipe from the tundish should terminate in a safe place where there is no risk to
persons in the vicinity of the discharge, be of metal and:
aBe at least one pipe size larger than the nominal outlet size of the safety device unless its total
equivalent hydraulic resistance exceeds that of a straight pipe 9m long i.e discharge pipes between
9m and 18m equivalent resistance length should be at least larger than the nominal outlet size of
the safety device, between 18m and 27m at least 3 sizes larger, and so on. Bends must taken into
account in calculating the flow resistance. See Diagram and table on page 6.
bHave a vertical section of pipe at least 300mm long, below the tundish before any elbows or bends
in the pipework.
cBe installed with a continuous fall.
dHave discharges visible at both the tundish and the final point of discharge but where this is not possible or
practically difficult there should be clear visibility at one or other of these locations. Examples of acceptance
discharge arrangements are:
d.1Ideally below a fixed grating and above the water seal in a trapped gully.
d.2 Downward discharges at a low level; i.e. up to 100mm above external surfaces such as car parks, hard
standings, grassed areas etc. are acceptable providing that where children may play or otherwise come
into contact with discharges, a wire cage or similar guard is positioned to prevent contact, whilst
maintaining visibility.
Continued...
GUIDANCE NOTES
New Stainless imp_alt 2/15/05 12:15 PM Page 4

4
d.3Discharges at high level; e.g. in to metal hopper and metal down pipe with the end of the discharge
pipe clearly visible (tundish visible or not) or onto a roof capable of withstanding high temperature
discharges of water and 3m from any plastic guttering systems that would collect such discharges
(tundish visible).
d.4Where a single pipe serves number of discharges, such as in a block of flats, the number served should
be limited to not more than 6 systems so that any installation can be traced reasonably easily. The
single common discharge pipe should be at least one pipe size larger than the largest individual
discharge pipe to be connected. If unvented hot water storage systems are installed where discharges
from safety devices may not be apparent i.e. in dwellings occupied by blind, infirm or disabled people,
consideration should be given to the installation of an electronically operated device to warn when
discharge takes place.
NOTE: The discharge will consist of scalding water and steam. Asphalt, roofing felt and non-metallic
rainwater goods may be damaged by such discharges.
GUIDANCE NOTES
New Stainless imp_alt 2/15/05 12:15 PM Page 5

5
SIZING OF D2 COPPER DISCHARGE PIPE FOR COMMON TEMPERATURE RELIEF VALVE OUTLET SIZES
MAXIMUM RESISTANCE
ALLOWED, EXPRESSED AS A
LENGTH OF STRAIGHT PIPE
(I.E. NO ELBOWS OR BENDS)
MINIMUM SIZE OF
DISCHARGE PIPE (D2)
FROM TUNDISH
MINIMUM SIZE OF
DISCHARGE PIPE
(D1)
VALVE
OUTLET
SIZE
RESISTANCE
CREATED BY
EACH ELBOW
OR BEND
up to 9m
up to 18m
up to 27m
up to 9m
up to 18m
up to 27m
up to 9m
up to 18m
up to 27m
22mm
28mm
35mm
28mm
35mm
42mm
35mm
42mm
54mm
15mm
22mm
28mm
G1/2
G3/4
G1
0.8m
1.0m
1.4m
1.0m
1.4m
1.7m
1.4m
1.7m
2.3m
GUIDANCE NOTES - TYPICAL DISCHARGE PIPE ARRANGEMENT
SAFETY DEVICE
(e.g. TEMPERATURE RELIEF VALVE)
500mm MAXIMUM
300mm
MINIMUM
TUNDISH
FIXED GRATING
METAL DISCHARGE PIPE (D1)
FROM TEMPERATURE RELIEF
TO TUNDISH
METAL DISCHARGE PIPE (D2)
FROM TUNDISH,
WITH CONTINUOUS FALL
(SEE 3.9d i-iv & TABLE 1)
DISCHARGE BELOW
FIXED GRATING
(3.9d GIVES ALTERNATIVE POINTS
OF DISCHARGE)
TRAPPED GULLY
New Stainless imp_alt 2/15/05 12:15 PM Page 6

6
WORKED EXAMPLE:
The example below is for a G1/2 temperature relief valve with a discharge pipe (D2) having 4 No.
elbows and length of 7m from the tundish to the point of discharge.
From Table 1
•Maximum resistance allowed for a straight length of 22mm copper discharge pipe (D2) from a
G1/2 temperature relief valve is 9.0m.
•Subtract the resistance for 4 No. 22mm elbows at 0.8m each = 3.2m
•Therefore the maximum permitted length equates to 5.8m.
•5.8m is less than the actual length of 7m therefore calculate the next largest size.
•Maximum resistance allowed for a straight length of 28mm pipe (D2) from a G1/2 temperature
relief valve equates to 18m.
•Subtract the resistance for 4 No. 28mm elbows at 1.0m each = 4.0m
•Therefore the maximum permitted length equates to 14m.
•As the actual length is 7m, a 28mm (D2) copper pipe will be satisfactory
HOT WATER OUTLETS
Dynamic pressure always drops across a system when more than one outlet is opened.
The unit has a working pressure of 3 bar.
Good system design should take this into consideration & pipe sizing should be in line with current
good practice.
In hard water areas a reduced operating temperature will help to prevent premature scaling.
EXPANSION VESSEL
The vessel (supplied loose) screws onto the top of the unit. It is sized appropriately and includes
some allowance for pipework. Check the charge is at 3.0 bar before commissioning.
The expansion vessel can also be fitted remotely between the unit and the check valve on the cold
supply or by adaptor to the top female fitting on the cylinder.
PRIMARY CIRCUITS
The maximum primary pressure is 3.5 bar.
The boiler must have a mechanical high-limit thermostat.
Solid fuel boilers cannot be used
If the primary circuit is sealed, an additional expansion vessel must be fitted.
If a secondary circuit is connected an additional expansion vessel may be required.
INSTALLATION
New Stainless imp_alt 2/15/05 12:15 PM Page 7

2 PORT
VALVE
NB: By-pass must be fitted
in accordance with boiler
manufacturer's instructions
BOILER
CIRCS
22mm
7

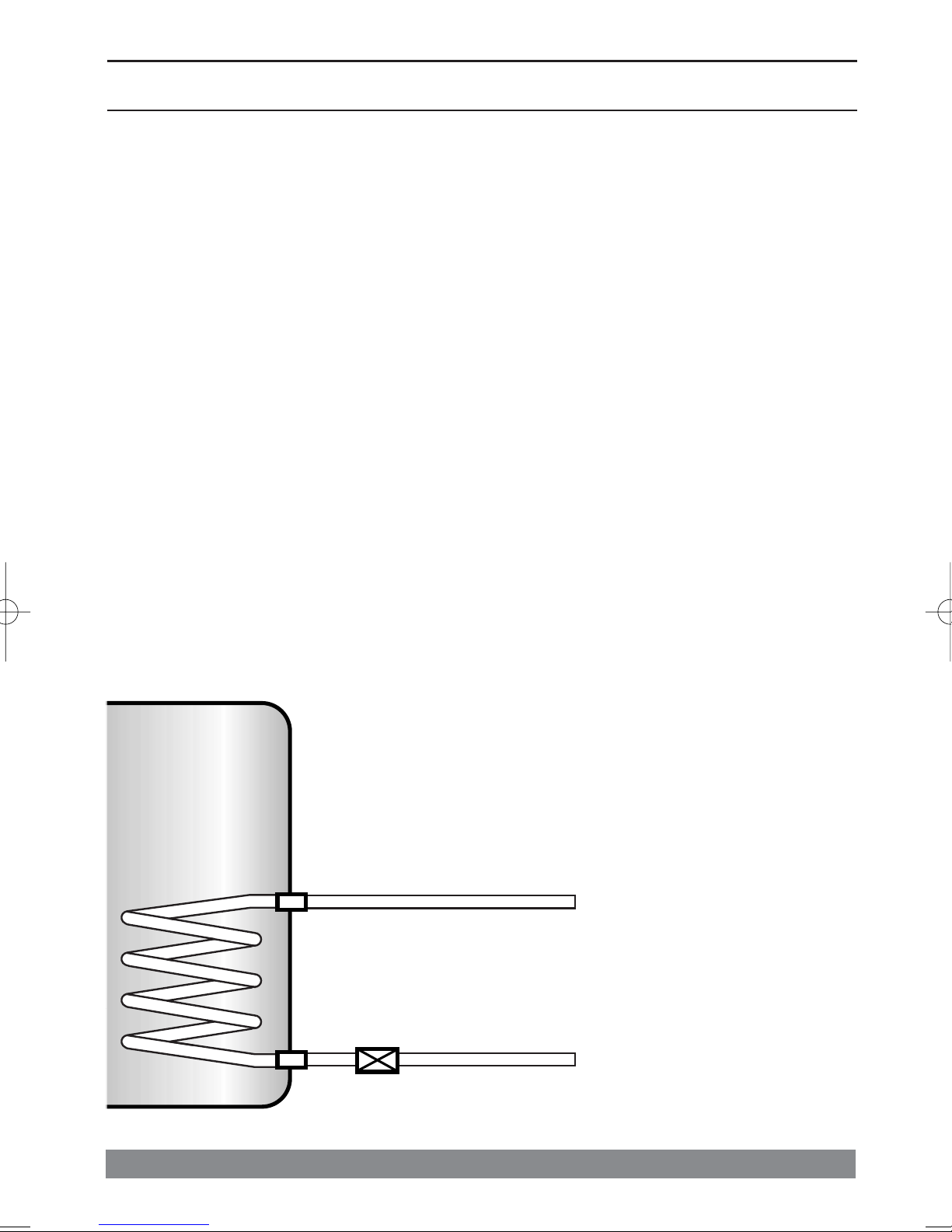

INDIRECT INSTALLATIONS
The indirect pattern products are supplied with dual thermostats with
sensing probes and with a motorised two port valve.
The thermostat has to be wired in order to control the water temperature
in the system and, if the high limit is tripped, to operate the two port
valve in such a way as to route primary water back to the boiler and isolate
the cylinder (see diagram).
ELECTRICAL CONNECTIONS
Immersion heaters are rated 3kw at 240v (2.76kw at 230v), incolloy elements, with a thermal energy cut-
out, and must be connected via double pole switches with a 3mm contact gap separation. Appropriate
wiring for the electrical load must be used. The twin immersion heaters supplied with direct units can
be switched to utilise low tariff electricity supply. Do not switch on until the unit is full of water.
Immersion heaters are supplied fitted in the body of the unit. Always ensure that the joints are
watertight on commissioning. The thread is non-standard. Order replacements using reference number
on page 14. Do not fit an immersion heater without a high limit thermostat. Immersion heaters fitted
are designed for domestic use only, either utilising low tariff electricity and occasional boost or for
switched periods during the day.
Immersion heaters must meet BS EN 60730-2-1.
Units must be earth bonded.
The fuse rating for 6kw loading is 25 amps, for the 3kw (indirect) model the fuse rating is 13 amps.
ALWAYS CONSULT THE REGULATIONS!
New Stainless imp_alt 2/15/05 12:15 PM Page 8

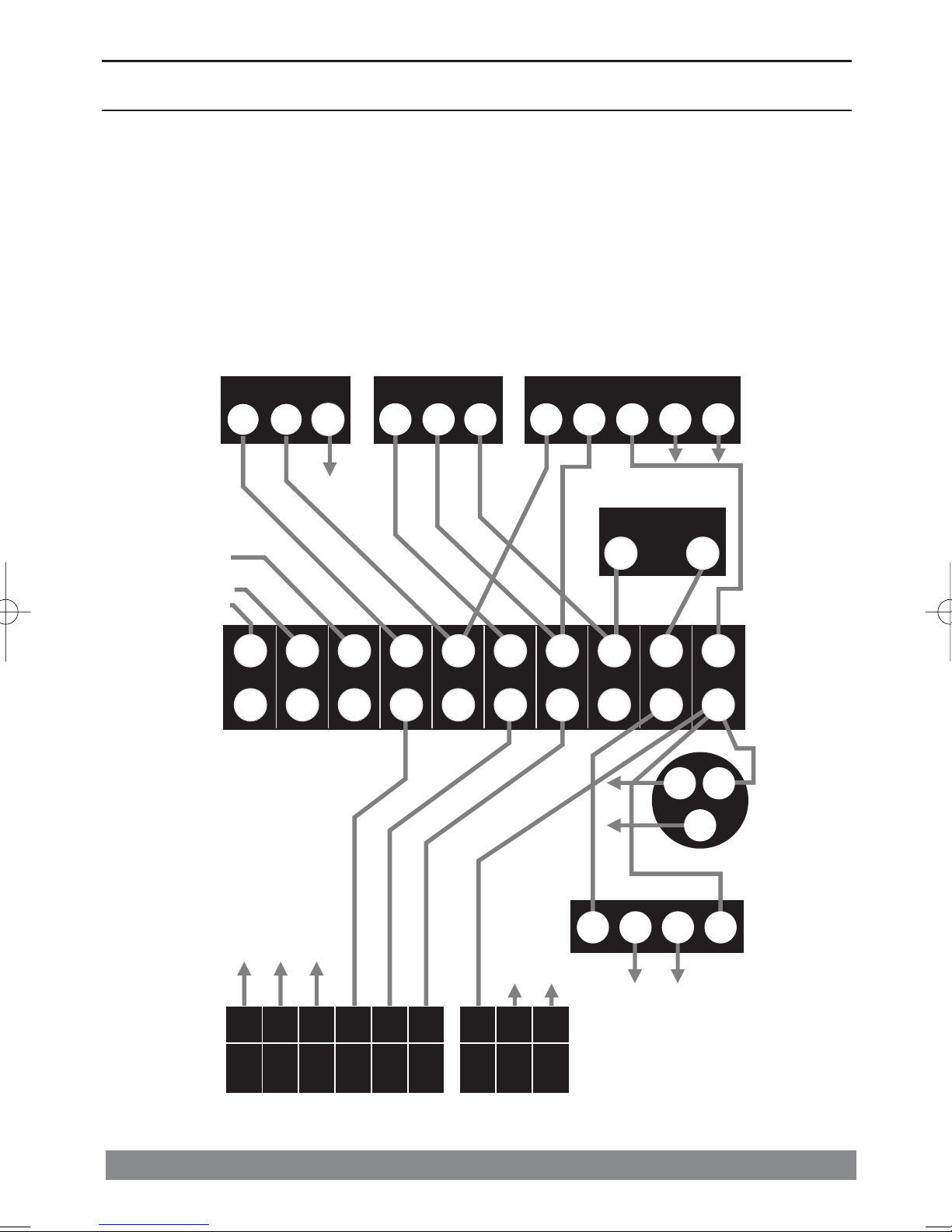

W PLAN
89107654321
12
8 2 7
Cylinder StatRoom Stat
RMT 230
High Limit
Stat
Diverting Valve
HS3D
2
3
NE
Pump
HP22
2 Port Valve
GOBL BR
23
LNE
LNE
Basic Boiler
L
L
N
N
Htg
On
4
Dhw
On
3
FP75 or CP15
Programmer
L
C 2
C 21
Power
Supply
E
Junction Box
N
L
G/YBR BL 24 1
ITD
Dual Stat
ITD Dual Stat
The wiring diagram for Danfoss systems is given as guidance.
For modified Danfoss Randall Y, S and W plan systems when used in conjunction with
unvented water storage systems.
Programmers recommended are: FP715 (7,5 and 2 day programming and the
CP15 5, 2 and 24 hour programming.

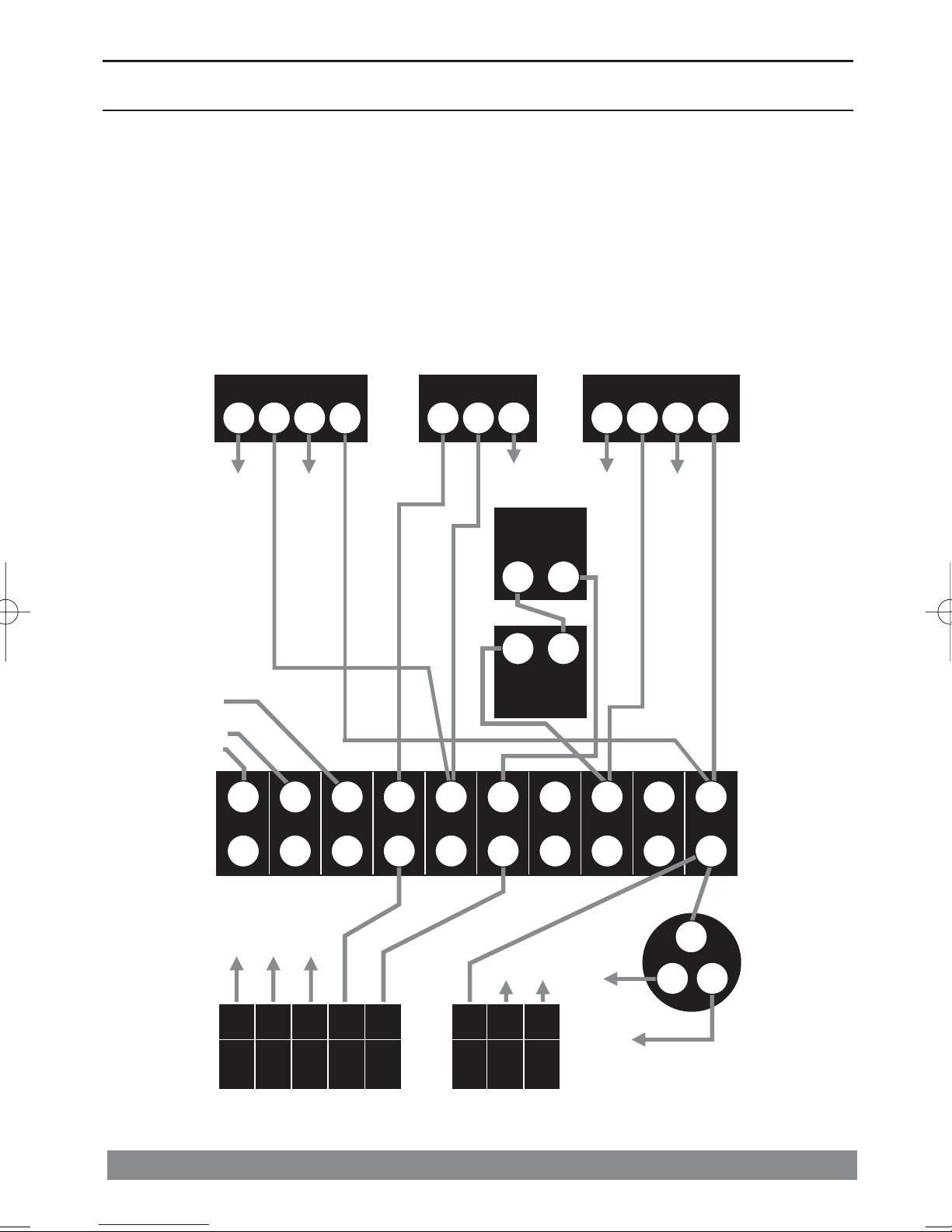

WIRING INSTALLATION
8
New Stainless imp_alt 2/15/05 12:15 PM Page 9

WIRING INSTALLATION
9
The wiring diagram for Danfoss systems is given as guidance.
For modified Danfoss Randall Y, S and W plan systems when used in conjunction with
unvented water storage systems.
Programmers recommended are: FP715 (7,5 and 2 day programming and the
CP15 5, 2 and 24 hour programming.
S PLAN
Zone Valve (Htg) Room Stat Zone Valve (DHW)
HP22
12
2
89107654321
123
23
3
2
21
RMT 230 HP22
OBlBrG OBl
IC
2
L
N
LNE
LNE
Htg
On
Dhw
On
E
C
BrG241
ITD
Dual Stat
Control
Unit
High Limit
Stat
Power
Supply
E
Junction Box
LN43 E
FP75 or CP15 Programmer Basic Boiler
Pump
N
L
New Stainless imp_alt 2/15/05 12:15 PM Page 10

WIRING INSTALLATION
10
The wiring diagram for Danfoss systems is given as guidance.
For modified Danfoss Randall Y, S and W plan systems when used in conjunction with
unvented water storage systems.
Programmers recommended are: FP715 (7,5 and 2 day programming and the
CP15 5, 2 and 24 hour programming.
89107654321
2
1 2 3
3
3
2
21
LNELNE
Htg
On
Dhw
On
Dhw
Off
LLN 431
NOT
USED NE
Basic Boiler
2 Port Valve
Pump
22 3
Cylinder Stat
HS3
FP75 or CP15 Programmer
HP22
GBL
Mid Position Valve
High Limit Stat
4
Room Stat
RMT 230
G/Y
2C
C 12
Power
Supply
E
Junction Box
N
L
1 2 W GOBl
L
OBR
E
N
Y PLAN
ITD Dual Stat
ITD Dual Stat
New Stainless imp_alt 2/15/05 12:15 PM Page 11

11
COMMISSIONING INSTRUCTIONS
BEFORE FILLING, CHECK EXPANSION VESSEL CHARGE IS AT 3.0 BAR.
1. Open all terminal fittings on the domestic hot water circuit. Open the main supply to the unit.
2. Flush through until all air is expelled.
3. Close hot outlets and open all cold outlets connected to the tee after the pressure control valve.
4. Flush through until all air is expelled.
5. The system is now full of water. Check for any leaks on pipework or joints or components such
as immersion heaters etc. It is the responsibility of the installer to check all fittings, including
those that are fitted to the unit.
6. Switch on power and heat up via immersion heater, and/or boiler.
7. Your system should be ready for use.
MAINTENANCE
Maintain annually and carry out the following checks:
Clearly up date the Benchmark Log Book at each service -
GUARANTEES ARE VOID WITHOUT SERVICE RECORDS.
1. Check incoming pressure is controlled at 3 bar maximum. The gauge reading clearly demonstrates this.
Expansion vessels must be maintained annually. The charge should be checked with an accurate
pressure gauge and maintained at 3.0 bar. If the reading is less than 3.0 bar to recharge the vessel
ensure that the unit is decommissioned by turning off the water supply and opening hot tap. Open
the pressure and temperature relief valve to drain water from the top of the unit then close this valve.
Leaving the hot tap open and the main supply off, pump the vessel using a schraeder valve connector
via a footpump or motorised pump to 3.0 bar. Remove pump, open mains supply and close hot tap
once water is running freely.
Run a hot tap and close. If the pressure remains over 3 bar, re-calibrate the Pressure Reducing Valve
and clean the strainer, replacing if necessary.
2. Open the expansion valve cap to manually discharge water to ensure that it works, making sure that
it resets correctly.
3. Open the pressure and temperature relief valve cap to manually discharge water to ensure that it works,
making sure that it resets correctly.
4. In both cases ensure that discharge pipework is adequate to safely carry discharged water away.
If not, check for blockages etc. and clear.
5. Check that the controls of the hot water temperature do not allow the water to get hotter than 60ºc.
New Stainless imp_alt 2/15/05 12:15 PM Page 12

12
STAINLESS INDIRECT UNIT WITH COMPONENT I.D.
G
D
3/4" Female boss for
expansion vessel
J
EF
AHOT DRAW-OFF TO TAPS.
B3KW IMMERSION HEATER WITH MANUAL RE-SET TEMPERATURE HIGH LIMIT CUT-OUT.
CTEMPERATURE AND PRESSURE RELIEF VALVE.
DEXPANSION RELIEF VALVE.
EPRESSURE REDUCING VALVE/LINE STRAINER.
F EXPANSION VESSEL (SUPPLIED LOOSE).
G NON RETURN VALVE.
HPRIMARY CONNECTIONS.
IIMMERSION THERMOSTAT WITH HIGH LIMIT CUT-OUT.
JGAUGE.
COLD MAIN IN
THROUGH E, THEN G.
D IS TEED OFF
BETWEEN
G AND THE UNIT.
CA
HI
B
H
New Stainless imp_alt 2/15/05 12:15 PM Page 13

13
STAINLESS DIRECT UNIT WITH COMPONENT I.D.
AHOT DRAW-OFF TO TAPS.
B3KW IMMERSION HEATER WITH MANUAL RE-SET TEMPERATURE HIGH LIMIT CUT-OUT.
CTEMPERATURE AND PRESSURE RELIEF VALVE.
DEXPANSION RELIEF VALVE.
EPRESSURE REDUCING VALVE/LINE STRAINER.
F EXPANSION VESSEL (SUPPLIED LOOSE).
G NON RETURN VALVE.
HGUAGE.
COLD MAIN IN
THROUGH E, THEN G.
D IS TEED OFF
BETWEEN
G AND THE UNIT.
A
B
C
B
New Stainless imp_alt 2/15/05 12:15 PM Page 14

14
SIZING GUIDE & SPECIFICATIONS
SIZING GUIDE
150 201kg
1120 x 560 SINGLE BATH - 3 BED
88mins / 50mins
200 266kg
1470 x 560 TWIN BATH
108mins / 63mins
250 319kg
1770 x 560 TWIN BATH & SHOWER
155mins / 100mins
Heat-up times through 50oC. Re-heat is 70% of volume.
CAPACITY
(LITRES) NOM SIZES NOM WEIGHT
INDIRECT (FULL) DIRECT APPLICATION
HEAT-UP TIME/RE-HEAT TIME
COMPONENT SPECIFICATION
& REFERENCE NUMBERS
DESCRIPTION SPECIFICATION PART NUMBER
PRESSURE REDUCING VALVE
NON RETURN VALVE
PRESSURE GAUGE
EXPANSION VALVE
PRESSURE & TEMP RELIEF VALUE
IMMERSION HEATER
IMMERSION HIGH LIMIT THERMOSAT
IMMERSION CONTROL THERMOSTAT
EXPANSION VESSEL UP TO 170 LITRE MODELS
EXPANSION VESSEL
FOR 200 & 250 LITRE MODELS
TUNDISH
INSTALLATION GUIDE
LABEL
CYLINDER THERMOSTAT
2 PORT VALVE
3.0 BAR CONTROL
22MM X 22MM
0-10 BAR SCALE
6.0 BAR
7.0 BAR/95OC
13/4 - 240V ~ 3KW
80OC
VARIABLE
3.0 BAR CHARGE, 12 LITRE CAPACITY
3.0 BAR CHARGE, 18 LITRE CAPACITY
1/2“ X 22MM
24PP
-
CONTROL & HIGH LIMIT 80OC
DANFOSS
97-392056
97-392038
97-392057
97-392058
97-392059
97-392060
97-392061
97-392062
97-392063
97-392064
97-392065
97-392066
97-392067
97-392068
97-392069
INDIRECT APPLICATION
HEAT-UP TIME/RE-HEAT TIME
TWIN BATH
30mins / 21mins
2 BATH & 2 SHOWERS
33mins / 24mins
3 BATH & 2 SHOWERS
36mins / 26mins
NOM WEIGHT
DIRECT (FULL)
230kg
300kg
360kg
New Stainless imp_alt 2/15/05 12:15 PM Page 15

GUARANTEE
Applied Energy Products Ltd guarantees the shell of the unit for 25 years.
The component parts, including the expansion vessel, are guaranteed for
2 years from date of purchase.
THE FOLLOWING INFORMATION IS IMPORTANT –
WITHOUT IT YOUR GUARANTEE MAY BE INVALID
1. Keep proof of purchase
2. Maintain log book on unit
3. Service annually
4. Ensure that installation has been carried out correctly by appropriately approved/ competent
personnel following relevant Code of Practice.
5. Installation must be in an appropriate location and use is restricted to potable water.
Please note that the extended guarantee is not transferable, and rests with the original
householder.
The above does not affect your statutory rights.
Every effort has been made to ensure that this information is correct. Regulations may change and
installers must adopt best current practice.
We reserve the right to alter or improve components or specification without notice.
We will endeavour to update web site details as changes happen.
15
New Stainless imp_alt 2/15/05 12:15 PM Page 16

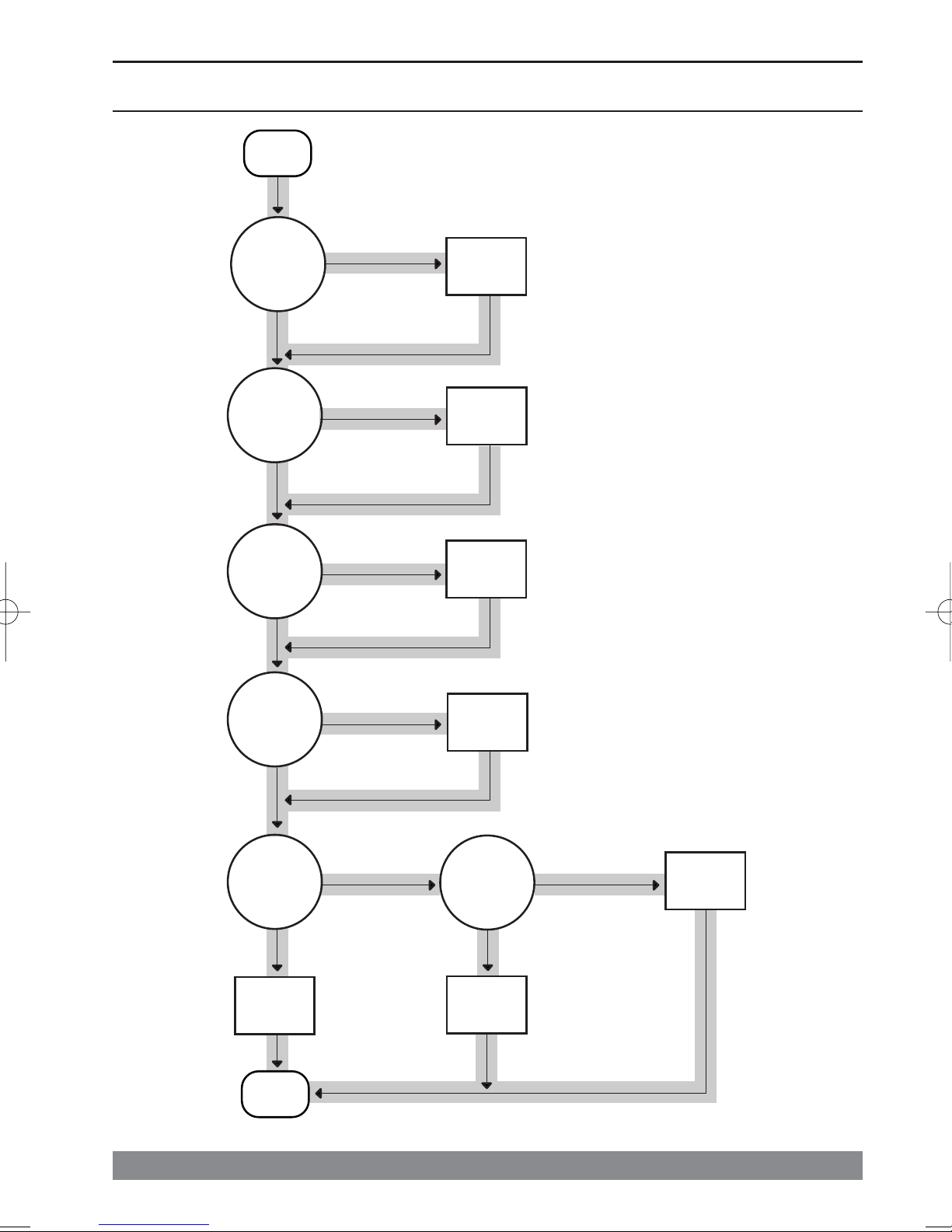

IS
PROGRAMMER
SWITCHED TO
HOT WATER?
IS
MID POSITION
VALVE IN CORRECT
POSITION
END
YES
HAS
HIGH LIMIT
CUT OUT?
IS ALL
WIRING TO THE
CONTROLS
OK?
YES
NO NO
NO
NO
YES
RE-SET
YES
REPLACE
THERMOSTAT
RE-WIRE
IS
CONTROL
TEMPERATURE SET
AT 55oC-60oC?
YES
NO
RE-SET
SET PROGRAMME
IS BOILER ON?
START
YES
NO
SWITCH ON
RE-SET, CHECK
WIRING & PLUMBING
IS CORRECT
16
TROUBLESHOOTING - NO HOT WATER - INDIRECT
New Stainless imp_alt 2/15/05 12:15 PM Page 17

17
TROUBLESHOOTING - NO HOT WATER - DIRECT
IS
POWER
ON TO
ELEMENTS?
IS
CONTROL
TEMPERATURE SET
AT 55oC-60oC?
START
END
YES
HAS
HIGH LIMIT
TRIPPED?
YES
NO
NO
NO
YES
CHECK WIRING
LINKS CONTINUITY
AND RE-SET
REPLACE ELEMENT
SWITCH ON
RE-SET
New Stainless imp_alt 2/15/05 12:15 PM Page 18

18
TROUBLESHOOTING - POOR WATER FLOW AT HOT TAPS
IS
INCOMING MAINS
SUPPLY FLOW/PRESSURE
ADEQUATE
IS
IN-LINE
STRAINER (IN PRV)
DIRTY
START
END
YES
IS PRV
FAULTY
IS
SYSTEM
FREE FROM
RESTRICTIONS/
BLOCKAGES
NO
YES
YES
NO
YES
NO
NO
WATER SERVICE
CHECK BY
SUPPLY COMPANY
REQUIRED
CLEAN
OR REPLACE
STRAINERS
AS APPROPRIATE
CLEAR
OBSTRUCTIONS
SERVICE/
REPLACE PRV
AS APPROPRIATE
New Stainless imp_alt 2/15/05 12:15 PM Page 19

19
TROUBLESHOOTING - WATER DISCHARGING INTO TUNDISH
START
IS
HEATER
OPERATING AT
LESS THAN
60oC?
IS
EXPANSION
VESSEL CHARGE
CORRECT?
IS ERV/TPRV
DISCHARGING
REPLACE
ERV/TPRV
RESET
TEMPERATURE
END
CLEAN OR
REPLACE
AS
REQUIRED
RECOMMISSION
EXPANSION
LEVEL
RE-CALIBRATE
PRV
IS
VALVE SEAL
AND SEAT CLEAN
& UNDAMAGED?
IS
PRESSURE
DOWNSTREAM
OF TPRV
CORRECT
YES
YES
YES
YES
YES
NO
NO
NO
NO
NO
New Stainless imp_alt 2/15/05 12:15 PM Page 20
