RED 3-Axis Lens Control System User manual

W.M.D. |T.H.C. | Lens ConTroL MoTor
RED.COM
RED 3-AXIS LENS CONTROL SYSTEM
OPERATION GUIDE

CoPYrIGHT © 2014 reD.CoM, InC
RED 3-AXIS SYSTEM OPERATION GUIDE
955-0044, reV-D | 2
TABLE OF CONTENTS
Disclaimer 3
Copyright Notice 3
Trademark Disclaimer 3
Compliance Statements 3
Safety Instructions 5
Battery Storage and Handling 6
Shipping Disclaimer 6
Chapter 1: 3-Axis System Overview 7
Introduction 7
3-Axis System Components 8
Additional Resources 9
Chapter 2: 3-Axis System Launch Sequence 10
Recommended Equipment 10
Prepare the Camera 11
Install the 3-Axis System 11
Connect the 3-Axis System 13
Configure the 3-Axis System 14
Configure Lens Control Motors 15
Metadata and Lens Profiles 15
Lens Limits and Lens Locks 15
Chapter 3: Wireless Motor Driver (W.M.D.) 16
W.M.D. Overview 16
W.M.D. Controls 17
W.M.D. LEDs 18
W.M.D. Connectors 19
Mount the W.M.D. 21
Power the W.M.D. 23
Connect Motors 23
Initialize with the W.M.D. 23
W.M.D. Main Menu 24
Configure Focus, Iris, and Zoom Motors 24
Configure Wireless Settings 26
View Motor Status 26
Configure Start/Stop, Genlock, TimeCode, Tally 27
W.M.D. Lens Profiles 28
Select a Lens Profile 29
Clear the Active Lens Profiles 29
Modify a Lens Profile 29
Save a Lens Profile 30
View Lens Metadata 30
Export Lens Profiles 30
Import Lens Profiles 30
Manage Lens Profiles 31
Access W.M.D. Diagnostic Data 31
Erase Settings on the W.M.D. 31
Chapter 4: Tactical Hand Controller (T.H.C.) 32
T.H.C. Overview 32
T.H.C. Controls 33
T.H.C. LEDs 34
T.H.C. Connectors 36
Wired Operation 37
Pair the T.H.C. 37
Change the Wireless Channel 38
Wireless Settings 38
Connect Two (2) T.H.C. Units 38
Initialize with the T.H.C. 38
Set a Lens Limit 39
Remove a Lens Limit 39
Set a Lens Lock 40
Remove a Lens Lock 40
Record Start/Stop with the T.H.C. 40
Chapter 5: Lens Control Motor 41
Lens Control Motor Overview 41
Lens Control Motor Mounting Bracket 42
19mm-to-15mm Rod Reducers 42
Lens Drive Gears 43
Install the Lens Control Motor 43
Connect the Lens Control Motor 44
Install a Lens Drive Gear 44
Remove a Lens Drive Gear 44
Chapter 6: System Maintenance 45
Clean 3-Axis System Components 45
Store the 3-Axis System 45
Chapter 7: Upgrade Firmware 46
MicroSD Card Preparation 46
Verify Current W.M.D. Firmware 46
Upgrade W.M.D. 46
Verify Current T.H.C. Firmware 47
Upgrade T.H.C. 47
Chapter 8: Troubleshoot the System 48
General Topics 48
Troubleshoot the W.M.D. 49
Troubleshoot Lens Control Motors 49
Troubleshoot Wireless Operations 50
Troubleshoot Firmware Upgrade 51
Appendix A: Technical Specifications 52
Tactical Hand Controller (T.H.C.) 52
Wireless Motor Driver (W.M.D.) 52
Lens Control Motor 53
RED Li Battery 7.2V 53
Appendix B: 3-Axis System Compatibility 54
Compatible Motors 54
Compatible Motor Drivers 54
Compatible Lenses 54
Appendix C: Connector and Cable Pinouts 55
W.M.D. Connectors 55
T.H.C. Connectors 60
Lens Control Motor Connectors 62
3-Axis System Cables 63
Appendix D: W.M.D. Main Menu Map 70

RED 3-AXIS SYSTEM OPERATION GUIDE
CoPYrIGHT © 2014 reD.CoM, InC 955-0044, reV-D | 3
COMPLIANCE STATEMENTS
INDUSTRIAL CANADA EMISSION COMPLIANCE STATEMENTS
This device complies with Industry Canada license-exempt RSS
standards RSS 139 and RSS 210. Operation is subject to the follow-
ing two conditions: (1) this device may not cause interference, and
(2) this device must accept any interference, including interference
that may cause undesired operation of the device.
This Class B digital apparatus complies with Canadian ICES-003.
Le présent appareil est conforme aux CNR d’Industrie Canada ap-
plicables aux appareils radio exempts de licence. L’exploitation est
autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas
produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter
tout brouillage radioélectrique subi, même si le brouillage est sus-
ceptible d’en compromettre le fonctionnement.Cet appareil numéri-
que de la classe B est conforme à la norme NMB-003 du Canada.
FEDERAL COMMUNICATIONS COMMISSION (FCC) STATE-
MENTS
This equipment has been tested and found to
comply with the limits for a Class B digital de-
vice, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reason-
able protection against harmful interference
in a residential installation. This equipment
generates, uses and can radiate radio fre-
quency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that inter-
ference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more
of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for
help.
In order to maintain compliance with FCC regulations, shielded
cables must be used with this equipment. Operation with non-ap-
proved equipment or unshielded cables is likely to result in interfer-
ence to radio and TV reception. The user is cautioned that changes
and modifications made to the equipment without approval of manu-
facturer could void the users authority to operate this equipment.
NOTE: This device complies with Part 15 of the FCC Rules.
Operation is subjected to the following two conditions (1) this device
may not cause harmful interference, and (2) this device must accept
any interference received, including that may cause undesirable in-
terference.
CAUTION: Exposure to Radio Frequency Radia-
tion.
The device shall be used in such a manner that the potential for hu-
man contact is minimized
This equipment complies with FCC radiation exposure limits set
forth for an uncontrolled environment. This equipment should be
installed and operated with a minimum distance of 20 cm between
the radiator and your body.
CAUTION: Regulations of the FCC and FAA
prohibit airborne operation of radio-frequency
wireless devices because their signals could
interfere with critical aircraft instruments.
CAUTION: If the device is changed or modified
without permission from RED, the user may
void his or her authority to operate the equip-
ment.
AUSTRALIA AND NEW ZEALAND STATEMENTS
RED declares that the radio equipment described in this document
comply with the following international standards.
IEC 60065 - Product Safety
ETSI EN 300 328 - Technical requirement for radio equipment
RED declares digital devices described in this document comply
with the following Australian and New Zealand standards.
AS/NZS CISPR 22 – Electromagnetic Interference
AS/NZS 61000.3.2 – Power Line Harmonics
AS/NZS 61000.3.3 – Power Line Flicker
DISCLAIMER
RED has made every effort to provide clear and accurate information
in these installation instructions, which are provided solely for the
user’s information. While thought to be accurate, the information in
this document is provided strictly “as is” and RED will not be held
responsible for issues arising from typographical errors or user’s
interpretation of the language used herein that is different from that
intended by RED. All safety and general information is subject to
change as a result of changes in local, federal or other applicable
laws.
RED reserves the right to revise this document and make changes
from time to time in the content hereof without obligation to notify
any person of such revisions or changes. In no event shall RED, its
employees or authorized agents be liable to you for any damages
or losses, direct or indirect, arising from the use of any technical or
operational information contained in this document.
For comments or questions about content in this Operation Guide,
please send a detailed e-mail to [email protected].
COPYRIGHT NOTICE
COPYRIGHT© 2014 RED.COM, INC.
All trademarks, trade names, logos, icons, images, written material,
code, and product names used in association with the accompa-
nying product are the copyrights, trademarks or other intellectual
property owned and controlled exclusively by RED.COM, INC.
TRADEMARK DISCLAIMER
All other company, brand, and product names are trademarks or
registered trademarks of their respective holders. RED has no affili-
ation to, is not associated or sponsored with, and has no express
rights in third-party trademarks. SD and microSD are registered
trademark of SD-3C, LLC in the United States, other countries or
both.

CoPYrIGHT © 2014 reD.CoM, InC
RED 3-AXIS SYSTEM OPERATION GUIDE
955-0044, reV-D | 4
JAPAN STATEMENTS
This is a Class B product based on the
standard of the Voluntary Control Council
for Interference (VCCI) for information tech-
nology equipment. If this equipment is used
near a radio or television receiver in a do-
mestic environment, it may cause radio in-
terference. Install and use the equipment
according to the instruction manual.
EUROPEAN UNION COMPLIANCE STATEMENTS
RED declares that the radio
equipment described in this
document complies with the
R&TTE Directive (1999/5/
EC) issued by the Commis-
sion of the European Com-
munity.
Compliance with this directive implies conformity to the following
European Norms (in brackets are the equivalent international stan-
dards).
EN 60065 (IEC 60065) – Product Safety
ETSI EN 300 328 Technical requirement for radio equipment
ETSI EN 301 489 General EMC requirements for radio equip-
ment.
INFORMATION
Products with the CE marking comply with the EMC Directive
(2004/108/EC) and the Low Voltage Directive (2006/95/EC) issued
by the Commission of the European Community. Compliance with
these directives implies conformity to the following European Prod-
uct Family Standards.
EN 55022 (CISPR 22) – Electromagnetic Interference
EN 55024-1 (CISPR 24) – Electromagnetic Immunity
EN 61000-3-2 (IEC610000-3-2) – Power Line Harmonics
EN 61000-3-3 (IEC610000) – Power Line Flicker
EN 60065 (IEC60065) – Product Safety
WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE)
The Waste Electrical and Electronic Equip-
ment (WEEE) mark applies only to countries
within the European Union (EU) and Norway.
This symbol on the product and accompany-
ing documents means that used electrical
and electronic products should not be mixed
with general household waste. For proper
treatment, recovery and recycling, please
take this product to designated collection
points where it will be accepted free of
charge. Alternatively, in some countries you
may be able to return your products to your
local retailer upon purchase of an equivalent
new product.
Disposing of this product correctly will help save valuable resources
and prevent any potential negative effects on human health and the
environment, which could otherwise arise from inappropriate waste
handling. Please contact your local authority for further details of
your nearest designated collection point. Penalties may be appli-
cable for incorrect disposal of this waste, in accordance with you
national legislation.
For business users in the European Union, if you wish to discard
electrical and electronic equipment, please contact your dealer or
supplier for further information.
USAGE RESTRICTIONS FOR PRODUCTS THAT INCORPORATE
REDLINK
Products that fall into this category are denoted
by inclusion of the Class 2 identifier symbol (ex-
clamation mark in a circle) accompanying the CE
Mark on the products regulatory label, example to
the left.
FRANCE
Usage Restrictions - Geographic Area Where Restriction Applies :
France
For mainland France
2.400 - 2.4835 GHz (Channels 1-16) authorized for indoor use
2.400 - 2.454 GHz (Channels 1-10) authorized for outdoor use
Restrictions d’utilisation - Zone géographique où les restrictions
s’appliquent : France
Pour la France métropolitaine
2.400 - 2.4835 GHz (Canaux 1 à 16) autorisé en usage intérieur
2.400 - 2.454 GHz (canaux 1 à 10) autorisé en usage extérieur
NORWAY
This subsection does not apply for the geographical area within a
radius of 20 km from the centre of Ny-Ålesund
Dette gjelder ikke for det geografiske området innenfor en radius av
20 km fra sentrum av Ny-Ålesund
RESPONSIBLE PARTY:
RED Digital Cinema
34 Parker
Irvine, CA 92618
USA

RED 3-AXIS SYSTEM OPERATION GUIDE
CoPYrIGHT © 2014 reD.CoM, InC 955-0044, reV-D | 5
SAFETY INSTRUCTIONS
DO NOT use the system or accessories near water. Avoid ex-
posing your system to moisture. The system is not waterproof,
so contact with water could cause permanent damage to the
system as well as electric shock and serious injury to the user.
DO NOT use the system in the rain or under other conditions
with high moisture without appropriate protection, and imme-
diately remove power source if system or accessories are ex-
posed to moisture.
WARNING: To reduce the risk of fire or elec-
tric shock, do not expose the camera or
system to rain or moisture.
DO NOT expose your system to excessive vibration or impact
(shock). Be careful not to drop your camera or system. Internal
mechanisms may be damaged by severe shock. Mechanical
alignment of optical elements may be affected by excessive
vibration.
ELECTROMAGNETIC INTERFERENCE: The use of devices us-
ing radio or other communication waves may result in the mal-
function or interference with the unit and/or with audio and
video signals.
Clean only using a dry cloth. When cleaning your system, re-
member that it is not waterproof and moisture can damage
electronic circuitry. DO NOT rinse or immerse any element of
the camera, lens or other accessory, keep them dry at all times.
DO NOT use soaps, detergents, ammonia, alkaline cleaners,
and abrasive cleaning compounds or solvents. These sub-
stances may damage lens coatings and electronic circuitry.
Maintain sufficient ventilation - DO NOT block any ventilation
openings or obstruct cooling fan airflow.
CAUTION: Proper camera ventilation re-
quires a minimum 1/2" (1.25 cm) clear-
ance between the camera ventilation
openings and external surfaces. Verify
that objects that can block the fan intake
and exhaust ports do not impede airflow.
Failure to permit adequate airflow may re-
sult in overheating of the camera, degrad-
ed operation and in extreme situations,
damage to the camera.
DO NOT operate or store near any heat sources such as radia-
tors, heat registers, stoves, or any other apparatus that pro-
duce heat. Store in a protected, level and ventilated place.
Avoid exposure to temperature extremes, damp, severe vibra-
tion, strong magnetic fields, direct sunlight or local heat sourc-
es during storage. Remove any batteries from the T.H.C. before
storage. Recommended storage and usage temperatures for
your system are:
‒Operating range: 0°C to 40°C (32°F to 104°F)
‒Storage range: -20°C to 50°C (-4°F to 122°F)
If there are any performance issues with your system when
operating within this temperature range, please file a support
ticket on support.red.com.
The W.M.D. is NOT HOT SWAPPABLE – meaning you cannot
remove or install while the camera is powered on. Before in-
stalling or removing, you MUST power down the camera. Fail-
ure to do so may result in damage to the accessory and / or
camera brain that will not be covered under warranty.
Protect all power cords from being pinched, walked on or driv-
en over by a vehicle. Replace any power cords suspected of
sustaining damage due to crushing or other forms of damage.
Lithium Ion batteries may be subject to special handling re-
quirements pursuant to federal and local laws. Please refer to
specific shipping instructions included with your battery re-
garding proper transport of your battery. Do not handle your
battery if it is damaged or leaking. Disposal of batteries must
be in accordance with local environmental regulations. For ex-
ample, California law requires that all rechargeable batteries
must be recycled by an authorized recycle center. Storing bat-
teries that are fully charged, fully discharged, in high tempera-
tures, or otherwise outside the recommended storage condi-
tions may permanently reduce the life of the battery. Available
battery capacity may also be temporarily lessened after stor-
age in low temperature conditions.
WARNING: DO NOT expose batteries to ex-
cessive heat.
WARNING: Danger of explosion if an in-
correct battery is charged with a RED Li
Battery Charger 7.2V or is used to power
the T.H.C. Replace only with the same or
equivalent type battery.
CAUTION: Refer all service and repair to
qualified RED service personnel. To reduce
the risk of electric shock, and damage to
the camera or accessories, DO NOT at-
tempt to perform any servicing other than
any procedures that are recommended in
the operating instructions.

CoPYrIGHT © 2014 reD.CoM, InC
RED 3-AXIS SYSTEM OPERATION GUIDE
955-0044, reV-D | 6
BATTERY STORAGE AND HANDLING
WARNING: Failure to read, understand, and
follow these instructions may result in over-
heating, chemical leakage, smoke emission,
fire, or other potentially harmful results.
Always follow proper battery handling and storage practices. Im-
proper handling and/or failure to abide by proper storage instruc-
tions may cause permanent damage to batteries, or degrade charge
capacity. Improper handling practices or failure to comply with in-
structions may also put you at risk.
LONG TERM STORAGE AND HANDLING
Lithium-Ion batteries, like the RED Li Battery 7.2V, REDVOLT®, RED-
VOLT XL, and RED BRICK®, self-discharge over time. When storing
for long periods of time, store batteries separately from the camera
or charger and remember to charge batteries to a capacity level of
50% to 80%. If batteries will be stored for long periods of time, RED
recommends that you check the charge level at least once every
six (6) months, and recharge batteries to a capacity level of 50%
to 80%.
When not in use, remove the battery from the camera or charger
and store the battery in a cool, dry place. Avoid non-insulated stor-
age areas with fluctuating temperatures, extreme hot temperatures
(such as inside a hot car), corrosive gas, and direct sunlight. The
optimal storage temperature for batteries is between -20°C to 20°C
(-4°F to 68°F).
BATTERY CAUTIONS AND WARNINGS
WARNING: Batteries stored for a prolonged
period of time at less than 50% charge level
may permanently lose the ability to hold a
charge.
WARNING: DO NOT use the battery for pur-
poses other than those specified.
WARNING: If recharging operation fails to
complete even after the specified recharging
time has elapsed, immediately stop further re-
charging.
Store batteries out of the reach of children.
DO NOT store batteries in a fully charged or discharged state
for extended periods of time.
DO NOT store batteries in a camera, camera module, or char-
ger for extended periods of time.
DO NOT store batteries in extreme hot or cold temperatures.
DO NOT expose batteries to fire or excessive heat.
DO NOT store batteries in direct sunlight.
DO NOT store, use, or recharge batteries near a heat source
such as a fire or a heater.
DO NOT use third-party chargers with your RED batteries.
DO NOT disassemble or modify batteries.
DO NOT overcharge batteries. Overcharging may increase in-
ternal temperature beyond the recommended limits and cause
permanent damage.
DO NOT connect the positive (+) and negative (-) terminals to
a metal object such as a wire.
DO NOT allow batteries to get wet.
DO NOT transport or store batteries together with metal ob-
jects such as jewelry, hairpins, etc. as they may generate heat
if they come into contact with the battery.
DO NOT pierce batteries with pointed or other sharp objects.
DO NOT step on, throw, or strike batteries with a hammer.
DO NOT use batteries that appear to be deformed or damaged.
DO NOT put batteries into pressurized containers or micro-
wave ovens.
DO NOT use or subject batteries to intense sunlight or hot
temperatures such as a vehicle on a hot day.
Battery incorporates built-in safety devices. DO NOT use it in a
location where static electricity may be present.
DO NOT exceed the recharging temperature range of 0˚C to
40˚C (32˚F to 104˚F).
Only use RED chargers to recharge RED batteries.
If a battery leaks or gives off a bad odor, discontinue use im-
mediately.
If a battery gives off an odor, generates heat, becomes discol-
ored or deformed, or in any way appears abnormal during use,
recharging or storage, immediately remove it from the equip-
ment or battery charger and discontinue use.
If electrolyte from batteries comes into contact with skin or
clothing, immediately wash the area with running water. Failure
to do this may result in skin inflammation.
If electrolyte reaches the eyes, DO NOT rub them. Instead,
rinse the eyes with clean running water and immediately seek
medical attention. Failure to do this may result in eye injury.
If you find discoloration, a bad odor due to leakage, overheat-
ing and/or other irregularities when using a battery for the first
time, contact your Bomb Squad representative immediately.
NOTE: For more information regarding RED
battery charging and instructions for care,
please refer to our Terms and Conditions.
SHIPPING DISCLAIMER
Unless you have been certified to ship dangerous goods, you must
work with a Dangerous Goods, Class 9-certified shipper to assist
you with a shipment that includes a RED BRICK (or other regulated
lithium ion batteries). Please note that applicable laws prohibit the
shipping of batteries that are physically damaged. We urge you to
look into the formal rules and regulations of shipping Class 9 Dan-
gerous Goods prior to preparing your shipment. For more informa-
tion on these regulations, please visit www.iata.org and www.dot.
gov.

COPYRIGHT © 2014 RED.COM, INC
RED 3-AXIS SYSTEM OPERATION GUIDE
955-0044, REV-D | 7
01
INTRODUCTION
The RED 3-Axis Lens Control System is a versatile and highly accurate wireless lens control system. Use the
RED®Lens Control Motor, RED® Tactical Hand Controller (T.H.C.), RED® Wireless Motor Driver (W.M.D.), and
related RED accessories to configure a low-profile lens control system for your camera rig. This guide provides
setup and operation instructions for the RED Lens Control Motor, T.H.C., W.M.D., and related accessories.
The Tactical Hand Controller is also compatible with the REDLINK™ Bridge for wireless control of supported
Canon®and Nikon® motorized lenses. For more information, see the REDLINK Bridge Operation Guide, available
at www.red.com/downloads.
WARNING: ALWAYS use the RED motor cable with the appropriate internal identification resistor when using
RED LENS CONTROL MOTORs with third-party motor drivers. Any damage caused to motors or motor drivers
resulting from the use of third-party cables will not be covered under warranty.
NOTE: The DSMC does not require a minimum firmware version for operation with the W.M.D., T.H.C.,
Lens Control Motor, and other components of the RED 3-Axis Lens Control System.
01 3-AXIS SYSTEM
OVERVIEW

COPYRIGHT © 2014 RED.COM, INC
RED 3-AXIS SYSTEM OPERATION GUIDE
955-0044, REV-D | 8
3-AXIS SYSTEM COMPONENTS
RED offers the following RED 3-Axis Lens Control System components individually, enabling you to customize
your lens control setup. For more information, visit the RED Store at www.red.com/store.
ITEM PART NUMBER
RED®3-Axis Lens Control System 760-0147
RED®W.M.D. (Wireless Motor Driver) 790-0414
RED®T.H.C. (Tactical Hand Controller) 790-0413
RED®Lens Control Motor 760-0146
RED®Lens Drive Gear M 0.8 760-0139
RED®Lens Drive Gear M 0.6 760-0140
RED®Lens Drive Gear M 0.5 760-0141
RED®Lens Drive Gear M 0.4 760-0142
19mm-to-15mm Rod Reducer Kit 760-0151
RED®Lens Control Motor Mounting Bracket (Standard) 760-0137
RED®W.M.D. Motor Cable 7-Pin Straight to 7-Pin Right (12") 790-0434
RED®W.M.D. Motor Cable 7-Pin Straight to 7-Pin Right (18") 790-0406
RED®W.M.D. Motor Cable 7-Pin Straight to 7-Pin Right (24") 790-0412
RED® Lens Motor Cable (3.3KΩ version) 18" 790-0439
RED® Lens Motor Cable (3.3KΩ version) 24" 790-0438
RED®W.M.D. Power Cable 2-Pin 1B to 2-Pin 0B (18") 790-0410
RED®W.M.D. Power Cable 2-Pin 1B to 4-Pin XLR (8') 790-0411
RED®CAN Command Cable (5') 790-0407
RED®CAN Command Cable (50') 790-0408
RED®CAN Command Cable (100') 790-0409
REDLINK™-to-T.H.C. Connector Cable (3') 790-0444
RED®Start/Stop Cable (1B to Sync, Ctrl, BNC) 790-0415
RED®Start/Stop Cable (1B to BNC) 790-0416
RED®Start/Stop Cable (1B to 00B Sync) 790-0428
3BNC-to-00 Lemo Sync Cable 790-0154
Accessory Mount (V-Lock) 790-0370
RED®T.H.C./W.M.D. Antenna 790-0420
T.H.C. Focus Marking Ring 790-0430
Lanyard, RED Digital Cinema 010-0119
RED®Li Battery 7.2V 740-0032
RED®Li Battery Charger 7.2V 740-0033
3-Axis Systems Storage Case 790-0421
BNC-TO-BNC Adaptor 790-0435

RED 3-AXIS SYSTEM OPERATION GUIDE
COPYRIGHT © 2014 RED.COM, INC 955-0044, REV-D | 9
ADDITIONAL RESOURCES
The following resources offer additional information about RED, the DSMC®system, and the RED community:
RED.com: Check the official RED website for latest information about RED products.
RED Learn Articles: RED offers in-depth technical articles about RED cameras, post-production, and digital
cinematography.
RED.com/downloads: Go to the RED Downloads page to download the latest firmware, operation guides,
and post-production software.
Support.red.com: Check the RED SUPPORT site for FAQs, or to file a support ticket.
REDUser.net: Discuss all things RED on the REDUSER third-party forum.

COPYRIGHT © 2014 RED.COM, INC
RED 3-AXIS SYSTEM OPERATION GUIDE
955-0044, REV-D | 10
02
This section offers condensed installation and operating instructions to help you get started using the
RED 3-Axis Lens Control System. For more detailed information on specific components, please refer to the
respective chapter in this guide.
WARNING: The DSMC®BRAIN®must be powered off during any installation process.
RECOMMENDED EQUIPMENT
The following RED products are suggestions for use, or are used to depict operations within this section:
12 - 18 V DC power source
‒AC Power Adaptor (DSMC) with REDVOLT®XL Module
‒RED Quickplate (Short) Module with attached RED BRICK®
‒Backpack Quickplate (Short) with attached RED BRICK
Mounting platform
‒DSMC Tactical Cage
‒DSMC Tactical Right Plate
Mounting system
‒DSMC Modular Assault Plate Pack
‒Quick Release Platform or Quick Release Platform (Mini)
15mm or 19mm support rods
‒RED CARBON-X Rod (Carbon Fiber)
‒Black Rod (Aluminum)
‒Steel Rod (Steel)
NOTE: For more information and other compatible products, visit the RED Store at www.red.com/store.
3-AXIS SYSTEM
LAUNCH SEQUENCE

RED 3-AXIS SYSTEM OPERATION GUIDE
COPYRIGHT © 2014 RED.COM, INC 955-0044, REV-D | 11
PREPARE THE CAMERA
1. Install a mounting platform for the W.M.D. (Example: DSMC Tactical Cage or Tactical Right Plate)
2. Install a support rod system. (Example: DSMC Modular Assault Plate or Quick Release Platform)
3. Install 15mm or 19mm support rods.
INSTALL THE 3-AXIS SYSTEM
These instructions provide installation steps using a tactical cage or other cheeseplate. For more information
and other installation methods, go to “Mount the W.M.D.” on page 21.

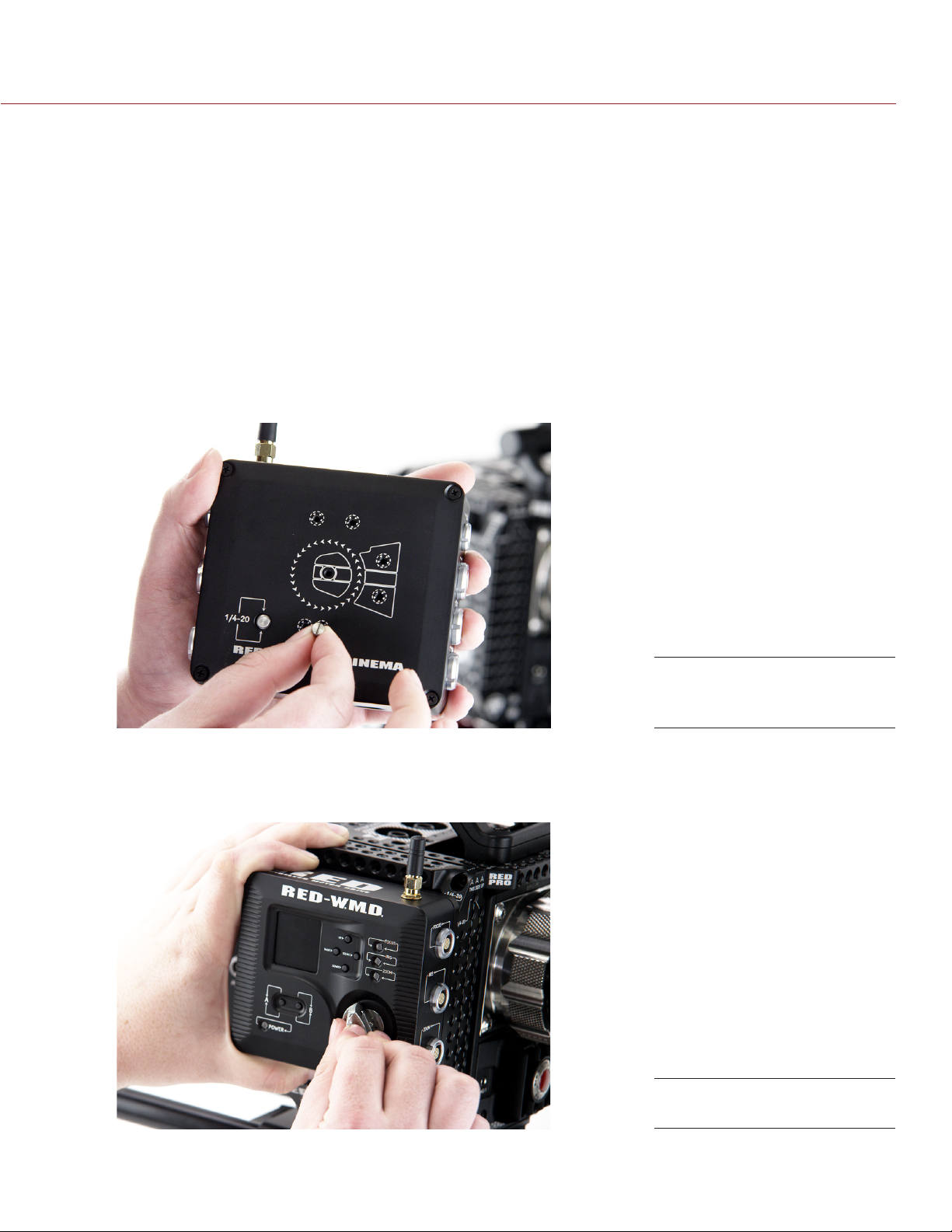

1. Mount the W.M.D.
A. Remove the guide pin from the recessed storage location on the bottom of the unit.
B. Insert the guide pin into the bottom right mounting hole on the back of the W.M.D. for 18 mm mounting
configurations. Use the left mounting hole for 25 mm configurations.
C. Position the W.M.D. at the desired location on the mounting platform, using the guide pin for alignment.
NOTE: Ensure you leave enough clearance on the sides to connect cables.
D. Push in and turn the 1/4-20 captive thumbscrew to initiate threading.
Install the W.M.D. Guide
Pin
Mount the W.M.D.

COPYRIGHT © 2014 RED.COM, INC
RED 3-AXIS SYSTEM OPERATION GUIDE
955-0044, REV-D | 12
E. Tighten the thumbscrew until hand tight.
WARNING: DO NOT OVERTIGHTEN.
2. Install the RED Lens Control Motor Mounting Bracket.
A. Push the lock button on the Lens Control Motor Mounting Bracket to disengage the locking mechanism.
B. Slide the dove-tail rail on the Lens Control Motor Mounting Bracket into the dove-tail slot on the
Lens Control Motor.
C. Release the lock button.
D. Tighten the M4 thumbscrew on the side of the Lens Control Motor Mounting Bracket to lock the bracket
in place.

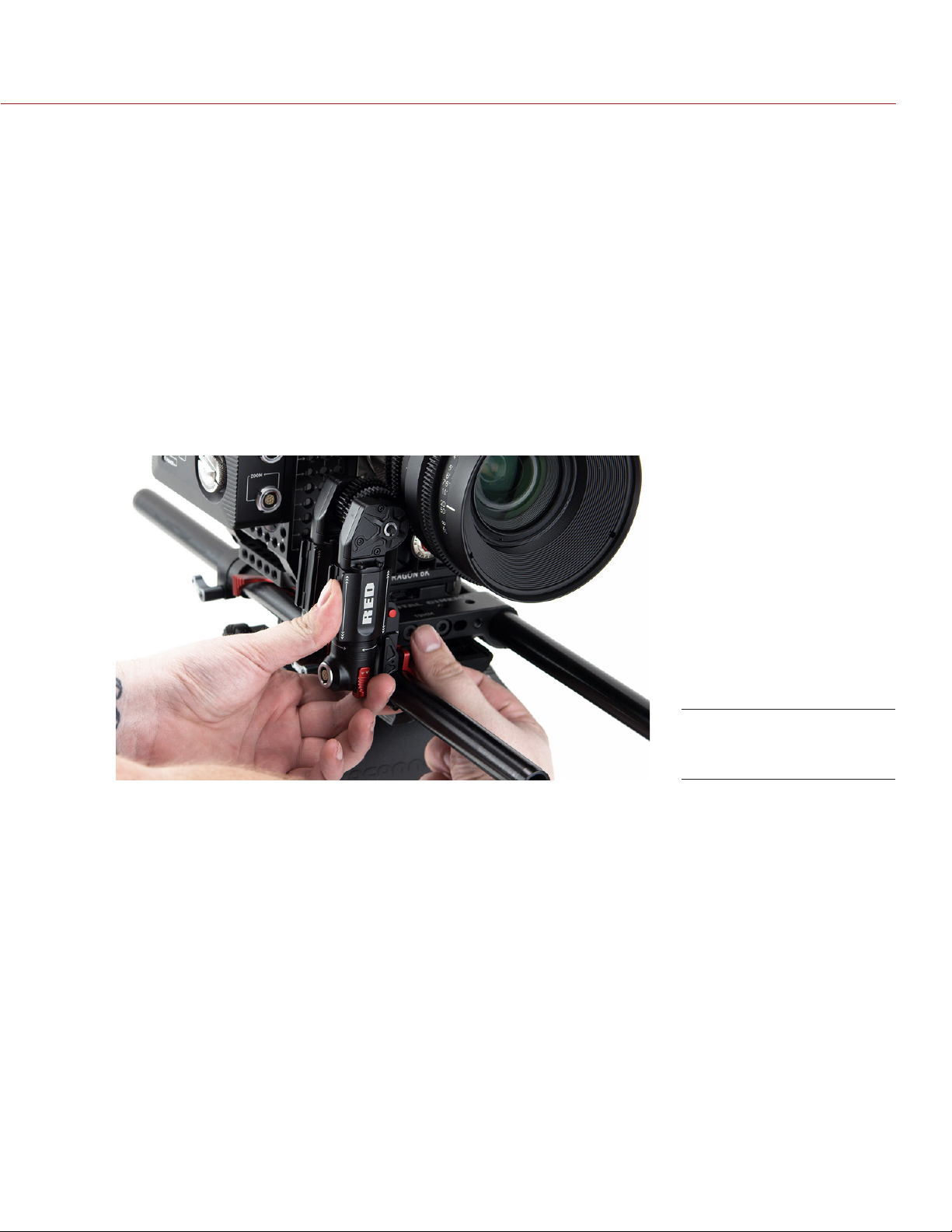

3. Mount the Lens Control Motors to the support rods.
A. If you are using 15mm support rods, install the 19mm-to-15mm Reducer Bushings into the clamp.
B. Position the Lens Control Motors at the desired position on the support rods.
C. Use the thumbscrew to tighten the clamp on the Lens Control Motor Mounting Bracket.
NOTE: For more information, go to “Lens Control Motor” on page 41.
Mount
Lens Control Motors

RED 3-AXIS SYSTEM OPERATION GUIDE
COPYRIGHT © 2014 RED.COM, INC 955-0044, REV-D | 13
CONNECT THE 3-AXIS SYSTEM
1. Connect the RED Lens Control Motors.
A. Connect the RED W.M.D. Motor Cable to the pivoting connector on each Lens Control Motor.
B. Connect the opposite end of the LENS CONTROL MOTOR CABLE to the desired lens function.
C. Repeat steps A and B for additional motors.
2. Connect the desired RED Start/Stop cable.
A. Connect the desired RED Start/Stop Cables to the W.M.D. EXP port.
B. Connect the desired RED Start/Stop Cables to the appropriate SYNC and CTRL ports on the BRAIN.
WARNING: DO NOT connect Start/Stop Cables to the CTRL port only. This may result in undesired con-
sequences or cause the camera to crash.
NOTE: For more information, go to “Configure Start/Stop, Genlock, TimeCode, Tally” on page 27.
3. Connect power to the W.M.D.
A. Connect the desired W.M.D. Power Cable to the W.M.D. PWR port.
B. Connect the opposite end of the W.M.D. Power Cable to a 12 V DC power supply with sufficient am-
perage.
NOTE: It is recommended that you connect the W.M.D. to a dedicated power source, such as shore
power, when operating power intensive configurations or stiff lenses that require high torque settings.
NOTE: For more information, go to “Wireless Motor Driver (W.M.D.)” on page 16.
4. Connect the T.H.C.
A. Connect the 4-pin RED CAN Command Cable to the CAN connector port on the W.M.D.
B. Connect the opposite end of the RED CAN Command Cable to the T.H.C. (CAN) port.
C. Toggle the T.H.C. power switch to Cable mode.
NOTE: The W.M.D. communicates wireless settings information via the RED CAN Command Cable. For
more information, go to “Tactical Hand Controller (T.H.C.)” on page 32.
Connect RED
Start/Stop Cable

COPYRIGHT © 2014 RED.COM, INC
RED 3-AXIS SYSTEM OPERATION GUIDE
955-0044, REV-D | 14
CONFIGURE THE 3-AXIS SYSTEM
1. Pair the T.H.C.
A. Ensure the RED CAN Command Cable is connected to the W.M.D. and T.H.C.
B. Toggle the T.H.C. power switch to Cable mode.
Once paired, the T.H.C. retains wireless information for that W.M.D.
C. Insert a charged RED Li Battery 7.2V.
D. Toggle the T.H.C. power switch to Battery mode.
Wait a few seconds for the T.H.C. wireless LED to turn solid blue, signalling a wireless connection.
E. Remove the RED CAN Command Cable.
The T.H.C. is now successfully paired.
NOTE: For more information, go to “Pair the T.H.C.” on page 37.
2. Set motor type.
A. In the W.M.D. main menu, navigate to Focus/Iris/Zoom > Model.
B. Select your motor type. (Example: RED DLM1)
NOTE: For more information, go to “Select Motor Type/Model” on page 25.
3. Configure wireless settings.
A. In the W.M.D. main menu, select Wireless.
If you are operating the T.H.C. in close proximity (Up to 25 feet), select Low.
If you are operating the T.H.C. from greater distances, select High.
If operating multiple systems in the same vicinity, select a unique wireless channel.
NOTE: For more information, go to “Configure Wireless Settings” on page 26.
4. Initialize motors.
A. Press and hold the Initialize button on the T.H.C., or the Bbutton on the W.M.D. for two (2) seconds.
NOTE: Fore more information, go to “Initialize the System” on page 14.
The RED 3-Axis Lens Control System is now successfully setup and ready for wireless operation. The remain-
der of this section offers further guidance on initialization, motor configuration, lens profiles, metadata, and
T.H.C. controls.

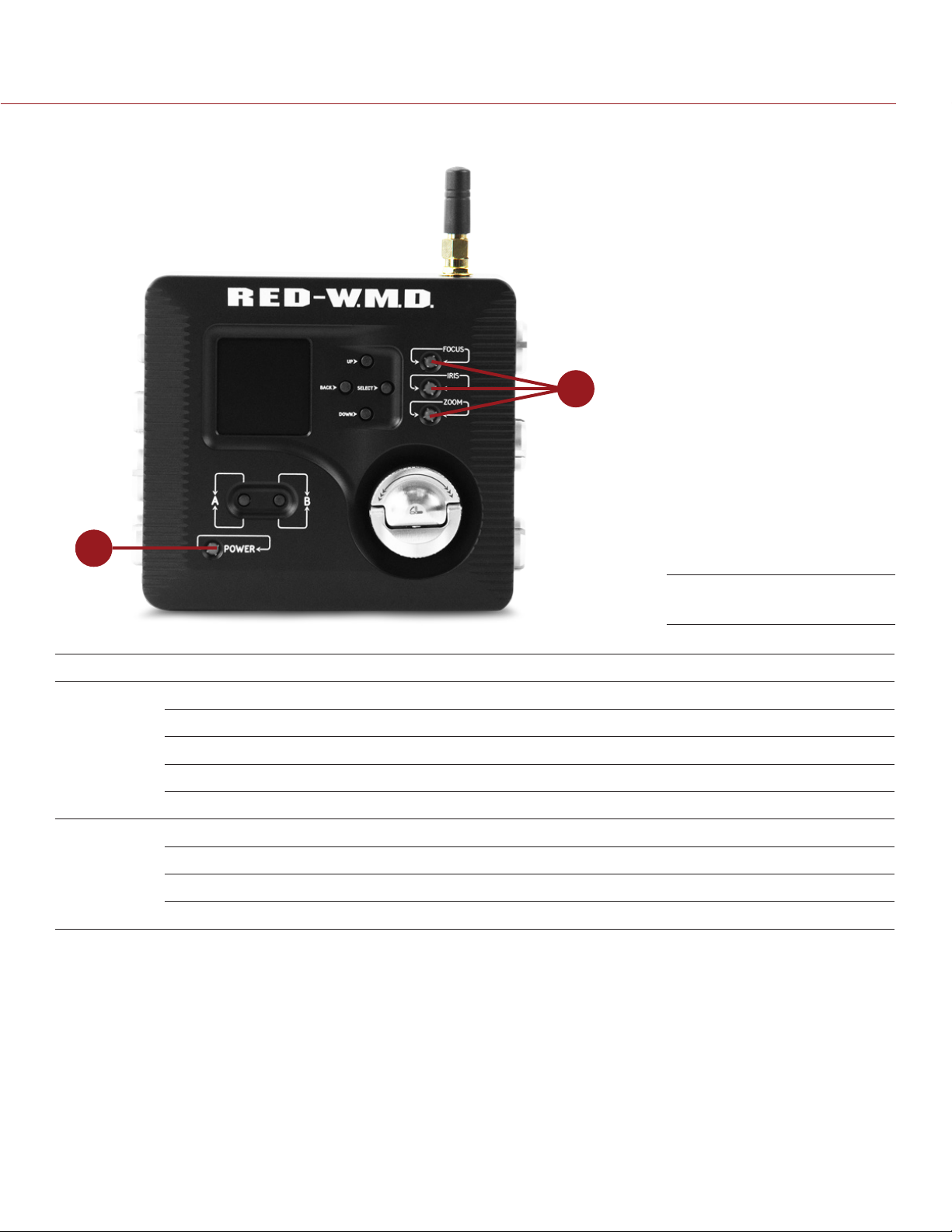

INITIALIZE THE SYSTEM
Initialization detects the range of motion for each motor and stores the data in the W.M.D. Lens data remains in
W.M.D. for approximately 14 hours even if system reboots are performed. W.M.D. LEDs display motor initializa-
tion status. Red LEDs indicate motors that are not initialized, solid green indicates motors that are initialized,
and flashing green LEDs indicate an initialization process is in progress.
To initialize the system, perform one of the following actions:
Press and hold the Initialize button on the T.H.C. for two (2) seconds to initialize all connected motors.
Press and hold the Bbutton on the W.M.D. for two (2) seconds to initialize all connected motors.
Press and release the Initialize or Bbutton to initialize only motors that need it.
A single motor can be initialized by disconnecting and reconnecting the motor cable.
IMPORTANT: Initialize motors any time a modification is made.
NOTE: The W.M.D. must be unlocked for the Bbutton to be active. Press and hold the Abutton for two (2) sec-
onds to unlock the unit and access the menu.
The RED 3-Axis Lens Control System is now successfully setup and ready for wireless operation. The remain-
der of this section offers guidance on non-essential features.

RED 3-AXIS SYSTEM OPERATION GUIDE
COPYRIGHT © 2014 RED.COM, INC 955-0044, REV-D | 15
CONFIGURE LENS CONTROL MOTORS
The W.M.D. features a number of adjustments in the Focus, Iris, and Zoom menu topics to fine-tune specific
motor/lens combinations. After initializing the system, you may need to adjust the following settings:
Torque
Direction
Type/Model
Backlash
Endstop
NOTE: For more information, go to “Configure Focus, Iris, and Zoom Motors” on page 24.
METADATA AND LENS PROFILES
The microSD slot on the W.M.D. is used to update firmware, as well as save and share modified lens profiles
that allow you to view real-time metadata on the W.M.D. This guide offers information on the following topics:
Select a Lens Profile
Modify a Lens Profile
Clear the Active Lens Profile
View Lens Metadata
Export Lens Profiles
Import Lens Profiles
NOTE: For more information, go to “W.M.D. Lens Profiles” on page 28.
LENS LIMITS AND LENS LOCKS
The T.H.C. features several convenient and easy-to-use features for precision wireless control. This guide offers
information on the following topics:
Set a Lens Limit
Remove a Lens Limit
Set a Lens Lock
Remove a Lens Lock
NOTE: For more information, go to the chapter “Tactical Hand Controller (T.H.C.)” on page 32.

COPYRIGHT © 2014 RED.COM, INC
RED 3-AXIS SYSTEM OPERATION GUIDE
955-0044, REV-D | 16
03
W.M.D. OVERVIEW

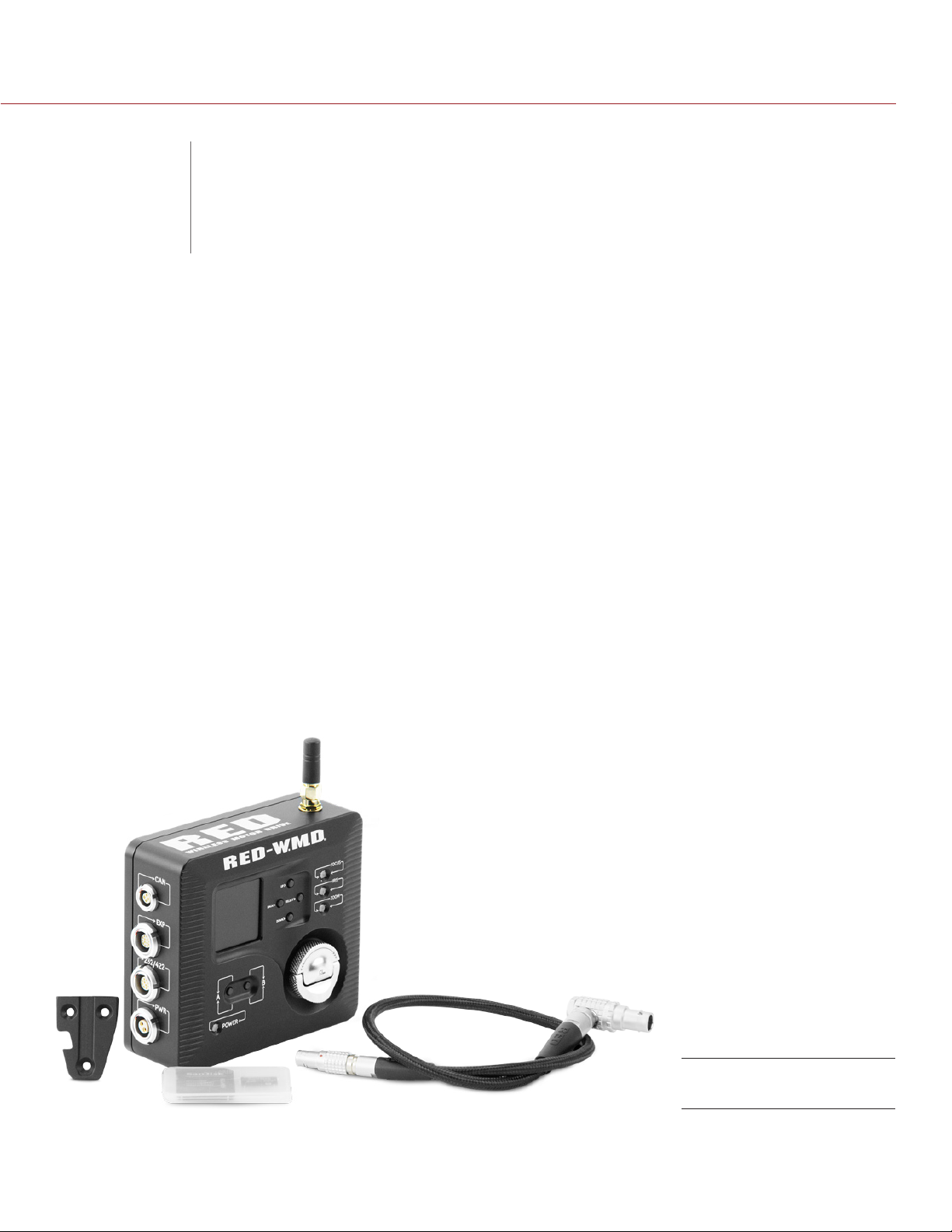

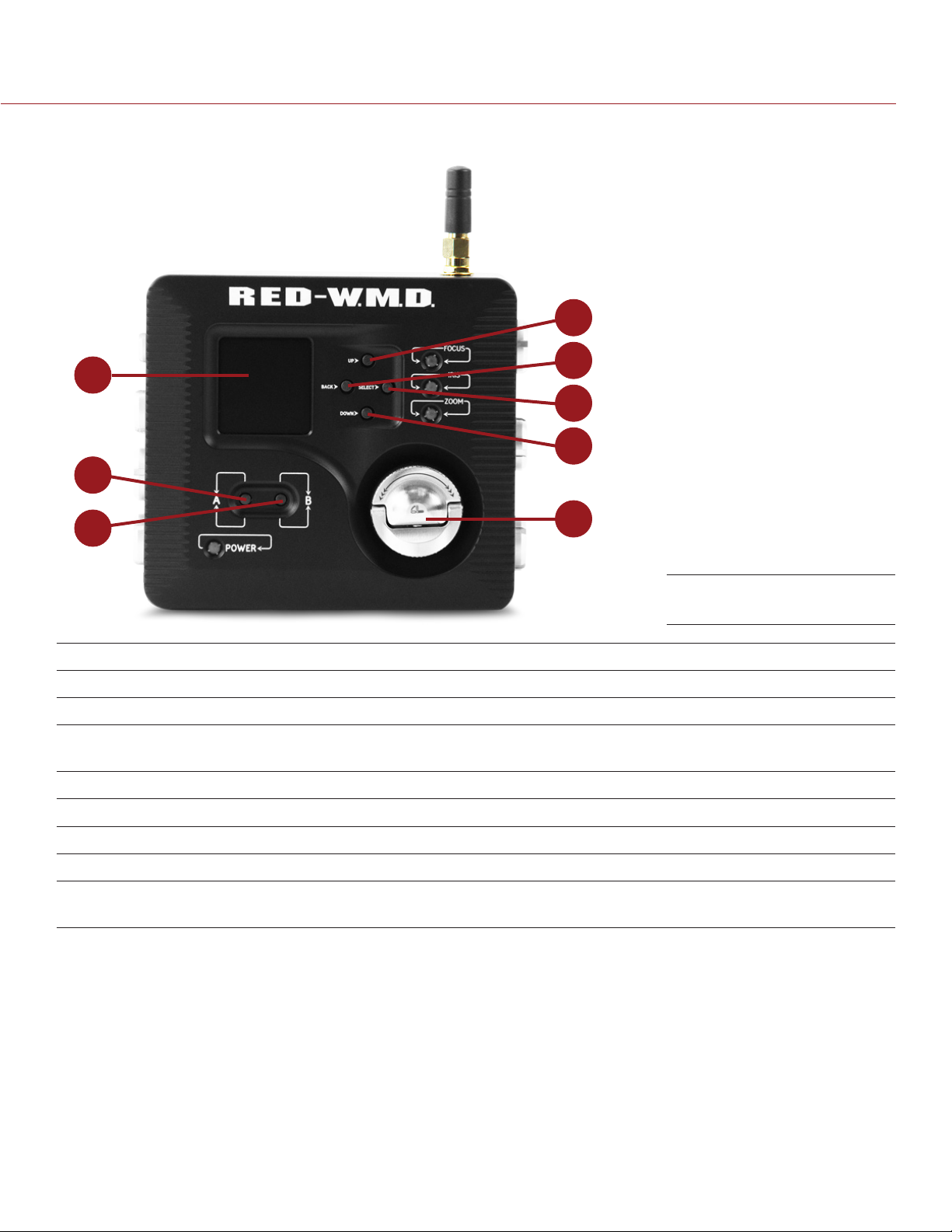

The RED®Wireless Motor Driver (W.M.D.) is the brain of the RED 3-Axis Lens Control System. The W.M.D.
receives control signals from the RED Tactical Hand Controller (T.H.C.) to drive up to three (3) RED
Lens Control MotorS. With the W.M.D., you can adjust the following settings for each motor:
Torque
Direction
Type/Model
Backlash
Endstop
R3D metadata integration is a standard on the W.M.D., allowing your recorded lens control information to carry
over into post-production. Expansion ports, tool-free installation, and start/stop connectivity make the W.M.D.
versatile and easy-to-use.
NOTE: DO NOT USE the Pro I/O Module to power the RED W.M.D. The Pro I/O Module does not provide enough
power and is not designed to support the W.M.D.
NOTE: For more information on compatibility, go to “3-Axis System Compatibility” on page 54.
NOTE: Go to the RED Downloads page at www.red.com/downloads for the latest firmware version, operation
guide, and other support resources.
RED W.M.D.
WIRELESS MOTOR
DRIVER (W.M.D.)

RED 3-AXIS SYSTEM OPERATION GUIDE
COPYRIGHT © 2014 RED.COM, INC 955-0044, REV-D | 17
W.M.D. CONTROLS
1
2
3
5
4
6
7
8
#CONTROL DESCRIPTION
1LCD display View the W.M.D. menus
2A button Return to home screen; Toggles lock/unlock buttons
3B button Short press initializes motors that are in an error state; long press initializes
all motors
4Up button Navigate up through the W.M.D. main menus
5Back button Return to the previous menu
6Select button Enter or adjust the selected (highlighted) menu or item
7Down button Navigate down through the W.M.D. main menus
8Mounting
thumbscrew Press and turn to install (CW) or uninstall (CCW) the W.M.D. to a mounting plate (Example: DSMC TACTICAL RIGHT PLATE)
W.M.D. Controls

COPYRIGHT © 2014 RED.COM, INC
RED 3-AXIS SYSTEM OPERATION GUIDE
955-0044, REV-D | 18
W.M.D. LEDS
1
2
#LED COLOR/FLASHING DESCRIPTION
1Power Off No power connected
Green flashing Firmware upgrading
Green Power on; Firmware upgraded
Red Power error
Amber flashing System boot indicator or initialization in progress
2Focus,
Iris,
Zoom
Off No motor connected
Green flashing Initialization in progress
Green Initialized and ready for operation
Red Motor error or failed initialization
W.M.D. LEDs

RED 3-AXIS SYSTEM OPERATION GUIDE
COPYRIGHT © 2014 RED.COM, INC 955-0044, REV-D | 19
W.M.D. CONNECTORS
1
2
3
4
5
6
7
8
910
#CONNECTOR DESCRIPTION COMPATIBLE PARTS PART NUMBERS
1Wireless antenna Removeable antenna RED T.H.C./W.M.D. Antenna 790-0420
2Focus connector
(7-pin 1B LEMO) Connect the W.M.D. to the Focus Lens Control Motor RED W.M.D. Motor Cable 7-Pin Straight to 7-Pin Right (12”) 790-0434
RED W.M.D. Motor Cable 7-Pin
Straight to 7-Pin Right (18”) 790-0406
RED W.M.D. Motor Cable 7-Pin
Straight to 7-Pin Right (24”) 790-0412
W.M.D. Connectors (Side)
W.M.D. Connectors
(Bottom)

COPYRIGHT © 2014 RED.COM, INC
RED 3-AXIS SYSTEM OPERATION GUIDE
955-0044, REV-D | 20
#CONNECTOR DESCRIPTION COMPATIBLE PARTS PART NUMBERS
3Iris connector
(7-pin 1B LEMO) Connect the W.M.D. to the Iris Lens Control Motor RED W.M.D. Motor Cable 7-Pin Straight to 7-Pin Right (12”) 790-0434
RED W.M.D. Motor Cable 7-Pin
Straight to 7-Pin Right (18”) 790-0406
RED W.M.D. Motor Cable 7-Pin
Straight to 7-Pin Right (24”) 790-0412
4Zoom connector
(7-pin 1B LEMO) Connect the W.M.D. to the Zoom Lens Control Motor RED W.M.D. Motor Cable 7-Pin Straight to 7-Pin Right (12”) 790-0434
RED W.M.D. Motor Cable 7-Pin
Straight to 7-Pin Right (18”) 790-0406
RED W.M.D. Motor Cable 7-Pin
Straight to 7-Pin Right (24”) 790-0412
5CAN connector
(4-pin 0B LEMO) CAN port for T.H.C. wired communication RED CAN Command Cable (5') 790-0407
RED CAN Command Cable (50') 790-0408
RED CAN Command Cable (100') 790-0409
6Expansion port
(14-pin 1B LEMO) Expansion port to connect to DSMC via the SYNC port and
control Start/Stop functions
on the DSMC
RED Start/Stop Cable (1B to Sync,
Ctrl, BNC) 790-0415
RED Start/Stop Cable (1B to BNC) 790-0416
RED Start/Stop Cable (1B to 00B
Sync) 790-0428
3BNC-to-00 LEMO Sync Cable 790-0154
BNC-TO-BNC Adaptor 790-0435
7232/422 port
(10-pin LEMO) Serial port to communicate with third-party devices N/A N/A
8PWR connector
(2-pin 1B LEMO) Power in RED W.M.D. Power Cable 2-Pin 1B to 2-Pin 0B (18”) 790-0410
RED W.M.D. Power Cable 2-Pin 1B
to 4-Pin XLR (8’) 790-0411
9MicroSD card slot MicroSD card slot for upgrad-
ing W.M.D. firmware MicroSD card N/A
10 Guide pin 1/4" guide pin to install the V-
LOCK to a DSMC TACTICAL
RIGHT PLATE
1/4" guide pin N/A
