RED DSMC User manual

DSMC POWER MODULES |CHARGERS
BATTERIES |ACCESSORIES
RED.COM
DSMC POWER
OPERATION GUIDE

COPYRIGHT © 2013 RED.COM, INC
DSMC POWER OPERATION GUIDE
955-0038, REV-A |2
TABLE OF CONTENTS
Disclaimer 3
Copyright Notice 3
Trademark Disclaimer 3
Compliance Statements 3
Safety Instructions 5
Battery Operation and Handling Warnings 6
Shipping Disclaimer 6
Chapter 1: DSMC Power Overview 7
DSMC Power Modules 7

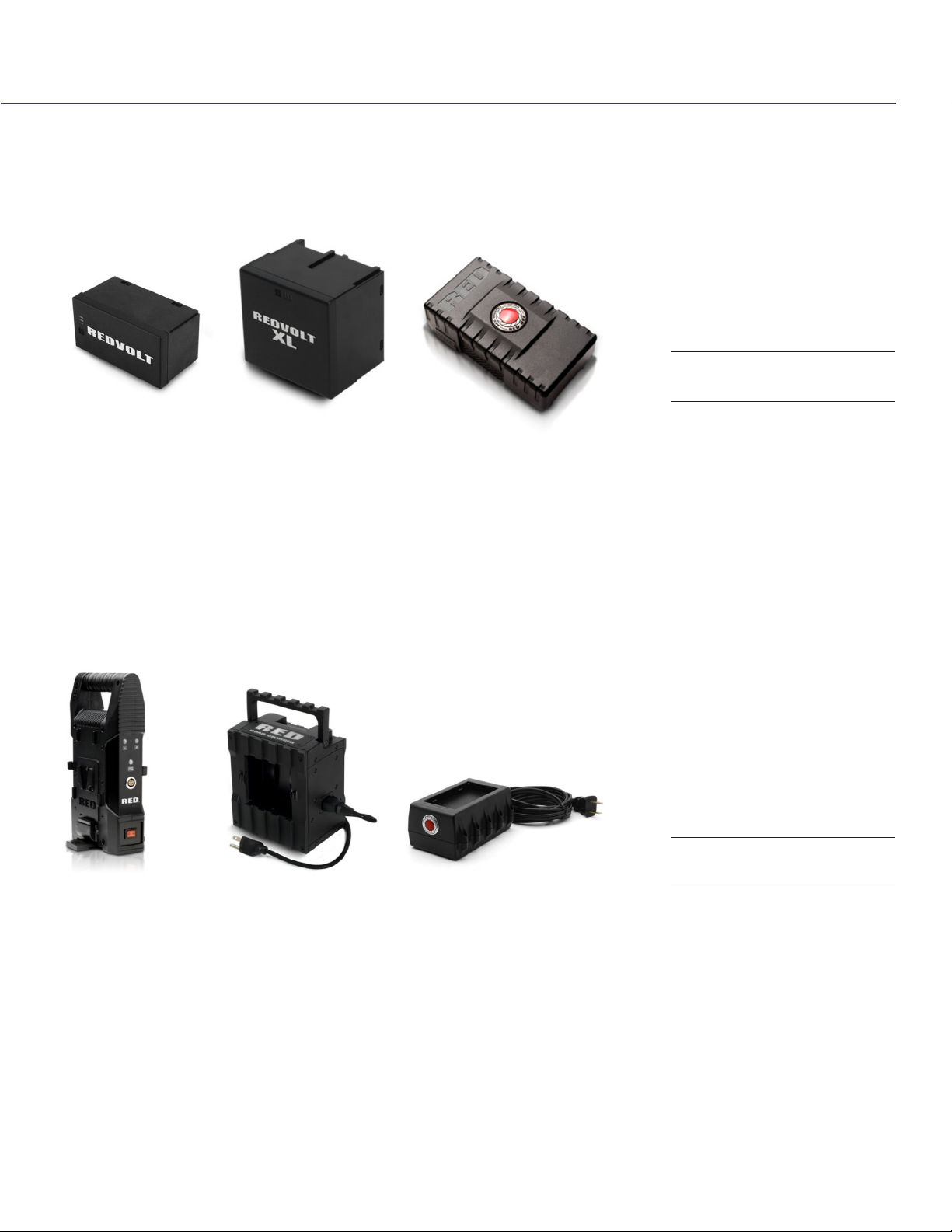

REDVOLT and RED BRICK Batteries 8
RED Chargers 8
Cables, Adaptors, and Accessories 9
Additional Resources 9
Chapter 2: DSMC Power Modules 10

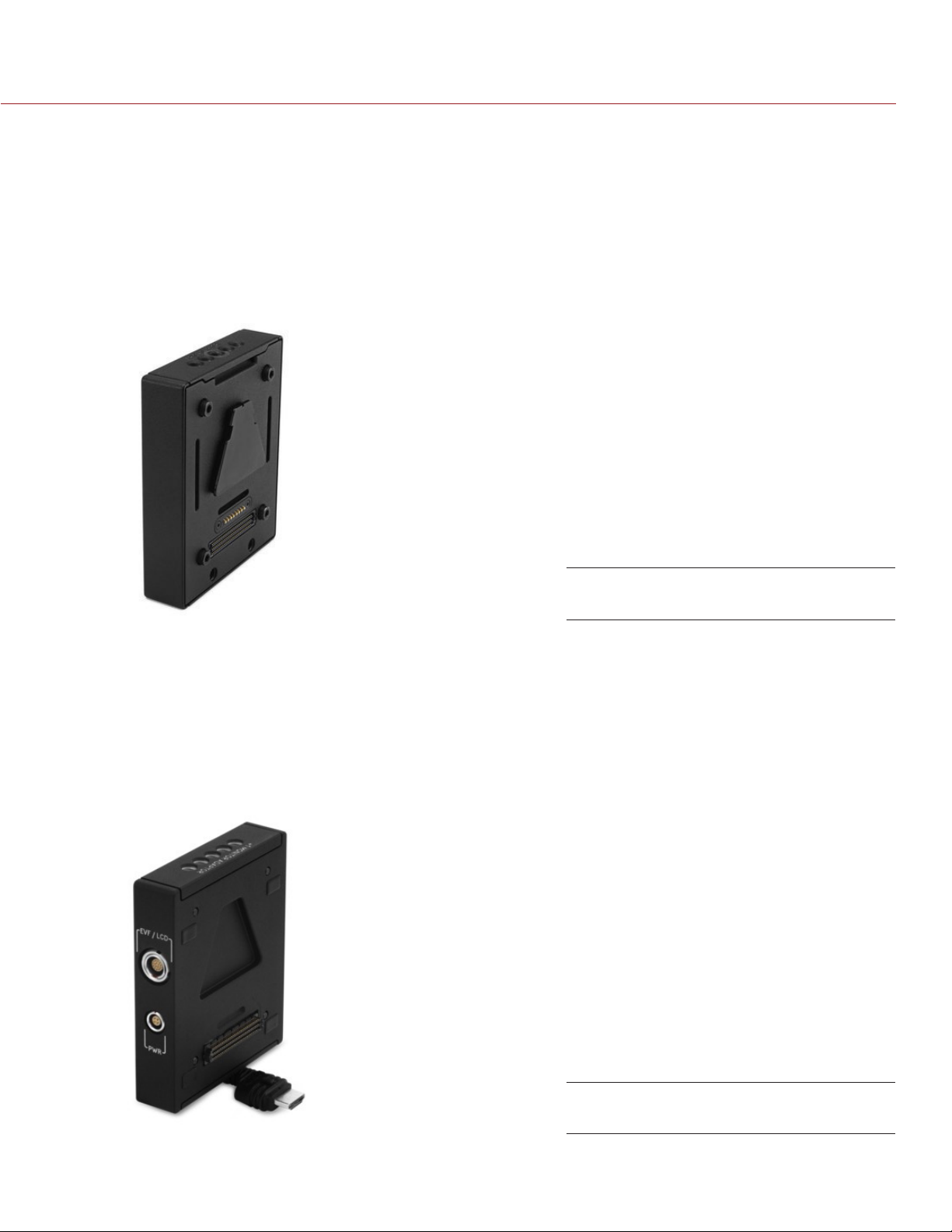

DSMC Adaptor Modules 11

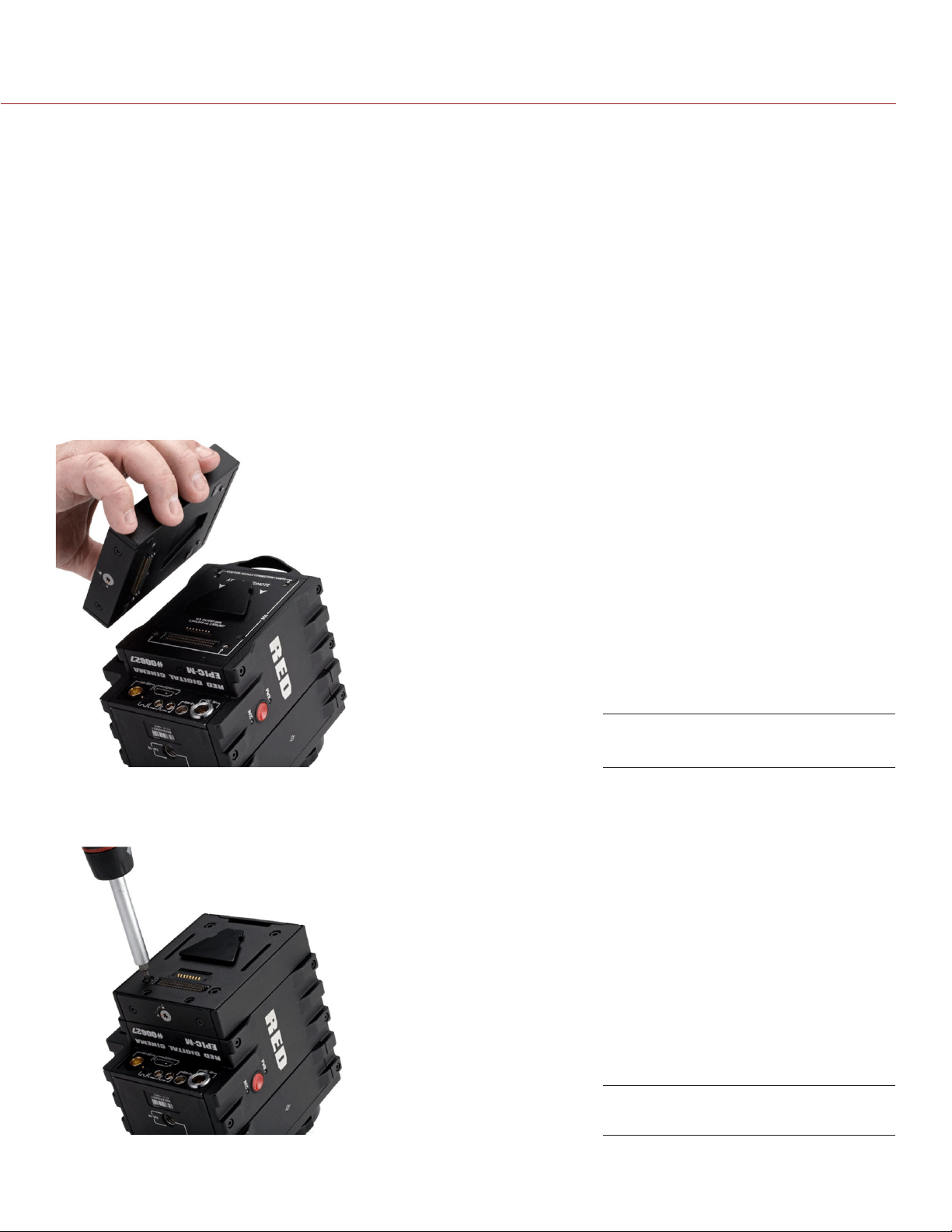

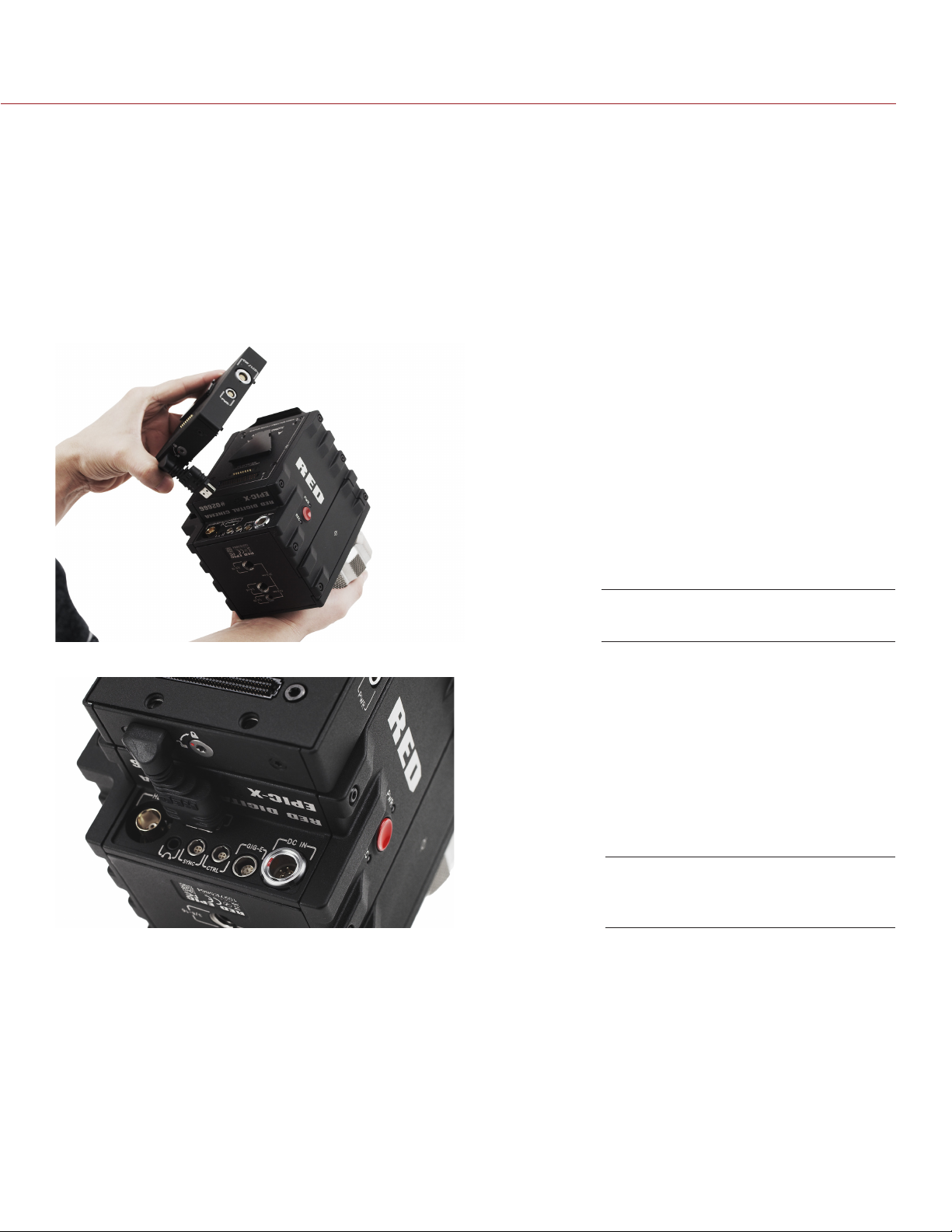

Module and Adaptor Operations 13
PRO BATTERY MODULE (DUAL) 20
PRO BATTERY MODULE (QUAD) 21
REDVOLT XL MODULE 22
QUICKPLATE MODULE 28
BACKPACK QUICKPLATE 29
Chapter 3: RED Rechargeable Batteries 32
REDVOLT and REDVOLT XL 32
RED BRICK 35
Chapter 4: RED Battery Chargers 37
DSMC TRAVEL CHARGER 37
REDVOLT CHARGER (QUAD) 38
RED CHARGER 39
Battery Compatibility and Operations 41
Chapter 5: Adaptors, Cables, and Accessories 42
Power Adaptors and Accessories 43
Cables and Other Accessories 47
Appendix A: Technical Specifications 51
DSMC Modules 51
RED Batteries 54
RED Chargers 55
Appendix B: DSMC Module Compatibility 56
DSMC Module Compatibility and Restrictions 56

DSMC POWER OPERATION GUIDE
COPYRIGHT © 2013 RED.COM, INC 955-0038, REV-A |3
COMPLIANCE STATEMENTS
INDUSTRIAL CANADA EMISSION COMPLIANCE STATEMENTS
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme
NMB-003 du Canada.
FEDERAL COMMUNICATIONS COMMISSION (FCC) STATE-
MENTS
This equipment has been tested and found to
comply with the limits for a Class B digital de-
vice, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reason-
able protection against harmful interference
in a residential installation. This equipment
generates, uses and can radiate radio fre-
quency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that inter-
ference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more
of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for
help.
In order to maintain compliance with FCC regulations, shielded
cables must be used with this equipment. Operation with non-ap-
proved equipment or unshielded cables is likely to result in interfer-
ence to radio and TV reception. The user is cautioned that changes
and modifications made to the equipment without the approval of
the manufacturer could void the users authority to operate this
equipment.
NOTE: This device complies with Part 15 of the FCC Rules.
Operations subjected to the following two conditions (1) this device
may not cause harmful interference, and (2) this device must accept
any interference received, including that may cause undesirable in-
terference.
CAUTION: If the device is changed or modified
without permission from RED, the user may
void his or her authority to operate the equip-
ment.
AUSTRALIA AND NEW ZEALAND STATEMENTS
RED declares that the radio equipment described in this document
comply with the following international standards.
IEC 60065 - Product Safety
RED declares digital devices described in this document comply
with the following Australian and New Zealand standards.
AS/NZS CISPR 22 – Electromagnetic Interference
AS/NZS CISPR 24 – Electromagnetic Immunity
AS/NZS 61000.3.2 – Power Line Harmonics
AS/NZS 61000.3.3 – Power Line Flicker
JAPAN STATEMENTS
This is a Class B product based on the
standard of the Voluntary Control Council
for Interference (VCCI) for information tech-
nology equipment. If this equipment is used
near a radio or television receiver in a do-
mestic environment, it may cause radio in-
terference. Install and use the equipment
according to the instruction manual.
EUROPEAN UNIONCOMPLIANCE STATEMENTS
Information
RED declares that products
with the CE marking com-
ply with the EMC Directive
(2004/108/EC) and the Low
Voltage Directive (2006/95/
EC) issued by the Commis-
sion of the European Community. Compliance with these directives
DISCLAIMER
RED has made every effort to provide clear and accurate informa-
tion in these installation instructions, which are provided solely for
the user’s information. While thought to be accurate, the informa-
tion in this document is provided strictly “as is” and RED will not
be held responsible for issues arising from typographical errors or
user’s interpretation of the language used herein that is different
from that intended by RED. All safety and general information is
subject to change as a result of changes in local, federal or other
applicable laws.
RED reserves the right to revise this document and make changes
from time to time in the content hereof without obligation to notify
any person of such revisions or changes. In no event shall RED, its
employees or authorized agents be liable to you for any damages
or losses, direct or indirect, arising from the use of any technical or
operational information contained in this document.
For comments or questions about content in this Operation Guide,
please send a detailed e-mail to [email protected].
COPYRIGHT NOTICE
COPYRIGHT© 2013 RED.COM, INC.
All trademarks, trade names, logos, icons, images, written material,
code, and product names used in association with the accompa-
nying product are the copyrights, trademarks or other intellectual
property owned and controlled exclusively by RED.COM, INC.
TRADEMARK DISCLAIMER
All other company, brand and product names are trademarks or reg-
istered trademarks of their respective holders. RED has no affiliation
to, is not associated or sponsored with, and has no express rights
in third-party trademarks. Distagon is a registered trademark of Carl
Zeiz, Inc. Leica is a regestered trademark of BV Corporation Nether-
lands. Nikkor, is a registered trademark of Nikon Corporation.

COPYRIGHT © 2013 RED.COM, INC
DSMC POWER OPERATION GUIDE
955-0038, REV-A |4
implies conformity to the following European Product Family Stan-
dards.
EN 55022 (CISPR 22) – Electromagnetic Interference
EN 55024-1 (CISPR 24) – Electromagnetic Immunity
EN6100-3-2 (IEC610000-3-2) – Power Line Harmonics
EN6100-3-2 (IEC610000) – Power Line Flicker
EN 60065 (IEC60065) – Product Safety
Products with the ROHS marking comply with the Restriction of
Hazardous Substances Directive (2011/65/EU) issued by the Com-
mission of the European Community.
The Waste Electrical and Electronic Equip-
ment (WEEE) mark applies only to countries
within the European Union (EU) and Norway.
This symbol on the product and accompany-
ing documents means that used electrical
and electronic products should not be mixed
with general household waste. For proper
treatment, recovery and recycling, please
take this product to designated collection
points where it will be accepted free of
charge. Alternatively, in some countries you
may be able to return your products to your
local retailer upon purchase of an equivalent
new product.
Disposing of this product correctly will help save valuable resources
and prevent any potential negative effects on human health and the
environment, which could otherwise arise from inappropriate waste
handling. Please contact your local authority for further details of
your nearest designated collection point. Penalties may be appli-
cable for incorrect disposal of this waste, in accordance with you
national legislation.
For business users in the European Union, if you wish to discard
electrical and electronic equipment, please contact your dealer or
supplier for further information.
RESPONSIBLE PARTY:
RED Digital Cinema
34 Parker
Irvine, CA 92618
USA

DSMC POWER OPERATION GUIDE
COPYRIGHT © 2013 RED.COM, INC 955-0038, REV-A |5
SAFETY INSTRUCTIONS
DO NOT use near water. Avoid exposing to moisture. The unit
is not waterproof, so contact with water could cause perma-
nent damage to the unit as well as electric shock and serious
injury to the user. DO NOT use in the rain or under other condi-
tions with high moisture without appropriate protection, and
immediately remove power source if exposed to moisture.
WARNING: To reduce the risk of fire or
electric shock, do not expose to rain or
moisture.
DO NOT expose to excessive vibration or impact (shock). Be
careful not to drop. Internal mechanisms may be damaged by
severe shock.
Clean only using a dry cloth. When cleaning, remember that it
is not waterproof and moisture can damage electronic circuitry.
DO NOT rinse or immerse, keep dry at all times. DO NOT use
soaps, detergents, ammonia, alkaline cleaners, and abrasive
cleaning compounds or solvents. These substances may dam-
age lens coatings and electronic circuitry.
CAUTION: Proper ventilation requires a
minimum 1/2" (1,25 cm) clearance be-
tween ventilation openings and exter-
nal surfaces. Verify that objects that can
block the fan intake and exhaust ports do
not impede airflow. Failure to permit ad-
equate airflow may result in overheating
of the camera, degraded operation and in
extreme situations, damage to the cam-
era.
DO NOT operate or store near any heat sources such as radia-
tors, heat registers, stoves, or any other apparatus that pro-
duce heat. Store in a protected, level and ventilated place.
Avoid exposure to temperature extremes, damp, severe vi-
bration, strong magnetic fields, direct sunlight or local heat
sources during storage. Remove any batteries from the camera
before storage. Recommended storage and usage tempera-
tures are:
‒Operating range: 0°C to 40°C (32°F to 104°F)
‒Storage range: -20°C to +50°C (-4°F to +122°F)
If there are any performance issues when operating within this
temperature range, please file a support ticket on support.red.
com.
The Rear Modules are NOT HOT SWAPPABLE, meaning you
cannot remove or install them while the camera is powered
on. Before installing or removing any of these accessories, you
MUST power down the camera. Failure to do so may result in
damage to the accessory and/or camera BRAIN that will not be
covered under warranty.
Do not bypass the third prong of the grounding-type plug on
the power cord of the AC Power Adaptor. A grounding-type
plug has two blades and a third “grounding” prong. The third
prong is provided for your safety. A grounding-type plug shall
be connected to an outlet with a protective earthen connec-
tion. If the grounding-type plug does not fit into your outlet,
do not attempt to modify the plug or outlet, consult a qualified
electrician.
Protect all power cords from being pinched, walked on or driv-
en over by a vehicle. Replace any power cords suspected of
sustaining damage due to crushing or other forms of damage.
Products marked with this symbol are
class 2 devices. These devices are not
provided with a grounding type plug.
CAUTION: The power cord plug for the AC
Power Adaptor is used as the power dis-
connect. To disconnect all power from the
AC Power Adaptor, unplug the power cord
plug from the wall outlet. During use, the
power cord plug should remain easily ac-
cessible at all times.
Lithium-ion batteries may be subject to special handling re-
quirements pursuant to federal and local laws. Please refer to
specific shipping instructions included with your battery re-
garding proper transport of your battery. Do not handle your
battery if it is damaged or leaking. Disposal of batteries must
be in accordance with local environmental regulations. For
example, California law requires that all rechargeable batter-
ies must be recycled by an authorized recycle center. Storing
batteries fully charged or in high temperature, conditions may
permanently reduce the life of the battery. Available battery
capacity may also be temporarily lessened after storage in low
temperature conditions.
WARNING: Do not expose the battery to
excessive heat.
WARNING: Danger of explosion if an in-
correct battery is charged or used to pow-
er the camera and accessories. Replace
only with the same or equivalent type bat-
tery.
CAUTION: Refer all service and repair to
qualified RED service personnel. To reduce
the risk of electric shock, and damage to
the camera or accessories, DO NOT at-
tempt to perform any servicing other than
any procedures that are recommended in
the operating instructions.
INDOOR USE ONLY: Products marked with
this symbol are designed for use indoors
only.

COPYRIGHT © 2013 RED.COM, INC
DSMC POWER OPERATION GUIDE
955-0038, REV-A |6
BATTERY OPERATION AND HANDLING WARNINGS
WARNING: DO NOT USE the battery for
other purposes other than those specifi-
cied.
If the battery leaks and the electrolyte reaches the eyes, do
not rub them. Instead, rinse the eyes with clean running water
and immediately seek medical attention. Failure to do this may
result in eye injury.
DO NOT disassemble or modify the battery.
DO NOT connect the positive (+) and negative (-) terminals to a
metal object such as a wire.
DO NOT transport or store the battery together with metal ob-
jects such as jewelry, hairpins, etc. as they may generate heat
if they come into contact with the battery.
DO NOT discard the battery into fire or heat.
DO NOT store, use, or recharge the battery near a heat source
such as a fire or a heater.
DO NOT allow the battery to get wet.
Only use the RED QUAD CHARGER or the RED DSMC TRAVEL
CHARGER to recharge REDVOLT and REDVOLT XL batteries.
DO NOT pierce the battery with pointed or other sharp objects.
DO NOT step on, throw, or strike the battery with a hammer.
DO NOT use a battery that appears to be deformed or dam-
aged.
DO NOT directly solder the battery.
WARNING: If recharging operation fails to
complete even when a specified recharg-
ing time has elapsed, immediately stop
further recharging.
WARNING: If recharging operation fails to
complete even when a specified recharg-
ing time has elapsed, immediately stop
further recharging.
DO NOT put the battery into a microwave oven or a pressur-
ized container.
If the battery leaks or gives off a bad odor, discontinue use
immediately.
If the battery gives off an odor, generates heat, becomes dis-
colored or deformed, or in any way appears abnormal dur-
ing use, recharging or storage, immediately remove it from the
equipment or battery charger and discontinue use.
DO NOT use or subject the battery to intense sunlight or hot
temperatures such as in a car in hot weather.
The battery incorporates built-in safety devices. DO NOT use it
in a location where static electricity may be present.
DO NOT exceed the recharging temperature range of 0˚C to
40˚C (32˚F to 104˚F).
If electrolyte begins leaking from the battery and comes into
contact with your skin or clothing, immediately wash it away
with running water. Failure to do this may result in skin inflam-
mation.
Store the battery in a location where children cannot reach it.
If you find discoloration, a bad odor due to leakage, overheat-
ing and/or other irregularities when using the battery for the
first time, contact your Bomb Squad Representative immedi-
ately.
SHIPPING DISCLAIMER
Unless you have been certified to ship dangerous goods, you
must work with a Dangerous Goods, Class 9-certified shipper
to assist you with a shipment that includes a RED BRICK (or
other regulated lithium ion batteries). Please note that appli-
cable laws prohibit the shipping of batteries that are physically
damaged. We urge you to look into the formal rules and regu-
lations of shipping Class 9 Dangerous Goods prior to prepar-
ing your shipment. For more information on these regulations,
please visit www.iata.org and www.dot.gov.

COPYRIGHT © 2013 RED.COM, INC
DSMC POWER OPERATION GUIDE
955-0038, REV-A | 7
RED Digital Still and Motion Cameras (DSMC) are supported by a variety of customizable power modules and
solutions to meet application-specific needs and enable you to remain mobile while shooting footage.
This section provides a brief overview of the performance power modules, batteries, chargers, and other ac-
cessories that support advanced DSMC BRAIN configurations.
DSMC POWER MODULES
RED DSMC modules enable convenient and flexible options for your shooting requirements. DSMC power mod-
ules attach to RED adaptor modules and other modules including media to provide advanced DSMC configura-
tion options. Only one battery module may be used with the DSMC BRAIN at a time. Module attachment re-
quirements vary. For more information on power modules and other DSMC module options, visit the RED Store.
RED DSMC power module options include:
MODULE ADAPTOR
+1 ADAPTOR MODULE
PRO BATTERY MODULE (DUAL)
PRO BATTERY MODULE (QUAD)
BACKPACK QUICKPLATE MODULE
QUICKPLATE MODULE
REDVOLT XL MODULE
WARNING: DO NOT USE more than one DSMC power module at a time. Using more than one DSMC power mod-
ule may cause damage to the DSMC BRAIN. Damage to the DSMC or components of the DSMC system caused
by using more than one DSMC power module at a time will not be covered under warranty.
NOTE: RED adaptor modules are designed for advanced support and compatibility with other add-on modules;
however, there are some restrictions and incompatibilities. For more information regarding module compatibil-
ity, go to “DSMC Module Compatibility” on page 56.
DSMC POWER MODULES
01 DSMC POWER
OVERVIEW

COPYRIGHT © 2013 RED.COM, INC
DSMC POWER OPERATION GUIDE
955-0038, REV-A | 8
REDVOLT AND RED BRICK BATTERIES
REDVOLT, REDVOLT XL and RED BRICK batteries are lightweight and rechargeable lithium-ion battery cells,
designed to provide sustained power to the DSMC BRAIN. These batteries provide long-term mobile power for
the DSMC BRAIN when paired with DSMC power modules.
RED battery options include:
REDVOLT (37 Wh)
REDVOLT XL (89 Wh)
RED BRICK (153 Wh)
RED CHARGERS
RED Chargers keep REDVOLT, REDVOLT XL, and RED BRICK batteries charged, letting you focus on shoot-
ing footage. The RED CHARGER, REDVOLT CHARGER (QUAD) and DSMC TRAVEL CHARGER replenish your
depleted RED lithium-ion rechargeable batteries.
RED battery charger options include:
RED CHARGER
REDVOLT CHARGER (QUAD)
DSMC TRAVEL CHARGER
RED Batteries
RED Chargers

DSMC POWER OPERATION GUIDE
COPYRIGHT © 2013 RED.COM, INC 955-0038, REV-A | 9
CABLES, ADAPTORS, AND ACCESSORIES
RED power cables, adaptors and accessories are handmade and expertly crafted to the highest standards and
are available in a variety of lengths for monitoring, audio and power supply requirements. RED performance
cables feature robust industry-standard LEMO connectors, as well as a variety of connector sizes to support
all of your displays, add-on modules and third party accessories.
RED cables, adaptors, and accessories include:
AC POWER ADAPTOR (DSMC)
RED STATION BASE AC POWER ADAPTOR
RED STATION AC POWER ADAPTOR
RED STATION DC POWER COUPLER
RED BACKPACK BASE PLATE
RED QUICKPLATE
RED CRADLE
BATTERY BELT CLIP
2B-TO-1B ADAPTOR CABLE
4-PIN TO 2-PIN ADAPTOR CABLE
LCD/EVF CABLES
PRO I/O AUX POWER OUT + GPIO CABLE (6')
XLR POWER CABLE
MINI-XLR POWER ADAPTOR
REDVOLT AA (4-PACK and 80-PACK)
REDVOLT CASE
REDVOLT XL CASE
ADDITIONAL RESOURCES
The following resources offer additional information about RED, the DSMC system, and the RED community:
RED.com: Check the official RED website for latest information about RED products.
RED Learn Articles:RED offers in-depth technical articles about RED cameras, post-production, and digital
cinematography.
RED.com/downloads: Go to the RED Downloads page to download the latest firmware, operation guides,
and post-production software.
Support.red.com: Check the RED SUPPORT site for FAQs, or to file a support ticket.
Reduser.net: Discuss all things RED on the REDUSER third-party forum.
In-camera Help: Select the Help button on an in-camera screen to open up the help for that screen.
For more information and availability of power modules, batteries, chargers, and other accessories, visit the
DSMC “ACCESSORIES” page at: http://www.red.com/products/accessories, or contact your Bomb Squad
Representative.
RED Adaptor Cables

COPYRIGHT © 2013 RED.COM, INC
DSMC POWER OPERATION GUIDE
955-0038, REV-A | 10
Digital Still and Motion Camera (DSMC) power modules attach to the DSMC BRAIN providing flexible options
for battery and power support. Adaptor modules attach directly to the DSMC and enable rapid module replace-
ment. Adaptors attach directly to the camera BRAIN, enabling rapid attachment of other modules using the
quick locking mechanism on the bottom of the adaptors. Some DSMC power modules, such as the REDVOLT
XL MODULE, offer unique features such as direct DSMC attachment and charging capabilities.
This section provides operation installation instructions and information for the following DSMC power modules:
MODULE ADAPTOR
+1 ADAPTOR MODULE
PRO BATTERY MODULE (DUAL)
PRO BATTERY MODULE (QUAD)
BACKPACK QUICKPLATE MODULE
QUICKPLATE MODULE
REDVOLT XL MODULE
For more information on other DSMC modules, refer to the Downloads Page, or visit the RED Store.
02 DSMC POWER
MODULES

DSMC POWER OPERATION GUIDE
COPYRIGHT © 2013 RED.COM, INC 955-0038, REV-A | 11
DSMC ADAPTOR MODULES
MODULE ADAPTOR
The MODULE ADAPTOR enables DSMC modules to connect the DSMC BRAIN for expandable functionality. The
MODULE ADAPTOR features additional 1/4-20 mounting points on top for further add-ons and configuration
support. Most RED DSMC modules require a MODULE ADAPTOR or +1 ADAPTOR MODULE to attach to your
DSMC BRAIN.
WARNING: MODULE ADAPTOR is NOT compatible with the +1 ADAPTOR MODULE.
WARNING:TheMODULEADAPTORISNOTcompatiblewith the +1 ADAPTOR MODULE.
+1 ADAPTOR MODULE
The +1 ADAPTOR MODULE mounts onto the back of a DSMC BRAIN and provides power and support for an
additional RED EVF/LCD. The +1 ADAPTOR MODULE also includes an AUX power port for 4-pin third party
accessories. Other 2-pin accessories are also compatible when using a 4-PIN TO 2-PIN ADAPTOR CABLE.
WARNING: The +1 ADAPTOR MODULE IS NOT compatible with the MODULE ADAPTOR.
WARNING: DO NOT USE the EVF/LCD port if a PRO I/O MODULE is connected to the DSMC BRAIN.
NOTE: The +1 ADAPTOR MODULE requires DSMC firmware v4.0.8 or later.
MODULE ADAPTOR
+1 ADAPTOR MODULE

COPYRIGHT © 2013 RED.COM, INC
DSMC POWER OPERATION GUIDE
955-0038, REV-A | 12

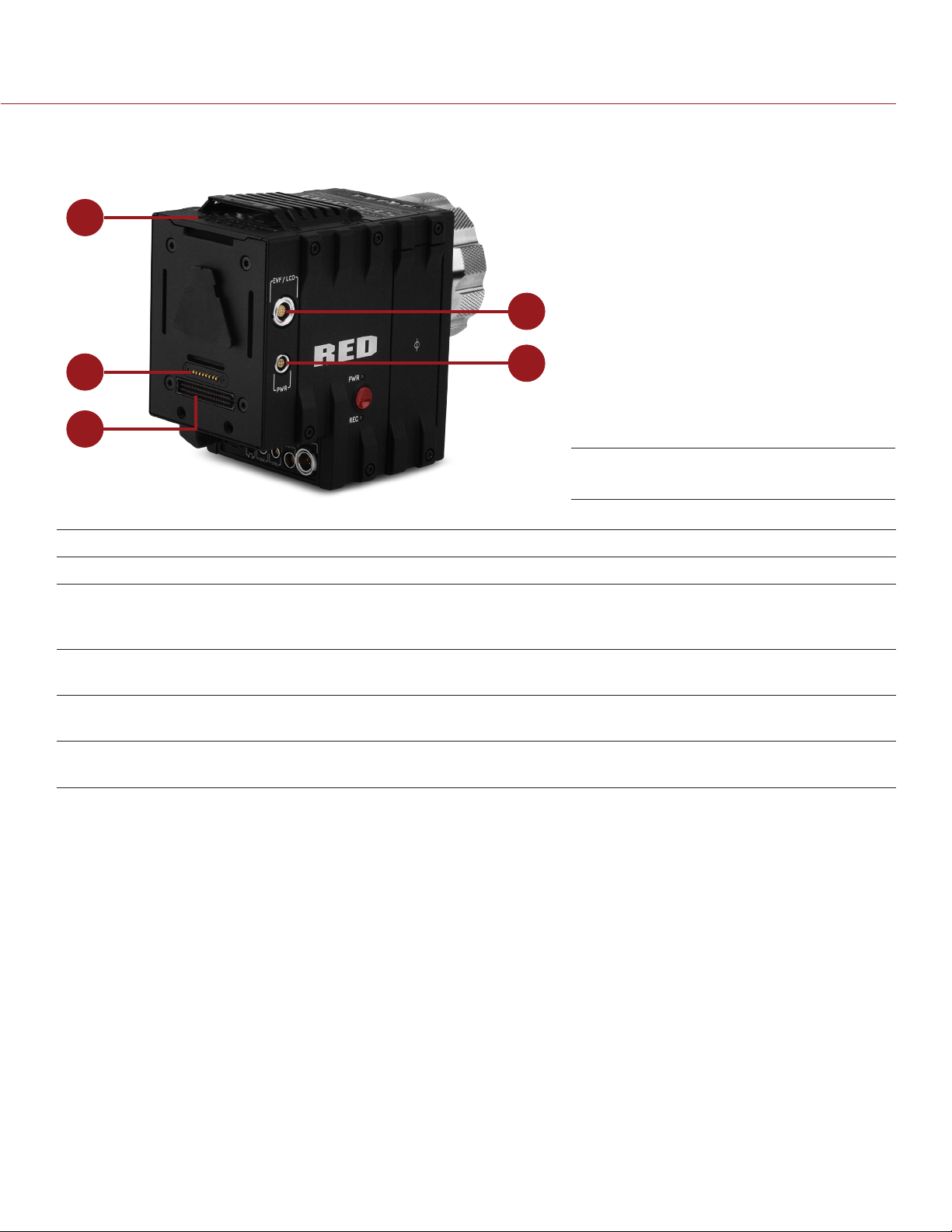

+1 ADAPTOR MODULE CONNECTIONS
#CONNECTOR CONNECTOR TYPE CONNECTOR FUNCTION
1Mounting 1/4-20 Mounting Supports bolt-on auxiliary equipment
2EVF/LCD
Port116-pin 1B LEMO Custom digital video and power interconnection be- tween DSMC BRAIN and RED EVF or RED LCD;
Pinout not published
3PWR Auxiliary Port 4-pin 0B LEMO Supplies unregulated (+) 11.5 to 17 V battery pass-
through; Max sustained current is 2 A
4REDMOTE Dock
Connector 8-point POGO connector Power and support for the REDMOTE
5Module Dock
Connector SEARAY Connector Supports power and communication with DSMC Mod- ules
1WARNING: DO NOT USE the EVF/LCD port if a RED PRO I/O MODULE is connected to the DSMC BRAIN.
NOTE: The default Auxiliary Power Output setting is ON. Use the on-screen menu to toggle this setting ON/OFF.
In the menu screen, go to: Power > Power_Out > +1_PWR. After a DSMC firmware upgrade or factory reset, the
default Auxiliary Power Output setting will be turned “ON”. Thereafter, the last Auxiliary Power Output setting
is restored.
+1 ADAPTOR MODULE Connections
1
4
2
5
3

DSMC POWER OPERATION GUIDE
COPYRIGHT © 2013 RED.COM, INC 955-0038, REV-A | 13
MODULE AND ADAPTOR OPERATIONS
Use the instructions in this section to install and remove DSMC adaptor modules and power modules.
INSTALL THE MODULE ADAPTOR
In order to attach most DSMC power modules, a MODULE ADAPTOR or +1 ADAPTOR MODULE must be in-
stalled to the back of the camera BRAIN. These module adaptors are sold separately from DSMC modules.
WARNING: DSMC modules and adaptors are NOT HOT SWAPPABLE, meaning you cannot remove or install the
modules while the camera is powered on. Before installing or removing modules, you MUST power down the
camera. Failure to do so may result in damage to the modules or DSMC that will not be covered under warranty.
REQUIRED TOOL: T20 Torx driver
1. Power down the camera.
2. Remove the REDMOTE, if attached.
3. Place the MODULE ADAPTOR over the V-mount on the rear of the camera BRAIN.
4. Use a T20 Torx driver to tighten the four (4) captive screws. Tighten screws in a cross pattern approximately
two turns each. DO NOT FULLY TIGHTEN.
5. Fully tighten the four (4) screws in a cross pattern. DO NOT OVERTIGHTEN.
MODULE ADAPTOR Installation
Tighten screws in an “X” pattern

COPYRIGHT © 2013 RED.COM, INC
DSMC POWER OPERATION GUIDE
955-0038, REV-A | 14
REMOVE THE MODULE ADAPTOR
Use the instructions in this section to remove the DSMC MODULE ADAPTOR.
WARNING: DSMC modules and adaptors are NOT HOT SWAPPABLE, meaning you cannot remove or install the
modules while the camera is powered on. Before installing or removing modules, you MUST power down the
camera. Failure to do so may result in damage to the modules or DSMC that will not be covered under warranty.
REQUIRED TOOL: T20 Torx driver
1. Power down the camera.
2. Use a T20 Torx driver to loosen the four (4) captive screws attaching the MODULE ADAPTOR to the camera
BRAIN.
3. Remove the MODULE ADAPTOR from the camera BRAIN.
Loosen MODULE ADAPTOR

DSMC POWER OPERATION GUIDE
COPYRIGHT © 2013 RED.COM, INC 955-0038, REV-A | 15
INSTALL THE +1 ADAPTOR MODULE
Use the instructions in this section to install the +1 ADAPTOR MODULE.
WARNING: DSMC modules and adaptors are NOT HOT SWAPPABLE, meaning you cannot remove or install the
modules while the camera is powered on. Before installing or removing modules, you MUST power down the
camera. Failure to do so may result in damage to the modules or DSMC that will not be covered under warranty.
REQUIRED TOOL: T20 Torx driver
1. Power down the camera.
2. Remove the REDMOTE, if attached.
3. Align the +1 ADAPTOR MODULE with the back of the DSMC BRAIN.
4. Insert the HDMI connector into the DSMC BRAIN.
Install +1 ADAPTOR MODULE
Insert the HDMI Connector to
DSMC BRAIN

COPYRIGHT © 2013 RED.COM, INC
DSMC POWER OPERATION GUIDE
955-0038, REV-A | 16
5. Use a T20 Torx driver to tighten four (4) captive screws. Tighten screws in a cross pattern approximately
two (2) turns each. DO NOT FULLY TIGHTEN.
6. Fully tighten four (4) screws in a cross pattern. DO NOT OVERTIGHTEN.
Tighten the screws in an “X” pattern

DSMC POWER OPERATION GUIDE
COPYRIGHT © 2013 RED.COM, INC 955-0038, REV-A | 17
REMOVE THE +1 ADAPTOR MODULE
Use the instructions in this section to remove the +1 ADAPTOR MODULE.
WARNING: DSMC modules and adaptors are NOT HOT SWAPPABLE, meaning you cannot remove or install the
modules while the camera is powered on. Before installing or removing modules, you MUST power down the
camera. Failure to do so may result in damage to the modules or DSMC that will not be covered under warranty.
REQUIRED TOOL: T20 Torx driver
1. Power down the camera.
2. Using a T20 Torx driver, loosen four (4) captive mounting screws attaching the +1 ADAPTOR MODULE to
the DSMC BRAIN.
3. Disconnect the HDMI connector from the DSMC BRAIN.
4. Remove the +1 ADAPTOR MODULE from the DSMC BRAIN.
Loosen the screws in an “X” pattern

COPYRIGHT © 2013 RED.COM, INC
DSMC POWER OPERATION GUIDE
955-0038, REV-A | 18
ATTACH DSMC MODULES
These instructions are applicable to all DSMC modules. The PRO BATTERY MODULE (QUAD) is shown in these
instructions.
Use these instructions to attach any of the DSMC modules.
WARNING: DSMC modules and adaptors are NOT HOT SWAPPABLE, meaning you cannot remove or install the
modules while the camera is powered on. Before installing or removing modules, you MUST power down the
camera. Failure to do so may result in damage to the modules or DSMC that will not be covered under warranty.
WARNING: Most DSMC modules require a MODULE ADAPTOR or +1 ADAPTOR MODULE for attachment to
the DSMC BRAIN. These modules are sold separately from the DSMC modules. The REDVOLT XL MODULE is
equipped with a reversible switch plate and can be installed with or without an adaptor.
REQUIRED TOOL: T20 Torx driver
1. Insert the lip at the top of the module into the recess at the top of the MODULE ADAPTOR.
2. Rotate the module down flush with the rear of the MODULE ADAPTOR.
3. While applying steady pressure to hold the module against the MODULE ADAPTOR, use a T20 Torx driver
to rotate the MODULE ADAPTOR locking mechanism clockwise to the “Lock” position in order to secure
the module.
Insert Module Lip
Press Module Flush

DSMC POWER OPERATION GUIDE
COPYRIGHT © 2013 RED.COM, INC 955-0038, REV-A | 19
REMOVE DSMC MODULES
Use the instructions in this section to remove a PRO BATTERY MODULE.
WARNING: DSMC modules and adaptors are NOT HOT SWAPPABLE, meaning you cannot remove or install the
modules while the camera is powered on. Before installing or removing modules, you MUST power down the
camera. Failure to do so may result in damage to the modules or DSMC that will not be covered under warranty.
NOTE: The instructions below are applicable to all DSMC modules. The PRO BATTERY MODULE (QUAD) is
shown in these instructions. If using the REDVOLT XL MODULE, ensure that the reversible switch plate is in-
stalled in the correct orientation for this attachment style.
REQUIRED TOOL: T20 Torx driver
1. Power down the camera.
2. Use a T20 Torx driver to rotate the lock on the MODULE ADAPTOR counter-clockwise to the “Unlock” posi-
tion.
3. Rotate the module upwards (as shown below) and away from the MODULE ADAPTOR to disengage the lip
at the top of the module from the MODULE ADAPTOR.
4. Fully remove the module from the DSMC BRAIN.
Remove Module

COPYRIGHT © 2013 RED.COM, INC
DSMC POWER OPERATION GUIDE
955-0038, REV-A | 20
PRO BATTERY MODULE (DUAL)
The PRO BATTERY MODULE (DUAL) enables DSMC BRAIN power support using two REDVOLT batteries. The
PRO BATTERY MODULE (DUAL) also supports hot-swapping of REDVOLT batteries. Add REDVOLT batteries to
your ordnance and shoot for longer periods of time.
The PRO BATTERY MODULE (DUAL) also features 1/4-20 mounting points, located on the top of the modules
for attaching outrigger handles and other tactical gear to meet your needs.
WARNING: DO NOT USE more than one DSMC battery module at a time. Using more than one DSMC battery
module will damage the DSMC BRAIN and will not be covered under RED warranty.
NOTE: A MODULE ADAPTOR or +1 ADAPTOR MODULE is required to mount this module to the DSMC BRAIN.
NOTE: The PRO BATTERY MODULES (DUAL) will not charge batteries, even if a power cable is attached to the
DSMC BRAIN. Charging REDVOLT batteries will require a dedicated charger.
INSERT BATTERIES IN PRO BATTERY MODULE (DUAL)
1. Align and insert the REDVOLT battery.
2. Apply pressure to the battery until a click is heard, signalling the battery is properly seated.
REMOVE BATTERIES FROM PRO BATTERY MODULE (DUAL)
1. Press the black rectangular battery eject button next to the battery you want to eject.
2. When the battery is ejected, remove the battery from the PRO BATTERY MODULE (QUAD).
PRO BATTERY MODULE (DUAL)
