Redback lasers Xlg44 User manual

DA530L

Digital Angle

Back

Red

Lasers

XLG44

Instructions

The XLG44 is an electronic self levelling multi cross line laser with green laser output. It features

4 vertical line and 4 horizontal lines plus a plumb dot down and additional in line dots for extra

visibility on the front vertical and horizontal lines. The XLG44 operates o a Li-ion rechargeable

battery or standard “AA” batteries and can be used with a OPTIONAL line receiver LLR705G.

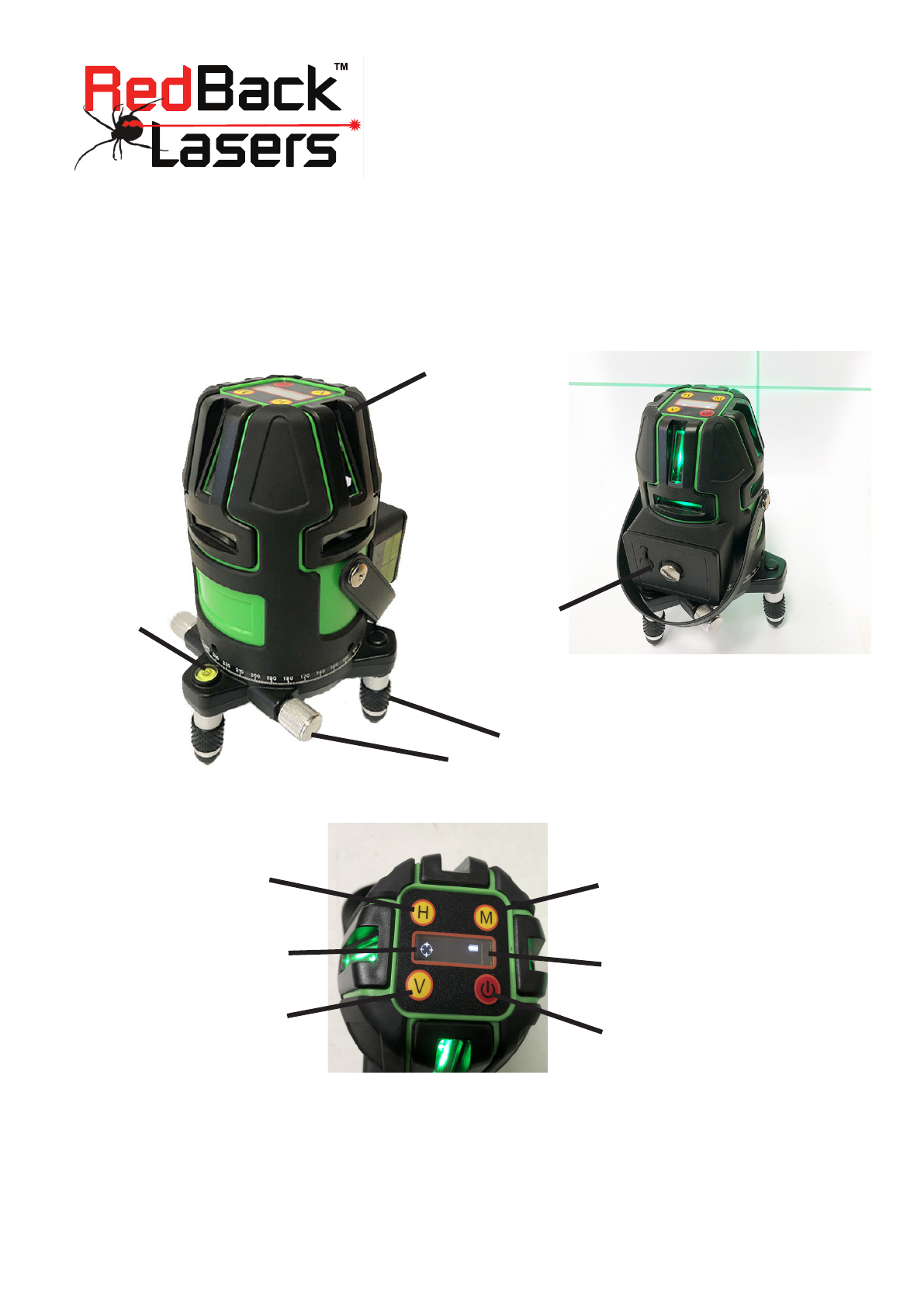

Adjustable Levelling Feet

Rubberised Casing

Charging Port on Li-ion

Battery

LED Display & Control Panel

Rough Levelling

Vial

Fine Adjustment for Vertical Alignment

Pulse / Dim Mode (each press

toggles through; Pulse for OPTIONAL

receiver, Dim for dull conditions and

back to normal visible mode)

Power Button

Display indicating which lines

are powered on

Horizontal (each press toggles

through each of the 4 horizontal lines)

Vertical (each press toggles through

each of the 4 vertical lines)

Display also indicates Battery

power and Pulse/Dim Mode

To operate rst place either the Li-ion battery or “AA” battery holder complete with “AA” batteries

into the battery compartment and lightly tighten the screw.

Place the XLG44 laser on a surface and roughly level the unit using the adjustment feet and

bubble vial. This gets the laser into electronic self levelling range, you do not need to have the

bubble perfectly central for the laser to accurately self level.

Power up the laser by pressing the Red Power button the LED display will light up indicating battery level and any laser lines that where previously

selected. You will hear an electronic motor sound as the laser levels and the front vertical will light up indicating self levelling. Once levelled the front

vertical will power down (if not selected) and the selected lines will illuminate. Also when self levelling the text “Laisai” will ash, when completed

self levelling the text will go solid.

Select your desired Horizontal and Vertical Lines using the “H” and “V” toggle buttons. Each press will increase the number of lines, the next press

after all four are selected will return to 0 lines for either the Horizontal or Vertical axis.

The Display indicates which lines have been selected. Note the red plumb dot down automatically powers on when one or more vertical lines have

been selected.

If you rotate the laser or move it when powered up the laser will need to re-level and the selected lines will disappear momentarily indicating its not

level yet.

The “M” Mode button toggles through Pulse Mode, Dim Mode and back to Normal Mode.

Pulse mode allows you to use an OPTIONAL line receiver such as the LLR705 Green receiver for use outdoors up to a range of 40m in all light

conditions. Ideal for Decking, Stumps etc when the ambient light is too bright to visibly see the lines. When pulse mode is active the letter “P” will

show in the display.

Dim mode diminishes the intensity of the beam making it more comfortable to use in low light conditions. When this mode is active the letter “D”

with a line through it will show on the display.

You will notice on the Front Horizontal and Front Vertical Lines an imbedded dot this is to help see the location of these lines in excessively bright

conditions.

The XLG44 can be mounted on an indoor tripod with survey thread such as the IET150. Note that the adjustment feet will not help to level the laser,

you will need to use the tripod legs.

The Li-ion battery can be charged either when attached to the laser or when detached using the charger supplied, Do not use any other charger or

power adaptor.

Specications

Laser Output (H/V): Green Class 3r 522nm <5mW

Accuracy: +/- 1mm/10m

Range: Dependent on Ambient Light up to 30m

Range with optional Receiver (LLR705): 40m All lighting Conditions

Warranty: 2 Years

Warranty Information – CMI Industries Pty Ltd

The Principles behind our warranty.

• Duration of warranty is xed and automatic, when we advertise 2 years on a particular model, its two years. No drop down to a lesser time if you forget to register, registration is NOT

required just proof of purchase showing date. Please check your specic model for duration of warranty, see the end of this document.

• Although the duration of our warranties are for a particular period it does not mean we will charge you for a genuine warranty failure a month or two outside that warranty period, we

believe in a fair go.

• Even though a product shows signs of accidental damage, scratches and the like, we will not automatically fail the warranty claim, if the fault is NOT caused by a drop or misuse and is

a genuine warranty failure then we will cover it.

• Our aim is to return repaired or replaced products as soon as possible as we know that being without your tool can be inconvenient. Our goal is a 72 hour turnaround (3 working

days) after receiving it. Sometimes, however, a product with an intermittent fault may need extended testing to make sure we have made a full repair.

• Calibration is not covered by warranty much the same as the wheel balance on your car is not covered by warranty.

Now The Details and Legals

CMI Industries Pty Ltd provides consumers with a warranty to our products, this is in addition to the requirements of any relevant legislation such as the Competition and Consumer Act 2010.

Denitions:

“CMI”, “We” or “Our” refers to CMI Industries Pty Ltd (ABN 29 102 713 922) of Unit 2 181-183 Thompson Rd, Bell Park, Victoria 3215 ph 1800 769 858

“You” or “Consumer” refers to the initial purchaser of the product.

“Product” refers to goods manufactured by or for CMI Industries Pty Ltd under the brands of RedBack Lasers, Level1Laser and UniLevel and include Laser and Optical Levels, Measuring tools and

accessories.

“Material” refers to material or component used in the construction and manufacture of the product.

“Workmanship” refers to handling, assembly and manufacturing processes done by or for CMI Industries Pty Ltd in order to manufacture the products.

“Warranty Period” varies depending on brand and model sold by CMI please see table at end for your products warranty period. Warranty period is from original purchase date only, no extension is

made in the event of warranty replacement products being supplied or time spent being repaired.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other

reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

CMI warrants that our products will be free from defects in material and workmanship for the stated period for the product supplied (see “warranty period” following)

CMI promises to repair or replace, free of charge, the product or part of product if found to be faulty due to defective workmanship or materials within the duration of the warranty stated as long as

the following terms and conditions are met;

• Product must not have been misused or abused, must not have incurred accidental damage or had un-authorised repair or tampering that has caused or contributed to its fault or

failure.

• You must contact CMI by phone, mail or email immediately when a fault or defect has become apparent and within the warranty period.

• Product must be returned to store of purchase or directly to CMI, we will cover cost of postage only when sent by our reply paid Australia Post service (Australian Mainland and

Tasmania only) details provided upon phone, post or email with us.

• CMI will cover cost of freight back of repaired or replaced product to original purchase store or you directly (depending on how it was sent Australian Mainland and Tasmania only).

• CMI will determine whether repair or replacement of product or part of product will be made on the merits of each case.

• Further exclusions in this warranty include damage or defect caused by use of non-original accessories or parts, damage in transportation, normal wear and tear, damage through

moisture, damage due to electric surge, failure due to neglect or damaged caused by adjustments not outlined in CMI’s instructions.

Subject to the requirements of all applicable Australian Acts or legislation and to the extent permitted by law, CMI accepts no liability (whether expressed or implied) of any nature whatsoever for

any loss of earnings, hiring of replacement equipment, Inaccurate work carried out by the consumer or agent, damage or injury arising as a result of any fault in the product. It is the consumer’s

responsibility to maintain good working practices and regularly test their tools for accuracy and serviceability.

Calibration of the product is not covered by warranty subject to the requirement of all applicable Australian Acts or legislation and to the extent permitted by law.
