Redexim Verti-Comb Series User manual

ATTENTION:
IT IS OF THE UTMOST IMPORTANCE TO READ THIS USER MANUAL
CAREFULLY PRIOR TO USING THE VERTI-COMB IN ORDER TO USE THE
MACHINE SAFELY AND TO OBTAIN THE BEST RESULTS.
1334 English 942.120.200
User Manual and Parts
Book of the
Verti-Comb
Serial number:
Translation of the original operating
instructions

2
FOREWORD
Congratulations on your Verti-Comb purchase! For safe and long-lasting operation of this
Verti-Comb, it is necessary to read and to understand this user manual. It is impossible to
work safely with this machine without complete knowledge of its content.
The Verti-Comb is not a machine that works independently. It is the user’s responsibility to
use the correct tractor. The user must also check the tractor/Verti-Comb combination on
safety aspects such as noise level, user instructions and risk analysis.
The following pages deal initially with the general safety instructions. Every user should know
these safety instructions and apply them. At the end of this page, a registration card is
inserted. This registration card should be returned to enable us to deal with potential future
claims.
This user manual lists many instructions that are numbered in sequence. You should follow
this sequence. A is an indication of a safety instruction. A means a tip and/or note.
All information and technical specifications provided at the moment that this document is
published are the most recent ones. Design specifications may be changed without prior
notice.
This document is a translation of the original operating instructions.
Upon request, the original operating instructions are available in Dutch.
WARRANTY CONDITIONS
WITH DELIVERY THIS VERTI-COMB IS GUARANTEED AGAINST MATERIAL DEFECTS.
THIS WARRANTY IS VALID FOR A PERIOD OF 12 MONTHS FROM THE PURCHASE DATE.
VERTI-COMB WARRANTIES ARE SUBJECT TO THE ‘GENERAL CONDITIONS FOR SUPPLY OF
PLANT AND MACHINERY FOR EXPORT, NUMBER 188’ THAT ARE PUBLISHED UNDER THE
AUSPICES OF THE UNITED NATIONS ECONOMIC COMMISSION FOR EUROPE.
REGISTRATION CARD
For your own information, fill in the table below:
Serial number of the
machine
Dealer name
Date of purchase
Remarks

3
! SAFETY INSTRUCTIONS !
Figure 1
The Verti-Comb is designed for safe use. This can
only be achieved if you completely follow the
safety instructions described in this manual.
Read and understand (Figure 1) the manual before
you start using the Verti-Comb.
If the machine is not used as described in this
manual, this can result in injuries and/or damage
to the Verti-Comb.
1. The user must be an expert in using the machine. The machine should be
professionally adjusted for cultivating the subsoil.
The manufacturer will not accept any liability for unprofessional use and its resulting
damage. All risks occurring with this are entirely at the expense of the user.
Not following the use, maintenance and repair instructions prescribed by the
manufacturer is also considered unprofessional use of this machine.
Inspect the area to be treated before using the Verti-Comb.
Remove loose obstacles and avoid irregularities.
2. The Verti-Comb is manufactured according to the latest technical
understanding and is safe to use.
When unskilled people use, maintain or repair the machine, this could result in
injuries to the user and to third parties. This must be avoided!
Always use the Verti-Comb in combination with the correct tractor as described in the
technical data.
3. All persons assigned to operate, maintain and repair the Verti-Comb by the
owner must read and completely understand the operation manual and in
particular the chapter of Safety Instructions.
The user is responsible for a safe Tractor/Verti-Comb combination. This entire
combination must be tested for noise, safety, risk and user friendliness. User
instructions should also be drafted.
4. The user is obliged to check the Verti-Comb for visible damage and
defects before using the Verti-Comb.
Modifications to the Verti-Comb (including its operations) that have a negative impact
on safety must be rectified immediately.
For safety reasons it is in principle not permitted to make changes or adjustments to
the Verti-Comb (except those approved by the manufacturer).

4
If modifications to the Verti-Comb have been made, then the current CE marking is
cancelled. The person that has made these modifications has to apply for a new CE
marking himself.
Check the Verti-Comb for loose bolts, nuts and components before every operation.
If present, check the hydraulic pipelines regularly and replace these when the
hydraulic pipelines are damaged or appear old. The pipelines that are replaced
should comply with the technical requirements of the manufacturer.
If a hydraulic installation is present, you should always make it pressure-free before
working on this installation.
NEVER use the Verti-Comb in the absence of the safety stickers.
NEVER crawl under the Verti-Comb.
If necessary, tilt the Verti-Comb.
NEVER step off the tractor while the motor is running.
In case of maintenance, adjusting and repairs, it is necessary to block the Verti-Comb
in order to prevent sinking away, driving off and/or sliding off.
Always switch off the tractor motor and take the tractor’s key out of the ignition
in carrying out maintenance, adjustments and repairs (Figure 2).
Figure 2
With regards to the safety of the machine and the user, use only original Verti-Comb
parts for maintenance and repairs.

5
Only authorised technical personnel may carry out repairs to the Verti-Comb.
Keep a record of the repair activities.
5. The general applicable health & safety (Dutch: ARBO) regulations must also
be followed in addition to the instructions in this user manual.
Relevant traffic regulations also apply in case of using public roads.
Transporting persons is not permitted!
Do not use the Verti-Comb in the dark, in heavy rain/storm or on slopes with an angle
larger than 20 degrees.
6. All persons that are going to operate the Verti-Comb must be familiar with all
the functions and control elements of the Verti-Comb before starting any work
activities.
Attach the Verti-Comb to the towing vehicle according to the regulations.
(Danger of injuries!)
Check whether you have a clear field of vision – both close by and far away – before
you depart.
Safety stickers (Figure 2, 3 and 4) with an identical meaning are attached to both sides
(Figure 5) of the Verti-Comb. These safety stickers must always be clearly visible and
legible and must be replaced if they have become damaged.
During operation, NO persons are allowed within the danger zone of the Verti-
Comb, because there is danger of physical injuries caused by flying material (Figure 3).
Figure 3
Figure 4
Keep a distance of minimum 4 metres! (Figure 4)

6
Pay attention to the permitted lifting capacity of the towing vehicle.
Dress appropriately. Wear sturdy shoes with steel toecaps, long trousers and tie up
long hair. Do not wear loose clothing.
Figure 5
7. Location of the safety stickers (Figure 5).

7
TABLE OF CONTENTS
WARRANTY CONDITIONS................................................................................... 2
REGISTRATION CARD......................................................................................... 2
SAFETY INSTRUCTIONS ..................................................................................... 3
1.0 TECHNICAL DATA................................................................................... 8
2.0 FIRST INSTALLATION – TAKING THE MACHINE OFF THE PALLET .. 9
3.0 ATTACHING IT TO THE TRACTOR........................................................10
4.0 TRANSPORTING THE VERTI-COMB.....................................................11
5.0 DRIVING SPEED......................................................................................11
6.0 OPERATING THE VERTI-COMB.............................................................12
7.0 START/STOP PROCEDURE...................................................................12
8.0 DISCONNECTING THE VERTI-COMB....................................................13
9.0 TROUBLE SHOOTING (PROBLEM ANALYSIS)....................................13
10.0 EU DECLARATION..................................................................................14
11.0 MAINTENANCE.......................................................................................14
12.0 OPTIONAL: SET OF WHEELS WITH TOWING HOOK ..........................15
13.0 OPTIONAL: RAKE SECTION..................................................................16
14.0 OPTIONAL: MAGNET SECTION.............................................................17
15.0 OPTIONAL: HYDRAULIC KIT.................................................................18

8
1.0 TECHNICAL DATA
Model Verti-Comb 1800 Verti-Comb 400
Working width 1.8 m (70.9”) only the middle
section
4.0 m (157.5”)
Working depth Surface treatment Surface treatment
Speed
Maximum 12 km/h (7.5 mph) Maximum 12 km/h (7.5 mph)
Weight of basic machine
Weight of basic machine
including options
150 kg (331 lbs)
- 250 kg (551 lbs) 545 kg (1202 lbs)
Recommended tractor 30 HP with minimum lifting
capacity of 500 kg (1102,3 lbs)
In case of the hydraulic version,
1 double-functioning hydraulic
connection
30 HP with minimum lifting
capacity of 700 kg (1543.2 lbs)
In case of the hydraulic version,
1 double-functioning hydraulic
connection
Maximum capacity
(Theoretical at maximum speed of
12 km/h [7.5mph])
21600 m2/h
(232500,5 ft2/h) 48000 m2/h
(516667.7 ft2/h)
Transport dimensions L x W x H
775 x 1800x 1500 mm
30.5” x 70.9” x 59”
L x W x H
1175 x 2220 x 1610 mm
46.3” x 87.4” x 63.4”
Three-point connection Cat. 1-2 Cat. 1-2
Standard components - Integrated adjustable legs
- Integrated adjustable legs
Optional - Set of wheels
- Towing hook
- Rake section
- Magnet section
- Hydraulic kit
- Set of wheels
- Towing hook
- Rake section
- Magnet section
- Hydraulic kit

9
2.0 FIRST INSTALLATION – TAKING THE MACHINE OFF THE
PALLET
Figure 6
To remove the pallet and to place the machine horizontally on the ground, you take the
following steps (see Figure 6):
!! NEVER CRAWL UNDER THE MACHINE !!
1. Attach a cable to lifting point (1) and to the frame of the machine (2).
Make sure that the cable/crane/lift can hoist minimum 1,000 kg (2205 lbs).
Careful: Keep your distance; the machine can slide!
2. Remove the bottom 3-points pins (4).
3. Lift the machine carefully a little bit off the pallet.
4. Remove the pallet and lower the machine calmly until it stands completely on the ground.
5. Connect the machine to the tractor (please refer to Chapter 3.0).
Use the proper tractor (please refer to the specifications).
Turn off the tractor and secure the tractor/Verti-Comb combination against
driving off and/or sliding off.

10
3.0 ATTACHING IT TO THE TRACTOR
Checking procedure before starting to attach the Verti-Comb:
Check the Verti-Comb for visually discernable damage and
repair this if safe operation of the machine is no longer
guaranteed.
Check whether all the nuts and bolts are tight.
Check whether all safety stickers are present on the machine
and are not damaged.
NEVER use the machine without these items.
Figure 7
The Verti-Comb can be attached to the tractor by means of the 3-point attachment.
The procedure is as follows (see Figure 7):
1. Remove the 3-point pin (2).
2. Drive the tractor carefully backwards so that the lower connecting arms can
be attached to the frame.
!! Make sure that the pulling vehicle is blocked well and cannot move on its
own accord !!
!! Switch off the pulling vehicle before descending !!
3. Connect the lower connecting arms to the 3-point pins (1) and secure these
with the supplied locking pins.
4. Set the stabilizer of the tractor to 100 mm lateral stroke.
5. Mount the top rod of your tractor and turn it outward until it reaches the same
height as the 3-point stop connection of the Verti-Comb.

11
Connect the top rod (3) to the frame with the pin (2); secure the pin (2) with the
supplied securing pin.
Turn the top rod inwards so that it becomes pressurized.
!! Make sure that all the securing pins are locked !!
Start the tractor and lift the Verti-Comb off the ground.
Detaching is done in reverse order.
4.0 TRANSPORTING THE VERTI-COMB
Figure 8
The user is responsible for transporting the Verti-Comb in back of the tractor on public roads.
Verify the national legislation regarding the regulations.
On open fields while the machine is raised, the maximum permitted speed is 12 km/h (7.5
mph) due to the weight of the Verti-Comb.
A higher speed can be dangerous for the driver and/or the public and can even damage the
machine.
When the machine is raised off the ground, the front axle of the tractor has to
support minimum 20% of its weight.
Always transport the Verti-Comb with the side-panels folded! Secure the
locking mechanism (1) with the locking pin (see Figure 8).
5.0 DRIVING SPEED
The driving speed is limited to 12 km/h (7.5mph).
It is NOT recommended to drive faster due to the fact that excessive wear & tear and
damage can occur to the machine and to the subsoil.

12
6.0 OPERATING THE VERTI-COMB
Before using the Verti-Comb in a location, you should check the following items:
1. Are there loose objects in the field? First remove these objects.
2. Are there slopes? The maximum slope is 20 degrees for this machine.
3. Is there danger of flying objects (e.g., balls) that distract the attention of
the driver? If so, the Verti-Comb CANNOT be used.
4. Is there danger of sinking/sliding away? If so, postpone the processing
until conditions improve.
5. A field can be worked several times in the same or different directions
in order to obtain better processing.
6. Do not make sharp bends and preferably, drive in straight lines;
otherwise you might damage the machine and the ground.
7.0 START/STOP PROCEDURE
Figure 9
The start procedure is VERY important. If this procedure is not executed as described below, it might
result in serious damage to the subsoil.
The start procedure is as follows: (see Figure 9)
1. Check the Verti-Comb for loose components and look whether all components
function properly.
!! If loose components are observed or components do not function properly, the
problems must be solved before using the Verti-Comb !!
2. Drive to the location that needs to be treated and lower the machine until it is
completely on the ground.
!! Make sure that the tractor is blocked well and cannot move on its own accord !!
!! Switch off the tractor before descending !!
3. Remove the locking pins and unfold the side-panels.
4. Turn the top rod tight until the machine stands completely flat on the ground.
5. Move the tractor forwards.
6. Increase the driving speed to maximum 12 km/h (7.5 mph).

13
Stopping occurs as follows:
1. Lower the speed and lift the machine from the ground.
2. Lift the machine completely and drive to the next location.
8.0 DISCONNECTING THE VERTI-COMB

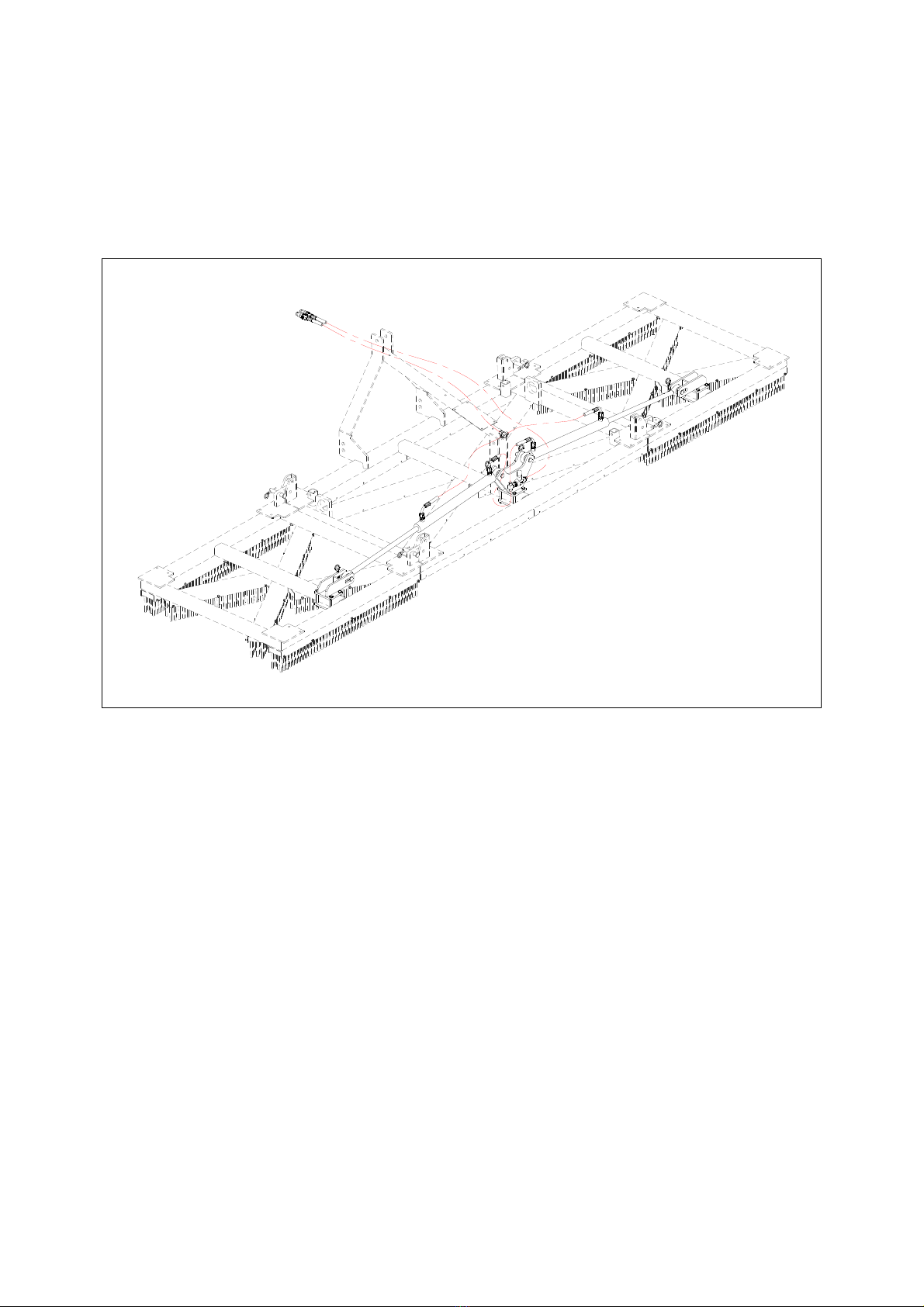

Figure 10
The machine can be disconnected in the following manner: (see Figure 10)
!! Make sure that the tractor is blocked well and cannot move on its own
accord !!
!! Switch off the tractor before descending !!
1. Fold the side-panels up and mount the locking pins in the securing pins.
2. Drive the Verti-Comb to a parking area with a firm/flat surface.
3. Lower the adjustable legs and secure these with the locking pins.
4. Carefully lower the Verti-Comb to the ground.
5. Release the top rod.
6. Take the securing pin out of the top rod pin and pull the pin out of the top rod
connection.
7. Take the securing pins out of the bottom 3-point pins and disconnect the
lower lifting arms from the tractor.
!! Make sure that the Verti-Combstands stable and cannot roll away and/or
slide off !!
8. Start the tractor and drive off.
9.0 TROUBLE SHOOTING (PROBLEM ANALYSIS)
Problem Possible cause Solution
Levelled too little material.
-Ground is too hard -Drive another few passes. -Use rakes.
Sloppy image of the field after
processing
-Ground is too wet
-You have driven too
slowly.
-Wait for better conditions
-Increase the driving speed
Optional:
Rakes go too deep. -Wrongly adjusted -Swivel the top rod out.
-Adjust the working depth.

14
10.0 EU DECLARATION
We – Redexim BV, Utrechtseweg 127, 3702 AC Zeist, Holland – declare entirely under our
own responsibility that the product
VERTI-COMB WITH MACHINE NUMBER AS INDICATED ON THE MACHINE AND IN
THIS MANUAL, to which this declaration relates is according to the stipulation of the
2006/42/EC directive for machines.
Zeist, 01/10/09
A.C. Bos
Manager Operations & Logistics
Redexim Holland
11.0 MAINTENANCE
Time schedule Check/Grease point Method
Before every use Check for loose bolts/nuts
If installed:
Check the hydraulic system for
damage.
Presence and readability of the
safety stickers (Figure 5)
Tighten loose bolts/nuts with the
correct torque.
Replace or repair components.
Replace these if not present or
damaged.

15
12.0 OPTIONAL: SET OF WHEELS WITH TOWING HOOK
The Verti-Comb is also available including a set of wheels (optional). (Figure 11)
This set can be mounted at the inside of the machine.
The set of wheels is used in combination with a towing hook when another pulling vehicle is
used instead of a tractor.

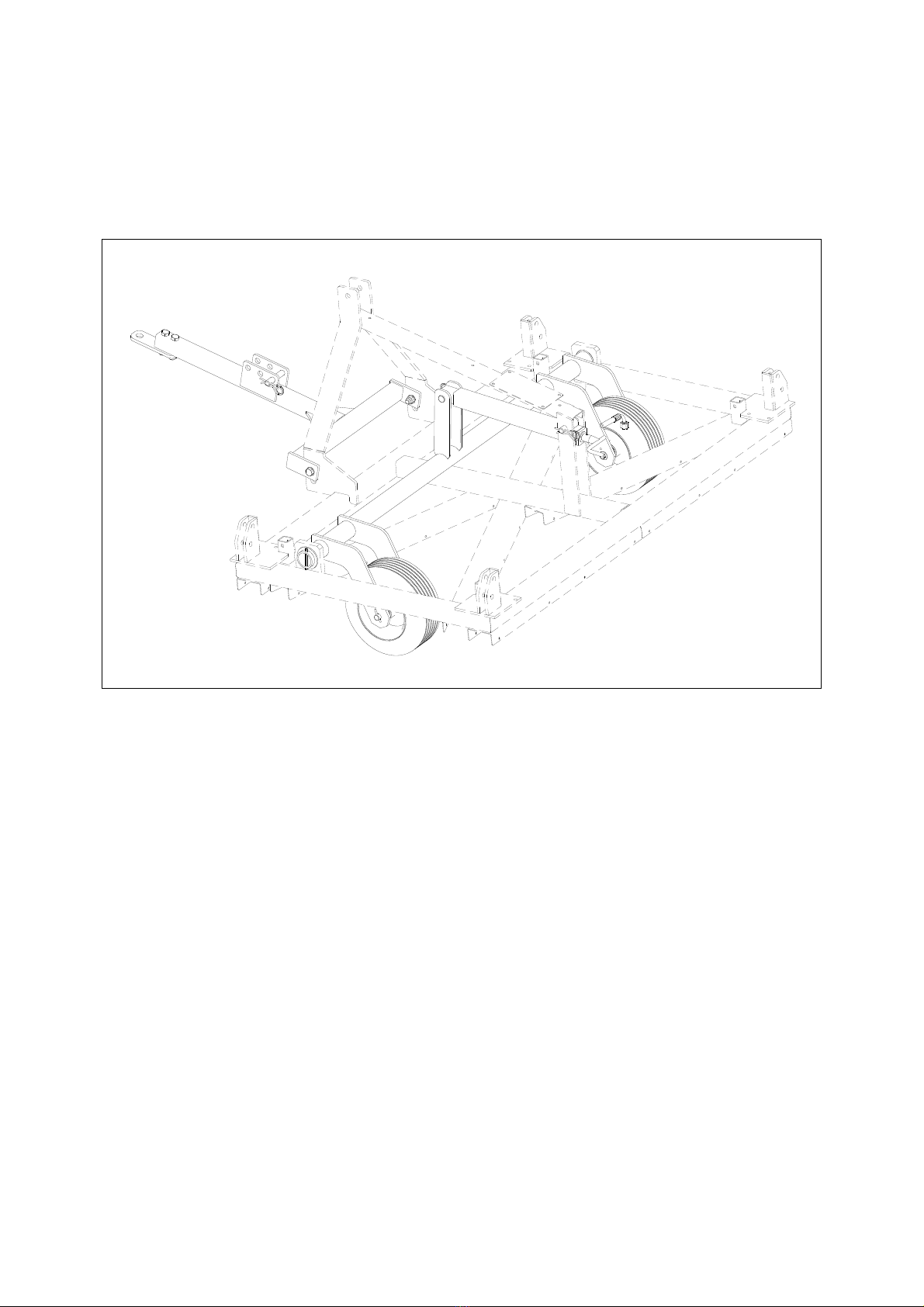

Figure 11

16
13.0 OPTIONAL: RAKE SECTION
The Verti-Comb is also available including a rake section (optional). (Figure 12)
This section can be mounted at the front side or the backside of the machine.
The rake section can be used to rake (loosen) any material that is stuck.
Figure 12

17
14.0 OPTIONAL: MAGNET SECTION
The Verti-Comb is also available including a magnet section (optional). (Figure 13)
This section can be mounted at the backside of the machine.
While treating the surface, the magnet section can be used to remove steel particles from the
surface.
Figure 13

18
15.0 OPTIONAL: HYDRAULIC KIT
The Verti-Comb is also available including a hydraulic kit (optional). (Figure 14)
This kit can be mounted on the backside of the machine by means of brackets.
The hydraulic kit enables the automatic folding up or down of the side-panels and the
automatic raising or lowering of the set of wheels.
Figure 14
