Reef Factory TDS User manual

TDS meter device manual
1/11
Thank you for purchasing our device
TDS meter

TDS meter device manual
2/11
Apart from the TDS meter device itself, the package contains the following elements: a power
supply unit, a magnet that can be used to reset the device and an abbreviated manual. In order to
set up the device correctly, follow the steps below.
1. The picture below shows how to install the device correctly.
2. Connect the device to the power supply unit. When the device starts working, you will hear
a short sound.

TDS meter device manual
3/11
3. The device can be set up via a browser on a PC, laptop, tablet or smartphone. To do so,
you’ll first need to view the list of Wi-Fi networks available on the device. Then connect to
the network with a name corresponding to the serial number of your device, in accordance
with the following pattern: RFTMXXXXXXXXXXXX. Our device is compatible with 2,4 GHz
networks.
To log in, enter the following password:
reeffactory
4. Open an Internet browser on the device and type the following address in the “website
address” field:
www.tdsmeter.io
If you entered the address correctly and you still see the following message, it means that
a connection with the device couldn’t be established, so the connection with your home
Internet network (wired or wireless) is still active.
Try to reconnect to the Wi-Fi module of the device and repeat step 3 as described above.

TDS meter device manual
4/11
Set up your device in five simple steps.
Step one - choose the language you want to use when operating the device.

TDS meter device manual
5/11
Step two - set up the device parameters, i.e.:
- TDS value (water impurity level), at which an alert will be triggered. In order to set the
value, drag the red dot and place it on the water purity scale.
The water purity level is measured by the TDS sensor. If the water purity parameters exceed the
specified value (5 ppm by default), the TDS meter device will inform you about it, by generating
a sound alert and displaying messages on its screen. If you connect the device to Smart Reef
system, you will additionally receive automatic emails or text messages to your email address
or phone number.

TDS meter device manual
6/11

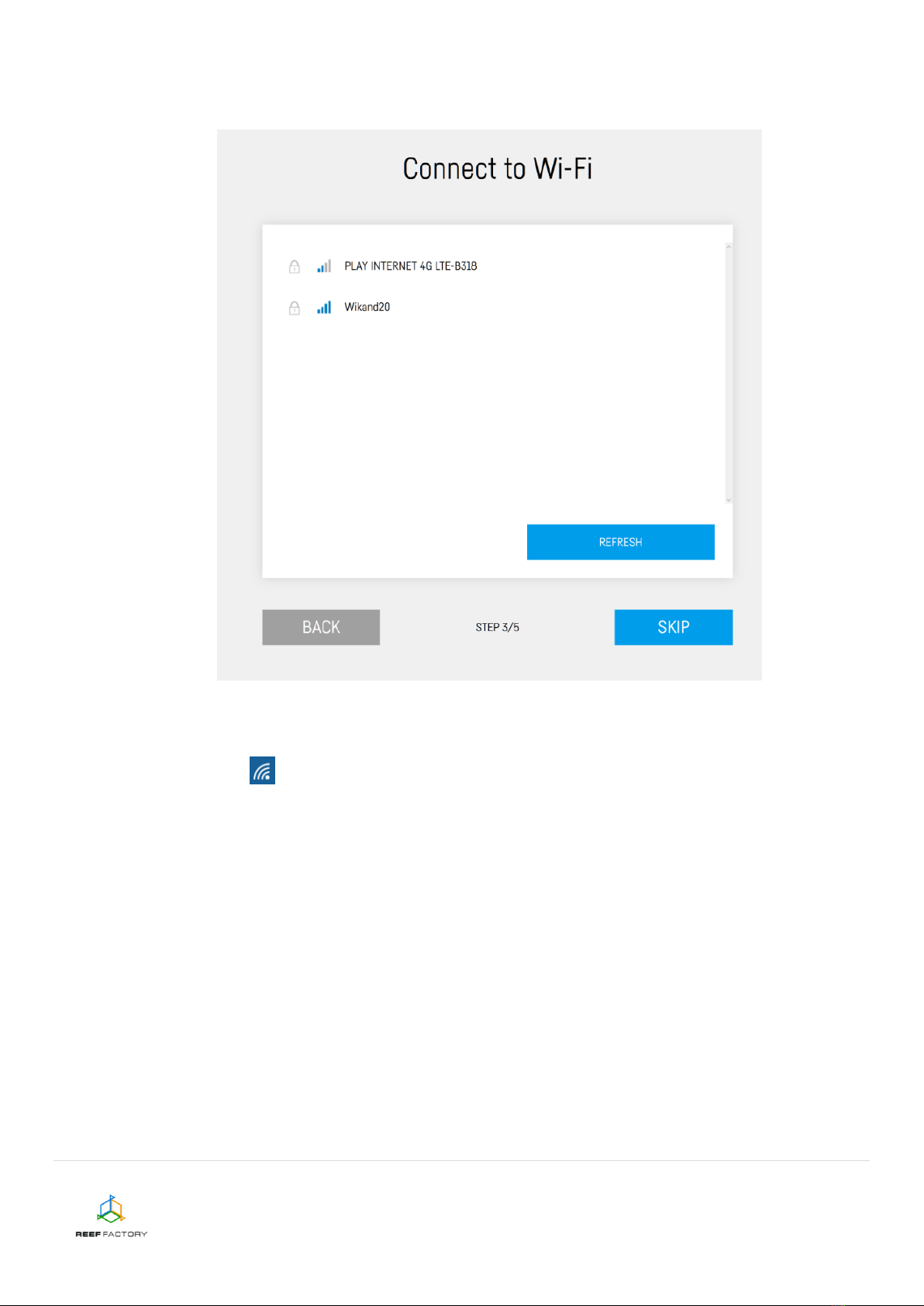

Step three - connect the device to your home Wi-Fi network. If the network is secured, enter
the password that protects your home network against unauthorized access.
If the device cannot connect to your home Wi-Fi network at first, repeat the procedure. Successful
connection may depend on the type of network device you use and its manufacturer. The signal of
your wireless network should be as strong as possible. Remember that in order to enable
communication with the Smart Reef system, the network device which is connected to TDS meter
needs to have Internet access.
When TDS meter successfully connects to your Wi-Fi network, its IP number will appear in the
upper left corner of the screen. The appearance of the IP number means that everything is alright.

TDS meter device manual
7/11

TDS meter device manual
8/11
Step four - create a free Smart Reef account by pressing the “Create a free account” button.
Please note that in order to do so, you will need to connect to the wireless Internet network and
not to the device itself.
Your account password should be appropriately obscure and difficult to decipher.
This way, you will be able to operate the device remotely, control the water purity and use
additional functionalities. If you already have a Smart Reef account, enter your login data to add
your new device to the system. If you don’t need to manage your device remotely, you may ignore
this step. However, by doing so you will miss out on several additional features, such as access
to device updates.

TDS meter device manual
9/11
Step five - congratulations, you have successfully set up your TDS meter device.

TDS meter device manual
10/11
5. After the setup procedure is finished (after pressing the “FINISH” button), the current status
of your device will appear on the screen.
6. In the upper right corner of the screen you will find a drop-down menu icon. There
you can introduce any necessary changes or to repeat the setup procedure. It also contains
additional functions, including options for Wi-Fi network management, device network
password, which protects your device against any unauthorized remote access, Smart Reef
account management, language selection and the possibility to restore your device
to default settings. Moreover, the icons show the current status of connection to your
wireless network and to the Smart Reef system.
The symbol means that the connection is OK, while the symbol means that there
is no connection.

TDS meter device manual
11/11
7. Mount the TDS sensor in the reverse osmosis water purification system in such a way that
ensures correct water purity measurement. After the device is installed and powered, wait
for a while until the it shows the water impurity reading.
Remember that apart from the TDS sensor the device is not entirely watertight and it must
not be submerged in the liquid.
8. Resetting the device.
If your device does not work properly, or you want to repeat the setup procedure, or you
cannot connect to it despite several attempts, you may restore it to its default settings by
placing a magnet (included in the package) at the right side of its housing.
Tip: move the magnet from the left to the right side of the device, to make it possible for the
device to detect its presence. The device will indicate the beginning of the resetting process
by emitting three sound signals and a short modulated sound.
9. Connect to your Internet network via a computer or a mobile device. Next, go to
www.reeffactory.com and log in to your Smart Reef account. Check, if your device has
been properly added to the list of your devices. You can change its name and assign it to
one of your aquariums. The serial number of your device and its firmware version are
displayed in the lower right corner of the screen. Our devices are SMART; therefore, we
constantly improve them. From time to time, you will receive information about firmware
updates that will make your device work even better.
10.Notice the icons located in the upper right corner of the screen. They make it possible to
change the language, view the history of notifications registered by the device, contact us
and access many more interesting features offered by the device.
11.Additional and up-to-date information about the device, its operation
and setup can be found at our website www.reeffactory.com, in the relevant product tab.
