Reef Images Focus Light User manual

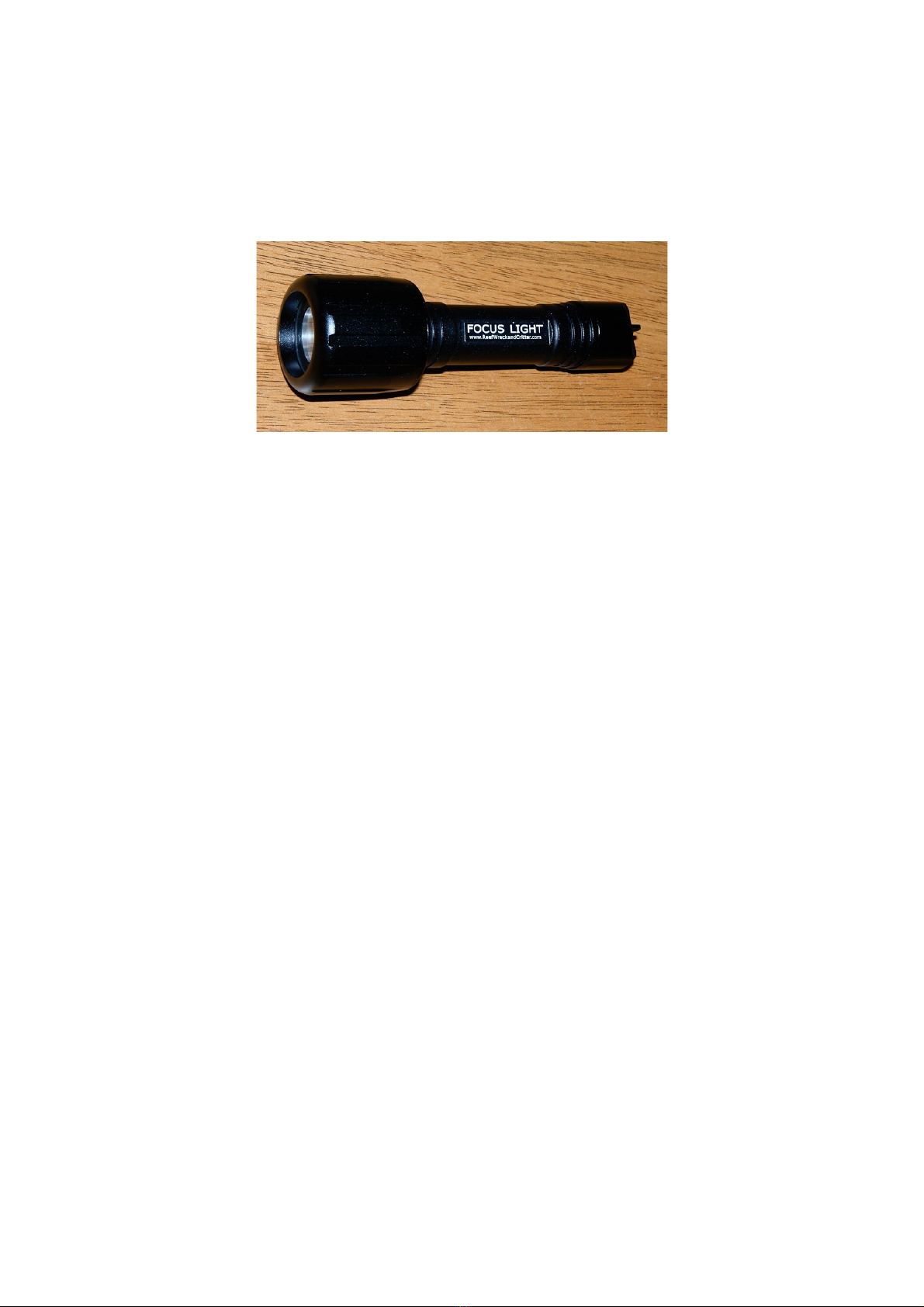

Reef Images - LED Focus Light
Congratulations on your purchase of the Reef Images LED Focus Light. This diving light uses
carefully selected materials that have met rigorous industry standards. With innovative
manufacturing processes, and strict uality controls, we guarantee the reliability of all Reef Images
products.
Introduction
The Reef Images Focus Light has an innovative Auto Flash-Off function, giving you better control
over lighting and prevent annoying hotspots from spoiling your underwater photos. Combined with
250 Lumens brightness, durable construction and reliable performance, this is the perfect match
for today's smaller and lighter digital camera housings.
Your Reef Images Focus Light has the following features:
1. Auto Flash-Off function triggered by the flash of your strobe.
2. The Auto Flash-Off works automatically and switches the Focus Light OFF for between 0.5
and 0.75 seconds when your underwater strobe is triggered, avoiding accidental hot spots
from ruining your underwater photos.
3. Our high output 1 x CREE LED system delivers a stunning 250 Lumens.
4. The excellent uality of LED guarantees a lifespan of 50,000 hours of burn time.
5. The 6500K white light shows the true colours of your surroundings while diving.
6. The Focus Light only re uires three (3) 1.5Volt AAA Alkaline batteries.
7. The Focus Light is also suited to use with 1.2V rechargeable batteries (we recommend
Sanyo Eneloop for best performance).
8. Double O-ring seals enhances waterproof performance down to 100 meters maximum
depth.
General information
•Before using the LED light, please read the safety regulations and follow all the guidelines
listed in this instruction manual carefully.
•During the production of the LED light, Reef Images ensures all products are free of defects
in material and workmanship. The warranty will be voided if the user misuses, abuses, or
does not maintain the product ade uately.
•Reef Images denies any responsibility for any problem that may arise resulting from a lack
of observation of the instructions mentioned in this manual.
•Please contact us directly for any warranty service. In order to ensure the highest level of
safety, every repair or maintenance service must be carried out only by us.
•Follow the guidelines below to prevent unnecessary damage to the light and to avoid
personal injury.

Use on Land
1. Check the state of the batteries before use. Do not insert batteries that are leaking or if the
casings are damaged.
2. To Turn the Focus Light ON, first ensure the head of the light is turned fully inwards, in a
clockwise direction. Now turn the the head of the light slowly counter clockwise, until the
light turns ON. Next rotate the head of the light a further uarter-turn counter clockwise.
Now the light will stay turned ON even when submersed in water. NOTE: If the light is not
turned the additional ¼ turn counter clockwise, it may turn OFF as you descend in deeper
water, due the effects of pressure pushing on the head of the light.
3. Avoid keeping the light turned on out of water for longer than two minutes.
4. Avoid switching on the light during transportation.
5. Batteries must be removed from the light before being brought on board aircraft.
6. Avoid storage in excessive humidity or heat.
7. Avoid leaving the light in direct sunlight or in environments with temperatures above 50°C.
8. Remove the batteries from the light if not being used for longer than two weeks.
9. The burn time will vary dependant on the uality and charge state of the batteries being
used.
Use Underwater
1. Ensure that the two 'O' Rings are clean, undamaged and lubricated with a silicon lubricant,
before sumbersing in water. Also that the 'two O' Ring grooves in the body are clean and
free of any foreign matter – which could easily cause a leak.
2. Do not open the head of the light while diving.
3. Do not open the head of the light if it is still wet.
4. If there are constant streams of air bubbles coming out from the light during diving, turn the
light off and return to the surface as safely as possible.
5. Do not use the light as a means of sound signalling. Repeated blows to the light may
permanently damage internal components.

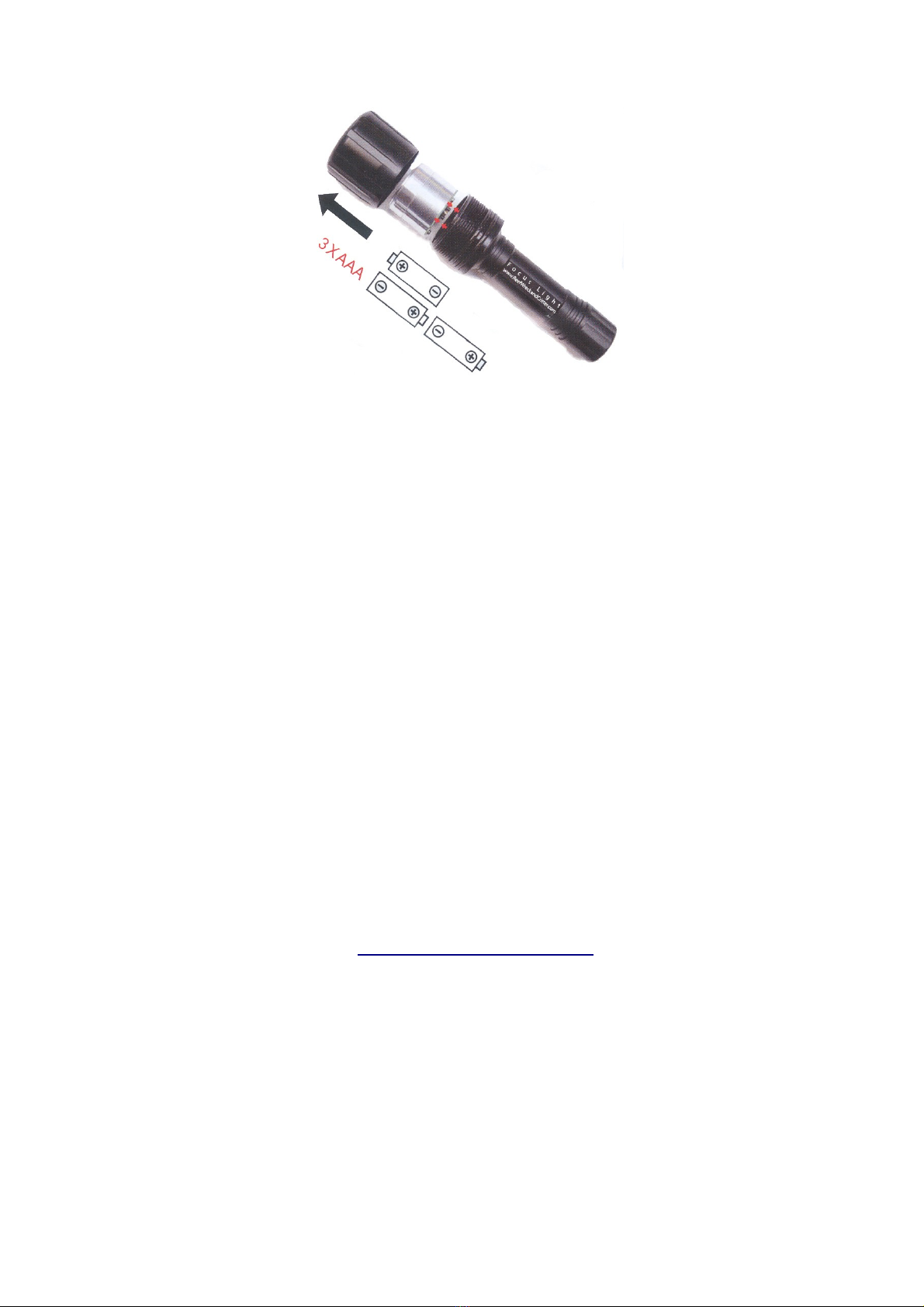

Battery re lacement
•Holding the head of the light in your left hand and the body in your right hand, rotate the
light casing counter-clockwise until the head comes off the body.

•Lift out the LED light-Head assembly and insert the new batteries following the indications
for polarity shown above and also marked inside the Light Body:
•Re-Fit the LED Light-Head Assembly, making sure the two 'Lumps' in the Focus Light Body,
line-up with the two 'Grooves' in the LED Light-Head Assembly.
•Place the Head of the Focus Light back onto the Body and rotate Clockwise until the Head
is locked, it will stop when the head touches the body. Do NOT turn any more and only
apply light hand pressure.
Maintenance and Trans ortation
•After each dive, always rinse with fresh water. If the Focus Light will not be used for more
than two weeks; Remove all the batteries.
•It is advisable to remove the two 'O' rings prior to flying, as this will eliminate any problems
caused by varying pressure in aircraft cabins. But do remember to refit both 'O' Rings later!
•In the rare event of flooding, please discontinue use. Turn the light off immediately, remove
all the batteries,and rinse with fresh water. Let the components dry completely, and return it
to Reef Images for service.
•Flooding damage cannot be repaired yourself or on site.
Limited Warranty for LED Focus Lights & LED Torches
1. Reef Images guarantees the proper operation of this Focus Light/LED Torch by the original
retail purchaser under normal and intended use.
2. This warranty applies only to the original retail purchaser, it does not apply to commercial or
rental use, nor is it transferable to third parties.
3. If the original retail purchaser detects a defect in the materials or workmanship, return the
product together with proof of purchase indicating the date of purchase to Reef Images, via
our website contact page at www.ReefWreckandCritter.com
4. The warranty covers a period of up to one (1) year from the date of purchase.
5. This warranty will be voided if the product or any of its parts have been tempered with,
repaired, modified, transformed, adapted or damaged without authorisation by Reef
Images.
6. This warranty does not cover parts subjected to normal wear and tear, including and is not
limited to the following: O-rings, Batteries, Front Glass (surface scratch or damage on
impact).
7. This warranty does not cover damages due to impact, use in chlorinated or polluted waters,
and extended exposure to heat sources.
For any warranty issues lease contact us via our website:
www.ReefWreckandCritter.com
