Regency Greenfire GF1500L-NG Quick start guide

WARNING:
If the information in these instructions are not followed
exactly, a re or explosion may result causing property
damage, personal injury or loss of life.
FOR YOUR SAFETY
Do not store or use petrol or other ammable vapors and
liquids in the vicinity of this or any other appliance.
Installation and service must be performed by a qualied
installer, service agency or the gas supplier.
FOR YOUR SAFETY
What to do if you smell gas:
Do not try to light any appliance.
Do not touch any electrical switch.
Do not use any phone in your
building.
Immediately call your gas supplier
from a neighbour's phone. Follow
the gas supplier's instructions.
If you cannot reach your gas
supplier, call the re department.
919-580
Greenre®GF1500L
Gas Fireplace
November 26, 2015
Owners &
Installation Manual
www.regency-re.com.au
Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
Homeowner: Please keep these instructions for future reference.
MODELS: GF1500L-NG
GF1500L-LP
GF1500L-ULPG
LISTINGS AND CODE APPROVALS
These gas appliances have been tested
in accordance with AS4553 / NZS5262 /
NZS5266 and have been certied by the
Australian Gas Association for installation
and operation as described in these
Installation and Operating Instructions.
Must be installed as per AS/NZS 5601-
2013
Your unit should be serviced annually by
an authorised service person.

2Regency GF1500L Gas Fireplace
To the New Owner:
Congratulations!
You are the owner of a state-of-the-art Gas Fireplace by REGENCY®. The GF1500L has been designed to provide you with
all the warmth and charm of a wood replace at the ick of a switch. The model GF1500L has been approved by AGA for
both safety and efciency. As it also bears our own mark, it promises to provide you with economy, comfort and security
for many trouble free years to follow. Please take a moment now to acquaint yourself with these instructions and the many
features of your Regency®Fireplace.
PAIRING THE REMOTE HANDSET AND CONTROL BOX ID CODE
The Remote Control Handset has a set of unique ID codes that is pre-programmed into its memory. This set of ID codes helps to differentiate one Remote
Control Handset from another so that only the control box with a matching ID code will respond to the appropriate Remote Control Handset.
To match the control box, the following steps are to be followed:
1. Ensure the Remote is switched OFF.
2. Remove main power to the control box.
3. Reconnect main power to the control box.
4. Press and hold the PROG and FAN buttons simultaneously. The temperature display will show the letters “LC” momentarily indicating the ID codes
have been transmitted
5. The display will revert back to the normal off mode display.
6. Release both the PROG and FAN buttons.
The control box will only learn the Remote ID codes during the rst 30 seconds after power is applied and will ignore this special command from the
Remote after the rst 30 seconds
Note: The pairing up process can be carried out by anyone.
Note: In addition; please also go to: www.regency-re.com.au to see the pairing up video.

Regency GF1500L Gas Fireplace 3
table of
contents
Pairing the Remote Handset + Control Box ID Code ....2
Copy of data badge .......................................................4
Unit Dimensions ............................................................5
Important Message ......................................................6
General Safety Information ............................................6
Installation Checklist ......................................................7
Locating Your Gas Fireplace ..........................................7
Clearances ....................................................................8
Mantel Clearances .........................................................9
Mantel Leg Clearances ..................................................9
Unit Assembly Prior To Installation ..............................10
Nailing Strips........................................................10
Installation Access Panel .....................................10
Framing Dimensions ....................................................11
Optional Framing Kit ....................................................12
NON combustible Facing Installation ...........................13
Framing & Finishing .....................................................14
Framing & Finishing .....................................................15
Combustible Requirements .........................................15
Exterior Flue Termination Locations ............................16
Clearances ..................................................................17
FLUE Restrictor settings..............................................18
Flueing Introduction .....................................................19
Flueing Arrangement for Horizontal Terminations .......19
Flueing Arrangements ................................................20
Horizontal Termination (Flex) ...............................20
Rigid Pipe Flueing Systems .........................................21
Basic Horizontal & Vertical Terminations .............21
Flueing Arrangement for Vertical Terminations ............22
Direct flue zero Clearance top exit vertical flue Kit
installation instructions GF1500L ................................23
Unit Installation with Horizontal Termination ................24
Unit Installation with Vertical Termination ....................25
Unit Installation ............................................................26
High Elevation ..............................................................27
Gas Line Installation ....................................................27
Pilot Adjustment ...........................................................27
Gas Pipe Pressure Testing ..........................................27
Wiring Diagram ............................................................28
845 S.I.T. Valve Description .........................................28
Aeration Adjustment ....................................................28
Conversion Kit from NG to LP/ULPG...........................29
Optional fan ducting kit installation ..............................31
Log Set Installation ......................................................34
Front Trim Removal / Installation .................................36
Inner Panel Removal / Installation ...............................36
Faceplate & Deflector Installation ................................37
Screen & Inner Door frame Installation .......................38
Optional finishing Trim installation ...............................39
Operating Instructions ................................................40
Lighting Instructions ....................................................40
Shutdown Instructions .................................................40
First fire ........................................................................40
Remote Control ..........................................................40
Summary Of Controls .................................................40
Fan Operation ..............................................................40
Copy of Lighting Plate Instructions ..............................41
Normal Operating Sounds Of Gas Appliances ............41
Resetting the unit .........................................................41
Fan Service .................................................................42
Maintenance Instructions ............................................43
General flue Maintenance ...........................................43
Glass Gasket ...............................................................43
Glass Door ...................................................................43
Glass Replacement .............................................43
Troubleshooting ...........................................................44
Glass door Installation .................................................45
Valve Tray Replacement ..............................................46
Electronic components parts list ..................................47
Main Assembly ............................................................48
Accessories .................................................................50
Warranty ......................................................................51

4Regency GF1500L Gas Fireplace
SAFETY LABEL
safety decal
This is a copy of the data badge that accompanies each GF1500L Direct Vent Gas Fireplace. We have printed a copy of the contents here for your review.
NOTE: Regency® units are constantly being improved. Check the badge on the unit and if there is a difference, the badge on the unit is the correct one.
COPY OF DATA BADGE
DO NOT
DO NOT
DO NOT
DO NOT
DO NOT
DO NOT
OPERATETHIS APPLIANCE BEFOREREADINGTHE
INSTRUCTIONSBOOKLET.
PLACEARTICLESONORAGAINST THIS APPLIANCE
STORE CHEMICALS OR FLAMMABLEMATERIALS
SPRAY AEROSOLSINTHE VICINITY OF THIS
APPLIANCE WHILEINOPERATION.
OPERATEWITH PANELS,COVERSORGUARDS
REMOVED FROM THIS APPLIANCE.
ENCLOSE THIS APPLIANCE.
DO NOTMODIFY THIS APPLIANCE.
NEAR THIS APPLIANCE.
DO NOT
908-602a
Part #: 919-581
Colour: Black on Grey
Size: 100% 7" W x 2.7" H
May 28/15: Created Decal
July 8/15: Updated specs
Sept. 14/15: Added NZ address, changed gas consumption to MJ/hr
Sept. 18/15: Changed GF1500 to GF1500L
Oct. 01/15: Updated the AGA approval number
Serial
Number
Regency Gas Fireplace
442
Distributed by:
Western Australia:
Air Group Australia
28 Division St
Welshpool, WA 6106
Eastern Australia
Fireplace Products
Australia Pty. Ltd.
1 Conquest Way
Hallam, VIC 3803
New Zealand:
Aber Holdings
17 Main Street Place
Te Rapa, HA 3200
To be installed by an authorised person in
accordance with installation instructions provided
with the appliance.
Electrical: 240V 50 Hz
919-581
Gas Type NG LP ULPG
Model GF1500L-NG GF1500L-LP GF1500L-ULPG
Gas Consumption 50 MJ/hr 49 MJ/hr . 44 MJ/hr
Manifold Pressure 0.87kPa 2.49kPa 2.49kPa
Injector Size 1 x #29 1 x #47 1 x #49
3.40mm 1.95mm 1.05mm
Model
Approval No. AGA
Code AS4553 / NZS5262 / NZS5266
8240 G

Regency GF1500L Gas Fireplace 5
DIMENSIONS
dimensions
UNIT DIMENSIONS
(76mm)
(271 mm)
(633mm)
(1359mm)
(1263mm)
(345mm)
(1152mm) (549mm)
(113mm) (159mm)
(737mm)
(824mm)
(1094mm)
(562mm)
(525mm)
(291 mm)

6Regency GF1500L Gas Fireplace
installation
11) Under no circumstances should this
appliance be modied. Parts that have to
be removed for servicing should be replaced
prior to operating this appliance.
12) Installation and any repairs to this appliance
should be done by an authorized service
person.Aprofessional service person should
be called to inspect this appliance annually.
Make it a practice to have all of your gas
appliances checked annually.
13) Do not slam shut or strike the glass door.
14) Under no circumstances should any solid
fuels (wood, paper, cardboard, coal, etc.) be
used in this appliance.
15) The appliance area must be kept clear and
free of combustible materials, (gases and
other ammable vapours and liquids).
GENERAL SAFETY
INFORMATION
1) The appliance installation must conform
with local codes or, in the absence of local
codes, with the current Installation and
Building Codes.
2) The appliance when installed, must be
electrically grounded in accordance with
local codes.
3) See general construction and assembly
instructions. The appliance and ue should
be enclosed.
4) This appliance must be connected to the
specied ue and termination cap to the
outside of the building envelope. Never
vent to another room or inside a building.
Make sure that the ue is tted as per Flue
instructions.
5) Inspect the ue system annually for blockage
and any signs of deterioration.
6) Flue terminals shall not be recessed into a
wall or siding.
7) Any safety glass removed for servicing must
be replaced prior to operating the appliance.
8) To prevent injury, do not allow anyone who
is unfamiliar with the operation to use the
replace.
9) Wear gloves and safety glasses for protection
while doing required maintenance.
10) Be aware of electrical wiring locations in
walls and ceilings when cutting holes for
termination.
"THIS UNIT MUST ALWAYS
TERMINATE / FLUE
DIRECTLY TO THE
OUTDOORS."
IMPORTANT MESSAGE
SAVE THESE INSTRUCTIONS
The GF1500L™ Direct Vent Fireplace must be installed
in accordance with these instructions. Carefully read all
the instructions in this manual rst. Consult the "authority
having jurisdiction" to determine the need for a permit
prior to starting the installation. It is the responsibility of the
installer to ensure this replace is installed in compliance
with manufacturers instructions and all applicable codes
and complies with a AS/NZS 5601-2013
CLOTHING OR OTHER FLAMMABLE
MATERIALSHOULDNOTBEPLACED
ON OR NEAR THE APPLIANCE.
CHILDREN AND ADULTS SHOULD BE
ALERTED TO THE HAZARDS OF HIGH
SURFACE TEMPERATURES, ESPECIALLY
THE FIREPLACE GLASS, AND SHOULD
STAY AWAY TO AVOID BURNS OR CLOTH-
ING IGNITION.
INSTALLATION AND REPAIR SHOULD
BE DONE BY AN AUTHORIZED SERVICE
PERSON. THE APPLIANCE SHOULD BE
INSPECTED BEFORE USE AND AT LEAST
ANNUALLY BY APROFESSIONAL SERVICE
PERSON. MORE FREQUENT CLEANING
MAY BE REQUIRED DUE TO EXCESSIVE
LINT FROM CARPETING, BEDDING
MATERIAL, ETC. IT IS IMPERATIVE THAT
CONTROL COMPARTMENTS, BURNERS
AND CIRCULATING AIR PASSAGEWAYS
OF THE APPLIANCE BE KEPT CLEAN.
DUE TO HIGH TEMPERATURES, THE
APPLIANCE SHOULD BE LOCATED OUT
OF TRAFFICANDAWAY FROM FURNITURE
AND DRAPERIES.
WARNING: FAILURE TO INSTALL THIS
APPLIANCE CORRECTLY WILLVOID YOUR
WARRANTY AND MAY CAUSE A SERIOUS
HOUSE FIRE.
YOUNG CHILDREN SHOULD BE
CAREFULLY SUPERVISED WHEN
THEYARE IN THE SAMEAREAAS THE
APPLIANCE. TODDLERS, YOUNG
CHILDREN AND OTHERS MAY BE
SUSCEPTIBLE TO ACCIDENTAL
CONTACT BURNS. A PHYSICAL BAR-
RIERS IS RECOMMENDED IF THERE
ARE AT RISK INDIVIDUAL IN THE
HOUSE. TO RESTRICT ACCESS TO
A FIREPLACE OR STOVE, INSTALL
AN ADJUSTABLE SAFETY GATE TO
KEEPTODDLERS, YOUNGCHILDREN
AND OTHER AT RISK INDIVIDUALS
OUT OF THE ROOM AND AWAY
FROM HOT SURFACES.
The gas appliance connected to the electr-
city supply shall be provided with the means
of double pole electrical isolation that is
adjacent to the appliance location and ac-
cessible with the appliance installed. Per
AS/NZS 5601-2013

Regency GF1500L Gas Fireplace 7
installation
This includes:
1) Clocking the appliance to ensure the correct
ring rate (rate noted on label) after burning
appliance for 15 minutes.
2) If required, adjusting the primary air to ensure
that the ame does not carbon. First allow
the unit to burn for 15-20 min. to stabilize.
CAUTION: Any alteration to the product that
causes sooting or carboning that results
in damage is not the responsibility of the
manufacturer.

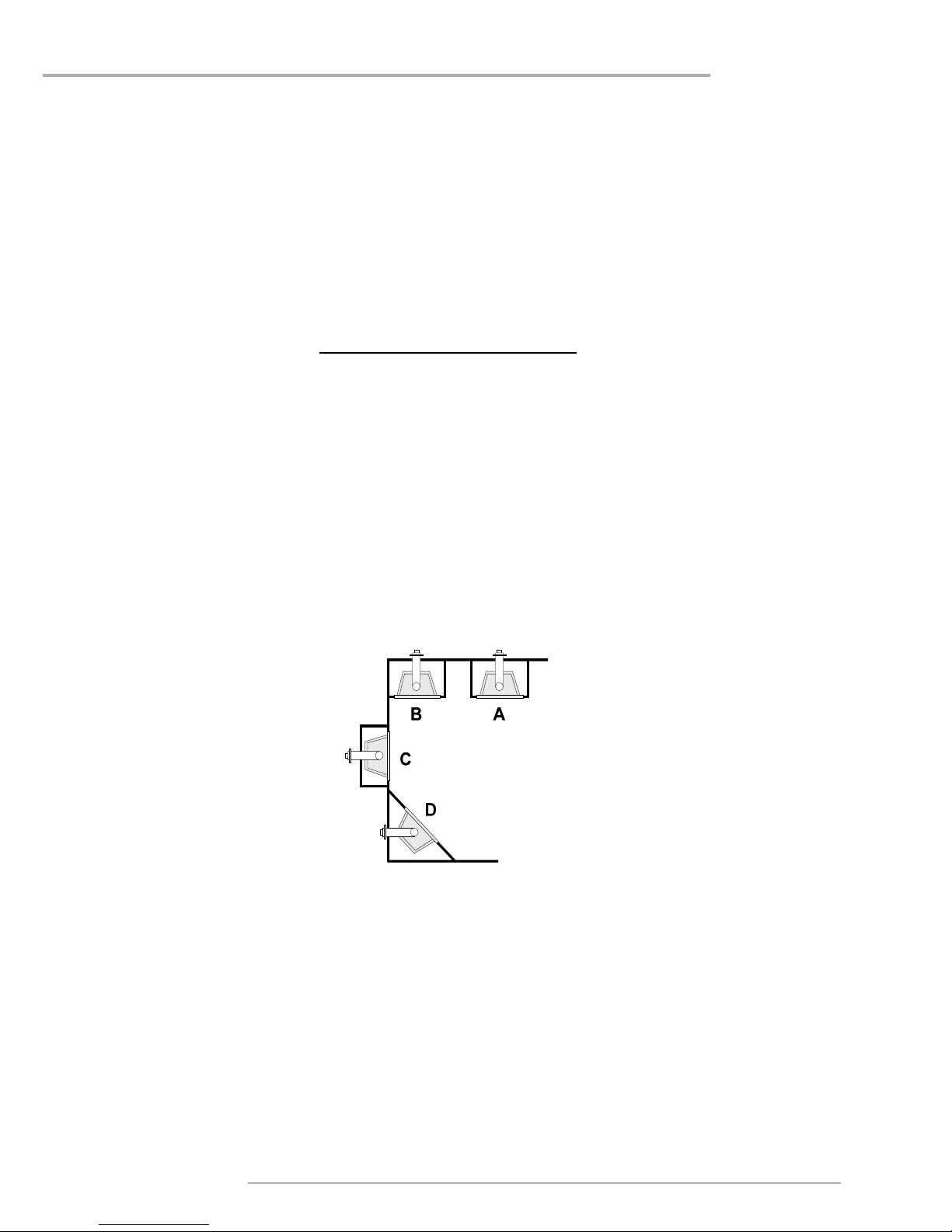

LOCATING YOUR
GAS FIREPLACE
A) Flat on Wall
B) Flat on Wall Corner
C) Recessed into Wall/Alcove
D) Corner
Diagram 1
1) When selecting a location for your replace,
ensure that the clearances are met.
2) The appliance must be installed on a at,
solid, continuous surface For example a
wood, metal or concrete oor or in a raised (on
the wall) application. The appliance must be
installed on a metal or wood panel extending
the full width and depth of the appliance.
3) The GF1500L Direct Vent Gas Fireplace can
be installed in a recessed position or framed
out into the room as in A, B, C and D. See
Diagram 1.
8) Test Gas Pressure (Refer to "Gas Pipe Pres-
sure Testing" section).
9) Install standard and optional features. Refer
to the following sections:
a) Log Install
b) Faceplate / Door Frame Overlay
c) Remote Control
10) Final check.
Before leaving this unit with the customer, the
installer must ensure that the appliance is ring
correctly and operation fully explained to
customer.
INSTALLATION CHECKLIST
1) Locate appliance
a) Room location (Refer to "Locating Your
Gas replace" section)
b) Clearances to Combustibles (Refer to
"Clearances" section)
c) Mantle Clearances (Refer to "Mantel
Clearances" section)
d) Framing & Finishing Requirements
(Refer to "Framing & Finishing" section)
e) Flueing Requirements (Refer to "Flue"
section)
2) Assemble the standoffs and nailing strips
(Refer to "Unit Assembly Prior to Installation).
3) Slide unit into place.
4) Install ue (Refer to "Flue Arrangement"
sections).
5) Make gas connections (Refer to "Gas Line
Installation section).
6) Pair up Remote Control (Refer to "Pairing
up Remote Handset" section)
7) Test the pilot (Refer to "Pilot Adjustment"
section).
4) The GF1500L Direct Vent Gas Fireplace
is approved for alcove installations, see
"Clearances" section for details.
5) We recommend that you plan your installation
on paper using exact measurements for
clearances and floor protection before
actually installing this appliance. Have an
authorized inspector, dealer, or installer
review your plans before installation.
Note: For ue terminations refer to "Exterior
Flue Termination Locations" section.

8Regency GF1500L Gas Fireplace
Caution Requirements
The top, back and sides of the replace are dened by
standoffs. The metal ends of the standoff may NOT be
recessed into combustible construction.
WARNING
Fire hazard is an extreme risk
if these clearances (air space) to combustible materials are not
adhered to. It is of greatest importance that this replace and ue
system be installed only in accordance with these instructions.
CLEARANCES
The clearances listed below are Minimum distances unless otherwise stated:
A major cause of chimney related res is failure to maintain required clearances (air space) to combustible materials. It is of the greatest importance
that this replace and ue system be installed only in accordance with these instructions.
Clearance: Dimension Measured From:
A: Mantel Height (min.) 502 mm Top of Fireplace Opening
B: Sidewall (on one side) 152 mm Side of Fireplace Opening
C: Ceiling
(room and/or alcove)
1162 mm Top of Fireplace Opening
D: Mantel Depth (max.) 305mm 730mm Above Fireplace Opening
E: Alcove Width 1524 mm Sidewall to Sidewall (Minimum)
F: Alcove Depth 914 mm Front to Back Wall (Maximum)
G: From Floor 617 mm Top of Fireplace Opening
Note: 0No hearth required
Installed close
to ceiling.
Flue Clearances to Combustibles
Horizontal - Top 76mm
Horizontal - Side 51mm
Horizontal - Bottom 51mm
Vertical 51mm
Alcove
E
F
F
E
D
A
B
Installed Close
to Floor
G
IMPORTANT: If installing a television above
this appliance, the television must be either
fully recessed into the wall above the
replace and or have a mantle below the
television. If the television is left unprotected,
the extreme heat being emitted fom this
appliance will result in damage to the
television. See clearance requirements for
both mantle (page 9) and or enclosing the
top of the appliance (Page 11 (D) dimension).
installation

Regency GF1500L Gas Fireplace 9

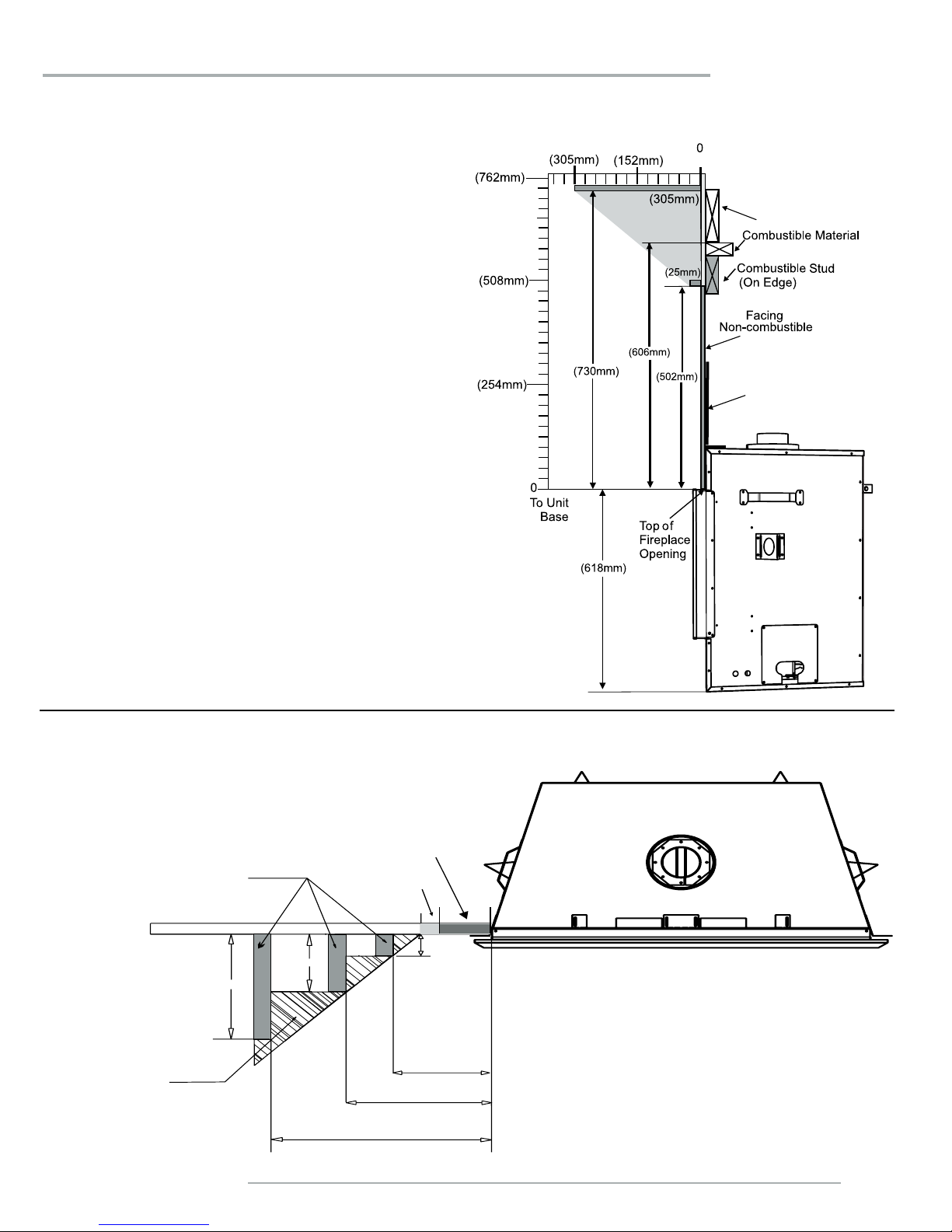

MANTEL CLEARANCES
Due to the extreme heat this replace emits, the mantel clearances
are critical. Combustible mantel clearances from top of front facing
are shown in the diagram on the right.
Note: Ensure the paint that is used on the mantel and the facing
is "high quality" or the paint may discolour.
MANTEL LEG CLEARANCES
Combustible mantel leg clearances as per diagram:
Allowable mantel
leg projection
(146mm)
(219mm)
(295mm)
(38mm)
MANTEL LEG
(83mm )
Non-Combustible
(25mm)
178mm
102mm
Nailing Flange
installation

10 Regency GF1500L Gas Fireplace
installation
UNIT ASSEMBLY PRIOR TO
INSTALLATION
The nailing Strips must be correctly positioned and attached before unit is
slid into position.
NAILING STRIPS
The nailing strips come attached to the unit. There is 1 plate on each side,
1 on the top.
The top and side nailing strips are secured to the framing.
IMPORTANT NOTE
Framing depth measurement is noted with the nailing strips
set as far forward on the rebox as possible. The nailing
strips can be adjusted back up to 38mm to allow for varying
thicknesses in non-combustible material & wall nishes.
Nailing Strips
(DO NOT REMOVE NAILING
STRIPS)

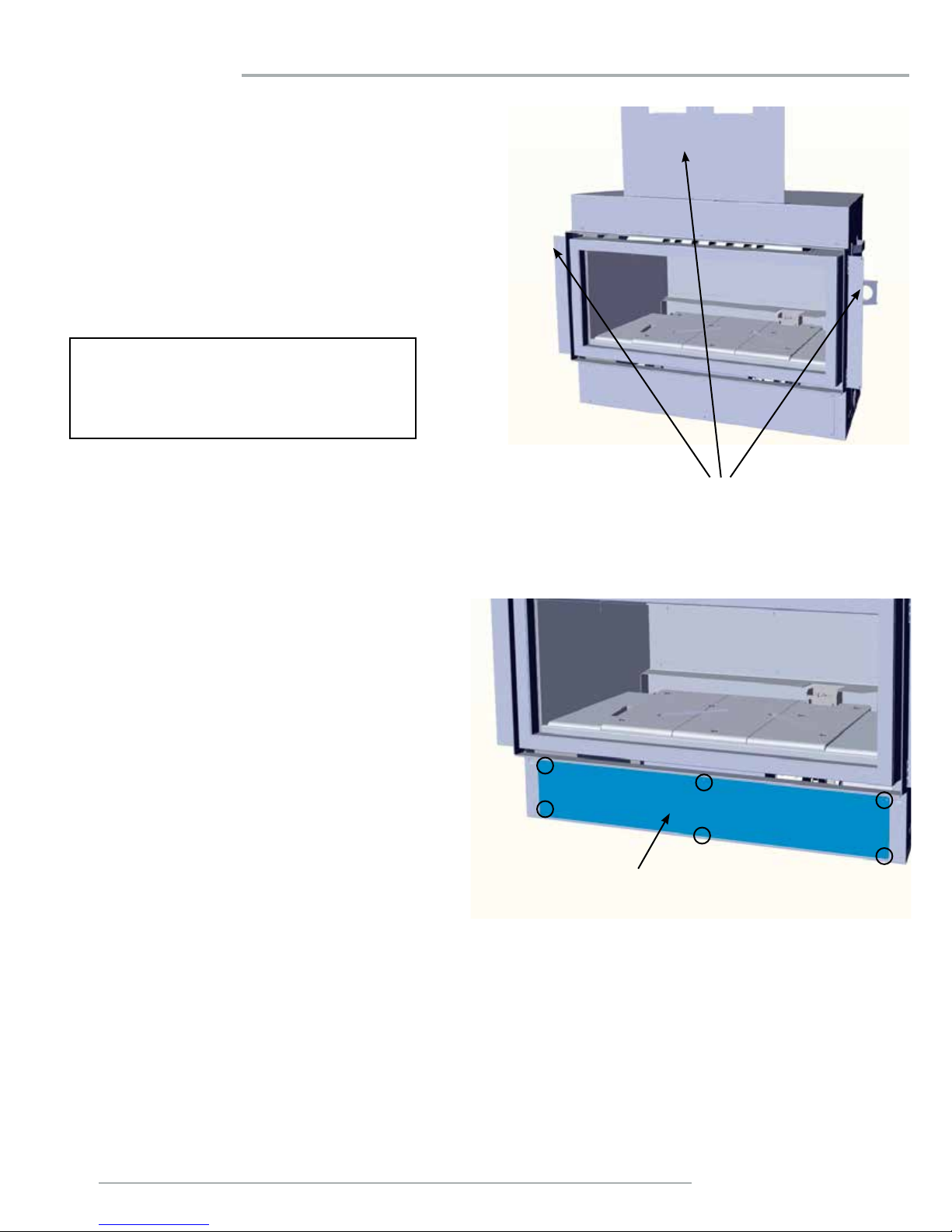

INSTALLATION ACCESS PANEL
The unit is equipped with a removable access panel for pre-nish installation
of optional components - this panel is located on the lower front face.
1) Remove 6 screws to remove access panel.
2) Easier access to gas connection with panel removed.
3) Install any optional components with access panel removed.
4) Reinstall access panel with 6 screws
Note: Access panel is no longer usable once facing material installed.
Installation Access Panel

Regency GF1500L Gas Fireplace 11
installation

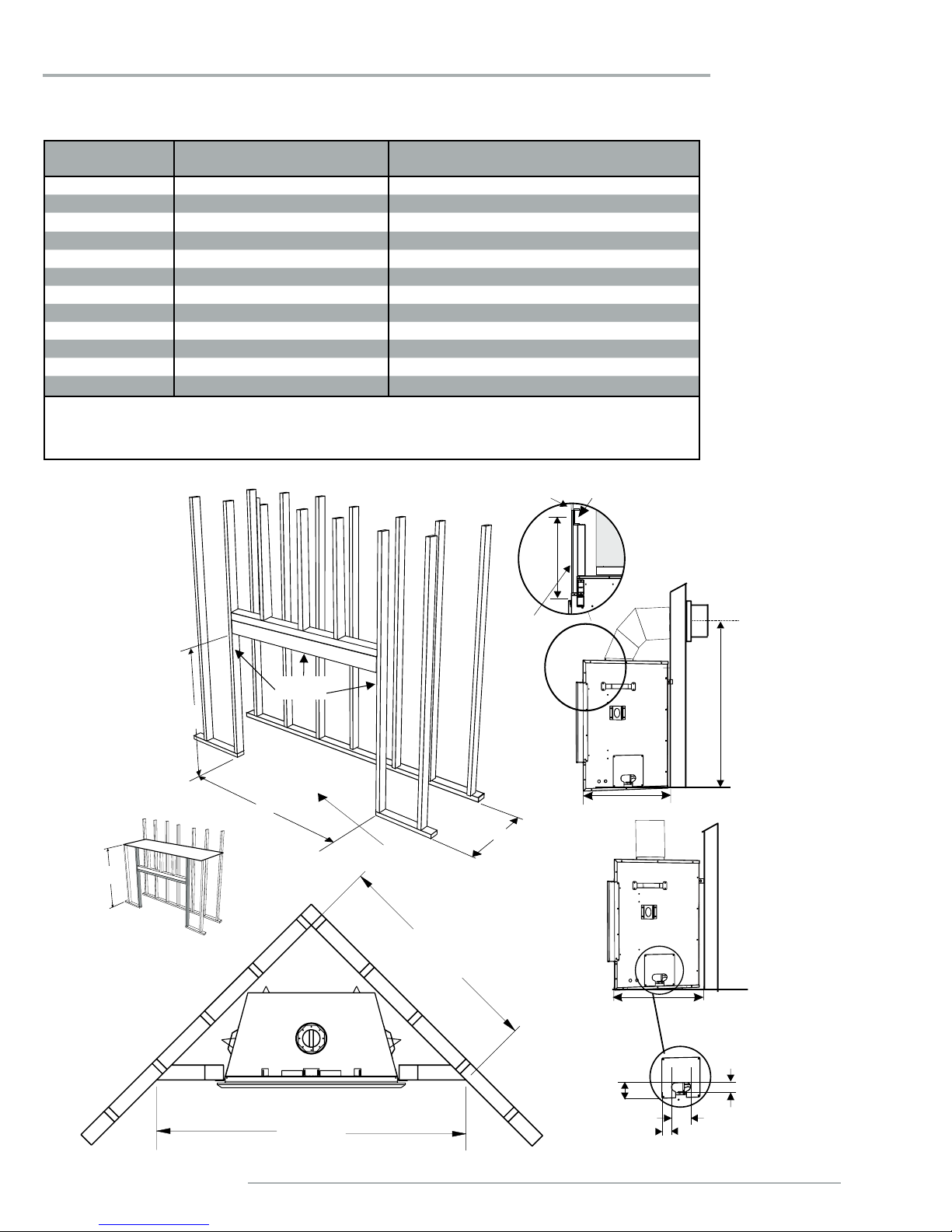

FRAMING DIMENSIONS
Framing
Dimensions Description GF1500L
A Framing Height 1095 mm
B Framing Width 1394 mm
C*Framing Depth 568 mm
D Minimum Height to Combustibles 1225 mm
E Corner Wall Depth 1460 mm
F Corner Facing Wall Width 2065 mm
G Vent Centerline Height 1016 mm
H Non-combustible facing height 508 mm
I Gas Connection Opening Height 38 mm
J Gas Connection Height 67 mm
K Gas Connection Inset 44 mm
L Gas Connection Opening Width 89 mm
* Framing depth measurement is noted with the nailing strips set as far forward on the rebox as possible.
The nailing strips can be adjusted back up to 38mm to allow for varying thicknesses in non-combustible
material & wall nishes.
- A minimum thickness of 12mm non- combustible facing board compliant with AS1530-1 and AS1530-3 is required.
A
B
C
D
G
H
Non-Combustible
Facing
Header
Timber
Studs
F
E
I
J
K
L
Flex or Rigid Pipe
Finished Floor
Drywall or
other facing
C
C
Note: All framing may
be of wood construction.

12 Regency GF1500L Gas Fireplace
installation

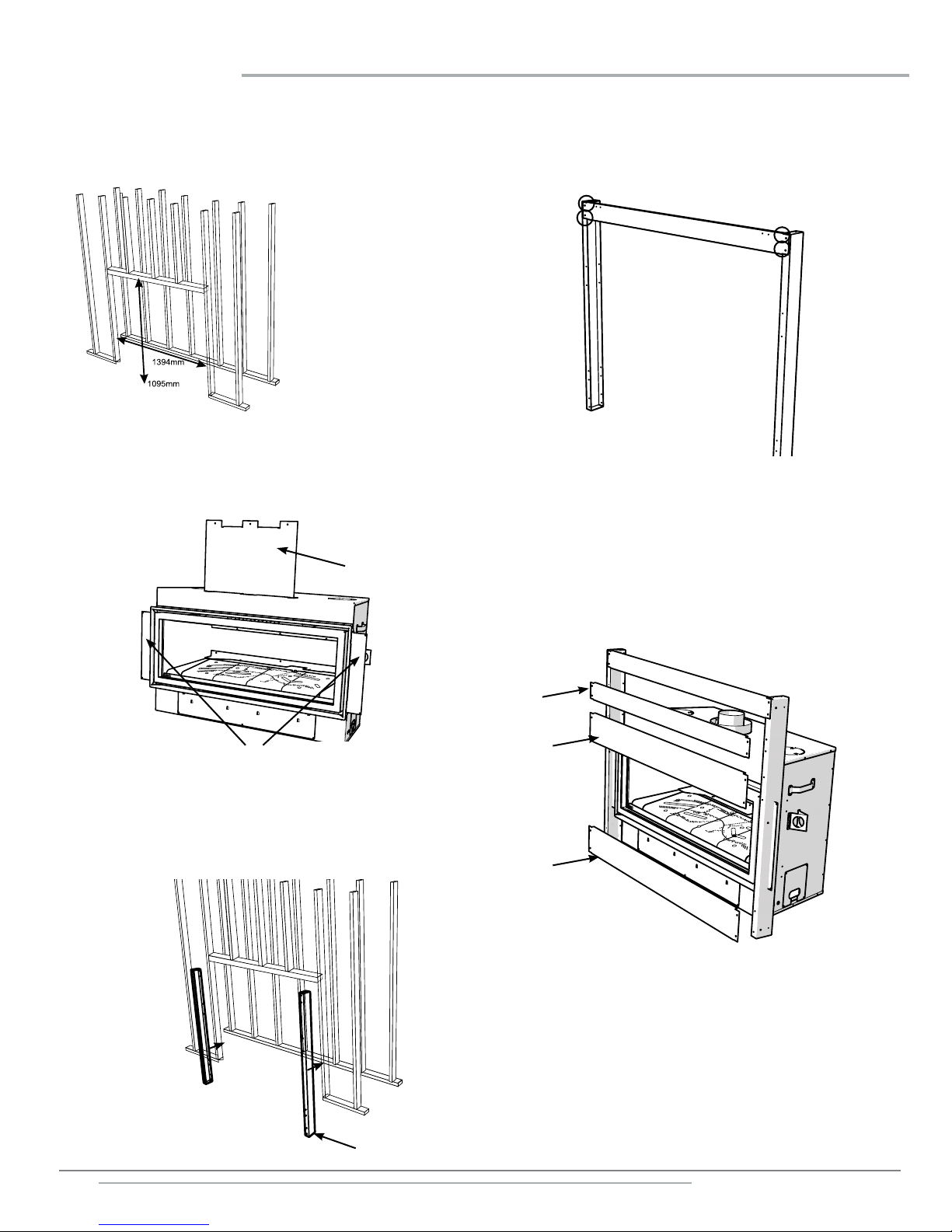

OPTIONAL FRAMING KIT
919-617 11.16.15
OPTIONAL FRAMING KIT
1. Construct the timber framing, ensure inside dimensions are 1095mm H
x 1394mm W as shown below.
2. Bend both side nailing strips from the side of the appliance until
positioned as shown below.
Determine the overall combined thickness of the non-combustible board
+ finished material being used. The nailing strips can be adjusted up to
38mm.
Remove top nailing strip and recycle.
Nailing Strips
Remove Top
Nailing Strip
3. Adjust the nailing strips by loosening 2 screws on each nailing strip -
adjust and retighten screws.
4. Attach both vertical studs to the vertical timber studs and secure using 6
screws (2 at bottom, 2 at top and 2 on sides) as shown.
NOTE: Ensure the flat side of the steel stud is facing the timber framing.
Flat side out
5. Secure horizontal steel header stud with 2 screws per side as per
diagram.
6. Slide the unit into position. Hook up gas, flueing, electrical and
conversion kit (if purchased) prior to installing the remaining steel studs.
7. Secure the upper horizontal steel studs as shown with 2 screws per
side.
8. Secure the 2 remaining large horizontal stud with 2 screws per side as
shown.
Large stud
Large stud
Header stud
Horizontal
stud
1
GF1500

Regency GF1500L Gas Fireplace 13
installation
NON COMBUSTIBLE FACING INSTALLATION
IMPORTANT NOTE:
Prior to installation of non-combustible materials by oth-
ers, check and inspect carefully for any hairline cracks and
or damage to board. The non combustible board must be
a minimum of 12mm thick and comply with AS1530-1 and
AS1530-3. Material which is thinner may crack as a result
due to the high temperatures this appliance emits.
1) Using screws for use with non-combustible boards-secure non-
combustible material around unit, framing and top nailing strip every
150mm
Important Note: To avoid cracking the board-pre-drill holes prior
to securing to unit/framing.
2) Wipe any debris/dust from the non-combustible material and dry wall.
3) Prior to securing, it is mandatory to prime the facing and edges using
a quality primer. This will ensure proper adhesion of the tape, filler and
paint.
Failure to follow this procedure will result in cracked seams.
4) Tape the seams using a mesh type tape.
5) Fill seams as normal. Avoid using filler which shrinks excessively.
Filler must be cured as per manufacturer's recommendations.
6) Prime wall for a second time for proper adhesion of paint.
7) Paint walls using a high quality paint which will withstand the high
temperatures being emitted from this appliance.
IMPORTANT
Regency Fireplace Products are designed, produced, tested and certified
to the highest industry standards. The finishing of the walls surrounding
Regency is as critical as the installation itself. The temperatures around
linear gas fireplaces are typically higher than would be acceptable for
the combustible materials. Your Regency Fireplace is no exception
to this rule. Therefore, the units are specified with non-combustible
required materials to specific dimensions above and around the
units. This is due to these areas reaching higher temperature levels
than required/acceptable for a combustible material. To obtain the
best, most durable finish around your fireplace, this calls for a high
level of care and attention to the preparation and finish around this
appliance, using only the highest quality materials, able to withstand
the temperatures produced.
By following the installation instructions in the manual exactly, you will
increase your chances for a damage free finish.
Every precaution is taken in providing the recommendations on preparation
and finish, given the variation in paint quality, with temperature limits
and workmanship applied to or used in any application surrounding
the fireplace. This includes framing as well as finishing.
Over time natural convection from any fireplace can cause discoloration
in the area directly above the appliance. Lower quality paints, under
prepared finishes, poor applications and any framing discrepancies or
in the installation can cause this discoloration process to be expedited.
Discoloration is not the responsibility of Regency Fireplace Products, we
believe careful attention to the recommendations provided here will
be result in aesthetically pleasing result free of issues outlined above.

14 Regency GF1500L Gas Fireplace
installation
FRAMING & FINISHING
Note: It is benecial to install the unit, gas connection and ue
to the unit prior to the wall facing being installed.
2) For exterior walls, insulate the enclosure to the same degree as
the rest of the house, apply vapour barrier and drywall, as per
local installation codes. (Do not insulate the replace itself.)
WARNING: Failure to insulate and add vapor barriers to the
inside of the exterior wall will result in operational and per-
formance problems including, but not limited to: excessive
condensation on glass doors, poor ame package, carbon,
blue ames etc. These are not product related issues.
3) The unit does not have to be completely enclosed in a chase. You
must maintain clearances from the ue to combustible materials:
See "Clearances" section. Combustible materials can be laid
against the side and back standoffs and the stove base.
4) Non-combustible material (ie. tile, slate, etc) may be brought
up to and overlap the unit (top and bottom) ensuring that the
maximum thickness does not go beyond the 38mm as shown
in the diagram below. The faceplate will not be able to be
mounted if nished material is beyond 38mm.
1) Frame in the enclosure for the unit with framing material.
Unit shown with inner door frame only
Using the clean edge of the unit, shown in a
typical tiled facing
1267mm
459mm

Regency GF1500L Gas Fireplace 15
installation
COMBUSTIBLE REQUIREMENTS
FRAMING & FINISHING
Note:
Depending on the material used for nishing, the nailing
strips must be set accordingly so that the nished material
is always at the 38mm edge of the ange.
MINIMUM THICKNESS OF THE FINISH MATERIAL: 12MM
NOTE:
The appliance must be installed
on a at, solid continuous surface,
For example., a wood, metal or
concrete oor or in a raised (on
the wall) application. The appli-
ance must be installed on a metal
or wood base extending the full
width and depth of the appliance.
Note:
A minimum thickness of 12mm non-
combustible facing is required.
(1119 mm)
(83mm)
(617 mm)
(502mm)
(1432 mm)
Non-combustible
Material
Non-combustible
Non-combustible
Non-combustible
Header
on edge
Timber Stud
Timber Stud
(159 mm)
(459 mm)
Combustible material
Note:
The siding nailing strips are factory set at 12mm. The top
nailing strip is xed during transit to the rear of the appliance.
NOTE:
If raising the unit, then the minimum
height measurement (A) on page
11 of the framing dimensions must
be adhered to. For example., Unit
raised 300mm then A+ 300mm =
1395mm.
Finished
Material
Nailing Strip
Position
12mm 25mm
25mm 12mm
38mm 0mm (flush)
Unit
Nailing Strip
Flush w/unit
Factory Set
Unit
Nailing Strip
12mm Forward
Unit
Nailing Strip
25mm Forward

16 Regency GF1500L Gas Fireplace
installation
EXTERIOR FLUE TERMINATION LOCATIONS
FIGURE 6.2 (in part): LOCATION OF FLUE TERMINALS OF BALANCED FLUE AS/NZ
5601-2013, ROOM-SEALED, FAN ASSISTED, OR OUTDOOR APPLIANCE

Regency GF1500L Gas Fireplace 17
installation
CLEARANCES
Ref. Item
Minimum clearances (mm)
Natural
Draught
Fan
Assisted
aBelow eaves, balconies and other projections:
Appliances up to 50 MJ/h input 300 200
Appliances up to 50 MJ/h input 500 300
bFrom the ground, above a balcony or other surface* 300 300
cFrom a return wall or external corner* 500 300
dFrom a gas meter (M) (see Note 5)
(see Clause 5.11, 5.9 for vent terminal location of regulator)
(see Table 6.7 for New Zealand requirements)
1000 1000
eFrom an electricity meter or fuse box (P)† (see Note 5) 500 500
fFrom a drain or soil pipe 150 75
gHorizontally from any building structure* or obstruction facing a terminal 500 500
hFrom any other flue terminal, cowl, or combustion air intake 500 300
jHorizontally from an openable window, door, non-mechanical air inlet, or any other opening into a building iwth
the exception of sub-floor ventilation:
Appliances up to 150MJ/h input* 500 300
Appliances over 150MJ/h input up to 200 MJ/h input* 1500 300
Appliances over 200MJ/h inputup to 250 MJ/h input** 1500 500
Appliances over 250MJ/h input* 1500 1500
All fan-assisted flue appliances, in the direction of discharge - 1500
kFrom a mechanical air inlet, including a spa blower 1500 1000
nVertically below an openable window, non-mechanical air inlet, or any other opening into a building iwth the
exception of sub-floor ventilation:
Space heaters up to 50MJ/h input 150 150
Other appliances up to 50 MJ/h input 500 500
Appliance over 50 MJ/h input and up to 150 MJ/h input 1000 1000
Appliances over 150 MJ/h input 1500 1500
* Unless appliance is certified for closer installation.
† Prohibited area below electricity meter or fuse box extends to ground level.
NOTES:
1 Where dimension c, j or k cannot be achieved an equivalent horizontal distance measured diagonally from the
nearest discharge point of the terminal to the opening may be deemed by the Technical Regulator to comply.
2 See Clause 6. 9. 4 for restriction on the flue terminal under a covered area.
3 See Figure J3 for clearances required from a flue terminal to an LP Gas cylinder. A flue terminal is considered
to be a source of ignition.
4 For appliance not addressed above acceptance should be otained from the Technical Regulator.
5 Minimum clearance d and e also apply to any combustion air intake openings of appliances.

18 Regency GF1500L Gas Fireplace
installation
Set 3-(32mm)
Set1-(44mm)
Set 2- (41mm)
FULLY OPEN
Set-0 (108mm)
FACTORY SETTING
Flue restriction is required for certain venting installations, see
the diagrams in the "Flueing Arrangements" section to determine
if they are required for your installation.
The Flue Restrictor plate is located on the inside top of the rebox.
To set the ue restriction as indicated in the ueing arrangements
diagrams, refer to the following instructions;
1. Remove the glass door and inner panels - see instructions
in this manual.

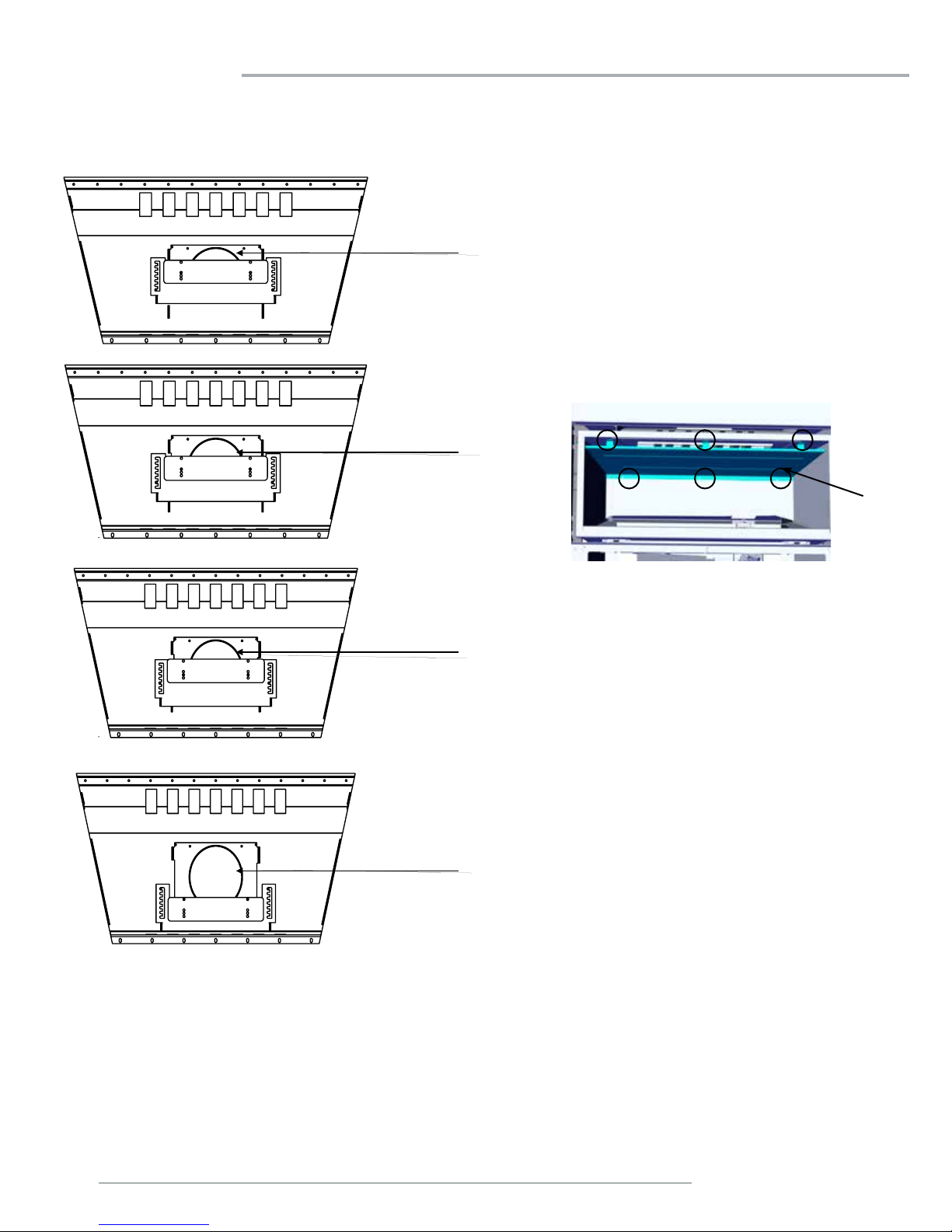

2. Remove 6 screws (3 front - 3 back) to remove heat bafe to
access restrictor plate.
3. Remove the screws that hold the ue restrictor in place.
FLUE RESTRICTOR SETTINGS
Heat Bafe
4. Adjust the ue restrictor plate to the required ue restrictor
position as per the diagrams shown below.
5. Once the ue restrictor plate is in the required position,
secure with screws.

Regency GF1500L Gas Fireplace 19
installation
FLUEING INTRODUCTION
The GF1500L uses the "balanced ue" technology Co-Axial system. The inner liner vents products of combustion to the outside while the outer liner
draws outside combustion air into the combustion chamber thereby eliminating the need to use heated room air for combustion and losing warm room air up
the chimney.
Note: These ue pipes must not be connected to any other appliance.
The gas appliance and ue system must be vented directly to the outside of the building, and never be attached to a chimney serving a separate solid fuel or
gas burning appliance. Each direct vent gas appliance must use it's own separate ue system. Common ue systems are prohibited.
FLUEING ARRANGEMENT FOR HORIZONTAL TERMINATIONS

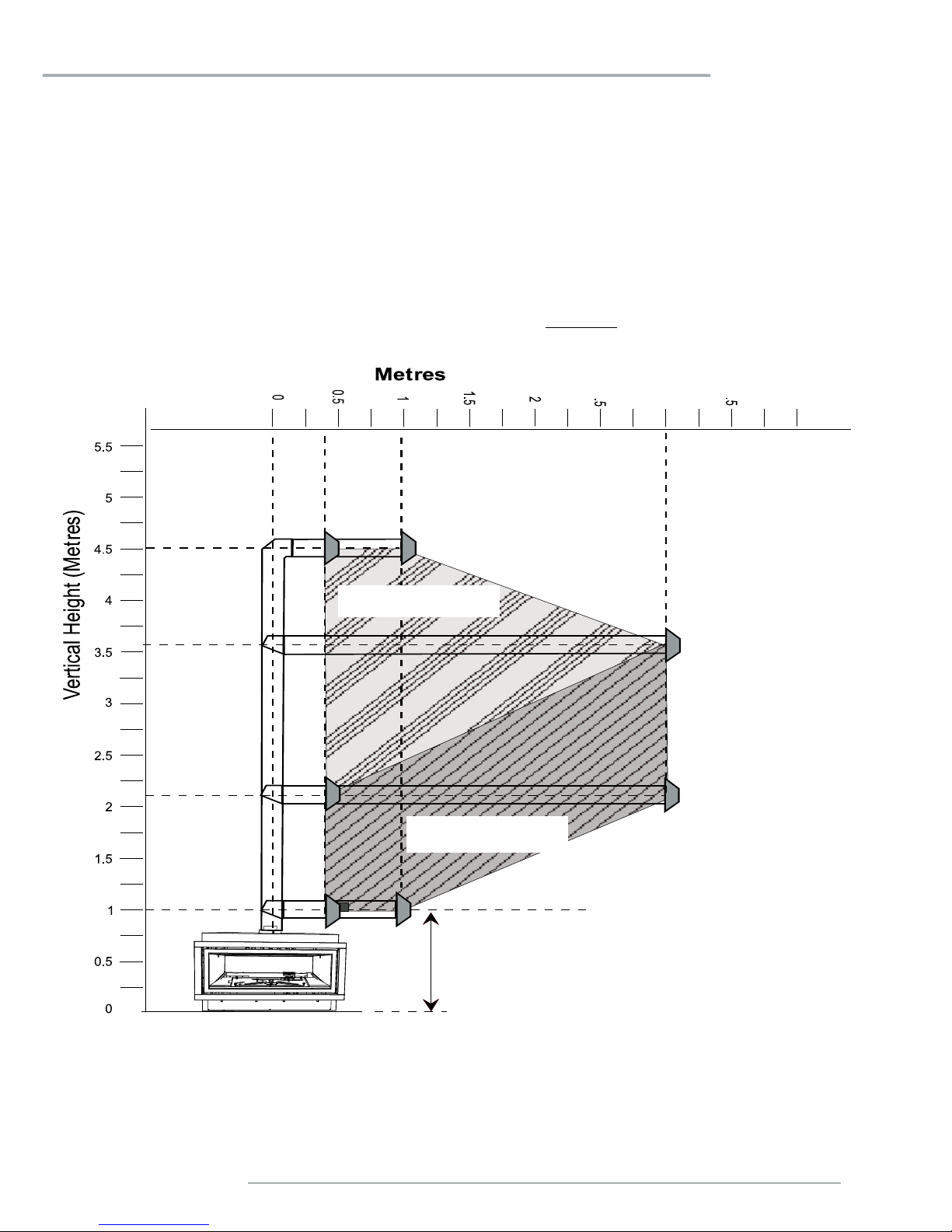

The diagram shows all allowable combinations of vertical runs with horizontal terminations, using one 90o(two 45o elbows equal one 90oelbow).
Note: Must use optional rigid pipe adapter (Part# 770-994) when using Simpson Dura Vent Only.
• Maintain clearances to combustibles as listed in "Clearances" section
• Horizontal ue must be supported every 0.9m
• A ue guard should be used whenever the termination is lower than the specied minimum or as per local codes.
• Flex system can only be used up to 3m - otherwise rigid system must be used.
FLUE RESTRICTOR SETTING:
Flue restrictor factory set at Set 0.
Refer to the "Flue Restrictor Position" section for details on how to change the ue restrictor from the factory setting of Set 0 to Set 1 if required.
(1016mm)
Minimum
Height
Requirement
2
3
3
Restrictor Set #0
Full Open
Restrictor Set #1
44mm-Open

20 Regency GF1500L Gas Fireplace
installation
FLUEING ARRANGEMENTS
HORIZONTAL TERMINATION (FLEX)
Regency®Direct Vent System
These flueing systems, in combination with GF1500L, have been tested and listed as a Direct Vent system by AGA. The location of the termination
cap must conform to the requirements in the Flue Terminal Locations diagram from the "Exterior Flue Termination Locations" section.
FPI Direct Vent (Flex) System Termination Kits include all the
parts needed to install the GF1500L using a exible vent.
FPI Kit # Length Contains:
#946-615 1.2 m 1) 203mm exible liner (Kit length)
2) 127mm exible liner (Kit length)
3) spring spacers
4) thimble
5) AstroCap termination cap
6) screws
7) tube of Mill Pac
8) plated screws
9) S.S. screws #8 x 38mm drill point
#946-618 1.8 m
#946-616 3 m
Notes:
1) Liner sections should be continuous without any joints
or seams.
2) Only Flex pipe purchased from FPI may be used for Flex
installations.
3) Horizontal flue must be supported every 0.9m.
4) A wall thimble is mandatory for all horizontal terminations
due to high temperatures.
203mm dia.
Flue pipe
127mm dia. flue pipe
spring spacer
Termination Cap
AstroCap XL
TM
(Part #946-623/P)
Flue Guard - if required *
(Part #946-506/P)
Wall Thimble
(Mandatory in all
Horizontal Terminations)
