Regency Grandview G800EC Series User manual

Grandview G800EC Gas Fireplace
Model G800EC-NG G800EC-LP
Fuel Type Natural Gas Propane
Minimum Supply Pressure 5” W.C. (1.25 kPa) 11” W.C. (2.73 kPa)
Manifold Pressure - High 3.8” W.C. (0.94 kPa) 10.5” W.C. (2.62 kPa)
Manifold Pressure - Low 1.1” W.C. (0.27 kPa) 2.9” W.C. (0.72 kPa)
Orice Size -Altitude 0-4500 ft. #42 DMS #53 DMS
Minimum Input
Altitude 0-4500 ft. (0-1372m)
15,000 BTU/h
(4.54 kW)
21,000 BTU/h
(4.54 kW)
Maximum Input
Altitude 0-4500 ft. (0-1372m)
27,000 BTU/h
(8.33 kW)
25,500 BTU/h
(8.33 kW)
Vent Sizing 4” Inner / 6-5/8” Outer 4” Inner / 6-5/8” Outer
42 7
8
"
1088mm
35 7
8
"
913mm
OUTSIDE FINISH
30 7
8
"
783mm
CLEAN FRONT
32 5
8
"
827mm
CLEAN FRONT
15
8
"
41mm
33 7
8
"
862mm
OUTSIDE FINISH
15
8
"
41mm
29 7
8
"
759mm
25 1
2
"
648mm
36 3
8
"
924mm
35 1
8
"
892mm
18 7
8
"
480mm
17 1
2
"
446mm
71
2
"
192mm
11
2
"
39mm
28 7
8
"
734mm
11 1
4
"
287mm
11 1
4
"
287mm
ELECTRICAL
INLET
4"
101mm
65
8
"
170mm
18"
457mm
19"
481mm
NON COOL WALL
16 7/8"
429mm
COOL WALL
75
8
"
195mm
11
4
"
32mm
32 1
2
"
823mm
FIREPLACE OPENING
GAS INLET
Grandview® G800EC Gas Fireplace | P. 1

Clearance / Framing and Venting Configurations
The G800EC is designed to allow for unique installation options—depending on the desired finish.
Please review the options and follow the specific clearance, framing, and finishing options for that application.
The applications are as follows:
Cool Wall application: combustible materials can be installed right up to the fireplace opening with this option.
Clean Front application: non-combustible required when installing materials right to the fireplace opening with this option.
Outside Finish application: non-combustible materials required and the unit is finished to the edge of the fireplace or with either a finishing trim or faceplate..
See descriptive diagrams on the next page.
Cool Wall Clearances ............................................................4
Cool Wall Mantel Clearances ...............................................5
Cool Wall Mantel Leg Clearances .........................................5
Cool Wall Application—Framing ............................................6
Chase Vent Installation ..........................................................7
Clean Front Installation—Clearances ....................................8
Clean Front Installation Mantel Clearances ...........................9
Clean Front Installation—Mantel Leg Clearances .................10
Non-Combustible Requirements: ...........................................10
Clean Front Installation—Framing (non Cool Wall) ................11
Clean Front Finishing.............................................................12
Optional Clean Front Trim Install Instructions: .......................12
Outside Finish Installation—Clearances ................................13
Outside Finish Installation—Mantel Clearances ....................14
Outside Finish Installation—Mantel Leg Clearances .............14
Outside Finish Installation—Clearances ................................15
G800EC Gas Fireplace
Grandview® G800EC Gas Fireplace | P. 2

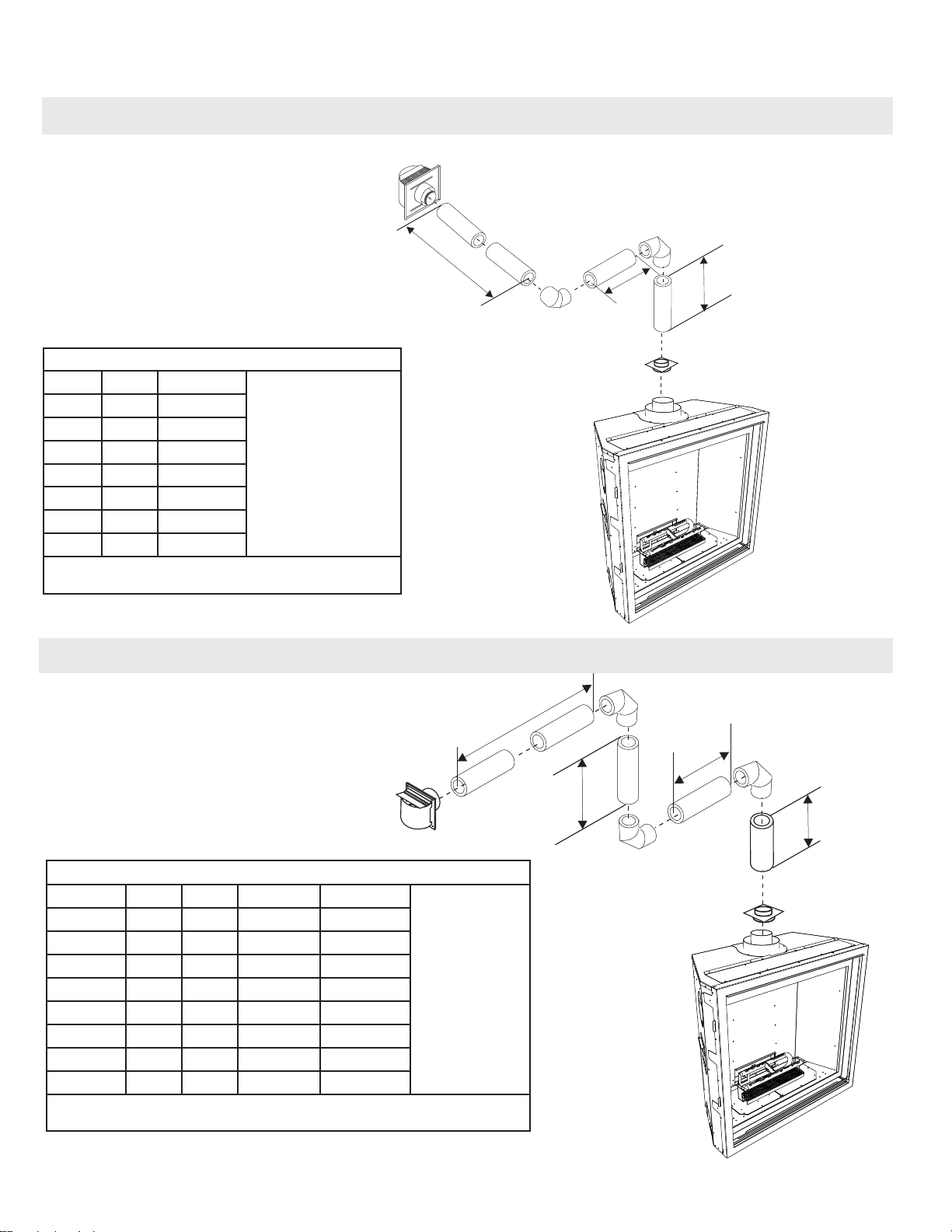

Venting ...............................16-22

Cool Wall Install (Combustible Finishing)
Standard Install (Non-Combustible Finishing)
Clean Front
Standard Install:
• Non-vented chase
• Non-combustible board required
• Combustible framing
Cool Wall Install:
• Vented chase
• Combustible material can be used all around the fireplace
• Combustible framing
Clean Front
Clean Front Outside Finish w/ Finishing Trim
Outside Finish w/ Faceplate
Grandview® G800EC Gas Fireplace | P. 3

Caution Requirements
The top, back and sides of the fireplace are defined by
standoffs. The metal ends of the standoff may NOT be
recessed into combustible construction.
WARNING
Fire hazard is an extreme risk
If these clearances (air space) to combustible materials are not adhered to. It is of
greatest importance that this replace and vent system be installed only in accordance
with these instructions.

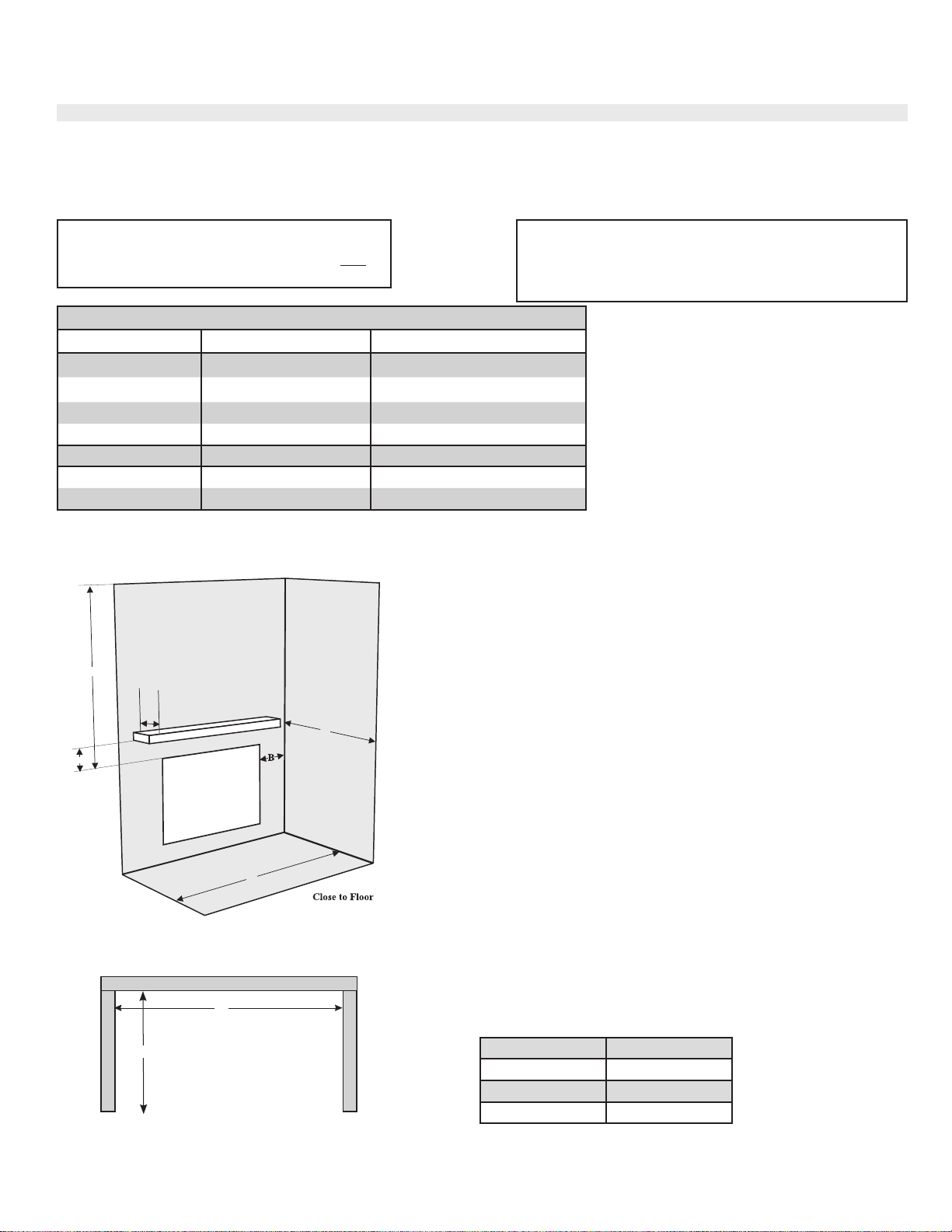

Cool Wall Clearances
The clearances listed below are minimum distances unless otherwise stated:
A major cause of chimney related fires is failure to maintain required clearances (air space) to combustible materials. It is of the greatest importance
that this fireplace and vent system be installed only in accordance with these instructions.
Minimum Vent Clearances
to Combustibles
G800EC Clearance Requirements—Cool Wall Installations
Clearance: Cool Wall - Clean Front Measured From:
A: Mantel Height (min.) **0" (0mm) Top of Fireplace Opening
B: Sidewall 6" (152mm) Side of Fireplace Opening
C: Ceiling 47-1/2" (1207mm) Top of Fireplace Opening
D: Mantel Depth (max.) 14" (356mm) Front of Fireplace Opening
E: Alcove Width 84" (2134mm) Wall to Wall (Minimum)
F: Alcove Depth 36" (914mm) Front to Back Wall (Maximum)
G: Convection Air Outlet 66"sq Top/Front of Enclosure
H: Convection Air Outlet Opening Offset 0-2" *Top of Chase Enclosure
K: Chase Enclosure (Min.) 80" From Base of Appliance Floor
L: Clearance to Sprinkler Head (Min.) 36" (914mm) Perpendicular From Chase Grill
Notes: 0" No Hearth Required
IMPORTANT - *A minimum of 66 square inches of open area, not lower than 0"-2" from top of enclosure, required
for all cool wall installations — this can be achieved by having an open area in front. See manual for details.
** An extra 3/4" (19mm)of mantel height is required when using a faceplate.
Horizontal Top 2" (51mm)
Horizontal Side 1-1/2 " (38mm)
Horizontal Bottom 1-1/2" (38mm)
Vertical Vent 1-1/2" (38mm)
Alcove
E
F
D
A
E
F
H
G
K
C
Side view
L
Chase grill
Sprinkler
Grandview® G800EC Gas Fireplace | P. 4

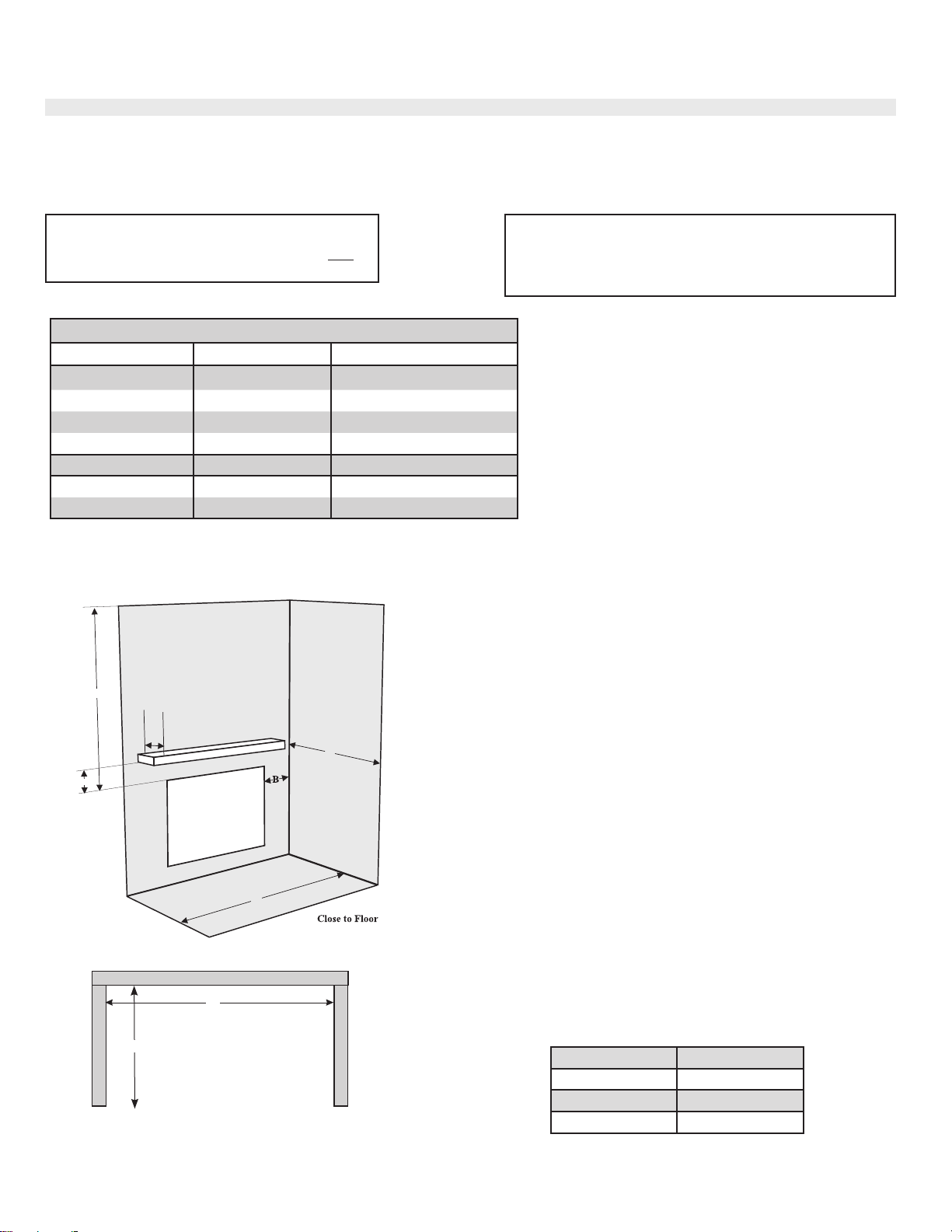

Cool Wall Mantel Clearances
Note: Ensure the paint that is used on the mantel and the facing is "High Quality" or the paint may discolour.
Due to the extreme heat this fireplace emits, the mantel clearances are critical. Combustible mantel clearances from top of front facing are shown in
the diagram below.

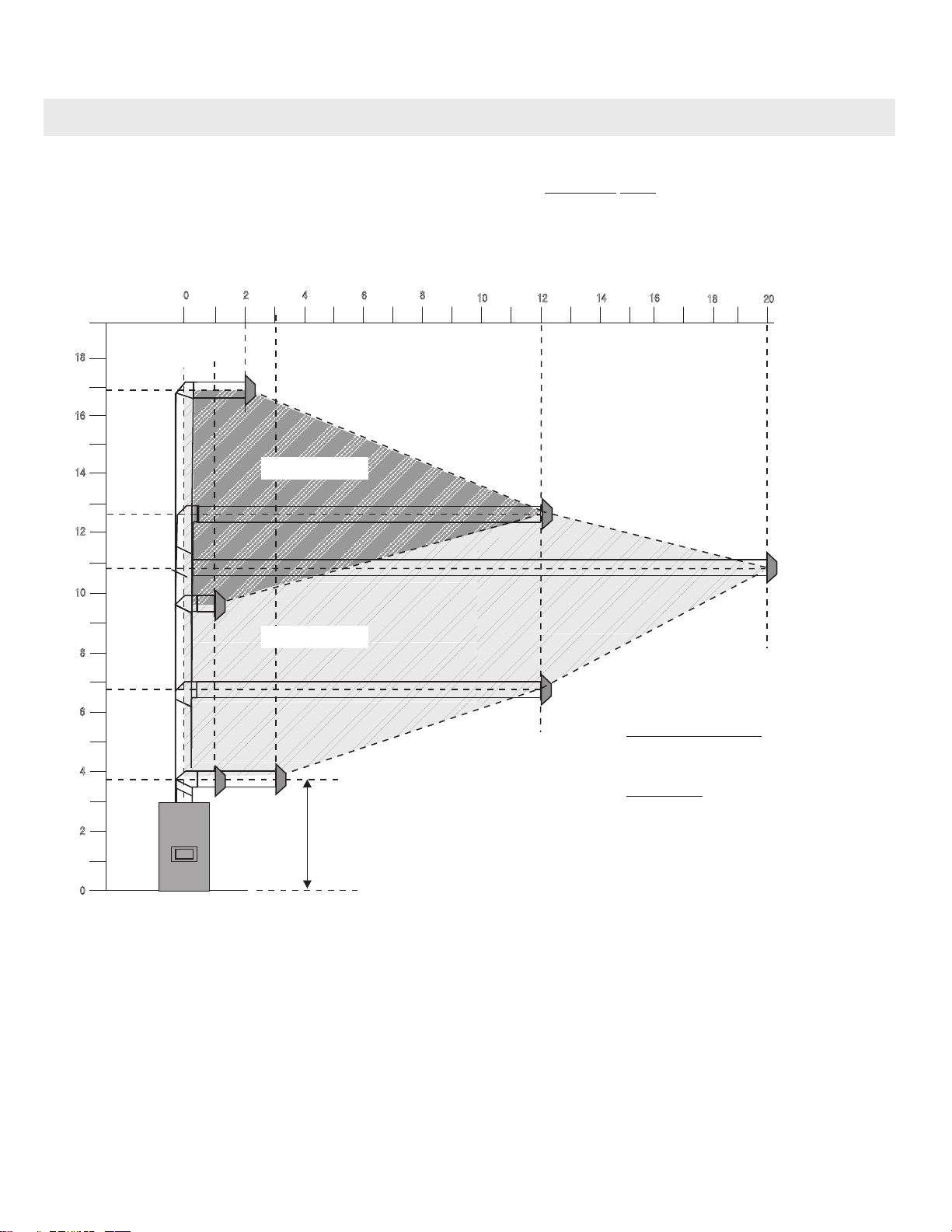

Mantel Clearances
G800EC
ABC
From Top of Fireplace
Opening
32-1/2"
(826mm)
10"
(254mm)
5"
(127mm)
Combustible
Mantel Clearances
2
0
12 64
810
0
Top of
Fireplace
Opening
A
B
14
To Floor
10
Inches
5
C2”
7”
14”
Mantel leg
Allowable mantel leg
projection
TopView
Side opening
of fireplace
Mantel leg
Mantel leg
2" (51mm)
3" (76mm)
1-3/4"
(44mm)
32-1/2" (826mm) overall fireplace width
Cool Wall Mantel Leg Clearances
See framing dimensions on next page.
Note: If Faceplate or FinishingTrim is being installed, leave 3 3/8" clearance from from top of fireplace opening for installation
and removal.
Grandview® G800EC Gas Fireplace | P. 5

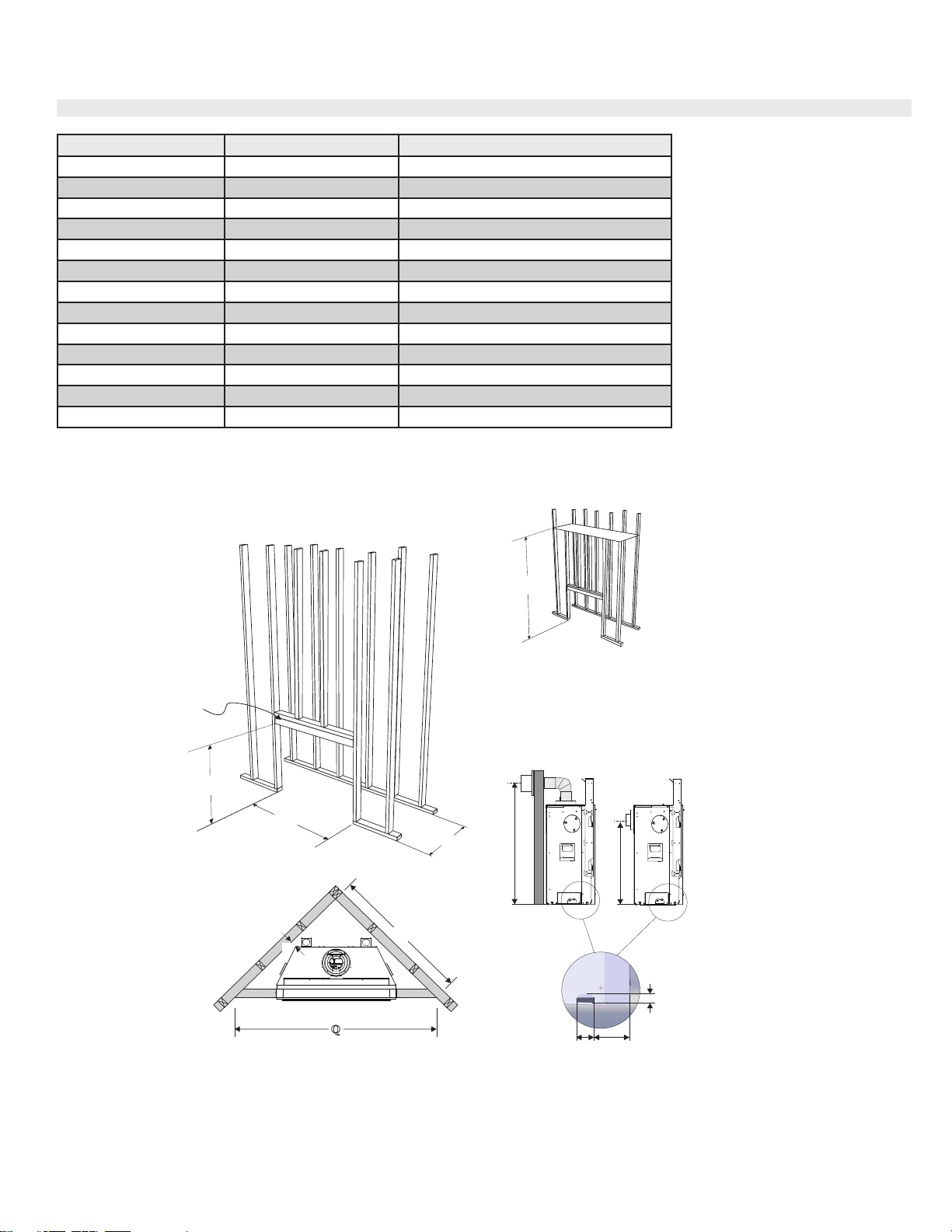

Cool Wall Application—Framing
Framing Dimensions Description Cool Wall Cool Wall
with Finishing Trim or Faceplate
M Framing Width 36-1/2" (927mm) 37-1/2" (952mm)
N* Framing Height 43" (940mm)
O Framing Depth 16-7/8" (427mm)
P Corner Facing Wall Width 42-1/2" (1035mm)
Q Corner Facing Wall Width 60" (1524mm)
R Framed Chase Ceiling Enclosure 80" (2032mm)
S (Rear Vent) Vent Centerline Height - Rear 29" (737mm)
S (Top Vent) Vent Centerline Height - Top 44" (1118mm)
T Gas Connection Height 1-1/2" (38mm)
U Gas Connection Inset 6-3/8" (162mm)
V Gas Connection Width 3" (76mm)
W Clearance to Corner of Unit 2-3/4" (70mm)
* Important: Framing height requires consideration of the hearth depth. Dimension N = N + the thickness of the installed hearth.
Q
P
R
M
N
O
S
S
U
T
V
Combustible header
Top Vent Rear Vent
W
Corner=Top Vent Only
IMPORTANT: Corner applications are vented from the top
only - rear venting cannot be used.
Grandview® G800EC Gas Fireplace | P. 6

Chase Vent Installation—Cool Wall
09.04.19920-150
G800EC
1
Ceiling
Top of chase enclosure
Ceiling
Side View
Framed Opening must be at least 2 3/8” tall, and at least 33 3/8” wide to accomodate the Chase vent. The top of the Chase vent opening
must be 1.5” or less from the top of the chase enclosure. Fasten the Chase vent with screws and construction adhesive.
If the chase vent is not being used, a minimum 66in2 opening in the enclosure is required to maintain safe operating tempera-
tures. This can be achieved in a number of ways including a reveal at the top of the chase.
Grandview® G800EC Gas Fireplace | P. 7

Caution Requirements
The top, back and sides of the fireplace are defined by
standoffs. The metal ends of the standoff may NOT be
recessed into combustible construction.
WARNING
Fire hazard is an extreme risk
if these clearances (air space) to combustible materials are not
adhered to. It is of greatest importance that this replace and vent
system be installed only in accordance with these instructions.
Clean Front Installation (non-Cool Wall)—Clearances
The clearances listed below are minimum distances unless otherwise stated:
A major cause of chimney related fires is failure to maintain required clearances (air space) to combustible materials. It is of the greatest importance
that this fireplace and vent system be installed only in accordance with these instructions.
Minimum Vent Clearances
to Combustibles
G800EC Clearance Requirements
Clearance: Dimension Measured From:
A: Mantel Height (min.) 11-1/2" (292mm) Top of Fireplace Opening
B: Sidewall 25" (635mm) Side of Fireplace Opening
C: Ceiling 36-1/2" (927mm) Top of Fireplace Opening
D: Mantel Depth (max.) 19" (483mm) Front of Fireplace Opening
E: Alcove Width 84" (2134mm) Wall to Wall (Minimum)
F: Alcove Depth 36" (914mm) Front to Back Wall (Maximum)
Notes: 0" No Hearth Required
Horizontal Top 2" (51mm)
Horizontal Side 1-1/2 " (38mm)
Horizontal Bottom 1-1/2" (38mm)
Vertical Vent 1-1/2" (38mm)
Alcove
E
F
C
D
A
E
F
Grandview® G800EC Gas Fireplace | P. 8

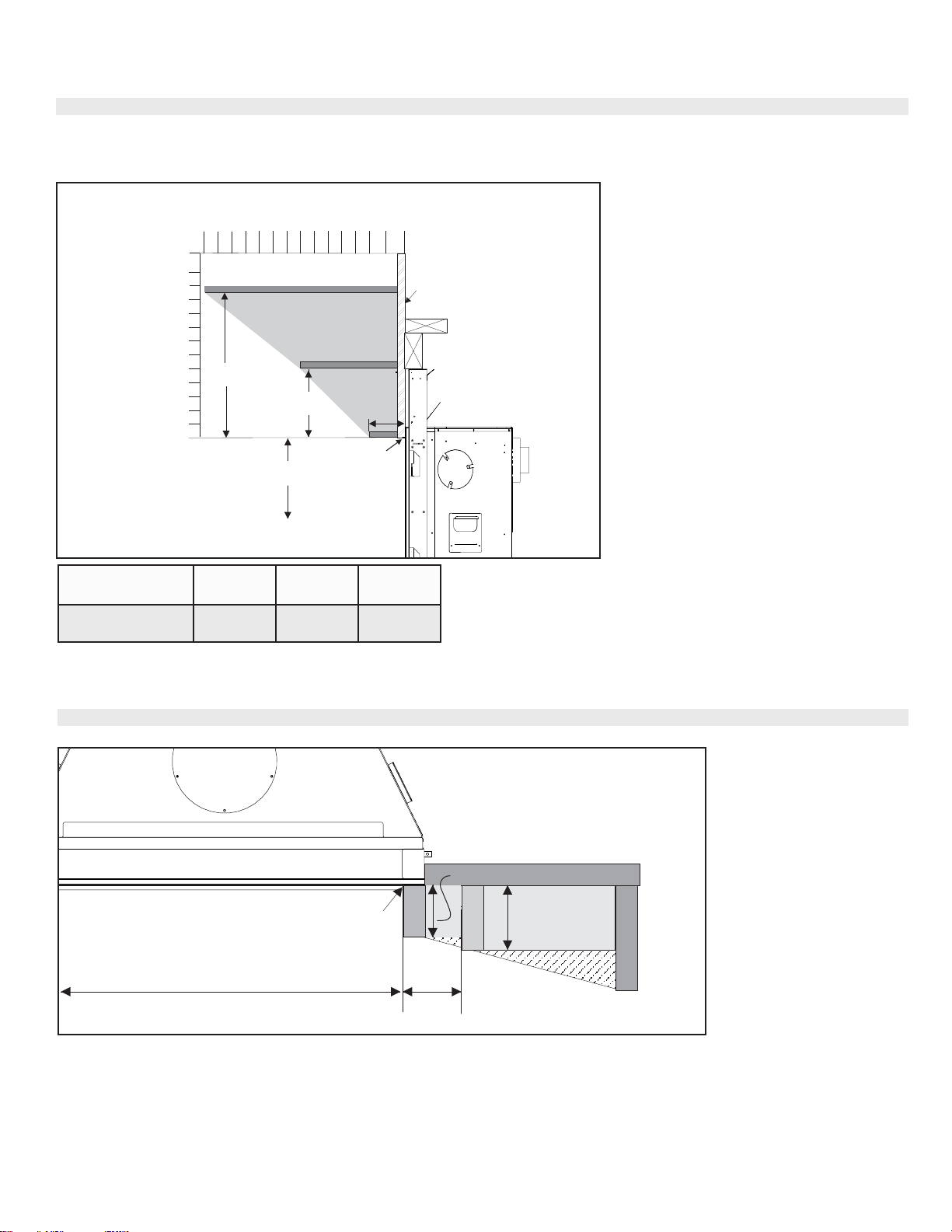

Clean Front Installation (non-Cool Wall)—Mantel Clearances
Due to the extreme heat this fireplace emits, the mantel clearances are critical. Combustible mantel clearances from top of front facing are shown in the
Diagram on the right.
Note: Ensure the paint that is used on the mantel and the facing is "High Quality" or the paint may discolour.
Mantel Clearances
G800EC
ABCD
From Top of Fireplace
Opening
32-1/2"
(826mm)
20-1/2"
(597mm)
15-1/4"
(470mm)
11-1/2"
(292mm)
Combustible
Mantel Clearances
2
0
12 64
810
0
Top of
Fireplace
Opening
19"
7"
12"
A
B
14
To Floor
12
24
Inches
CD
Non-Combustible
Material Min.11-1/2"H (292mm)
16
18
Material Min. 2"D (51mm)
Grandview® G800EC Gas Fireplace | P. 9

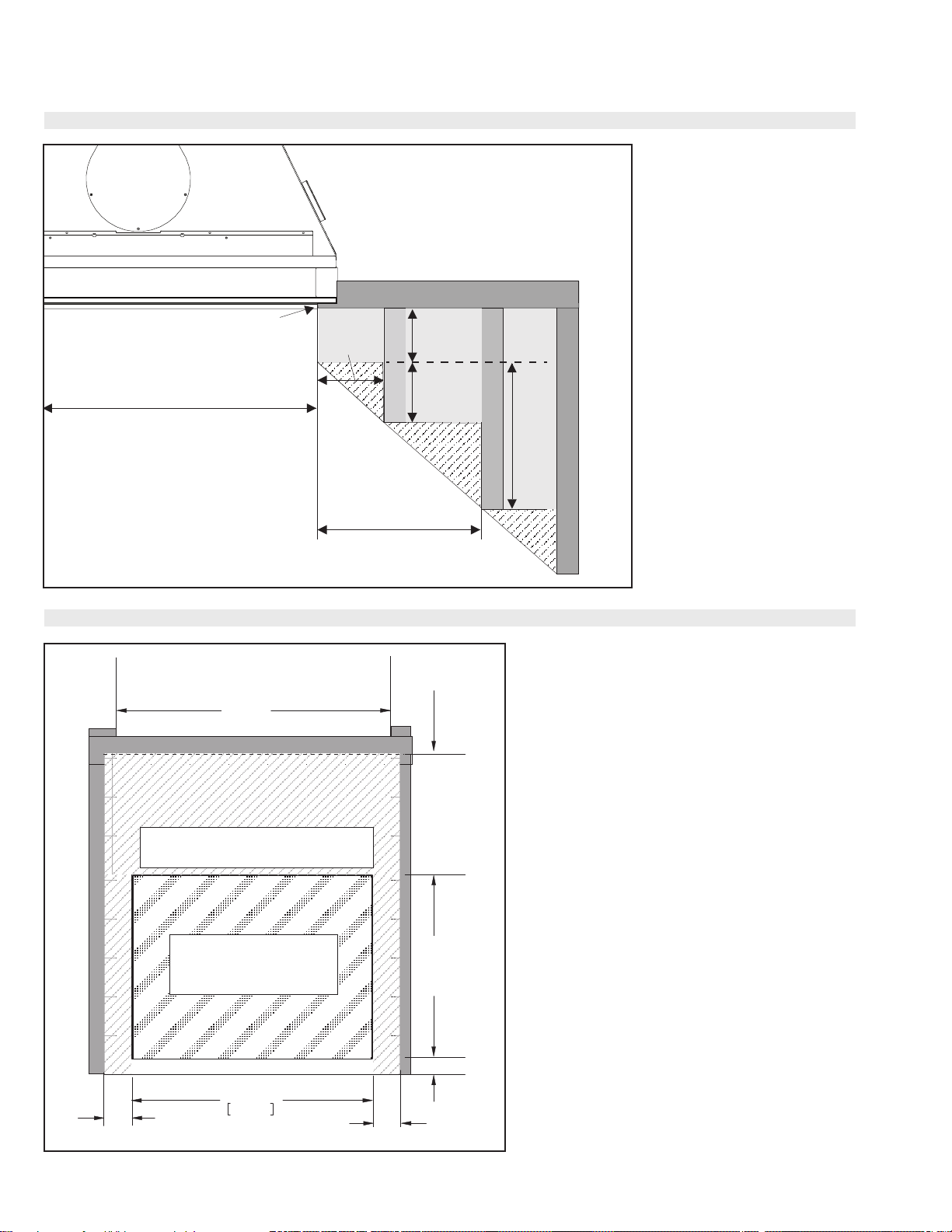

Clean Front Installation (non-Cool Wall)—Mantel Leg Clearances
Clean Front Installation (non-Cool Wall)—Non-Combustible Requirements:
32-3/4"
832mm
NO FACING OR
FINISHING MATERIAL
IN THIS AREA
No Combustible
Materials in this Area
37-1/2"
[953mm]
11-1/2"
[292mm]
3"
[76mm]
3"
[76mm]
30-7/8"
[784mm]
1-5/8" (41mm)
See framing dimensions on next page.
Allowable mantel leg projection
TopView
Side opening
of fireplace
Mantel
Mantel leg
(38mm)
4-1/4"
(108mm)
Leg
3"
(76mm)
6-7/8" (175mm)
32-1/2" (826mm)
Overall Fireplace width
1-1/2"
2"
(38mm)
(51mm)
Grandview® G800EC Gas Fireplace | P. 10

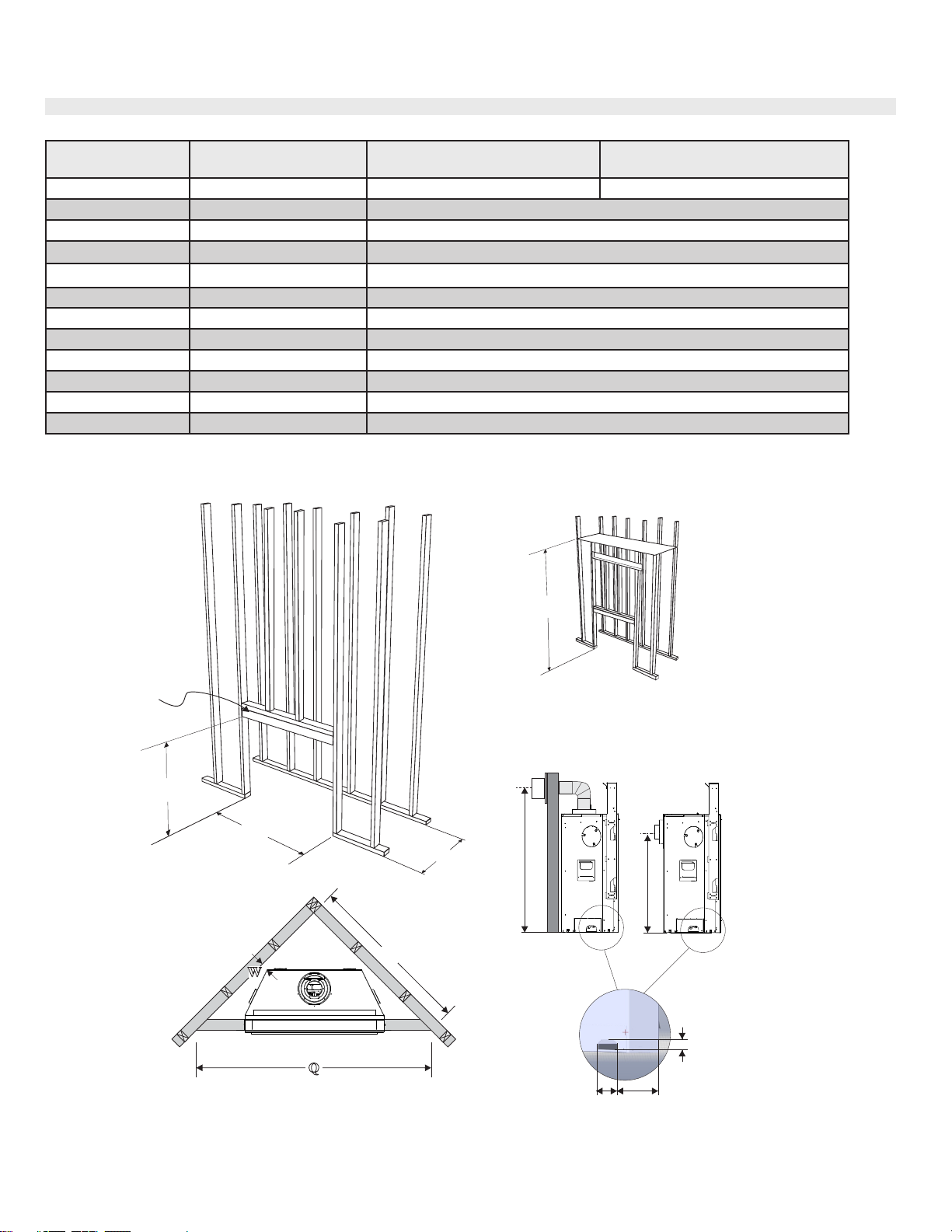

Clean Front Installation—Framing (non Cool Wall)
Framing Dimensions Description G800EC - Non Cool Wall
M Framing Width 37-1/2"(953mm)
N* Framing Height 43" (1092mm)
O (Top Vent) Framing Depth - Top Vent 19-1/4" (489mm)
P (Rear Vent) Corner Facing Wall Width 61-1/4" (1556mm)
Q (Rear Vent) Corner Facing Wall Width 86-5/8" (2200mm)
R Framed Chase Ceiling 62" (1575mm)
S (Rear Vent) Vent Centerline Height - Rear 29" (673mm)
S (Top Vent) Vent Centerline Height - Top 44" (1118mm)
T Gas Connection Height 1-1/2" (38mm)
U Gas Connection Inset 6-3/8" (162mm)
V Gas Connection Width 3" (76mm)
W Clearance to corner of unit 2-3/4" (70mm)
Non-combustible Height 11-1/2" (292mm)
* Important: Framing height requires consideration of the hearth depth. Dimension N = N + the thickness of the installed hearth.
S
S
U
T
V
Q
P
M
N
O
Combustible header
R
Top Vent Rear Vent
W
Corner=Top Vent Only
IMPORTANT: Corner applications are vented from the top
only - rear venting cannot be used.
Grandview® G800EC Gas Fireplace | P. 11

Clean Front Installation
Framing Tab
The finishing material can be brought to the edge of the fireplace opening.
Do NOT finish beyond the opening, doing so will prevent the screen from
being attached and removed.
The Optional Clean Front Trim is available to prevent this from happening.
See Section: Clean Front trim install instruCtions for details.
Nailing Flange Instructions:
Optional Clean
Front Trim
Optional Clean Front Trim Install Instructions:
1. Loosen the four (4) screws that secure
the left and right nailing flanges to
the unit.
2. Slide the left and right tiling flanges
onto the front of the fireplace. Use the
slots to center with the screw securing
the Nailing Flanges.
3. Tighten screws down.
4. Slide the Bottom Tiling Flange against
the bottom of the fireplace. Secure with
a screw on each side.
5. Finishing material can now be pressed
against the flat edge created by the
Clean Front Trim.
1. Bend Nailing Flange Tabs 90° backward to create the framing standoff.
max.
Grandview® G800EC Gas Fireplace | P. 12

Caution Requirements
The top, back and sides of the fireplace are defined by
standoffs. The metal ends of the standoff may NOT be
recessed into combustible construction.
WARNING
Fire hazard is an extreme risk
if these clearances (air space) to combustible materials are not
adhered to. It is of greatest importance that this replace and vent
system be installed only in accordance with these instructions.
Outside Finish Installation (non-Cool Wall)—Clearances
The clearances listed below are minimum distances unless otherwise stated:
A major cause of chimney related fires is failure to maintain required clearances (air space) to combustible materials. It is of the greatest importance
that this fireplace and vent system be installed only in accordance with these instructions.
Minimum Vent Clearances
to Combustibles
G800EC Outside Finish Clearance Requirements
Clearance: Dimension Measured From:
A: Mantel Height (min.) 10" (254mm) Top of Fireplace Opening
B: Sidewall 25" (635mm) one side only Side of Fireplace Opening
C: Ceiling 36-1/2" (927mm) Top of Fireplace Opening
D: Mantel Depth (max.) 12" (305mm) Top of Fireplace Opening
E: Alcove Width 84" (2134mm) Wall to Wall (Minimum)
F: Alcove Depth 36" (914mm) Front to Back Wall (Maximum)
Notes: 0" No Hearth Required
Horizontal Top 2" (51mm)
Horizontal Side 1-1/2 " (38mm)
Horizontal Bottom 1-1/2" (38mm)
Vertical Vent 1-1/2" (38mm)
Alcove
E
F
C
D
A
E
F
Grandview® G800EC Gas Fireplace | P. 13

Outside Finish Installation (non-Cool Wall)—Mantel Clearances
Note: Ensure the paint that is used on the mantel and the facing is "High Quality" or the paint may discolour.
Due to the extreme heat this fireplace emits, the mantel clearances are critical. Combustible mantel clearances from top of front facing are shown in
the Diagram below.
Mantel Clearances
G800EC
A B C D
From Top of Fireplace
Opening
34"
(754mm)
19"
(483mm)
15"
(381mm)
10"
(254mm)
Combustible
Mantel Clearances
2
0
12 64
810
0
Top of
Fireplace
12"
1"
7"
A
B
14
To Floor
12
24
Inches
C
D
Non-Combustible Material
Min. 10" H (254mm)
9”
Outside Finish Installation (non-Cool Wall)—Mantel Leg Clearances
Allowable mantel leg projection
TopView
Side opening
of fireplace
Mantel
Mantel leg
(38mm)
4-1/4"
(108mm)
Leg
3"
(76mm)
6-7/8" (175mm)
32-1/2" (826mm)
Overall Fireplace width
1-1/2"
**The non combustible board supplied with the appliance is 11 1/2" (292 mm) high. This may be cut to size if desired.
Grandview® G800EC Gas Fireplace | P. 14

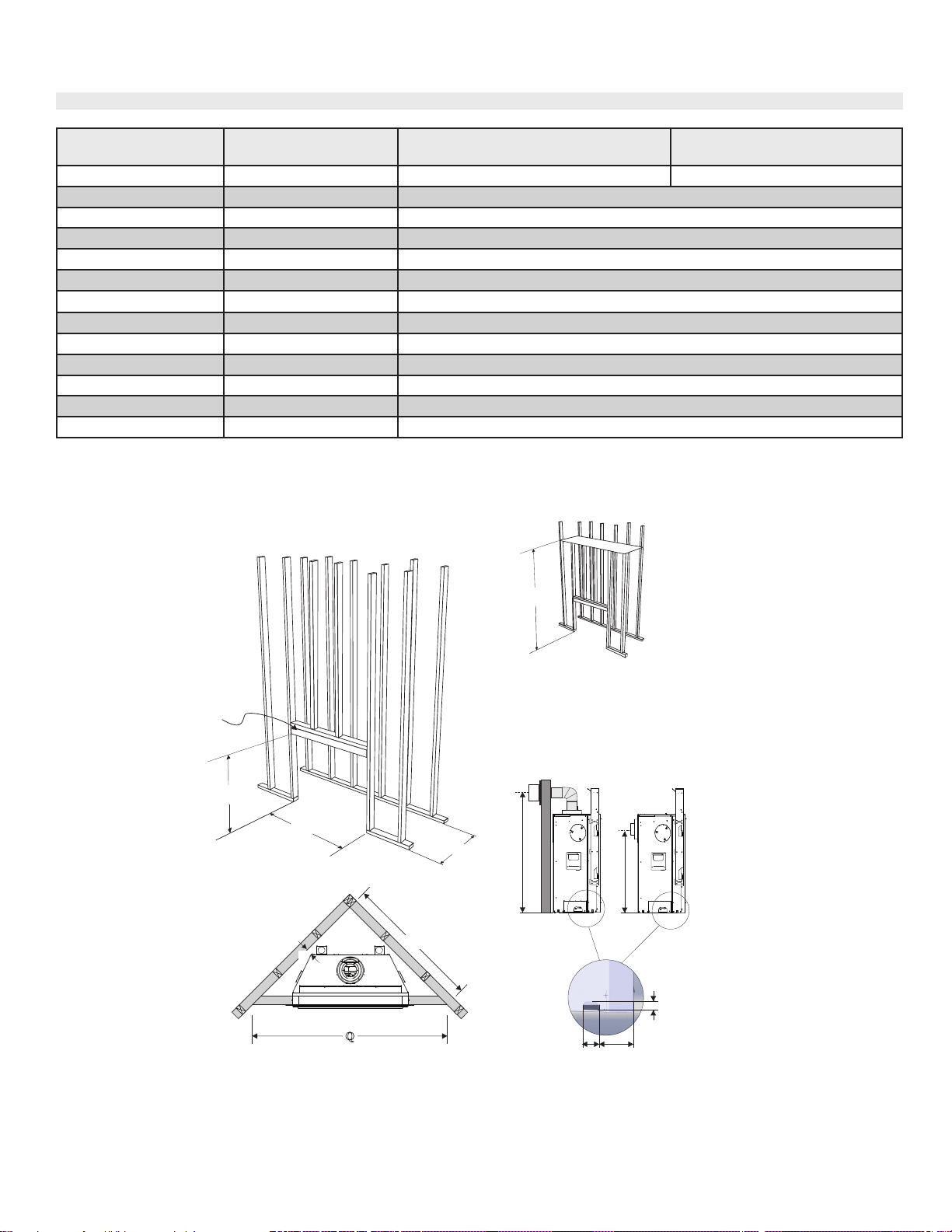

Outside Finish Installation (non-Cool Wall)—Framing
Framing Dimensions Description Outside Finish Outside finish with Finishing Trim or
Faceplate
M Framing Width 36-1/2" (927mm) 37-1/2" (953mm)
N* Framing Height 43" (1092mm)
O Framing Depth 19-1/4" (489mm)
P Corner Facing Wall Width 46-1/2" (1181mm)
Q Corner Facing Wall Width 65-3/4" (1670mm)
R (Rear Vent) Framed Chase Ceiling - Rear 62" (1575mm)
S (Rear Vent) Vent Centerline Height - Rear 29" (673mm)
S (Top Vent) Vent Centerline Height - Top 44" (1118mm)
T Gas Connection Height 1-1/2" (38mm)
U Gas Connection Inset 6-3/8" (162mm)
V Gas Connection Width 3" (76mm)
W Clearance to Corner of Unit 2-3/4"(70mm)
Non-combustible Height 10" (254mm)
* Important: Framing height requires consideration of the hearth depth. Dimension N = N + the thickness of the installed hearth.
S
S
U
T
V
Q
P
M
N
O
Combustible header
R
Top Vent Rear Vent
W
Corner=Top Vent Only
IMPORTANT: Corner applications are vented from the top
only - rear venting cannot be used.
Grandview® G800EC Gas Fireplace | P. 15

The Diagrams show all allowable combinations of vent runs with 4" x 6-5/8" venting using the Regency direct vent system or rigid vent system.
A vent guard should be used whenever the termination is lower than the specified minimum or as per local codes.
For horizontal terminations the Regency Direct Vent Flex System may be used for installations with a maximum continuous vent maximum horizontal
length of 3ft (0.9m).
Note: Must use optional rigid pipe adaptor (Part # 510-994) when using Rigid Pipe vent systems.
• Maintain clearance to combustibles.
• Horizontal vent must be supported every 3 feet.
• Firestops are required at each floor level and whenever passing through a wall.
2
0
12
6
4
8
10
2
0 6
48
Vertical Height (Feet)
Rigid 44-"(1.1m)
Horizontal (Feet)
Max. 36”(0.9m)
Flex 44"(1.1m)
18" (0.5m)
3
Top Vented
Factory Setting - No Restrictor Required
Rear Vented
Factory Setting - No Restrictor Required

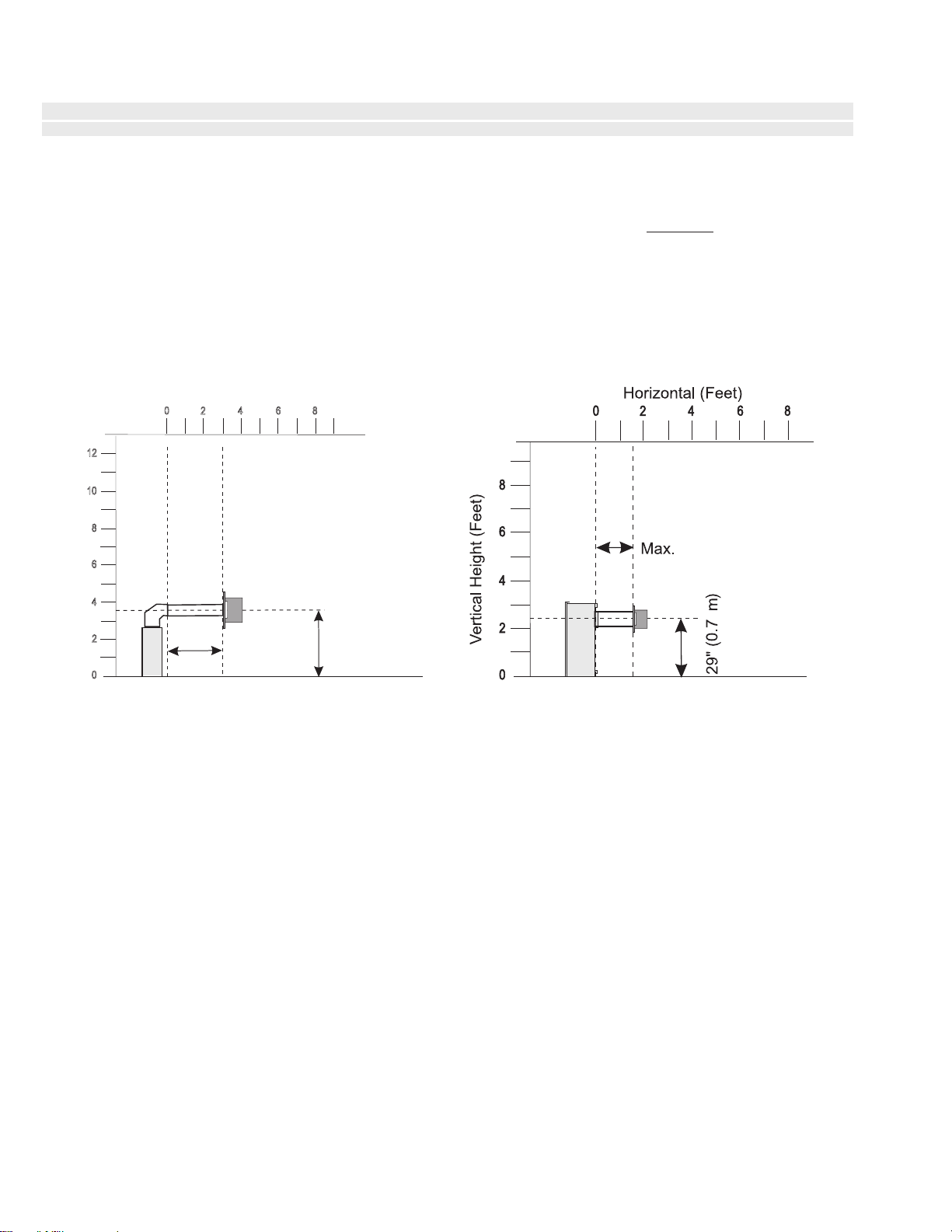

Venting Arrangements for horizontal terminations
Flex Vent or rigid pipe 4" x 6-5/8"
Grandview® G800EC Gas Fireplace | P. 16

Rigid Pipe Adaptor
Pipe Length
Vertical
Termination
Cap
Storm Collar
Flashing
Ceiling Firestop
24" Pipe
Length
Adj.Pipe Length
11" - 14-5/8"
o
90 Elbow
Horizontal
Termination
Cap
Wall Thimble
Vinyl Siding
Standoff (Optional)

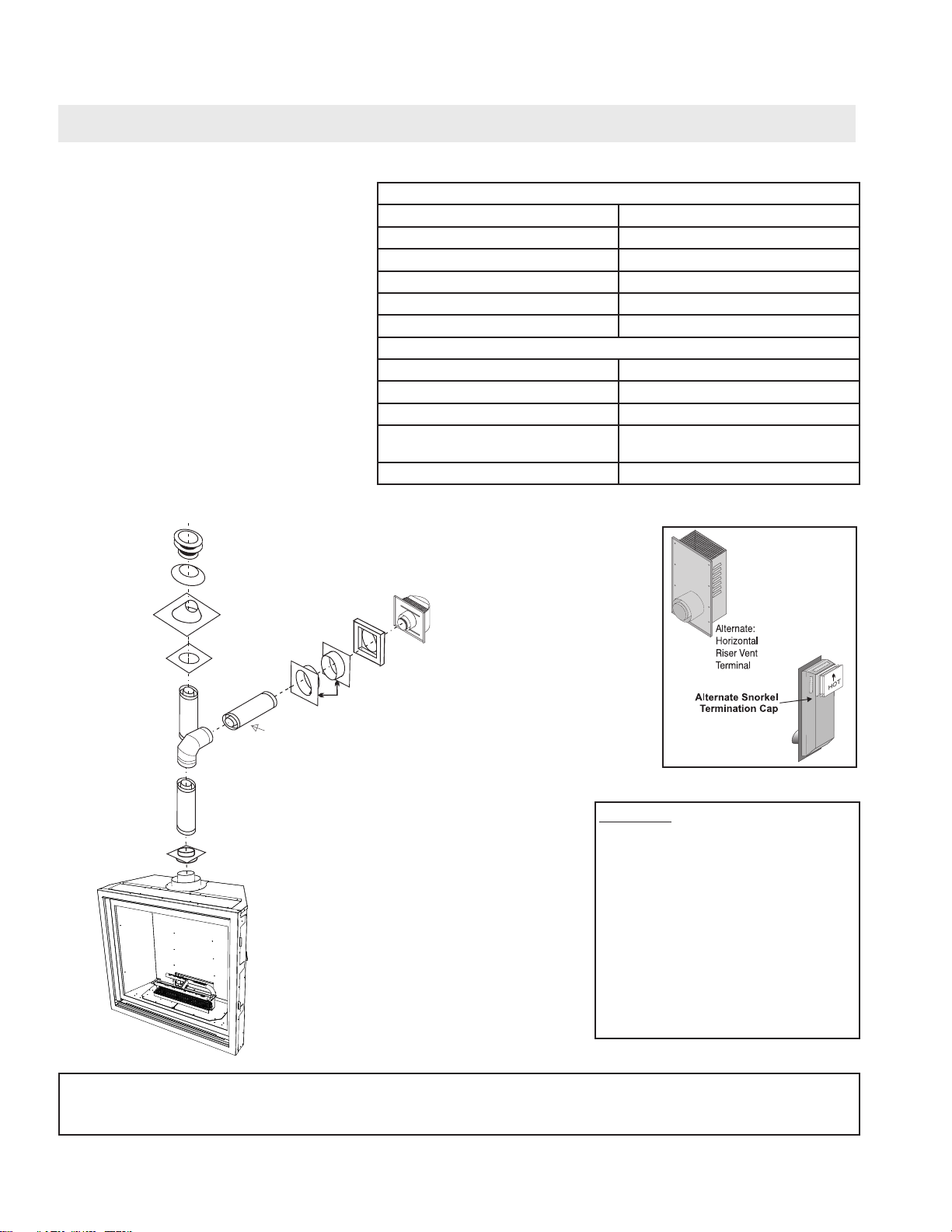

Rigid Pipe Venting Systems
Horizontal or Vertical Terminations
The minimum components required for a basic horizontal termination are:
1 Horizontal Termination Cap
1 90o Elbow
1 Rigid Pipe Adaptor
1 Wall Thimble
1 Length of pipe to suit wall thickness
(see chart)
Wall thickness is measured from the back standoffs
to the inside mounting surface of termination cap. For
siding other than vinyl furring strips may be used,
instead of the vinyl siding standoff, to create a level
surface to mount the vent terminal. The Terminal
must not be recessed into siding. Measure the wall
thickness including furring strips.
If a Vinyl Siding Standoff is required (it must be
used with vinyl siding), measure to outside surface
of wall without siding and add 2 inches.
The FPI AstroCapTM and FPI Riser Vent terminal are certified for installations using FPI venting systems as well as Simpson Dura-Vent® Direct Vent , Ameri-
can Metal Products, Olympia Ventis DV, Security Secure Vent®, AmeriVent Direct Vent. AstroCapTM is the proprietary trademark of FPI Fireplace Products
International Ltd. Dura-Vent® and Direct Vent are registered and/or proprietary trademarks of Simpson Dura-Vent Co. Inc.
This product has been evaluated by Intertek
for using a Rigid Pipe Adaptor in conjunction
with DuraVent Direct Vent, Selkirk Direct-Temp,
Ameri Vent Direct venting, Olympia Ventis DV
and Security Secure Vent systems. Use of these
systems with the Rigid Pipe Adaptor is deemed
acceptable and does not affect the Intertek WHI
listing of components.
WARNING:
Do not combine venting components from
different venting systems.
However use of the AstroCapTM and FPI Riser
is acceptable with all systems.
Flat Wall Installation
Wall Thickness (inches) Vent Length Required (inches)
4" - 5-1/2" 6"
7" - 8-1/2" 9"
10" - 11-1/2" 12"
9" - 14-1/2" 11" - 14-5/8" Adj. Pipe
15" - 23-1/2" 17" - 24" Adj. Pipe
Corner Installation
Wall Thickness (inches) Vent Length Required (inches)
3-1/4" - 6-3/4" 11" - 14-5/8" Adj. Pipe
7-3/4" - 16-1/4" 17" - 24" Adj. Pipe
7-1/4" - 8-3/4" 6" + 12"
9" + 9"
4-1/4" - 5-3/4" 6" + 9"
Alternate
Horizontal
Termination
Caps
Grandview® G800EC Gas Fireplace | P. 17

16
2
2
0
0
12
12
6
6
18
4
Minimum
Height
Requirement
4
14
8
8
10
10 14 16 18 20
Vertical Height (Feet)
Horizontal (Feet)
44" (1118mm)
Set #1 (2" open)
No Restrictor
Venting Arrangements - Horizontal Termination
Rigid pipe and FPI direct vent system (flex)
(Propane & Natural Gas)
The diagram shows all allowable combinations of vertical runs with horizontal terminations, using one 90o elbow (two 45o elbows equal one 90o elbow).
Note: Must use optional rigid pipe adaptor (Part # 510-994) when using Rigid Pipe venting systems.
All Rigid Pipe Systems
4" inner diameter
6-5/8" outer diameter
FPI Flex Vent
4" inner diameter
6-7/8" inner diameter
•Maintain clearances to combustibles.
•Horizontal vent must be supported every 3 feet.
•Firestops are required at each floor level and whenever passing through a wall.
A vent guard should be used
whenever the termination is lower
than the specified minimum or as
per local codes.
Note: FPI Direct Vent Flex System Part
#:946-513 (2 foot), 946-515 (4 foot)
and 946-516 (10 foot) are only ap-
proved for horizontal terminations.
Grandview® G800EC Gas Fireplace | P. 18

•Vent must be supported at offsets.
• Firestops are required at each floor level and whenever passing through a wall.
• Maintain clearances to combustibles.
Note: Must use optional rigid pipe adaptor when using rigid vent systems (Part # 510-994).
Venting Arrangements Vertical Termination
Rigid pipe system and vertical flex kit to same limitations
(Propane & Natural Gas)
The shaded area in the diagram shows all allowable combinations of straight vertical and offset to vertical terminations, using two 90o elbows, with rigid pipe
vent systems for Propane and Natural Gas.
2
0 6 10
4812
Vertical Height (Feet)
Horizontal (Feet)
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
0
2
4
6
Minimum
Height
Requirement
44" (1118mm)
Set #2 (1-3/4" open)
Set #1 (2" open)
No Restrictor
Grandview® G800EC Gas Fireplace | P. 19

V1
H1
H
V
Horizontal terminations
Two (2) 90°Elbows
H
H1
V
One 90oelbow = Two 45oelbows.
Option V H + H1 With these options,
maximum total pipe length
is 30 feet with minimum
of 6 feet total vertical
and maximum 8 feet total
horizontal.
Please note minimum 1
foot between 90oelbows
is required.
A) 0' Min. 2' Max.
B) 1' Min. 3' Max.
C) 2' Min. 4' Max.
D) 3' Min. 5' Max.
E) 4' Min. 6' Max.
F) 5' Min. 7' Max.
G) 6' Min. 8' Max
No Vent Restrictor Installed
*Required when using rigid venting
Lengths do not include elbow indicated.
Horizontal terminations
Three (3) 90oElbows
Lengths do not include elbow indicated.
One 90oelbow = Two 45oelbows.
Option V H V + V1 H + H1 With these options,
max. total pipe
length is 30 feet with
min. of 12 feet total
vertical and max. 9
feet total horizontal.
Please note min. 1
foot between 90o
elbows is required.
A) 0' Min. 1' Max. 1' Min. 2' Max.
B) 1' Min. 2' Max. 3' Min. 3' Max.
C) 2' Min. 2' Max. 5' Min. 4' Max.
D) 3' Min. 2' Max. 7' Min. 5' Max.
E) 4' Min. 3 Max. 9' Min. 6' Max.
F) 5' Min. 4' Max. 10' Min. 7' Max.
G) 6' Min. 5' Max. 11' Min. 8' Max.
H) 7' Min. 6' Max. 12' Min. 9' Max.
No Vent Restrictor Installed
*Required when using rigid venting
*
*
Grandview® G800EC Gas Fireplace | P. 20
