Regency P48-NG1 Quick start guide

FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4
918-458
MODELS: P48-NG1 Natural Gas P48-LP1 Propane
P48-1GasFireplace
WARNING:
Iftheinformationintheseinstructionsarenotfollowedexactly,
a fire or explosion may result causing property damage,
personal injury or loss of life.
FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance.
Installation and service must be performed by a qualified
installer, service agency or the gas supplier.
FOR YOUR SAFETY
What to do if you smell gas:
Do not try to light any appliance
Do not touch any electrical switch:
do not use any phone in your
building.
Immediately call your gas supplier
from a neighbour's phone. Follow
the gas supplier's instructions.
If you cannot reach your gas
supplier, call the fire department.
09/28/05
Owners &
Installation Manual
Tested by: Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
Homeowner: Please keep these instructions for future reference.
www.regency-fire.com

Regency P48-1 Zero Clearance Direct Vent Gas Fireplace
2
To the New Owner:
Congratulations!
You are the owner of a state-of-the-art Gas Fireplace by REGENCY. The P48-1 has
been designed to provide you with all the warmth and charm of a wood fireplace at
the flick of a switch. The model P48-1 has been approved by Warnock Hersey for
both safety and efficiency. As it also bears our own mark, it promises to provide you
witheconomy,comfortandsecurityformanytroublefreeyearstofollow. Pleasetake
a moment now to acquaint yourself with these instructions and the many features of
your Regency Fireplace.
MANUFACTURED MOBILE HOME REQUIREMENTS
INFORMATIONFORMOBILE/MANUFACTUREDHOMESAFTERFIRSTSALE
This Regency product has been tested and listed by Warnock Hersey as a Direct Vent Wall Furnace to the following standards:
VENTED GAS FIREPLACE HEATERS ANSI Z21.88b-2003/CSA 2.33b-2003 and GAS-FIRED APPLIANCES FOR USE AT HIGH
ALTITUDESCAN/CGA2.17-M91.
This Direct Vent System Appliance must be installed in accordance with the manufacturer's installation instructions and the
Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, or the current Standard of Fire Safety Criteria for
Manufactured Home Installations, Sites, and Communities ANSI/NFPA 501A, and with CAN/CSA Z240-MH Mobile Home Standard
in Canada.
This appliance installation must comply with the manufacturer's installation instructions and local codes, if any. In the absence
of local codes follow the current National Fuel Gas Code, ANSI Z223.1 and the current National Electrical Code ANSI/NFPA 70 in
the U.S.A., and the current CAN/CGA B149 Gas Installation Code and the current Canadian Electrical Code CSA C22.1 in Canada.
This appliance comes equipped with a dedicated #8 Ground Lug for attachment of the ground wire to the steel chassis as applicable
to local codes.
The appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes,
with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.1.
This appliance may only be installed in an aftermarket permanently located, manufactured (U.S.A only) or mobile home, where
not prohibited by local codes.
This appliance can only be used with the type of gas indicated on the rating plate. This appliance is not convertible for use with
other gases, unless a certified kit is used.
Ensure that structural members are not cut or weakened during installation.

Regency P48-1 Zero Clearance Direct Vent Gas Fireplace 3
TABLE OF CONTENTS
FlushTrim.................................................................28
BayDoor...................................................................29
BayTrim ...................................................................29
BayLouvers ..............................................................29
FinishingTrim ...........................................................30
DoubleScreenDoor ..................................................30
RemoteControl(optional)..........................................31
RemoteWallSwitch(optional) ..................................31
WallThermostat(optional) ........................................31
WiringDiagram .........................................................32
OptionalFan .............................................................33
ConversiontoPropane ..............................................34
Operating Instructions
OperatingInstructions ...............................................35
LightingProcedure ....................................................35
ShutdownProcedure .................................................35
First Fire ...................................................................35
AerationAdjustment..................................................35
NormalOperatingSoundsof
GasAppliances ..................................................36
LightingPlateInstructions .........................................36
Maintenance
MaintenanceInstructions ..........................................37
GeneralVentMaintenance ........................................37
LogReplacement ......................................................37
Thermopile/Thermocouple .........................................37
Glass Gasket............................................................37
Gold-PlatedLouvers ..................................................37
DoorGlass................................................................38
BayGlass Replacement ...........................................38
InstallingValve ..........................................................38
RemovingValve.........................................................39
PartsList
Replacement/SparePartsList...................................40
Warranty
Warranty ...................................................................47
Safety Label
SafetyLabel............................................................... 4
Installation
ImportantMessage .................................................... 5
BeforeYouStart ........................................................ 5
GeneralSafetyInformation ......................................... 5
InstallationChecklist .................................................. 5
ManufacturedMobileHome
AdditionalRequirements ...................................... 6
UnitSpecifications ..................................................... 6
LocatingYourStove ................................................... 6
Optional Duct System Kit .......................................... 6
OptionalHeatRelease Kit .......................................... 6
Hearth ..................................................................... 6
Clearances................................................................. 7
Mantels ..................................................................... 8
MantelLegClearances............................................... 8
FramingandFinishing ................................................ 9
Top Assembly & Nailing Strips..................................10
VentingIntroduction ..................................................10
ExteriorVentTerminationLocations..........................11
VentingArrangements
HorizontalTerminations ......................................12
SimpsonDura-VentComponentsList .................13
HorizontalTerminations ......................................14
HorizontalVenting ..............................................15
VerticalVenting ..................................................16
VerticalTerminations ..........................................18
Venting-Dura-VentHorizontalInstallations ..............20
Venting-Dura-VentVerticalTermination...................21
Direct Vent System (Flex).........................................22
System Data.............................................................23
HighElevation ...........................................................23
GasLineInstallation..................................................23
Pilot Adjustment .......................................................23
Gas Pipe Pressure Test ............................................23
SITValveDescription ................................................23
Brick Panel Installation..............................................24
LogSetInstallation ...................................................25
StandardFlushDoor .................................................28
FlushLouvers............................................................28
Page Page

Regency P48-1 Zero Clearance Direct Vent Gas Fireplace
4
Thisisacopyofthelabelthataccompanieseach
P48-NG1 and P48-LP1 Zero Clearance Direct
Vent Gas Fireplace. We have printed a copy of
the contents here for your review. The safety
label is located on the front inside base of the
unit, visible when the bottom louver is open.
NOTE: Regency units are constantly being im-
proved. Check the label on the unit and if there
isadifference, the label on theunit isthe correct
one.
SAFETY LABEL
Copy of Safety Decal for P48-NG1 and P48-LP1
FortheStateofMassachusetts,installation
and repair must be done by a plumber or
gasfitter licensed in the Commonwealth of
Massachusetts.
For the State of Massachusetts, flexible
connectors shall not exceed 36 inches in
length.
For the State of Massachusetts, the appli-
ances individual manual shut-off must be a
t-handle type valve.

Regency P48-1 Zero Clearance Direct Vent Gas Fireplace 5
INSTALLATION
IMPORTANT:
SAVE THESE
INSTRUCTIONS
The P48-NG1/P48-LP1 Direct Vent Fireplace
must be installed in accordance with these in-
structions. Carefully read all the instructions in
this manual first. Consult the "authority having
jurisdiction" to determine the need for a permit
prior to starting the installation. It is the responsi-
bility of the installer to ensure this fireplace is
installed in compliance with manufacturers in-
structions and all applicable codes.
BEFORE YOU START
Safeinstallationandoperationofthisappliance
requires common sense, however, we are
required by the Canadian Safety Standards
and ANSI Standards to make you aware of the
following:
YOUNG CHILDREN SHOULD BE
CAREFULLY SUPERVISEDWHEN
THEYAREINTHESAMEROOMAS
THEAPPLIANCE.
CLOTHINGOROTHER FLAMMA-
BLEMATERIALSHOULDNOTBE
PLACEDONORNEARTHEAPPLI-
ANCE.
INSTALLATION AND REPAIR
SHOULDBEDONEBYANAUTHOR-
IZEDSERVICEPERSON.THEAP-
PLIANCESHOULDBEINSPECTED
BEFOREUSEANDATLEASTAN-
NUALLY BY A PROFESSIONAL
SERVICE PERSON. MORE FRE-
QUENT CLEANING MAY BE RE-
QUIREDDUETOEXCESSIVELINT
FROMCARPETING,BEDDINGMA-
TERIAL, ETC. IT IS IMPERATIVE
THAT CONTROL COMPART-
MENTS,BURNERSANDCIRCULAT-
INGAIRPASSAGEWAYSOF THE
APPLIANCEBEKEPTCLEAN.
DUE TO HIGH TEMPERATURES,
THEAPPLIANCESHOULDBELO-
CATED OUT OF TRAFFIC AND
AWAY FROM FURNITURE AND
DRAPERIES.
WARNING:FAILURETOINSTALL
THIS APPLIANCE CORRECTLY
WILLVOIDYOURWARRANTYAND
MAY CAUSE A SERIOUS HOUSE
FIRE.
CHILDRENANDADULTSSHOULD
BE ALERTED TO THE HAZARDS
OF HIGH SURFACE TEMPERA-
TURES, ESPECIALLY THE FIRE-
PLACE GLASS, AND SHOULD
STAYAWAYTOAVOIDBURNSOR
CLOTHINGIGNITION.
annually. Make it a practice to have all of
your gas appliances checked annually.
13)Do not slam shut or strike the glass door.
14)Under no circumstances should any solid
fuels (wood, paper, cardboard, coal, etc.)
be used in this appliance.
15)The appliance area must be kept clear and
free of combustible materials, (gases and
other flammable vapours and liquids).
INSTALLATION
CHECKLIST
1) Locate appliance
a) Room location, page 6
b) Clearances to Combustibles, page 7
c) Mantel Clearances, page 8
d) Framing & FinishingRequirements,
page 9
e) Venting Requirements, pages 10-18.
2) Assemble Top Facing Support and Side
Nailing Strips, page 10.
NOTE: must be done before installing
unit into fireplace.
3) Install venting, pages 20-21.
4) Make gas and electrical connections. Test
thepilot. Must beas per diagram.Page 23.
5) Test Gas Pressure. Page 23.
6) Install brick panels (optional), page 24.
7) Install Flush Door Front (Standard) and
optional Flush Gold Trim, page 28.
8) Install Optional Bay Front and optional Bay
Gold Trim, page 29.
9) Install Louvers (Flush or Bay), pages
28-29.
10)Installationof WallSwitch,RemoteControl,
or Wall Thermostat, page 31.
11)Final check.
Before leaving this unit with the customer, the
installermust ensure that the appliance is firing
correctly and operation fully explained to
customer.
GENERAL SAFETY
INFORMATION
1) The appliance installation must conform
with local codes or, in the absence of local
codes,withthecurrentCanadianorNation-
alGas Codes, CAN1-B149or ANSI Z223.1
InstallationCodes.
2) Theappliancewheninstalled,mustbeelec-
trically grounded in accordance with local
codes,orin the absence of localcodes with
the current National Electrical Code, ANSI/
NFPA70orCSAC22.1CanadianElectrical
Code.
3) See general construction and assembly
instructions.Theapplianceandventshould
be enclosed.
4) This appliance must be connected to the
specified vent and termination cap to the
outsideofthebuildingenvelope.Nevervent
to another room or inside a building. Make
sure that the vent is fitted as per Venting
instructions.
5) Inspect the venting system annually for
blockage and any signs of deterioration.
6) Ventingterminalsshallnotberecessedinto
a wall or siding.
7) Any safety glass removed for servicing
must be replaced prior to operating the
appliance.
8) To prevent injury, do not allow anyone who
is unfamiliar with the operation to use the
fireplace.
9) Wear gloves and safety glasses for pro-
tection while doing required maintenance.
10)Be aware of electrical wiring locations in
walls and ceilings when cutting holes for
termination.
11)Under no circumstances should this appli-
ance be modified. Parts that have to be
removed for servicing should be replaced
prior to operating this appliance.
12)Installationandanyrepairstothisappliance
should be done by an authorized service
person. A professional service person
should be called to inspect this appliance
Emissions from burning wood or gas could
contain chemicals known to the State of
California to cause cancer, birth defects or
other reproductive harm.

Regency P48-1 Zero Clearance Direct Vent Gas Fireplace
6
INSTALLATION
Diagram 1
UNIT SPECIFICATIONS
This includes:
1) Clockingtheappliancetoensurethecorrect
firing rate (rate noted on label 51,000 (NG)
Btu/h, 48,000 (LP) Btu/h) after burning ap-
pliance for 15 minutes.
2) If required, adjusting the primary air to en-
sure that the flame does not carbon. First
allow the unit to burn for 15-20 min. to
stabilize.
CAUTION: Any alteration to the product
that causes sooting or carboning that
results in damage is not the responsibil-
ity of the manufacturer.
MANUFACTURED
MOBILE HOME
ADDITIONAL
REQUIREMENTS
1) Ensure that structural members are not cut
or weakened during installation.
2) Ensure proper grounding using the #8
ground lug provided. See page 32.
LOCATING YOUR
GAS STOVE
1) When selecting a location for your stove,
ensurethat the clearances outlinedonthis
page are met.
2) Provide adequate clearances for servic-
ing.
3) The appliance must be installed on a flat,
solid, continuous surface (e.g. wood, met-
al, concrete). This may be the floor, or
raised up on a platform to enhance its
visualimpact.Iftheapplianceisgoingtobe
installed on carpeting, combustible linole-
um tile or other combustible material other
than wood flooring, the appliance must be
installed on a metal or wood panel extend-
ing the full width and depth of the appli-
ance.
4) The P48-1 Direct Vent Gas Fireplace can
beinstalledinarecessedpositionorframed
out into the room as in A, B, C, D. See
Diagram1.
HEARTH
Ahearthisnotmandatory,butisrecommended
for aesthetics and for added safety.
5) ThisapplianceisListedforbedroom instal-
lations when used with a Listed Millivolt
Thermostat. Some areas may have further
requirements, check local codes before
installation.
6) The P48-1 Direct Vent Gas Fireplace is
approved for alcove installations, which
meet the clearances listed on this page.
7) Werecommend that you plan yourinstalla-
tion on paper using exact measurements
for clearances and floor protection before
actually installing this appliance. Have an
authorized inspector, dealer, or installer
review your plans before installation.
Note: For vent terminations see page 11.
OPTIONAL
DUCT SYSTEM
KIT #946-556
The HeatWave Air Duct Kit increases the
effectiveness of your fireplace by dispersing
warm air from the fireplace to remote locations
inthesameroom or other rooms inyour home.
Upto twokitsmaybeinstalledonthefireplace.
Please Note: Only 1 HeatWave kit may be
operatedatonetime. Thisincludestheinternal
blower option as well.
A) Flat on Wall
B) Flat on Wall Corner
C) Recessed into
Wall/Alcove
D) Corner
OPTIONAL
HEAT RELEASE
KIT #946-570
TheHeat ReleaseKitexpelswarmairfrom the
fireplace to the outside of the building, allowing
the fireplace to be operated with less heat
enteringtheroom.Thekitmaybeusedoneither
the left or right side.

Regency P48-1 Zero Clearance Direct Vent Gas Fireplace 7
INSTALLATION
The HeatWave Duct Kit
and the Heat Release
Kit have different clear-
ance and framin require-
ments, check the Heat-
Wave and Heat Release
manual for details.
Heat Release Kit
CLEARANCES
The clearances listed below are Minimum distances unless otherwise stated:
A major cause of chimney related fires is failure to maintain required clearances (air space) to combustible materials. It is of
the greatest importance that this fireplace and vent system be installed only in accordance with these instructions.
Clearance to Combustibles from:
Back 0" (0mm)
Side 0" (0mm)
Floor 0" (0mm)
Minimum Clearance from Top of Front Facing:
Mantel min.8" (203mm)
Ceiling 39" (990mm) from top of front facing above louvers.
Side Wall: 6" (152mm)
Horizontal Vent Clearances:
Top 2-1/2" (64mm)
Side 1-1/2" (38mm)
Bottom 1-1/2" (38mm)
Vertical Vent Clearances:
1-1/4" (32mm)
Alcove Clearances:
Max. Depth 36" (914mm)
Min. Width 60" (1524mm)
Min. Height 80" (2032mm)
Caution Requirements
The top, back and sides of the fireplace are defined by
standoffs. The metal ends of the standoff may NOT be
recessed into combustible construction.
WARNING
Fire hazard is an extreme risk
if these clearances (air space) to combustible materials
are not adhered to. It is of greatest importance that this
fireplace and vent system be installed only in
accordance with these instructions.

Regency P48-1 Zero Clearance Direct Vent Gas Fireplace
8
MANTELS
Because of the extreme heat this fireplace emits, the mantel clearances are critical. Combustible mantel clearances from louver are
shown in the diagram below.
Note: A non-combustible mantel may be installed at a lower height if the framing is made of metal studs covered with a non-
combustible board.
This drawing is to scale at 1:6 (one inch = 6
inches)
Mantel can be installed anywhere in shaded
area using the above scale for units with the
Flush Front and with the optional Bay Front.
Note: Ensure the paint that is used on
the mantel and the facing is "heat
resistant" or the paint may discol-
our.
Maximum
1-1/2" projection at 3"
minimumclearance.
MANTEL LEG CLEARANCES
Combustible mantel leg clearances as per diagram:
INSTALLATION

Regency P48-1 Zero Clearance Direct Vent Gas Fireplace 9
INSTALLATION

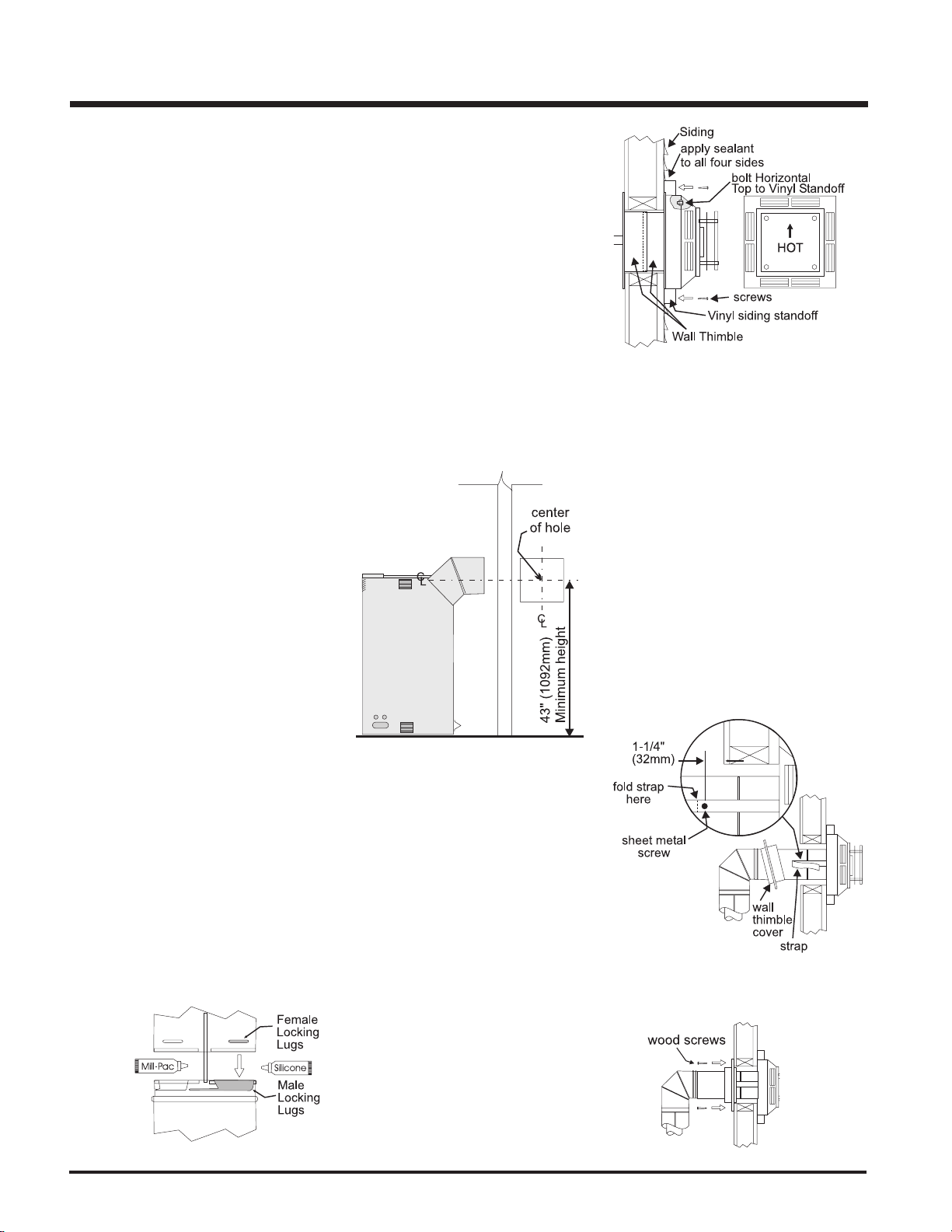

Note: 43" (1092mm) is the minimum height for flex termination
and Simpson Dura-Vent terminations.
Diagram 1
1) Determine the total thickness of facing material (eg. drywall plus
ceramic tiles) to allow the finished surface to be flush with the front
of the unit. Total facing thickness can vary from 1/2" (13mm) to
1-1/4" (32mm) thick.

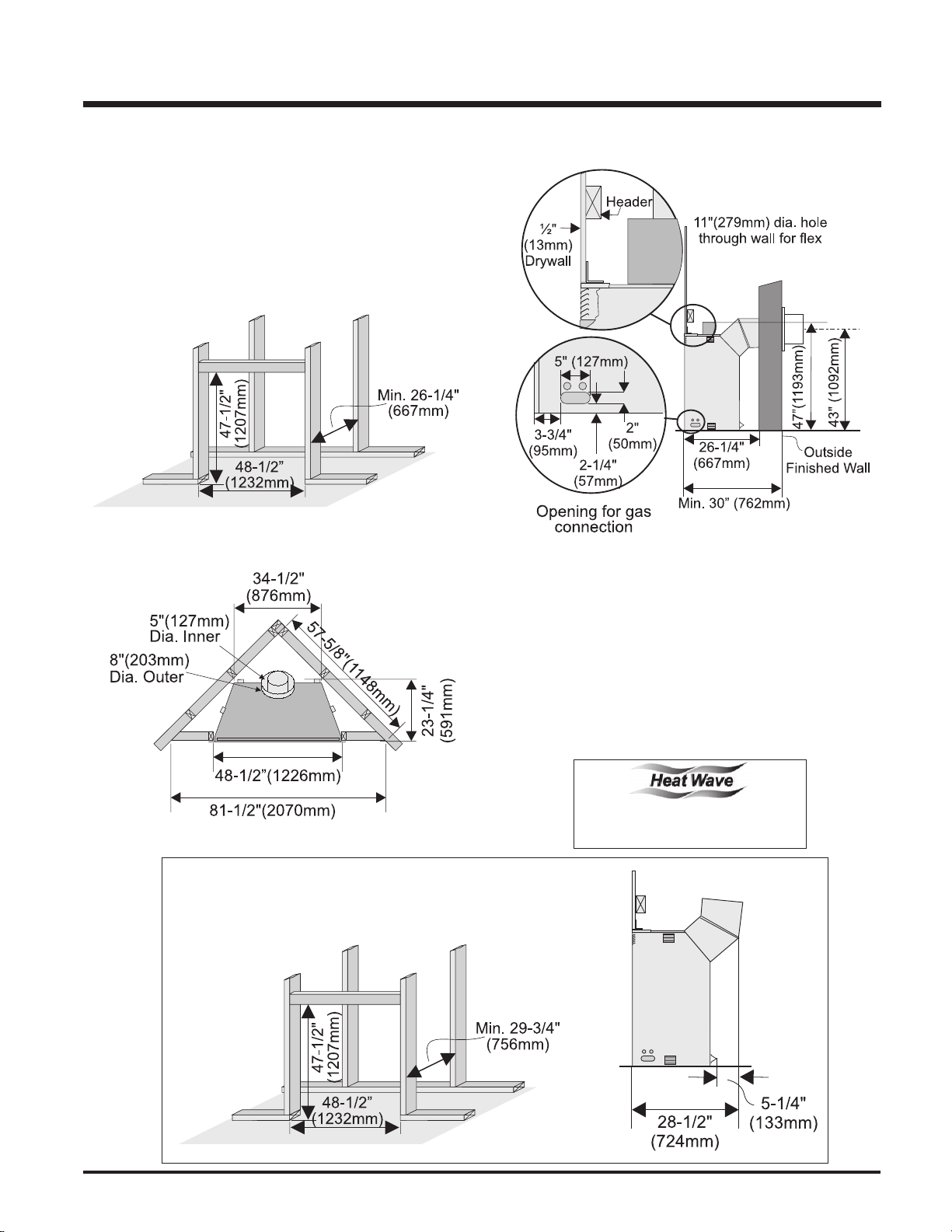

2) Frame in the enclosure for the unit with framing material. The framed
opening for the assembled kit is 47-1/2" high x 48-1/2" wide x
26-1/4"deep (1207mm H x1232mmWx667mm D). SeeDiagram1.
3) For exterior walls, insulate the enclosure to the same degree as the
rest of the house, apply vapour barrier and drywall, as per local
installation codes. (Do not insulate the fireplace itself.)
4) The unit does not have to be completely enclosed in a chase. The
clearance on top of the unit from the top standoffs is 0" so
combustible building materials can be laid directly on top of the
standoffs. You must maintain clearances from the vent to combus-
tiblematerials:Seepage7.Combustiblematerialscanbelaidagainst
the side and back standoffs and the stove base.
FRAMING & FINISHING
IMPORTANT
When installing the unit with any vertical venting off the top of the
unitas shown, the minimum framingdepth changesaccordingly.
The HeatWave Duct Kit has different
clearance and framing requirements,
check the HeatWave manual for details.

Regency P48-1 Zero Clearance Direct Vent Gas Fireplace
10
VENTING
INTRODUCTION
The P48-1 uses the "balanced flue" tech-
nology Co Axial system. The inner liner vents
productsofcombustiontotheoutsidewhilethe
outer liner draws outside combustion air into
the combustion chamber thereby eliminating
theneedtouseheatedroomairfor combustion
and losing warm room air up the chimney.
Note: These flue pipes must not be con-
nected to any other appliance.
The gas appliance and vent system must be
vented directly to the outside of the building,
and never be attached to a chimney serving a
separate solid fuel or gas burning appliance.
Each direct vent gas appliance must use it's
own separate vent system. Common vent
systems are prohibited.
Screw Facing Material
Position Depth
A 1/2" / 13mm
B 7/8" / 22mm
C*1-1/4" / 32mm
"C" Screw Position:
For a facing material depth of 1-1/4"
(32mm), the top facing support must be
reversed.
UNIT ASSEMBLY
PRIOR TO
INSTALLATION
TheTopFacingSupport,theSideNailingStrips
and the 2 Top Standoffs must be correctly
positioned and attached to the top before unit
is slipped into position.
TopStandoffAssembly
The top standoffs are shipped in a flat position
and must be folded into shape and attached.
1) Remove the standoffs from the fireplace
top.
2) Take each standoff and bend into the cor-
rect shape. Bend up at the bend lines until
the screw holes in the standoff and the pre-
punched screw holes on the fireplace top
line up.
3) Attach the standoff securely to the top with
2 screws per standoff (on opposite cor-
ners).
Top Facing Support and
Side Nailing Strips
Determine the total thickness of facing material
(e.g. drywall plus ceramic tiles) to allow the
finished surface to be flush with the front of the
unit. Total facing thickness can vary from 1/2"
(13mm) to 1-1/4" (32mm) thick.
The Top Facing Support & Side Nailing Strips
canbemountedin3differentpositionsdepend-
ing on the thickness of the facing material.
*For "C" screw position the top facing support
is reversed.
1) Mount Top Facing Support using the 3
suppliedscrewsintothethreepre-punched
screw holes on the top front of the unit. Use
holepositionsA, B, or Cdependingon your
facing depth.
2) Use the same screw hole position for the
Side Nailing Strips as was used for the Top
Facing Support. Attach each side nailing
strip using 3 screws.
INSTALLATION

Regency P48-1 Zero Clearance Direct Vent Gas Fireplace 11
INSTALLATION
EXTERIOR VENT TERMINATION REQUIREMENTS
.
BB
B
B
A
C
V
V
V
V
V
VV
A
A
V
Fixed
Fixed
Openable
Closed Closed
Openable
NL
B
E
B
M
D
F
K
H
j
Vertical
Termination
V
Vent terminal Area where terminal is not permited
A
Air supply outlet
24"
V
A
G
Inside
corner detail
V
24"
18"
Vertical
Termination
A= Clearance above grade, veranda, porch, deck, or balcony *(min. 12"/30cm) B= Clearance to window or door that may be opened *(12"/30cm) C= Clearance to permanently closed window *(min. 12"/30cm) D= Vertical clearance to ventilated soffit located above the terminal within a horizontal
distance of 24"/60cm (min. 23"/58cm) (32"/81cm with vinyl siding)
E= Clearance to unventilated soffit (min. 23"/58cm) (32"/81cm with vinyl siding) F= Clearance to outside corner: (13"/33cm) G= Clearance to inside corner: (13"/33cm)
H= Nottobeinstalledaboveameter/regulatorassemblywithin(3'/90cm)horizontallyfrom
the centerline of the regulator.
J= Clearance to service regulator vent outlet *(min 36"/90cm) K= Clearance to non-mechanical air supply inlet to building or the combustion air inlet to
any other appliance *(12"/30cm)
L= Clearance to a mechanical air supply inlet *(min. 72"/1.8m) M= Clearance above paved sidewalk or a paved driveway located on public property
*(min. 84"/2.1m)
N= Clearance under veranda, porch, deck, or balcony *(min. 23"/58cm)
Note: - A vent shall not terminate directly above a sidewalk or paved driveway which is located between two single family dwellings and serves both dwellings. - Only permitted if veranda, porch, deck, or balcony is fully open on a minimum of two sides beneath the floor. - If the vent termination is accessible, a certified guard shall be installed. * As specified in CGA B149 Installation Code. Note: Local codes or regulations may require different clearances.

Regency P48-1 Zero Clearance Direct Vent Gas Fireplace
12
VENTING
Regency Direct Vent System (Flex) Horizontal
Terminations Only
These venting systems, in combination with the P48-1 Direct Vent Gas Fireplace, have been tested and listed as a direct vent heater system by
Warnock Hersey. The location of the termination cap must conform to the requirements in the Vent Terminal Locations diagram on page 11.
Regency Direct Vent (Flex) System Termina-
tion Kit (Part# 946-615) includes all the parts
needed to install the P48-1 with a maximum
run of 4 feet.
1) 8" dia. flexible liner (4 ft. length)
2) 5" dia. flexible liner (4 ft. length)
3) spring spacers (4)
4) thimble (2)
5) AstroCap XL termination cap (1)
6) screws (12)
7) tube of Mill Pac (1)
8) plated screws (8)
9) screws #8 x 1-1/2" Drill Point, Stainless Steel (4)
10)vinyl siding standoff
If longer runs are needed, the Regency Direct
Vent system (Flex) Part# 946-616 includes all
the parts needed to install the P48-1 with a
maximum 10' run.
1) 8" dia. flexible liner (10 ft. length)
2) 5" dia. flexible liner (10 ft. length)
3) spring spacers (7)
4) thimble (2)
5) AstroCap XL termination cap (1)
6) screws (12)
7) tube of Mill Pac (1)
8) plated screws (8)
9) screws #8 x 1-1/2" Drill Point, Stainless Steel (4)
10)vinyl siding standoff
Notes:
1) Liner sections should be continuous without any joints or seams.
2) Only Flex pipe purchased from Regency may be used for Flex installations.
3) If you are installing the P48-1 into a Regency Mantel Kit, use the minimum horizontal vent height (centre-line of 43"). Remember
to include the mantel base in your calculations and to maintain the 2-1/2" clearance to the underside of the mantel top.
INSTALLATION

Regency P48-1 Zero Clearance Direct Vent Gas Fireplace 13
INSTALLATION
SIMPSON DURA-VENT VENTING
HorizontalorVerticalTerminations
The Simpson Dura-Vent Direct Vent System offers a complete line of component parts for installation of both horizontal and vertical installations.
Many items are offered in decorative black, as well as galvanized finish. We recommend using the galvanized finish for installation with the P48-
1.
Theminimumcomponentsrequiredforabasic
horizontal termination are:
1 HorizontalTermination Cap
145
oElbow
1 Flue Adaptor
1 WallThimble
1 Length of pipe to suit wall thickness
(see chart)
Wall thickness is measured from the back
standoffs to the inside mounting surface of
termination cap. For siding other than vinyl
furring strips may be used, instead of the vinyl
siding standoff, to create a level surface to
mounttheventterminal.TheTerminalmustnot
be recessed into siding. Measure the wall
thickness including furring strips.
Ifa Vinyl Siding Standoffisrequired (it must be
used with vinyl siding), measure to outside
surface of wall without siding and add 2
inches.
Flat Wall Installation
Wall Thickness Vent Length
(inches) Required (inches)
4" - 5-1/2" none
7" - 8-1/2" 6"
10" - 11-1/2" 9"
9" - 14-1/2" 12"
15" - 23-1/2" 11" - 14-5/8" Adj. Pipe
Alternate
Horizontal Termination
Caps
Part # Description
1208B 6" Pipe Length-Black
1207B 9" Pipe Length-Black
1206 12" Pipe Length Galv.
1206B 12" Pipe Length-Black
1204 24" Pipe Length Galv.
1204B 24" Pipe Length-Black
1203 36" Pipe Length Galv.
1203B 36" Pipe Length-Black
1202 48" Pipe Length Galv.
1202B 48" Pipe Length-Black
1211B 11"-14 5/8" Adj./P/L-Black
1217B 17"- 24" Adj. Length Black
Part # Description
1245 45O Elbow Galv.
1245B 45OElbow-Black
1245G 45O Elbow-Swivel Galv.
1245BG 45OElbow-Swivel-Black
1290 90O Elbow Galv.
1290B 90OElbow-Black
1290G 90O Elbow-Swivel Galv.
1290BG 90OElbow-Swivel-Black
1291 High Wind Term. Cap (Vertical Only)
1285 Horiz.Sq.HighWindTrm.Cap (Only)
1282 Snorkel-14" Rise Term.Cap
SIMPSON DURA-VENT VENTING
COMPONENTS LIST
Part # Description
1281 Snorkel-36" Rise Term.Cap
1240 WallThimble-Suprt/Box
1241 Cathdrl/Clng-Sprt/Box
3951 BrassTrimforWallThimble/CeilingSupport
1263 Firestop Spacer
1243 Flashing 0/12-6/12
1243S Flashing 7/12-12/12
1253 StormCollar
1250 Vinyl Siding Standoff
1288 Wall Strap
1247 WallThimble
Parts not supplied by Dura-Vent
770-994 Dura-Vent Flue Adaptor

Regency P48-1 Zero Clearance Direct Vent Gas Fireplace
14
INSTALLATION
VENTING ARRANGEMENTS - HORIZONTAL TERMINATIONS
SIMPSON DURA-VENT DIRECT VENT GS SYSTEM and
REGENCY DIRECT VENT SYSTEM (FLEX)
(Propane & Natural Gas)
The diagram shows all allowable combinations of vertical runs with horizontal terminations, using one 45oand one 90oelbow (two 45o elbows equal
one 90oelbow).
Note: Must use optional flue adapter (Part # 770-994) when using Simpson Dura-Vent pipe. (Refer to page 13.)
Simpson Dura-Vent
5" inner diameter
8" outer diameter
Regency Flex Vent
5" inner diameter
8" outer diameter
• Maintain clearances to combustibles as listed on pages 6 to 9.
• Horizontal vent must be supported every 3 feet.
• Firestops are required at each floor level and whenever passing through a wall.
A vent guard should be used when-
evertheterminationislowerthanthe
specified minimum or as per local
codes.
Note: Regency Direct Vent System
(Flex) is only approved for hor-
izontal terminations.

Regency P48-1 Zero Clearance Direct Vent Gas Fireplace 15
INSTALLATION
Horizontal Venting with Two (2) 90oElbows
Option V H + H1
A) 1' Min. 3' Max.
B) 2' Min. 4' Max.
C) 3' Min. 5' Max.
D) 4' Min. 6' Max.
E) 5' Min. 7' Max.
F) 6' Min. 8' Max.
Horizontal Venting with Two (2) 90oElbows
Option H V H + H1
A) 1'Max. 1' Min. 3' Max.
B) 2'Max. 2' Min. 5'Max.
C) 3'Max. 4' Min. 6'Max.
D) 4'Max. 6' Min. 7'Max.
E) 5'Max. 8' Min. 8'Max.
Horizontal Venting with Three (3) 90oElbows
Option H V H + H1 + H2
A) 1 Max. 1' Min. 3' Max.
B) 2'Max. 3' Min. 5' Max.
C) 3'Max. 5' Min. 6' Max.
D) 4'Max. 7' Min. 7' Max.
E) 5'Max. 9' Min. 8' Max.
F) 6'Max. 11' Min. 9' Max.
Withtheseoptions,max.
total pipe length is 30
feet with min. of 11 feet
total vertical and max. 9
feet total horizontal.
Please note min.
1 foot between 90o
elbows is required.
With these options, max.
total pipe length is 30 feet
with min. of 8 feet total
vertical and max. 8 feet
total horizontal.
Please note min. 1 foot
between 90oelbows is
required.
With these options, maxi-
mum total pipe length is 30
feet with minimum of 6 feet
totalvertical and maximum
8 feet total horizontal.
Please note minimum 1
foot between 90oelbows
is required.
One 90oelbow = Two 45oelbows.
One 90oelbow = Two 45oelbows.
One 90oelbow = Two 45oelbows.

Regency P48-1 Zero Clearance Direct Vent Gas Fireplace
16
INSTALLATION

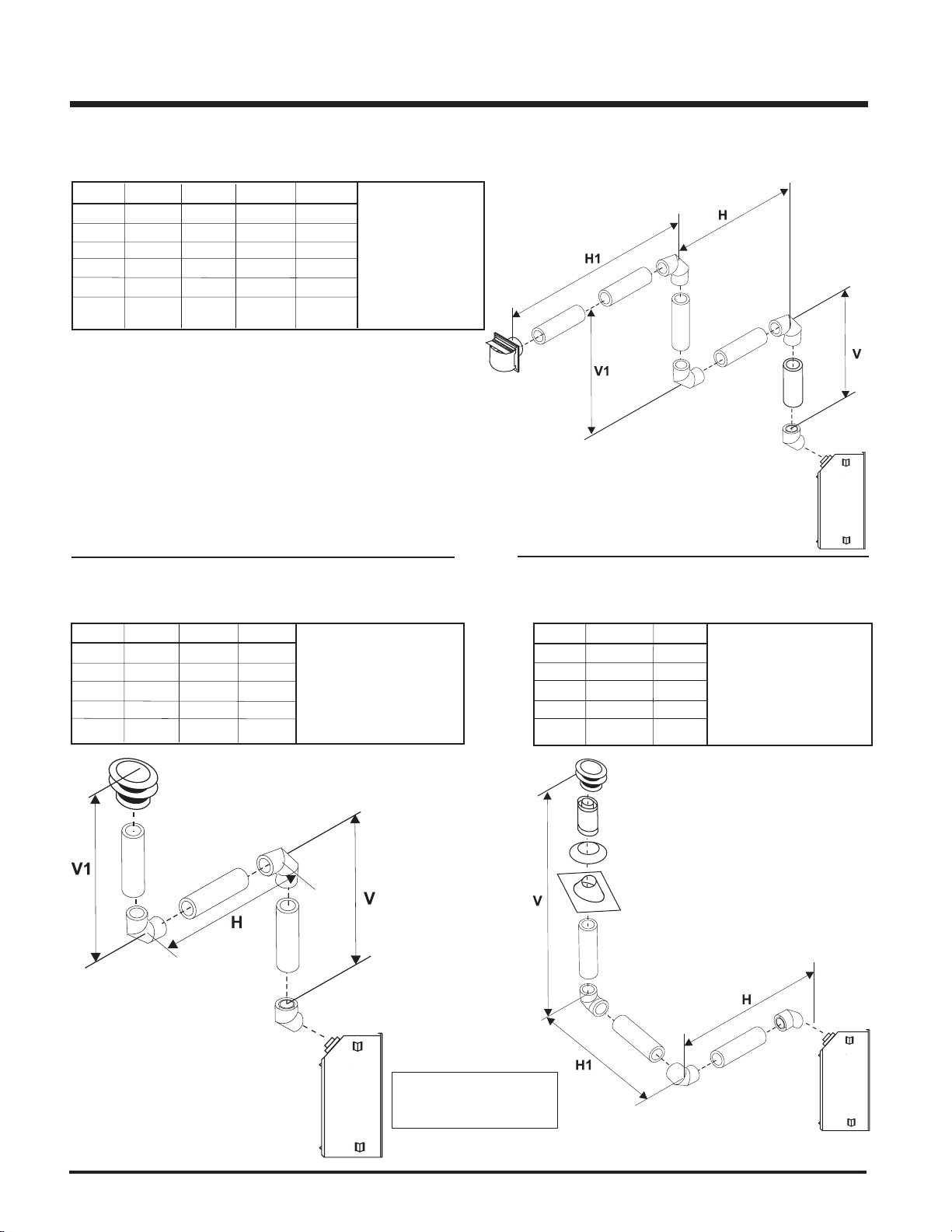

Horizontal Venting with Three (3) 90oElbows
Option V H V + V1 H + H1
A) 2' Min. 1'Max. 3' Min. 4'Max.
B) 3'Min. 2'Max. 4'Min. 5'Max.
C) 4'Min. 3'Max. 6' Min. 6'Max.
D) 5'Min. 4'Max. 8' Min. 7'Max.
E) 6'Min. 5Max. 10' Min. 8'Max.
F) 7'Min. 6'Max. 12' Min. 9'Max.
Vertical Venting with Two (2) 90oElbows
Option V H V + V1
A) 1'Min. 4'Max. 2'Min.
B) 2'Min. 5'Max. 3'Min.
C) 3'Min. 6'Max. 4'Min.
D) 4'Min. 7'Max. 5'Min.
E) 5'Min. 8'Max. 6'Min.
Vertical Venting with Two (2) 90oElbows
With these options, max. total
pipelength is 30feetwithmin.
of6feettotalverticalandmax.
8 feet total horizontal.
Please note min. 1 foot
between 90oelbows is re-
quired.
Option H + H1 V
A) 2'Max. 2' Min.
B) 3'Max. 3' Min.
C) 4'Max. 4' Min.
D) 5'Max. 5' Min.
E) 6'Max. 6' Min.
Withtheseoptions,max.total
pipelengthis30feetwithmin.
of 6 feet total vertical and
max. 6 feet total horizontal.
Please note min. 1 foot
between 90oelbows is re-
quired.
One 90oelbow = Two 45oelbows.
One 90oelbow = Two 45oelbows. One 90oelbow = Two 45oelbows.
Foradditionalverticalvent-
ing with 2 x 90oelbows,
refer to page 18.
With these options,
max. total pipe length
is 30 feet with min. of
12 feet total vertical
and max. 9 feet total
horizontal.
Please note min. 1
foot between 90o
elbows is required.

Regency P48-1 Zero Clearance Direct Vent Gas Fireplace 17
INSTALLATION

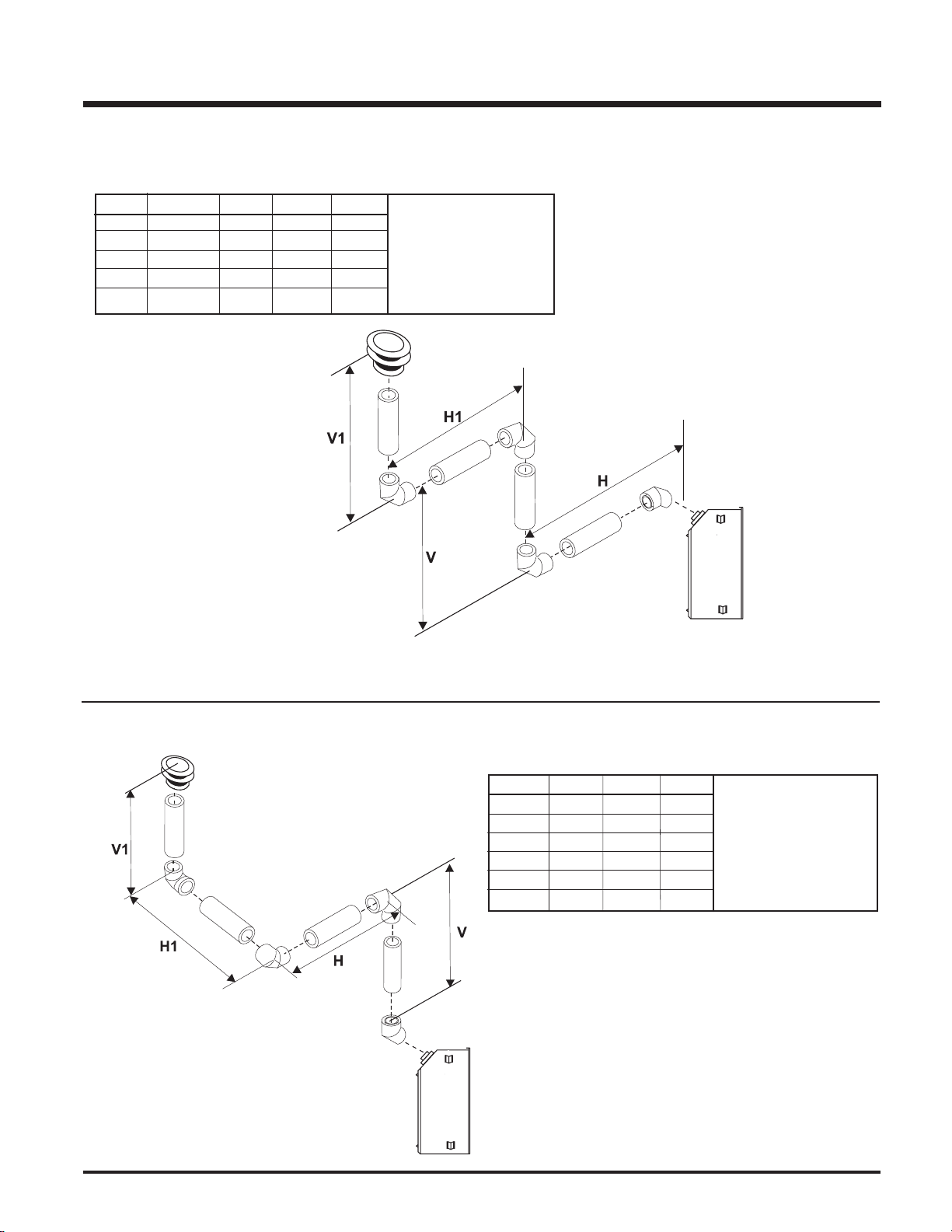

Vertical Venting with Three (3) 90oElbows
Option V H + H1 V + V1
A) 2'Min. 3'Max. 4'Min.
B) 3'Min. 4'Max. 6' Min.
C) 4'Min. 5'Max. 7'Min.
D) 5'Min. 6'Max. 8'Min.
E) 6'Min. 7'Max. 9' Min.
F) 7'Min. 8'Max. 10' Min.
With these options, max. to-
tal pipe length is 30 feet with
min. of 10 feet total vertical
andmax.8feettotalhorizon-
tal.
Please note min. 1 foot
between 90oelbows is re-
quired.
Vertical Venting with Three (3) 90oElbows
Option H V H + H1 V + V1
A) 1'Max. 1'Min. 3'Max. 3' Min.
B) 2'Max. 2' Min. 4'Max. 5' Min.
C) 3'Max. 3'Min.' 5'Max. 7' Min.
D) 4'Max. 4'Min. 6'Max. 9' Min.
E) 5'Max. 5' Min. 7'Max. 11' Min.
Withtheseoptions,max.total
pipelengthis30feetwithmin.
of 11 feet total vertical and
max. 7 feet total horizontal.
Please note min. 1 foot
between 90oelbows is re-
quired.
One 90oelbow = Two 45oelbows.
One 90oelbow = Two 45oelbows.

Regency P48-1 Zero Clearance Direct Vent Gas Fireplace
18
INSTALLATION
• Vent must be supported at offsets.
• Firestops are required at each floor level and whenever passing through a wall.
• Maintain clearances to combustibles.
Note: Must use optional flue adapter when using Simpson Dura-Vent pipe (Part # 510-994).
VENTING ARRANGEMENTS - VERTICAL TERMINATIONS
SIMPSON DURA-VENT DIRECT VENT GS SYSTEM
(Propane & Natural Gas)
The shaded area in the diagram shows all allowable combinations of straight vertical and offset to vertical terminations , using two 90oelbows,
with Simpson Dura-Vent Direct Vent GS vent systems for Propane and Natural Gas.

Regency P48-1 Zero Clearance Direct Vent Gas Fireplace 19
INSTALLATION

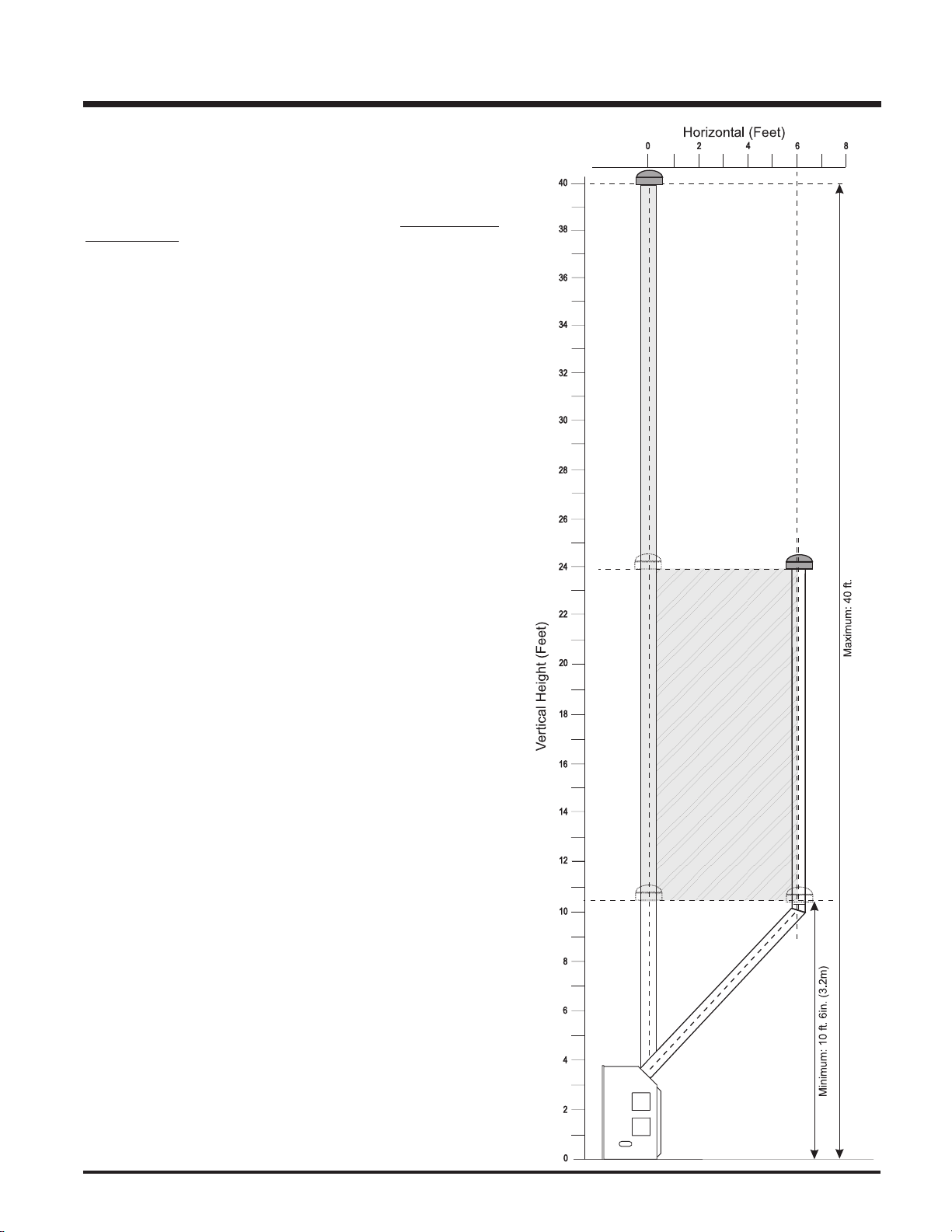

The P48-1 is approved for a maximum 40 ft. straight vertical, with Simpson
Dura-Vent Direct Vent GS vent systems for Propane and Natural Gas, as
per diagram.
The shaded area in the diagram shows all allowable combinations of straight
vertical and offset to vertical terminations with Simpson Dura-Vent Direct
Vent GS vent systems for Propane and Natural Gas. Maximum two 45o
elbows allowed.
• Vent must be supported at offsets
• Firestops are required at each floor level and whenever passing
through a wall.
• Maintain clearances to combustibles as listed on pages 6 to 9.

Regency P48-1 Zero Clearance Direct Vent Gas Fireplace
20
Diagram 7
Diagram 6
9) Install wall thimble in the center of the 11"
(279mm) square and attach with wood
screws (Diagram 7).
Diagram 5
6) The arrow on the vent cap should be
pointing up. Insure that the 1-1/4"(32mm)
clearances to combustible materials are
maintained(Diagram5).Installthetermina-
tion cap.
Note: If installing termination on a siding
covered wall, a vinyl siding stand-
off or furring strips must be used
to ensure that the termination is
not recessed into the siding.
The four wood screws provided should be
replaced with appropriate fasteners for
stucco, brick, concrete, or other types of
sidings.
7) Before connecting the horizontal run of
vent pipe to the vent termination, slide the
Wall Thimble (Part # 1247) over the vent
pipe.
8) Slide the appliance and vent assembly to-
wards the wall carefully inserting the vent
pipeinto thevent cap assembly.It is impor-
tant that the vent pipe extends into the vent
cap sufficient distance so as to result in a
minimum pipe overlap of 1-1/4 inches
(32mm). Secure the connection between
the vent pipe and the vent cap by attaching
the two sheet metal strips extending from
the vent cap assembly into the outer wall of
the vent pipe. Use the two sheet metal
screws provided to connect the strips to
the pipe section. See Diagram 6.
INSTALLATION
HORIZONTAL
INSTALLATIONS
Install the vent system according to the manu-
facturer's instructions included with the com-
ponents.
1) Settheunitin its desired location. Checkto
determine if wall studs or roof rafters are
in the way when the venting system is
attached. If this is the case, you may want
to adjust the location of the unit. Rough in
the gas preferably on the right side of the
unit and the electrical (junction block is on
the left side) on the left.
2) Direct Vent pipe and fittings are designed
with special twist-lock connections to con-
nect the venting system to the appliance
flue outlet. A twist-lock appliance adaptor
is an available option that must be used in
conjunction with the Simpson Dura-Vent
Direct Vent GS system. Install the adaptor
after the unit is set in its desired location
otherwise the unit will not fit through the
36-5/8" (930mm) high frame opening.
3) Put a bead of silicone inside the outer
section of the adapter and a bead of Stove
Mate on the inner collar. Slip the adapter
over the existing inner and outer flue collar
and fasten to the outer collar only with the
3 supplied screws (drilling pilot holes will
make this easier). Level the fireplace and
fastenittotheframingusingnailsorscrews
through the nailing strips.
4) Assemble the desired combination of pipe
and elbows to the appliance adaptor and
twist-lock for a solid connection.
Note:
a) Twist-lock procedure: Four indenta-
tions, located on the female ends of
pipesandfittings,aredesignedto slide
straight onto the male ends of adjacent
pipes and fittings, by orienting the four
pipe indentations so they match and
slide in to the four entry slots on the
male ends. (Diagram 1) Push the pipe
sections completely together, then
twist-lock one section clockwise ap-
proximately one-quarter turn, until the
two sections are fully locked. The fe-
malelockinglugswillnotbevisiblefrom
theoutside,ontheBlackPipeorfittings.
Diagram 1
They may be located by examining the
inside of the female ends.
Note: Apply sealant "Mill-Pac" to inner
pipe and high temp silicone seal-
ant to outer pipe on every twist-
lock joint.
b) Horizontal runs of vent must be sup-
ported every 3 feet (0.9meter). Wall
straps are available for this purpose.
5) Mark the wall for a 11" x 11" (279mm x
279mm) square hole. The center of the
square hole should line up with the center-
lineofthehorizontalpipe.Cutandframethe
11inch (279mm)squareholeintheexterior
wall where the vent will be terminated.
If the wall being penetrated is constructed
of non-combustible material, i.e. masonry
block or concrete, a 8" (203mm) diameter
hole is acceptable.
Diagram 2
Note:
a) Thehorizontalrunofventmustbelevel,
or have a 1/4 inch rise for every 1 foot
of run towards the termination. Never
allow the vent to run downward. This
could cause high temperatures and
may present the possibility of a fire.
b) The location of the horizontal vent ter-
mination on an exterior wall must meet
alllocalandnationalbuildingcodes,and
must not be blocked or obstructed. For
External Vent Terminal Locations, see
diagram on page 11.
