Light Kit for McLaren Senna GTR #42123
Installation Guide

Hi There!
We’re here to help you get started on the Light Kit for LEGO®
TECHNIC McLaren Senna GTR #42123 INSTALLATION GUIDE.
This PDF details the instructions for the LED light kit only. If you
are wishing to purchase this product, please go to our webaite
at: www.regodesign.net.
If you run into any issues, please refer to the troubleshooting
section towards the end of this guide or contact us at email:
[email protected].
Enjoy!
Light Kit for McLaren Senna GTR #42123
INSTALLATION GUIDE
Light Kit for McLaren Senna GTR #42123 Installation Guide
INSTRUCTIONS 2

4 x 15cm White Dot Light
2 x 30 cm Red HeadLight
2 x 15cm Slow Flash Light
1 x 30 cm Slow Flash Light
LEGO PIECES:
1 x 12-Port Expansion Board
1 x USB Power Cable
1 x Battery Case (Battery not included)
Light Kit for McLaren Senna GTR #42123 Installation Guide
PACKAGE CONTENTS:
INSTRUCTIONS
2 x LED Warm White Strip Light
3
1 x 5cm Connecting Cable
1 x 30cm Connecting Cable
x 3
x 3
Viscous Accessories

Light Kit for McLaren Senna GTR #42123 Installation Guide
Contents
Before You Begin
Instructions
Final Product
Troubleshooting
Contact
15
16
5
8
20
INSTRUCTIONS 4

Cables can fit in between and underneath
LEGO® bricks, tiles, and plates providing they are
laid correctly between the LEGO® studs.
Please be careful when join LEGO® together
around cables; instead ensure they are laying
comfortably in between each stud.
CAUTION: You can't use force on LEGO® to
connect over a cable or it will result in damaging
the cable and light.
Please paid extra care when inserting connectors to
ports of Expansion Boards. When connectors can be
inserted only one way and it is the right way. With
the expansion board facing up, look for the soldered
“=” symbol on the left side of the port. The connector
side with the wires exposed should be facing toward
the soldered “=” symbol as you insert into the port. If
a plug won’t fit easily into a port connector, which it
should. PLEASE DO NOT FORCE IT.
Incorrectly inserting the connector will result in bent
pins inside the port or even overheating of the
expansion board when connected. So please don't
do it.
Laying cables in between and
underneath bricks
Connecting Cable Connectors
To Expansion Boards
INSTRUCTIONS
Light Kit for McLaren Senna GTR #42123 Installation Guide
5
Before You Begin

Light Kit for McLaren Senna GTR #42123 Installation Guide
Before You Begin
Connecting Cable
Connectors To Strip Lights
Please take extra care when inserting
connectors to ports on the Strip Lights. When
connectors can be inserted only one way and
it is the right way. With the Strip Light is
facing up, please ensure the side of the
connector with the wires exposed is facing
down. If a plug won’t fit easily into a port
connector, which it should. PLEASE DO NOT
FORCE IT. YOU will damage the plug and the
connector.
INSTRUCTIONS 6

Light Kit for McLaren Senna GTR #42123 Installation Guide
7
When installing Bit Lights under
LEGO® pieces, please ensure
they are placed the correct way
up (Yellow LED component
exposed). You can place them
directly on top of LEGO® studs
or in between. As the picture
show.
INSTRUCTIONS
Installing Bit Lights Under
Lego® Bricks And Plates
Before You Begin

To ensure a correct, quick, and smooth
installation of your light kit, please read
and follow each step carefully.
If you run into any issues, please
refer to the online troubleshooting
guide or just send us a quick email at
[e-mail]
We will answer as soon as possible.
Light Kit for McLaren Senna GTR #42123 Installation Guide
INSTRUCTIONS
INSTRUCTIONS
8

If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the
light or expansion board). To correct any issues with expansion board ports, please view the section addressing expansion board issues in our troubleshooting section.
DISCONNECT CONNECT
RECONNECT TURN / FLIP DIRECTIONAL TWIST / BRAIDPOWER ON TESTNOTE ICON
Light Kit for McLaren Senna GTR #42123 Installation Guide
INSTRUCTIONS
LEGEND
1
9

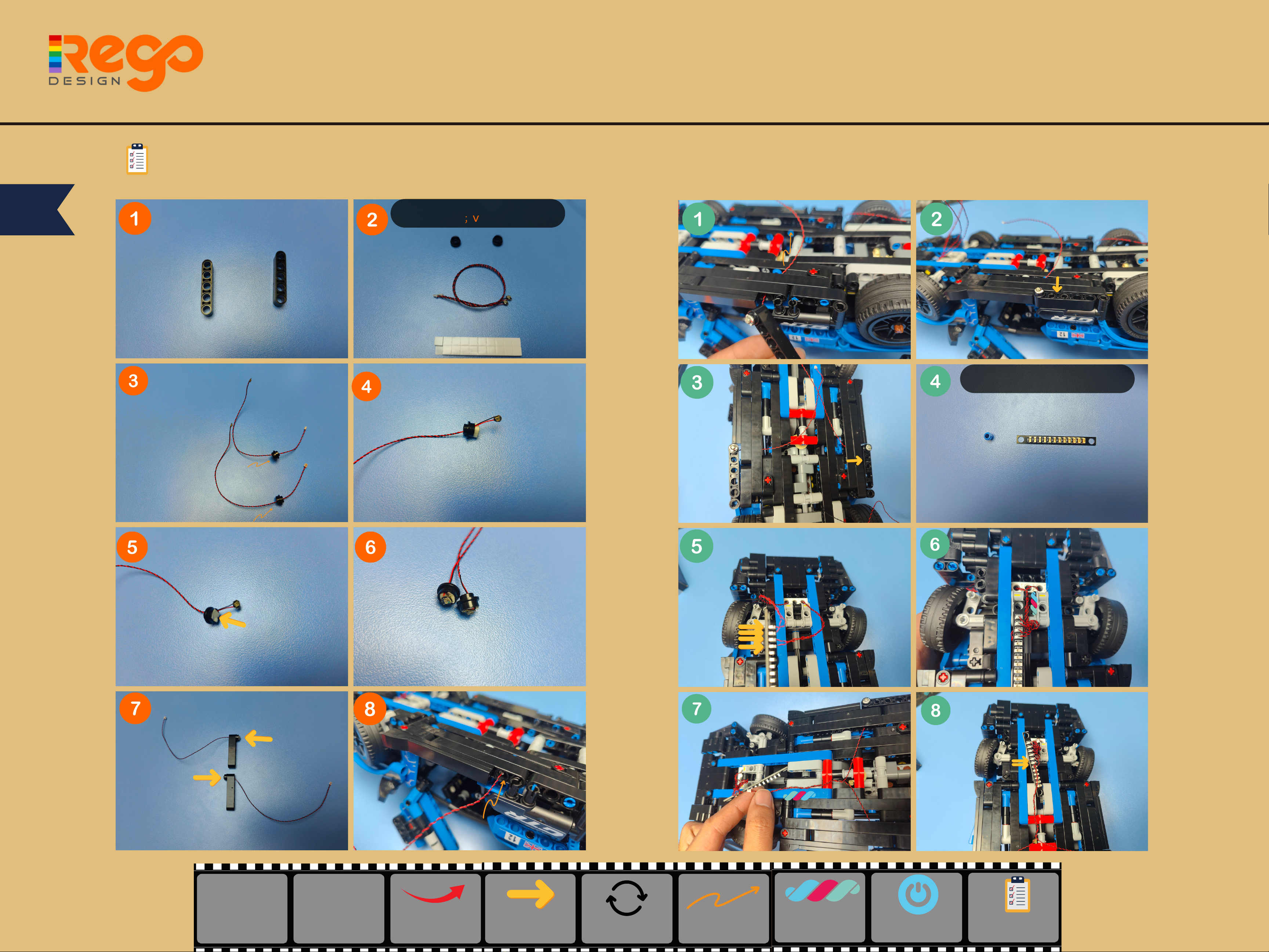

15cm White Dot Light x 4

If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the
light or expansion board). To correct any issues with expansion board ports, please view the section addressing expansion board issues in our troubleshooting section.
DISCONNECT CONNECT
RECONNECT TURN / FLIP DIRECTIONAL TWIST / BRAIDPOWER ON TESTNOTE ICON
Light Kit for McLaren Senna GTR #42123 Installation Guide
INSTRUCTIONS
LEGEND
2
10
30cm Red Headlight x 2
LEGO brick x 2
The lamp bead faces inward.

If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the
light or expansion board). To correct any issues with expansion board ports, please view the section addressing expansion board issues in our troubleshooting section.
DISCONNECT CONNECT
RECONNECT TURN / FLIP DIRECTIONAL TWIST / BRAIDPOWER ON TESTNOTE ICON
Light Kit for McLaren Senna GTR #42123 Installation Guide
INSTRUCTIONS
LEGEND
3
11
30cm Slow Flash Light x 1
Lego Brick x 1 ； Viscous Accessories

If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the
light or expansion board). To correct any issues with expansion board ports, please view the section addressing expansion board issues in our troubleshooting section.
DISCONNECT CONNECT
RECONNECT TURN / FLIP DIRECTIONAL TWIST / BRAIDPOWER ON TESTNOTE ICON
Light Kit for McLaren Senna GTR #42123 Installation Guide
INSTRUCTIONS
LEGEND
4
12
30cm Connecting Cable x 1
5cm Connecting x 1
LED Strip Light Warm White x 2

If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the
light or expansion board). To correct any issues with expansion board ports, please view the section addressing expansion board issues in our troubleshooting section.
DISCONNECT CONNECT
RECONNECT TURN / FLIP DIRECTIONAL TWIST / BRAIDPOWER ON TESTNOTE ICON
Light Kit for McLaren Senna GTR #42123 Installation Guide
INSTRUCTIONS
LEGEND
5
13
15cm Slow Flash Light x 2
Lego Brick x 2 ； Viscous Accessories
12-Port Expansion Board x 1
LEGO Brick

If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the
light or expansion board). To correct any issues with expansion board ports, please view the section addressing expansion board issues in our troubleshooting section.
DISCONNECT CONNECT
RECONNECT TURN / FLIP DIRECTIONAL TWIST / BRAIDPOWER ON TESTNOTE ICON
Light Kit for McLaren Senna GTR #42123 Installation Guide
INSTRUCTIONS
LEGEND
6
14
USB Power Cable x 1

INSTRUCTIONS
Light Kit for McLaren Senna GTR #42123 Installation Guide
This finally completes installation of the Light Kit for TECHNIC McLaren Senna GTR #42123 Installation Guide .
FINAL PRODUCT
15

If you only experiencing issues with your Rego Design set, you
can just read what's underneath for a list of common causes to
help you troubleshoot. If you have extra question, check out User
Guide or send a quick email at [email protected]
Rego Design Lighting kits contain individual components that are
very tiny and can be easily damaged if not handled correctly.
To prevent unnecessary damage to components, we highly recommend for you to check the User
Guide section, “Important things to note” and read carefully. When you follow the procedures in the
User Guide that will help you prevent from all faults and damages to your Rego Design lighting kit
components.
INSTRUCTIONS
TROUBLESHOOTING
16
Light Kit for McLaren Senna GTR #42123 Installation Guide

Check Your Wires
In order for Rego components to fit in between and underneath
LEGO® bricks, the components need to be very tiny. Due to this fact,
Rego Design components can be easily damaged when not handled
correctly.
PLease be careful when removing unpacked components out of the
packaging and please ensure not to forcibe pull the wires as this can
damage the soldering that attach the wires to the LEDs.
If the wiring is detached from the LED itself, the light will not function
correctly. When connecting lights to your LEGO set, please check that
there are no pinched wires underneath or in between bricks and plates.
When the wires are pinched and the exposed wires are touching each
other, this will cause a crosswire and the lights to not function
correctly.
Light Kit for McLaren Senna GTR #42123 Installation Guide
TROUBLESHOOTING
INSTRUCTIONS 17

Inside the battery pack are symbols
indicating which direction the AA
battery should be inserted. The flat side
of the battery should be paired with the
spring side of the battery pack.
If the batteries have been installed
correctly and your kit still isn’t operating
correctly, the next step is to check the
wiring.
First, please ensure that the batteries have
power using a battery charge gauge.
If the batteries have no power, replace the
batteries.
If the batteries still have power, please
check to see if the batteries have been
inserted correctly into the battery pack.
18
Light Kit for McLaren Senna GTR #42123 Installation Guide
Check for AA batteries
using the AA battery pack
TROUBLESHOOTING
INSTRUCTIONS

Check Your Expansion Board
Ports/ Strip Light Ports /
Effects Board Ports
It is important to note that connectors can only be
inserted to the expansion board, strip light, or
effects board ports in one direction. It should be
an easy installation, so if not turn it over. PLEASE
DO NOT FORCE IT.
Not only will a light connected to the damaged
port not work, but if the pins inside the port are
bent to a point they are touching each other, this
can result in all other lights in the system to stop
working. This is a short circuit.
INSTRUCTIONS
Light Kit for McLaren Senna GTR #42123 Installation Guide
TROUBLESHOOTING
19

support.regodesign.us
We thank you for purchasing this product and hope you enjoy!
If you have an enquiry regarding the online shop, our
products or a general enquiry or other simple question,
please refer to our Frequently Asked Questions webpage
here at www.regodesign,net. Alternatively, you can contact
our Customer Services team by email a mail here at:
Light Kit for McLaren Senna GTR #42123 Installation Guide
