Installation Manual
Kit for connecting relay module to RegulusBOX

How to install 4 relays 19401 to RegulusBOX
1. Readtheentireinstructionmanualrst.
2. Have the following tools ready:
• drill with drill bits 3 and 4 mm,
• Phillips screwdriver,
 • asmallatheadscrewdriver,
• kit for connecting relay module.
3. Disconnect RegulusBOX from electricity. Find the circuit breaker upstream of the BOX and turn
 ito󰀨.Verifythattheinputterminalsarede-energized.

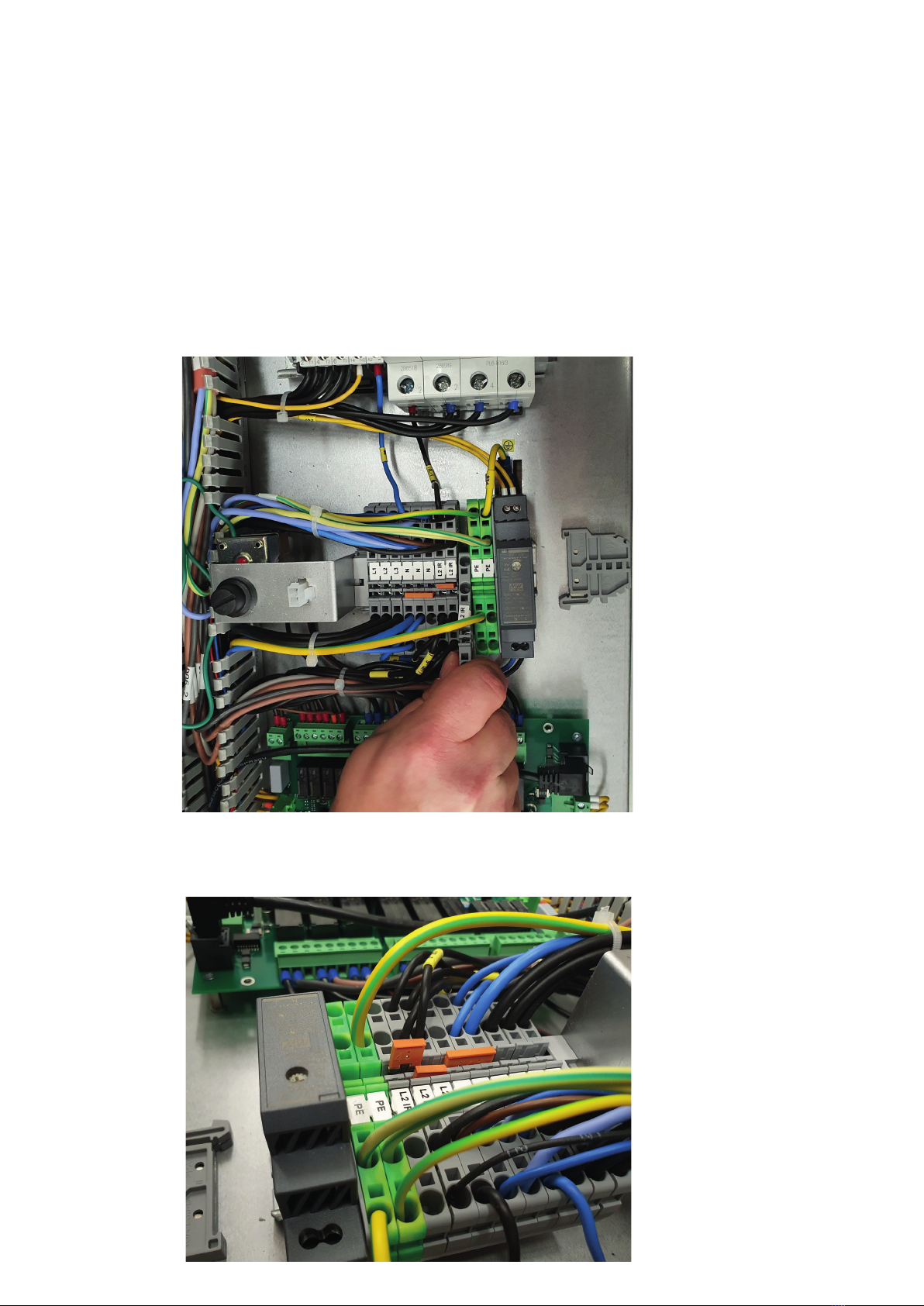

4. Insert the quadruple terminal into the upper terminal block, between the L2 IR and PE terminals,
see Fig. If there are 3 terminals marked L2 IR in the row, it is not necessary to add another
terminal. You can then proceed to step 6.
5. Connect the terminal with an orange bridge to the adjacent L2 IR terminal block. Push the bridge
 rmly.(Thepictureshowsthebridgebeforepushing.)

6. Attach the DIN rail with terminal blocks to the back plate of the RegulusBOX, mark the screw
holes. Position the DIN rail as shown.
 IfRegulusBOXalreadycontainspre-drilledholes,justscrewtheDINrailwithterminalblocks
using M4 screws. Proceed to point 8.
7. Drill the holes and screw on the DIN rail with the terminal blocks using self-tapping screws
 (watchoutformetalsawdust).
8. Inserttherelaymoduleintothecontrolboard.Themoduleisinsertedintheplacenexttothe
 display.Makesurethatallpinsarecorrectlyinsertedintothecontrolboard.Thensecurethe
 modulewiththescrews.Ifyouhave inserted themodulecorrectly,thescrewswilltexactly
into the holes.
9. Removethegreycableductcover.Therearesuchhooksthatcanbereleasedbypushingin
 andpryingouttheplasticcover.Theplasticcanthenbeslidoutalltheway.

©2022 We reserve the right to errors, changes and improvements without prior notice.
REGULUS spol. s r.o.
E-mail:[email protected]
Web: www.regulus.eu
v1.0-02/2022
10. Nowinsertthegreenterminalblockintothemodule.Trytopushtheterminalblockwithslight
pressure.
11. InserttheremainingwiresIR-LM1,NM1andPEM1intotheupperterminalblock.NM1into
 the terminal under the N label, IR-L M1 into the L2IR terminal and PE M1 into the
 yellow-greenPE terminal. In the picture, the corresponding holes are marked in white.After
 insertingtheconductorintotheterminal,makesurethattheconductorisrmlyconnectedto
 theterminalbypullingontheconductors(whiteholesinthepicture,forinsertingtheconductors).
12. Insert all wires into the cable duct and cover it.
13. VisuallyinspecttheentireinstallationandonlyafterthatyoumaystarttheRegulusBOX.
