1 Introduction
Congratulations with the purchase of your Looky+! In this manual you will find a
detailed description of all the functions of the Looky+. If you still have any queries
after reading this manual, please contact your supplier (see the back of the manual
for contact details).

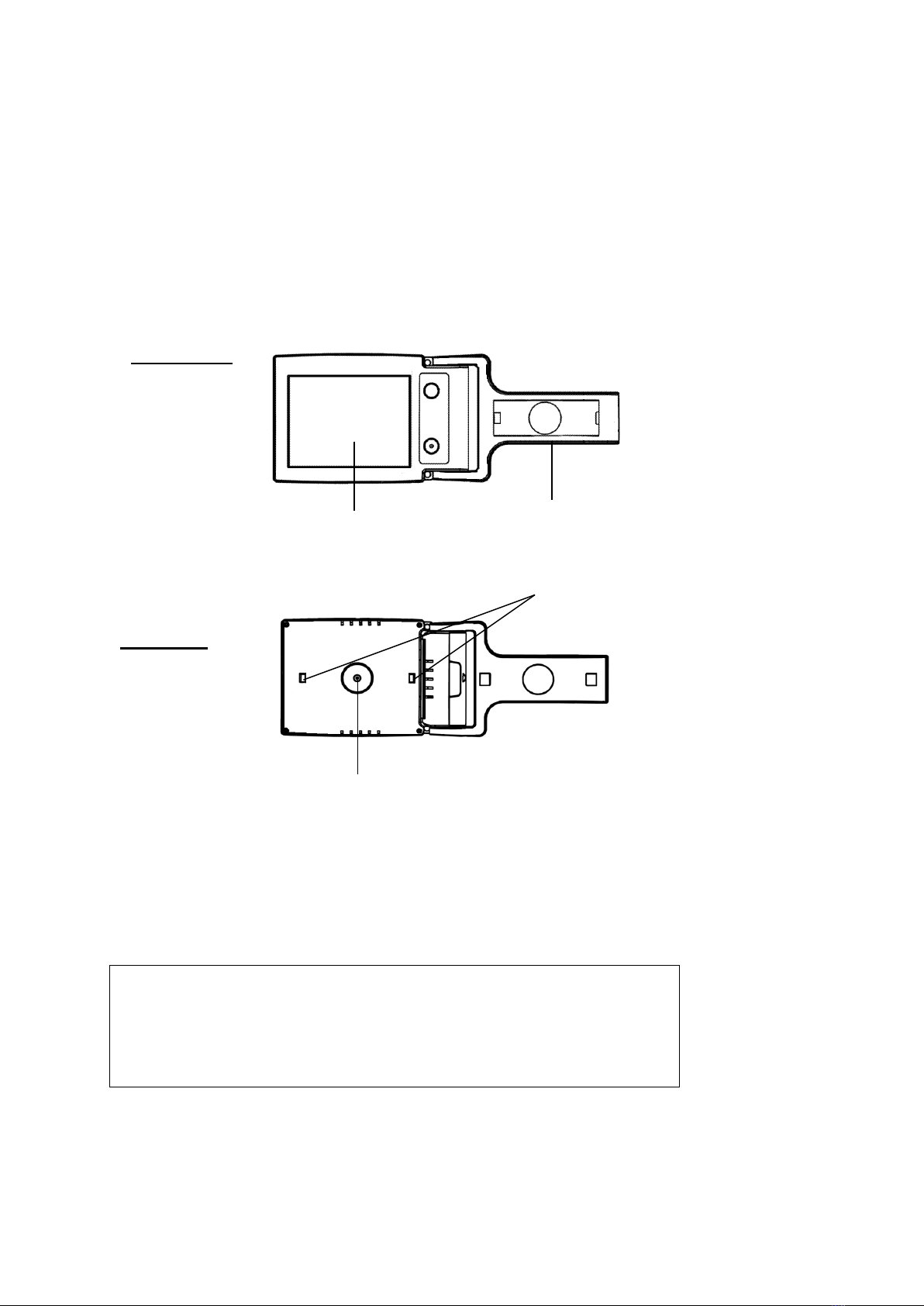

2 General description Looky+
Front
Back
3 Intended use
This device is solely used for displaying enlarged representations of text,
photographic material and objects. When the Looky+ is used for any purpose other
than the intended use, the CE regulation will not apply.
Caution: do not, under any circumstances, perform maintenance
or repairs to the device –always ask a producer approved
technician to do this. Warranty will be voided if the Looky+ is
attempted to be repaired by anyone other than a technician
approved of by the producer.
handle
screen
camera
LED lighting

4 Maintenance
Only use accessories for the Looky+ that are approved of by the producer.
4.1 Battery maintenance
Remove the batteries from the Looky+ if you do not intend to use the device
for an extended period of time. This will improve the longevity of the batteries.
Batteries are sensitive to over-charging. It is recommended to only charge the
batteries when they are completely drained.
Chargeable NiMh batteries have an auto discharge that strongly depends on
the temperature of the environment (e.g. never leave your batteries in a car
that is parked in direct sunlight).
New NiMh batteries must be charged several times before reaching their
nominal capacity.
Charge NiMh batteries at least once every 6 months.
The average lifespan of a rechargeable battery is usually 300 charging cycles,
but this depends on the use. Total capacity will slowly decrease after multiple
charging cycles.
Charge the batteries in a well ventilated environment.

5 Installation –batteries
1. Remove the lid from the battery compartment by pressing down on the arrow
and moving the lid in the direction of the arrow.
2. Place the first battery at the back of the battery compartment.
3. Now place the second battery.
Note: charge the batteries before using your Looky+! See the
charging instructions on page 12.
6 Handle
The handle of the Looky+ is closed on delivery. You can use the Looky+ with the
closed handle by placing it directly on the text. When you extend the handle you
can use the Looky+ like a magnifier. You now have the possibility to view objects or
read texts.
It is also possible to use the Looky+ as an aid during writing. To do so you will need
to extend the handle fully. When you now press the handle flat to the surface of
the table, the screen will rise to an angle. The space underneath the Looky+ that is
created in this way can be used to aid you during writing.

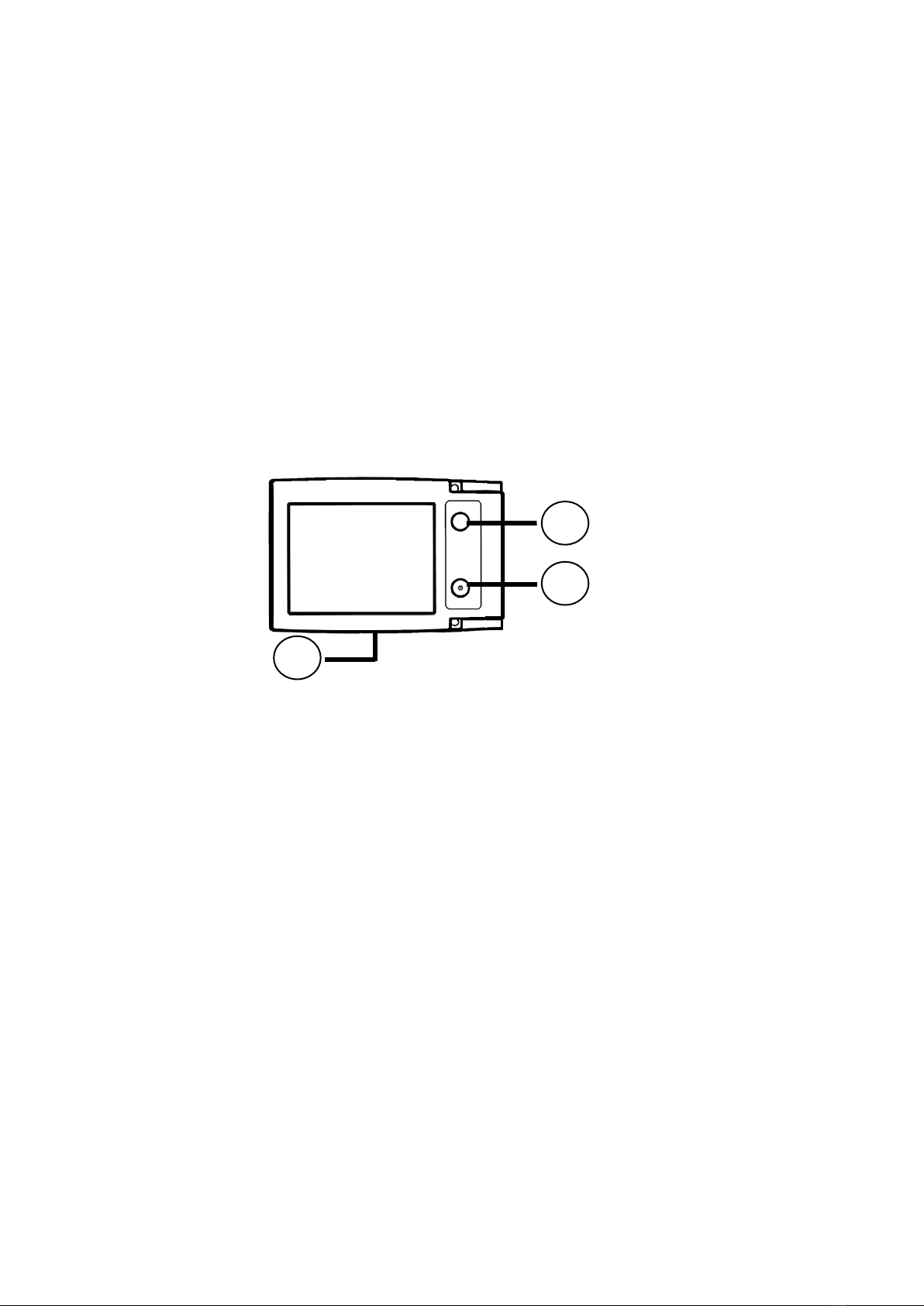

7 Controls
7.1 Switching the Looky+ on and off
To switch the Looky+ on, keep button 1 pressed for 1 second. You will hear a
low pitched tone followed by a high pitched tone. The screen is now active.
To switch the Looky+ off, keep button 1 pressed until you hear a high pitched
tone followed by a low pitched tone. The screen of the Looky+ will darken and
the device will switch off.

7.2 Digital zoom
Press the yellow button (button 2) to digitally enlarge the image on the
screen.
By pressing the yellow button (button 2) you can switch between the 4 zoom
presets.
By pressing the yellow button (button 2) after having selected the highest
magnification, you will return to the lowest magnification.
7.3 Selecting reading modes
Press the blue button (button 3) to select different reading modes.
By pressing the blue button (button 3) you will cycle through the following
reading modes: Full Colour mode with LED lighting –White/Black - Black/White
–Yellow/Blue –Yellow/Black.
Keep the blue button (button 3) pressed for several seconds to switch to the
full colour mode without LED lighting. When you now press the blue button
(button 3) briefly, you will switch back to the previously used reading mode –
the lights will also turn back on.
1
3
2

7.4 Freeze image
By pressing button 1 briefly you can freeze the image on the screen.
Press button 1 briefly again to unfreeze the image on the screen.
When the image is frozen you can still cycle through the different reading
modes by pressing the blue button (button 3). You can also still use the digital
zoom function by pressing the yellow button (button 2).
Note: when the image is frozen, the LED lighting will be switched
off in order to preserve energy.
7.5 Advanced settings
The Looky+ has 2 hidden buttons with which the advanced settings of the device
can be operated. These buttons, named X and Z, are located in the battery
compartment (the batteries must be removed from the Looky+ to access the X and
Z buttons). Ensure that the adaptor is connected to the Looky+ and that the Looky+
is switched on to make use of the advanced settings.
7.5.1 Advanced settings –X button
With the X button you can turn the sound notifications of the Looky+ on or off.
When pressing the X button, you will hear a sound that decreases in pitch –the
sound notifications of the Looky+ are now switched off. To switch the sound
notifications back on, press the X button again –you will hear a sound that
increases in pitch.
Note: when the sound notifications have been switched off, the
Looky+ will still give off an alarm sound when it detects a battery
problem during the charging process. This sound is the only sound
the Looky+ will produce when the sound notifications have been
switched off.

7.5.2 Advanced settings –Z button
With the Z button you can adjust the brightness of the screen. By pressing the Z
button you will lower the screen brightness by 20% - by doing so you will hear a
sound that decreases in pitch. The lowest screen brightness is 20%, when you press
the Z button once more the screen brightness will go back to 100% - when doing so
you will hear a sound that increases in pitch. The Looky+ has 5 possible screen
brightness settings: 100% - 80% - 60% - 40% - 20%.
8 Internal memory of the Looky+
The Looky+ stores the following settings in its memory when switched off and on:
The reading mode that was used last (with exception of the full colour mode
without lighting –instead of this mode, the Looky+ will start up in the reading
mode that was used last before selecting the full colour mode without lighting).
Whether the sound notifications are switched ON or OFF.
The selected brightness of the screen.

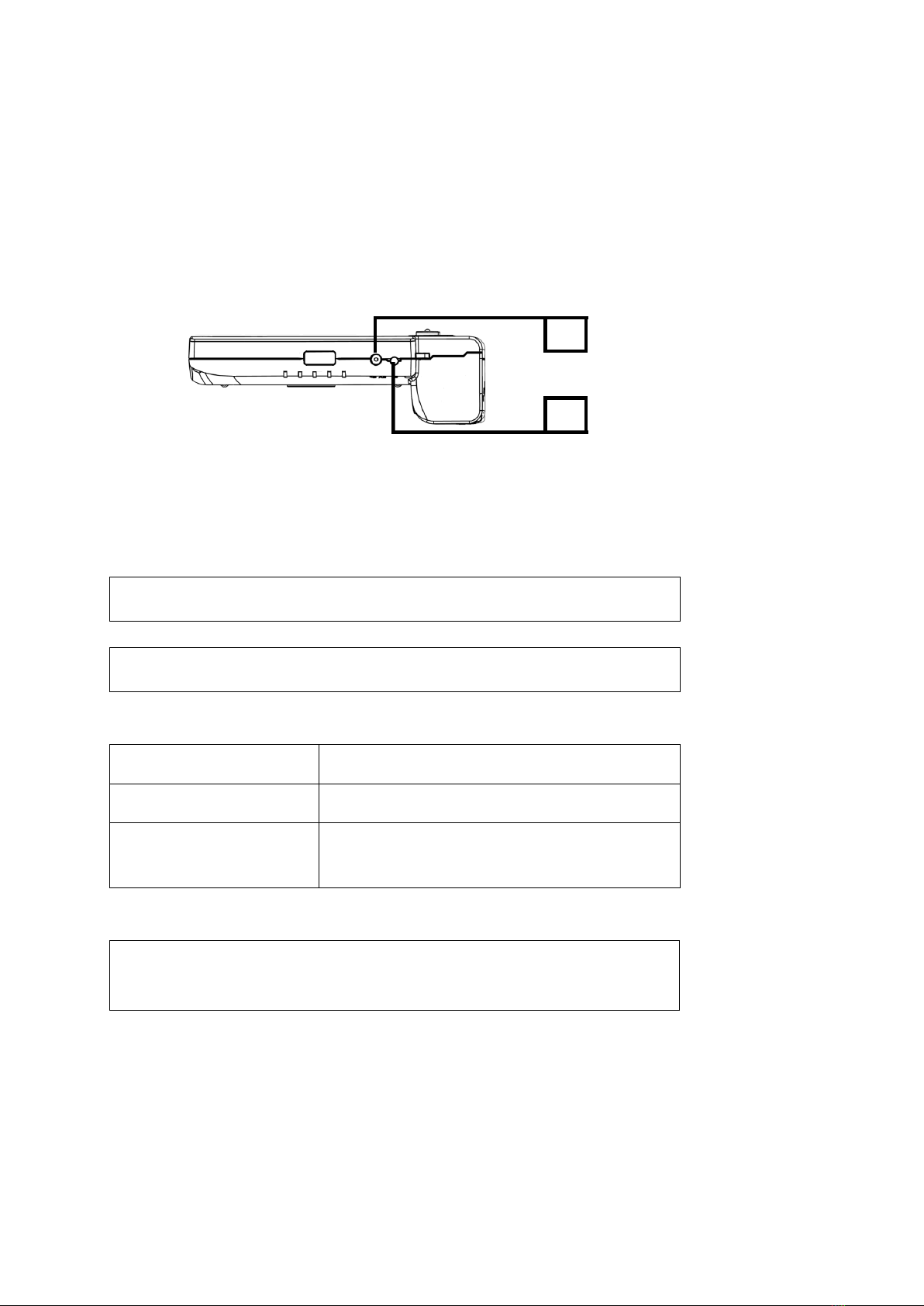

9 Charging instructions
Plug the adaptor into the wall socket and connect the plug into the power jack (1)
of the Looky+. You will hear two brief beeps and the LED light (2) will be switched
on during charging.
Charging time: ± 5 hours (depending on the battery capacity)
Time of use: ± 2 hours (depending on the battery capacity)
LED burning constantly
the batteries are being charged
LED blinking
the batteries are fully charged
LED blinking + audible
dual signal
the Looky+ contains broken or non-
rechargeable batteries
Note: the charging process will be interrupted when the Looky+ is
switched on!
1
2

10 Troubleshoot
In this chapter you will find a description of some of the error messages the Looky+
can give, along with the corresponding solutions. Please read this section carefully
if you are experiencing any problems with your Looky+. If you still have any queries
after reading this section, please contact your supplier.
1
The Looky+
switches itself off
while sounding a
tone that de-
creases in pitch
The batteries are
too empty or too
weak
- charge the batteries
- use rechargeable
batteries containing
a capacity of
≥2300mAh
2
The looky+
switches itself off
while sounding a
high pitched
followed by a low
pitched sound
The Looky+ will
switch itself off if
it does not detect
movement within a
3 minute time
span
- switch the Looky+
off if you do not use
it
- move the Looky+
3
The Looky+
cannot be
switched on
The batteries are
defect or an error
has occurred in the
Looky+
- replace the batteries
- contact your supplier
4
The LED is
blinking while the
Looky+ is
switched on and
is not connected
to the adaptor
An error has
occurred in the
Looky+
- contact your supplier
5
The Looky+ is
sounding an
alarm-like sound
while charging
The batteries are
defect or non-
rechargeable
- replace the batte-
ries:
ensure that they are
rechargeable and
have a capacity of
≥2300mAh

11 Specifications
Measurements (length x width x height) and weight (incl. batteries):
Looky+ : 113 x 75 x 38 mm (± 200 gr.)
Screen:
TFT diameter : 3.5 inch
Magnification:
Minimal : ± 2x
Maximal : ± 20x
Power supply:
Batteries : 2x AA/LR6
Adaptor : 5V DC 1,8A
Conditions of use:
Temperature : +5°C til +35°C
Humidity : <70%, no condensation
Storage and transport conditions:
Temperature : +0°C til +45°C
Humidity : <90%, no condensation
Time of use and charging time:
You can use the Looky+ for ± 2 hours at the recommended battery capacity of 2300
mA The average charging time of the Looky+ is ± 5 hours at the recommended
battery capacity of 2300 mAh.

12 Discarding the Looky+
This symbol of the crossed out wheelie bin indicates
that the product must not be disposed of with your
other household waste. Check local regulations for
proper disposal of electronic products.
13 Warranty regulations
This device is subject to the warranty regulations of your supplier. For further
information regarding these regulations, please contact your supplier.
14 Contact information supplier

Inhaltsverzeichnis
1 Einleitung............................................................................18
2 Allgemeine Beschreibung des Looky+...................................18
3 Bestimmungsgemäße Verwendung........................................18
4 Wartungsvorschriften...........................................................19
4.1 Wartung der Batterien.......................................................19
5 Einlegen der Batterien.........................................................20
6 Handgriff.............................................................................20
7 Bedienungsanweisungen......................................................20
7.1 Ein- und Ausschalten des Looky+ ......................................20
7.2 Digital vergrößern............................................................21
7.3 Lesestand auswählen........................................................21
7.4 Standbildfunktion............................................................22
7.5 Erweiterte Einstellungen..................................................22
7.5.1 Erweiterte Einstellungen - Knopf X...............................22
7.5.2 Erweiterte Einstellungen - Knopf Z...............................23
8 Der Speicher des Looky+.......................................................23
9 Ladeanweisungen................................................................24
10 Fehlerbehebung..................................................................25
11 Technische Daten................................................................26
12 Entsorgen............................................................................27
13 Garantiebestimmungen........................................................27
14 Kontaktinformationen des Lieferanten.................................27

1 Einleitung
Herzlichen Glückwunsch zu Ihrem Looky+! Diese Anleitung enthält eine ausführliche
Beschreibung der Funktionen des Looky+. Wenn Sie nach dem Lesen der Anleitung
noch Fragen haben, nehmen Sie bitte Kontakt mit Ihrem Lieferanten auf (die
Kontaktinformationen finden Sie auf der Rückseite).
2 Allgemeine Beschreibung des Looky+
Vorderseite
Rückseite
3 Bestimmungsgemäße Verwendung
Das Gerät ist nur für die vergrößerte Wiedergabe von Text, Fotomaterial und
Objekten bestimmt. Bei einer Änderung des Bestimmungszwecks verfällt die
Gültigkeit der CE-Kennzeichnung.
Achtung: Öffnen Sie das Gerät niemals selbst –überlassen Sie dies
immer dem Hersteller oder einem vom Hersteller anerkannten
Reparateur. Wenn Sie das Gerät selbst zu reparieren versuchen,
verfällt die Garantie.
Handgriff
Bildschirm
Kamera
LED-Beleuchtung

4 Wartungsvorschriften
Verwenden Sie nur vom Hersteller geliefertes oder genehmigtes Zubehör.
4.1 Wartung der Batterien
Nehmen Sie die Batterien aus dem Looky+, wenn Sie es längere Zeit nicht
verwenden. Damit verlängern Sie die Lebensdauer der Batterien.
Batterien sind empfindlich in Bezug auf Überladen. Die Batterien sollten
vorzugsweise erst aufgeladen werden, wenn sie ganz leer sind.
Aufladbare NiMh-Batterien unterliegen einer Selbstentladung, die stark von
der Umgebungstemperatur abhängig ist.
Neue NiMh-Batterien müssen mehrere Male aufgeladen werden, bevor sie ihre
Nennkapazität erreichen.
Laden Sie NiMh-Batterien mindestens 1x pro Halbjahr auf.
Die durchschnittliche Lebensdauer liegt ungefähr bei 300 Ladezyklen, sie ist
jedoch vom Gebrauch abhängig. Die Gesamtkapazität nimmt nach mehreren
Ladezyklen langsam ab.
Laden Sie Batterien in einer gut gelüfteten Umgebung auf.
