Reina MAIA User manual

Electric Panel Heater
Instruction Manual
MAIA&NIKA-V

Table of contents
1. Safety & Warnings
2. Technical Specifications
3. Installation
3.1 Fixings
3.2 Wall mounting instructions
4. Control Panel
5. Connecting to WiFi
6. Using the APP
7. Device Setting
8. Disposal
4.1 Standby Mode
4.2 Heating Mode
4.3 Child lock
4.4 Supplementary functions
4.5 Tilt Protection
4.5 Reset to Defaults
5.1 Downloading the App
5.2 Connecting to the App
5.3 Adding Devices
6.1 Home Overview
6.2 Control Interface
6.3 Choose Mode
7.1 Child Lock
7.2 Temperature Compensation
7.3 Heat Plus
7.4 LST Setting
7.5 Open Window Detection
7.6 Holiday Time Setting
2

1. SAFETY & WARNINGS
•This appliance can be used by children aged from 8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children
without supervision.
•Children of less than 3 years should be kept away unless continuously supervised. Children aged from 3
years and less than 8 years shall only switch on/off the appliance provided that it has been placed or
installed in its intended normal operating position and they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3
years and less than 8 years shall not plug in, regulate, or clean the appliance, or perform maintenance.
•Do not use the device in enclosed spaces if persons are present who cannot leave the room independently
and are not under constant supervision
•In order to avoid overheating, do not cover the radiator.
•In order to avoid a hazard due to inadvertent re-setting of the thermal cut-out, this appliance must not be
supplied through an external switching device, such as a timer, or connected to a circuit that is regularly
switched on and off by the utility.
•Some parts of this product can become very hot and cause burns. Do not touch the surface when in
operation. Do not install close to curtains or other combustible materials. Particular attention should be
given where children and vulnerable adults are present.
•Keep the power cable away from all hot parts of the appliance.
•Do not use the device if you detect damage to the mains plug or power cable. If the supply cord is
damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons to avoid
a hazard.
•All repairs and servicing must be carried out by a qualified person. To avoid danger any repairs must be
completed by the manufacturer, a service agent of the manufacturer or a similarly qualified person.
•Make sure the voltage indicated on the rating plate for this appliance corresponds to your power outlet.
•Do not use this device in the immediate surroundings of a bath, shower, swimming pool or any other water
container. Risk of electric shock.
•The device must not be located immediately below an electrical socket outlet.
•Do not use the device with wet or damp hands.
•No part of the appliance should be submersed in any type of liquid.
•Cleaning should be carried out using a damp cloth only. No abrasive chemicals or materials should be used.
•Never insert fingers or other objects or body parts into the device. Risk of electric shock or injury.
•Do not use any accessories with this device. Use of accessories may cause damage or danger.
3
INSTRUCTION MANUAL
Read this manual carefully before using or installation the device.
Keep the manual for future reference.
Warning: This device must be installed by a licensed electrician.

•Keep the device at a minimum distance of one metre from curtains and other flammable materials.
•The device must only be installed in an upright and fixed position in accordance with national installation
rules.
•The device is for indoor use only.
•Do not use the radiator with a programmer, timer, separate remote control system or any other device that
switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.
•Make sure the minimum safety distances from walls and objects stated in the installation instructions are
observed at all times. This is very important to prevent damage to walls, furniture and soft furnishings and
to prevent the product overheating.
•Do not use the device in rooms where contact with flammable or potentially explosive materials like dust,
gas or vapour cannot be avoided.
•Do not use in rooms or environments that have a corrosive atmosphere.
•Do not operate the device when wet. If the device gets wet during cleaning, allow it to dry out before using.
•Do not expose the device to water jets.
•Do not transport the device during operation.
•Do not sit on the device.
•Do not overload the socket used to power the device.
•Before carrying out maintenance, care or repair work on the device, ensure the device is unplugged. Do not
use the cable to tug the plug from the socket. Hold the plug by its housing and pull.
•Switch the device off and disconnect the power cable from the mains socket when the device is not in use.
•Allow the device to cool down before touching or transporting the device, or attempting maintenance work.
•The device must be placed where the switches and controllers cannot be touched by a person in a bathtub
or shower.
4
Code
MAIA/NIKA-V
Heating element
X shaped Aluminum
Voltage
230V AC / 50Hz
Wattage
1000W, 1500W, 2000W
Temperature setting
7–30 °C
IP rating
IPX0
Appliance class
Class I
Power cable length
1.5m
WiFi frequency (2.4G band)
Operation frequency
Max RF power transmitted
2400-2483.5MHz
17.21dBm (52.6mW) < 20dBm (100mW)
2. TECHNICAL SPECIFICATIONS
INSTRUCTION MANUAL

Warning – Before switching on the appliance make sure the radiator is correctly fixed and is secure to the wall.
3.2 Wall Mounting Instructions
5
Attach the hanging plates to the back of the heater by using two M4*10 bracket screws for each plate, as
illustrated below.
3.2.1 Prepare the heater
3 INSTALLATION
Before installing, check that all fixings are complete, and the product is intact. The radiator should only be wall
mounted with the manufacturer’s fixings.
3.1 Fixings
Wall Anchor & Screw
x 4
Hanging Plate x 4
Vertical Wall Template x 1
Wall Bracket x 4 Horizontal Wall Template x 2
3.2.2 Prepare the wall

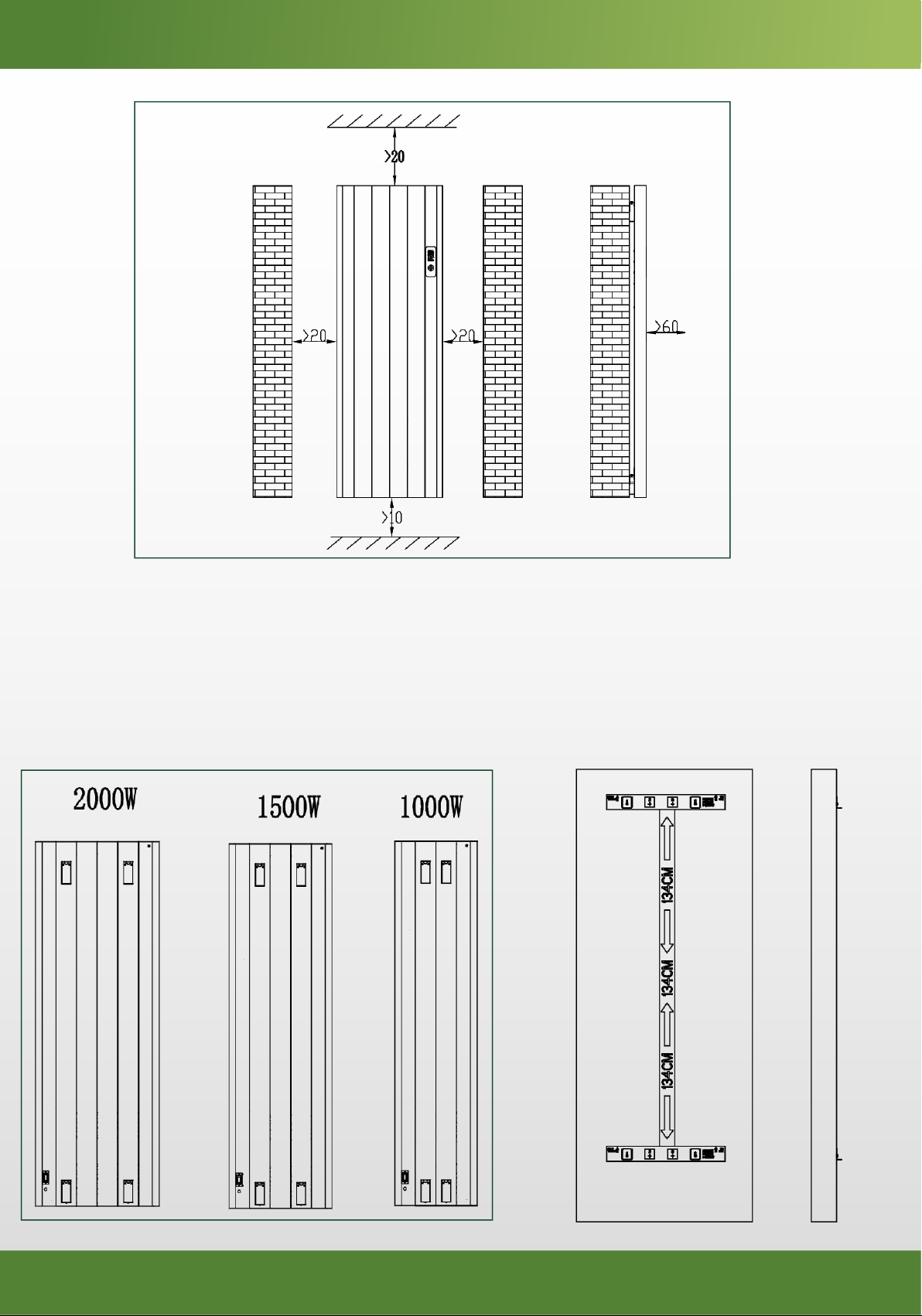

Choose the mounting position, respecting the minimum distances from surrounding walls, ceilings or fixed
objects shown in the diagram below: at least 20cm from the top, 20cm from the sides, 10cm from the floor,
and 60cm from the front. Mounting closer than recommended can cause overheating of the device and
damage to surrounding objects and surfaces.
INSTRUCTION MANUAL
Bracket Screw
M4*12 x 4
M4*10 x 8

6
a) Using the template, make four marks on the wall according to the product size.
b) Using a 6mm drill bit, drill four holes where you make your marks.
c) Knock a wall plug into each hole using a hammer.
d) Position the wall hangers over the holes and use four wall screws to fix them in place.
Fix the wall brackets:
INSTRUCTION MANUAL

3 INSTALLATION
7

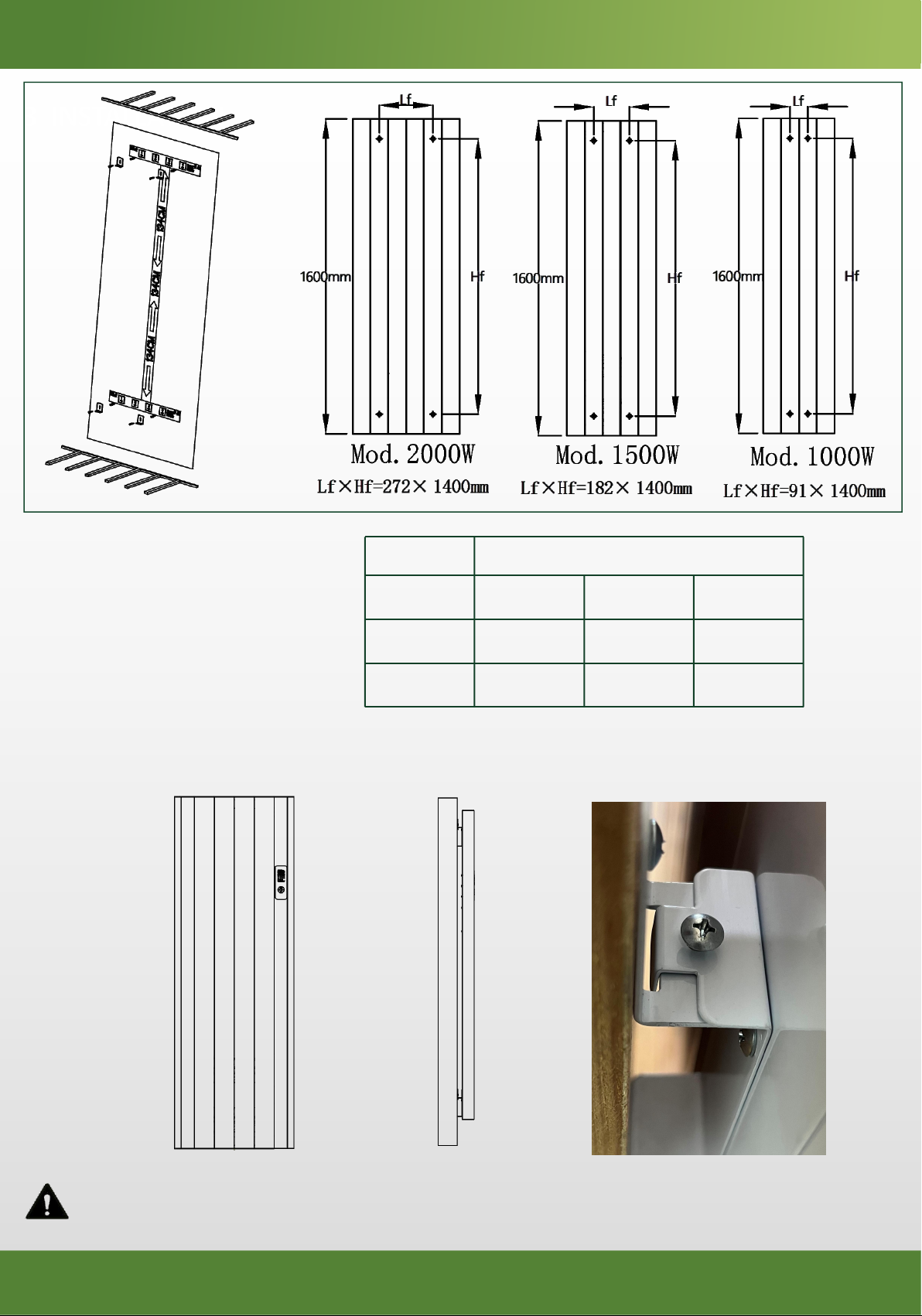

Drill hole distances by product size:
Model
Distance
1000W
1500W
2000W
Lf(mm)
91
182
272
Hf(mm)
1400
1400
1400
3.2.3 Hang the heater
Hang the heater on the wall brackets and fix in place with four M4*12 bracket screws.
INSTRUCTION MANUAL
Warning: To prevent potential safety hazards, it is recommended that
grounding and short circuit measurements be performed after installation
of the device. This should be done by a licensed electrician.

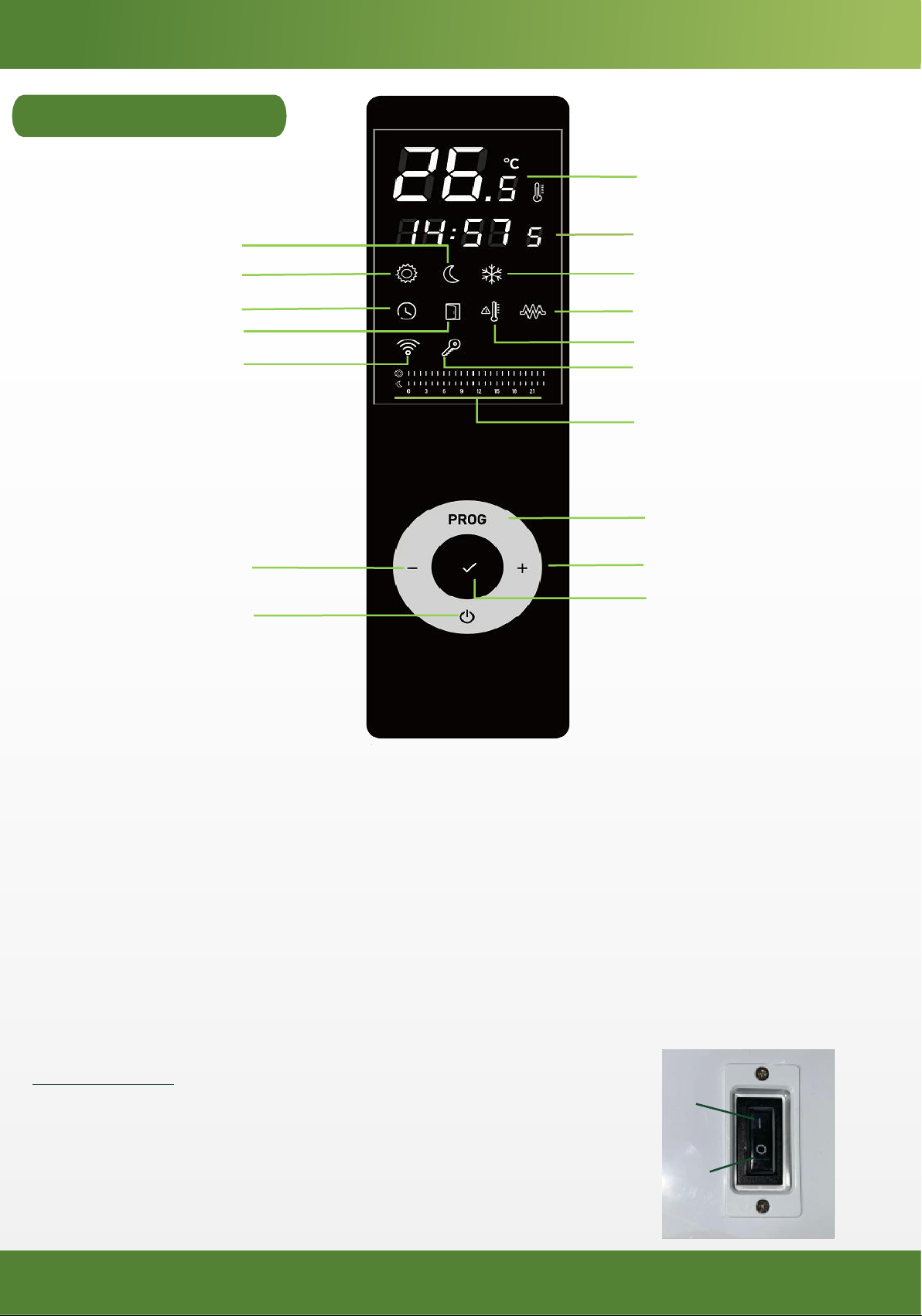

4. CONTROL PANEL
8
Up Button
Anti-freeze
ON/OFF
Child Lock
Mode Change
Open Window Detected
Temperature Display
LST Mode
Timer
Time Frames
Connected to WiFi
Time and Day
Eco Mode
Device is heating
Comfort Mode
Down Button
Timer Shortcut Button
The controller has below functional modes:
4.1 Standby Mode
4.2 Heating Mode
4.2.1 Comfort Mode
4.2.2 Eco Mode
4.2.3 Anti-Freeze Mode
4.2.4 Timer Mode
4.3 Child lock
4.4 Supplementary functions
4.4.1 Temperature Compensation
4.4.2 Open Window Detection
4.4.3 LST Mode
4.4.4 WIFI Mode
4.5 Reset to Defaults
INSTRUCTION MANUAL
Power Switch
Before first use, the radiator must be switched on at the mechanical
switch at the back of the unit.
This switch must be left in the ON position if you want the radiator to
remember its set times and programs.
ON
OFF

•Set temperature can be adjusted by using the and buttons.
The range is 7-30 °C in steps of 0.5 °C. Press and hold the button to speed up.
4.1 Standby Mode
When the radiator first switches on it appears in standby mode and the radiator will not heat.
You can use the button to switch between stadby and heating modes.

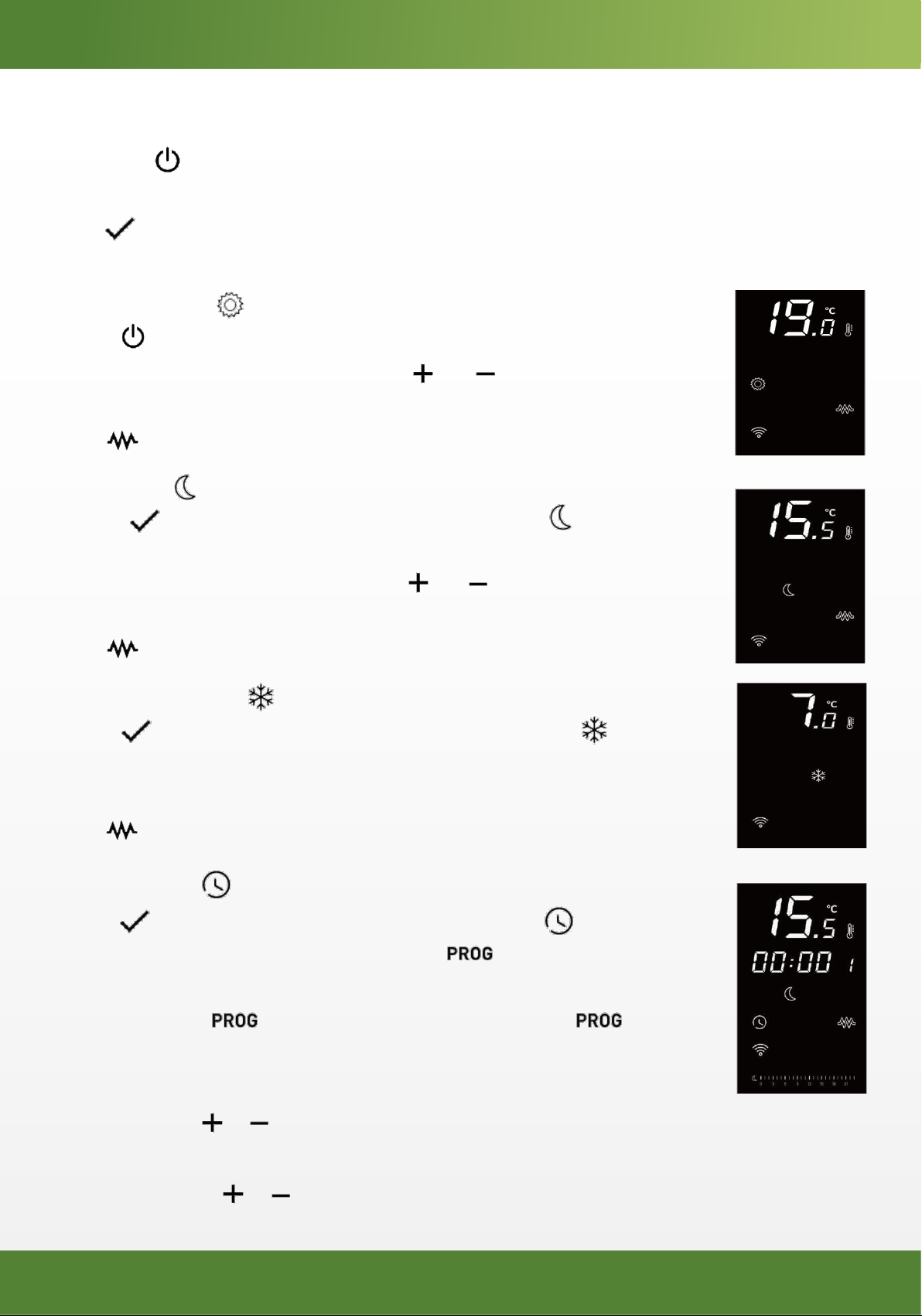

4.2.1 Comfort Mode
•Symbol will be displayed when heating and disappear when it is not heating.
4.2.2 Eco Mode
4.2 Heating Mode
Press the button to change the heating mode.
Cycle through: Comfort mode→ECO mode→Anti-Freeze mode→Timer mode
•Press the button to enter the comfort mode. The default set temp is 19 °C.
•Set temperature can be adjusted by using the and buttons.
The range is 7-30 °C in steps of 0.5 °C. Press and hold the button to speed up.
•Press the button to enter the Eco mode. When the icon displays on the
screen, you are in Eco mode. The default set temperature is 15.5 °C.
4.2.3 Anti-Freeze Mode
•Press the button to enter the anti-freeze mode. When the icon displays on
the screen, you are in Anti-Freeze mode. Anti-freeze mode is set to 7 °C. This is not
adjustable.
•Symbol will be displayed when heating and disappear when it is not heating.
•Symbol will be displayed when heating and disappear when it is not heating.
4.2.4 Timer Mode
•Press the button to enter the timer mode. When the icon displays on the
screen, you are in timer mode(You can also press in any mode to switch to
Timer mode). 00:00 will be displayed when power is on for the first time.
•Press and hold the button for 3S to set the time. Press to switch
settings: hour setting→minute setting→day of week setting→day program
setting→confirm.
9
•Hour setting: Press or to set the hours, the setting range is 0~23 in steps of 1H. Press and hold the
button to speed up. (Figure-1)
•Minute setting: Press or to set the minutes, the setting range is 0~59 in steps of 1min. Press and
hold the button to speed up. (Figure-2)
INSTRUCTION MANUAL

ØP1 and 00 will be on the screen. This means you are choosing a mode for midnight on
Monday morning. Press and hold the button for 3S to set the mode of each hour.
•Day of week setting: Press or to set the day of week, the setting range is 1~7 in steps of 1day.
where 1 = Monday, 2 = Tuesday and so on. Press and hold the button to speed up. (Figure-3)
•Day program setting: P1-P7 all default to Eco mode. The timer allows you to set a
different program for every day of the week. P1 is the schedule for Monday, P2 is the
schedule for Tuesday, and so on. Each program consists of 24 hourly slots where you
can set either comfort, Eco or anti-freeze mode. The radiator will heat at the
temperatures you set on comfort, eco and anti-freeze mode.
•Follow the instructions above for setting the time. When P1 appears on the screen, you
are ready to start setting your program:
Figure-1 Figure-2 Figure-3
For example: Change P1 to comfor mode from 7:00 to 21:00 (other time Eco mode).
ØComfort mode: the bar flashes and stays for 3S, icon displays on the screen.
For example: The current time is 12:00, and the corresponding mode is comfort, the
icon displays (green arrow) and bar flashes and stays for 3 seconds(red arrow).
•In the TIMER mode, the setting time is displayed.
ØPress or to select the hour and press button to choose the corresponding
mode. Comfort mode shown ; Eco mode shown , Anti-freeze mode shown .
ØECO mode: the bar flashes and stays for 1S, and the icon displays on the screen.
4.3 Child Lock
Use this function to prevent any change in the thermostat setting.
Press and hold the and buttons for 3 seconds to lock the display. The icon
will appear and all buttons will be locked except the standby button . Repeat the
same procedure to unlock it.
10
INSTRUCTION MANUAL
•Symbol will be displayed when heating and disappear when it is not heating.
In the running state of Timer mode, press or to quickly switch the mode of the current hour.

4.4.2 Open Window Detection
•Press the or button to select, there are three options for the open window
detection function: oF, 60 minutes and 90 minutes (The default set is oF).
•If the radiator detects a sudden drop in temperature (2°C or more within 5 minutes),
the icon will appear and the radiator will switch to anti-freeze temperature(fixed
7°C) for 60/90 minutes to prevent energy wastage as heat escapes through the
window.
•It will revert back to the previous mode after heating for 60/90 minutes. If the
temperature drops by 2°C within 5 minutes again, the radiator will continue to switch
to anti-freeze temperature(fixed 7°C), then cycle through.
The settings menu allows you to enable, disable and configure all the radiator’s supplementary functions.
Press to put the radiator into standby mode and hold down for 10 seconds to enter the settings menu.
Press button to to switch functions: Temperature compensation→Open window detection→Heat Plus
mode→WiFi mode
The temperature compensation setting allows users to adjust for any discrepancy
between the average room temperature and the temperature sensed by the thermostat.
For instance, if the temperature in the room is 18°C, but the radiator is sensing 16°C, a
compensation factor of +2°C will offset the difference. Press the or to adjust. The
setting range is from -5~5°C in steps of 1°C (The default set is -2°C).
4.4 Supplementary functions
4.4.1 Temperature Compensation
This function enables the automatic detection of an open window when the radiator is working.
4.4.3 Heat Plus Mode
11
This is the radiator surface temperature, it means that it can be heated for a longer time
before it stops working, which will heat up the room more quickly.
When the radiator surface temperature hit the selected temperature, it will stop working
and it will work again once the surface temperature lower than the selected
temperature.
•Press the or to set the temperatures. The setting range is 65~75°C in steps of 5 °C.(The default set
is 70°C).
INSTRUCTION MANUAL
•Press the or to switch. Select “oN” to enable and “oF” to disable. (The default set is oN).
This setting allows you to enable or disable the radiator’s connection to WiFi. Disabling
the connection is temporary: if you have already added the radiator to your app account,
disabling the connection will not remove it. You will be able to control via the app as
soon as you re-enable the connection.
4.4.4 WIFI Mode

4.6 Reset to Defaults
Press to put the radiator in standby mode. Press and hold the key for 10 seconds to restore the device
to default settings. The full screen will be displayed for 3 seconds and enter to power off state. Press to
turn on. The comfort mode temperature is 19°C, the Eco temperature is 15.5°C, the anti-freeze mode
temperature is 7°C, the time display "0000" and the week display "1"; P1-P7 are the default settings of the
Eco mode, the temperature compensation is "-2", and the open window detection is "oF". LST function is
"oF", WIFI function is "on".
12
5.1 Downloading the App
Download the APP onto your smart phone. You can find the app by scanning the QR code below or searching
“INOW” in the Google Play or Apple app store. Install and follow the app’s instructions to create an account.
5. CONNECTING TO WIFI
5.2 Connecting to the App
To put the radiator in pairing mode, press to enter power off mode and hold down button for 3
seconds until the screen switches to the connection screen. This begins a 99 seconds count down, giving
you 99 seconds to make the connection on the app.
5.3 Adding devices
Click “Add device” Click “Auto scan” Click “Add”
INSTRUCTION MANUAL
As a safety feature, this radiator is fitted with a tilt protection function that automatically places the radiator
into standby mode if the appliance fell down.
When the appliance is returned to an upright position, normal operation will then be resumed.
4.5 Tilt Protection

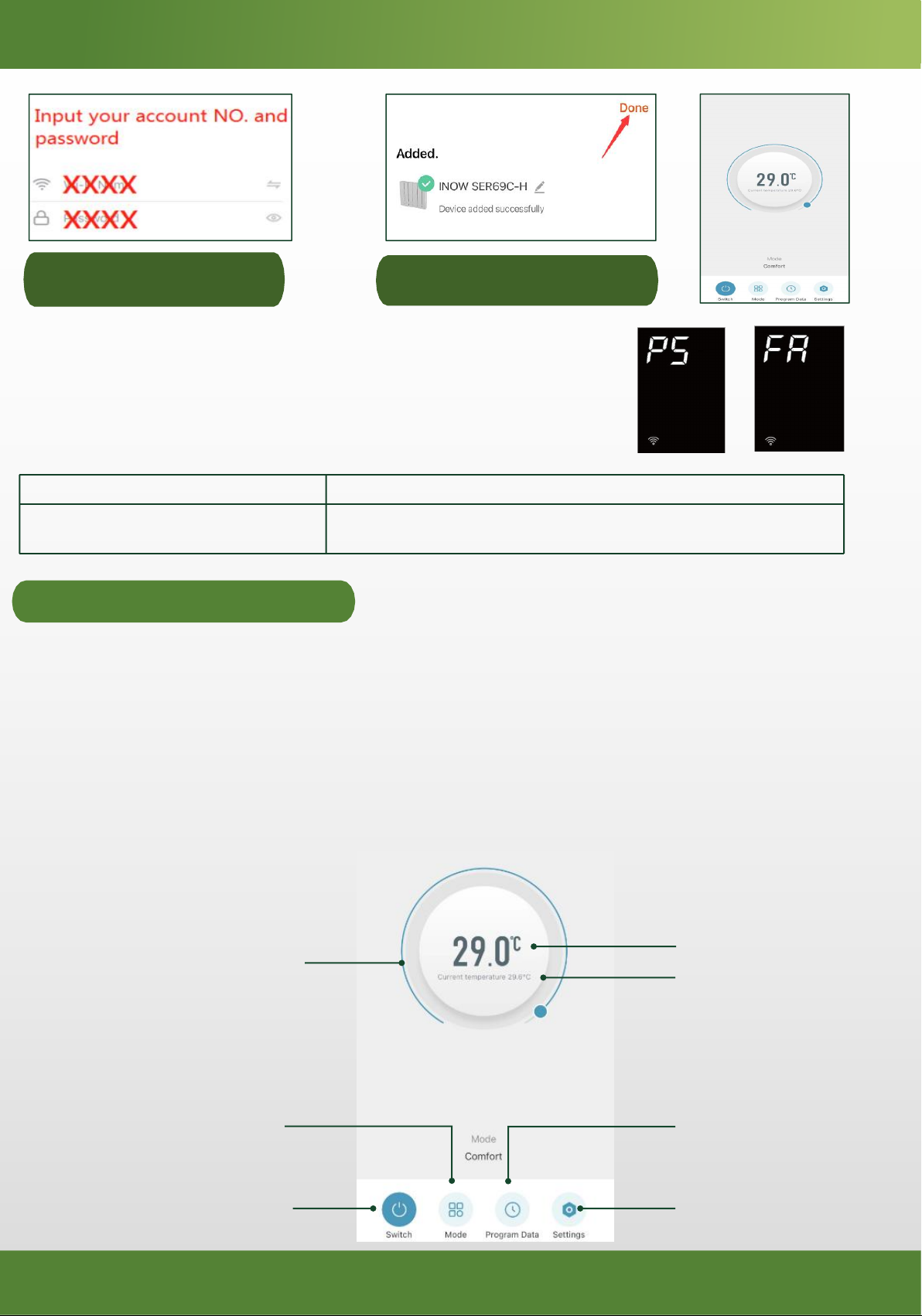

6.2 Control Interface
Set temperature
Room temperature
Set Program
Setting
Power ON/OFF
Choose mode
Adjust set temperature
13
6. USING THE APP
You can use the INOW app to control multiple devices. All devices are displayed on the home screen with
their status.
Possible statuses:
• Online – Heater will respond to app commands.
• Offline – Device is turned off at wall or power switch. It cannot be controlled by the app.
6.1 Home Overview
If the heater successes to connect, “PS” will be shown on the display.
If the heater fails to connect, “FA” will be shown on the display.
Troubleshooting
Problem
Action
the thermostat sensor has become
disconnected
Er is displaying
Enter your WiFi passwor Begin connecting and added
successfully
INSTRUCTION MANUAL

6.3.4 Auto Mode
The device will work under automatic preset program. Default data list as below:
6.3.5 Holiday Mode
To avoid having to adjust each radiator individually or add a different schedule,
you can simply activate Holiday Mode. It’ll suspend your schedules, hold the
energy-saving temperature 7°C and prevent your home from freezing up. Once
the holiday setting time ends, it will automatically return to the previous setting
mode.
Period
Icon
Time
Temperature
Work day
(Monday-Friday)
1
6:00
19.0°C
2
8:00
15.5°C
3
17:30
19.0°C
4
22:00
15.5°C
Weekend
(Saturday-Sunday)
1
8:00
19.0°C
2
10:00
15.5°C
3
17:00
19.0°C
4
22:00
15.5°C
14
6.3 Choose Mode
Tap the mode button on the interface to choose mode. The six options
correspond to the six modes on the control panel. Comfort, Eco, Anti-Freeze,
Program, Auto and Holiday mode.
6.3.1 Comfort & Eco Mode
In comfort and Eco mode, simply use the sliding dial to adjust the set room temp.
6.3.2 Anti-Freeze Mode
In anti-freeze mode, it is set to maintain a low room temperature for energy
saving when you are absent from the house. 7°C displays on the APP, it can’t be
adjustable.
6.3.3 Program Mode
Tap the program data icon on the control interface to configure a program.
A program consists of 24 hourly intervals for each day, which you can set to
Comfort, Eco or Anti-freeze temperature.
Tap the interval to choose Comfort (yellow bar), Eco (green bar) or Anti-freeze
(blue bar). You can drag the start and end times of each mode block to make
setting your program quick and easy.
INSTRUCTION MANUAL

The icon will appear and the radiator will switch to anti-freeze
temperature to prevent energy wastage as heat escapes through the window.
7. DEVICE SETTINGS
Tap the setting icon to view and adjust the radiator’s settings. This menu allows you to configure several
settings not available through the control dial.
7.1 Child Lock
7.2 Temperature Compensation
7.3 Heat Plus
7.4 LST Setting
Use the toggle switch to lock or unlock the radiator display. displays on
the screen when the device is locked.
You can adjust the temperature compensation in steps of 1 °C, from -5 ~5 °C.
There are Three options for Heat Plus settings: 65°C, 70°C, 75°C.
The default set is 70°C. For more rapid heating in some cold areas, you can
set it to 65°C or 75°C.
There are Five options for LST settings: OFF, 40°C, 45°C, 50°C, 55°C.
The default set is off.
8. DISPOSAL
In accordance with WEEE Directive 2012/19/EU, the icon with the crossed-out waste
bin on electrical or electronic equipment stipulates that this equipment must not be
disposed of with household waste at the end of its life. You will find collection points
for free return of waste electrical and electronic equipment in your vicinity. The
addresses can be obtained from your local authority.
The separate collection of waste electrical and electronic equipment enables the re-use, recycling and other
forms of recovery of waste equipment, and prevents any negative effects for the environment or human
health.
7.5 Open Window Detection
7.6 Holiday Time Setting
15
Holiday time can be adjusted only when the Holiday Mode from the control
interface is selected, the setting range is 1~60 days.
INSTRUCTION MANUAL
