MASTIFF™ Tag
Active RFID Tag
for
People Tracking and Monitoring
User Manual

CONFIDENTIAL MASTIFF™ Tag - User Manual P a g e | 2
Confidential and Proprietary Information
Reindeer Technologies Private Limited, 2014
This document contains confidential and proprietary information of Reindeer Technologies Private
Limited and is protected by copyright laws. Its receipt or possession does not convey any rights to
reproduce, manufacture, use or sell anything based on information contained within this document.
Any product described in this document is subject to continuous developments and improvements. All
particulars of the product and its use contained in this document are given by Reindeer Technologies
Private Limited in good faith. However, all warranties implied or expressed, including but not limited
to implied warranties of merchantability, or fitness for purpose, are excluded.
This document is intended only to assist the reader in the use of the product. Reindeer Technologies
Private Limited shall not be liable for any loss or damage arising from the use of any information in
this guide, any error or omission in such information, or any incorrect use of the product.
Reindeer specifically disclaims any and all liability and warranties, implied or expressed, for uses
requiring fail-safe performance in which failure of the product could lead to death, serious personal
injury, or severe physical or environmental damage such as, but not limited to, life support or medical
devices or nuclear applications or on-line control of aircraft, aircraft navigation or communications
systems or in air traffic control applications. This product is not designed for and should not be used in
any of these applications.

CONFIDENTIAL MASTIFF™ Tag - User Manual P a g e | 3
Document Revision History
Revision No.
Date
Description/Changes
1.0
21/09/2012
Initial Release

CONFIDENTIAL MASTIFF™ Tag - User Manual P a g e | 4
Safety Instructions
WARNING: This is an electrostatic sensitive device. Proper ESD protection is required when handling
bare boards. Do not handle the boards with bare hands.
WARNING: Showing magnet often to the tag hinders the tag ID transmission and depletes the battery
quickly.

CONFIDENTIAL MASTIFF™ Tag - User Manual P a g e | 5
Table of Contents
Confidential and Proprietary Information.................................................................................................................................. 2
Document Revision History .............................................................................................................................................................. 3
Safety Instructions ................................................................................................................................................................................ 4
1. Introduction................................................................................................................................................................................... 6
2. System Block Diagram............................................................................................................................................................... 6
2.1. Mastiff Tag................................................................................................................................................................................... 6
3. Device Specifications.................................................................................................................................................................. 7
3.1. Environmental Specifications ............................................................................................................................................. 7
3.2. Physical Specifications........................................................................................................................................................... 7
3.3. Electrical Specifications......................................................................................................................................................... 7
3.4. RF Specifications ...................................................................................................................................................................... 8
4. Functional Flow Diagram ......................................................................................................................................................... 8
5. Device Configuration.................................................................................................................................................................. 9
5.1. Overview...................................................................................................................................................................................... 9
5.2. How to Use the Software.....................................................................................................................................................10
5.3. Devices Required....................................................................................................................................................................13
5.3.1. Mastiff Tag ........................................................................................................................................................................13

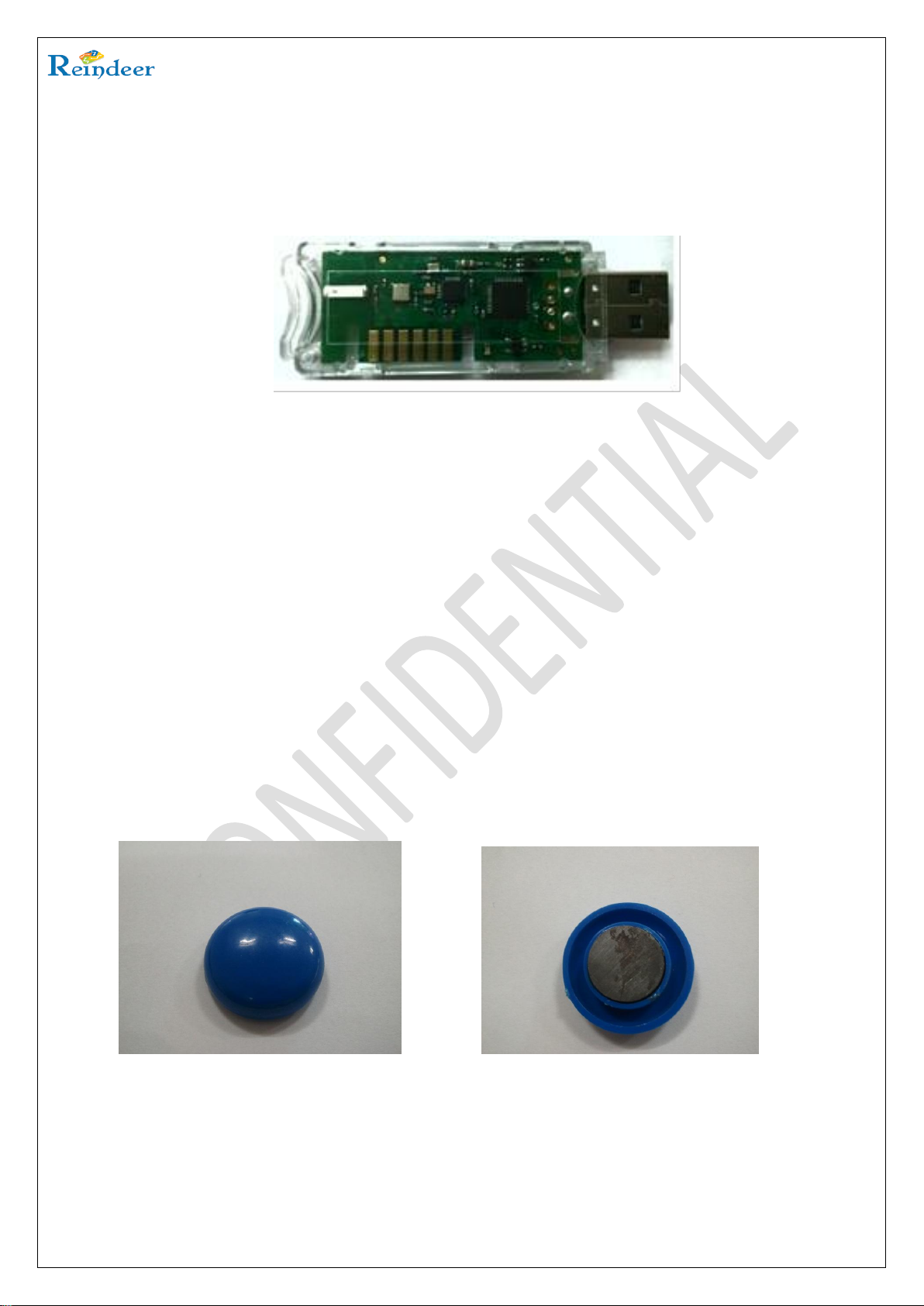

5.3.2. USB Dongle .......................................................................................................................................................................14
5.3.3. Coin Magnet .....................................................................................................................................................................14
5.4. Programming Instructions.................................................................................................................................................15
5.4.1. Pre-requisites..................................................................................................................................................................15
5.4.2. How to Program .............................................................................................................................................................15
6. General Precautions..................................................................................................................................................................16
7. Ordering Information...............................................................................................................................................................16
8. Contact Us .....................................................................................................................................................................................17
8.1. Technical Support..................................................................................................................................................................17
8.2. Sales Support ...........................................................................................................................................................................17

CONFIDENTIAL MASTIFF™ Tag - User Manual P a g e | 6
1. Introduction
Mastiff™ Tag is an active RFID tag ideal for locating and monitoring people inside the
buildings or in outdoors. This can be used across schools, colleges, hospitals, offices to locate and
monitor students, employees, support staff, contract workers, visitors etc.
It sends the address of the tag at periodic intervals which can be captured by a compatible
active Mastiff Active RFID reader. The tag comes along with custom software through which the
settings can be changed wirelessly. The in-built memory stores the modified settings and the
settings can be changed multiple times without any restrictions. The tag design has been
optimized for very low power consumption, so to give higher battery life of around 5 years with
its 1000 mAH battery.
The size of the tag almost matches the dimensions of a typical credit card but the thickness is
around 5 mm. The tag is completely sealed with IP67 ABS plastic enclosure which protects it
against dust and water. The tag is light-weight and it can be easily connected through a string like
a normal ID card.
2. System Block Diagram
2.1. Mastiff Tag
Figure 2: Block Diagram of Mastiff Tag
Processor
RF
Transceiver
Low Battery
Monitor
Battery
Reed Switch
Internal
Memory
Internal Clock
Antenna

CONFIDENTIAL MASTIFF™ Tag - User Manual P a g e | 7
The Mastiff Active RFID Tag is capable of operating in multiple frequency bands such as
865-867 MHz in India, 868-870 MHz for Europe and 902-928 MHz in North America with a single
hardware design. But the frequency bands are pre-programmed and the users are allowed to
choose a particular channel within the set frequency band. The tag operates through a 3V lithium
MnO2 battery with 1000 mAH capacity. The battery power can typically last for 5 years when
operated at ideal conditions.
The RF transceiver is capable of operating as transmitter and receiver. Once programmed,
the tag acts as a transmitter sending the signals at a pre-defined time interval. The typical data
transmitted are its unique address and low battery indication. The low battery indication is
triggered when the battery voltage drops below 2.2V. The battery can last for 1 to 2 months after
the low battery indication is triggered. The low battery indication captured by the reader will be
given out to the server which enables the users to take appropriate action.
The reed switch in the tag is used to change the battery from normal working mode to
configuration mode. The settings of the tag can be changed through custom software during the
configuration mode. More information on device configuration can be found in the section ‘5.
Device Configuration’. The device settings are stored inside the internal memory of the tag. The
tag comes with an optional internal clock for automatic wake-up and to perform other time
driven activities.
3. Device Specifications
3.1. Environmental Specifications
Operating Temperature -20°C to + 50°C
3.2. Physical Specifications
Dimensions 85 x 55 x 5 (L x W x H) in mm
Color White
Casing Material ABS Plastic
3.3. Electrical Specifications
DC Source 3VDC, 1000mAH Battery
Battery Life 5 Years*

CONFIDENTIAL MASTIFF™ Tag - User Manual P a g e | 8
3.4. RF Specifications
Operating Frequency 865-867 MHz, 868-870 MHz or 902-928 MHz
Modulation GFSK
Bandwidth 200 KHz
RF Baud Rate 38.4 kbps to 250 kbps (100 kbps default)
Air Protocol Proprietary-Reindeer Technologies Pvt Ltd
RFID Tag Compatibility Personal, Asset, Vehicle
Range 60 meters line of sight
Impedance 50 ohm
Antenna Omni-directional Chip Antenna
* Indicates operating the tag at a RF baud rate of 100 kbps within the acceptable temperature
range and with the tag transmit time interval of 10 seconds.
4. Functional Flow Diagram
When the reed switch in the RFID tag is activated through a magnet, the RFID tag starts
transmitting the current configuration data. The data is displayed in the ‘Read Configuration
Settings’of RF Tag User Configuration Utility software. Also the ‘Write to Device’button is
enabled for 20 Seconds for the user to write the configuration data. To avoid the time delay, users
are advised to enter the new data in the screen before activating the reed switch in the RFID Tag.
The RFID tag will wait only for 20 sec to receive the configuration settings from the USB dongle.
Figure 2: Operational Sequence - Flow Diagram

CONFIDENTIAL MASTIFF™ Tag - User Manual P a g e | 9
Time Description
T1 Time of Activation of the RFID tag for user configuration
T2 Time of Data appeared in Read Settings
T3 Time of Clicking Write to Device button
T4 Time of Arrival of Write configuration Data to RF Tag
T5 Time of Arrival of Ack Data (ie., Changed Configuration) to the USB Dongle
The time difference between T1 and T5 should not exceeds 20 Seconds
5. Device Configuration
5.1. Overview
The user configuration utility software is an effective tool to program the settings of the
tag besides testing some of the features of the tag. It’s is a simple and easy to use tool which is
used to program the settings. It requires a USB dongle which acts as an interface device between
the software and the tag to read and update the settings.
The software can be used to read the settings of the tag as well as to write the settings.
During the operation which writes the settings to the tag, the tag needs to be first activated by a
magnet to convert it into configuration mode. The data to be written is then given to the USB
dongle based on user input. The USB dongle sends the data wirelessly to the tag. An
acknowledgment and new settings are sent by the tag once the data is successfully written. The
new settings are refreshed in the software indicating a successfully update.
Since there can be multiple users trying to program the tag, the distance between the USB
dongle and the tag must be maintained less than 30 cms.

CONFIDENTIAL MASTIFF™ Tag - User Manual P a g e | 10
5.2. How to Use the Software
The tag user configuration utility software is easy to use custom software which is used to
program the settings. The software is easy to use and it’s self-explanatory.
Figure 3: Screen Shot of User Configuration Software
The user configuration utility software allows the users to create/modify certain
important settings of the tag during installation. This flexibility will allow the tag to operate in
different frequency channels and various RF baud rates and transmit power levels. RF baud rate
and power levels have a direct bearing on the wireless range covered by the tag.
The software is capable to program the following settings:
