REIST INDUSTRIES AS-0615 User manual

100 Union Street lElmira, Ontario, Canada lN3B 3L7
lToll Free: 877-467-3478 lTel.: 519-669-1501 l
www.reistindustries.com
!
Do not attempt to operate the equipment without thoroughly
reviewing this manual for safe and proper operation.
Rev 220322 Earth Bore Owners Manual .220222
Operator’s Manual
Keep this manual with the machine at all times
PRINTED IN CANADA
Innovation Working For You
RD151
Earth Bore Auger Drives
Models
AS-0615 AS-1020 AS-1530 AS-2035 AH-1530
Kits:
FDHAS-0615US FDHAS-1020US FDHAS-1530US
FDHAS-2035US FDHAH-1530US
!
CAUTION
Operational Hazard
Personal Protection Equipment
(PPE) is required when operating
or maintaining this machine.
SNL00001
!
CAUTION
Operational Hazard
Dig safe - avoid underground utilities!
Always contact your local utility
companies (electrical, telephone, gas,
water, sewer, and others) before digging

2

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
General Information . . . . . . . . . . . . . . . . . . . . 4
Intended Use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
California Proposition 65. . . . . . . . . . . . . . . . . . . . . . 4
Serial Number Location . . . . . . . . . . . . . . . . . 4
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Safety Messages . . . . . . . . . . . . . . . . . . . . . . . . .5
Accident Prevention . . . . . . . . . . . . . . . . . . . . . . .6
Safety Guidelines . . . . . . . . . . . . . . . . . . . . . . . . .7
Safety Training . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Operation Safety. . . . . . . . . . . . . . . . . . . . . . . . . .8
Storage Safety . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Transport Safety . . . . . . . . . . . . . . . . . . . . . . . . . .9
Maintenance Safety . . . . . . . . . . . . . . . . . . . . . . .9
Safe Work Area . . . . . . . . . . . . . . . . . . . . . . . . .10
Hydraulic Safety . . . . . . . . . . . . . . . . . . . . . . . . .10
Safety Labels . . . . . . . . . . . . . . . . . . . . . . . . . 11
Safety Label Descriptions. . . . . . . . . . . . . . . . . . 11
If labels need to be replaced: . . . . . . . . . . . . . . . 11
Safety Label Layout . . . . . . . . . . . . . . . . . . . . . .12
 . . . . . . . . . . 13
Specications . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

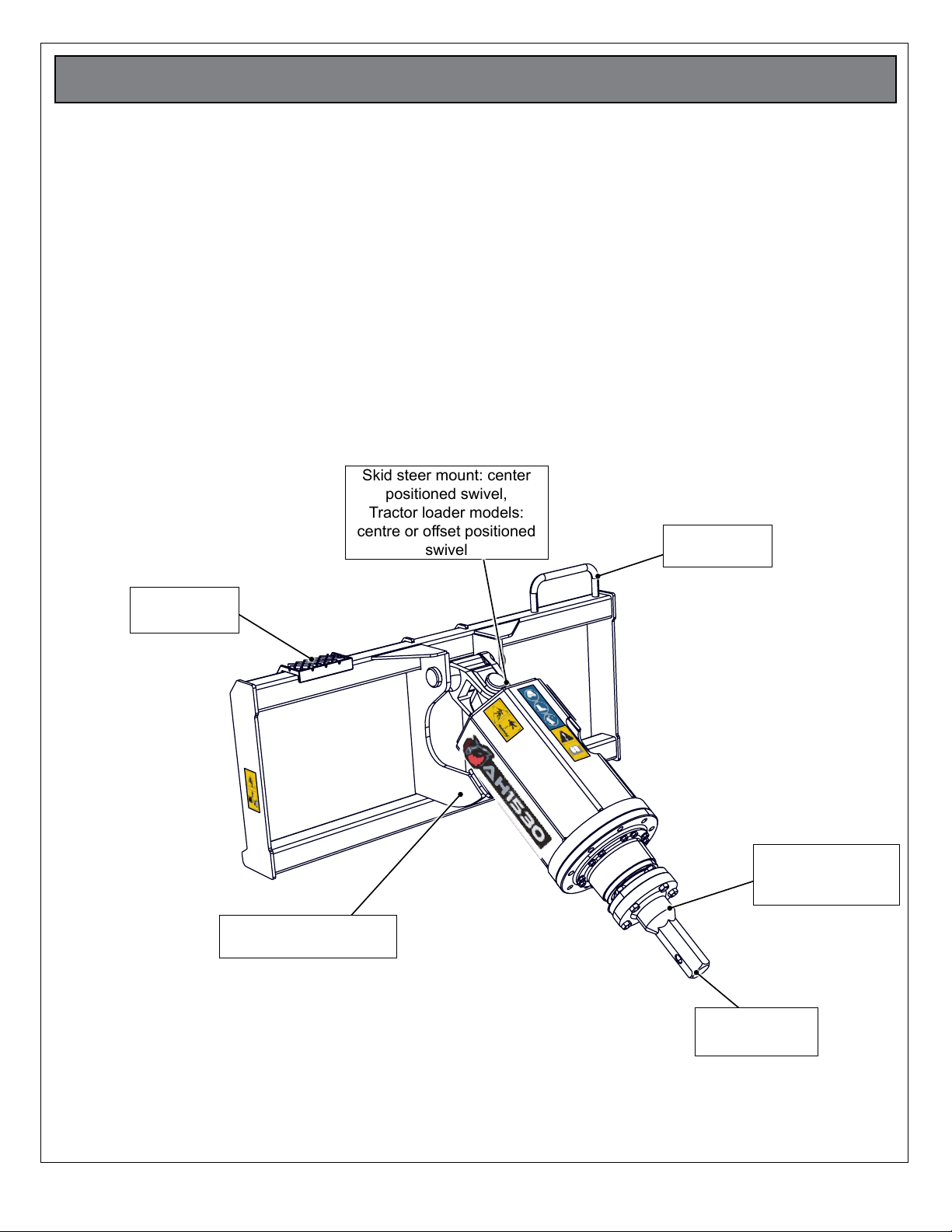

Components and Features . . . . . . . . . . . . . 14
Initial Setup . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Mounting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Hydraulics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Hydraulic Hoses . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Maximum Hydraulic Fluid Line Pressure . . . . . . . . 16
Maximum Hydraulic Fluid Flow per Unit . . . . . . . . . 16
Test & Inspect . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Field Operation . . . . . . . . . . . . . . . . . . . . . . . 17
Operation Safety Checklist . . . . . . . . . . . . . . . . .17
Prepare. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

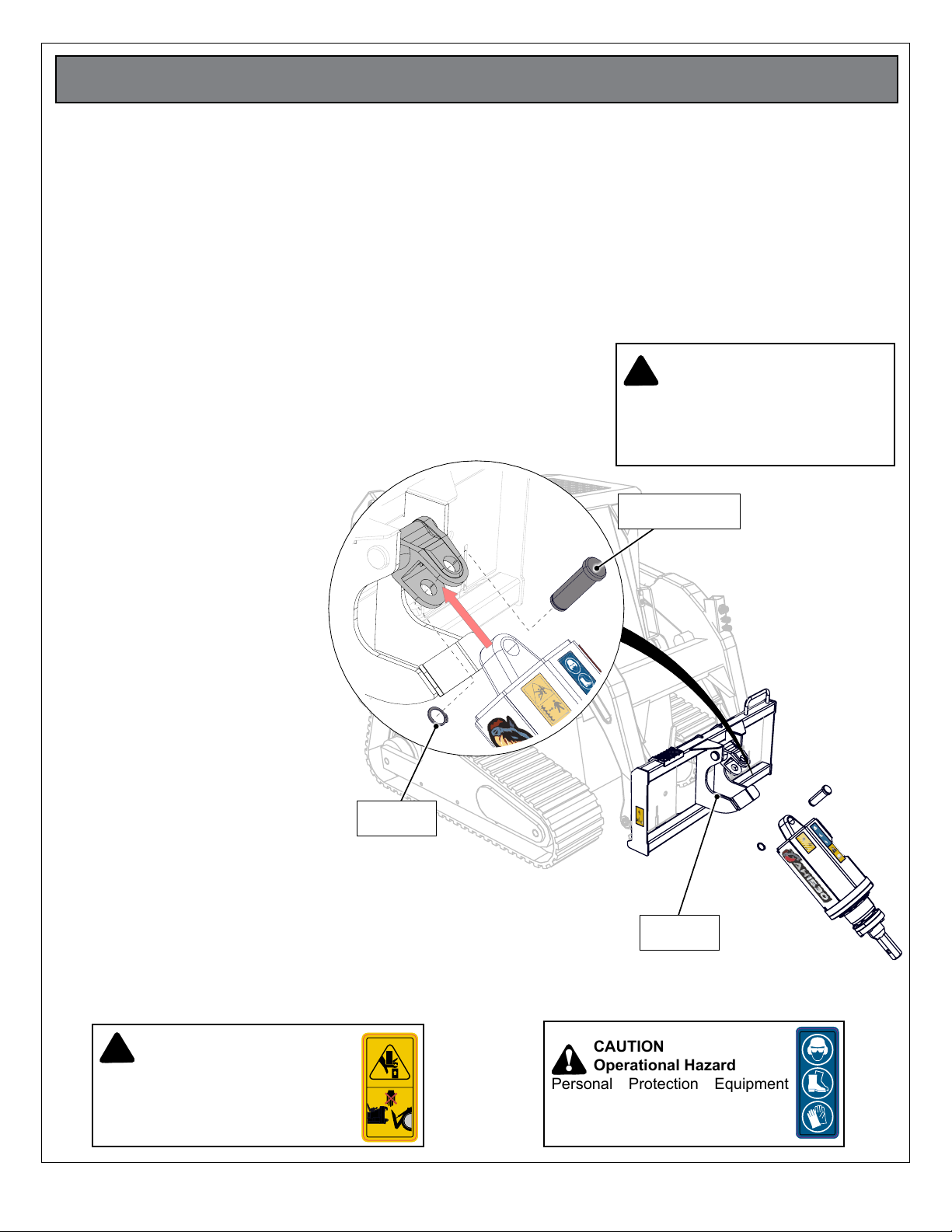

Mount Earth Bore . . . . . . . . . . . . . . . . . . . . . . . .18
Install the Auger Bit. . . . . . . . . . . . . . . . . . . . . . .18
Reist Quick Attach: . . . . . . . . . . . . . . . . . . . . . . . . 18
Direct attach to power unit: . . . . . . . . . . . . . . . . . . 18
Connect Hydraulics . . . . . . . . . . . . . . . . . . . . . .18
Operating the Earth bore . . . . . . . . . . . . . . . . . .19
Boring procedure . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Earth Bore Operation Tips . . . . . . . . . . . . . . . . . . . 20
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Storage Safety Checklist . . . . . . . . . . . . . . . . . .21
Placing in Storage: . . . . . . . . . . . . . . . . . . . . . . .21
Long term storage: . . . . . . . . . . . . . . . . . . . . . . . . . 21
Service & Maintenance . . . . . . . . . . . . . . . . 22
Maintenance Safety Checklist . . . . . . . . . . . . . .22
Daily Inspections: . . . . . . . . . . . . . . . . . . . . . . . .22
Hydraulics: . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Planetary Gear Case . . . . . . . . . . . . . . . . . . . . .23
Change planetary gear reduction oil. . . . . . . . . . . . 23
Gear reduction oil chart .. . . . . . . . . . . . . . . . . . . . . 23
Bolt Torque Table . . . . . . . . . . . . . . . . . . . . . . . .24
Trouble Shooting . . . . . . . . . . . . . . . . . . . . . 25
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
AS-0615 / AS-1020 / AS-1530 / AS-2035 . . . . .26
AH-1530 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . 28
Dirt Augers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Rock Augers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Tree Shrub Augers . . . . . . . . . . . . . . . . . . . . . . . . . 28
Extensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Adapters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Mount Parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Wear Parts: Auger Teeth & Pilots . . . . . . . . . . . . . . 28
WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . 29

3
Thank you for purchasing your new Reist Industries Hydraulic Earth Bore Auger Drive. Your Auger Drive has been
designed and manufactured to give you many years of dependable service. AS & AH Series for auxiliary hydraulic
systems operate between 10 to 35 GPM and up to continuous 3000 PSI, their unique design helps to increase productivity
by ensuring safe, e󰀨ective and speedy completion of earth boring tasks at your job site.
The AH series feature a bolt on output shaft, for convenient eld serviceability.
Safe, e󰀩cient and trouble free operation of your auger drive requires that you or any other person, who will be
assembling, operating, maintaining or working with this product, are required to read and completely understand the
information and instructions contained in this manual.
NOTE: If operating pressures will be higher than 3000 PSI, a cross over relief valve may be purchased from Reist
Industries (# 124441) and must be used to reduce the operating pressure to the Hydraulic Earth Bore Auger Drive. The
relief valve must be set at 3000 PSI or lower.
If anyone does not fully understand every part of this manual, please obtain further assistance by contacting the dealer
from which this product was purchased or by contacting Reist Industries with the information listed on the cover of this
manual.
Keep this operators manual available for reference by the operator and to pass on to new owners and or operators .
Assembly may be required depending on how you purchased your auger drive. Follow the assembly procedures as
outlined in the manual.
This manual covers models:
AS-0615, AS-1020, AS-1530, AS-2035, AH-1530 &
kits: FDHAS-0615US, FDHAS-1020US, FDHAS-1530US, FDHAS-2035US, FDHAH-1530US

RD144
RD145
RD146
RD147

4
Model Number _________________________________________________________
Serial Number _________________________________________________________


The Serial number for your Reist bore is located on the top of the housing.
Please record your serial number here as a handy reference. In case of warranty issues, your dealer will ask for the serial
to verify your warranty.
The purpose of this manual is to assist you in safely operating and maintaining your auger drive in a safe manner. Read
this manual carefully to obtain valuable information and instructions that will help you achieve safe and dependable
service. The illustrations and data used in this manual were current at the time of printing, but due to possible engineering
and or production changes, this product may vary slightly in detail. Reist Industries reserves the right to update and or
change components as necessary without notication.
In this manual the Earth Bore Auger Drive series may be referred to as implement, attachment, bore drive, bore or auger
drive.
Power unit refers to any powered implement attached to a Reist Hydraulic Earth Bore Auger Drive.

The Reist Hydraulic Earth Bore Auger Drive is intended for attachment and use on qualied power units for the sole
purpose of digging vertical holes in the earth for the installation of posts, plants, and other construction and landscaping
needs.

You may see a warning label like the following:
This warning is required by California Proposition 65 (Prop 65), which is meant to notify California residents of exposures
to Prop 65-listed chemicals. For more information go to ‘www.P65Warnings.ca.gov.
WARNING
Cancer and Reproductive Harm
www.P65 Warnings.ca.gov
Part No.
Serial No.
Max. Press.
(psi/bar)
Max. Cap.
(lb/kg)
Model No.
Date of Mfg.
Max. flow
(gpm/lpm)
Weight
(lb/kg)

5
!
This Safety Alert Symbol means:
ATTENTION!
BECOME ALERT!
YOUR SAFETY IS INVOLVED!
The Safety Alert symbol identies important safety messages on the implement and in the
manual. When you see this symbol, read and understand the message, be alert to the potential
hazard in the message. Follow the instructions in the safety message.
Throughout this manual, the terms DANGER, WARNING, CAUTION and IMPORTANT are used to indicate the degree of
hazard to personnel if proper safety procedures and guidelines are not followed. The appropriate term for each message
has been selected using the following guide-lines:
In the owners manual, when a hazard is present you will see a safety message box. The box may contain:
• The safety alert symbol,
• The safety term
• The safety hazard
• The safety hazard explanation
When applicable you may also see the appropriate safety label displayed with the message, as shown below.
!
WARNING
Pinch Point Hazard
The top rail and beam form a poten-
tial pinch point, be aware of where
hands and feet are while adjusting
the top rail. SL00002
Safety Label
Safety Alert
Safety Hazard
Safety Term
Safety Hazard Explanation

The safety information given in this manual does not replace any safety codes, insurance needs, government and local laws.
DANGER - Indicates an imminently hazardous situation that, if not avoided, will result in death
or serious injury, and includes most extreme situations typically for implement com-
ponents which, for functional purposes, cannot be guarded.
WARNING - Indicates a potentially hazardous situation that, if not avoided, could result in death
or serious injury, and includes hazards that are exposed when guards are removed.
It may also be used to alert against unsafe practices.
CAUTION - Indicates a potentially hazardous situation that, if not avoided, may result in minor or
moderate injury. It may also be used to alert against unsafe practices.
IMPORTANT - Indicates a situation that could result in damage to the implement or other property.


6

ACCIDENTS CAN BE PREVENTED WITH
YOUR HELP!
YOU are responsible for the SAFE operation and maintenance of your implement. YOU must ensure that you and anyone
else who is going to use, maintain or work around the implement be familiar with the work and maintenance procedures
and related SAFETY information contained in this manual. This manual will take you step-by-step through your working
day and alerts you to all good safety practices that should be used.
Remember, YOU are the key to safety. Good safety practices not only protect you but also the people around you. Make
these practices an e󰀨ective part of your day to day work habits. Be certain that EVERYONE using this implement is
familiar with the recommended maintenance and work procedures and follow all the safety precautions. Most accidents
can be prevented. Do not risk injury or death by ignoring good safety practices.
The best accident prevention is a careful operator.
Horst Welding and your dealer ask that YOU be that careful, responsible equipment operator.
YOU ARE THE KEY TO SAFETY:
•Familiarize yourself, and anyone else
who will operate, maintain, or work around
this product, with the safety and operation
information contained in this manual.
• Read and understand the safety labeling which
appears on the implement.
• Have a rst-aid kit available for use should
the need arise and know how to use it.
• Pay attention to the job at hand. Do not let your mind
lose concentration on what you are doing. No accident
prevention program can be successful without the
wholehearted cooperation of the person who is
directly responsible for the operation of the implement.
• Have a re extinguisher available for use should
the need arise and know how to use it.
• Reduce the risk of injury or death by following all
safety precautions and by using good safety practices.
• Accidents can to be prevented: that prevention will
come from equipment operators who accept their
complete responsibility and anticipate the results of
their actions.
• Never exceed the limits of the implement. Safety of
the operator and safe operation are the main concerns
in designing a safe product, however ignoring
implement specications by the operator can result in
a accident which could have been prevented.
•Do not allow riders on the implement,
loaded or empty.
•Do not operate this implement under the
inuence of drugs or alcohol.
• Be responsible for the SAFE operation and
MAINTENANCE of YOUR implement.
• Wear appropriate personal protective equipment
(PPE). This list includes but is not limited to:
• Hard hat
• Heavy gloves
• Hearing Protection
• Protective foot wear
• Protective eye wear
• Safety Vest
!
CAUTION
Operational Hazard
Personal Protection Equipment
(PPE) is required while assembling
or maintaining this machine.
SNL00001

7
Safety of the operator and bystanders is one of the chief concerns in developing and designing equipment. However,
every year many accidents occur which could have been avoided by a few seconds of thought and a more cautious
approach to handling equipment.
You, the operator, can avoid many accidents by observing the following precautions in this section. To avoid personal
injury or death, study the following precautions and insist those working with you, or for you to follow them.
In addition to the design and conguration of this implement, including safety labels and safety devices, hazard control
and accident prevention are dependent upon the awareness, concern, and proper training of personnel involved in the
operation, transport, maintenance, and storage of the implement. Refer also to safety messages and operation instruction
in each of the appropriate sections of the tractor and implement manuals. Pay close attention to the safety labeling a󰀩xed
to the implement.
1. In order to provide a better view, certain illustrations
in this manual may show an assembly with a safety
device removed. However, equipment should never be
used in this condition. Keep all safety devices in place,
if removal becomes necessary for repairs, replace the
device prior to use.
2. Replace any safety label or instruction sign that is
unreadable or is missing. Location of safety signs is
indicated in this manual.
3. Never use alcoholic beverages or drugs which can
hinder alertness or coordination while using this
implement. Consult your doctor about using this
implement while taking prescription medications.
4. Under no circumstances should young children be
allowed to work with this implement.
5. This implement is dangerous to persons unfamiliar
with its operation. Do not allow persons to use or
assemble this unit until they have read this manual
and have developed a thorough understanding of the
safety precautions and of how it works. Review the
safety instructions with all users annually.
6. If the elderly are assisting with work, their physical
limitations need to be recognized and accommodated.
Assistants should be a responsible, properly trained
and physically able person familiar with machinery
and trained in this implement’s operations.
7. Never exceed the limits of the implement. If its ability
to do a job, or to do so safely, is in question - DON’T
TRY IT.
8. Do not modify the implement in any way. Unauthorized
modication may result in serious injury or death and
may impair the function and life of the implement.
• Train all new personnel with the instructions
alongside the implement. Be certain only a properly
trained and physically able person will use the
machinery.
• Working with unfamiliar equipment can lead to
careless injuries. If this implement is used by any
person other than yourself, or is loaned or rented, it is
the implement owner’s responsibility to make certain
that the operator, prior to using:
• Reads and understands the operator’s manuals.
• Is instructed in safe and proper use of the
implement
• If the elderly are assisting with the work, their
physical limitations need to be recognized and
accommodated.

A person who has not been trained or has not read and understood all use and safety instructions is not qualied to use
the implement. An untrained operator exposes himself and bystanders to possible serious injury or death.
• Operators or maintenance personnel who are not
fully able to read and understand this manual should
not operate or work on the implement:
• Make certain that all operators and maintenance
personnel have complete understanding of the full
and exact contents of this manual and safety labeling.
• ALL information contained in this manual and labeling
on the implement must be conveyed CLEARLY and
FULLY, in order to be able to operate safely and
knowledgeably.
• Review the implement and instructions regularly with
existing workers.


8

1. Dig safe - avoid underground utilities! Always contact
your local utility companies (electrical, telephone, gas,
water, sewer, and others) before digging so that they
may mark the location of any underground services in
the area.Be sure to ask how close work can be done
to the marks they positioned.
2. Inspect implement for shipping damage. If damage
does exist, do not use. Notify your dealer immediately
to have damaged parts replaced or repaired.
3. Assembly may be required depending on how you
purchased your equipment. Follow the assembly
procedures as outlined in the manual, ensure all
hardware is secure.
4. Ensure safety chain, straps, tires are not damaged
and in good condition.
5. Inspect all fasteners that they are not lose or missing.
Ensure fasteners and wheel bolts are torqued
according to the torque chart at the back of this
manual
6. If traveling at night, ensure provincial state and local
laws lighting requirements have been met.
7. Ensure that all applicable safety decals are installed
and legible.
8. Personal protection equipment (PPE) including hard
hat, safety glasses, safety shoes, and gloves are
recommended during assembly, installation, operation,
adjustment, maintaining, repairing, removal, cleaning,
or moving the unit. Do not allow long hair, loose tting
clothing or jewelry to be around equipment.
9. PROLONGED EXPOSURE TO LOUD NOISE MAY
CAUSE PERMANENT HEARING LOSS!
Gas or diesel powered equipment can often be noisy
enough to cause permanent, partial hearing loss. We
recommend that you wear hearing protection on a full-
time basis. Noise over 85dB on a long-term basis can
cause severe hearing loss. Noise over 90db adjacent
to the Operator over a long-term basis may cause
permanent, total hearing loss.
10. When not attached to the power unit support the
implement to prevent movement.

1. NEVER allow helpers or bystanders under or near the
machine.
2. All bystanders should be kept a minimum of 10 feet (3
meters) away from working area
3. Inspect all fastening devices, do not use if worn or
damaged.
4. Make sure that everyone is clear before moving the
implement. NEVER position yourself between the
tractor and the implement.
5. Do not permit riders while transporting this implement.
6. Where possible, avoid operating near ditches,
embankments and holes.
7. Before exiting power unit, lower the auger to ground,
turn o󰀨 vehicle engine and lock power unit brakes

1. Store the unit in an area away from human activity.
2. Do not allow children to play on or around the stored
implement.
3. Store the unit in a dry, level area. Cover if stored
outside.
4. Guard any sharp corners.
5. Ensure components and safety features are not
damaged and in good condition before storing the
implement. Make repairs now to be ready for the
following season.
6. Secure the implement to prevent unwanted
movement.

9

1. Good maintenance is your responsibility, follow the
maintenance schedule. Poor maintenance is an
invitation to trouble.
2. Follow good shop practices.
• Keep service area clean and dry.
• Be sure electrical outlets and tools are properly
grounded.
• Use adequate light for the job at hand.
3. Never work under or around the implement unless it is
blocked securely.
4. Use personal protection equipment (PPE) such as
eye, hand and hearing protectors.
5. Never adjust, service, clean or lubricate the implement
until all power is shut o󰀨 when attached to the power
unit.
6. Ensure hardware is torqued as noted or according to
the torque chart at the back of this manual.
7. Relieve pressure on hydraulic system before
maintaining or working on system.
8. All hydraulic work must be done by qualied personnel
9. Do not work on or make any adjustments to the
tractor or earth bore while either is in operation. Turn
o󰀨 tractor engine, lower earth bore to the ground and
operate earth bore control levers to relieve residual
hydraulic pressure before leaving the tractor.
10. Do not leave the earth bore unattended with the
auger raised, always lower it to the ground.
1. When traveling on a public road at 32 km/h (20mph)
or less, ensure a rear facing slow-moving-vehicle
(SMV) emblem has been installed on the power unit.
1. Ensure the auger is safely secured from swinging
when transporting a distance to and from job site on
private or public roads
2. Tilt the quick attach rearward almost horizontal, till the
drive head rests on the cradle to stabilize the auger
and keep it from swinging freely. Always travel with the
bore in the lowered position and auger not rotating, at
least 6” o󰀨 the ground.
3. If not on a quick attach frame, secure the auger with a
chain to stabilize the auger and keep it from swinging
freely.
4. Check power unit tires before proceeding:
• Ination - correct pressure
• Tread - unusual wear, exposed cord
• Rims - damaged or bent
• Wheel bolts - all secure, not loose
• Replacement tires must be same type and rating
5. Just before transport, perform a circle check to ensure
everything is safe.
6. Be sure all markers required by local tra󰀩c regulations
are in place, clean and working.
7. Lighting is not required for daytime transport, however
generally lighting is required one-half hour before
sunset to one-half hour after sunrise and at any other
time when there is insu󰀩cient light or unfavourable
atmospheric conditions.
8. Reduce speed when turning, crossing slopes and
rough, slick or muddy surfaces.
9. Stopping distance increase with speed, weight and on
slopes.
10. Drive slowly over rough ground and on slopes, raise
and tether the auger with a chain, if necessary, to
prevent uncontrolled swinging.


10

1. Make sure that all the components in the hydraulic
system are kept in good condition and are clean.
2. Before applying pressure to the system, inspect
for leaks at all components, and that lines, hoses ,
connections and couplings are not damaged and leak
free.
3. Do not attempt any makeshift repairs to the
hydraulic lines, ttings or hoses by using tapes,
clamps or cements. The hydraulic system operates
under extremely high pressure. Such repairs will
fail suddenly and create a hazardous and unsafe
condition.
4. Wear proper hand and eye protection when searching
for a high pressure hydraulic leak. Use a piece of
wood or cardboard as a backstop instead of hands to
isolate and identify a leak.
5. If injured by a concentrated high-pressure stream of
hydraulic uid, seek medical attention immediately.
Serious infection or toxic reaction can develop from
hydraulic uid piercing the skin surface.
6. Relieve pressure on hydraulic system before
maintaining or working on system.
7. All hydraulic work must be done by qualied personnel

Not all work spaces are the same, but the principles
presented here can be applied to any work space.
For worker safety a site visit is recommended. Make a
site plan to identify hidden obstacles and structures and
identify the work area.
Dig safe - avoid underground utilities! Always contact your
local utility companies (electrical, telephone, gas, water,
sewer, and others) before digging so that they may mark
the location of any underground services in the area.Be
sure to ask how close work can be done to the location
marks.
Survey the work site, remove debris and make note of
nearby or overhead obstructions, knowing your work area
will make the job easier and safer.
Where possible, avoid operating near ditches,
embankments and holes.
Before exiting power unit, lower the auger to ground, turn
o󰀨 vehicle engine and lock power unit brakes.
Be aware of:
Bystanders or any one not directly involved with the
work are only allowed outside of the work area and must
keep a distance of at least 10 ft from the work area,
minimized hazards.
Workers helping the operator must wear the appropriate
PPE and must always make eye contact with the
operator before entering the work area. Unauthorized
Workers or bystanders are not allowed in the work area.
Hazards are present.
Operator, do not operate the auger outside of the
operator area.
Machinery, know the machinery you are working with.
Understand how the machines work, their limits and how
to safely operate them.
!
WARNING
High Pressure Hazard
Be aware that hydraulic leaks could
develop with out warning. Do not check
for leaks with your hand or ngers while
the system is pressurized SL00015

11

Safety labeling is an important part of the overall safe use of the implement. Safety labeling alerts and warns against
potential injury or death, and is important to follow these points to help keep your implement safe for you and others who
may be using it.

• Be sure that the installation area is clean and dry.
• Be sure temperature is above 50°F (10°C).
• Determine exact position before you remove the backing paper.
• Remove the smallest portion of the split backing paper.
• Align the sign over the specied area and carefully press the small portion with the exposed sticky backing in place.
• Slowly peel back the remaining paper and carefully smooth the remaining portion of the sign in place.
• Small air pockets can be pierced with a pin and smoothed out using the piece of sign backing paper.

• Keep safety signs clean and legible at all times.
• Replace safety signs that are missing or have become
illegible.
• Replaced parts that displayed a safety sign should
also display the current sign.
• Safety signs are available from your authorized
distributor or the factory order desk.
SL00004
SNL00001
Caution: read and understand ALL safety and
operating instructions in the manual, read and
understand ALL safety labels located on the
machine. The most important safety device on
this equipment is an informed SAFE operator.
Caution: Hydraulic uid is under pressure, be
aware that hydraulic leaks could develop with
out warning. Do not check for leaks with your
hand or ngers while the system is pressurized,
serious injury could result. Possible burns or
poisoning from pressurized uid injection.
Warning: Be aware of rotating auger.
Entanglement danger present, keep hands,
feet, loose clothing, and long hair away from
rotating auger. Entanglement could result in
death or serious injury.
Caution: Personal Protection Equipment (PPE)
is required when operating or maintaining this
machine. Failure to wear PPE will result in
personal injury.
SLR0006
SLR0005
SLR0007
Caution: do not place your hand or any part
of your body on or near the front mount while
coupling to the power unit. Parts moving
together present a pinch point and may cause
serious injury. Possible laceration, crushing,
amputation hazard.

12

If safety labels have been damaged or removed, new
labels must be applied. New safety signs are available
from your dealer or contact Reist Industries
Safety signs and locations on the equipment are shown in the illustrations below. The AH1530 is illustrated however label
locations are similar for all models, unless otherwise indicated.
Good safety practice requires that you familiarize yourself with the label and the safety message it is delivering. Be aware
of the equipment or particular equipment feature that requires your SAFETY AWARENESS.
SLR0006
SLR0005
SLR0005
SL00004
SLR0007
SLR0007
SNL00001
WARNING
Cancer and Reproductive Harm
www.P65 Warnings.ca.gov

13


GVWR
Chassis Weight
Tire Weight
Break - Away
Specifications AS-0615 AS-1020 AS-1530 AS-2035 AH-1530
Dimensions (Drive only) 10 X 10 X 28 IN 10 X 10 X 28 IN 10 X 10 X 28 IN 10 X 10 X 28 IN 11 X 11 X 35 IN
Weight Drive 149 LBS. 150 LBS. 150 LBS. 151 LBS. 185 LBS.
Output Shaft Size 2” HEX 2” HEX 2” HEX 2” HEX 2” HEX
Max. Dia. Dirt Auger 18 IN 30 IN 36 IN 36 IN 36 IN
Max. Dia. Rock Auger
18 IN 24 IN 36 IN 36 IN 36 IN
Gear Train Type PLANETARY PLANETARY PLANETARY PLANETARY PLANETARY
Hydraulic Flow (GPM)
5 min - 15 max 10 min - 20 max 15 min -30 max 20 min -35 max 15 min - 30 max
Max. Continuous (PSI) 3000 PSI 3000 PSI 3000 PSI 3000 PSI 3000 PSI
Max Intermittent (PSI) 3500 PSI 3500 PSI 3500 PSI 3500 PSI 3500 PSI
Field Serviceable NO NO NO NO YES
Kit (Frame, Drive, Hoses)
Speed Output AS-0615 AS-1020 AS-1530 AS-2035 AH-1530
6 GPM 36 RPM NA NA NA NA
10 GPM 61 RPM 53 RPM NA NA NA
15 GPM 91 RPM 79 RPM 55 RPM NA 45 RPM
20 GPM
NA 105 RPM 73 RPM 61 RPM 60 RPM
25 GPM NA NA 92 RPM 76 RPM 75 RPM
30 GPM
NA NA 110 RPM 91 RPM 90 RPM
35 GPM NA NA NA 106 RPM NA
Torque Output AS-0615 AS-1020 AS-1530 AS-2035 AH-1530
2000 PSI 1,008 FT. LBS. 1,165 FT. LBS. 1,674 FT. LBS. 2,016 FT. LBS. 2,041 FT. LBS.
2500 PSI 1,260 FT. LBS. 1,456 FT. LBS. 2,092 FT. LBS. 2,520 FT. LBS. 2,550 FT. LBS.
3000 PSI 1,512 FT. LBS. 1,747 FT. LBS. 2,511 FT. LBS. 3,025 FT. LBS. 3,062 FT. LBS.
3500 PSI 1,764 FT. LBS. 2,038 FT. LBS. 2,929 FT. LBS. 3,529 FT. LBS. 3,572 FT. LBS.
Ordered to fit the power unit - front loader, skid steer
28” AS-0615 /1020 / 1530 / 2035
35” AH-1530
10”


14

The Reist series auger drives are designed to perform digging chores in a reliable, safe way. Its features make it the best
choice for boring holes quickly and easily.
The owner or operator has the responsibility of being familiar with all the features of the Reist auger and know how to
operate it. Each owner or operator must train all other operators before they start working with the machine.
Read this section carefully to learn how to use the auger safely and how to set it to provide maximum eld e󰀩ciency. By
following instructions in conjunction with a good maintenance program, your auger will provide many years of trouble-free
service.
Do not operate this auger if you are not familiar with its features.
The AH1530 with skid steer mount is illustrated below, showing its basic components and features. Components and
features are similar for the auger series unless noted. Review the various components and their position, the names of the
components will be used to describe where they are and how they work through out the manual.
Foot tread
(skid steer)
2” heavy duty
hex shaft
Auger drive cradle
Bolt on replaceable
shaft on model
AH-1530
Hose guide
(skid steer)
Skid steer mount: center
positioned swivel,
Tractor loader models:
centre or o󰀨set positioned
swivel

15
To prevent potential injury during installation and to ensure safe working conditions, avoid working around the power unit
while it is running. Shut o󰀨 the power unit and ensure the brakes are applied or the wheels have been secured with wheel
chocks to prevent unwanted movement during the installation process.
Components are heavy, work in pairs (2 skilled operators) whenever earth bore drive unit or components are being
assembled or disassembled from the power unit. Always check the power unit has the capacity for handling the weight &
hydraulic requirements of the drive.
The following describes the typical connection procedure with required materials. Before proceeding, lubricate pivot points
on the unit. Refer to the maintenance section in this manual. Before putting the earth bore drive into service the rst time,
inspect the drive and auger for shipping damage. If damage does exist, do not use. Notify your dealer immediately to have
damaged parts replaced or repaired. Check all bolts for tightness, tighten if required.
The initial setup of the Earth Bore Drive series involves a few basic steps.
• Attach the drive to the adaptor frame mount.
• Install hydraulic hoses.
• Test and inspect.

!
WARNING
Pinch Hazard
Keep hands away from mounting
points while attaching to the power
unit. Potential pinch hazard exist be-
tween the facer and power unit SLR0007
!
CAUTION
Operational Hazard
Personal Protection Equipment
(PPE) is required while assembling
or maintaining this machine.
SNL00001
Cradle
Housing pin
Snap Ring
!
WARNING
Heavy or bulky parts
Prevent potential strain injury, use
approved lifting equipment or ask for
help when lifting or moving heavy,
bulky parts.
If attaching directly to the power unit (eg mini excavator),
ensure the bore is laying on the ground and lower the
boom to attach the bore. Do not attempt to lift the bore
drive up to the boom. Install and secure the main pin,
carefully lift the bore drive.

Attachment of the bore drive can
be easily made to a Reist skid steer
or tractor loader mount or attached
directly to the power unit. (eg mini
excavator)
Review your power unit owner
manual, determine how mount
attachment should be made and what
is required.
The bore drive comes with the
housing pin secured to the drive with
a snap ring.
• Attach and secure the adaptor /
quick attach frame to the power
unit.
• Remove the housing pin by
removing the snap ring with snap
ring pliers.
• With a helper, rest the Earth Bore
on the cradle and carefully install
the housing pin, and secure with
the snap ring.

16

If the Earth Bore was purchased as a skid steer kit the
hydraulic hoses are pre-attached to the drive complete
with at faced hydraulic quick couplers.

Warning! Hoses and ttings must have a continuous
operating pressure rating of at least 25% higher than
highest pressures of the system you are connecting into.
• Determine length of hydraulic hoses required to
plumb the drive unit into the outlets on the power
unit where you’ll be connecting into the hydraulics.
• Fittings on the drive end of the hose should be #10
ORB to t the drive. Fittings on the power unit end
of the hose should match the threads on hydraulic
quick couplers to be used.
• Hydraulic hoses are attached at the drive motor thru
the opening in the housing.
Reist has hoses available: 96” long with #10 ORB
ttings at each end.

All Reist hydraulic earth bore attachments are rated to
3000 PSI.
If operating pressures will be higher than 3000 PSI, a
cross over relief valve may be purchased from Reist
(# 124441) and must be used to reduce the operating
pressure to the Reist hydraulic auger drive. The relief
valve must be set at 3000 PSI or lower.
The operator is responsible for ensuring the hydraulic
power supply does not exceed the maximum uid
pressure.

The following is a list of the maximum continuous
hydraulic uid ow at 3000 psi allowable for each size of
hydraulic boring attachment.
Failure to follow these guidelines will void all
warranties!
Failure to follow these guidelines can cause serious
internal damage and failure of the hydraulic motor
and or gearbox!
!
WARNING
High Pressure Hazard
Be aware that hydraulic leaks could
develop with out warning. Do not check
for leaks with your hand or ngers while
the system is pressurized SL00015
!
WARNING
Operational Hazard
Warning: Be aware of rotating auger.
Entanglement danger present, keep
hands, feet, loose clothing, and long hair
away from rotating auger. Entanglement
could result in death or serious injury.
SLR0005
MODEL VOLUME
GALLONS
PER MINUTE
AS-0615 06-15 GPM
AS-1020 10-20 GPM
AH / AS-1530 15-30 GPM
AS-2035 20-35 GPM
!
!
!
IMPORTANT
Operational Hazard
Some auxiliary outlets are one way circuits only
and turn on ow abruptly with such force that can
cause damage to hydraulic motors and other parts
of system and will not reverse auger drive to free
the auger if it becomes lodged. Check the power
unit before installing on one of these outlets.
!
WARNING
High Pressure Hazard
Hoses and ttings must have a continuous
operating pressure rating of at least 25%
higher than highest pressures of the
system you are connecting into. SL00015

• Inspect all attach points and all pins are secured.
• Check hydraulic connections are tight.
• Start up the power unit, check for drive operation and
hydraulic leaks.
• Put the power unit through its range of movement,
check for proper hose lengths, and that hoses won’t
be stretched, snagged or pinched.
!
WARNING
Operational Hazard
Warning: At rst use the hydraulic components on
this product may contain air or an air-uid mixture.
Failure to remove all the air from the hydraulic
components can cause dangerous uneven, jerky
movement during use or unwanted movement
when not being operated.

17


9NEVER allow helpers or bystanders under or near
drive unit while the power unit is running.
9Make sure that the drive unit is securely mounted to
the power unit before moving or using.
9Inspect all fastening devices, do not use if worn or
damaged.
9Make sure that everyone is clear before moving the
implement. NEVER position yourself between the
power unit and the implement.
This section describes how to safely and e󰀨ectively operate the Earth Bore Auger Drive in the eld of operation. By
following recommended procedures, a safe working environment is provided for the operator, bystanders and the area
around the work site. Not all situations and conditions can be addressed, proceed with care & caution and use safety as
your guide.
The owner or operator has the responsibility of being familiar with the operation of the Earth Bore Auger Drive and must
train all other operators before they start working with the machine.
Work in a safe manner and follow all instructions exactly, safety is everyone’s business. Untrained operators are not
qualied to use the machine.
9Where possible, avoid operating near ditches,
embankments and holes.
9When changing augers, ensure the brakes are on
prevent the power unit from moving.
9Do not permit riders while using or transporting.
• Transport to the work site, review ‘Transport Safety’
• Clear the area of bystanders, especially small
children.
• Training: each operator must be trained and familiar
with the set up and operation of the product and its
components.
• Each Earth Bore unit has unique specications,
the power unit must be equipped to meet these
specications:
• Review:
• Components and Features
• Operation Safety Checklist
• For worker safety review the site plan to identify
hidden obstacles and structures and identify the work
area.
• Dig safe - avoid underground utilities! Ensure local
utility companies (electrical, telephone, gas, water,
sewer, and others) have inspected and marked the
location of any underground services in the area
before digging. Be sure to ask how close work can be
done to the location marks.

• Survey the work site, remove debris and make note of
nearby or overhead obstructions, knowing your work
area will make the job easier and safer.
• Where possible, avoid operating near ditches,
embankments and holes.
• It is recommended that each person wear appropriate
Personal Protective Equipment (PPE) whenever
working in the vicinity. This equipment is designed to
prevent injury to any personnel in the area. This list
includes but is not limited to:
• Safety shoes with slip resistant soles.
• Safety glasses.
• Hearing protection.
• Heavy or leather gloves
• Before use, inspect the power unit and drive unit
• Check all nuts, bolts and screws and ensure they
are all properly secured
• Check all attachment pins and clips are secure.
• Check hydraulic connections are secure and that
hoses are undamaged and in good condition.

18

Ensure your attachment system is in good condition.
• Prepare your particular attachment system, follow the attachment instructions for your power unit.
• Position the hydraulic connectors away from the quick attach points to prevent damage from pinching while mounting.
• Mount the quick attach, close and secure any locks or pins to lock the quick attach to the power unit.
• When traveling from point to point:
• Reist Quick Attach: Tilt the quick attach rearward so the bore is almost horizontal and the drive head rests on the
cradle to stabilize the auger drive and keep it from swinging
freely. Always travel with the bore in the lowered position
and auger not rotating, at least 6” o󰀨 the ground.
• Direct attach to power unit: always travel with the auger
not rotating. Secure the auger drive with a chain to stabilize
the auger and keep it from swinging freely.

Review the auxiliary connection and operating instructions
for your power unit.
• Connect the bore hydraulic hoses to the power unit’s
auxiliary hydraulic connectors.
• Ensure the connection is secure and the hoses are
free to move without snagging or stretching.
!
WARNING
High Pressure Hazard
Be aware that hydraulic leaks could
develop with out warning. Do not check
for leaks with your hand or ngers while
the system is pressurized SL00015
!
WARNING
Pinch Hazard
Keep hands away from mounting
points while attaching to the power
unit. Potential pinch hazard exist be-
tween the facer and power unit SLR0007

Park the power unit on a level surface, engage the parking
brake. Prepare the auger by removing the nut, lock-washer and
bolt from the auger hub.

• Raise the loader arms and tilt the quick attach rearward
so the drive head rests on the cradle to stabilize it.
• Shut o󰀨 the engine, remove the key and set the brake.
• With a helper, maneuver the auger hub into the end of
the drive shaft.
• Align the bolt holes and secure the auger to the drive
shaft with a nut, lock-washer and bolt.

• Lower the boom so the bore is laying on the ground.
• With a helper, maneuver the drive shaft into the end of
the auger shaft or extension.
• Secure the auger to the drive shaft with the nut, lock-
washer and bolt., carefully lift the bore drive.
!
WARNING
Heavy or bulky parts
Prevent potential strain injury, use
approved lifting equipment or ask for
help when lifting or moving heavy,
bulky parts.
Auger hub
Nut
Lock washer
Bolt
Drive shaft
Tilt back to stabilize
earth bore

19

With the Earth Bore Auger set up and ready to run, work may begin after the work site has been inspected and any
underground utilities marked, .

• With the auger raised o󰀨 the ground and the power
unit engine set at a low RPM, activate the earth
bore control valve to determine the position the
control valve lever must be turn auger in a forward
(clockwise) rotation.
• Before beginning to dig, experiment with auger speed
to determine a suitable auger RPM. To increase auger
RPM, increase power unit engine RPM, to decrease
auger RPM, decrease engine RPM:
• Generally in light and sandy soils a high RPM is
desirable.
• In hard, rocky or frozen soils a slower RPM is
desirable.
• Ensure the quick attach frame is tilted forward to
provide clearance from the cradle during the boring
procedure.
• Return earth bore control valve to neutral position to
stop the auger. Lower the auger to the ground so that
only the center point penetrates the ground about 2”.
• Activate the earth bore control valve so auger is
turning in a forward (clockwise) rotation. Use only
enough down pressure to assure positive penetration
of auger into the ground.
• Lower the earth bore slowly as the soil is loosened.
As you dig deeper, move the power unit backward or
forward as required to keep the bore straight.
• Ease up on down pressure if auger rotation slows
down drastically. If the auger stalls, engage the
reverse ow hydraulics, and slowly raise the auger out
of the hole.
NOTE: Excessive down pressure will cause the auger
drive to stall frequently.
• When the auger has penetrated the ground about 24”
(610mm), raise the auger from the hole to clean the
dirt out. Repeat this procedure until the desired hole
depth is obtained.
• Once required hole depth is reached, allow the auger
to turn a few seconds at this depth to clean the hole.
• Return the earth bore control valve to the neutral
position to stop the rotation of the auger. Raise the
auger out of the hole, move away from the hole, then
activate the earth bore control valve to spin the loose
soil o󰀨 of the auger.
NOTE: Do not reverse the auger rotation to remove from
the hole as loose soil on the auger ights will fall back
into the hole.
• If necessary, repeat the previous two steps to obtain a
cleaner hole.
!
WARNING
Operational Hazard
Warning: Be aware of rotating auger.
Entanglement danger present, keep
hands, feet, loose clothing, and long hair
away from rotating auger. Entanglement
could result in death or serious injury.
SLR0005
!
CAUTION
Operational Hazard
Personal Protection Equipment
(PPE) is required while assembling
or maintaining this machine.
SNL00001
Tilt forward to
clear cradle
Keep bore straight
Do not apply
excessive down
pressure

20

• Allow the earth conditions to determine the best RPM
or how much down pressure you use for each hole.
Bore just enough dirt with each pass to clear e󰀩ciently
without overloading the earth bore, auger or power
unit. Experience is your best tool.
• Choose the appropriate auger for the job at hand.
Reist Industries feature a variety of auger types in
various sizes.
• In some soil conditions when excessive down
pressure is applied, the auger may “screw” itself into
the ground and become stuck causing earth bore to
stall. If this happens:
• Reverse the auger rotation (counter-clockwise)
by moving the control valve lever to the reverse
position.
• Slowly raise the auger out of the hole.
• Once unstuck, return the control valve lever to the
forward rotation position and continue digging.
• If the auger becomes lodged under rocks, roots or
other large obstructions follow the previous procedure
for proper steps to relieve the auger.
!
WARNING
Operational Hazard
Warning: Be aware of rotating auger.
Entanglement danger present, keep
hands, feet, loose clothing, and long hair
away from rotating auger. Entanglement
could result in death or serious injury.
SLR0005
!
WARNING
Operational Hazard
Warning: Bystanders or any one not directly
involved with the work are only allowed outside of
the work area and must keep a distance of at least
10 ft from the work area, minimized hazards.
• If the auger hits a large obstruction the vehicle
hydraulic relief valve will open and bypass the oil to
stall (stop) the auger. This does not damage the unit in
anyway but serves as a protection device. Whenever
this happens simply reverse the auger rotation and
raise the auger. Once unstuck you can continue
digging.
• Avoid moving the power unit away too far from the
hole while digging. This causes excessive side loading
on earth bore which can cause drive unit or auger
damage.
• Keep auger teeth and points in good condition. Check
frequently and always keep spares on hand so they
can be replaced as wear is detected to avoid damage
to tooth holders and auger ighting.
• Clean hydraulic oil is essential! 80% of all hydraulic
component failures are caused by contamination
of the hydraulic oil. Always keep all dirt and other
contaminates from entering hydraulic system during
disconnect and connect operations.
• Always use dust caps and plugs on all quick
disconnects when not in use. Tightly cap all hydraulic
openings to hold oil in and keep dirt and other
contaminates from entering hydraulic system.
