Reliable Equipment REL-BG Manual

1
DISTRIBUTED BDISTRIBUTED B
DISTRIBUTED BDISTRIBUTED B
DISTRIBUTED BYY
YY
Y
OPERAOPERA
OPERAOPERA
OPERATORS’ GUIDETORS’ GUIDE
TORS’ GUIDETORS’ GUIDE
TORS’ GUIDE
Crimping Manual 06-
WARNINGWARNING
WARNINGWARNING
WARNING
All information found in this guide
must be read and understood before
use or testing of this tool.
Failure to read and understand these warnings
and safe handling instructions could result
in severe personal injury and or death.
6 TON MANUAL STYLE CRIMPING TOOLS
Fixed O or BG Nose
with D3 Die Seat
Accepts R6 & W
Style Dies
Fixed O or 5/8 Nose
Accepts Kearney Dies
D3 Die Seat
Accepts R6 & W
Style Dies
RELIABLE EQUIPMENT & SERVICE CO., INC.
92 Steamwhistle Drive • Ivyland, PA 18974 • USA
Phone: [phone] • Fax: [phone]
MODEL: __________________________________
MAX. PRESSURE: _________________________
SERIAL NO.: ______________________________
YEAR: ___________________________________
REL-O,REL-BG
REL-KO, REL-K58, REL-SN
Wooden Handles
REL - __ - FG
Fiberglass Handles
REL - __ -FGBH
Bent Fiberglass Handles
Three Handle
Styles Available

2
REGISTRATION
UPON RECEIPT OF THIS TOOL, COMPLETE THE REGISTRATION BELOW.
COMPANY ___________________________________________________________
ADDRESS ____________________________________________________________
______________________________________________________________________
PHONE ______________________ FAX __________________________________
SERIAL NUMBER ____________________________________________________
DATE OF PURCHASE ________________________________________________
DEALER NAME _______________________________________________________
CAUTION
The information in this manual is intended to guide the user in
the use and application of this tool. It is not intended as a
substitute for proper training and experience in safe work
practices for this type of equipment.
Consult your supervisor or safety personnel if you have any
questions regarding the safe operation of this tool.
DISTRIBUTED BDISTRIBUTED B
DISTRIBUTED BDISTRIBUTED B
DISTRIBUTED BYY
YY
Y

4
WARNING
BEFORE USING THIS TOOL, READ THE WARNINGS
and the recommended practices described in this manual.
Failure by the operator to read and fully understand these
warnings will leave this person unqualified to use and
operate this tool. Property damage, severe personal injury,
and/or death could result by not following these warnings.
Eye
Protection
These warnings will appear in appropriate locations when they are pertinent to the
particular subject being shown. Read each one carefully and follow them strictly.
WARNING
Always wear eye protection to avoid
injury from flying debris or hydraulic
oil leaks. Failure to do so can result
in serious personal injury.
Hard Hat
WARNING
Always wear a hard hat to avoid injury
from falling debris. Failure to do so
can result in serious personal injury.
Foot
Protection
Always wear foot protection.
Failure to do so can result in serious
personal injury.
WARNING
WARNING
Protective
Gloves
Always wear protective gloves
Failure to do so can result in serious
personal injury.
WARNING
TOOL HAZARDS
This crimping tool can crush and/or disable.
KEEP ALL PARTS OF THE BODY AWAY FROM MOVING PARTS.
DO NOT OPERATE TOOL WITHOUT DIES.
Failure to observe this warning could result in serious injury
.

5
GENERAL SAFETYGENERAL SAFETY
GENERAL SAFETYGENERAL SAFETY
GENERAL SAFETY
USE ALL APPROPRIATE AND APPLICABLE PERSONAL SAFETY EQUIPMENT
as required by the operating company.
INSPECT TOOL BEFORE USE. Replace any worn, damaged or missing parts.
A damaged or improperly assembled tool may injure operator and/or nearby personnel.
KEEP ALL PARTS OF THE BODY AWAY from moving parts of the tool.
KEEP HANDS OUT FROM BETWEEN CRIMPING JAWS AT TOOL HEAD.
ALL BODY PARTS SHOULD BE OUTSIDE DANGER ZONE PRIOR TO CRIMPING.
MAKE SURE there is no person in close proximity to you or the tool who could be
injured by any operation being performed, tool malfunction or flying debris.
DO NOT OVEREXTEND your position by overreaching or unbalancing the footing
necessary to maintain physical control of your body and the tool.
ALWAYS MAINTAIN a firm grip on the tool to avoid loss of control during an operation,
causing property damage, serious injury or death.
USE THIS TOOL FOR THE MANUFACTURERS’ INTENDED PURPOSE ONLY.
OBSERVE CLOSELY ALL SAFETY RULES FOR A PARTICULAR JOB CLASS
FAILURE TO HEED THESE WARNINGS COULD RESULT IN
PROPERTY DAMAGE, SERIOUS PERSONAL INJURY OR DEATH.
ELECTRICAL SHOCK HAZARD
Always wear and use the necessary clothing, equipment and
safety practices to protect against electrical shock. Failure to
follow these rules can result in serious personal injury or death.
WARNING
Operation/Safety methods may vary in accordance
with the working guidelines established by each utility
or contractor.
For your own safety, ensure that you fully comply with
all safe operation guidelines required by your employer.
WARNING

4
RELIABLE - 6 TON
MANUAL COMPRESSION TOOLS
Reliable Equipment’s series of manually
operated crimpers installs a full range
of connectors from #14 through 4/0
and are equivalent to the Burndy MD-6.
FEATURES:
Acceptance of W-type
or Kearney Style die inserts.
Spring loaded die retainer
pins assure positive lock.
Butting jaws.
Crimp force of 9,000 lbs.
Visual alignment system
assures proper adjustment.
H/D forged steel jaws.
High strength hickory, fiberglass
or bent fiberglass handles with
anti-slip grips.
PART DESCRIPTION
REL-O Fixed D-3 Seat, O Nose Die & Hickory
REL-BG Fixed D-3 Seat, BG Nose Die & Hickory
REL-KO Kearney Seat, O Nose Die & Hickory
REL-K58 Kearney Seat, 5/8 Nose Die & Hickory
REL-SN Fixed D-3 Die Seat & Hickory Handle
REL-BG-FG D-3 Seat, BG Nose & FG Handle
REL-O-FG D-3 Seat, O Nose & FG Handle
REL-KO-FG Kearney Seat, O Nose & FG Handle
REL-K58-FG Kearney Seat, 5/8 Nose & FG Handle
REL-SN-FG Fixed D-3 Die Seat & FG Handle
REL-BG-FGBH D-3 Seat, BG Nose & FG Handle
REL-O-FGBH D-3 Seat, O Nose & FG Handle
REL-KO-FGBH Kearney Seat, O Nose & FG Handle
REL-K58-FGBH Kearney Seat, 5/8 Nose & FG Handle
REL-SN-FGBH Fixed D-3 Die Seat & Bent FG Handle
RELIABLE EQUIPMENT & SERVICE CO., INC.
301 Ivyland Road • Warminster, PA 18974 • USA
Phone: [phone] • Fax: [phone]
Fixed O or BG Nose
with D3 Die Seat
Accepts R6 & W
Style Dies
Fixed O or 5/8 Nose
Accepts Kearney Dies
D3 Die Seat
Accepts R6 & W
Style Dies
REL-O,REL-BG
REL-KO, REL-K58, REL-SN
Wooden Handles
REL - __ - FG
Fiberglass Handles
REL - __ -FGBH
Bent Fiberglass Handles
Three
Handle Styles
Available
6TON MANUAL
CRIMPING
TOOLS

14

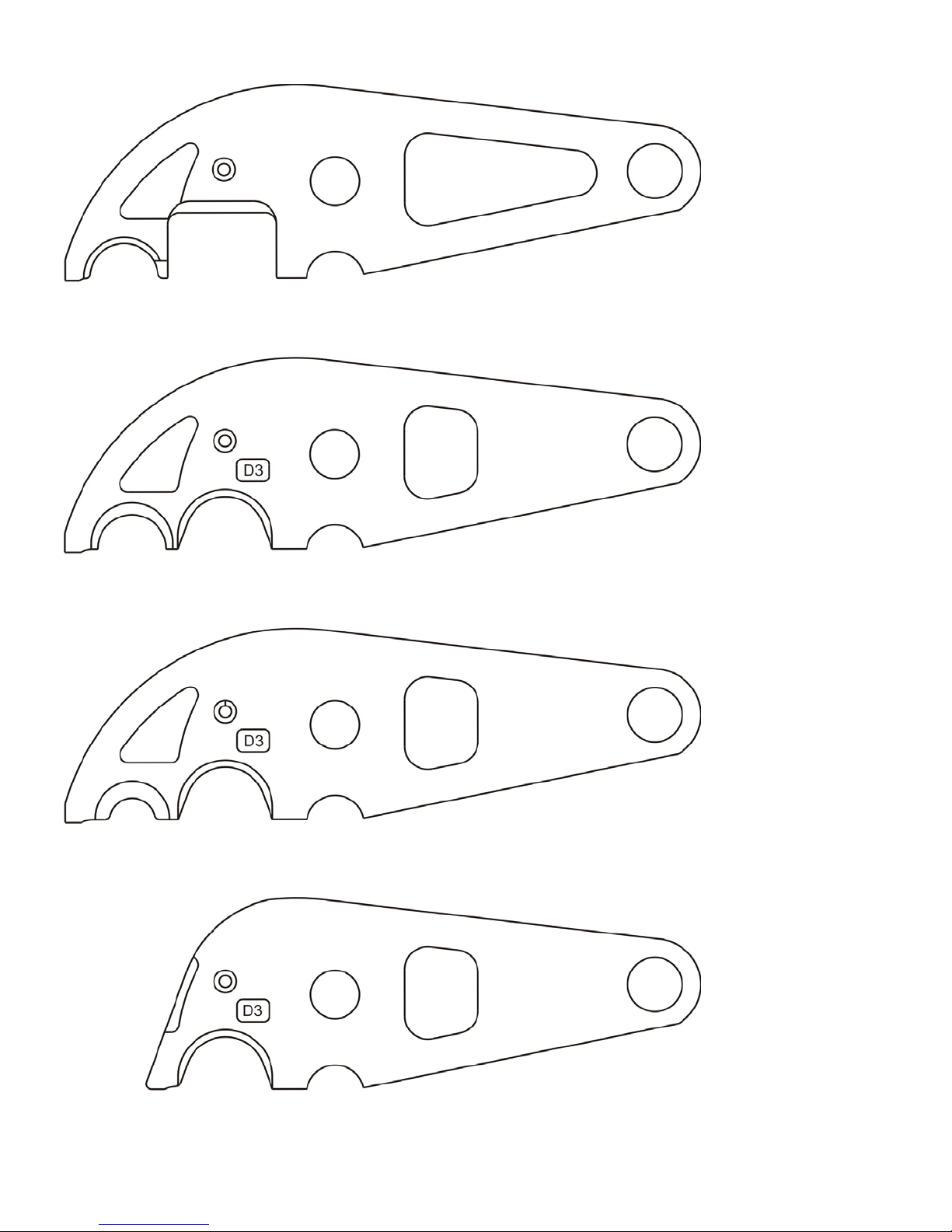

KEARNEY STYLE JAW
WITH O OR 58 FIXED NOSE DIE
D3 die adapter available
O STYLE JAW
WITH FIXED D3 SEAT
BG STYLE JAW
WITH FIXED D3 SEAT
SNUB NOSE JAW WITH D3 SEAT
ACCESS
CONFINED
SPACES

12
RELIABLE R6 SERIES
APPLICABLE 6 TON DIES
RELIABLE .......... BURNDY RELIABLE.............BURNDY
R6-BG................. WBG R6-241 ..................W241
R6-C.................... WC R6-242 ..................W242
R6-K840 ............. WK840 R6-243 ..................W243
R6-L.................... WL R6-245 ..................W245
R6-O ................... WO R6-247 ..................W247
R6-Q ................... WQ R6-248 ..................W248
R6-161................ W161 R6-249 ..................W249
R6-162................ W162 R6-251 ..................W251
R6-163................ W163 R6-660 ..................W660
R6-164................ W164 R6-687 ..................W687
R6-165................ W165 R6-690 ..................W690
R6-167................ W167 R6-691 ..................W691
R6-171................ W171 R6-693 ..................W693
R6-236................ W236 R6-694 ..................W694
R6-237................ W237 R6-702 ..................W702
R6-238................ W238 R6-733 ..................W733
R6-239................ W239 R6-CUT ................. W28K
R6-240................ W240
RELIABLE R6K SERIES
6 TON DIES EQUIV. TO KEARNEY “O” STYLE
RELIABLE .......... KEARNEY RELIABLE.............KEARNEY
R6K-B ................. B R6K-5/16 ................5/16
R6K-D ................. D R6K-3/8 .................3/8
R6K-J.................. J R6K-1/2.................. 1/2
R6K-K ................. K R6K-9/16 ................9/16
R6K-O ................. O R6K-19/32 ...............19/32
R6K-P ................. P R6K-5/8-1 ............... 5/8-1
R6K-T ................. T R6K-11/16 ...............11/16
R6K-737.............. 737 R6K-D3.................. D3
R6K-781.............. 781 R6K-510H ............... 510-HEX
R6K-840.............. 840 R6K-635H ............... 635-HEX
R6K-3/16 ............. 3/16 R6K-747H ...............747-HEX
R6K-1/4............... 1/4

Read entire manual prior to using this tool.
(Refer to all safety recommendations and warnings)
Observe all safety precautions and procedures
required by the operating company.
Before crimping, ensure that crimp is within the
capacity listed for the tool.
Refer to connector manufacturer’s instructions for
cable preparation and crimping procedures.
Ensure that you are using the proper die, as
recommended by the connector manufacturer.
Insert proper die into die seat.
Refer to appropriate DIE INSTALLATION on next page.
Place tool over connector.
Center connector between the dies.
Align jaw as necessary to ensure proper crimp.
Close handles until compression is complete.
Repeat as necessary to complete desired crimp.
TOOL OPERATION
IF YOU HAVE ANY QUESTIONS REGARDING THE PROPER USE
AND/OR OPERATION OF THIS TOOL, CONSULT YOUR AREA SUPERVISOR,
OR CONTACT RELIABLE EQUIPMENT AT 800-966-3530
MANUAL CRIMPING TOOL
WARNING
FIRE HAZARDFIRE HAZARD
FIRE HAZARDFIRE HAZARD
FIRE HAZARD
An incomplete crimp may pose a fire hazard.
Always use the appropriate connector, die set, and compression
tool, as required by the intended application.
Compression tool should be tested on a regular schedule to
ensure acurate compression.
Failure to observe this warning could result in serious injury.
Do not operate
without dies.
Fixed O ro BG Die
Die Seat
Bent
Fiberglass
Handle
Anti-slip Grip
Forged Steel Jaws
9

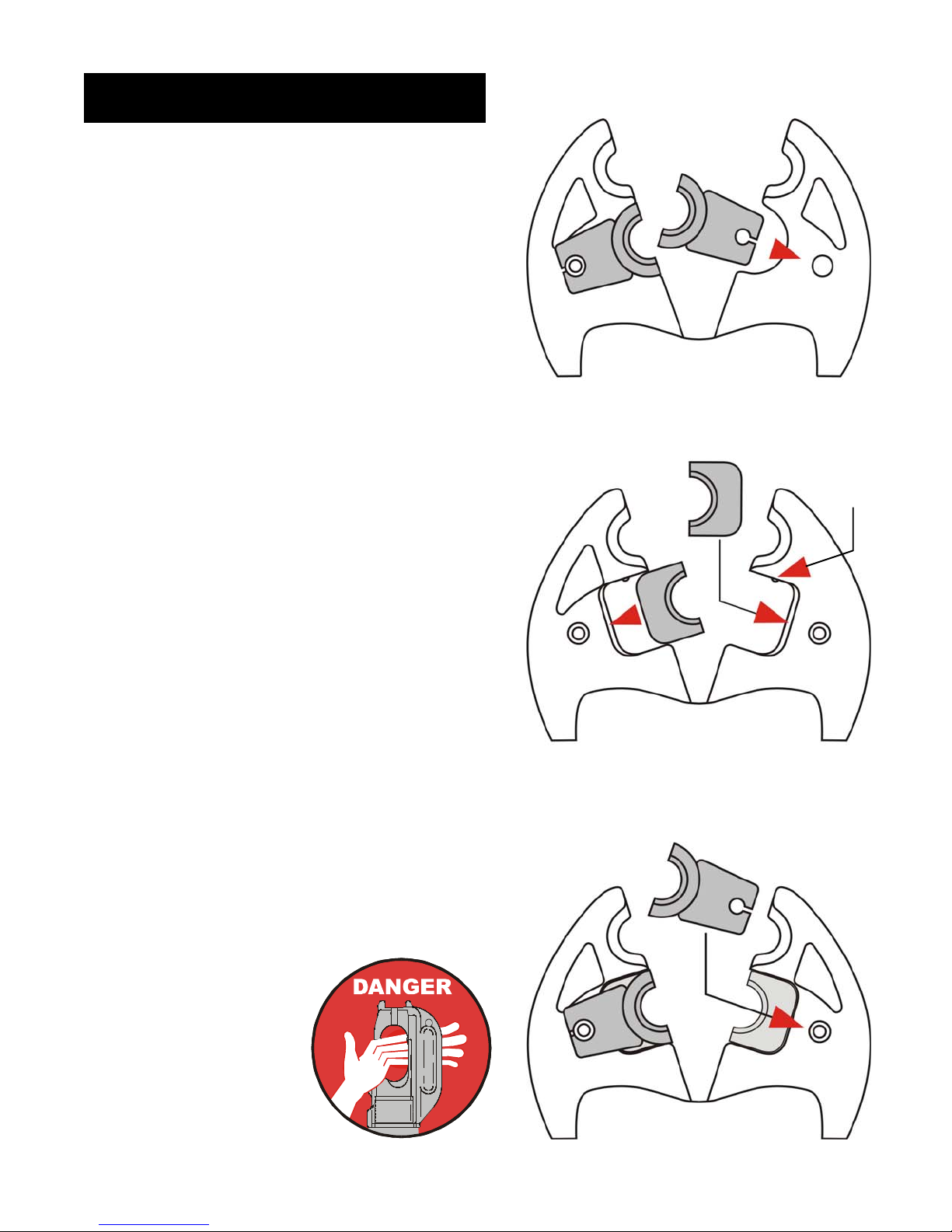

DIE INSTALLATION
Ensure crimp is within the capacity for the tool.
Refer to connector manufacturer’s instructions
for cable preparation and crimping procedure.
Ensure that you are using the proper die, as
recommended by the connector manufacturer.
REL-OREL-O
REL-OREL-O
REL-O,,
,,
,BGBG
BGBG
BG,,
,,
,or SNor SN
or SNor SN
or SN
INSERT “W” STYLE DIE INTO DIE RETAINER
Open tool jaw completely.
Push down on die retainer pin. (Illustration A)
Slide die half into die seat and on the die pin.
Release retainer pin.
Check to ensure die is securely seated.
Repeat steps above for opposing die half.
REL-KREL-K
REL-KREL-K
REL-KOO
OO
O,,
,,
,or K58or K58
or K58or K58
or K58
INSERT KEARNEY STYLE DIE INTO JAW
Open tool jaw completely.
Slide the die into die seat. (Illustration B)
Ball detent will snap into position.
Check to ensure die is securely seated.
Repeat steps above for opposing die half.
INSERT “W” STYLE DIE WITH D3 ADAPTER
Open tool jaw completely.
Slide the Kearney D3 die adapter into the jaw.
(Illustration B) Ensure die is securely seated.
Push down on die retainer pin. (Illustration C)
Slide die half into die seat and on the die pin.
Release retainer pin.
Check to ensure die is
securely seated.
Repeat steps above
for opposing die half.
A. R6/W Style Die Installation
B. Kearney Style Die Installation
C. Kearney D3 Nest Die
with R6/W Die Installation
Die
Retainer
Die
Retainer
Pin
Detent
9

13
DAILYMAINTENANCE
The life, reliability, and safety of the tool is dependent on proper maintenance.
Clean all surfaces including head, die seat, and body.
Inspect tool for wear, and/or damage.
Worn or damaged parts may malfunction during operation.
All parts must be replaced with new parts if signs of wear or damage are evident.
Keep Label Set clean and legible. Replace decals when necessary.
BEFORE USING THIS PRODUCT
READ THE SAFETY WARNINGS
and recommended practices described
in the manual. Failure by the operator to
read and fully understand the warnings
will leave this person unqualified to use
and operate the tool.
Failure to observe all warnings and instructions could result
in property damage, severe personal injury, and/or death.
ELECTROCUTION
HAZARD
The user should be properly
trained in the correct procedures
required for work on or around
electrical lines.
REL-SM
WARNING
MONTHLY
Apply a light oil to all moving parts.
QUARTERLY OR EVERY 500 CRIMPS
Perform a compression test
Test the crimping tool with 6 ton Test Slugs.
Consult your Reliable Equipment representative for test accessories.
ANNUALLY
If required by the regulations of your employer, organization, or safety committee guidelines,
send the crimping tool to an Authorized Reliable Service Center for testing and evaluation.
WARNING
Inspection & Testing requirements may vary in accordance with
the working guidelines established by each utility or contractor.
For your own safety, ensure that you fully comply with all safe
operation guidelines required by your employer.

14
INSPECTION AND ADJUSTMENT
Check tool regularly for correct adjustment.
Adjustment to compensate for normal tool wear is possible and may extend the service
life of your compression tool.
Remove any die inserts from the tool and inspect all parts for dirt, damage or abnormal wear.
Separate the tool handles and return handles to a point were the jaw tips touch, without
applying any force to the handles. DO NOT CLOSE HANDLES COMPLETELY!
Check the alignment of the registration marks (A) found at the top of the link adjuster (#2)
and the fixed handle casting (# 21). If the marks are in line the tool is adjusted properly, no
further adjustment is necessary. If marks do not line up proceed to Alignment.
Alignment
Refer to illustration as needed.
Using a 3/16” hex key, loosen the
locking set screw (A) (bottom).
Using a 3/16” hex key, turn the
adjustment set screw (B) (top)
clockwise or counterclockwise
until the marks line up.
Tighten locking screw (A) (bottom).
Your tool is now properly adjusted.
Check the complete operation of
your tool and return to service.
All maintenance or disassembly
should take place on a flat, clean
work surface covered with towels
or wipers so as to have a clean
space for the disassembled parts.
Inspect each part during disassembly
for wear, scratches, and cuts.
Discard any worn or damaged parts
replace with new authorized parts.
IF YOU HAVE QUESTIONS REGARDING THE REPAIR AND MAINTENANCE
OF THIS TOOL CONTACT RELIABLE EQUIPMENT AT 800-966-3530
GENERAL MAINTENANCEGENERAL MAINTENANCE
GENERAL MAINTENANCEGENERAL MAINTENANCE
GENERAL MAINTENANCE
B
C
A

1
23
4
5
6
7
8
9
10
12
11
13
14
15
16
17
18
WOOD
HANDLES
FIBERGLASS
HANDLES
21
20
19
REL-0
MANUAL
COMPRESSION
TOOL
MANUAL
COMPRESSION
TOOL
FIBERGLASS
HANDLES
BENT

ITEM DESCRIPTION QTY RELIABLE
1JAW, “BG” ............................................................................................... 2 ............... R12847
JAW, “O” ................................................................................................. 2 ............... R12848
2LINK, ADJUSTER ................................................................................... 1 ............... R12851
3LINK, FRAME .......................................................................................... 2 ............... R12852
4PIVOT PIN .............................................................................................. 1 ............... R12853
5BUTTON, DIE RELEASE ........................................................................ 2 ............... R12854
6NUT, DIE RELEASE ................................................................................ 2 ............... R12855
7SPRING, DIE RELEASE .......................................................................... 2 ............... R12856
8BOLT, CRIMP HEAD ............................................................................... 2 ............... R12857
9BOLT, HANDLE CASTING ...................................................................... 3 ............... R12858
10 KNURLED PIN ........................................................................................ 1 ............... R12859
11 NUT, CRIMP HEAD ................................................................................. 2 ............... R12860
12 NUT, HANDLE CASTING ........................................................................ 3 ............... R12861
13 ROLL PIN ................................................................................................ 4 ............... R12862
14 SHRINK TUBE ........................................................................................ 2 ............... R12863
15 SET SCREW, 3/8x16x3/4 ........................................................................ 1 ............... R12864
16 SET SCREW, 3/8x16x1 ........................................................................... 1 ............... R12865
17 “DU” BUSHING ....................................................................................... 3 ............... R12866
18 DISK, CARBOARD .................................................................................. 2 ............... R12867
19 HANDLE, WOOD .................................................................................... 2 ............... R12868
HANDLE, FIBERGLASS W/ GRIP ........................................................... 2 ............... R12869
HANDLE, BENT FIBERGLASS W/ GRIP ................................................ 2 ............... R12869K
20 CASTING, ADJ. HANDLE ........................................................................ 1 ............... R12850
21 CASTING, FIXED HANDLE ..................................................................... 1 ............... R12849
KIT ASSEMBLIES
DIE RETAINER KIT
(Items #5,6,7) ............................................................................................................ 1 ................ K2854
HANDLEASSY,ADJUSTMENT
(Items #2,10,13,14,15,16,18,19,20) .............................................................................. 1 ................ K2850
Fiberglass Handle Assembly (All items above with Fiberglass Handles) ................... 1 ............. K2850-FG
Bent Fiberglass Handle Assembly (All items above with Bent Fiberglass Handles) ... 1 ............ K2850-FGK
HANDLEASSEMBLY, FIXED
(Items #13,14,18,19,21) ............................................................................................ 1 ................ K2849
Fiberglass Handle Assembly (All items above with Fiberglass Handles) ................... 1 ............. K2849-FG
Bent Fiberglass Handle Assembly (All items above with Bent Fiberglass Handles) ... 1 ............ K2849-FGK
“BG” CRIMP HEADASSEMBLY
(Items #1,3,4,5,6,7,8,11,17) ...................................................................................... 1 ................ K2847
“O” CRIMP HEAD ASSEMBLY
(Items #1,3,4,5,6,7,8,11,17) ...................................................................................... 1 ................ K2848
PARTS LIST REL-BG / REL-O
MANUAL COMPRESSION TOOL

12
Date Parts or Service Required
MAINTENANCE RECORDSMAINTENANCE RECORDS
MAINTENANCE RECORDSMAINTENANCE RECORDS
MAINTENANCE RECORDS
301 Ivyland Road Warminster, PA 18974
Phone: [phone] Fax: [phone]
Visit us on the web at www.Reliable-Equip.com
If you have any questions regarding the information
found in this manual please contact RELIABLE EQUIPMENT at the
address, phone or fax numbers shown below.
