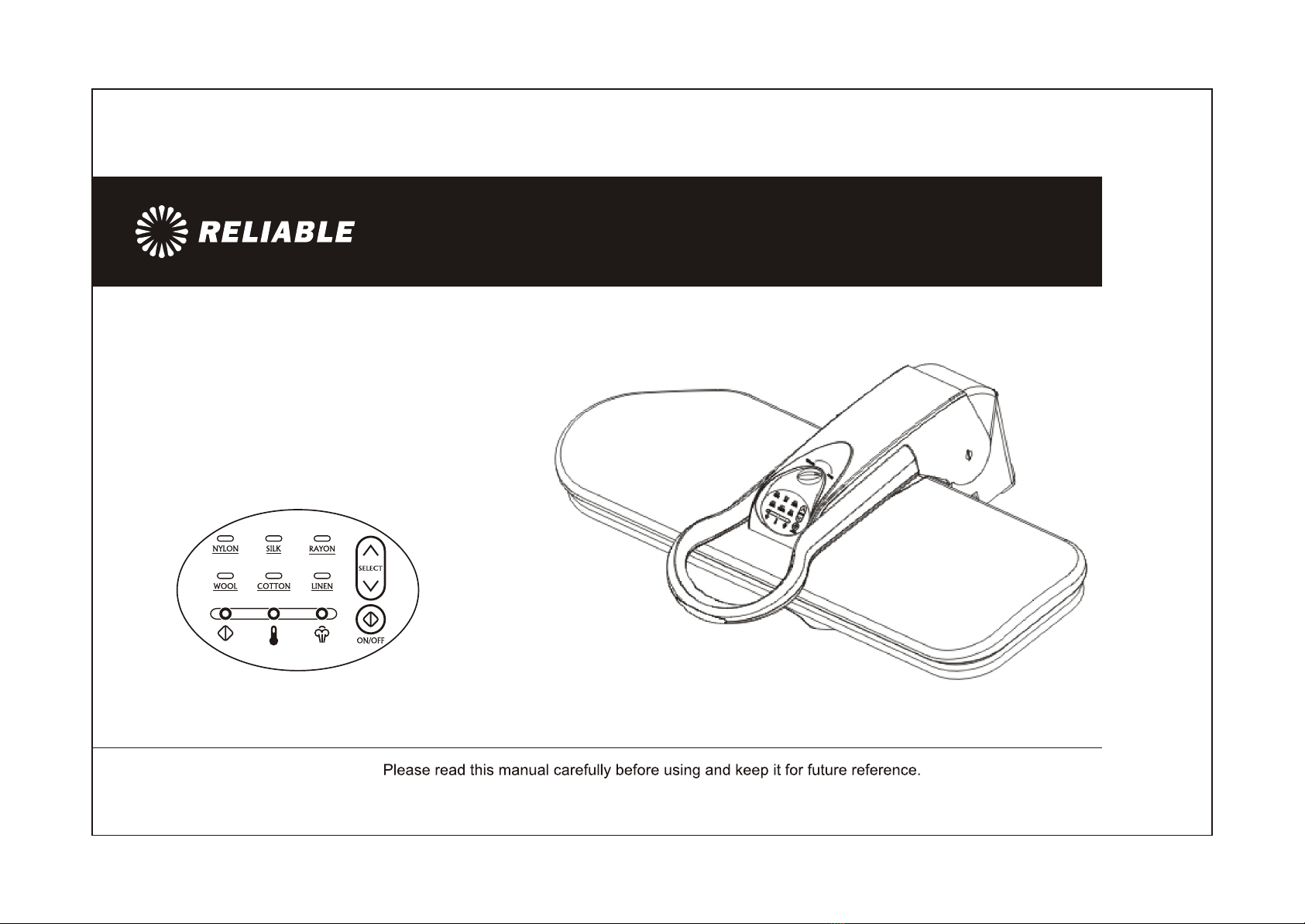

Reliable Empressa S500 User manual

DIGITAL STEAM PRESS
INSTRUCTION MANUAL
MODEL NO.: Empressa S500

Features of the Digital Steam Press.........................................1
Safety Reminders.....................................................................2
Part Identification.................................................................3-4
oreparation for use...........................................................5
oFilling the water tank.......................................................5
oTurning on the power.......................................................5
oSelecting the temperature.................................................6
oSteam Control Notes........................................................7
oPressing............................................................................8
oFinishing Pressing............................................................9
oCleaning.........................................................................10
Suggestion for Success...........................................................11
Use of the Pressing Cushion..................................................12
Techniques for Pressing......................................................13-14
Troubleshooting..................................................................15-16
AA a
AA a
AA a
AA a
AA a
AA a
AA a
AA a
P
Steam Press Operation
CONTENTS
Digital Steam Press Instruction Manual

Digital Steam Press Instruction Manual Page1
Features of the Digital Steam Press
Your Steam Press provides clean, professional results every time!
Reduces ironing time by up to 50%
Multiple dry-heat and steam settings for all types of fabric
Burst setting removes stubborn wrinkles
Variable temperature selection
Automatic shut-off safety feature while open or closed with audible alert
Over 100lbs. of even pressure ensures sharp, long lasting creases
Easy-to-use one hand operation
Protects delicate fabrics like silk
Non-stick padded ironing board cover
Non stick coating on pressing plate reduces starch build-up and eases cleaning (Optional)
Locking handle makes unit portable
Stores upright

Digital Steam Press Instruction Manual
Page2
SAFETY REMINDERS
WARNING - Read all of the instructions and then save them for future reference.
THIS UNIT IS FOR HOUSEHOLD USE ONLY.
SAVE THESE INSTRUCTIONS
!
!
!
!
!
!
!
!
!
!
To protect against the risk of electric shock, do not immerse
the appliance in water.
Do not let the cord hang over the edge of counters.
Do not allow the cord to touch hot surfaces.
Always allow the appliance to cool for at least thirty minutes
before storing.
Always put the appliance in a secure place on a table or
counter when using.
Do not move the appliance without unplugging it first.
The appliance has very hot surfaces - Do not allow
unsupervised children to use the appliance.
Always disconnect the appliance from the outlet before
filling with or removing water. Be careful to avoid spilling
water on the appliance when filling.
Use distilled water in the appliance. Do not use perfumed or
products containing alcohol in the appliance.
Always disconnect the appliance when not in use.
!
!
!
!
!
!This appliance IS NOT intended for use by young children
or infirm persons unless they have been adequately
supervised by a responsible person to ensure that they can
use the appliance safely.
Do not use the appliance if the cord is damaged. Return the
appliance or have the cord repaired by the manufacturer,
service agent or a similarly qualified person.
Do not operate the appliance if it has been dropped or
damaged. Do not disassemble the appliance. Incorrect
reassembly can cause a risk of electric shock. Send it to an
authorized service center for repair.
Do not operate another high wattage appliance on the same
circuit.
This appliance must be grounded. Do not alter the plug or
attempt to defeat this feature.
Be careful. Burns can occur from touching hot metal parts,
hot water or steam.

Digital Steam Press Instruction Manual Page3
PART IDENTIFICATION
The Pressing Handle raises and lowers the Pressing Plate.
By lowering the Pressing Handle until it reaches the lowest
point possible you automatically obtain maximum pressure.
The Locking Knob will lock together the Pressing Plate and
Ironing Board. Turn the Locking Knob to the locked position
to carry or store the Steam Press.
The Steam Burst Button on the handle grip produces a
burst of steam when pressed.
The Pressing plate is the temperature controlled surface that
heats and presses the fabric.
The Ironing Board is the padded surface that holds the
fabric during pressing.
The [Power] Light (Red) is illuminated when the unit is on.
The [Ready] Light (Green) goes off when the Press has
reached the selected temperature.
The [Steam] Ready Light (yellow) goes on when the unit is
ready to produce bursts of steam.
The *POWER* button turn the appliance ON/OFF.
1.
2.
3.
4.
5.
6.
7.
8.
9.
Press the *SELECT* button arrows to set the desired
temperature for each fabric. NOTE: Steam will only be
available on the three highest settings.(wool cotton linen)
The Water Tank slides forward and is filled through holes
in the top. The Water Level can be seen through the front of
the tank. Slide the tank forward for a better view.
The Ironing Board Cover is removable and washable for
extended use.
10.
11.
12.

Digital Steam Press Instruction Manual
Page4
The multiple function safety features of this appliance turns off electric power to the heater when the Pressing plate has been left against
the Ironing Board for about 10 seconds. If the Pressing plate is left in the open (up) position without use after approximately 15 minutes,
the unit will be automatically shut-off. In both cases press the *POWER* button to restart the steam press.
13. The Pressing Cushion is a fabric covered pad used for pressing gathered or
contoured areas such as sleeves, darts, and yokes.
14. The plastic water Spray Bottle is used for dampening fabric before pressing.
15. The Water Container is used for filling the Water Tank.
The following information is provided for service by a qualified electrician only:
Rated voltage: 120V~, 60Hz, 1350W
WARNING:
This appliance must be grounded. Use only the proper type outlet when plugging in the appliance. Do not attempt to override the
ground wire feature.
100
200
300
400ml

Digital Steam Press Instruction Manual Page5
STEAM PRESS OPERATION
STEP1 - PREPARATION FOR USE
Place the appliance on a sturdy work surface. Unlock the Locking Knob.
STEP 2 - FILLING THE WATER TANK
BEFORE PLUGGING IN THE APPLIANCE, fill the water tank;
1. Always make sure the appliance is unplugged before filling the tank.
2. Fill the Water Tank with the Pressing Plate lifted to the raised (up) position.
Slide the Water Tank towards the front of the unit. It will not come
completely out so do not force it to do so. Using the Water Container,
slowly pour the distilled water into the Water Tank Fill Hole(C).
3. Be careful to avoid spilling water onto the Steam Press when filling.
4. Slide the Water Tank back into its recessed position.
STEP 3 - TURNING ON THE POWER
1. Make sure the Locking Knob (D) is in the open position allowing free
movement of the Pressing Plate before plugging in the appliance.
2. Lift the Pressing plate to the fully raised (up) position.
3. Plug the appliance into an electric outlet.
4. Press the *POWER* button and the Red Power light will illuminate.

Digital Steam Press Instruction Manual
Page6
STEP 4 SELECTING THE TEMPERATURE
Press the *SELECT* arrow buttons to choose the kind of fabric you wish to press. Press to move selection to higher setting and
press to move selection to lower setting.
1. Examine the garment label if unsure and look up the type on the chart.
IMPORTANT NOTE: If you can not determine the type of fabric, begin with the lowest setting and increase the temperature as
desired until you obtain the proper results.
2. When the Green [Ready] Light goes off, the Pressing Plate has reached the correct temperature for the desired setting.
3. When changing the setting from a higher selection to a lower setting allow several minutes for the Pressing Plate to cool
sufficiently after making the change.
IMPORTANT NOTE: You may find it more efficient to arrange your fabrics from those requiring the lowest setting to those
requiring the highest setting and proceed accordingly. This will avoid any unnecessary delays as you wait
for the Pressing Plate to cool.

Digital Steam Press Instruction Manual Page7
STEP 5 - STEAM CONTROL
IMPORTANT NOTE: Steam is produced only when the Yellow [Steam]
Ready light is on.
The Green [Ready] Light goes off when the unit has reached the desired
temperature. The Yellow [Steam] Ready Light will come on when the unit is
ready to produce steam.
IMPORTANT NOTE: If this is the first time you are using the Steam Press
or you have been storing it for some time, lift the
Pressing plate into the raised position and press the
Steam Burst Button several times until the steam
begins to flow.
IMPORTANT NOTE: The Steam Burst function can only be used when the
[Steam] Ready Light is on AND the steam press is
in a slightly opened position. Do not use the Steam
Burst function when the steam press is closed, or
you may damage the unit.
IMPORTANT NOTE: Do not press the Steam Burst Button for more than 5
seconds or water may drip on to your garment.

Digital Steam Press Instruction Manual
Page8
IMPORTANT NOTE: If you forget to raise the Pressing Plate or become distracted, the machine will give a warning beep and
automatically shut-off heating after approximately 10 seconds. The steam press will be completely shut-off after
15 minutes of no activity with the press in the open position.
STEP 6 - PRESSING
1. Lift the Pressing Handle (A). The Pressing Plate (B) moves to the up
position.
2. Carefully arrange the garment to be pressed onto the Ironing Board (C).
3. Grab the handle of the Pressing Plate(A) and lower it onto the Ironing
Board (C), capturing the garment between the two halves of the Steam
Press. For light duty Pressing, simply lowering the handle and allowing the
Pressing Plate to rest on the Ironing Board will be sufficient. Return to the
open position. For heavier duty pressing, continue to grab the handle and
press downward until the Pressing Plate is pushed to its lowest position,
then open the press.
4. If the temperature is set high enough you may give the fabric a burst of
steam by pressing the Steam Burst Button (D) to remove stubborn wrinkles.
Lower the pressing plate until it is about two inches from the garment.
Press the Steam Burst Button for about 3-5 seconds. After releasing the
Steam Burst Button you may fully lower the pressing plate.
NOTE: Do not press the Steam Burst Button when the pressure plate is
in its lowest (closed) position.
5. After a few seconds, lift the handle and raise the Pressing Plate back to the
raised position.

Digital Steam Press Instruction Manual Page9
STEP 7 - FINISHING PRESSING/STORING THE UNIT
1. Water left in the reservoir will not drip out if the machine is stored in an
upright position. However, it is recommended that if the machine will be
stored for some time, that all the water in the unit should be drained by
pressing the Steam Burst Button until all of the water is pumped out.
2.Press the *POWER* button, the Red [Power] Light will go out. Disconnect
the plug from the outlet. Leave appliance in open position.
3. Wait for the Steam Press to cool completely (approximately 30 minutes).
4. When cool, lower the Pressing Plate onto the Ironing Board pushing the
handle to its lowest position.
5. Turn the Locking Knob to the locked position. This should prevent the
Steam Press from opening while being moved or stored.
6. Loosely wrap the electric cord and place it in the opening at the front of the
base of the Ironing Board. You are now ready to store the unit.

Digital Steam Press Instruction Manual
Page10
2. Once the Pressing Plate has cooled down you can clean the surface with a damp cloth. DO NOT use any abrasives on the
Pressing Plate.
3. The Ironing Board Cover is removable for normal washing. You can rinse the Ironing Board Cover with mild detergent and
warm water.
STEP 8 - CLEANING (As needed)
1. Cleaning the Pressing Plate:
Place the Pressing Cushion in the center of the Ironing Board. Place a
clean towel over the Pressing Cushion and the Ironing Board. Set the
Steam Control and Temperature Control to their maximum setting. When
the Ready Light comes on, gently lower the Pressing Plate onto the
Pressing Cushion. With water in the reservoir tank, press the Steam Burst
Control 6 to 7 times. Be careful to avoid touching the hot metal surfaces or
leaving your hand in the bursts of steam.

Digital Steam Press Instruction Manual Page11
SUGGESTIONS FOR GREATER SUCCESS --
USING PRESS CLOTH:
Placing a press cloth ( a piece of clean fabric) between the fabric and the Pressing Plate may be desirable, especially for more
delicate fabrics.
OLDER STYLE BUTTONS AND ZIPPERS:
While most modern buttons and zippers require no special attention, some older types may be heat sensitive. Take care with items
that could melt. Lower the heat or steam settings, place the items FACE DOWN on the ironing board, and cover the fabric with a
press cloth BEFORE pressing. This will help protect delicate accessories and fasteners.
SPRAY BOTTLE METHOD:
Using a Spray Bottle, lightly spray the garment before placing it on the Ironing Board. This helps to distribute an even, fine mist
over the fabric, preparing it to be pressed, and removing all wrinkles.
DAMP CLOTH METHOD:
For the most stubborn or heavy gauge fabrics, place a damp cloth over the area to be pressed. Press the garment normally for a
few seconds, then raise the Pressing Plate and allow the steam to escape. Repeat the procedure until the fabric is dry.

Digital Steam Press Instruction Manual
Page12
USE OF THE PRESSING CUSHION --
Some garments have been constructed with details, such as darts, curved seams and shoulder pads, which are not intended to be
pressed flat. A Pressing Cushion is supplied with your Steam Press for use with these areas.
a. Use the cushion whenever pressing areas where no creases are desired or to shape tailored garments.
b. Place the area to be pressed onto the Ironing Board.
c. Place the Pressing Cushion under the dart, seam etc.
d. Make sure the area to be pressed is raised and lower the Pressing Plate. The raised area is the only area the plate should
contact.
IMPORTANT NOTE: Do not attempt to lower the Pressing Plate to its lowest position or lock the Pressing Plate against the
Ironing Board with the Pressing Cushion in place. You MAY DAMAGE the Steam Press by doing so.
e. Raise the Pressing Plate after a few seconds.

Digital Steam Press Instruction Manual Page13
SHIRTS AND BLOUSES:
a. Place the shoulder yoke on the Ironing Board first, face down and press.
b. Place the sleeves on the Ironing Board, next, with the fold parallel to the long seam and press.
c. Place the cuffs on the end of the Ironing Board and press.
d. Place the body of the shirt into the storage area between the Pressing Plate and Ironing Board, away from you. Press the
side front of the shirt including the placket or pocket.
e. Pull the shirt towards you and continue to press each area until complete.
f. Place the shoulder yoke flat on the Ironing Board. Press to remove the crease.
g. Place the collar right side up on the Ironing Board and press.
TECHNIQUES FOR PRESSING --
LARGE PIECES OF FABRIC:
To press large pieces of fabric, place the entire piece in the storage area behind
the Ironing Board. The area you want to press first is on the top of the pile.
Pull the fabric towards you, over the Ironing Board and lower the Pressing Plate,
pressing each section as you move the fabric forward. Allowing the pressed
fabric to drape in front of the Pressing Plate will preserve the pressing and give
you a complete job free of wrinkles.

Digital Steam Press Instruction Manual
Page14
PANTS:
a. Place the pressing Cushion under the waistband and press.
b. Reposition the waistband and continue around the pants until the entire waistband is pressed.
c. To press the inseam, place the Pressing Cushion under the area to be pressed. Press the entire inseam and repeat for the
other leg.
d. Press the front and back pleats using the same method. Fold one leg along the creased line. Place it on the Ironing Board
so that the seams will not be pressed. Press the crease.
PLEATED SKIRTS:
a. Place the Pressing Cushion under the waistband and press.
b. Reposition the waistband and continue around the skirt until the entire waistband is pressed.
c. Place the pleated area on the Ironing Board. Fold the pleats carefully and press.
d. Continue with each pleated area until the garment is completed.
OTHER ITEMS:
a. EMBROIDERY should be placed FACE DOWN on the Ironing Board to reduce wear and prevent damage to delicate
work.
b. CURTAINS may be pressed running them from one end of the Ironing Board to the other and pressing in sections until
complete.
c. DRESSES with special needs should refer to the above sections on pleats, shirts (bodices), etc., for proper use of the
Pressing Cushion.
IMPORTANT NOTE: Many types of clothing are intricate and unique to their owner. You may have to experiment with
the best way to press challenging garments. Remember, if you put in a crease you did not intend,
you can remove it just as simply with one of the methods contained in these instructions.

Digital Steam Press Instruction Manual Page15
TROUBLE SHOOTING
Below is a chart detailing the most common problems, their causes and solutions. Before shipping any appliance to a service
center please check to make sure that the solution is not listed here:
PROBLEM CAUSE SOLUTION
Steam Press cannot be opened
using Pressing Handle.
Locking Knob is in Locked position. Turn the Locking Knob to the unlocked
position.
Steam Press becomes warm but
DOES NOT remove wrinkles.
Temperature Setting is not high enough
for the fabric attempted.
Gradually increase the temperature until
obtaining the desired results.
Temperature has not been selected. Make a proper selection.
Press is not plugged into an outlet. Plug the appliance in.
Press DOES NOT get warm.
Automatic Shut-Off has engaged.
The Pressing Plate has been raised for
more than 15 minutes without use.
Press the *POWER* button again.

Digital Steam Press Instruction Manual
Page16
PROBLEM CAUSE SOLUTION
No Steam. Water Level is too low. Fill the water tank.
Controls have not been properly set. If suitable for the fabric, make a selection to a
higher temperature. Wait for the Steam Ready Light
to come on.
Water drips from the Pressing
Plate.
Steam Button has been pressed too long. Don t press the Steam Button for more than 5
seconds continuously.
The Pressing Handle will not
move into the Automatic
Maximum pressure position.
Item on the Ironing Board is too thick to
use this pressure.
Use lighter pressure on thicker items. Use added
steam for wrinkles.
