Reliable Velocity V50 User manual

Velocity V50
PROFESSIONAL STEAM IRON
SYSTÈME DE REPASSAGE DOMESTIQUE
SISTEMA DE PLANCHADO
INSTRUCTION MANUAL
GUIDE D’UTILISATION
MANUAL DE INSTRUCCIONES

02
CONGRATULATIONS
We would like to thank you and congratulate you for purchasing
the Velocity home ironing system from Reliable Corporation.
With its unique Compact Vapor Generator it will allow you to obtain
the benefits of professional pressing combined with the advan-
tages of traditional ironing.
For your safety and to fully enjoy the advantages of this product,
please take a few minutes to read all the important safeguards
and care instructions. Keep this manual handy and review the
product warranty card for your reference.

03
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
When using your new iron, basic safety precautions should always be followed,
including the following:
1. Use iron only for its intended use.
2. To protect against a risk of electric shock, do not immerse the iron in water
or other liquids.
3. The iron should always be turned to «Off» before plugging or unplugging
from an outlet. Never yank the cord to disconnect from the outlet. Instead,
grasp the plug and pull to disconnect.
4. Do not allow the cord to touch hot surfaces. Let the iron cool completely
before putting away. Loop cord loosely around the iron when storing.
5. It is always recommended to disconnect the iron from the electrical outlet
when filling with water or emptying. It should also be disconnected when
not in use.
6. Do not operate the iron with a damaged cord or if the iron has been dropped
or damaged. To avoid the risk of an electric shock, do not disassemble the
iron. Take it to a qualified service depot for examination and repair. Incorrect
reassembly can cause a risk of electric shock when the iron is used.
7. Close supervision is necessary for any appliance being used by or near children.
Do not leave the iron unattended while connected or on an ironing board.
8. Burns can occur from touching hot metal parts, hot water, or steam. Use
caution when you turn a steam iron upside down – there may be hot water in
the reservoir.
SPECIAL INSTRUCTIONS
1. To avoid a circuit overload, do not operate another high wattage appliance
on the same circuit.
2. If an extension cord is absolutely necessary, a 15-amp cord should be used.
Cords rated for less amperage may overheat. Care should be taken to arrange
the cord so that it cannot be pulled or tripped over.
SAVE THESE INSTRUCTIONS IN A SAFE
PLACE FOR FUTURE REFERENCE

04
ATTENTION
• BeforeusingyourVelocityiron,removeallpaperorplasticbags,plasticsheets,
cards and possible stickers that may be on the outside or inside of
the appliance that acted as handling protection or sales promotion material.
• Readtheseinstructionsbeforerstusingtheiron.
• Donotplugitinwithoutcheckingthatthevoltageoftheironisthesame
as your home power.
• Takecarethattheironcorddoesnottouchthehotpartsoftheiron.
• Ifyouaregoingtoironwithsteam,refertothesection“BeforeStartingToIron”
to extend the life of the independent steam chamber.
• Tolltheironorrellitduringironing,followtheinstructionssetoutin
thesection“BeforeStartingToIron,”unpluggingitfromthemainpowerand
using the accompanying water jug.
• Donotworryiftheirongivesoffalittlesmokeduringrstuse.Itwill
soon disappear.
• Donotspray“vertical”steamonagarmenthanginginthewardrobeor
on a person. Vertical ironing (steaming) must be done with the garment on
a hanger and away from people or animals.
• Keeptheironinanuprightpositionduringstorage,leaningonitsheelpart,
set on a stable surface.
• Whenyounishironing,alwaysemptythewaterfromthetank.Ifyouwant
to drain it while ironing, always unplug the appliance from the main outlet first.
• Todisconnecttheiron,neverpullonthepowercord,takeouttheplug.
• Ifthepowercordisdamaged;topreventrisks,haveitreplacedatanAfter
SaleServiceauthorizedbyReliable,asspecialtoolsareneeded.
• Theironshouldnotbeusedifithasbeendroppedorhasacrackorleak
in the water tank. If you observe any of these problems, take the iron to
ReliableCorporationoranauthorizedservicedepot.
• Donotleavetheapplianceinoperationunattended.Keepitoutofthe
reach of children.
• Thisironisnotforusebypersons(includingchildren)whosephysical,
sensorial or mental capacities are impaired, or who lack sufficient experience
or knowledge, unless they have been supervised or instructed in the use of
the appliance by a person responsible for their safety.
IMPORTANT: When you want to dispose of the appliance, NEVER throw it in the
garbage. Instead, go to your closest recycling station or waste collection centre
for subsequent treatment. In this way, you will be contributing to looking after
the environment.

05

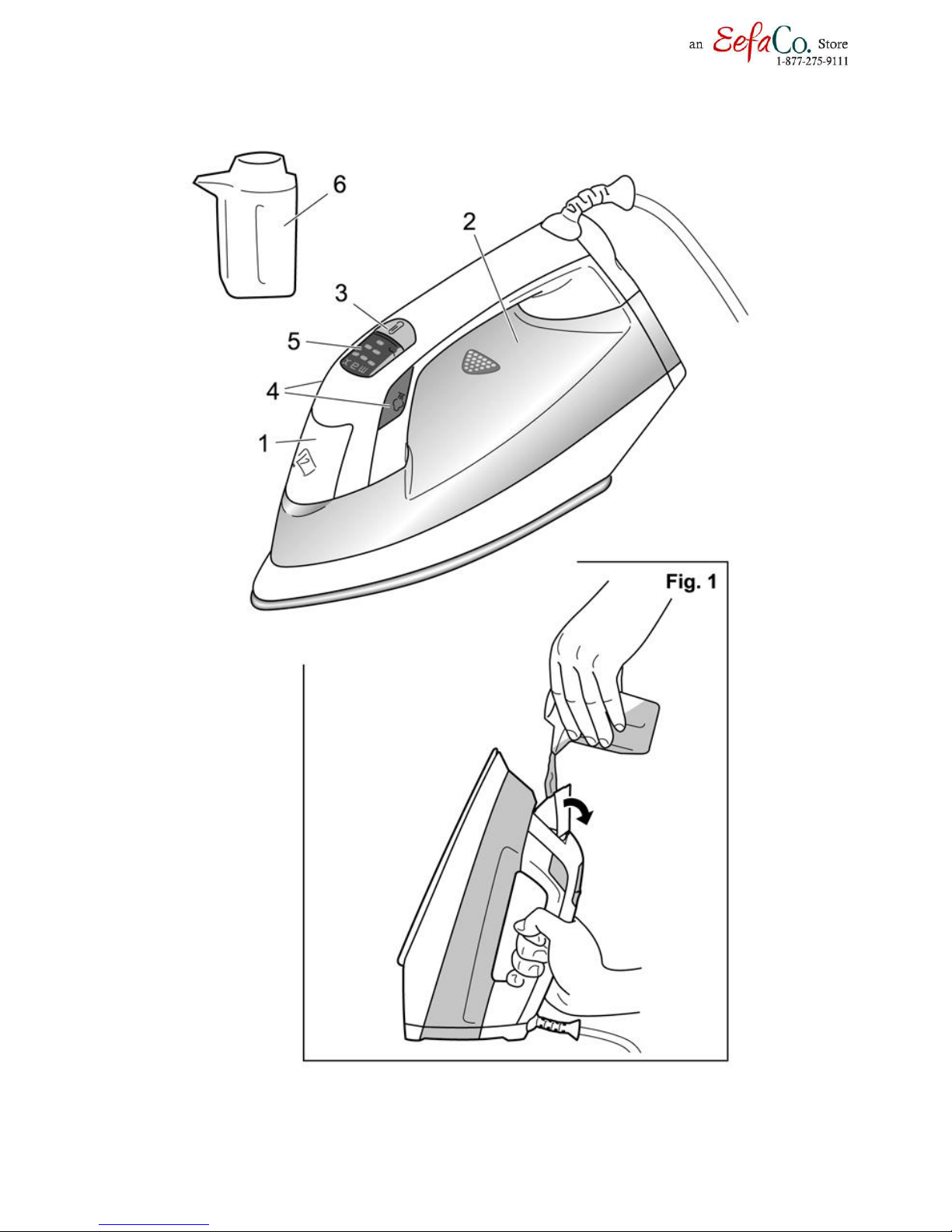

MAIN COMPONENTS AND ACCESSORIES (FIG 1)
1. Water filler hole cap
2. Water tank
3. Temperature selector
4. Steamactivationbuttons
5. Operation/temperature level LEDs
6. Water cup
BEFORE STARTING TO IRON
• WithyourVelocityironunpluggedfromthemainoutlet,openthellerhole
cap Fig 1 (1) by turning it backwards (see arrow).
• Duetothehighlevelofwaterhardnessinmostareas,Reliablerecommends
thatyoualwaysusedistilledordemineralizedwaterforironing.Youwill
thus guarantee that your iron stays in perfect condition for as long as possible.
If you cannot find distilled water for any reason, be sure to use water that
is low in minerals (soft).
• ThefollowingisalistofthebestwaterforyourVelocityironinorder
of preference:
°Distilled water
° Softenedwater(fromahouseholdwatersoftener)
°Filtered water with low mineral content (counter top unit or store bought)
°Tap water (if your tap water is hard, this is the least recommended).
• Fillthetank,withoutexceedingthemaximumlevel,withthewaterjug
supplied Fig 1 (6), keeping the iron in the vertical position, resting on its end
Fig 1. When the tank is full, close the cap.
• Weadviseyoutollthetankuptothemaximumlevelmarkedonitasthis
appliance generates a substantial flow of steam, otherwise you will need to
fill the water tank more often.
• Checkwhetherthegarmentyouaregoingtoironhasalabelindicatingthe
ironing temperature. We recommend that you classify the garments accord-
ing to their required ironing temperature and to begin with the garments that
areironedwiththelowesttemperature(•).
ATTENTION: Ironing delicate garments with a temperature higher than necessary
is harmful for the fabric and causes burnt residue to get stuck to the soleplate.
SILK,SYNTHETICFIBRES:minimumtemperature(•)
WOOL:mediumtemperature(••)
COTTON:hightemperature(•••)
LINEN:hightemperature(MAX)

OPERATION
Plug the iron into the main outlet. The operation/temperature LED (5) will light
up.Bydefaultitwillbeselectedatthelowesttemperaturerange(•).TheLEDwill
blinkuntiltheselectedtemperaturelevelhasbeenreached(g.2-A).Takethe
iron by the handle and pass the sole over the garment to be ironed.

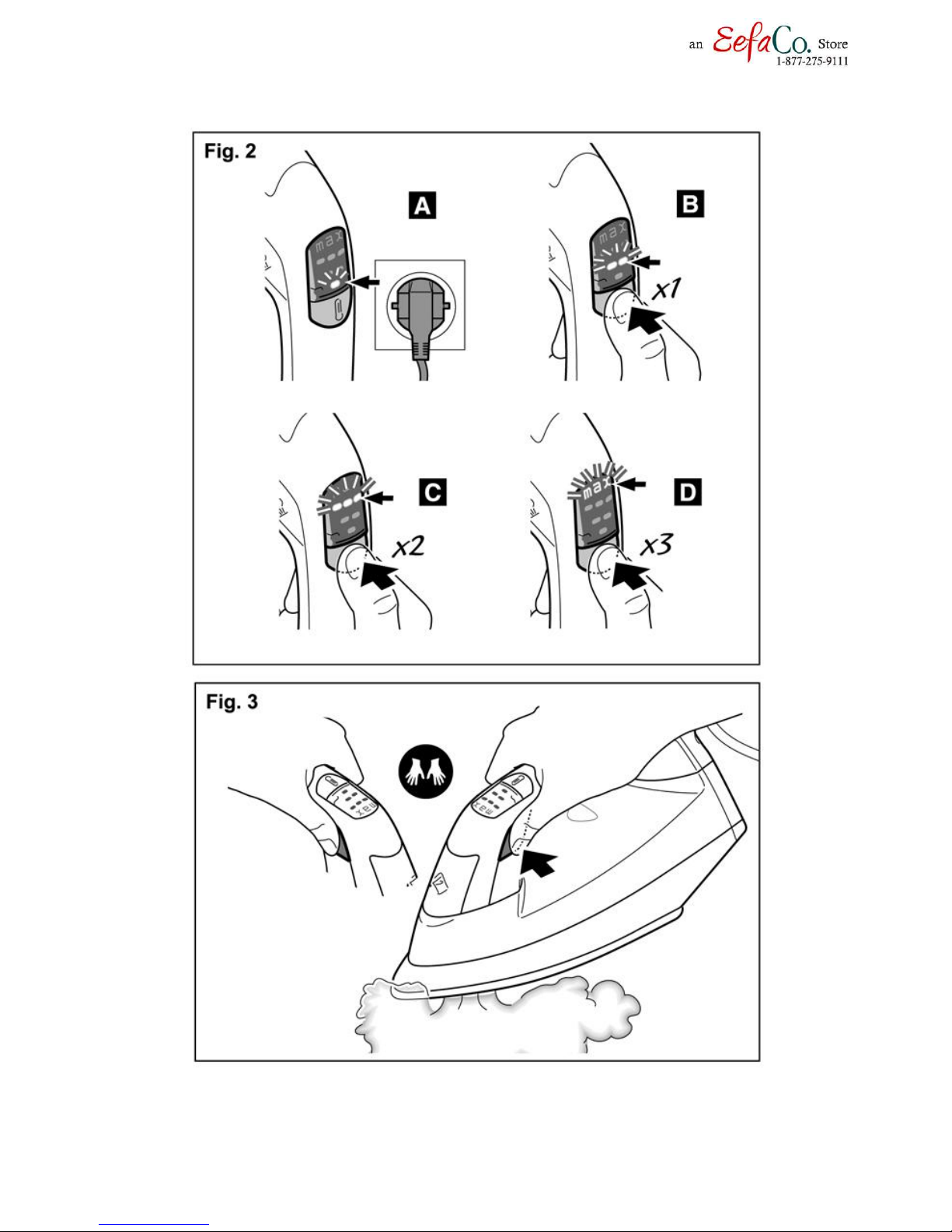

TEMPERATURE SELECTION
The V50 has 4 temperature settings, which can be selected by pressing the
temperature selector (3).
Press the temperature selector (3) as many times as required until the desired
temperaturelevelisreached(g.2).Position(•)(g.2-A)Position(••)(g.2-B)
Position(•••)(g.2-C)Position(MAX)(g.2-D)
The operation/temperature LED (5) will blink until the selected temperature
level has been reached. Once the temperature has been reached the LED will
stop blinking.
FromtheMAXtemperatureposition,ifpressedonceagain,theV50willreturnto
temperatureposition(•).
STEAM SELECTION
Once the operation/temperature LED (5) stops blinking indicating that the selected
temperature has been reached:
• Forasteamjet,pressoneofthetwosteambuttons(4)oneithersideofthe
handle (fig.3).
 NOTE:Whenreducingthetemperature,e.g.fromposition(MAX)(g.2-D)to
position(•)(g.2-A),theusercangetasteamjeteveniftheposition
(•)(g2-A)LEDisstillblinkingandeveniftheselectedtemperaturehasnot
been reached.
• TheV50isergonomicallydesignedforbothright-handedandleft-handed
people. One merely has to press one of the two silicone buttons.
• Tostopthesteam,pressoneofthetwosteambuttonsonemoretime.The
steam will now stop until one of the two buttons is pressed again.
AUTOMATIC SHUT OFF
The Velocity V50 has an automatic shut-off system. It is shut-off automatically
eight minutes after the last time it was used. This means that once the shut-
off device is activated, it ceases to heat and begins to cool down. To wake it up
again, press the temperature button (3) for at least one second.
The auto-shut off mode can be manually selected by pressing the temperature
button for three seconds, and wake it up again by pushing the same button for
more than one second.
06

07
STEAM READY FEATURE
For those who want to leave their iron on for periods longer than 8 minutes at
a time (without the automatic shut off system activating) the Velocity V50 has a
STEAMREADYfeaturethatallowstheirontostayonindenitely.
To activate this feature, simply keep one of the two steam activation buttons (4)
Fig 3 held for 8 seconds.
AfterholdingtheSteamButtonfor8seconds,theLEDswillash3timesindicating
that the auto shut off has been deactivated.
To activate the auto shut off again, the V50 needs to be unplugged and then
plugged in again.
DO NOT LEAVE YOUR IRON UNATTENDED WHILE THE STEAM READY FEATURE IS ACTIVATED.
IRONING RECOMMENDATIONS
STEAM IRONING
Operation of this model is similar to that of a professional ironing unit. It allows
forironingfromlevel1,theminimumtemperature(•)withoutspitting,drippingor
leaking. The steam flow provided by the compact vapor generator is 30 g/min.
It is recommended to first steam iron and then do a second dry-iron pass to ensure
that the clothing is completely dry to obtain truly professional ironing results.
To iron without steam, simply do NOT press either of the steam buttons (4). It is NOT
necessary to empty the water tank.
To stop the steam, gently press one of the two steam buttons one more time. The
steam will now stop until one of the two buttons is gently pressed again.
VERTICAL IRONING
• Gentlypressoneofthesteambuttonsoncetostartsteaming(tostop
steaming, press a steam button again).
• Itenablesyoutoremovecreasesfromdelicategarmentswithouthavingto
lay them on the ironing board: jackets, coats, curtains, synthetics, etc.
• Placethegarmentonahanger,awayfromothergarments(&persons).
• Setthetemperatureselectoratposition(••),(•••)or(MAX),placetheiron
intheverticalpositionandpressthebutton.Atposition(••)youwillobtain
amorehumid“white”steam,whichwillbemorevisible,whereasatsetting
(•••)and(MAX)thesteamisdrierand,althoughthesamesteamvolume
is maintained, it will be harder for you to see.

08
FILLING WITH WATER
If during ironing the tank runs dry, after 30 seconds the operation/temperature
LEDs (5) of all the levels will start to flash. If the V50 is used without water for a
period of one minute, the micro-pump will stop.
Disconnect the iron, keep it in an upright postion and refill the tank using the cup
(6) that comes with it Fig 1. Plug the iron in again.
Once the V50 is plugged in, only the LED of the selected operation/temperature (5)
will light up.
NOTE: If the user fills the V50 without having it unplugged first, the LEDs will
continue blinking until the user presses the steam activation button (4) and the iron
steams for approximately 15 seconds.
ANTI-SCALE SYSTEM
This iron is equipped with a permanent anti-scale cartridge system installed
internallyintheiron.Itassistsinkeepingtheinternaltankclean.Howeveritis
strongly recommended that you use the best water that is available to you as
outlined earlier in this manual.
CLEANING
A) Sole-plate
• Toremovestarch,scorch,soilandotherforeignresidue,werecommend
using EZ-OFF iron cleaner. Please follow the instructions on the package.
B) Outer casing
• Tocleantheoutsideofyouriron,useaclothmoistenedinsoapywater.
• Donotcleanwithabrasivechemicalproductsorsolventsasitmaycorrode
certain plastic parts and/or remove the graphics.
• Storeyourironintheverticalposition,windthecordaroundtheheeland
secure it with the clip.
• Althoughthepowercordisttedwitha360°rotationalelbow,DONOT
pull the cord too tightly when winding it around the iron on the first turn.

09
TIPS FOR DISPOSING OF THE USED IRON
Before disposing of your used iron, you should make it visibly unserviceable and
haveitdisposedofaccordingtocurrentlegislation.AskyourDistributor,Town
CouncilorLocalAuthorityfordetailedinformation.
WARRANTY CONDITIONS
ReliableCorporationacceptsnoliabilityforfaultsinyourironintheeventofnon-
compliance with the specifications of the warranty conditions or failure to follow
the operating or maintenance directions included in instruction book.
We remind you that the damage caused by the effects of scale is not covered by
the warranty.

10
ReliableCorporation(“Reliable”)warrantstooriginalpurchaserofitsproductsthat
everyproductsoldbyReliable(a“ReliableProduct”)isfreefromdefectsinmaterial
and workmanship for a period of one year from the date of purchase, if properly used
andmaintained.Subjecttotheconditionsandlimitationssetforthbelow,Reliable
willeitherrepairorreplaceanypartofaReliableProductthatprovesdefectiveby
reasonofimproperworkmanshipormaterials.IfthedefectiveReliableProductis
no longer available and cannot be repaired effectively or replaced with an identical
model,ReliableshallreplacethedefectiveReliableProductwithacurrentReliable
Productofequalorgreatervalue.Repairedpartsorreplacementproductswillbe
providedbyReliableonanexchangebasis,andwillbeeitherneworrefurbishedto
befunctionallyequivalenttonew.IfReliableisunabletorepairorreplaceaReliable
Product,itwillrefundthecurrentvalueofthatReliableProductatthetimethewar-
ranty claim is made.
ThislimitedwarrantydoesnotcoveranydamagetoaReliableProductthatresults
from improper installation, accident, abuse, misuse, natural disaster, insufficient or
excessive electrical supply, abnormal mechanical or environmental conditions, wear
andtearresultingfromnormaluseoftheproduct,oranyunauthorizeddisassembly,
repair, or modification. This limited warranty does not extend to any indirect, con-
sequential or incidental damages that may be suffered by a user or from the use of
aReliableProduct,includingwithoutlimitation,anyliabilityforthirdpartyclaimsfor
damage,andislimitedtotheamountpaidbytheoriginalpurchaserReliableProduct
with respect to which this limited warranty protection applies. This limited warranty
does not apply with respect to products that have been altered or which are missing
serialnumbersorforproductsnotpurchaseddirectlyfromReliableoradealerautho-
rizedbyustosellReliableProducts.
ThislimitedwarrantyistheonlywarrantythatappliestoanyReliableProduct,super-
sedes any and all terms that may be contained in any other document or purchase
orderandmaynotbealteredoramendedexceptexpresslyinwritingbyReliable.



RELIABLEPRODUCTSWARRANTY
