1 Introduction
1.1 Symbols used
In these instructions, various danger levels are employed to draw the
user's attention to particular information. In so doing, we wish to
safeguard the user's safety, obviate hazards and guarantee correct
operation of the appliance.
DANGER
Risk of a dangerous situation causing serious physical
injury.
WARNING
Risk of a dangerous situation causing slight physical
injury.
CAUTION
Risk of material damage.
Signals important information.
¼ Signals a referral to other instructions or other pages in the
instructions.
1.2 Abbreviations
4DHW: Domestic hot water
4Interscenario switch: Home automation switch that can be used
to centralise and control several scenarios
4IOBL: Carrier current home automation bus
43WV: 3-way valve
1.3 General
1.3.1. Manufacturer's liability
Our products are manufactured in compliance with the requirements
of the various applicable European Directives. They are therefore
delivered with [ marking and all relevant documentation.
iSense Pro DIN - AD280 1. Introduction
12/04/2011 - 300025649-001-B 4

In the interest of customers, we are continuously endeavouring to
make improvements in product quality. All the specifications stated in
this document are therefore subject to change without notice.
Our liability as the manufacturer may not be invoked in the following
cases:
4Failure to abide by the instructions on using the appliance.
4Faulty or insufficient maintenance of the appliance.
4Failure to abide by the instructions on installing the appliance.
1.3.2. Installer's liability
The installer is responsible for the installation and inital start up of the
appliance. The installer must respect the following instructions:
4Read and follow the instructions given in the manuals provided
with the appliance.
4Carry out installation in compliance with the prevailing legislation
and standards.
4Perform the initial start up and carry out any checks necessary.
4Explain the installation to the user.
4If a maintenance is necessary, warn the user of the obligation to
check the appliance and maintain it in good working order.
4Give all the instruction manuals to the user.
1.4 Certifications
This product complies to the requirements to the european directives
and following standards:
42006/95/EC Low Voltage Directive. Reference Standard:
EN60.335.1.
42004/108/EC Electromagnetic Compatibility Directive. Generic
standards: EN1000-6-3 , EN 61000-6-1.
1. Introduction iSense Pro DIN - AD280
512/04/2011 - 300025649-001-B

2 Safety instructions and
recommendations
2.1 Recommendations
WARNING
Only qualified professionals are authorised to work on the
appliance and the instalation.
The appliance should be on Summer or Antrifreeze mode rather than
switched off to guarantee the following functions:
4Anti blocking of pumps.
4Frost protection.
iSense Pro DIN - AD280 2. Safety instructions and recommendations
12/04/2011 - 300025649-001-B 6

3 Technical description
3.1 Description of the keys
ATemperature setting key (heating, DHW, swimming pool)
BOperating mode selection key
CDHW override key
DKey to access the parameters reserved for the installer
EKeys on which the function varies as and when selections
are made
FRotary setting button:
4Turn the rotary button to scroll through the menus or
modify a value
4Press the rotary button to access the menu selected
or confirm a value modification
A000866-A
bar
STD t
02 4 6 8 10 12 14 16 18 22 2420
pb
AUTO
x
c
r
j
M
gm
A
B
C
DEF
('
3. Technical description iSense Pro DIN - AD280
712/04/2011 - 300025649-001-B

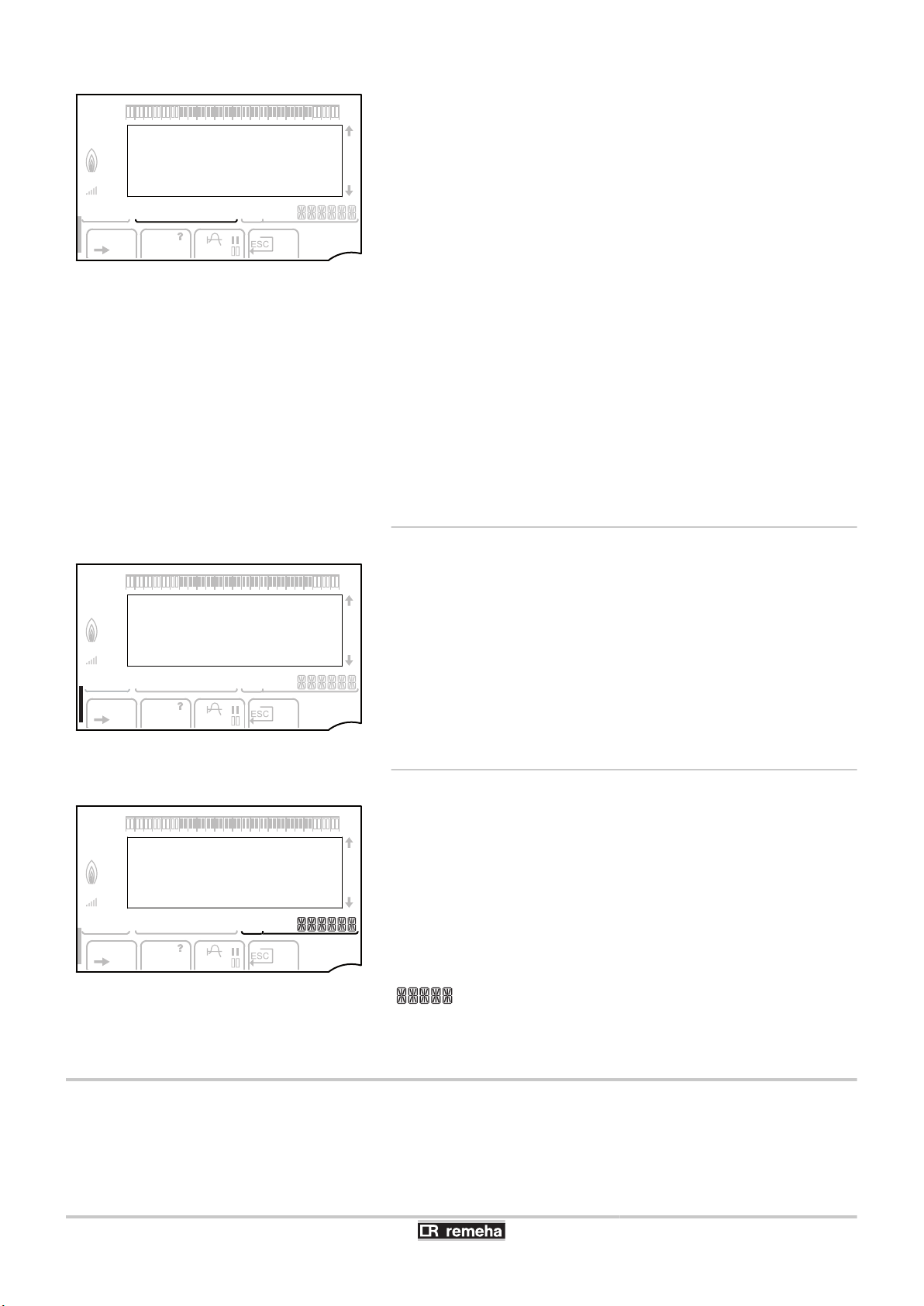

3.2 Description of the display
3.2.1. Key functions
>Access to the various menus
(Used to scroll through the menus
'Used to scroll through the parameters
?The symbol is displayed when help is available
fUsed to display the curve of the parameter selected
STD Reset of the time programmes
bSelection of comfort mode or selection of the days to be
programmed
vSelection of reduced mode or deselection of the days to
be programmed
jBack to the previous level
ESC Back to the previous level without saving the
modifications made
3.2.2. Flame symbol
4The symbol is displayed: The burner is operating.
4The symbol is not displayed: The burner is off.
3.2.3. Operating modes
pSummer mode: The heating is off. Domestic hot water
continues to be produced
bWINTER mode: Heating and domestic hot water working
bar r
STD
('t
0 2 4 6 8 10 12 14 16 18 22 2420
C002696-A
pb
AUTO
x c
r
j
L
gm
bar
STD t
02 4 6 8 10 12 14 16 18 22 2420
C002701-B
pb
AUTO
x c
r
j
M
gm
bar
STD t
02 4 6 8 10 12 14 16 18 22 2420
C002697-B
pb
AUTO
x c
r
j
M
gm
iSense Pro DIN - AD280 3. Technical description
12/04/2011 - 300025649-001-B 8

AUTO Operation in automatic mode according to the timer
programme
xComfort mode: The symbol is displayed when a DAY
override (comfort) is activated
4Flashing symbol: Temporary override
4Steady symbol: Permanent override
mReduced mode: The symbol is displayed when a NIGHT
override (reduced) is activated
4Flashing symbol: Temporary override
4Steady symbol: Permanent override
gHoliday mode: The symbol is displayed when a HOLIDAY
override (antifreeze) is activated
4Flashing symbol: Holiday mode programmed
4Steady symbol: Holiday mode active
mManual mode
3.2.4. Domestic Hot Water override
A bar is displayed when a DHW override is activated:
4Flashing bar: Temporary override
4Steady bar: Permanent override
3.2.5. Other information
rThe symbol is displayed when domestic hot water
production is running
wValve indicator: The symbol is displayed when a 3-way
valve is connected
4x : 3-way valve open
4c : 3-way valve closed
MThe symbol is displayed when the pump is operating
Name of the circuit for which the parameters are displayed
3.3 Technical characteristics
Electricity supply: 230 V - 50 Hz
bar
STD t
02 4 6 8 10 12 14 16 18 22 2420
C002698-B
pb
AUTO
x c
r
j
M
gm
bar
STD t
02 4 6 8 10 12 14 16 18 22 2420
C002707-A
pb
AUTO
x c
r
j
M
gm
bar
STD t
02 4 6 8 10 12 14 16 18 22 2420
C002699-B
pb
AUTO
x c
r
j
M
gm
3. Technical description iSense Pro DIN - AD280
912/04/2011 - 300025649-001-B

Outside sensor Outlet sensor circuit B+C
Domestic hot water sensor
System sensor
-20 °C 2392 ¨ 0 °C 32014 ¨
-16 °C 2088 ¨ 10 °C 19691 ¨
-12 °C 1811 ¨ 20 °C 12474 ¨
-8 °C 1562 ¨ 25 °C 10000 ¨
-4 °C 1342 ¨ 30 °C 8080 ¨
0 °C 1149 ¨ 40 °C 5372 ¨
4 °C 984 ¨ 50 °C 3661 ¨
8 °C 842 ¨ 60 °C 2535 ¨
12 °C 720 ¨ 70 °C 1794 ¨
16 °C 616 ¨ 80 °C 1290 ¨
20 °C 528 ¨ 90 °C 941 ¨
24 °C 454 ¨
iSense Pro DIN - AD280 3. Technical description
12/04/2011 - 300025649-001-B 10

4 Installation
4.1 Package list
The delivery includes:
4The iSense Pro DIN module
4Electrical harness
4Extension cable marked K1 (For connecting a GAS 210 ECO
PRO boiler)
4Outside sensor
4Flow sensor (x2)
4DHW sensor
4Earth terminal block + 2 screws
4Installation and Service Manual
4User Guide.
4.2 Installing the outside sensor
4.2.1. Choice of the location
It is important to select a place that allows the sensor to measure the
outside conditions correctly and effectively.
Advised positions:
4on one face of the area to be heated, on the north if possible
4half way up the wall in the room to be heated
4under the influence of meteorological variations
4protected from direct sunlight
4easy to access
4. Installation iSense Pro DIN - AD280
11 12/04/2011 - 300025649-001-B

ARecommended position
BPossible position
HInhabited height controlled by the sensor
ZInhabited area controlled by the sensor
Positions to be avoided:
4masked by a building element (balcony, roof, etc.)
4close to a disruptive heat source (sun, chimney, ventilation grid,
etc.)
4.2.2. Connecting the outside sensor
Mount the sensor using the screws and dowels provided.
AInserts
ZØ4 wood screw
8800N001-C
8800N002-C
8800N003-C
2
iSense Pro DIN - AD280 4. Installation
12/04/2011 - 300025649-001-B 12

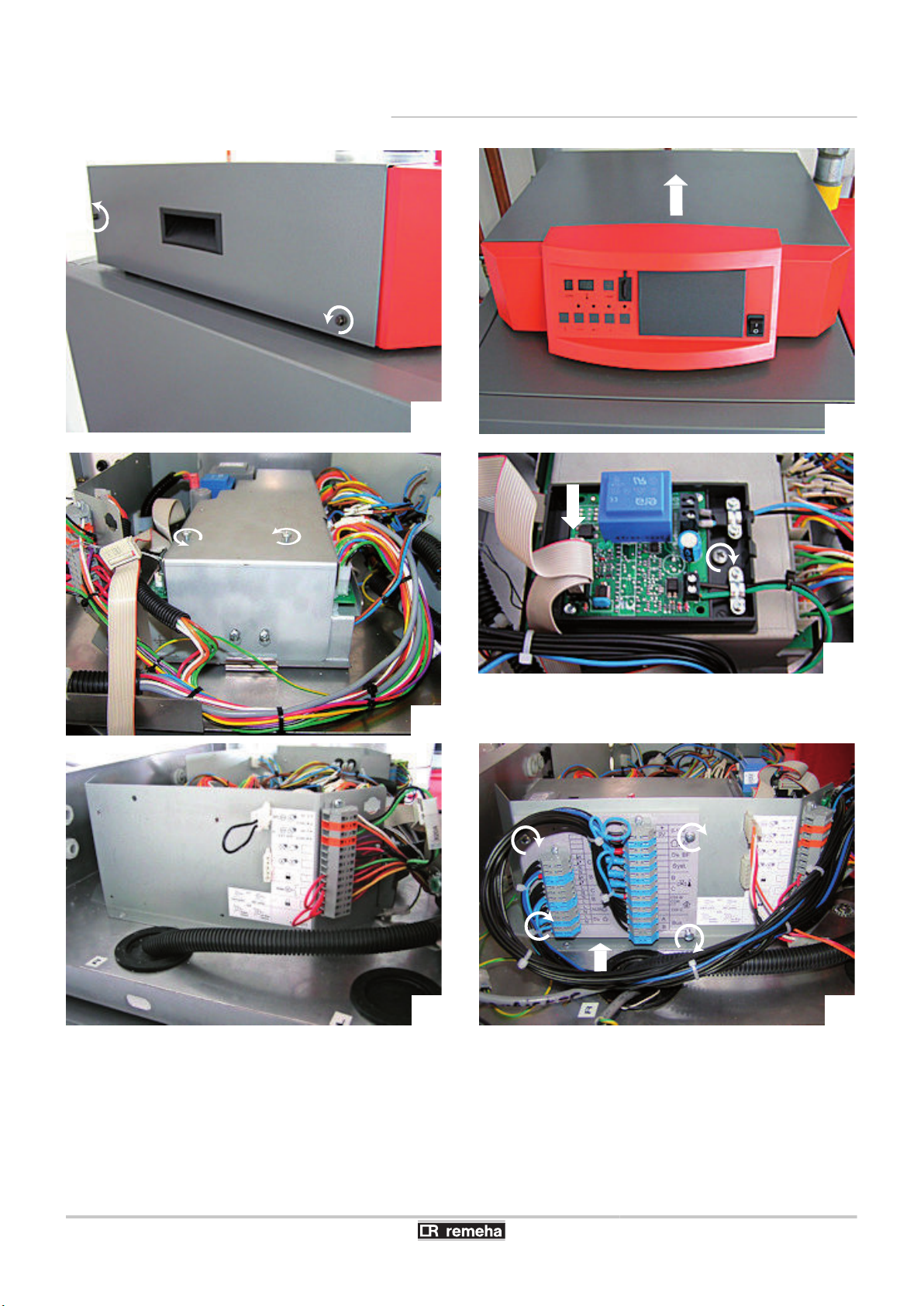

4.3 Mounting and connecting the module
4.3.1. Boiler GAS 210 ECO PRO
CAUTION
Step 3: Connect the extension cable K1 between
connectors A and Z.
2
1
3
4x
2
1
1
1
4x
22x
C003311-B
K2
K1
K1
K1
3
3
4
OT
1
2
3
4
bar
STD
0 2 4 6 8 1012 14 16 1822 24
20
AUTO
C003312-B
4. Installation iSense Pro DIN - AD280
13 12/04/2011 - 300025649-001-B

4.3.2. Boiler GAS 310 ECO
12
C003313-A
3
4
C003314-B
C003315-A
5 6
iSense Pro DIN - AD280 4. Installation
12/04/2011 - 300025649-001-B 14

78
K1 K1
K1
X16
C003316-A
C003317-C
9 10
K 2
X 16 X 16
C003318-B
11 12
4. Installation iSense Pro DIN - AD280
15 12/04/2011 - 300025649-001-B

4.4 Electrical connections
4.4.1. Recommendations
WARNING
4Only qualified professionnals may carry out electrical
connections, always with the power off.
4The boiler is entirely pre-wired. Do not modify the
connections inside the control panel.
4Earth the appliance before making any electrical
connections.
Make the electrical connections of the boiler according to:
4The instructions of the prevailing standards.
4The instructions on the electrical diagrams provided with the
boiler.
4The recommendations in the instructions.
CAUTION
Separate the sensor cables from the 230 V cables.
14
13
C003319-B
X4
X3
X2
X1
16
15
C003320-B
iSense Pro DIN - AD280 4. Installation
12/04/2011 - 300025649-001-B 16

4.4.2. Connecting a heating circuit
2
4
6
3
1
5
NN N L N L N L N L
+ -
AUX BBC C
B 0V B AC
0-10V S Syst. BUS
AF BF
C002815-A
A3 way valve circuit B
ZHeating pump circuit B
EOutlet sensor circuit B
RHeating circuit B
TOutside sensor
YBoiler
Earth the various pumps and 3-way valves.
Settings to be made for this type of installation
Parameters Access Settings to be made See chapter
CIRC.CURVE B Installer level
#SECONDARY INSTAL.P menu
To be customised ¼ "Setting the heating curve", page 37
MAX. CIRC. B Installer level
#SECONDARY LIMITS menu
To be customised ¼ "Professional settings", page 40
4. Installation iSense Pro DIN - AD280
17 12/04/2011 - 300025649-001-B

4.4.3. Connecting a heating circuit and a
domestic hot water tank
2
4
6
3
5
1
10
7
8
9
NN N L N L N L N L
+ -
AUX BBC C
B 0V B AC
0-10V S Syst. BUS
AF BF
C002816-A
A3 way valve circuit B
ZHeating pump circuit B
EOutlet sensor circuit B
RHeating circuit B
TOutside sensor
YBoiler
UDHW storage tank
IDHW sensor
ODomestic circulation loop pump (Optional)
PD.H.W. load pump
Earth the various pumps and 3-way valves.
Settings to be made for this type of installation
Parameters Access Settings to be made See chapter
CIRC.CURVE B Installer level
#SECONDARY INSTAL.P menu
To be customised ¼ "Setting the heating curve", page 37
MAX. CIRC. B Installer level
#SECONDARY LIMITS menu
To be customised ¼ "Professional settings", page 40
iSense Pro DIN - AD280 4. Installation
12/04/2011 - 300025649-001-B 18

4.4.4. Connecting two circuits and a domestic hot
water tank
2
4
6
3
5
1
10
7
8
9
12
14
13
11
NN N L N L N L N L
+ -
AUX BBC C
B 0V B AC
0-10V S Syst. BUS
AF BF
C002817-A
A3 way valve circuit B
ZHeating pump circuit B
EOutlet sensor circuit B
RHeating circuit B
TOutside sensor
YBoiler
UDHW storage tank
IDHW sensor
ODomestic circulation loop pump (Optional)
PD.H.W. load pump
a3 way valve circuit C
zHeating pump circuit C
eOutlet sensor circuit C
rHeating circuit C
4. Installation iSense Pro DIN - AD280
19 12/04/2011 - 300025649-001-B
