Wireless Z-Wave Control
ZRP-120NA
Z-Wave Repeater
USER MANUAL
Introduction
Thank you for choosing ZRP-120 Z-Wave Repeater product. ZRP-120 is a Z-Wave
repeater with best RF performance to replicate Z-Wave signals in a network. The
repeater re-transmits an input Radio Frequency (RF) signal by routing the signal
around obstacles and radio dead spots to ensure that the signal is received at its
intended destinations.
ZRP-120 is a security enabled Z-Wave plus device. A security Enabled Z-Wave Plus
Controller must be used in order to fully utilize the product.

Page 2 of 9
Glossary
Device or
Node
Devices and nodes are all terms to describe an individual Z-Wave device.
These are all interchangeable when setting up your Z-Wave network.
Inclusion
Add a Z-Wave device to the network.
Exclusion
Remove a Z-Wave device from the network.
Remove
To take a device out of a group, scene or association group while that
device still exists in the same Z-Wave network.
Network
Wide
Inclusion
(NWI)
Network Wide Inclusion (NWI) enables both end-user friendly, Plug and Play
like Z-Wave network installation as well as professional installation scenario
where the inclusion process, in terms of time will be reduced significantly.
NWI is a feature supported by a new frame type named Explorer which
enables the Z-Wave protocol to implement Adaptive Source Routing.
Z-Wave
Network
A collection of Z-Wave devices is controlled by primary and secondary
controllers operating on the same system. A Z-Wave network has its own
unique ID code so that controllers not in the network cannot control the
system.
Primary
Controller
The first controller is used to set up your devices and network. Only the
Primary Controller can be used to include or remove devices from a
network. It is recommended that you mark the primary controller for each
network for ease in modifying your network.
Association
Association is used to organize nodes in different groups allowing the device
to identify the nodes by a group identifier. The groups can also be copied to
other devices.
Security S2
Security S2 enables secure communication for the devices that run for
years on a single battery.
Key Features
- Supports Network Wide Inclusion (NWI) and Explore Frames
- Reliable and best RF performance to repeat Z-Wave signals
- Ultra-low power consumption
- Complex, thin and small size form factor
- Does not block lower outlet when plugged into upper outlet of a duplex wall
receptacle and vice versa
- External fixture for different wall receptacle mounting

Page 3 of 9

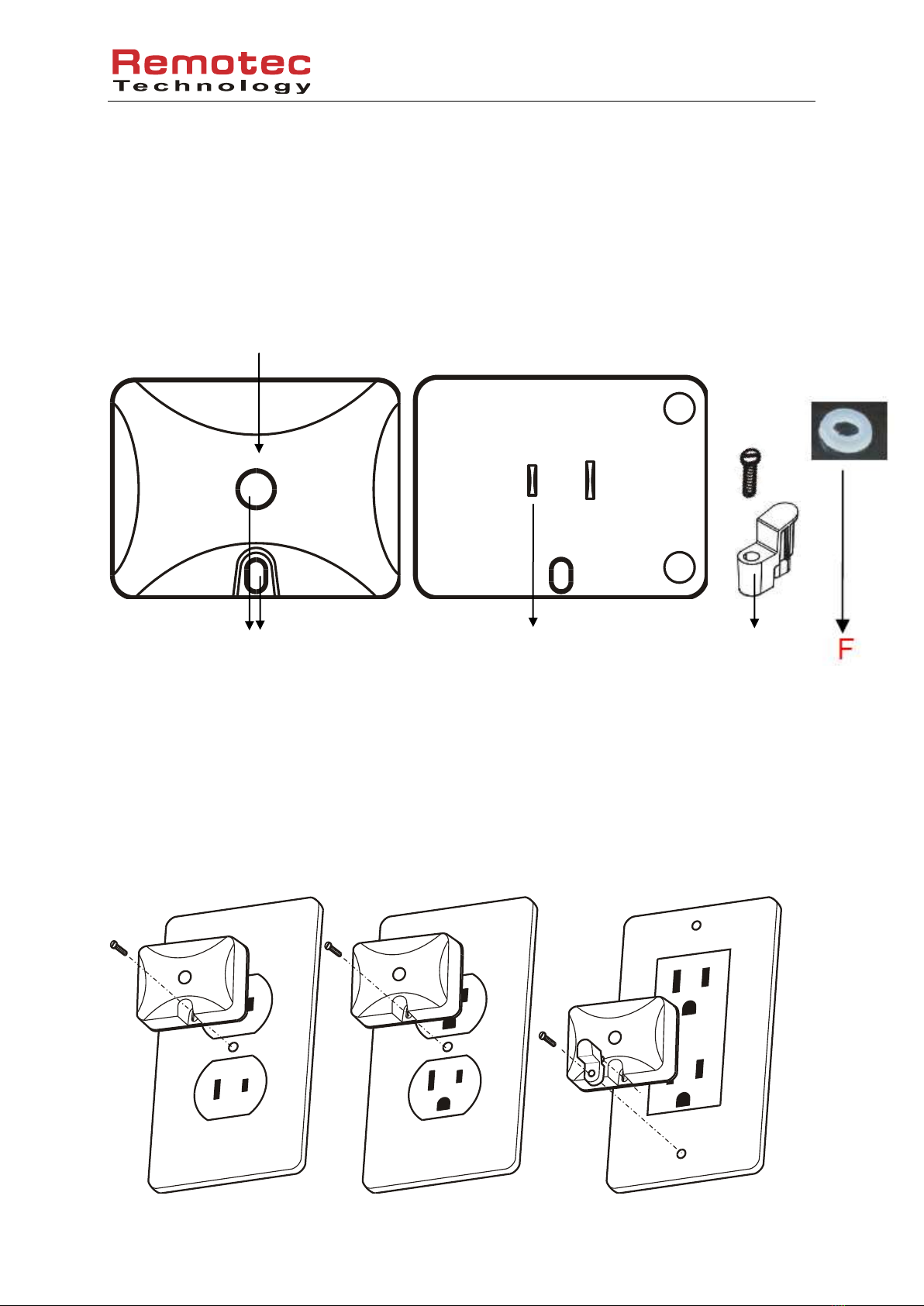

Product Overview
A Status LED
B PROG Push button
C Fixing hole
D AC plug
E External screw fixture
F Washer
A
Installation Location
WARNING:
To avoid fire, shock, or death; turn off power at circuit breaker or fuse and test that power is off
before dismount or mount the unit with the screw!.
In case that the user needs to mount the unit with screw, please refer to below figures and
select the desired configuration. It is recommended that a qualified electrician perform this
installation.
B C D E

Page 4 of 9
Note:
When plug the ZRP-120 into theAC receptacles, there will be an air gap between ZRP-120
and wall plate. User can use additional 1 or 2 washers to fill up this air gap and to stabilize the
installation.
ZRP-120 will not block lower outlet when plugged into upper outlet of a duplex wall receptacle
and vice versa. Possible configurations are illustrated below.
Un-grounded AC outlet
with center screw
Grounded AC outlet
with center screw
Grounded AC outlet with
upper and lower screw
Installed at upper
AC outlet
Installed at lower
AC outlet
Grounded AC outlet
with center screw
Un-grounded AC outlet
with center screw
Grounded AC outlet with
upper and lower screw

Page 5 of 9
Z-Wave setup and operations
Include/Exclude ZRP-120 to/from a Z-Wave Gateway
Include or Exclude the ZRP-120 from the existing Z-Wave Home Control Network with
your primary controller.
-Refer to your primary controller instructions to process the inclusion / exclusion
setup procedure.
-When prompted by your primary controller, triple click the PROG button within 1
second.
-The primary controller should indicate that the action was successful. If the
controller indicates the action was unsuccessful, please repeat the procedure.
Notes:
1, It is recommended to perform the Remove (Exclude) procedure before performing an Add
(Include) procedure.
2, The unit will enter classical inclusion/exclusion first, then jump to NWI, and after 20
seconds, it will finally exit NWI mode automatically if there is no inclusion/exclusion
request.)
3, ZRP-120 will not support Basic Command Class
4, All configuration parameters value will keep no change after exclude the unit from network
5, ZRP-120 can be included and operated in any Z-Wave network with other Z-Wave certified
devices from other manufacturers and/or other applications.
The Below listed Command Class are all supported the Security S2
COMMAND_CLASS_ASSOCIATION
COMMAND_CLASS_ASSOCIATION_GRP_INFO
COMMAND_CLASS_DEVICE_RESET_LOCALLY
COMMAND_CLASS_MANUFACTURER_SPECIFIC
COMMAND_CLASS_POWERLEVEL
COMMAND_CLASS_SUPERVISION
COMMAND_CLASS_VERSION
LED Indication Status
Operations
LED Indication Status
Device not currently paired into
a Z-Wave network
LED will continuously flash two times per second.
Learning / NWI mode:
Triple click on PROG button
If the device already existing in the network, LED will flash slowly
for 20 seconds, and then return to previous ON or OFF stage.
If the device does not exist in the network, LED will keep flash
slowly and waiting for Network Wide Inclusion (NWI)
(The device will exit NWI mode automatically after 20 seconds)

Page 6 of 9
Receive command /
Send command or data
LED will flash 2 times, and then return to previous ON or OFF
stage.
Configure command error
LED will rapidly flash 6 times, and then return to previous ON or
OFF stage.
Restoring Factory Defaults
All Configuration Parameter values and Association information will be restored to factory
default settings and excluded from the network.
Step
Setup Key
LED Indication Status on ZRP-100
1
Press and keep holding the PROG
button for not less than 10 seconds.
- LED state will toggle for first 5 seconds of
being pressed.
- LED state will toggle again after the
remaining 5 seconds.
2
Release the PROG button then triple
click the PROG button within 2 seconds
of step 1.
- LED will stay in previous ON or OFF
stage.
Remark: All the setting and data will be permanently deleted. Please use this
procedure only when the network primary controller is missing or otherwise
inoperable.
Support for Association Groups
ZRP-120 supports 1 association group
Association Group #1
Association Group #1 (max. 1 node) is default to associate with the primary controller
(Gateway/Hub/Controller) for Z-Wave Repeater Status change report, refer to below for
report details:
a) Device Reset Locally Notification (Only report when the Z-Wave Repeater has been
triggered the RESET TO DEFAULT)
Wireless Information
Wireless range:
This device has an open-air line-of-sight transmission distance of 40m, which is compliant
with Z-Wave Plus standards. Performance can be vary depending on the type of obstacles,
such as walls and furniture, between the Z-Wave devices. Every Z-Wave device set up in your
network will act as a signal repeater, allowing them to talk to each other and to find alternate
routes in the case of reception dead spots caused by these obstacles.
Radio frequency limitations:

Page 7 of 9
1. Each wall or object (i.e.: refrigerator, bookshelf, large TV, etc) can reduce the maximum
range by up to 20 to 30%. Plasterboard and wooden walls will have less effect on the
signal than concrete, brick, or tile.
2. Wall mounted Z-Wave devices will also suffer a loss of range if they are housed in metal
junction boxes, which could reduce the range by up to 20 to 30%.
Maintenance
1. Do not expose your unit to dust, strong sunlight, humidity, high temperatures or
mechanical shocks.
2. Do not use corrosive or abrasive cleansers on your unit.
3. Keep the unit dust free by wiping it with a soft, dry cloth.
4. Do not disassemble your unit; it contains no user-serviceable parts.
Technical Specifications
Model no.
BW8141US (ZRP-120NA)
RF frequency
908.42MHz
Input voltage / frequency
120Vac / 60Hz
Input power and current
0.5W / 12mA @ 120Vac
RF operating distance
up to 40m (line of sight between the Wireless Controller and the
closest Z-Wave receiver module at open area)
Dimension (L x W x T)
64 x 48 x 23mm
Weight
50g
Storage Temperature
-10~60oC
Operation Temperature
0~40oC
Relative Humidity:
5~95%
Environment
Indoor use only
Note: Specifications subject to change without notice due to continuing product improvement.

Page 8 of 9
Certifications
UL Listed: This power unit is intended to be correctly orientated in a vertical or floor mount position.
FCC Information
FCC ID : TBD
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired
operation.
Note : This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Notice : Changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user authority to operate the equipment.
IC information
IC : TBD
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to
the following two conditions:
(1) This device may not cause interference, and
(2) This device must accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts
de licence. L'exploitation est autorisée aux deux conditionssuivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement.

Page 9 of 9
Warnings
- Do not modify the unit in any way.
- Risk of fire.
- Risk of electrical shock.
- Risk of burns.
- Do not dispose of electrical appliances and unsorted municipal waste, use separate collection
facilities. Contact your local government for information regarding the collection systems
available.
- There is no user serviceable parts in this unit.
Warranty
ONE-YEAR LIMITED WARRANTY: Remotec warrants this product to be free from defects in materials
and workmanship under normal use and service for a period of one year from the original date of
purchase from the distributor or dealer.
REMOTEC shall not be liable for:
- damages caused by defective devices for indirect, incidental, special, consequential or punitive
damages, including, inter alia, loss of profits, savings, data, loss of benefits, claims by third parties
and any property damage or personal injuries arising from or related to the use of the device.
- Service trips to provide instruction on product use.
- Shipping costs for replacement products.
This warranty is limited to the repair or replacement of this product only, if the purchase date cannot be
substantiated, the warranty period will begin on the date of manufacture as indicated on this product.
All warranty claims must be made to Remotec appointed distributors or dealers during the applicable
warranty period. This warranty gives you specific legal right and you may also have other rights which
vary in each country.
Website : http://www.remotec.com.hk
Printed in China F820-8141-0000
