Remotec ZRP-200 User manual

ZRP-200
Z-Wave Slim Repeater

ZRP-200
Table of Contents
1. Introduction
2. Product Overview
a. Key description
b. Supported features
c. Z-Wave glossary
3. Get Started
a. Open the box
b. Step 1 Apply Power to ZRP-200
c. Step 2 Include ZRP-200 to a Z-Wave Gateway
d. Step 3 Setup Automatic Status ReportAssociation to Gateway
4. Health Channel Checking
5. Reset to Factory Default
6. Required Power Source
7. Installation Location Tips
8. WARNING
9. Technical Specifications
10. WARRANTY
11. Regulatory information
12. Warnings
13. Caution

ZRP-200
1 INTRODUCTION
Thank you for choosing ZRP-200 Range Booster product. ZRP-200 is a Z-Wave repeater with best
RF performance to replicate Z-Wave signals in a network. The repeater re-transmits an input Radio
Frequency (RF) signal by routing the signal around obstacles and radio dead spots to ensure that
the signal is received at its intended destinations.
ZRP-200 is a security enabled Z-Wave plus device. A security Enabled Z-Wave Plus Controller
must be used in order to fully utilize the product.
2 Product Overview

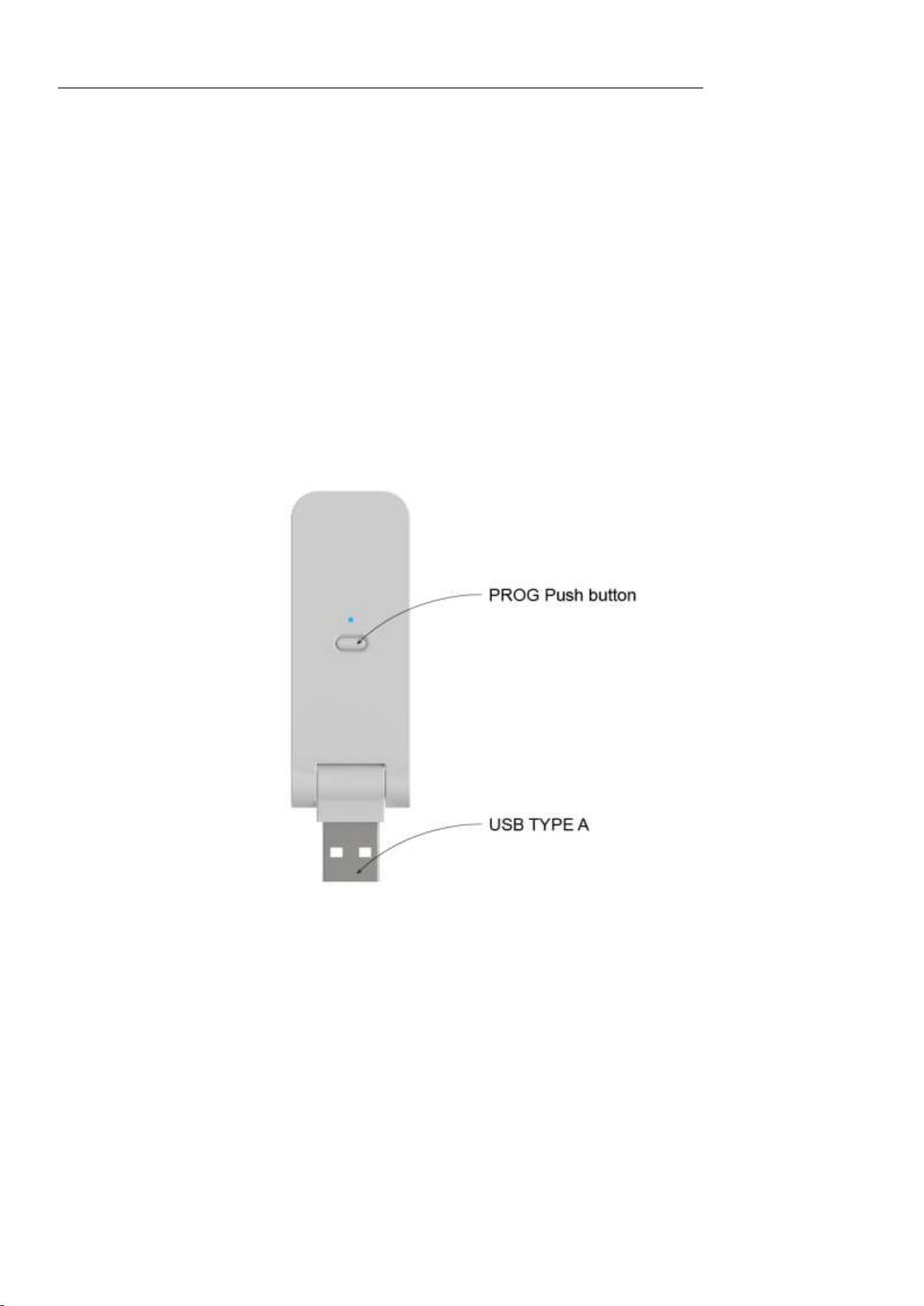

2.1 Key Descriptions
2.2 Features
Supports Network Wide Inclusion (NWI) and Explore Frames
Reliable and best RF performance to repeat Z-Wave signals
Ultra-low power consumption
Flexible angle adjustment to not obstruct user behavior
Complex, thin and small size form factor
Working on USB power

ZRP-200
2.3 Z-Wave Glossary
Device or
Node
Devices and nodes are all terms to describe an individual Z-Wave device.
These are all interchangeable when setting up your Z-Wave network.
Inclusion
Add a Z-Wave device to the network.
Exclusion
Remove a Z-Wave device from the network.
Remove
To take a device out of a group, scene or association group while that
device still exists in the same Z-Wave network.
Network
Wide
Inclusion
(NWI)
Network Wide Inclusion (NWI) enables both end-user friendly, Plug and Play
like Z-Wave network installation as well as professional installation scenario
where the inclusion process, in terms of time will be reduced significantly.
NWI is a feature supported by a new frame type named Explorer which
enables the Z-Wave protocol to implement Adaptive Source Routing.
Z-Wave
Network
A collection of Z-Wave devices is controlled by primary and secondary
controllers operating on the same system. A Z-Wave network has its own
unique ID code so that controllers not in the network cannot control the
system.
Primary
Controller
The first controller is used to set up your devices and network. Only the
Primary Controller can be used to include or remove devices from a
network. It is recommended that you mark the primary controller for each
network for ease in modifying your network.
FLiRS
Mode
FLiRS is abbreviation for "Frequently Listening Routing Slave".
FLiRS mode is targeted for battery operated applications and will enter sleep
mode frequently in order to conserve battery consumption. The response to
Z-Wave command is not as quick as Always Listening Device. Normally
there is 1-2 seconds latency.
Always
Listening
Mode
Always Listening Mode is targeted for AC power operated applications and it
can act as a repeater, which will re-transmit the RF signal to ensure that the
signal is received by its intended destination by routing the signal around
obstacle and radio dead spots. The response to Z-Wave command is
immediate.
Association
Association is used to organize nodes in different groups allowing the device
to identify the nodes by a group identifier. The groups can also be copied to
other devices.
3 Get Started
Open the box
ZRP-200 Z-Wave Slim Repeater x 1set
Step 1 Apply Power to ZRP-200
Simply plug the Z-Wave Slim Repeater in ITEApproved Regulated 5VDC USB Power
Adaptor.
Blue indicator will flash twice then flash continuously.
1, If ZRP-200 has been included to the network, it will only flash twice of the Blue indicator then OFF.

ZRP-200
Step 2 Include ZRP-200 to a Z-Wave Gateway
Step
Procedure / Description
Status Indicator
1
Refer to your primary controller to enter into
the Inclusion Mode or Exclusion Mode
2
When it is prompted to enter it, please triple
click the “PROG”button within 1 second.
Blue Indicator flashes
TWICE then stay off
Notes:
1, It is recommended to perform the Remove (Exclude) procedure before performing an Add (Include)
procedure.
2, Red Indicator flashes TWICE then stay off to represent the Add / Remove process failed, please repeat the
above step again.
3, If the Add (Include) process fails, try Remove (Exclude) and /or resetting the Z-Wave Slim Repeater to
Factory Default and repeat the above step.
4, ZRP-200 will not support Basic Command Class
The Below listed Command Class are all supported the Security S2
COMMAND_CLASS_ASSOCIATION
COMMAND_CLASS_ASSOCIATION_GRP_INFO
COMMAND_CLASS_DEVICE_RESET_LOCALLY
COMMAND_CLASS_MANUFACTURER_SPECIFIC
COMMAND_CLASS_POWERLEVEL
COMMAND_CLASS_SUPERVISION
COMMAND_CLASS_VERSION
Step 3 Setup Automatic Status Report Association to Gateway
Please consult your Gateway supplier for more detail. Normally, User can ignore this step during the setup.
ZRP-200 supports 1 association group
Association Group #1
Association Group #1 (max. 1 node) is default to associate with the primary controller
(Gateway/Hub/Controller) for Z-Wave Repeater Status change report, refer to below for report details:
a) Device Reset Locally Notification (Only report when the Z-Wave Repeater has been triggered the
RESET TO DEFAULT)
Health Channel Checking
This feature is only to check the connectivity between the Z-Wave Slim Repeater and the Gateway.
Before use this feature, make sure the ZRP-200 has been included in the network.
Step
Procedure / Description
Status Indicator
1
Press once of the “PROG”button
Indicator lights up in following
sequence and cycling until finish
checking:

ZRP-200
Blue Purple Red
2
When it has finish, it will light up
the indicator 5 second accordingly.
Blue = Excellent
Purple = Good
Red = Poor
Reset to Factory Default
Press and Hold “PROG”button for 3 seconds on Z-Wave Slim Repeater, the indicator will light up Purple
Color. DO NOT Release the “PROG”Button until indicator change back to Blue color and flashes TWICE.
Remark : All the Setting and Data will be permanently deleted.
Please use this procedure only when the network primary controller is missing or otherwise
inoperable.
Required Power Source
DC 5V 1A ITE Approved Regulated USB Power Adaptor (Not Included)
Installation Location Tips
Avoid installed near the metallic objects
Install the ZRP-200 about 1.5m at least above the floor. Setting it on a higher position can provide a
better signal repeating capability
Avoid installing above or near hot surface or equipment. Avoid installing the device where it will be
exposed to direct sunshine.
WARNING
-Indoor Use Only
-Used only with ITE approved USB Power adaptor
Technical Specifications
Model no.
BW8180US (ZRP-200US)
BW8180EU (ZRP-200EU)
BW8180AU (ZRP-200AU)
BW8180JP (ZRP-200JP)
BW8180KR (ZRP-200KR)

ZRP-200
BW8180IN (ZRP-200IN)
BW8180CN (ZRP-200CN)
RF Frequency
908.4MHz (ZRP-200US)
868.4MHz (ZRP-200EU)
921.4MHz (ZRP-200AU)
922.5MHz (ZRP-200JP)
920.9MHz (ZRP-200KR)
865.2MHz (ZRP-200IN)
868.4MHz (ZRP-200CN)
RF Operating Distance
Up to 450ft outdoor line of sight, in unobstructed environment*
Operating Environment
Indoor Use Only
Operating Ambient
Temperature
0°C ~ 40°C, non-condensing
Relative Humidity
10 ~ 80%
Storage Temperature
-10°C ~ 50°C
Powered By
USB Power DC 5V 1A (Not Included)
Dimension (L x H x T)
84.5mm x 25.0mm x 7.6mm
Weight
15g
*Remark: The operating distance may vary by any other environmental factors.
WARRANTY
ONE-YEAR LIMITED WARRANTY: Remotec warrants this product to be free from defects in materials
and workmanship under normal use and service for a period of one year from the original date of purchase
from the distributors or dealer.
REMOTEC shall not be liable for:
-Damages caused by defective devices for indirect, incidental, special, consequential or punitive
damages, including, inter alia, loss of profits, savings, data, loss of benefits, claims by third parties and
any property damage or personal injuries arising from or related to the use of the device.
-Service trips to provide instruction on product use.
-Shipping costs for replacement products.
This warranty is limited to the repair or replacement of this product only, if the purchase date cannot be
substantiated, the warranty period will begin on the date of manufacture as indicated on this product. All
warranty claims must be made to Remotec appointed distributors or dealers during the applicable warranty
period. This warranty gives you specific legal right and you may also have other rights which vary in each
country.
Website : http://www.remotec.com.hk

ZRP-200
Regulatory information
FCC ID : M7N-BW8180
FCC Compliance Statement
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Notice : Changes or modifications to this unit not expressly approved by the party responsible for compliance could void
the user authority to operate the equipment.
IC Notice
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two
conditions:
(1) This device may not cause interference, and
(2) This device must accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditionssuivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en
compromettre le fonctionnement.
Warnings
- Do not modify the unit in any way.
- Risk of fire.
- Risk of electrical shock.
- Risk of burns.
- Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local
government for information regarding the collection systems available.
- There is no user serviceable parts in this unit.

ZRP-200
Caution
- Risk of explosion if battery is replaced by an incorrect type.
- Dispose of used batteries according to the instructions.
