Renault 2000 Megane Instruction Manual

© RENAULT 2000
Technical Note 3350A
XA0 5
SPECIAL FEATURES OF F9Q 732 ENGINE
WITH HIGH PRESSURE DIRECT INJECTION
77 11 292 962 EDITION ANGLAISEMARCH 2000
Please observe the cleanliness advice
for any operations on this vehicle (section 13).
This Technical Note cancels and replaces Technical Note 3245A
For all parts not dealt with in this Technical Note refer to Workshop Repair Manual MR 312.
Consult Technical Note 3341A for the diagnostic part.
"The repair methods given by the manufacturer in this document are based on the
technical specifications current when it was prepared.
The methods may be modified as a result of changes introduced by the manufacturer in
the production of the various component units and accessories from which his vehicles
are constructed."
All copyrights reserved by Renault.
Copying or translating, in part or in full, of this document or use of the service part
reference numbering system is forbidden without the prior written authority of Renault.

Contents
Page
07
10
11
12
VALUES AND SETTINGS
Capacities - Grades 07-1
Accessories belt tension 07-2
Checking the accessories belt tension 07-3
Tightening the cylinder head 07-5
Tyres and wheels 07-6
Brakes 07-7
Brake compensator 07-8
Underbody height 07-9
Front axle angle checking values 07-11
Rear axle angle checking values 07-13
ENGINE AND PERIPHERALS
Identification 10-1
Oil pressure 10-2
Engine and transmission assembly 10-3
Sump 10-8
TOP AND FRONT OF ENGINE
Timing belt 11-1
Cylinder head gasket 11-6
FUEL MIXTURE
Air inlet 12-1
TURBOCHARGING
Pressure regulating valve 12-2
Pressure adjustment 12-3
Turbocharger 12-4
Air-air exchanger 12-7
Manifolds 12-9
Priming catalytic converter 12-12
Page
13
14
DIESEL EQUIPMENT
Technical specifications 13-1
Special features 13-3
Cleanliness 13-6
Location of components 13-9
Injection warning light 13-12
Immobiliser function 13-13
Injection programming/ air conditioning 13-14
Idle speed correction 13-16
Pre-postheating control 13-17
Heater plugs 13-18
Thermoplunger 13-19
Low pressure pump (supercharging
pump) 13-21
Fuel filter 13-22
High pressure pump 13-23
Injector gallery 13-27
Injectors 13-32
Checking diesel pressure and flow 13-37
Pressure sensor 13-38
Pressure regulator 13-39
Accelerator potentiometer 13-40
Centralised coolant temperature
management 13-41
Computer 13-42
ANTIPOLLUTION
Oil vapour rebreathing 14-1
Exhaust gas recirculation 14-2

Contents
Page
16
19
21
62
STARTING - CHARGING
Alternator 16-1
Starter 16-4
COOLING SYSTEM
Filling - bleeding 19-1
Diagram 19-2
Thermoplunger unit 19-3
Radiator 19-4
Water pump 19-5
ENGINE MOUNTING
Suspended engine mounting 19-6
Exhaust
Catalytic converter 19-7
MANUAL GEARBOX
Identification 21-1
Gears 21-1
Capacity - Lubricants 21-2
AIR CONDITIONING
General 62-1
Compressor 62-2
Dehydration canister 62-3
Condenser 62-4
Pressure relief valve 62-5
Connecting hoses 62-6

VALUES AND SETTINGS
Capacities - Grades 07
107
VALUES AND SETTINGS
Capacities - Grades
* Adjust using the dipstick
(1) After replacing the oil filter
Components Capacity in litres
(approx.)* Grade
Diesel engine
(oil)
F9Q
In case of oil
change
4,5
4,6 (1)
European Union countries
Under no circumstances should ACEA B1 oils be used for diesel
engines
Other countries
Components Capacity
in litres Grade Special notes
Gearbox
JC5 3.1 All countries: TRANSELF TRX 75 W 80 W (Standards API GL5 or MIL-L 2105 G or D)
Coolant
circuit
F9Q 7.5
Glacéol RX
(type D)
Protection to - 20 ˚C ±2˚C for warm, moderate and cold
climates.
Protection to - 37˚C ±2˚C for very cold climates.
07-1

VALUES AND SETTINGS
Accessories belt tensioning 07
07-2
WITHOUT AIR
CONDITIONING Accessories belt tensioning
ALTERNATOR AND POWER ASSISTED STEERING
Fitting tension (in Hertz): 188 ±5
See Technical Note 3247A for the procedure for using
the tension measuring tool Mot. 1505.
A Crankshaft
B Alternator
C Power assisted steering pump
E Water pump
→Tension checking point
98751R1

VALUES AND SETTINGS
Checking the accessories belt tension 07
07-3
WITH AIR
CONDITIONING Checking the accessories belt tension
SPECIAL TOOLING REQUIRED
Mot. 1387 Tool for checking the automatic
tension wheel centreline
Checking the automatic tension wheel centre line
Before removing the accessories belt, check the
centreline (A) on the automatic tension wheel using
Mot. 1387.
Methods for using Mot. 1387
Loosen knurled bolt (1) so that the arms (2) and (3)
can slide against each other.
Position Mot. 1387 on the two mountings for the
tensioner component, then lock the arms (2) and (3)
by turning the knurled bolt (1).
11234R
12205G

VALUES AND SETTINGS
Checking the accessories belt tension 07
07-4
WITH AIR
CONDITIONING Checking the accessories belt tension
Using Mot. 1387 check that you are well within
tolerance (zone B).
NOTE:
Min. tolerance = Mark (4)
Max. tolerance = Mark (5)
Checking the centreline allows you to check if the
automatic tension system is working correctly.
If the centreline is outside permitted tolerance values,
check the following points:
12205R3
ENGINE
CENTRELINE
F9Q
Centreline less
than minimum
– Check that the eccentric plate
is positioned correctly (at the
base of the opening).
– Incorrect belt (too short).
– Incorrect belt passage.
Centreline
greater than
maximum
– Check that the eccentric plate
is positioned correctly (at the
base of the opening).
– Incorrect belt (too long).
– Incorrect belt passage.

VALUES AND SETTINGS
Tightening the cylinder head 07
07-5
Tightening the cylinder head
METHOD FOR TIGHTENING THE CYLINDER HEAD
REMINDER: in order to tighten the bolts correctly, use
a syringe to remove any oil which may have entered
the cylinder head mounting bolt holes.
All the cylinder head bolts must always be changed
after removal. There is no cylinder head retightening
operation.
Preseating the gasket
Tighten all the bolts to 3 daN.m, then angle tighten to
100˚±4˚in the order shown below.
Wait 3 minutes settling time.
Tightening the cylinder head:
– cylinder head tightening is carried out in stages, and
the following procedure is applied successively to
bolts 1-2 then 3-4, 5-6, 7-8 and 9-10,
– slacken bolts 1-2 until they are completely free,
– tighten bolts 1-2 to 2.5 daN.m, then angle tighten to
213 ±7˚,
– repeat the slackening and tightening operations for
bolts 3-4, 5-6, 7-8 and 9-10.
There is no cylinder head retightening operation.
90775S

VALUES AND SETTINGS
Tyres and wheels 07
07-6
Tyres and wheels
(1) With full load and on motorways.
Tightening torque for wheel nuts: 9 daN.m
Rim run-out: 1.2 mm
Type Rim Tyres
Tyre pressure when
cold (in bar) (1)
Front Rear
BA05 6 J 15 185/60 R 15 2.4 2.2
JA05 6 J 15 185/60 R 15 2.3 2.3

VALUES AND SETTINGS
Brakes 07
07-7
Brakes
(1) Drum: maximum wear diameter
Max. disc run-out: 0.07 mm
(1) Leading brake shoe.
(2) Trailing brake shoe.
Type
at the front at the rear
Disc thickness (in mm) Disc thickness (in mm) Drum diameter (in mm)
Max. Min. Max. Min. Min. Max. (1)
BA05 20.6 17.6 - - 203.2 204.45
JA05 24 21 11 9.5 - -
Type
Lining thicknesses (in mm) (including backing)
Brake fluid
Front Rear
New Min. New Min.
JA05 18 6 11 5 SAE J1703
DOT 4
BA05 18 6
4.9 (1)
3.4 (2) 2 SAE J1703
DOT 4

VALUES AND SETTINGS
Brake compensator 07
07-8
Brake compensator
BRAKING PRESSURE
Conditions:
– Full fuel tank,
– Driver on board.
(1) The test is performed using two pressure gauges in an X arrangement.
Type Check pressure (1) (in bars)
Front Rear
B0A5 140 +18
52
0
JA05 140 +18
32
0

VALUES AND SETTINGS
Underbody height 07
07-9
Underbody height
The difference between the right-hand side and the left-hand side of the same axle of a vehicle must not exceed
5 mm, the driver's side always being higher.
Any alteration to the underbody height also requires adjustment of the brake compensator and of the headlights.
Type at the front H1 - H2 = ... mm
±7.5 mm
at the rear
H4 - H5 = ... mm
±7.5 mm
Dimension X (mm)
D and G
±0.5 mm
BA05 104 22 496
JA05 102 27 512
98336R

VALUES AND SETTINGS
Underbody height 07
07-10
MEASUREMENT POINTS
Dimension H5 is measured from the axis of the
suspension bar.
99656R1
88636-4R

VALUES AND SETTINGS
Front axle angle checking values 07
07-11

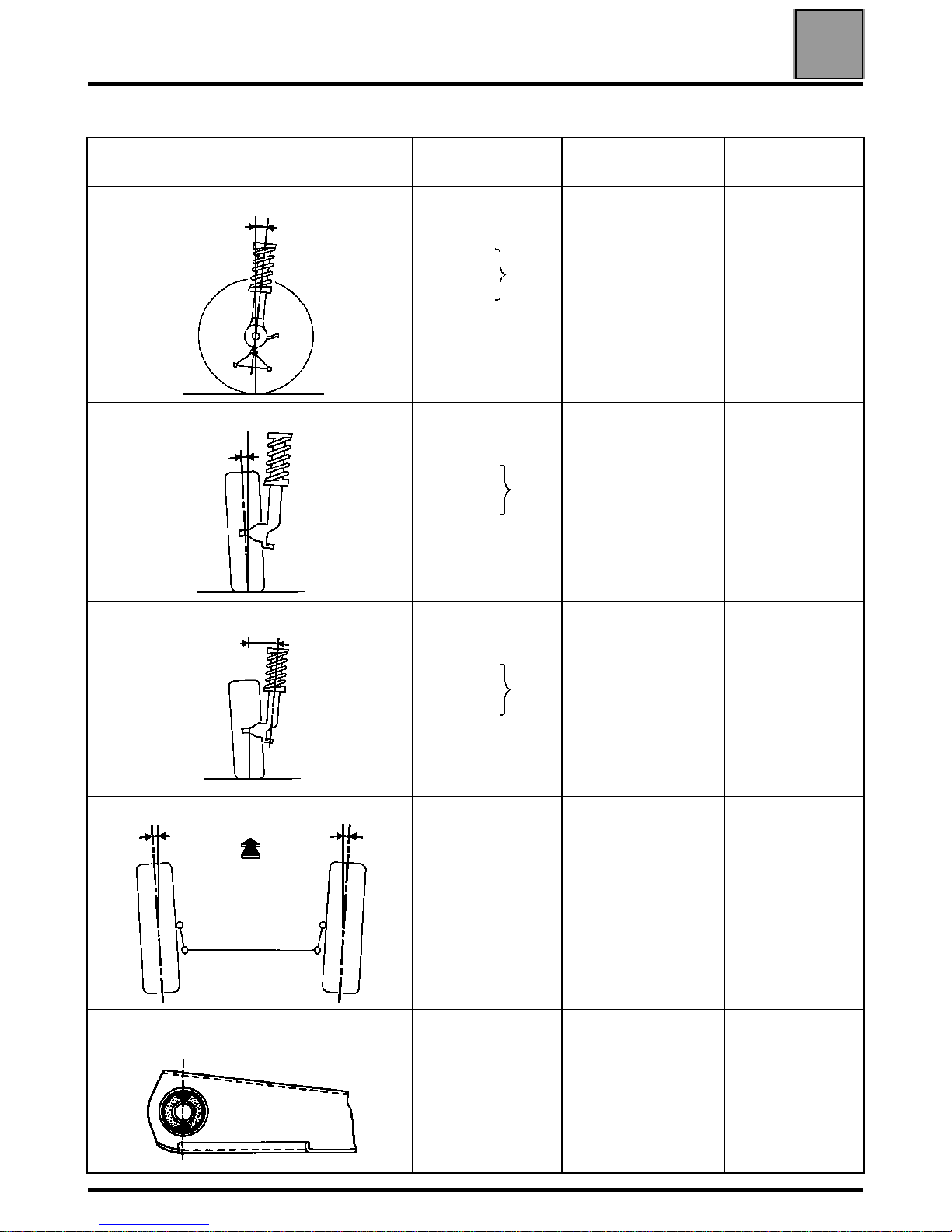

Front axle angle checking values
B0A5
ANGLES VALUES POSITION OF
FRONT AXLE ADJUSTMENT
CASTOR
3˚22'
3˚52' ±30'
4˚22'
Max. right/left
difference = 1˚
H5 - H2 = 89 mm
H5 - H2 = 69 mm
H5 - H2 = 49 mm NOT ADJUSTABLE
CAMBER
- 0˚23'
- 0˚29' ±30'
- 0˚38'
Max. right/left
difference = 1˚
H1 - H2 = 104 mm
H1 - H2 = 115 mm
H1 - H2 = 125 mm NOT ADJUSTABLE
PIVOT
13˚25'
13˚40' ±30'
13˚52'
Max. right/left
difference = 1˚
H1 - H2 = 104 mm
H1 - H2 = 115 mm
H1 - H2 = 125 mm NOT ADJUSTABLE
PARALLELISM
(for 2 wheels)
toe-out
+ 0˚10' ±10'
+ 1 mm ±1 mm
UNLADEN
Adjustable by
rotating track rod
sleeves
1 turn= 30'
(3 mm)
POSITION FOR TIGHTENING RUBBER
BUSHES
- UNLADEN -

VALUES AND SETTINGS
Front axle angle checking values 07
07-12
J0A5
ANGLES VALUES POSITION OF
FRONT AXLE ADJUSTMENT
CASTOR
5˚00'
3˚54' ±30'
3˚19'
Max. right/left
difference = 1˚
H5 - H2 = 23 mm
H5 - H2 = 65 mm
H5 - H2 = 75 mm NOT ADJUSTABLE
CAMBER
- 0˚15'
- 0˚28' ±30'
- 0˚37'
Max. right/left
difference = 1˚
H1 - H2 = 90 mm
H1 - H2 = 112 mm
H1 - H2 = 120 mm NOT ADJUSTABLE
PIVOT
13˚14'
13˚32' ±30'
13˚55'
Max. right/left
difference = 1˚
H1 - H2 = 90 mm
H1 - H2 = 112 mm
H1 - H2 = 120 mm NOT ADJUSTABLE
PARALLELISM
(for 2 wheels)
toe-out
+ 0˚10' ±10'
+ 1 mm ±1 mm
UNLADEN
Adjustable by
rotating track rod
sleeves 1 turn=
30' (3 mm)
POSITION FOR TIGHTENING RUBBER
BUSHES
- UNLADEN -

VALUES AND SETTINGS
Rear axle angles checking values 07
07-13
Rear axle angles checking values
ANGLES VALUES POSITION OF
REAR AXLE ADJUSTMENT
CAMBER
- 0˚50' ±15'
- 1˚15' ±15'
UNLADEN NOT
ADJUSTABLE
PARALLELISM (for 2 wheels)
toe-in
- 0˚30' ±20'
- 3 mm ±2 mm
- 0˚15' ±20'
- 1.5 mm ±2 mm
UNLADEN NOT
ADJUSTABLE
POSITION FOR TIGHTENING RUBBER
BUSHES
- UNLADEN -

ENGINE AND PERIPHERALS
Identification 10
110
ENGINE AND PERIPHERALS
Identification
Repair Manual to be consulted: Mot. F9Q.
Vehicle type Engine Gearbox Capacity
(cm3)Bore
(mm) Stroke (mm) Compression ratio
XA05 F9Q 732 JC5 1870 80 93 19/1
10-1

ENGINE AND PERIPHERALS
Oil pressure 10
10-2
Oil pressure
CHECKING
The oil pressure should be checked when the engine
is warm (approximately 80 °C).
Contents of kit Mot. 836-05.
USE
C + F
Connect the pressure gauge in place of the oil
pressure switch.
Oil pressure
1000 rpm 1.2 bar
3000 rpm 3.5 bars
SPECIAL TOOLING REQUIRED
Mot. 836-05 Boxed kit for measuring oil
pressure
ESSENTIAL SPECIAL TOOLING
22 mm long socket
87363R1

ENGINE AND PERIPHERALS
Engine and transmission assembly 10
10-3
Engine and transmission assembly
SPECIAL TOOLING REQUIRED
Mot. 1040-01 Dummy sub-frame for removing
and refitting engine and
transmission assembly
Mot. 1159 Tool for maintaining engine on
subframe
Mot. 1202-01 Hose clip pliers
Mot. 1202-02
Mot. 1233-01 Threaded rods for lowering the
sub-frame
Mot. 1294-01 Tool for removing windscreen
wiper arms
Mot. 1448 Long nose pliers for hose clips
Mot. 1453 Engine support tool
REMOVAL
Put the vehicle on a two post lift.
During this operation, it is necessary to secure the
vehicle to the lift using a strap to prevent the vehicle
from losing balance.
See Technical Note 2988A for the procedure for fitting
the strap.
TIGHTENING TORQUES (n daN.m)
Sub-frame front mounting bolts 6.2
Sub-frame rear mounting bolts 10.5
Mounting bolt for front right suspended
mounting cover to engine 6.2
Movement limiter mounting bolt 6.2
Mounting nut for rubber engine mounting
pad on front left-hand side member support 6.2
Shock absorber base bolts 18
Brake caliper mounting bolt 4
Steering shaft yoke mounting bolt 3
Sub-frame - side member tie rod bolts 3
Wheel bolts 9
14893S

ENGINE AND PERIPHERALS
Engine and transmission assembly 10
10-4
Remove:
– the battery,
– the engine undertray.
Drain:
– the cooling circuit through the bottom hose of the
radiator,
– the gearbox and the engine (if necessary),
– the refrigerant circuit (if fitted) using filling equipment.
Remove:
– the front wheels along with the mudguard,
– the sub-frame and body tie rods,
– the track rod ends,
– the brake calipers (as well as the ABS sensors, if
fitted) and secure them to the suspension springs,
– the shock absorber base bolts,
– the heat shield (A) as well as the gearbox control,
– the clip (1) of the catalytic converter and secure this
to the body.
– the front bumper,
– the horn,
– the two mountings for power assisted steering
hoses on the right hand side of the sub-frame,
– the nut and the eccentric bolt of the steering shaft
yoke, after pushing back the guard.
SPECIAL NOTES FOR VEHICLES FITTED WITH A
DRIVER'S AIRBAG
Remove (for the Scénic):
– the windscreen wiper arms using tool Elé. 1294-01,
– the front grilles,
16663R1
WARNING
In order to eliminate any risk of damaging the
rotary switch under the steering wheel, observe
the recommendations below:
!Before the steering column and the steering
rack are uncoupled, the steering wheel MUST
be immobilised with the wheels straight for the
duration of the operation using a "steering
wheel locking tool".
!If there is any doubt regarding the correct
alignment of the rotary switch, the steering
wheel must be removed so that the alignment
procedure described in the "AIRBAG" section
can be applied.
REMINDER: in this case, only qualified
personnel who have received training may carry
out the operation.
11020R
