Renault Laguna III User manual

© Renault s.a.s 2007
"The repair procedures given by the manufacturer in this document are based on the
technical specifications current when it was prepared.
The procedures may be modified as a result of changes introduced by the manufacturer in
the production of the various component units and accessories from which the vehicles are
constructed".
All rights reserved by Renault.
Copying or translating, in part or in full, of this document or use of the service part reference
numbering system is forbidden without the prior written authority of Renault.
AUGUST 2009 EDITION ANGLAISE
X91
0General vehicle information
01A VEHICLE MECHANICAL SPECIFICATIONS
01C VEHICLE BODYWORK SPECIFICATIONS
01D MECHANICAL INTRODUCTION
02A LIFTING EQUIPMENT
03B COLLISION
04B CONSUMABLES - PRODUCTS

LAGUNA III - Section 0
Contents
Pages
LAGUNA III - Section 0 ContentsPages
01A VEHICLE MECHANICAL SPECIFICATIONS
Vehicle: Specifications 01A-1
01C VEHICLE BODYWORK SPECIFICATIONS
Vehicle: Identification 01C-1
Vehicle panel gaps:
Adjustment value 01C-3
01D MECHANICAL INTRODUCTION
Vehicle: Precautions for the
repair 01D-1
Tightening torques: General
information 01D-3
02A LIFTING EQUIPMENT
Vehicle: Towing and lifting 02A-1
03B COLLISION
Vehicle involved in an
impact: Impact fault finding 03B-1
Vehicle involved in a frontal
impact: Description 03B-4
Vehicle involved in a side
impact: Description 03B-7
Vehicle involved in a rear
impact: Description 03B-13
04B CONSUMABLES - PRODUCTS
Vehicle: Parts and
consumables for the repair 04B-1
03B COLLISION

01A-1
VEHICLE MECHANICAL SPECIFICATIONS
Vehicle: Specifications
B91
01A

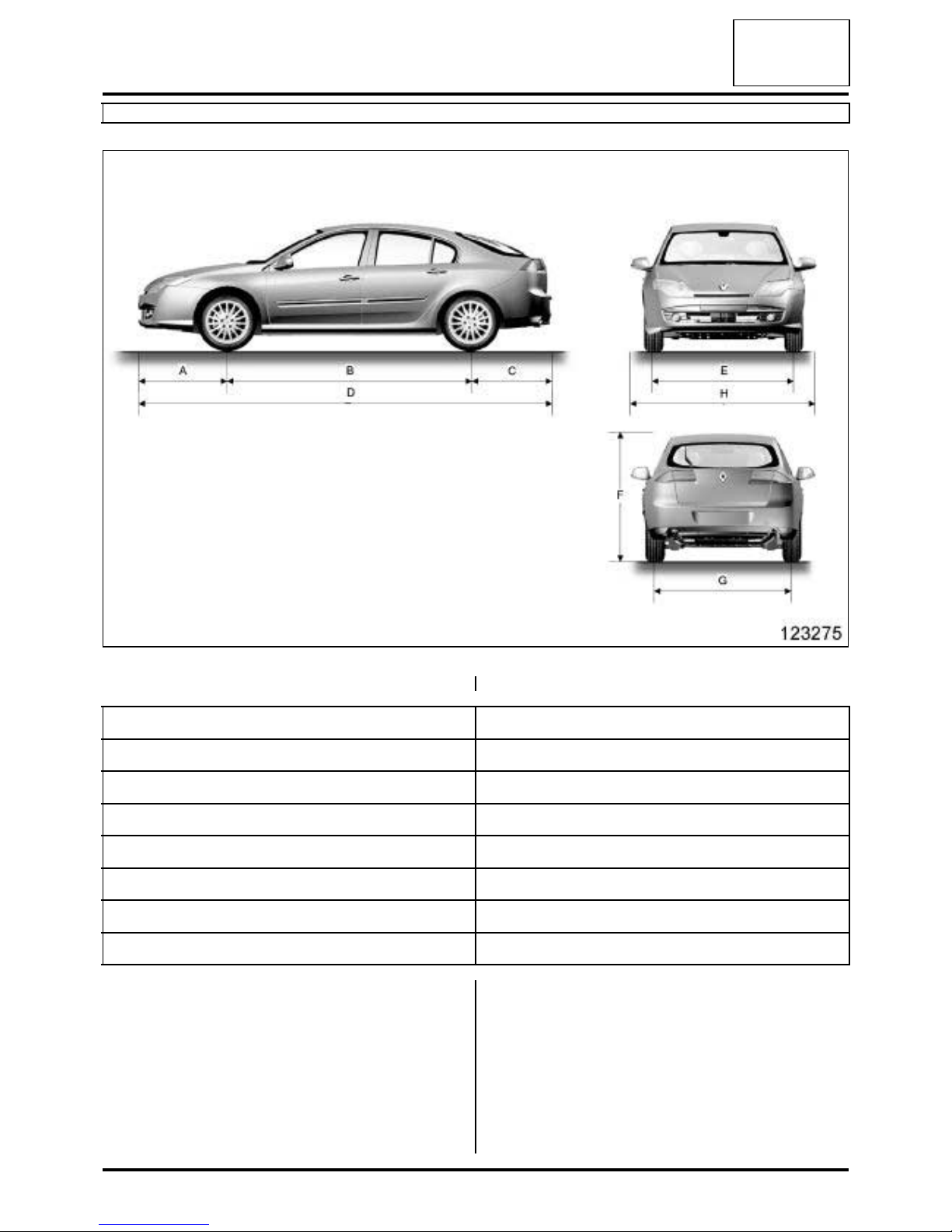

Dimensions in metres:
123275
(A) 1.014
(B) 2.756
(C) 0.925
(D) 4.695
(E) 1.557
(F) (unladen) 1.445
(G) 1.512
(H) 1.811

01A-2
VEHICLE MECHANICAL SPECIFICATIONS
Vehicle: Specifications
B91
01A
Engine Gearbox Emissions
standard
Engine type Engine suf-
fix Cubic capacity(cc) Gearbox type Gearbox suffix
F4R
800
1998
PK4 008
Euro 4
802 Euro 5
811 AJ0 007, 018 Euro 4
813 Euro 3, 4 and 5
K4M 824 1598
TL4
016, 019 Euro 3 and 4
K9K 780 1461 013 Euro 1, 3 and 4
782 013, 022 Euro 5
M4R
704 1997 017, 020 Euro 3 and 4
726 Euro 5
M9R
742
1995
PK4
007
Euro 4744
746
007, 009748
Euro 3 and 4
754
800 012 Euro 4
802 007, 009 Euro 4 and 5
803
AJ0 004
Euro 4
805 Euro 4 and 5
806
PK4
020
Euro 4
808 004
809 AJ0 004
Euro 4 and 5
816 PK4 012
845
AJ0 004
849
V4Y 713 3498
AJ0
005 Euro 4
V9X 891 2998 006 Euro 5

01A-3
VEHICLE MECHANICAL SPECIFICATIONS
Vehicle: Specifications
K91
01A
Dimensions in metres:
123276
(A) 1.014
(B) 2.758
(C) 1.031
(D) 4.776
(E) 1.557
(F) (unladen) 1.455
(G) 1.512
(H) 1.811

01A-4
VEHICLE MECHANICAL SPECIFICATIONS
Vehicle: Specifications
K91
01A
Engine Gearbox Emissions
standard
Engine type Engine suf-
fix Cubic capacity(cc) Gearbox type Gearbox suffix
F4R
800
1998
PK4 008
Euro 4
802 Euro 5
811 AJ0 007, 018 Euro 4
813 Euro 3 and 4
K4M 824 1598
TL4
016, 019 Euro 3 and 4
K9K 780 1461 013 Euro 4
782 013, 022 Euro 5
M4R
704 1997 017, 020 Euro 3 and 4
726 Euro 5
M9R
742
1995
PK4
007
Euro 4744
746
007, 009748 Euro 3 and 4
754
Euro 4
800 012
802 007, 009 Euro 4 and 5
803
AJ0 004
Euro 4
805 Euro 4 and 5
806
PK4
020
Euro 4
808 004
809 AJ0 004
Euro 4 and 5
816 PK4 012
845
AJ0 004
849
V4Y 713 3498
AJ0
005 Euro 4
V9X 891 2998 006 Euro 5

01A-5
VEHICLE MECHANICAL SPECIFICATIONS
Vehicle: Specifications
D91
01A

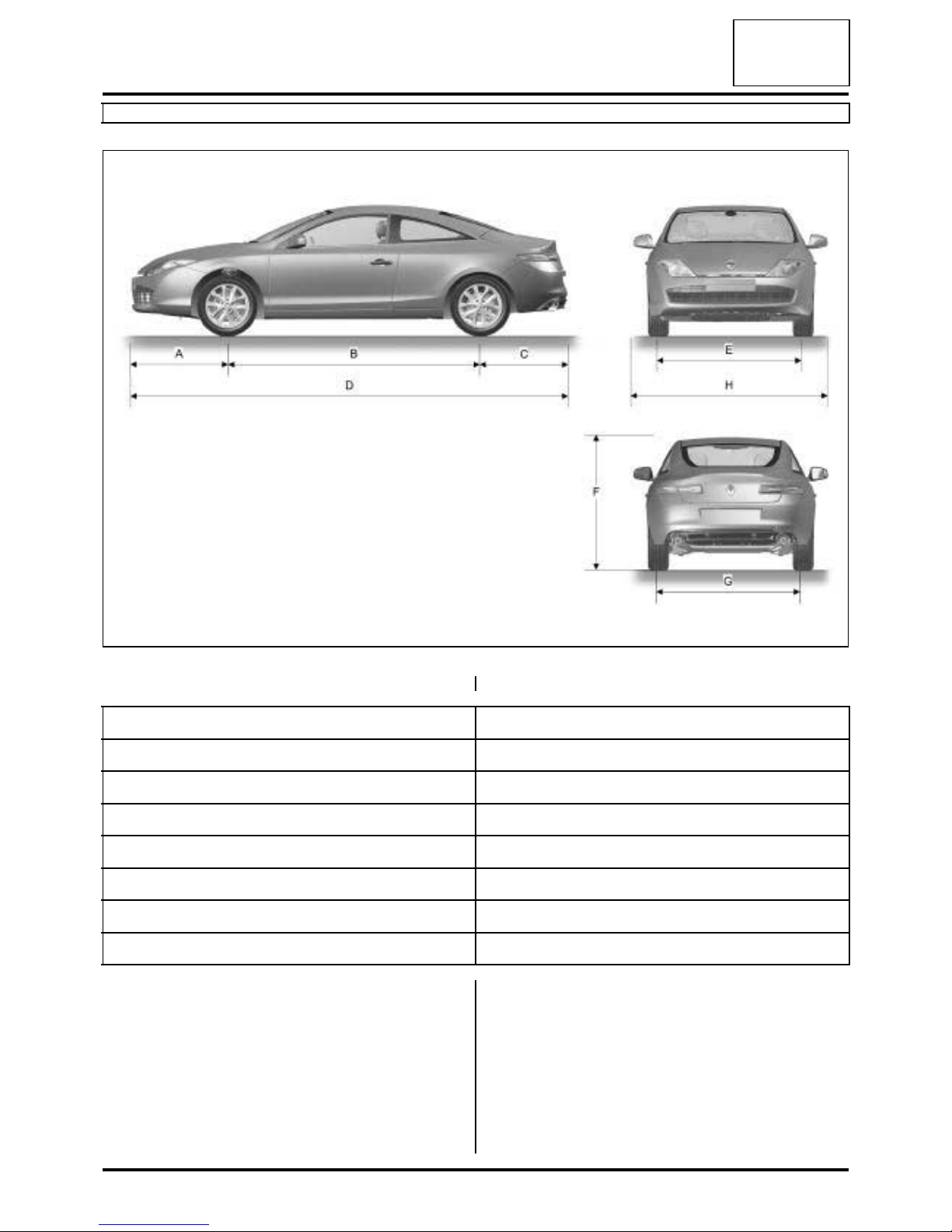

Dimensions in metres:
141547
(A) 1.019
(B) 2.693
(C) 0.931
(D) 4.643
(E) 1.547
(F) (unladen) 1.401
(G) 1.542
(H) 2.082

01A-6
VEHICLE MECHANICAL SPECIFICATIONS
Vehicle: Specifications
D91
01A
Engine Gearbox Emissions
standard
Engine type Engine suf-
fix Cubic capacity(cc) Gearbox type Gearbox suffix
F4R
800
1998
PK4 008
Euro 4
802 Euro 5
811 AJ0 007, 018 Euro 4
813 Euro 3 and 4
M9R
742
1995
PK4
007 Euro 4
744
748
007, 009 Euro 3 and 4
754
800 012 Euro 4
802 007, 009 Euro 4 and 5
803
AJ0 004
Euro 4
805 Euro 4 and 5
806
PK4
020
Euro 4
808 004
809 AJ0 004
Euro 4 and 5
816 PK4 012
845
AJ0 004
849
V4Y 713 3498
AJ0
005 Euro 4 and 5
V9X 891 2998 006 Euro 5

01C-1
VEHICLE BODYWORK SPECIFICATIONS
Vehicle: Identification 01C
I - LOCATION OF VEHICLE IDENTIFICATION
PLATE (A)
II - LOCATION OF THE VEHICLE IDENTIFICATION
NUMBER (B)
III - DETAILED VIEW OF THE VEHICLE
IDENTIFICATION PLATE
Plate (A)
123654
123655
19031
(1) Vehicle type mine and type num-
ber; this information also
appears on marking (B)
(2) MGVW (Maximum Gross Vehi-
cle Weight)
(3) GTW (Gross train weight, vehi-
cle under load with trailer)
(4) Maximum permissible front axle
load
(5) Maximum permissible rear axle
load
(6) Vehicle technical specifications
(7) Paintwork reference number
(8) Equipment level
(9) Vehicle type
(10) Upholstery code
(11) Additional equipment details
(12) Fabrication number
(13) Interior trim code

01C-2
VEHICLE BODYWORK SPECIFICATIONS
Vehicle: Identification 01C
IV - COLD-MARKING OF THE BODY
Marking (C)
123656
Note:
If the complete body is being replaced, it must be
marked in compliance with the current regulations.

01C-3
VEHICLE BODYWORK SPECIFICATIONS
Vehicle panel gaps: Adjustment value 01C
All values are given in millimetres.
Section 1
(X1) = 1.5 mm ±±
±± 1
B91 or K91
124288
WARNING
The clearance values are given for information pur-
poses.
When adjusting clearances, certain rules have to be
followed:
-maintain symmetry with respect to the opposite
side,
- ensure the flush fitting is correct,
-check correct operation of the opening, and water/
air-tightness.
124255

01C-4
VEHICLE BODYWORK SPECIFICATIONS
Vehicle panel gaps: Adjustment value 01C
Section 2
(X2)=5 mm ±±
±± 2
Section 3
(X3)=4 mm ±±
±± 1.5
Section 4
(X4) = ±±
±± 1 mm
Section 5
(X5) = 0.4 mm ±±
±± 0.4
124254
124256
124257
124253

01C-5
VEHICLE BODYWORK SPECIFICATIONS
Vehicle panel gaps: Adjustment value 01C
Section 6
(X6)=3.5 mm ±±
±± 1.2
Section 7
(X7)=4.5 mm ±±
±± 1.2
Section 8
(X8) = Plating
Section 9
(X9) = 4 mm ±±
±± 0.8
124258
124285
124287
124279

01C-6
VEHICLE BODYWORK SPECIFICATIONS
Vehicle panel gaps: Adjustment value 01C
Section 10
(X10) = 4.5 mm ±±
±± 1.2
Section 11
(X11) = 4.2 mm ±±
±± 1.2
Section 12
(X12) = 4.7 mm ±±
±± 1.2
124286
124280
124282

01C-7
VEHICLE BODYWORK SPECIFICATIONS
Vehicle panel gaps: Adjustment value 01C

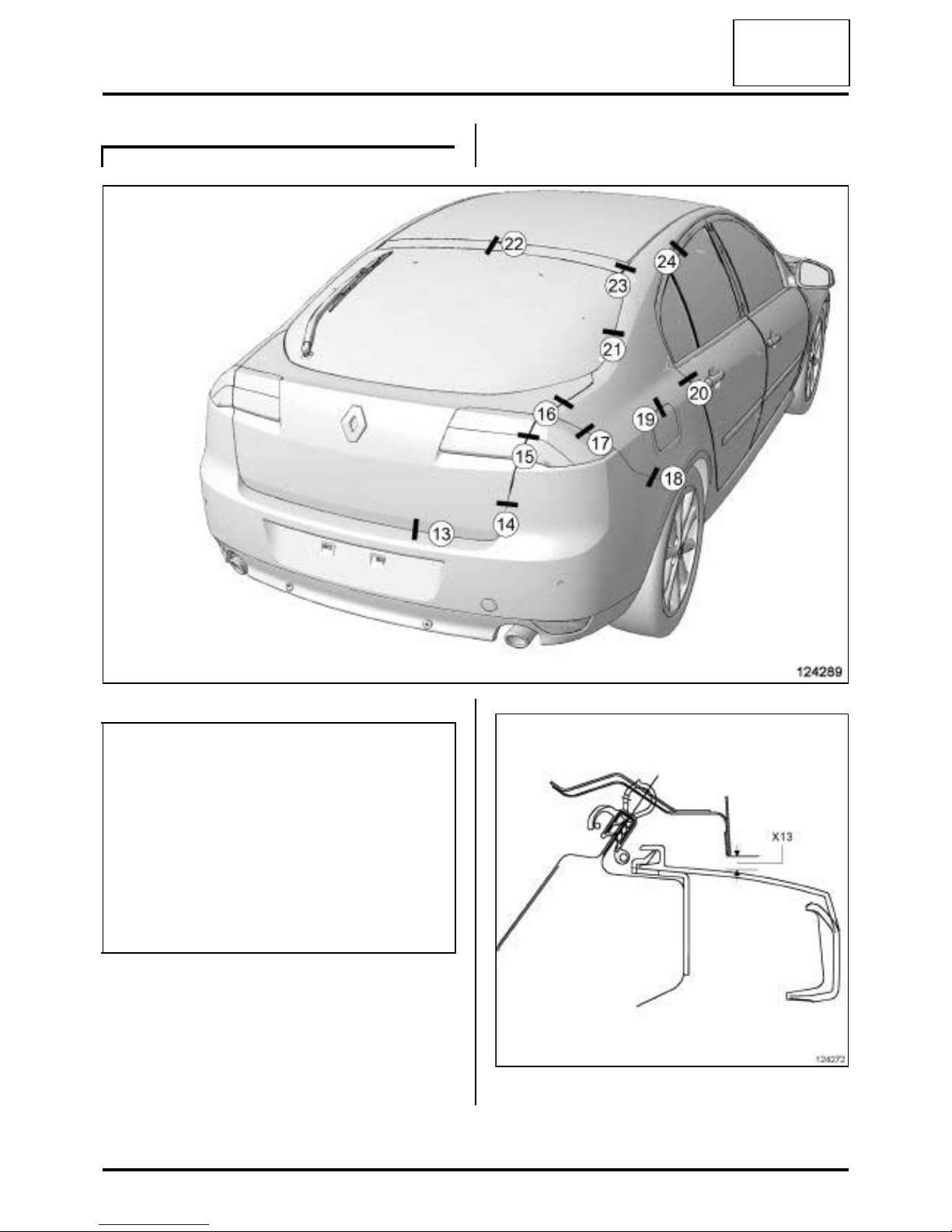

All values are given in millimetres.
Section 13
(X13) = 6 mm ±±
±± 0.2
B91
124289
WARNING
The clearance values are given for information pur-
poses.
When adjusting clearances, certain rules have to be
followed:
-maintain symmetry with respect to the opposite
side,
- ensure the flush fitting is correct,
-check correct operation of the opening, and water/
air-tightness.
124272

01C-8
VEHICLE BODYWORK SPECIFICATIONS
Vehicle panel gaps: Adjustment value 01C
Section 14
(X14) = 4 mm ±±
±± 1.9
Section 15
(X15) = 4 mm ±±
±± 1.7
Section 16
(X16) = 3.7 mm ±±
±± 1.25
Section 17
(X17) = 1 mm ±±
±± 0.9
124277
124273
124278
124275

01C-9
VEHICLE BODYWORK SPECIFICATIONS
Vehicle panel gaps: Adjustment value 01C
Section 18
(X18) = ±±
±± 1 mm
Section 19
(X19) = 2 mm ±±
±± 1
Section 20
(X20) = 4 mm ±±
±± 0.8
Section 21
(X21) = 4.5 mm ±±
±± 2
124276
124252
124281
124271

01C-10
VEHICLE BODYWORK SPECIFICATIONS
Vehicle panel gaps: Adjustment value 01C

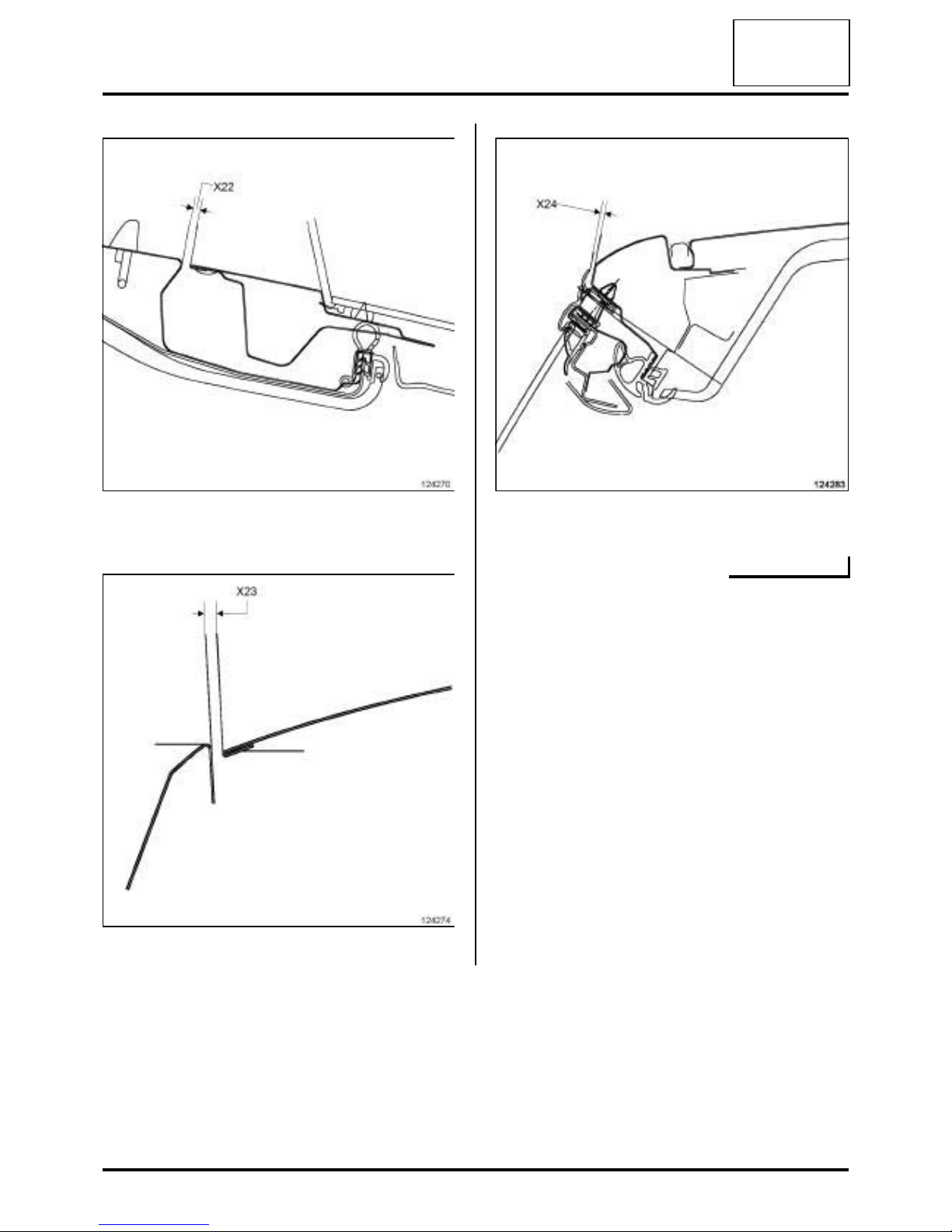

Section 22
(X22) = 4 mm ±±
±± 2
Section 23
(X23) = 4 mm ±±
±± 1.6
Section 24
(X24) = 2 mm ±±
±± 0.6
124270
124274
124283

01C-11
VEHICLE BODYWORK SPECIFICATIONS
Vehicle panel gaps: Adjustment value 01C
All values are given in millimetres.
Section 25
(X25) = ±±
±± 1.6 mm
K91
124290
WARNING
The clearance values are given for information pur-
poses.
When adjusting clearances, certain rules have to be
followed:
-maintain symmetry with respect to the opposite
side,
- ensure the flush fitting is correct,
-check correct operation of the opening, and water/
air-tightness.
124266

01C-12
VEHICLE BODYWORK SPECIFICATIONS
Vehicle panel gaps: Adjustment value 01C
Section 26
(X26) = 2 mm ±±
±± 1
Section 27
(X27) = 4.2 mm ±±
±± 1.75
Section 28
(X28) = ±±
±± 2.2 mm
Section 29
(X29) = 4 mm ±±
±± 1.7
124260
124259
124267
124265
