Sections
1
CONTENTS
2
3
4
5
6
7

0.4
ENG_UD20783_6
Filler NU (X06 - C06 - S06 - X35 - L35 - X44 - C44 - G44 - X45 - H45 - X65 - L65 - S65 - X73 - B73 - X74 - B74 - K74 - X77 - J77 - F77 - R77 - X81 - J81 - X84 - B84 - C84ENG_NU_1007-1_X87_Renault_0

1.1
ENG_UD28957_1
Sommaire 1 (X87 - Renault)ENG_NU_1007-1_X87_Renault_1
Section 1: Getting to know your vehicle
RENAULT card: general information, use, deadlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.2
Openingandclosingthedoors..................................................... 1.9
Locking,unlockingtheopeningelements............................................. 1.11
Automaticlockingwhendriving..................................................... 1.13
Headrests-Seats............................................................... 1.14
Seat belts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.16
Additionalmethodsofrestraint..................................................... 1.19
tothefrontseatbelts....................................................... 1.19
totherearseatbelts ....................................................... 1.23
side..................................................................... 1.24
Childsafety:generalinformation.................................................... 1.26
Choosingachildseatmounting............................................... 1.29
Fittingachildseat ......................................................... 1.31
Deactivating, activating the front passenger airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.35
Drivingposition................................................................. 1.38
Instrumentpanel................................................................ 1.42
On-boardcomputer ........................................................ 1.47
Steeringwheel/Power-assistedsteering.............................................. 1.57
Clockandexteriortemperature..................................................... 1.58
Doormirrors.................................................................... 1.60
Exterior lighting and signals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.61
Audibleandvisualsignals......................................................... 1.64
Headlightadjustment............................................................. 1.65
Windscreenwashersandwipers.................................................... 1.67
Fueltank(fillingwithfuel)......................................................... 1.70

RENAULT card
use ..................................................(up to the end of the DU)
doors/tailgate........................................(up to the end of the DU)
locking the doors ..................................(up to the end of the DU)
children..................................................................(current page)
emergency key .....................................(up to the end of the DU)
children (safety).....................................................(current page)
1.2
ENG_UD29988_2
Carte Renault : généralités (X98 - X87 - Renault)ENG_NU_1007-1_X87_Renault_1
Jaune Noir Noir texte
RENAULT card: general information, use, deadlocking
The RENAULT card is used
for:
– locking/unlocking the doors and tail-
gate (doors, tailgate) and the fuel
filler flap (see the following pages);
– switch on the vehicle lighting re-
motely (refer to the following pages);
– starting the engine; refer to the in-
formation on “Starting the engine” in
Section 2.
Battery life
Make sure that the correct battery type
is being used, and that the battery is in
good condition and inserted correctly.
Its service life is approximately two
years: replace it when the message
“KEYCARD BATTERY LOW” appears
on the instrument panel (refer to the in-
formation on the “RENAULT card: bat-
tery" in section 5).

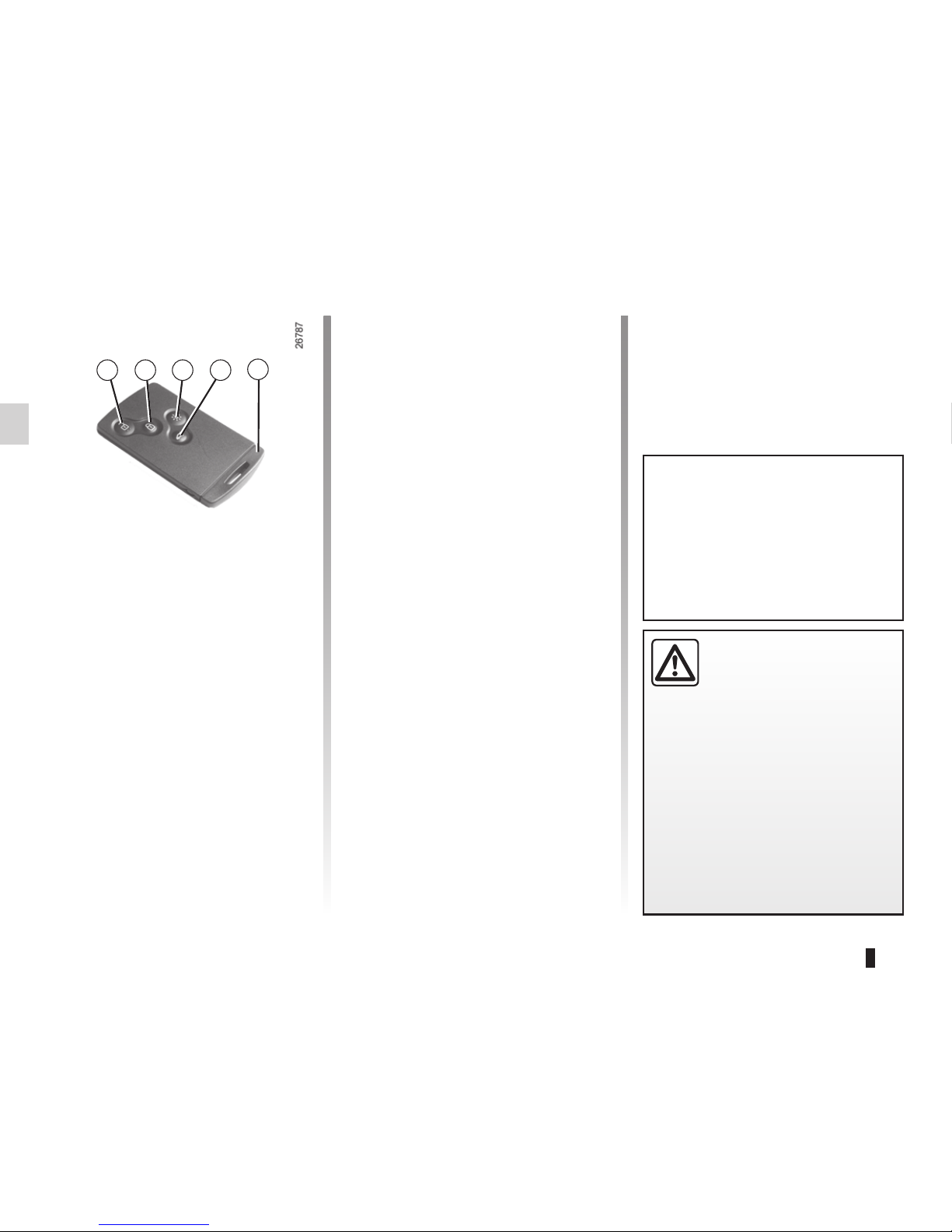

1 Unlocking the doors and tailgate.
2 Locking all doors and tailgate.
3Switch on the courtesy lighting re-
motely.
4 Unlocking/locking the tailgate
5 Integrated key.
RENAULT CARD: general information (1/2)
Driver’s responsibility
Never leave your vehicle
with the RENAULT card
inside and never leave a
child (or a pet) unsupervised, even
for a short while.
They may pose a risk to themselves
or to others by starting the engine,
activating equipment such as the
electric windows or by locking the
doors.
Risk of serious injury.
When the battery is flat, you can
still lock/unlock and start your ve-
hicle. Refer to the information on
“Locking/unlocking the doors” in
Section 1 and “Starting the engine”
in Section 2.
45 1 2 3
RENAULT card operating
range
This varies according to the surround-
ings: when handling the RENAULT
card, it is important to make sure that
you do not lock or unlock the doors by
inadvertently pressing the buttons.

Jaune Noir Noir texte
1.3
ENG_UD29988_2
Carte Renault : généralités (X98 - X87 - Renault)ENG_NU_1007-1_X87_Renault_1

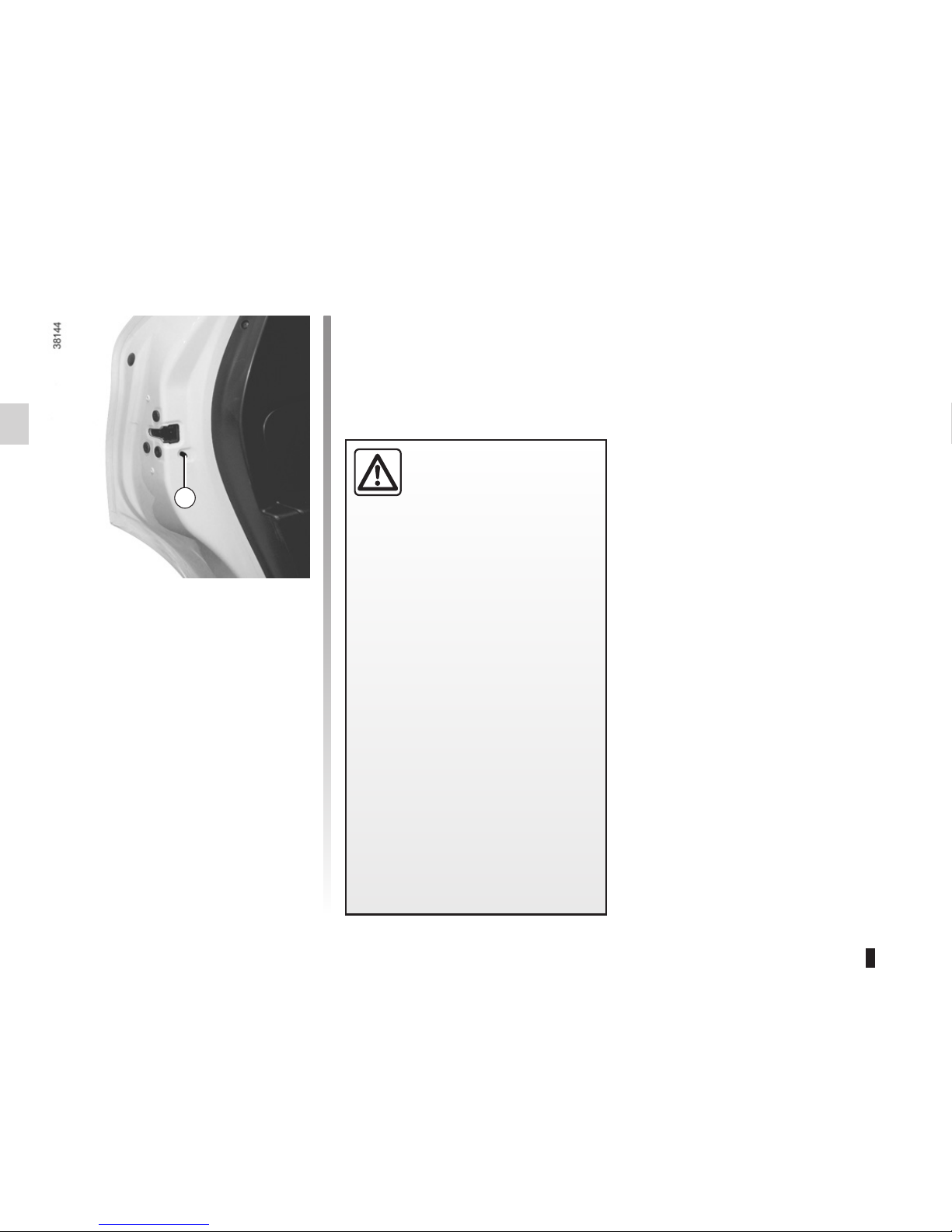

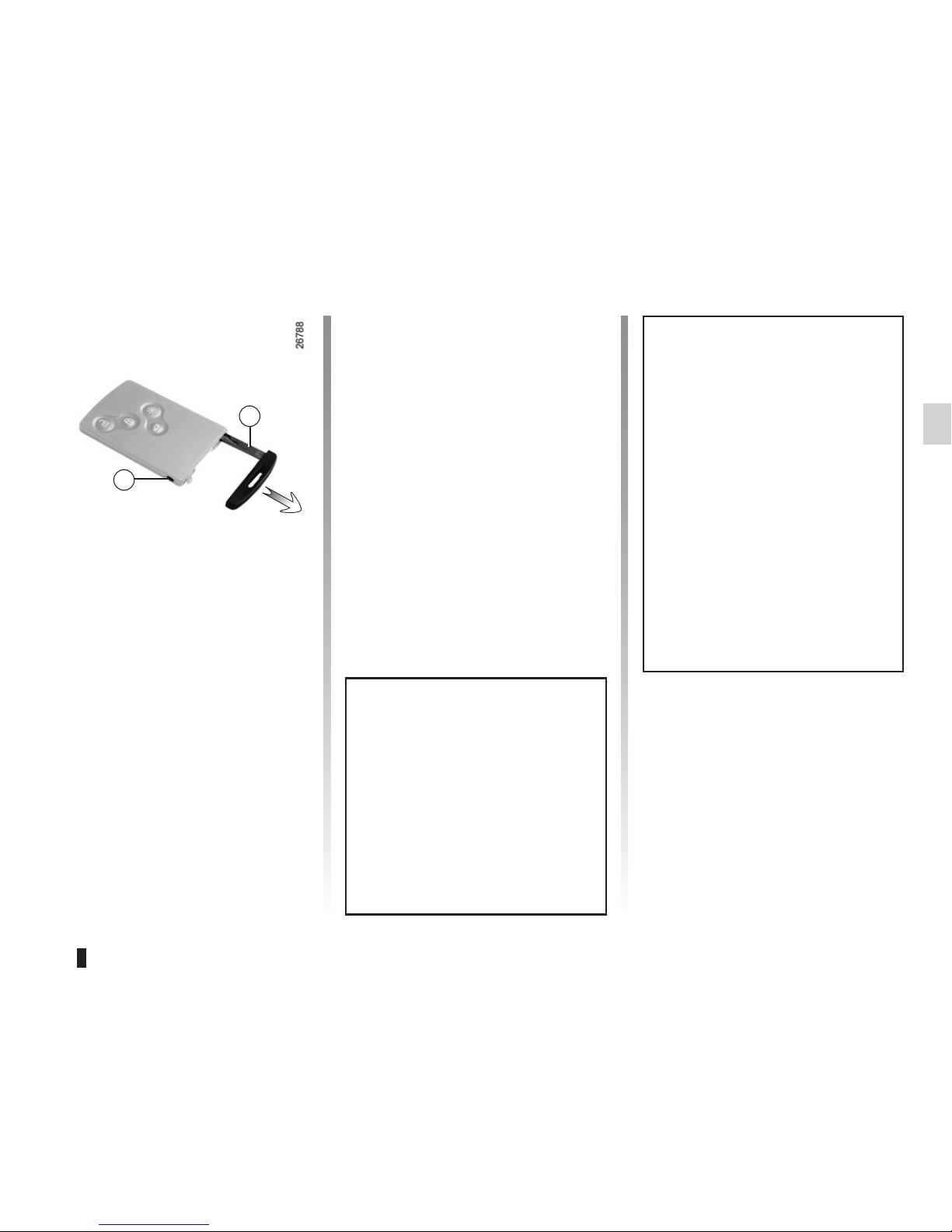

Access to key 5
Press button 6and pull on key 5then
release the button.
Using the key
Please refer to the information on
“Locking and unlocking the opening el-
ements”.
Once you have accessed the vehicle
using the integrated key, replace it
in its housing in the RENAULT card,
then insert the RENAULT card into
the card reader to start the vehicle.
Integrated key 5
The integrated key is used to lock or
unlock the front left-hand door if the
RENAULT card does not work:
– when the RENAULT card battery is
drained, flat battery, etc.
– use of devices using the same fre-
quency as the card;
– vehicle located in a high electromag-
netic radiation zone.
RENAULT CARD: general information (2/2)
Replacement: need for an
additional RENAULT Card
If you lose your RENAULT card or
require another, you can obtain one
from an authorised dealer.
If a RENAULT card is replaced, it
will be necessary to take the vehi-
cle and all of its RENAULT cards to
an approved Dealer to initialise the
system.
You may use up to four RENAULT
cards per vehicle.
5
6
Advice
Avoid leaving the card in hot, cold or
humid areas.
Do not keep the RENAULT card in
a place where it could be bent or
damaged accidentally, such as in a
back pocket of a garment.

RENAULT card
use ..................................................(up to the end of the DU)
central door locking ..............................(up to the end of the DU)
doors/tailgate........................................(up to the end of the DU)
locking the doors ..................................(up to the end of the DU)
1.4
ENG_UD30249_2
Carte Renault : utilisation en mode télécommande (X98 - X87 - Renault)ENG_NU_1007-1_X87_Renault_1
Unlocking/locking the
luggage compartment only

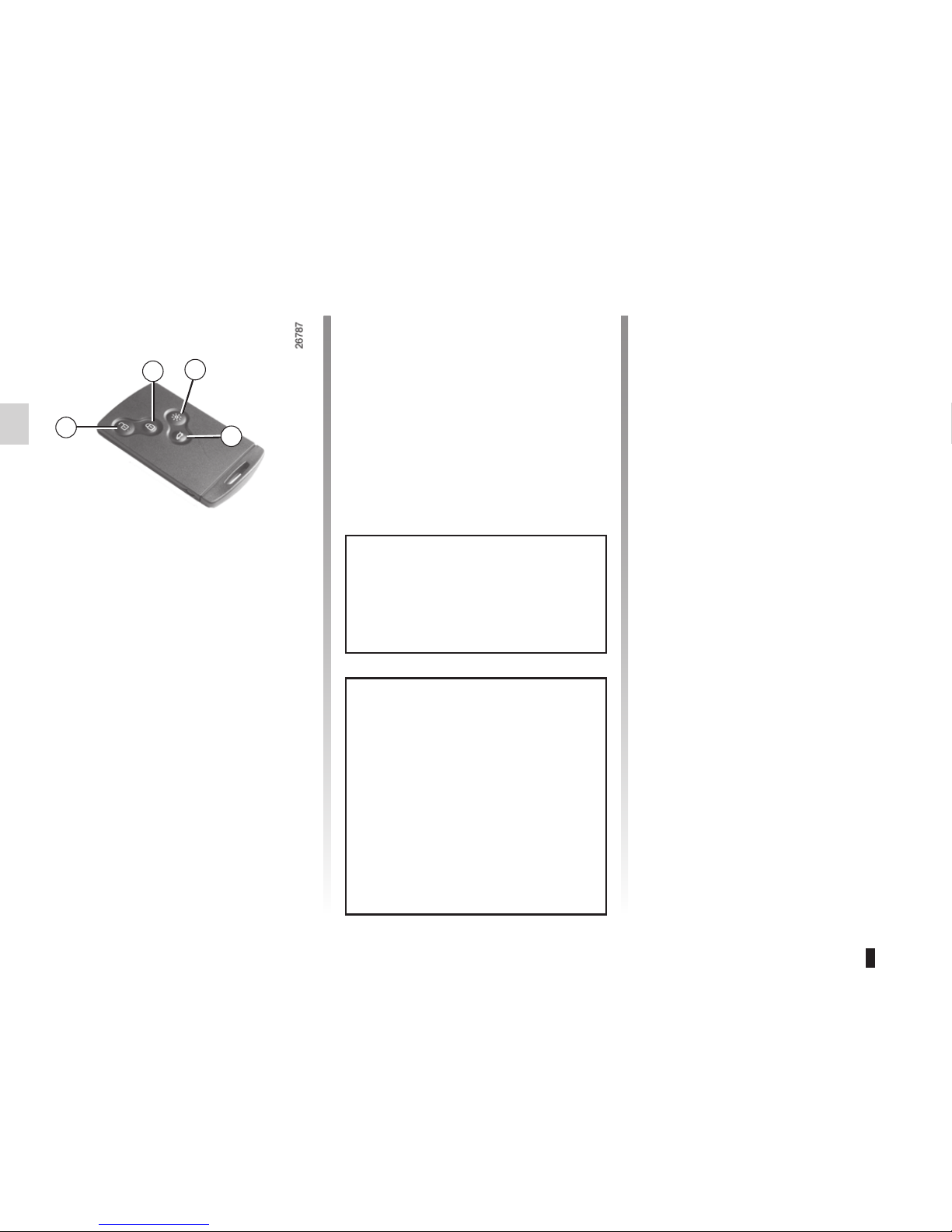

Press button 4to unlock/lock the lug-
gage compartment.
RENAULT card not detected
alarm
If you open a door while the engine
is running and the card is not in the
reader, the message “Keycard not de-
tected” and a beep will warn you. The
warning disappears when the card is in-
serted in the reader again.
Distance lighting function
The interior lights come on for approxi-
mately 30 seconds when button 3is
pressed. This can be used, for exam-
ple, to identify the vehicle from a dis-
tance when parked in a car park.
Note: pressing button 3again switches
off the lighting.
Locking the doors and
luggage compartment
Press the locking button 2. The hazard
warning lights flash twice to indicate
that the doors have locked. If a door
or the luggage compartment is open
or not properly shut, or if a RENAULT
card is still in the reader, the doors and
luggage compartment lock then quickly
unlock and the hazard warning lights
do not flash.
Unlocking the doors and
tailgate
Press button 1.
The hazard warning lights flash once
to indicate that the doors have been un-
locked.
When unlocking is only active for the
driver’s door, (refer to the information
on the “vehicle settings customisation
menu” in Section 1):
– pressing button 1unlocks only the
driver’s door and the fuel filler flap;
– pressing button 1twice unlocks all
the doors and the tailgate.
REMOTE CONTROL RENAULT CARD: use
The card buttons are deactivated
when the engine is running.
The flashing status of the hazard
warning lights informs you of the ve-
hicle status:
– one flash indicates that the vehi-
cle is completely unlocked;
– two flashes indicate that the ve-
hicle is completely locked.
If the vehicle has been unlocked
but neither the doors or tailgate are
open, it locks again automatically
after two minutes.
1
2
4
3

RENAULT card
use ..................................................(up to the end of the DU)
central door locking ..............................(up to the end of the DU)
doors/tailgate........................................(up to the end of the DU)
locking the doors ..................................(up to the end of the DU)
1.5
ENG_UD28960_1
Carte Renault en mode mains libres : utilisation (X87 - Renault)ENG_NU_1007-1_X87_Renault_1
“HANDS-FREE” RENAULT CARD: use (1/3)
1
2
4
3

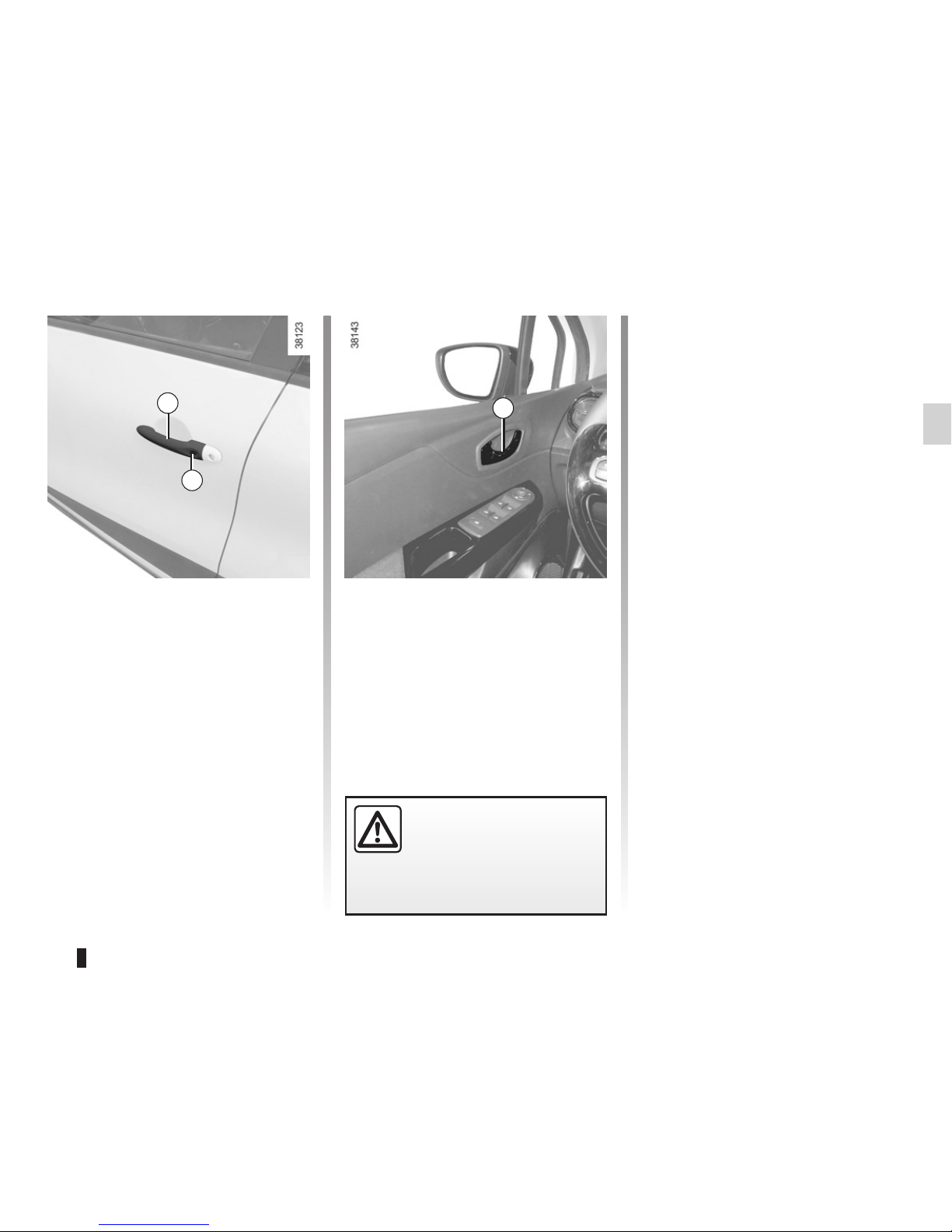

Unlocking the vehicle
With the RENAULT card in zone 1and
the vehicle locked, press button 3on
handle 2on one of the two front doors:
the vehicle will unlock.
Pressing button 4also unlocks all the
doors and the tailgate.
The hazard warning lights flash once
to indicate that the doors have been un-
locked.
NB: the vehicle cannot be locked again
for three seconds after unlocking after
pressing button 3.
Use
On equipped vehicles, in addition to
the functions of the remote control
RENAULT card, it can be used to lock/
unlock without using the RENAULT
card, when it is in access zone 1.
Do not store the RENAULT card
anywhere it may come into con-
tact with other electronic equipment
(computer, PDA, phone, etc.) as this
could hinder its operation.
After unlocking the vehicle using
the RENAULT card, the “hands-
free” locking and unlocking is deac-
tivated.
To reactivate the hands-free mode:
restart the vehicle.

1.6
ENG_UD28960_1
Carte Renault en mode mains libres : utilisation (X87 - Renault)ENG_NU_1007-1_X87_Renault_1
Jaune Noir Noir texte
“HANDS-FREE” RENAULT CARD: use (2/3)
31
Locking using button 3
With the doors and boot closed, press
button 3on one of the front door han-
dles. The vehicle will lock. If a door or
the boot is open or not closed properly,
the vehicle will quickly lock/unlock.
Note: a RENAULT card must be within
the vehicle's access zone (zone 1) to
be able to lock the vehicle using the
button.
NB: the vehicle cannot be locked again
for three seconds after unlocking after
pressing button 3.
The hazard warning lights flash twice
and a beep sounds to indicate that the
doors have locked.
The beep may be switched off. Please
contact an authorised dealer.
If an opening element (door or boot) is
open or not properly closed, or a card is
in the passenger compartment (or the
card reader), the vehicle will not lock. In
this situation, no beep sounds and the
hazard warning lights do not flash.
Locking the vehicle
There are three ways to lock the vehi-
cle: remotely, using button 3, or using
the RENAULT card.
Remote locking
With the RENAULT card on you, and
doors and tailgate closed, move away
from the vehicle: it will lock automati-
cally once you have left zone 1.
Note: the distance at which the vehicle
locks depends on the surroundings.

child safety.............................................................(current page)
children..................................................................(current page)
Jaune Noir Noir texte
1.7
ENG_UD28960_1
Carte Renault en mode mains libres : utilisation (X87 - Renault)ENG_NU_1007-1_X87_Renault_1
“HANDS-FREE” RENAULT CARD: use (3/3)
5
6
Locking using the RENAULT card
With the doors and luggage compart-
ment closed, press button 5: the vehi-
cle will lock.
The hazard warning lights flash twice
to indicate that the doors have locked.
Note: the maximum distance at which
the vehicle locks depends on the sur-
roundings.
Special features
The vehicle will not lock if:
– a door or the tailgate is open or not
properly closed;
– a card is still in zone 6(or in the card
reader) and no other card is in the
external detection zone.
With the engine running, if having
once opened and closed a door, the
card is no longer in the passenger com-
partment, the message “Keycard not
detected” (accompanied by a warning
beep once the speed passes a thresh-
old value) will tell you that the card is no
longer in the vehicle. This avoids you
driving away after having dropped off a
passenger who has the card, for exam-
ple.
The warning disappears when the card
is detected again.
Driver’s responsibility
Never leave your vehicle
with the RENAULT card
inside and never leave a
child (or a pet) unsupervised, even
for a short while.
They may pose a risk to themselves
or to others by starting the engine,
activating equipment such as the
electric windows or by locking the
doors.
Risk of serious injury.
After locking/unlocking the vehicle using the buttons on the RENAULT card,
"hands-free" locking and unlocking is deactivated.
To reactivate the “hands-free” mode: restart the vehicle.

RENAULT card
use ..................................................(up to the end of the DU)
central door locking ..............................(up to the end of the DU)
doors/tailgate........................................(up to the end of the DU)
locking the doors ..................................(up to the end of the DU)
deadlocking the doors ..........................(up to the end of the DU)
1.8
ENG_UD28961_1
Carte Renault : super condamnation (X87 - Renault)ENG_NU_1007-1_X87_Renault_1
Never use deadlocking if
someone is still inside the
vehicle.
To activate deadlocking
Deadlocking can be activated in one of
two ways:
– press button 2 twice in quick succes-
sion;
– or, with the vehicle unlocked, press
button 4on handle 3on the driver or
passenger side door twice in quick
succession.
The hazard warning lights flash five
times to indicate locking.
If the vehicle is equipped with a dead-
locking function, this allows you to lock
the opening elements and to prevent
the doors from being unlocked using
the interior handles (for example, by
breaking the window and then trying to
open the door from the inside).
RENAULT CARD: deadlocking
To deactivate deadlocking
Unlock the vehicle using button 1on
the RENAULT card.
The hazard warning lights flash once to
indicate that the doors have been un-
locked.
Operating fault
If the RENAULT card does not work
(worn batteries in the RENAULT card,
batteries run down, etc.), use the key
integrated in the card to unlock the
front-left door (refer to the information
in “Locking, unlocking the opening ele-
ments” in Section 1).
21
After activating the deadlocking
function using button 2, “hands-
free” locking and unlocking are de-
activated.
To reactivate the “hands-free” mode:
restart the vehicle.
3
4

doors/tailgate........................................(up to the end of the DU)
locking the doors ..................................(up to the end of the DU)
closing the doors ..................................(up to the end of the DU)
opening the doors.................................(up to the end of the DU)
1.9
ENG_UD28962_1
Ouverture et fermeture des portes (X87 - Renault)ENG_NU_1007-1_X87_Renault_1
Opening and closing the doors
Opening from the inside
Pull handle 4.
Lights-on reminder buzzer
If you have switched off the ignition
and left the lights switched on, a re-
minder buzzer will sound when a door
is opened.
Opening the doors from the
outside
With the doors unlocked, pull handle 1.
Special feature of the RENAULT
“hands-free” card
With the doors locked, press button 2
on handle 1of one of the two front
doors and pull towards you.
OPENING AND CLOSING THE DOORS (1/2)
14
As a safety precaution,
the doors should only be
opened or closed when the
vehicle is stationary.
2
Card reminder buzzer
On opening the driver’s door, if the
card is still in the reader, the message
“PLEASE REMOVE KEYCARD” is dis-
played on the instrument panel accom-
panied by a warning beep.
Door/tailgate open buzzer
If an opening (door or boot) is left
open or closed badly, once the vehi-
cle reaches around 12 mph (20 km/h),
either the message “BOOT OPEN” or
“DOOR OPEN” (depending on which
opening) is displayed on the instrument
panel together with a beep.
Special note
After switching off the engine, the lights
and any accessories that are in opera-
tion (radio, etc.) will continue to oper-
ate.
They will cease on opening the driv-
er’s door or on locking the vehicle after
opening another door.

child safety.............................................................(current page)
children (safety).....................................................(current page)
1.10
ENG_UD28962_1
Ouverture et fermeture des portes (X87 - Renault)ENG_NU_1007-1_X87_Renault_1
Child safety
To make it impossible for the rear doors
to be opened from the inside, move
lever 5on each door and check from
the inside that the doors are securely
locked.
OPENING AND CLOSING THE DOORS (2/2)
Driver’s responsibility
when parking or stopping
the vehicle
Never leave an animal,
child or adult who is not self-suffi-
cient alone on your vehicle, even for
a short time.
They may pose a risk to themselves
or to others by starting the engine,
activating equipment such as the
electric windows or locking the
doors.
Also, in hot and/or sunny weather,
please remember that the tempera-
ture inside the passenger compart-
ment increases very quickly.
RISK OF DEATH OR SERIOUS
INJURY.
5

central door locking ..............................(up to the end of the DU)
doors/tailgate........................................(up to the end of the DU)
locking the doors ..................................(up to the end of the DU)
unlocking the doors ..............................(up to the end of the DU)
closing the doors ..................................(up to the end of the DU)
opening the doors.................................(up to the end of the DU)
1.11
ENG_UD28963_1
Verrouillage / Déverrouillage des portes (X87 - Renault)ENG_NU_1007-1_X87_Renault_1
Locking, unlocking the opening elements
Locking the doors manually
Turn screw 2with the door open (using
the end of the key) and close the door.
This means that the doors are then
locked from the outside.
The doors may then only be opened
from the inside or by using the key in
the front left-hand door.
Using the key integrated in
the RENAULT card
Insert key 1into the lock in the driver’s
door and lock or unlock.
Locking/Unlocking the doors
from the outside
This is done using the RENAULT Card;
see the “RENAULT Card” information in
Section 1.
In certain cases, the RENAULT card
may not work:
– if the RENAULT card battery is weak,
flat, etc.
– if equipment operating on the same
frequency as the card (mobile
phones, etc.) is used;
– vehicle located in a high electromag-
netic radiation zone.
It is then possible:
– to use the key integrated into the
card to unlock the front left-hand
door;
– to lock each of the doors manually;
– to use the interior door locking/un-
locking control (refer to the following
pages).
LOCKING/UNLOCKING THE DOORS (1/2)
1
2

1.12
ENG_UD28963_1
Verrouillage / Déverrouillage des portes (X87 - Renault)ENG_NU_1007-1_X87_Renault_1
LOCKING/UNLOCKING THE DOORS (2/2)
Door and tailgate status
indicator
With the ignition on, the warning light
integrated in switch 3informs you of the
locking status of the opening elements:
– indicator light on, the doors and tail-
gate are locked,
– indicator light off, the doors and tail-
gate are unlocked.
When you lock the doors, the indicator
light remains lit and then goes out.
Locking the doors without
the RENAULT card
For example, in the event of a dis-
charged battery or the RENAULT card
temporarily not working, etc.
With the engine switched off and
an opening element (door or boot)
open, press and hold switch 3for more
than five seconds.
When the door is closed, all the doors
and the tailgate will be locked.
Unlocking the vehicle from the outside
is only possible with the RENAULT card
in the vehicle's access zone or using
the key integrated in the RENAULT
card.
Interior locking/unlocking
door control
Switch 3controls the doors, boot and,
depending on the vehicle, the fuel filler
flap simultaneously.
If a door or the tailgate is open or not
closed properly, the doors and tailgate
lock/unlock quickly.
If you need to transport objects with the
boot open, the other opening elements
can still be locked: with the engine
stopped, press switch 3for more than
five seconds to lock the other opening
elements.
3
Driver’s responsibility
If you decide to keep the
doors locked when you are
driving, remember that it
may be more difficult for those as-
sisting you to gain access to the
passenger compartment in the
event of an emergency.
Never leave your vehicle
with the RENAULT card
inside.
After locking/unlocking the vehicle
or the luggage compartment only
using the buttons on the RENAULT
card, remote locking and unlocking
in hands-free mode are deactivated.
To reactivate the “hands-free” mode:
restart the vehicle.

central door locking ..............................(up to the end of the DU)
doors/tailgate........................................(up to the end of the DU)
locking the doors ..................................(up to the end of the DU)
RENAULT ANTI-INTRUDER DEVICE (RAID).......(current page)
closing the doors ...................................................(current page)
1.13
ENG_UD28964_1
Condamnation automatique des ouvrants en roulage (X87 - Renault)ENG_NU_1007-1_X87_Renault_1
Operating principle
After the vehicle is started, the system
automatically locks the doors when
you are driving at approximately 6 mph
(10 km/h) and over.
The door can be unlocked:
– by pressing the button 1to unlock
the doors;
– by opening a front door (vehicle sta-
tionary).
NB: if a door is opened or closed, it will
automatically lock again when the vehi-
cle reaches a speed of 6 mph (10 km/h).
Activating/deactivating the
function
With the engine running, press the
button 1for approximately 5 seconds,
until you hear a warning beep.
Operating faults
If you experience an operating fault
(no automatic locking, the indicator
light incorporated in button 1does not
light up when trying to lock the open-
ing elements, etc.), firstly check that the
opening elements are properly closed.
If they are properly closed, contact an
authorised dealer.
Automatic locking when driving
RENAULT ANTI-INTRUDER DEVICE (RAID)
1
Driver’s responsibility
If you decide to keep the
doors locked when you are
driving, remember that it
may be more difficult for those as-
sisting you to gain access to the
passenger compartment in the
event of an emergency.

headrest................................................(up to the end of the DU)
adjusting your driving position ..............(up to the end of the DU)
front seats
adjustment ......................................(up to the end of the DU)
1.14
ENG_UD26411_1
Appuis-tête avant (X98 - Renault)ENG_NU_1007-1_X87_Renault_1
Headrests - Seats
FRONT HEADRESTS
To raise the headrest
Pull the headrest upwards to the de-
sired height. Check that it is correctly
locked.
To lower the headrest
Press button 1and guide the headrest
down to the desired height. Check that
it is correctly locked.
A
1
To raise the headrest
Raise the headrest to its highest po-
sition (tilt the seatback backwards if
necessary). Press button 1and lift the
headrest to release it.
To refit the headrest
Insert the headrest rods into the holes
(tilt the seatback backwards if neces-
sary). Lower the headrest until it locks
and press button 1to adjust to the de-
sired height. Check that each rod 2on
the seatback is securely locked.
The headrest is important
for safety. Ensure that it is in
place and in the correct po-
sition: the top of the head-
rest should be as close as possible
to the top of the head and there must
be a minimal distance between the
head and the headrest A.
2
