Radio frequency remote control: general information, use, deadlocking

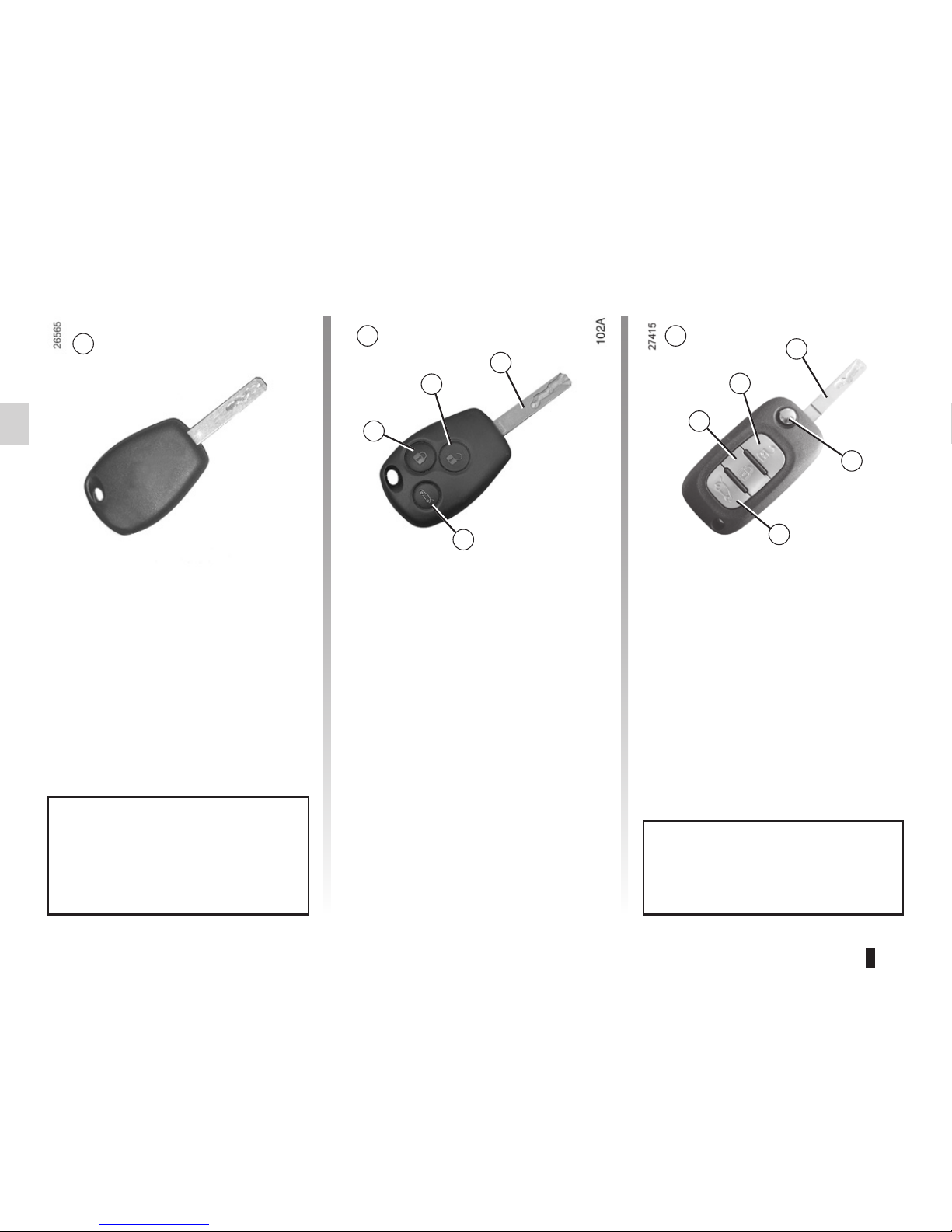

KEY/RADIO FREQUENCY REMOTE CONTROL: general information (1/2)
4Locking/unlocking the tailgate only.
5To release the key from its hous-
ing, press button 5. It will be re-
leased automatically.
To reinsert it in its housing, press
button 5and guide the key into the
storage position.

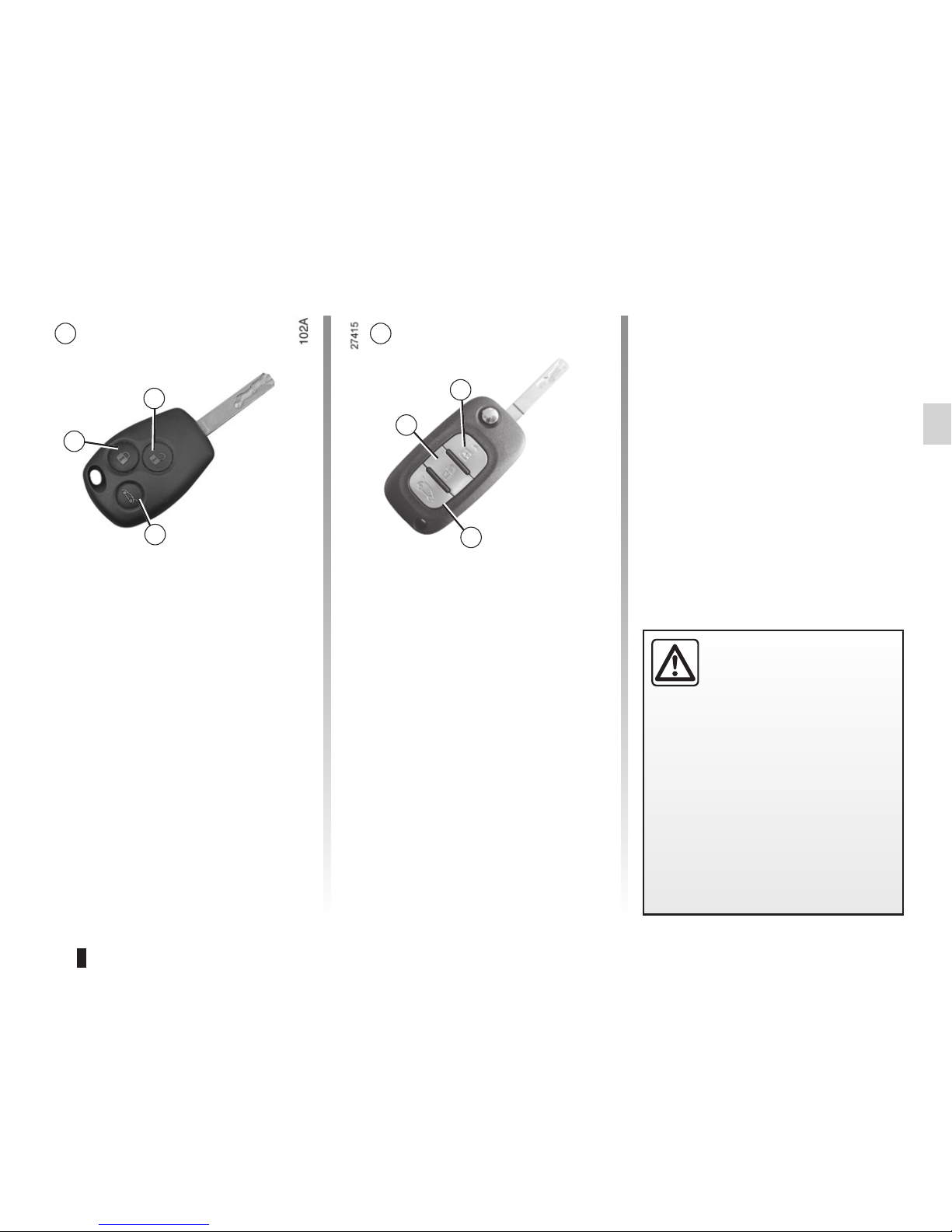

Radio frequency remote
control unit Bor C
1Locking the doors and tailgate.
2Unlocking the doors and tailgate.
3Driver’s door and ignition key.
1
2
3
5
B C
1
2
3
5
4
Advice
Avoid leaving the remote control in
hot, cold or humid areas.
Key A
1Coded key for ignition switch,
doors and fuel filler cap.
The key must not be used for any
function other than those described
in the handbook (removing the cap
from a bottle, etc.).
A
4

Jaune Noir Noir texte
1.3
ENG_UD21114_5
clé : télécommande à radiofréquence : généralités (X77 ph2 - Renault)ENG_NU_815-9_X77_Renault_1
KEY/RADIO FREQUENCY REMOTE CONTROL: general information (2/2)
Driver’s responsibility
Never leave your vehi-
cle with the key inside and
never leave a child (or a
pet) unsupervised, even for a short
while.
They may pose a risk to themselves
or to others by starting the engine,
activating equipment such as the
electric windows or by locking the
doors.
Risk of serious injury.
Radio frequency remote
control operating range
This varies according to the environ-
ment: take care not to lock or unlock
the doors by inadvertently pressing the
buttons on the remote control.
Interference
The presence of certain objects (metal
objects, mobile telephones, or an area
with strong electromagnetic radiation,
etc.) close to the key may create inter-
ference and affect the operation of the
system.
For replacement, or if you
require an additional remote
control.
You must only contact an approved
Dealer.
– To replace a remote control, the
vehicle must be taken to an ap-
proved Dealer as both the vehi-
cle and the remote control are
needed to initialise the system.
– Depending on the vehicle, you
have the option of using up to
four remote controls.
Remote control unit failure
Make sure that the correct battery
type is being used, and that the
battery is in good condition and in-
serted correctly. These batteries
have a service life of approximately
two years.
Refer to the information on the “Key,
radio frequency remote control: bat-
teries” in Section 5 for the battery
changing procedure.

keys ......................................................(up to the end of the DU)
locking the doors ..................................(up to the end of the DU)
1.4
ENG_UD21115_5
Clé / télécommande à radiofréquence : utilisation (X77 ph2 - Renault)ENG_NU_815-9_X77_Renault_1
Jaune Noir Noir texte
RADIO FREQUENCY REMOTE CONTROL: use (1/2)
Unlocking the doors
Remote control Aor B
Press unlocking button 2.
The hazard warning lights and indica-
tor lights flash once to indicate that the
doors have unlocked.
2
1
1
2
A B
The key must not be used for any
other function than those described
in the handbook (removing the cap
from a bottle, etc.).
Special notes (for some countries):
– pressing button 2enables the driv-
er’s door only to be unlocked,
– the other doors can be unlocked by
pressing button 2twice.

Jaune Noir Noir texte
1.5
ENG_UD21115_5
Clé / télécommande à radiofréquence : utilisation (X77 ph2 - Renault)ENG_NU_815-9_X77_Renault_1
Locking the doors
Remote control Aor B
Press locking button 1.
The indicator lights and hazard warning
lights flash twice to indicate that the
doors have locked:
If a door or the tailgate is open or not
properly shut, the doors or tailgate lock
then quickly unlock and the hazard
warning lights and indicator lights do
not flash.
2
1
3
Unlocking/locking the tailgate
only
(for some countries)
Press button 3to unlock or lock the tail-
gate.
The hazard warning lights and indica-
tor lights flash once to indicate that the
tailgate is unlocked if the vehicle doors
are locked.
The hazard warning lights and indicator
lights flash twice to indicate that the tail-
gate is locked if the vehicle doors are
locked.
3
B
1
2
A
RADIO FREQUENCY REMOTE CONTROL: use (2/2)
Driver’s responsibility
Never leave your vehi-
cle with the key inside and
never leave a child (or a
pet) unsupervised, even for a short
while.
They may pose a risk to themselves
or to others by starting the engine,
activating equipment such as the
electric windows or by locking the
doors.
Risk of serious injury.

central door locking ..............................(up to the end of the DU)
locking the doors ..................................(up to the end of the DU)
1.6
ENG_UD5309_1
Super condamnation (X77 ph2 - Renault)ENG_NU_815-9_X77_Renault_1
DEADLOCKING
Deadlocking of the doors/
tailgate
(for some countries)
This allows you to lock the doors and
tailgate and to prevent the doors from
being opened with the interior handles
(by breaking the window and then trying
to open the doors from the inside).
Never use deadlocking if
someone is still inside the
vehicle.
1
To activate deadlocking
Press button 1twice in quick succes-
sion.
The hazard warning lights and indica-
tor lights flash five times to indicate that
the doors have locked.
1

warning buzzer ......................................................(current page)
doors/tailgate........................................(up to the end of the DU)
locking the doors ..................................(up to the end of the DU)
child safety............................................(up to the end of the DU)
children.................................................(up to the end of the DU)
opening the doors.................................(up to the end of the DU)
closing the doors ..................................(up to the end of the DU)
1.7
ENG_UD20797_4
Ouverture et fermeture des portes (X77 ph2 - Renault)ENG_NU_815-9_X77_Renault_1
Doors
OPENING AND CLOSING THE DOORS (1/2)

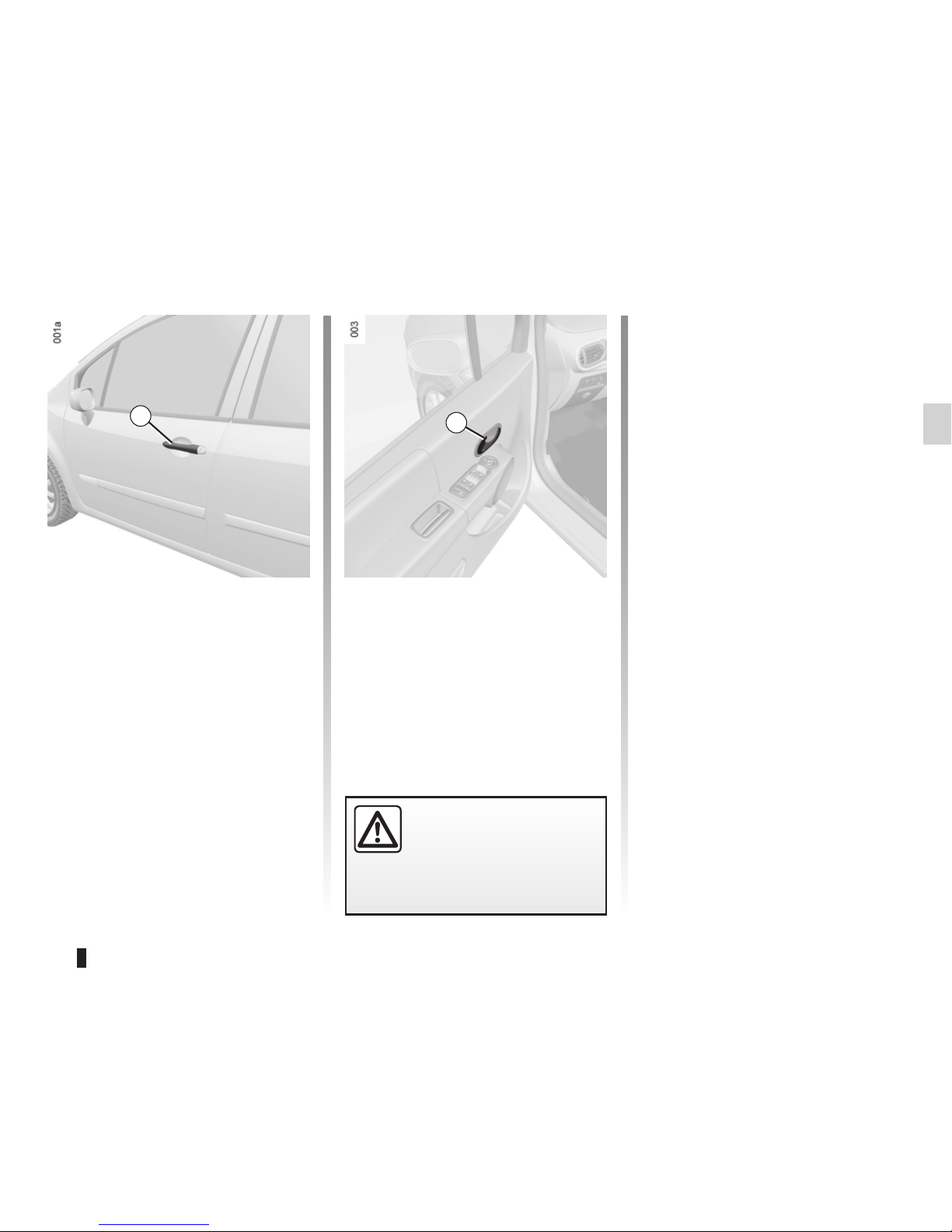

Opening the doors from the
outside
After the vehicle has been locked using
the remote control or the key, pull
handle 1.
Opening from the inside
Pull handle 2.
Lights-on warning buzzer
If you have switched off the ignition
and left the lights switched on, a warn-
ing buzzer will sound when a door is
opened.
Door/tailgate open buzzer
If a door or tailgate is open or not prop-
erly closed, as soon as the vehicle
reaches a speed of approximately 12
mph (20 km/h), the message “luggage
compartment open” or “door open” (de-
pending on what is open) will appear on
the instrument panel accompanied by a
warning light.
12
As a safety precaution,
the doors should only be
opened or closed when the
vehicle is stationary.

1.8
ENG_UD20797_4
Ouverture et fermeture des portes (X77 ph2 - Renault)ENG_NU_815-9_X77_Renault_1
OPENING AND CLOSING THE DOORS (2/2)
Child safety
Vehicles fitted with switch 3with
integrated indicator light
Press switch 3to inhibit operation of
the rear electric windows and opening
of the rear doors from the inside. The
indicator light in the switch confirms
that the locks have been activated.
Vehicle with manual door locking
Move lever 4and check from the inside
that the doors are securely locked, to
prevent the rear doors being opened
from the inside.
4
3
Safety of rear occupants
The driver can authorise
operation of the rear doors
and, depending on the ve-
hicle, the electric windows by press-
ing switch 3on the side with the il-
lustration.
Depending on the vehicle, in the
event of a fault:
– a beep sounds;
– a message is displayed on the in-
strument panel;
– the integrated indicator does not
light up.
If the battery has been discon-
nected, press switch 3on the side
with the symbol, to lock the rear
doors.
Driver’s responsibility when parking or stopping the vehicle
Never leave an animal, child or adult who is not self-sufficient alone on
your vehicle, even for a short time.
They may pose a risk to themselves or to others by starting the engine,
activating equipment such as the electric windows or by locking the doors.
Also, in hot and/or sunny weather, please remember that the temperature inside
the passenger compartment increases very quickly.
RISK OF DEATH OR SERIOUS INJURY.

central door locking ..............................(up to the end of the DU)
doors/tailgate........................................(up to the end of the DU)
locking the doors ..................................(up to the end of the DU)
unlocking the doors ..............................(up to the end of the DU)
1.9
ENG_UD21116_3
Verrouillage déverouillage des portes (X77 ph2 - Renault)ENG_NU_815-9_X77_Renault_1
LOCKING/UNLOCKING THE DOORS (1/2)
Locking/Unlocking from the
outside
Refer to the information on the “Key,
radio frequency remote control: general
information”.
In some cases, the key/radio frequency
remote control may not work:
– if the vehicle is located in a zone of
high electromagnetic radiation;
– if the remote control battery is old or
the vehicle battery discharged.
It is then possible:
– to use the key/remote control locking
unit near to the left-hand door mirror;
– depending on the vehicle, to use the
remote control key, for the front left-
hand door only;
– to lock each of the doors manually;
– to use the interior door locking/un-
locking control (refer to the following
pages).
Using the key

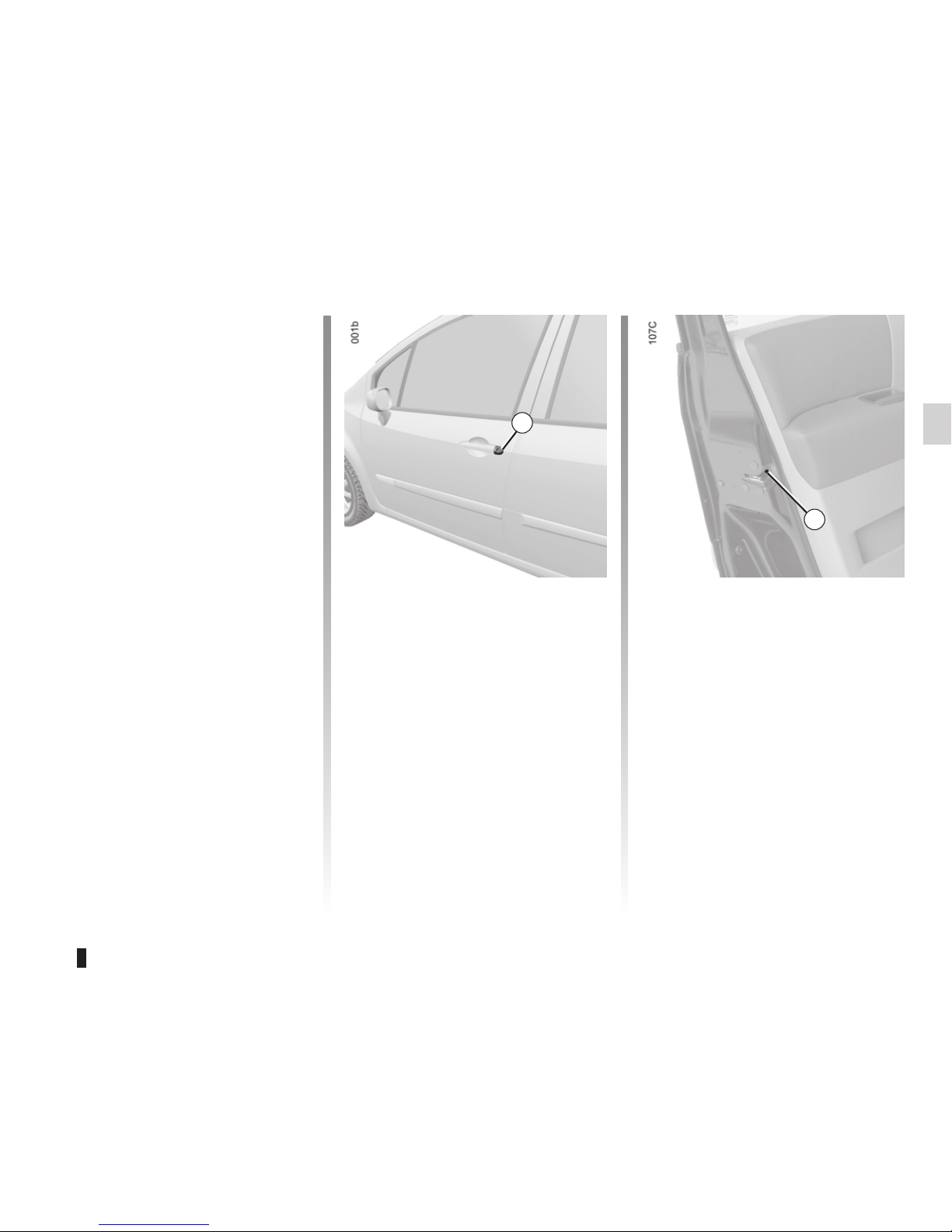

Insert the key into lock 1then lock or
unlock.
Locking the doors manually
With the door open, turn screw 2(using
the key) and close the door.
This means that the doors are then
locked from the outside.
The doors can only be opened from the
inside by pressing the opening controls
on the inside or by using the key for the
front left-hand door.
2
1

1.10
ENG_UD21116_3
Verrouillage déverouillage des portes (X77 ph2 - Renault)ENG_NU_815-9_X77_Renault_1
LOCKING/UNLOCKING THE DOORS (2/2)
Locking/Unlocking doors
from the outside (continued)
Using the door locking/unlocking in-
terior control.
With the engine switched off and a front
door open, press switch 3for more than
five seconds.
Make sure you have your key with you
before you leave your vehicle.
When the door is closed, all the doors
and tailgate will be locked.
Unlocking from outside the vehicle will
only be possible with the key, for the
front left-hand door.
Locking/Unlocking from the
inside: button 3
This simultaneously controls the open-
ing elements (doors and tailgate) and
the fuel filler flap.
If a door is open or not properly closed,
the doors lock and then quickly unlock.
To lock the vehicle leaving a door
open (eg. when transporting some-
thing in the luggage compartment
which prevents it from being closed),
or when the vehicle is located in a
zone of high electromagnetic radia-
tion, or if the card or key is faulty:
with the engine switched off, press
and hold button 3for more than five
seconds.
Doors and tailgate status
indicator light
The indicator light integrated in button 3
shows whether or not the doors and
tailgate are locked:
– the indicator light is on when the
doors/tailgate are locked;
– the light goes out when the doors/
tailgate are unlocked.
When you lock the doors, the indicator
light remains lit for approximately one
minute then goes out.
3
Driver’s responsibility
Never leave your vehicle
with the key or remote con-
trol inside.
If you decide to keep the doors
locked when you are driving, re-
member that it may be more diffi-
cult for those assisting you to gain
access to the passenger compart-
ment in the event of an emergency.

central door locking ..............................(up to the end of the DU)
doors/tailgate........................................(up to the end of the DU)
locking the doors ..................................(up to the end of the DU)
1.11
ENG_UD17182_3
Condamnation automatique des ouvrants en roulage (J77 - Renault)ENG_NU_815-9_X77_Renault_1

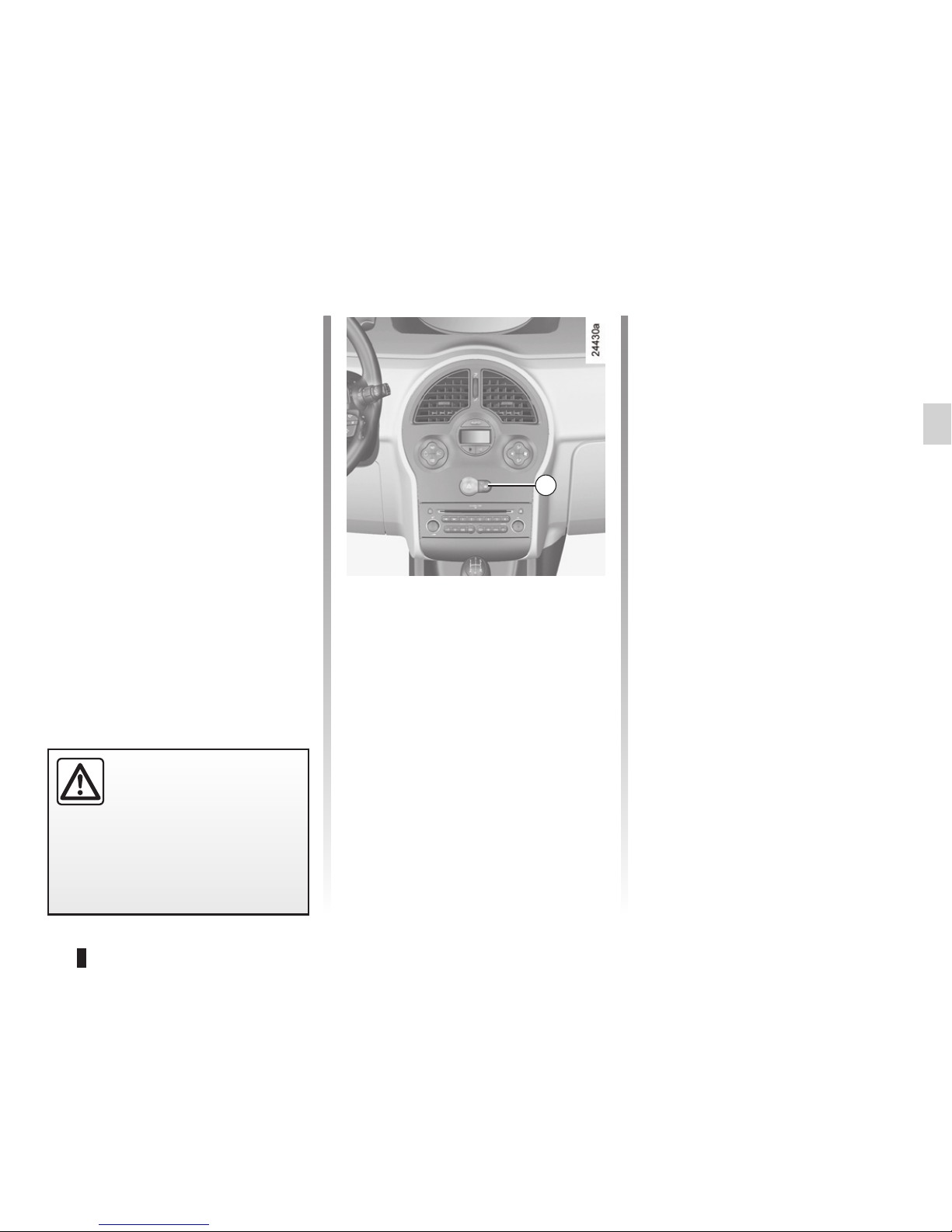

Automatic locking when driving
AUTOMATIC LOCKING WHEN DRIVING
You can decide whether you want to
activate this function.
To activate
With the ignition on, press central
door locking button 1for approximately
5 seconds, until you hear one beep.
To deactivate
With the ignition on, press central
door locking button 1for approximately
5 seconds, until you hear one beep.
Operating principle
After the vehicle is started, the system
automatically locks the doors when you
are driving at approximately 6 mph (10
km/h) and over.
The door can be unlocked:
– by pressing door unlocking button 1.
– by opening a door when stationary.
Note: if a door is opened or closed, it
will automatically lock again when the
vehicle reaches a speed of 6 mph (10
km/h).
Operating faults
If you experience an operating fault (no
automatic locking, the indicator light in-
corporated in button 1does not light up
when trying to lock the doors and tail-
gate, etc.), firstly check that the doors
and tailgate are properly closed. If they
are properly closed, contact an ap-
proved Dealer.
1
Driver’s responsibility
If you decide to keep the
doors locked when you are
driving, remember that it
may be more difficult for those as-
sisting you to gain access to the
passenger compartment in the
event of an emergency.

engine immobiliser................................(up to the end of the DU)
engine immobiliser................................(up to the end of the DU)
1.12
ENG_UD5394_1
Système anti-démarrage (X77 ph2 - Renault)ENG_NU_815-9_X77_Renault_1

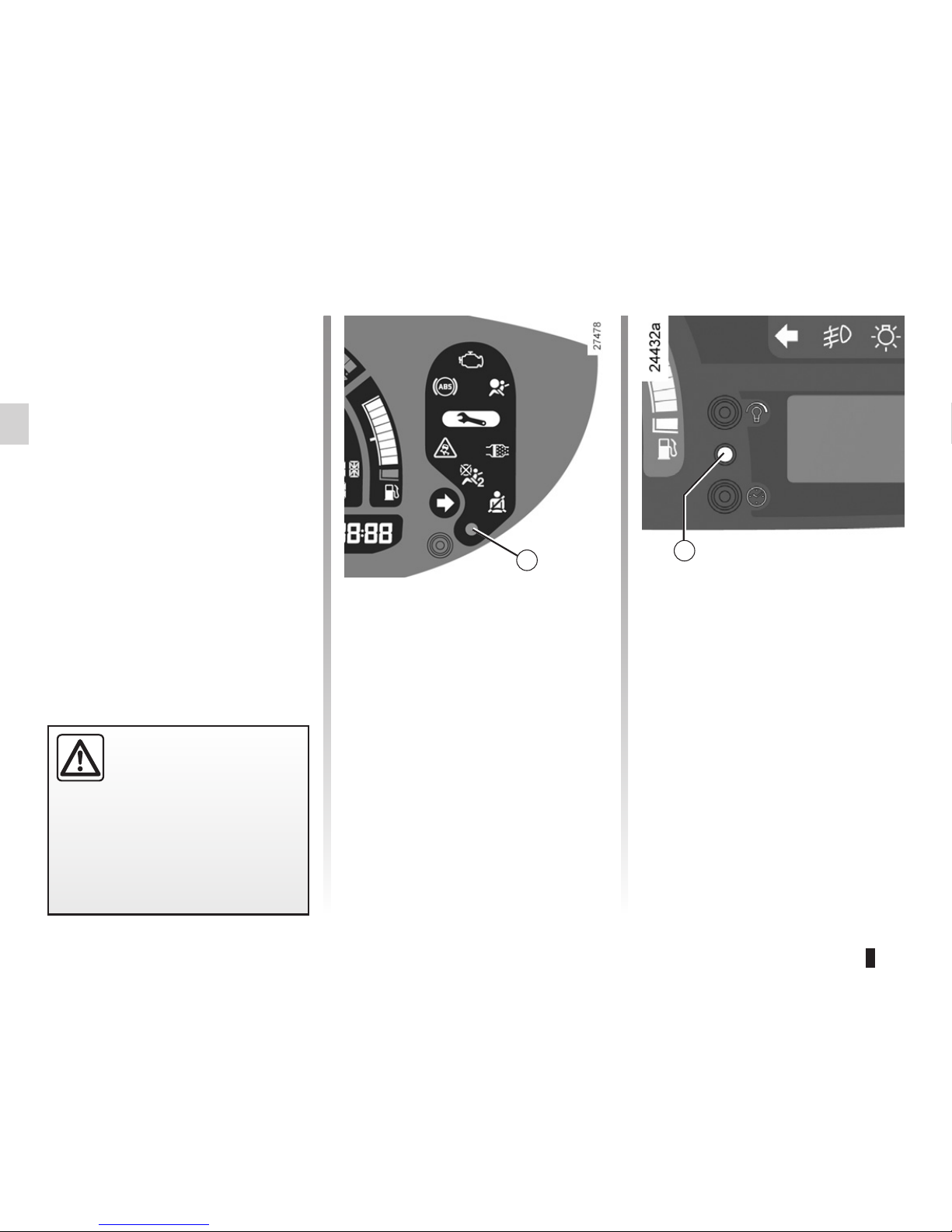

Système antidémarrage
ENGINE IMMOBILISER
This prevents the vehicle being
driven by anyone not in possession
of the vehicle’s coded ignition key.
The vehicle is automatically protected
a few seconds after the engine is
switched off.
Any unauthorised work
carried out on the engine
immobiliser (computers,
wiring, etc.) could be dan-
gerous. Work must be carried out
by qualified personnel.
Operating principle
When the engine is started, warning
light 1remains lit for a few seconds
then goes out (refer to the information
on “Starting the engine” in Section 2).
If the code is not recognised, the warn-
ing light flashes rapidly and the vehicle
will not start.
Vehicle protection tell-tale light
After the ignition has been switched off,
warning light 1flashes and the vehicle
is protected.
Operating fault warning light
If the warning light continues to flash or
stays lit up permanently following an at-
tempt to start the engine, this indicates
a fault in the system.
In this case, use the second key (sup-
plied with the vehicle). If the fault is still
present, contact your approved Dealer
as only an approved Dealer is quali-
fied to repair the engine immobiliser
system.
11

headrest................................................(up to the end of the DU)
adjusting your driving position ..............(up to the end of the DU)
1.13
ENG_UD22691_4
Appuis-tête avant (S65 - X77 - B65 - C65 - X77 ph2 - Renault)ENG_NU_815-9_X77_Renault_1
Headrests - Seats
FRONT HEADRESTS
To raise the headrest
Slide it upwards to the required height.
To lower the headrest
Move tab 1forwards and lower the
headrest down to the required height.
To remove the headrest
Press button 2and lift the headrest to
release it.
To refit the headrest
Insert the headrest rods into the holes,
with the notches facing forwards.
Move tab 1forwards and lower the
headrest down to the required height.
2
The headrest is an impor-
tant safety component:
ensure that it is in place and
in the correct position. The
distance between your head and the
headrest and the distance between
the head and section Ashould be
as small as possible.
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.
1
A

headrest................................................(up to the end of the DU)
adjusting your driving position ..............(up to the end of the DU)
1.14
ENG_UD20648_2
Appui-tête arrière (X77 ph2 - Renault)ENG_NU_815-9_X77_Renault_1
REAR HEADRESTS
Positions for use
Press tab Aof lock 1and raise the
headrest to its maximum height to use
it in the high position. Lower it until it
locks to use it in the bottom position.
Storage position
Press catch 2and lower the headrest
completely.
When the headrest is set at the
lowest position (position B) this is
for storage only: It should not be in
this position when a seat is occupied.
To remove the headrest
Press tab Aon catches 1and 2then
take out the headrest.
To refit the headrest
Insert the rods into the holes, press the
tabs on both rods and lower the head-
rest.
The headrest is a safety
component, check that it is
fitted and in the correct po-
sition.
1
A
2
B
