WELCOME ABOARD YOUR LAGUNA
Note
Congratulations on choosing your vehicle: in your Laguna, you will enjoy a unique driving experience!
In order to make your experience as pleasant as possible, we suggest you discover how to get the best out of your Laguna by using this document.
This document does not replace the driver’s handbook.
Please read your complete driver’s handbook for more detailed information on the equipment mentioned in the reference guide for your Laguna.
Detailed information regarding your vehicle’s use, maintenance and warranty, as well as videos and simulators,
are all only a click away in the New Laguna e-Guide, available at www.e-guide.renault.com.
Translated from French. Copying or translation, in part or in full, is forbidden unless prior written permission has been obtained from RENAULT, 92100 Billancourt 2009.

A.S.R. (antipatinage) ................................................................................... (page courante)
ENG_UD12695_4
Sommaire BK (X91 - B91 - K91 - Renault)ENG_RP_814-6_BK91_Renault_0
Front and engine compartment 3
Passenger side 4
Rear seats 5
Rear 6
Accessing the vehicle 7
RENAULT card, instrument panel 8
Dashboard 9
Multimedia systems 11
Lighting/Wipers 14
Driver’s position: seats 15
Driver’s position: settings 17
Heating and air conditioning system 18
Electronic parking brake 19
Cruise control/Speed limiter 19
Fuel 20
Gadgets 21

ENG_UD10089_4
Avant et compartiment moteur (niveaux) (X91 - B91 - K91 - D91 - Renault)ENG_RP_814-6_BK91_Renault_0
3

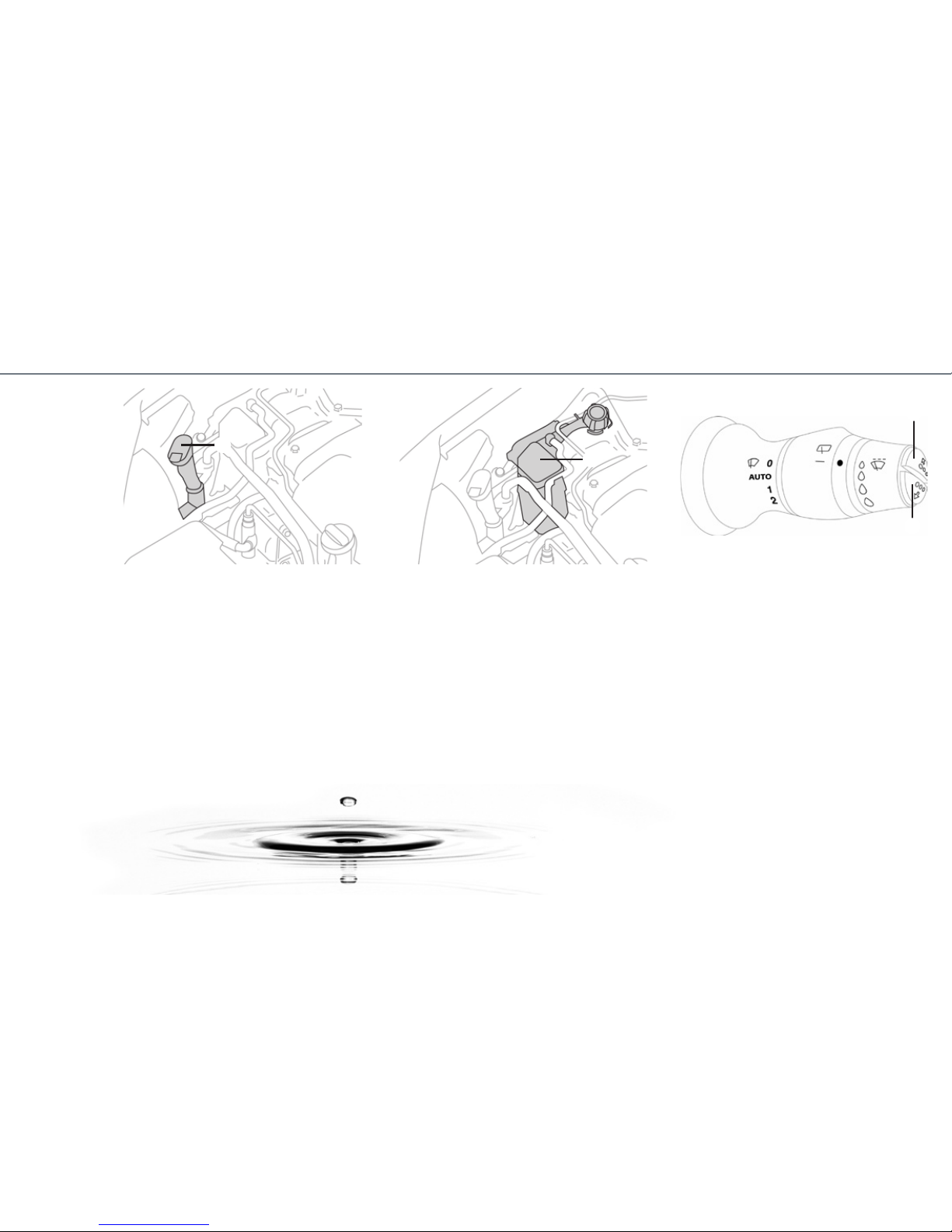

Front and engine compartment
FRONT AND ENGINE COMPARTMENT
Screen washer fluid level
Add some fluid in the reservoir 1if necessary.
Coolant level
The level indicated on the tank 2should be be-
tween MINI and MAXI.
If it is necessary to top up this level, it is essential
to do so when the engine is cold.
Engine oil level
You can view the oil level on the instrument panel:
when the message “test of control system” appears
on the instrument panel, press either button 3or 4.
The oil level is displayed on the instrument panel.
You must observe the service intervals and the
standards governing the oils tested for your engine.
Refer to the Maintenance Service and Warranty
document for your vehicle, and to Section 4 of the
vehicle handbook for the precautions to take when
filling with oil.
2
3
4
1

ENG_UD9807_2
Côté passager (X91 - B91 - K91 - Renault)ENG_RP_814-6_BK91_Renault_0
4

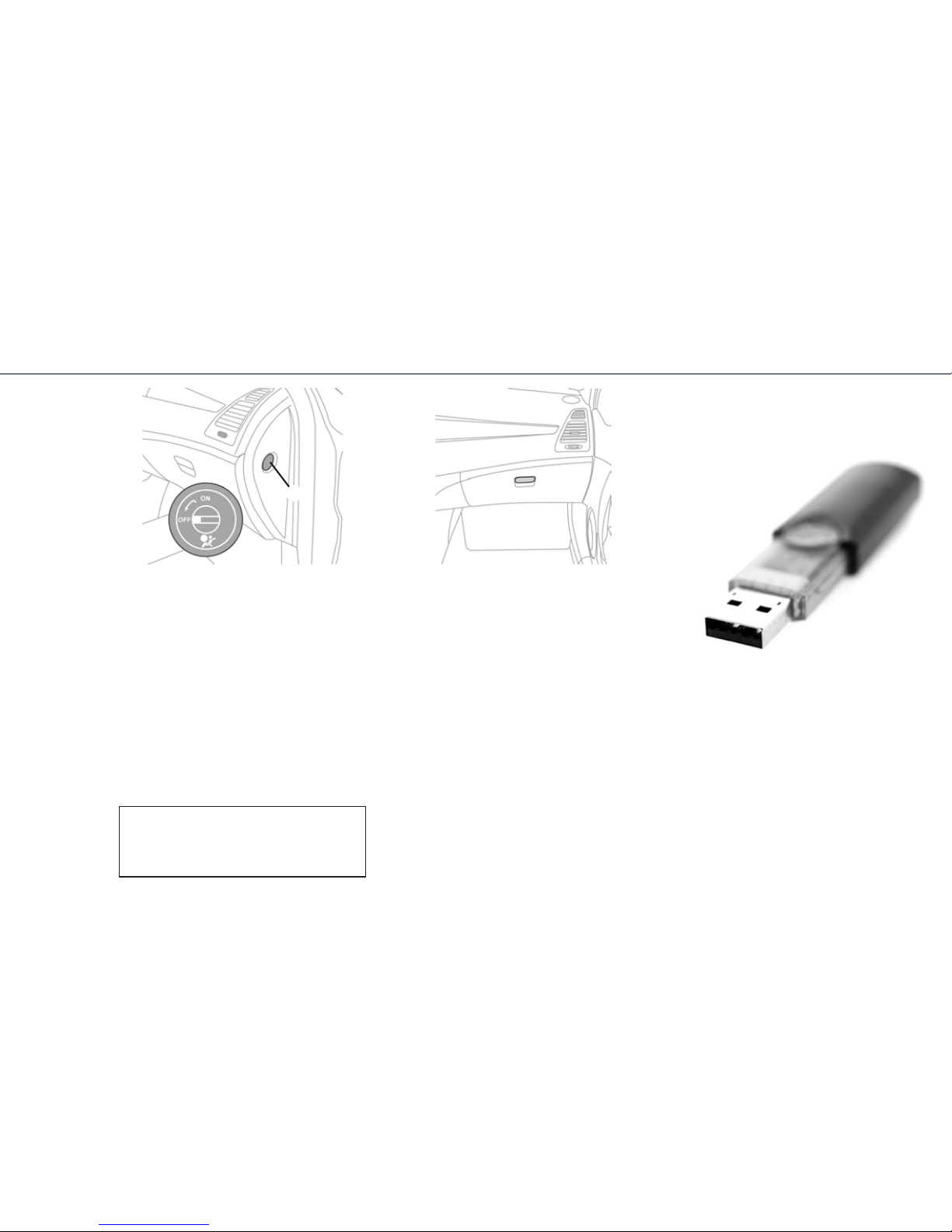

Passenger side
Sockets for audio
connection
Depending on the version, you have the option
to connect your portable audio devices, USB key,
and MP3 player to your vehicle Specially designed
sockets are located in the glove box.
Refer to the instructions for the equipment for de-
tails of the connections.
PASSENGER SIDE
Reposition the switch immediately to ON as soon
as you are no longer using the child seat.
1
Deactivating the front
passenger air bag
If you wish to fit a rear-facing child seat on the
front passenger seat, you must deactivate the air
bag: with the vehicle stationary, turn switch 1to
OFF.
Indicator light ã lights up on the central dis-
play on the dashboard.

ENG_UD9808_3
Places arrière (X91 - B91 - K91 - D91 - Renault)ENG_RP_814-6_BK91_Renault_0
5
Rear seats
REAR SEATS
Folding the seatback
down
Saloon version: press handle 1on the side to be
folded down.
Estate versions: the vehicle is fitted with a system
that allows the seats to lay flat in a single opera-
tion. Pull handle 4on the side to fold down. The
luggage net requires certain precautions, refer to
the information on “Luggage net” in Section 3 of
your driver’s handbook.
In all cases, to return the seatback to its initial po-
sition, check that the seat belts are in the correct
position and lift the seatback.
Rear functions of the
estate
It offers intelligent storage solutions in the rear
luggage space with bag hooks 3, storage compart-
ments in the side sections of the luggage compart-
ment, an automatically retractable sliding luggage
compartment cover 2, a storage compartment for
the luggage compartment cover under the carpet
and other innovations to discover in your driver’s
handbook.
ISOFIX system
Each rear side seat is fitted with the ISOFIX child
seat mounting system 5.
Depending on the type of child seat used, installa-
tion requires specific precautions.
Refer to the information on “Child safety” in
Section 1 of your driver’s handbook for the spe-
cial features.
Consult your approved dealer to find out about the
equipment available for your vehicle.
Ensure that nobody is near to the bench seat
when you fold it down.
Remember to remove anything on the rear bench
seat.
5
2
1
4
3

ENG_UD13419_4
Arrière (X91 - B91 - K91 - D91 - Renault)ENG_RP_814-6_BK91_Renault_0
6

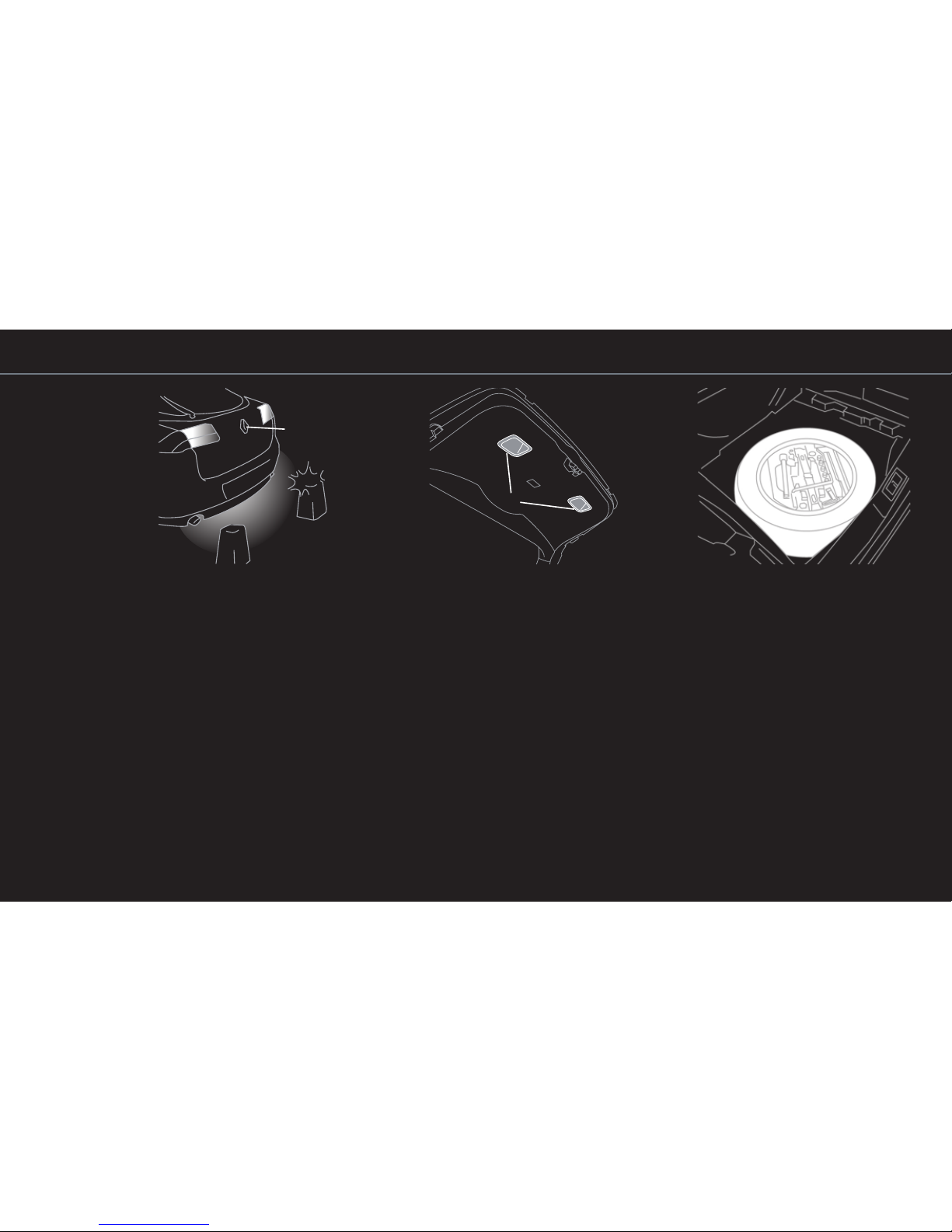

Rear
REAR
Parking distance control
On equipped vehicles, the parking distance con-
trol measures the distance between the rear and/
or the front of the vehicle and any obstacles that
are nearby.
When approaching an obstacle during manoeuvres,
the beeps become faster and then sound continu-
ously when 25 cm from the obstacle.
The system can be permanently deactivated (refer
to the user instructions).
Opening the tailgate
Press button 1located in the centre of the badge
on the tailgate. When the tailgate opens a little, lift
it by placing your fingers underneath.
Closing the tailgate
Using one of the handles 2(depending on the ve-
hicle), lower the tailgate.
It will close under its own weight.
Tyre pressure kit/
emergency spare wheel
Depending on the vehicle, in the event of a punc-
ture, there is either a tyre inflation kit or emergency
spare wheel available. To access it, lift the luggage
compartment carpet.
1
2

ENG_UD9810_3
Poste de conduite (X91 - B91 - K91 - D91 - Renault)ENG_RP_814-6_BK91_Renault_0
7
REMOTE CONTROL RENAULT CARD VERSION
Press:
‡ to unlock;
… to lock;
ˆ to switch the exterior lights on/off remotely
(in order to find your vehicle in a car park for ex-
ample);
† to lock/unlock the luggage compartment
only.
HANDS-FREE RENAULT CARD VERSION
With the card on your person (you can leave it in
your pocket, bag etc.), in addition to the remote
control RENAULT card functions, the following are
possible:
– automatic unlocking by pulling a door handle;
– automatic locking when leaving the vehicle (a
beep sounds) or intentional locking by pressing
the button on the driver’s door handle.
Note: if required, you can use the manual mode or
the key 2. To release the key, press button 1.
Accessing the vehicle
ACCESSING THE VEHICLE
1
2
Never leave the RENAULT card in the vehicle
Locking/unlocking the
vehicle
The RENAULT card system replaces the tradi-
tional key. Locking/unlocking the vehicle is simple:
whether from a distance or nearby, a single press
is required.
SPECIAL FEATURES
– The detection zone of the card, necessary for
locking and unlocking the vehicle, depends on
the surrounding environment or the location of
the card;
– … for vehicles equipped with deadlocking,
two successive presses on this button stop the
vehicle from being opened, even from the inside
and, depending on the vehicle, the windows are
closed.
NOTE
In all situations:
– Two flashes of the direction indicator lights con-
firm locking;
– one flash of the direction indicator lights con-
firms unlocking.
After locking/unlocking the vehicle or the tailgate
only using the buttons on the RENAULT card,
remote locking and unlocking in hands-free
mode are deactivated.
To reactivate the hands-free mode: restart the
vehicle.

ENG_UD9811_3
Poste de conduite (X91 - B91 - K91 - D91 - Renault)ENG_RP_814-6_BK91_Renault_0
8
RENAULT card, instrument panel
RENAULT CARD/INSTRUMENT PANEL
Starting the engine
With the remote control RENAULT card in reader 2
or the hands-free RENAULT card in the passenger
compartment (excluding certain high locations
such as the sun visor, etc.) apply the following
starting conditions:
MANUAL GEARBOX
With the gear lever in neutral, press button 1.
AUTOMATIC TRANSMISSION
With the lever in position P, press button 1.
Note: for vehicles fitted with the hands-free
RENAULT card, the brake pedal must be depressed
to allow the engine to be started.
Stopping the engine
With the vehicle stationary, press button 1.
Accessing functions
Once you have gained access to your vehicle, you
may use some of its functions (radio, navigation,
wipers, etc.).
Depending on the case, these functions will switch
off at the latest when the vehicle is locked.
Vehicle settings
personalisation menu
Certain functions (parking distance control etc.)
can be adjusted from the trip computer and warn-
ing system. To access this menu, with the vehicle
stopped:
– press button 3or 4several times until the mes-
sage “settings menu: long press” appears,
– hold down button 3or 4until the message “set-
tings menu” appears,
– press button 3or 4repeatedly until you find the
function you wish to modify.
To exit the menu:
– press 3once or more to select “Back” or “Exit”;
– press and hold 3to confirm;
– repeat the operation if necessary.
1
3
4
2

ENG_UD4945_2
Poste de conduite Noir (X91 - B91 - K91 - D91 - Renault)ENG_RP_814-6_BK91_Renault_0
9
Dashboard
DASHBOARD
1 2
12 11 7
8
14 13
9
10
53
6
4

ENG_UD10936_4
Poste de conduite noir New (X91 - B91 - K91 - D91 - Renault)ENG_RP_814-6_BK91_Renault_0
10

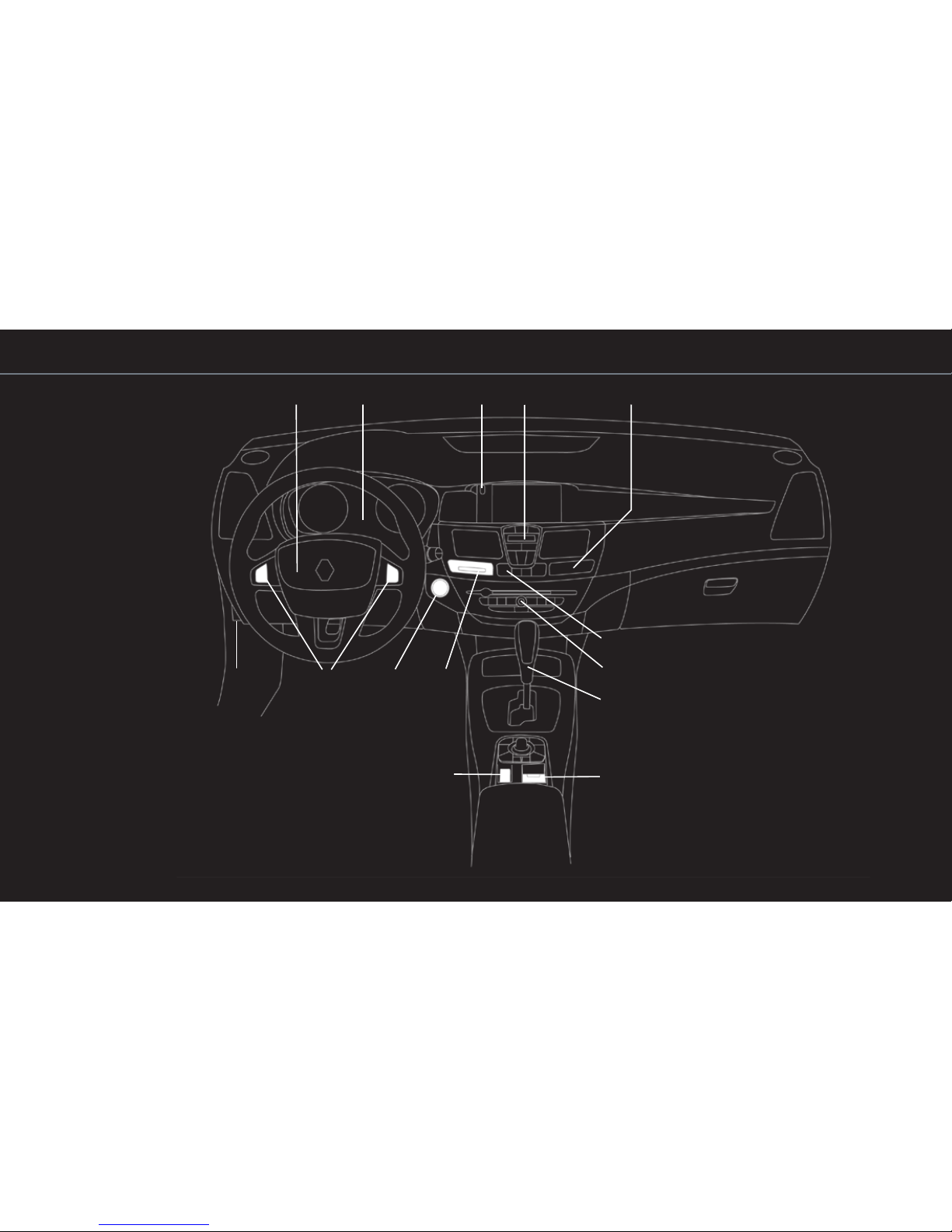

1 Horn and location for driver’s air bag.
2Instrument panel
– Warning lights:
® this warning light requires you to stop
immediately, for your own safety, as soon as
traffic conditions allow. Stop your engine and
do not restart it. Contact an approved Dealer.
© this means you should drive very
carefully to an approved Dealer as soon as pos-
sible. You risk damaging your vehicle If you
keep driving after this warning light has come
on.
– Distance before service:
The vehicle is fitted with a system that moni-
tors the condition of the engine oil. This system
adapts the distance before service in real time
according to the vehicle’s conditions of use.
In all cases, an initial message “service due
in...” along with the remaining distance noti-
fies you of when the next service will be due.
Later, if necessary, the message “service ve-
hicle” requires that the vehicle be serviced as
soon as possible.
– Aiding fuel economy:
For vehicles fitted with a manual gearbox, this
function indicates the best time to change gear
to optimise fuel consumption.
\ shift up a gear;
[ shift down a gear.
3Seat belt reminders:
ç driver or front passenger seat belt not
buckled.
For the rear seat belts, a message on the instru-
ment panel indicates the number of seat belts
that are buckled.
4 Heating and ventilation controls.
5 Cup holder.
6Hazard warning lights.
7Radio location.
8Gear lever.
9Electronic parking brake control.
10 Cruise control/speed limiter on/off main
switch.
11 RENAULT card reader.
12 Engine start/stop button.
13 Cruise control/speed limiter controls.
14 Bonnet release control.
DASHBOARD

ENG_UD12676_4
Systèmes audio (X91 - B91 - K91 - D91 - Renault)ENG_RP_814-6_BK91_Renault_0
11
A U D I O S Y S T E M

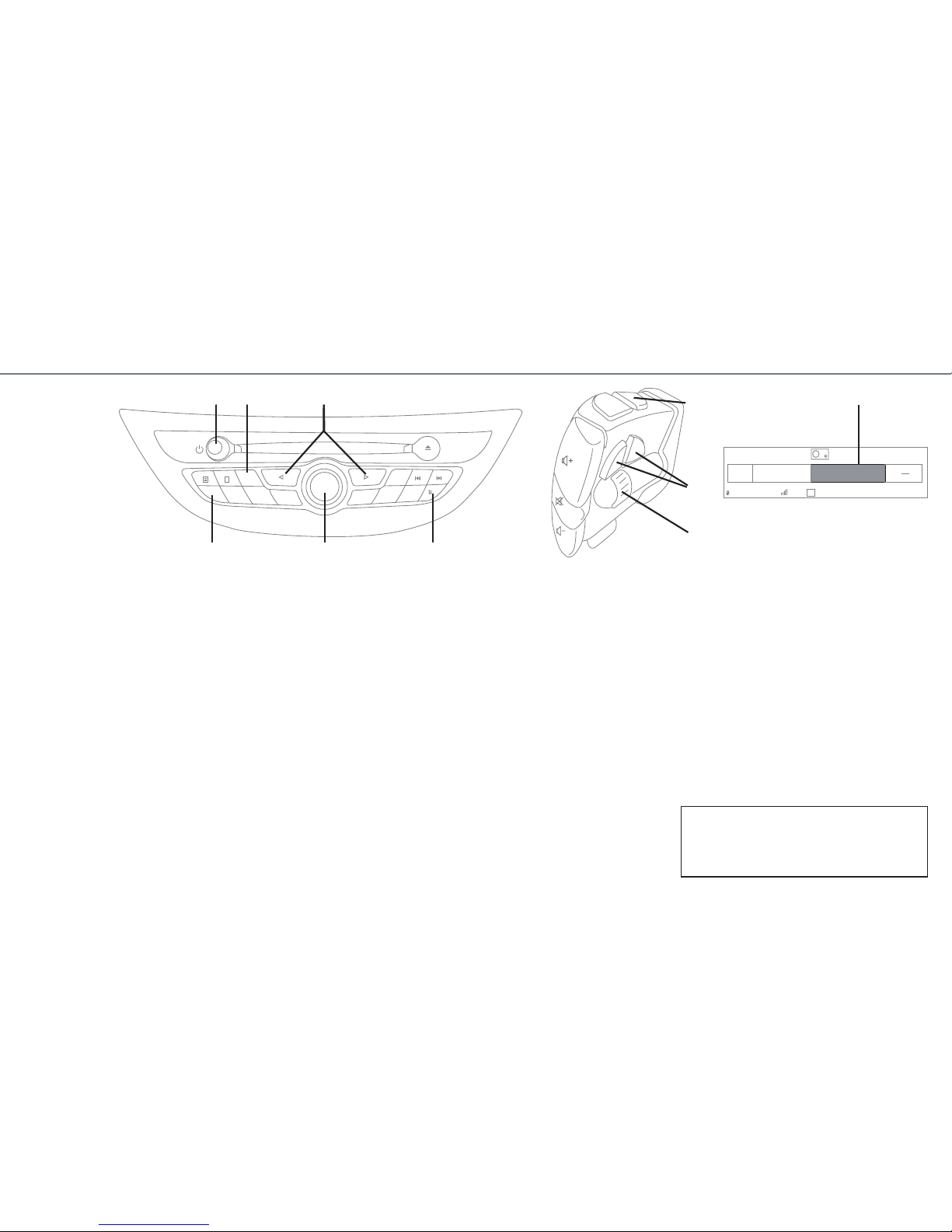

LISTENING TO THE RADIO, A CD (AUDIO AND
MP3) OR A PLAYER
Select the desired source by pressing one of the
buttons Aonce or more.
If you wish to listen to an AUXILIARY source,
connect your portable audio player to the desired
socket (refer to the “Passenger side” section).
FM RADIO SOURCE
– To select a radio station from a list in alphabetical
order:
Press Cto move to the station name field 1then
turn Gor press Eseveral times to scroll through
the list of radio stations.
– To update the list:
Press B, then Eor turn Gto select the “Update FM
List” field and confirm by pressing Dor G.
– To store a station to one of the buttons num-
bered 1 to 6:
Select a radio station and press one of the
buttons 1 to 6 until a beep sounds.
To recall a stored station, press the correspond-
ing button.
– To store up to 12 FM stations:
Select a radio station, press F, then use Eor turn G
to select a location from 1 to 12 then confirm by
pressing Dor G.
To recall a stored station, move across to the sta-
tion number 2, then scroll through the radio sta-
tions using Eor G.
To move across the displays 1, press buttons C.
20:34
FM
RADIO 1 5
TRAFFIC
RDS-AF
100.00
A
C
C
1
G
E
B D
F
2
A

ENG_UD10992_4
Systèmes audio (X91 - B91 - K91 - D91 - Renault)ENG_RP_814-6_BK91_Renault_0
12
PHONE/AUDIO SYSTEM
TO UPDATE THE LIST:
Press D, then turn Eto select the “Audio settings”
field then “Radio functions” and “Update FM list”;
confirm by pressing E.
TO STORE ONE STATION:
Select a station and press one of the buttons 1 to
6 until a beep sounds. To recall a stored station,
press the corresponding button.
To store up to 12 stations, select a station and
press F, turn Eto select a location from 1 to 12
then confirm by pressing E.
To switch the system on or off, press A. Adjust the
volume by turning button A.
LISTENING TO THE RADIO, A CD OR AN AUDIO
PLAYER
Select the desired source by pressing one of the
buttons Bonce or repeatedly. If you wish to listen
to an AUXILIARY source, connect your audio player
to the corresponding socket.
FM RADIO SOURCE
To select a radio station from an alphabetical list,
press Cto go to the station name field, then turn E
to scroll through the list of radio stations.
To recall a stored station, move across to the sta-
tion number, then scroll through the radio stations
using E.
PAIRING A BLUETOOTH® DEVICE (AUDIO
PLAYER, ETC.)
To use your Bluetooth® device, you must ensure
the system recognises it (pairing), before it is used
for the first time. Once the vehicle is started, your
device will then be recognised and automatically
connected to the hands-free system.
T
RADIO
CD
TEL
456
123
MEM.
B C
E
B
C
E
D
FM 103.90 RADIO 1
10:46 3
RDS-AF
TRAFFIC
T
1
F
A
To move across the displays 1, press buttons C.

ENG_UD9985_4
Systèmes de navigation (X91 - B91 - K91 - D91 - Renault)ENG_RP_814-6_BK91_Renault_0
13
PHONE/NAVIGATION SYSTEM
B
I
J
D
H
E GF
LISTENING TO THE RADIO OR A CD
Choose the source (FM radio or CD) by pressing
one of the buttons B.
FM RADIO SOURCE
To select a radio station from an alphabetical list,
press D, choose the “List” mode, then select the
name of the radio either using the arrows Cor by
turning control knob I.
To store a radio station to one of the buttons num-
bered 1 to 6:
– select the radio station;
– press on one of the buttons from 1 to 6, until a
beep sounds.
To recall a stored radio station, press the corre-
sponding button.
CD SOURCE
Before inserting a CD, press button A. You can
insert up to 6 CDs.
VOICE RECOGNITION
Button J: to operate certain functions using voice
control.
STARTING THE NAVIGATION SYSTEM
– Press E;
– turn button Fto select “new address” then con-
firm by pressing F;
– enter the address fields (town and street) using
the keypad on the screen. To select and confirm
a character, rotate then press button F;
– when entry is complete, select “Start” and follow
the voice guidance and on-screen directions to
your destination.
CANCELLING AN ACTION
Press Gif you wish to return to the previous menu
or erase an entered character.
DISPLAYING THE MAP
Press button Hto return to the map at any time.
C
A B

ENG_UD11759_3
Eclairage/essuyage (X91 - B91 - K91 - Renault)ENG_RP_814-6_BK91_Renault_0
14
Lighting/Wiping

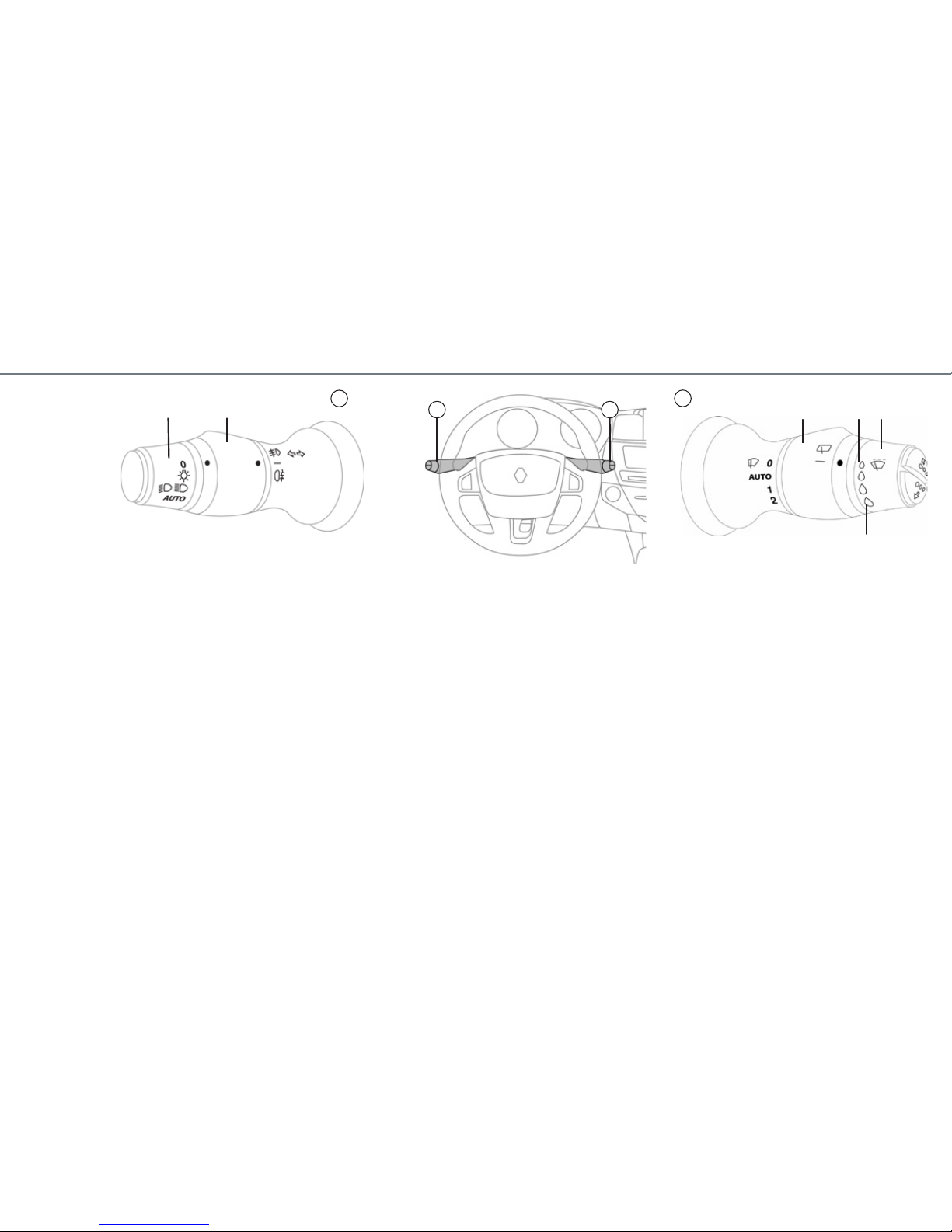

Lighting
On stalk 1, turn ring Ato:
u switch on the side lights;
k switch on the dipped beam headlights;
Flash headlights: pull the stalk towards you;
Main beam headlights: with ring Ain position
k , pull the stalk.
LIGHTS/WIPERS
A 2 C
AUTO: activate the automatic headlights (depend-
ing on the vehicle).
Turn ring B, then release it to:
g switch on the front fog lights;
f switch on the rear fog light.
To switch them off, repeat the operation.
1B E
12D
F
Wiping
Stalk 2in position:
0: park;
AUTO: intermittent wiping or, depending on the ve-
hicle, automatic wiping
Note: ring Ecan be used to adjust the sensitivity
of automatic wiping, from minimum sensitivity (D)
to maximum sensitivity (F).
1: normal wiping speed;
2: fast wiping speed.
Rear screen wiper: to start/stop wiping, turn
ring Ctowards you, then release it.
Windscreen washer: pull stalk 2.
Rear screen washer: push stalk 2.

ENG_UD4950_2
Poste de conduite (X91 - B91 - K91 - D91 - Renault)ENG_RP_814-6_BK91_Renault_0
15

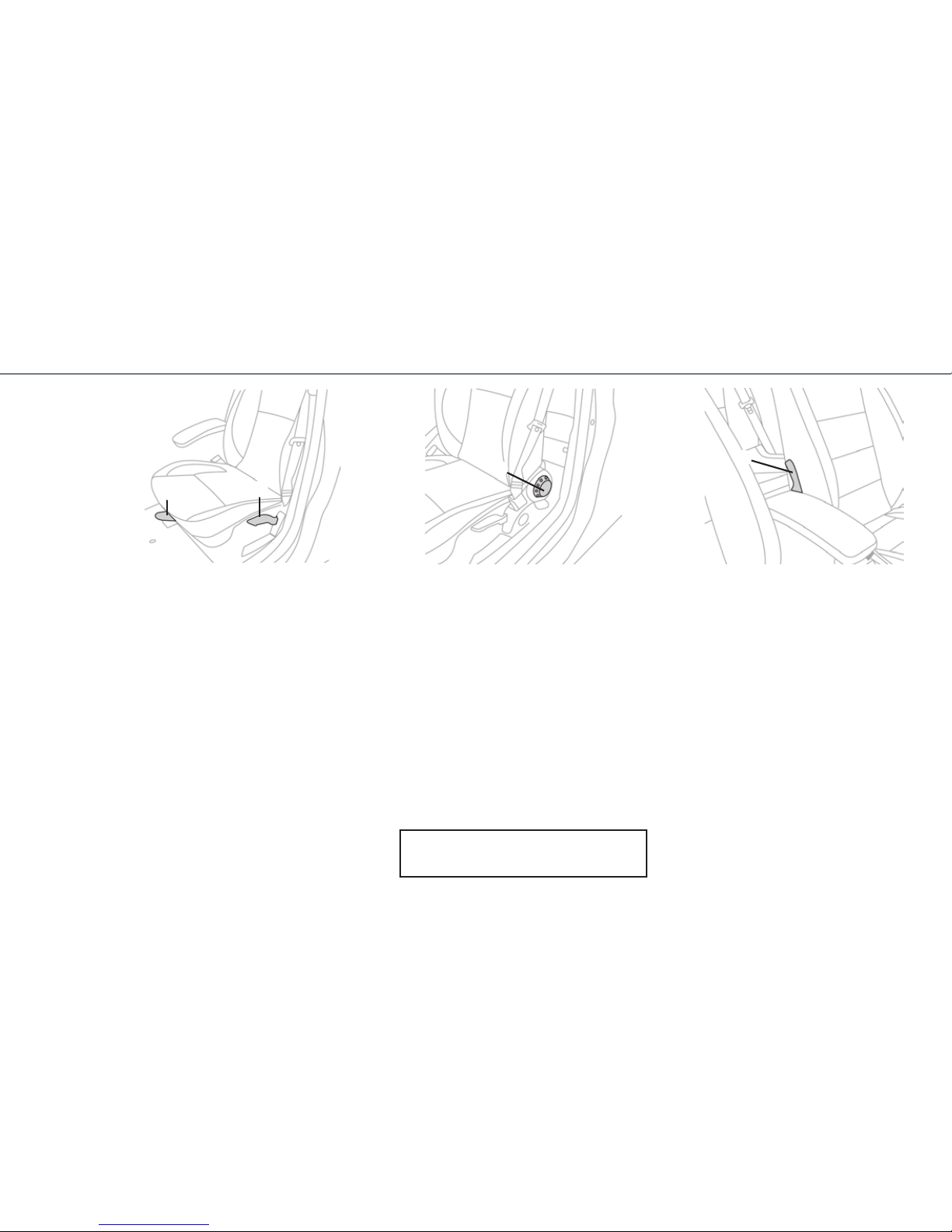

Driver’s position: seats
DRIVER’S POSITION: SEATS
TO TILT THE SEATBACK
Turn control knob 3.
Manual seat adjustment
TO MOVE THE SEAT FORWARDS OR BACKWARDS
Lift handle 1, slide the seat to the required posi-
tion and release the handle. Check that it is cor-
rectly locked.
TO RAISE OR LOWER THE SEAT
On equipped vehicles, move handle 2as many
times as is required:
– upwards to raise the seat;
– downwards to lower the seat.
ADJUSTING THE LUMBAR SUPPORT ON THE
DRIVER’S SEAT
Lower handle 4to increase the support and lift it
to decrease it.
12
34
Carry out these adjustments when the vehicle
is stationary.

ENG_UD8729_1
Siège electrique (X91 - B91 - K91 - Renault)ENG_RP_814-6_BK91_Renault_0
16

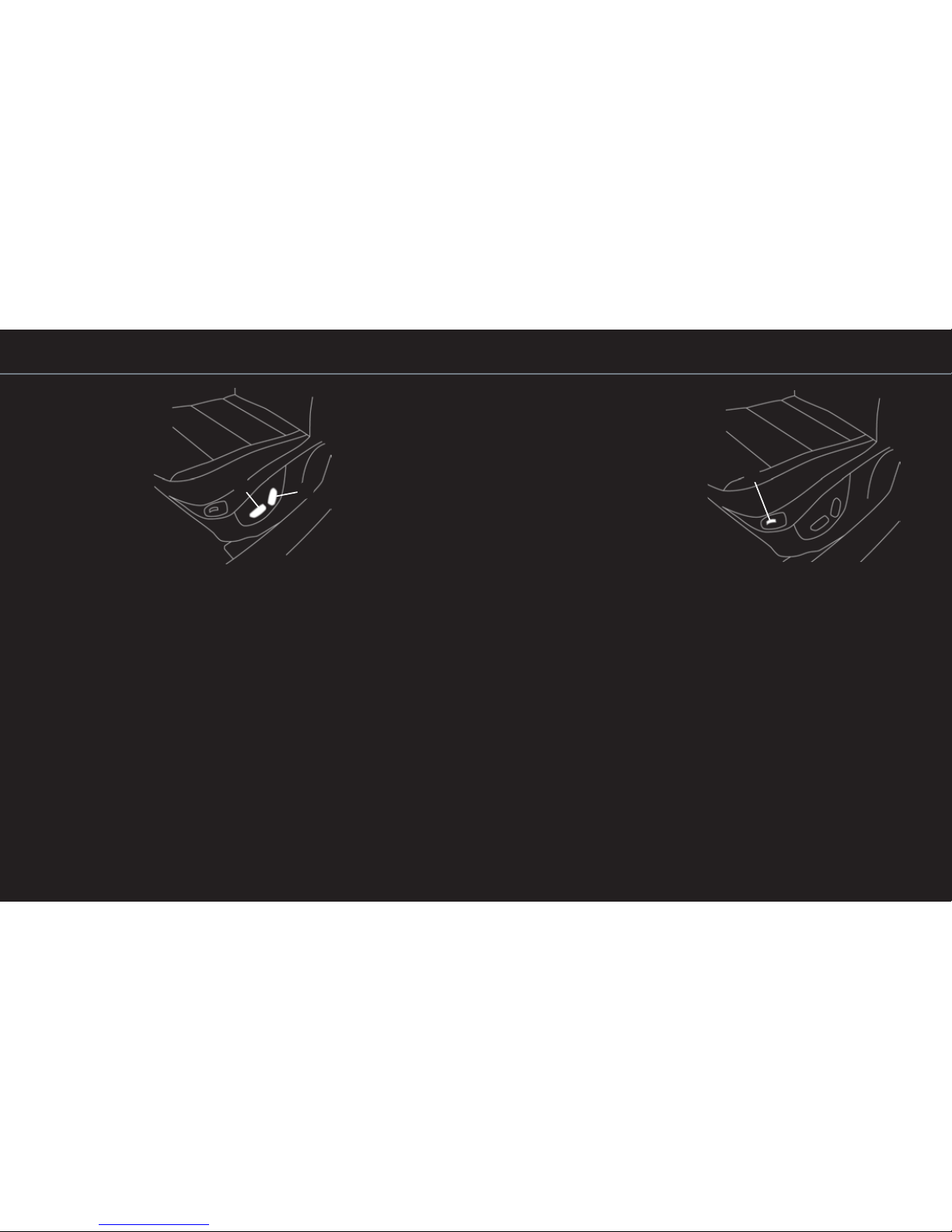

Electric seat adjustment
TO MOVE THE SEAT FORWARDS OR BACKWARDS
Move the switch 1forwards or backwards to the
required position.
TO RAISE OR LOWER THE SEAT
Move the switch 1up or down until the required
height is reached.
TO RAISE OR LOWER THE FRONT OF THE SEAT
BASE
On the driver’s side, raise or lower the front of the
switch 1until the required height is reached.
TO TILT THE SEATBACK
Move the top of the switch 2forwards or back-
wards until the required angle is reached.
Heated seats
Turn control knob 3to the position corresponding
to the required temperature (1, 2 or 3).
To turn it off, move the control knob back to po-
sition 0.
The system maintains the required temperature
with a thermostat.
An indicator light on the instrument panel lights up
once the front seat heating system is operating.
DRIVER’S POSITION: SEATS
12
3

ENG_UD9952_4
Poste de conduite (réglages) (suite) (X91 - B91 - K91 - D91 - Renault)ENG_RP_814-6_BK91_Renault_0
17

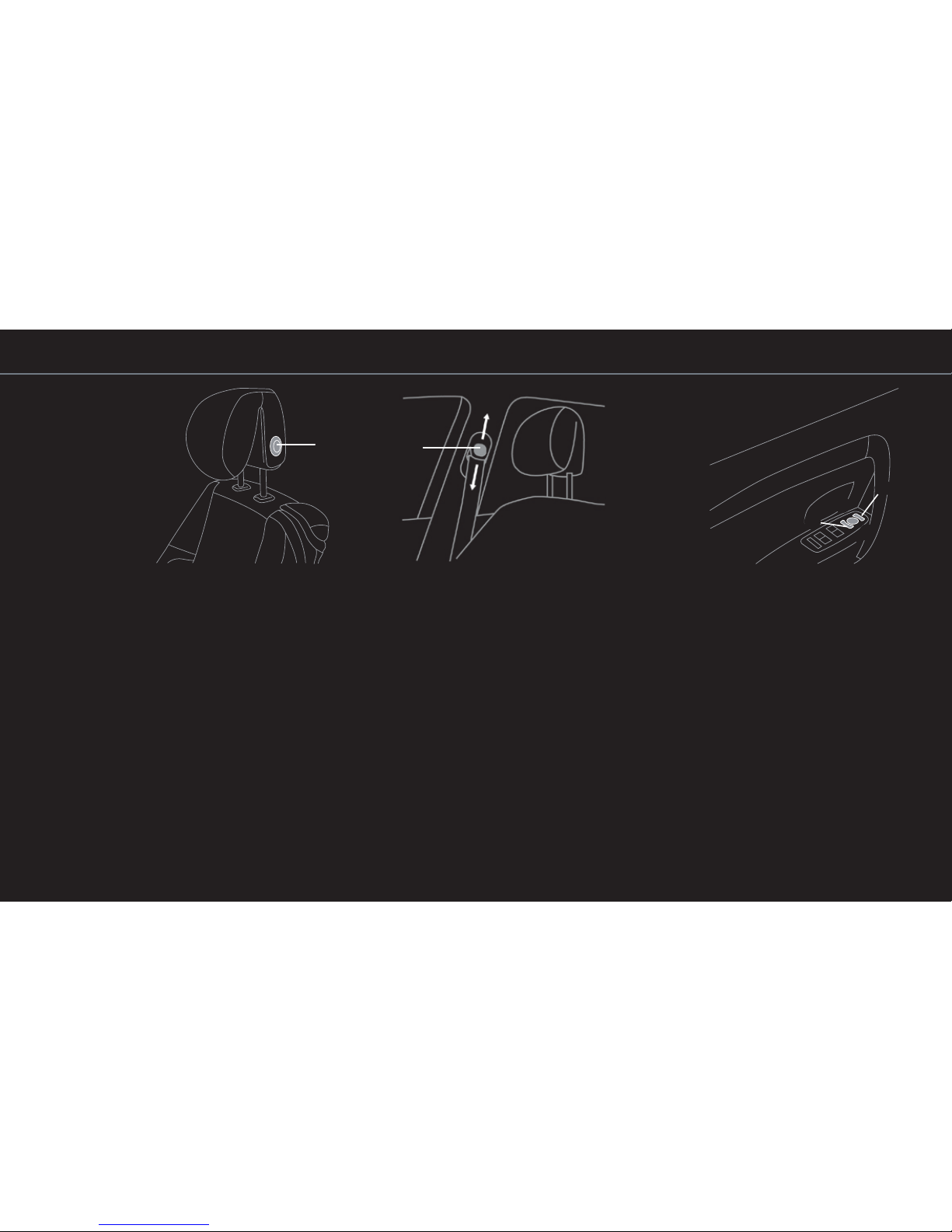

Driver’s position: adjustment
Headrest
RAISING THE HEADREST
Raise the headrest to the required height.
LOWERING THE HEADREST
Press button 1and lower the headrest to the re-
quired height.
TO ADJUST THE ANGLE OF THE HEADREST
Depending on the vehicle, move section Atowards
or away from you to the required position.
Seat belt
ADJUSTING THE HEIGHT
Push control 2and adjust the belt to the desired
height.
Door mirrors
ADJUSTMENT
Press button 3to select the rear view mirror to be
adjusted.
FOLDING DOOR MIRRORS
Switch 4in central position: the rear view mirrors
will fold back automatically when the vehicle is
locked. They will fold out when the ignition is next
switched on.
To force the door mirrors to fold back or out, po-
sition switch 4to Bor A. Automatic mode is then
deactivated. To reactivate it: position the switch 4
in the central position.
DRIVER’S POSITION: ADJUSTMENT
12
3
4
B
A
A

ENG_UD10948_3
Climatisation (X91 - B91 - K91 - Renault)ENG_RP_814-6_BK91_Renault_0
18

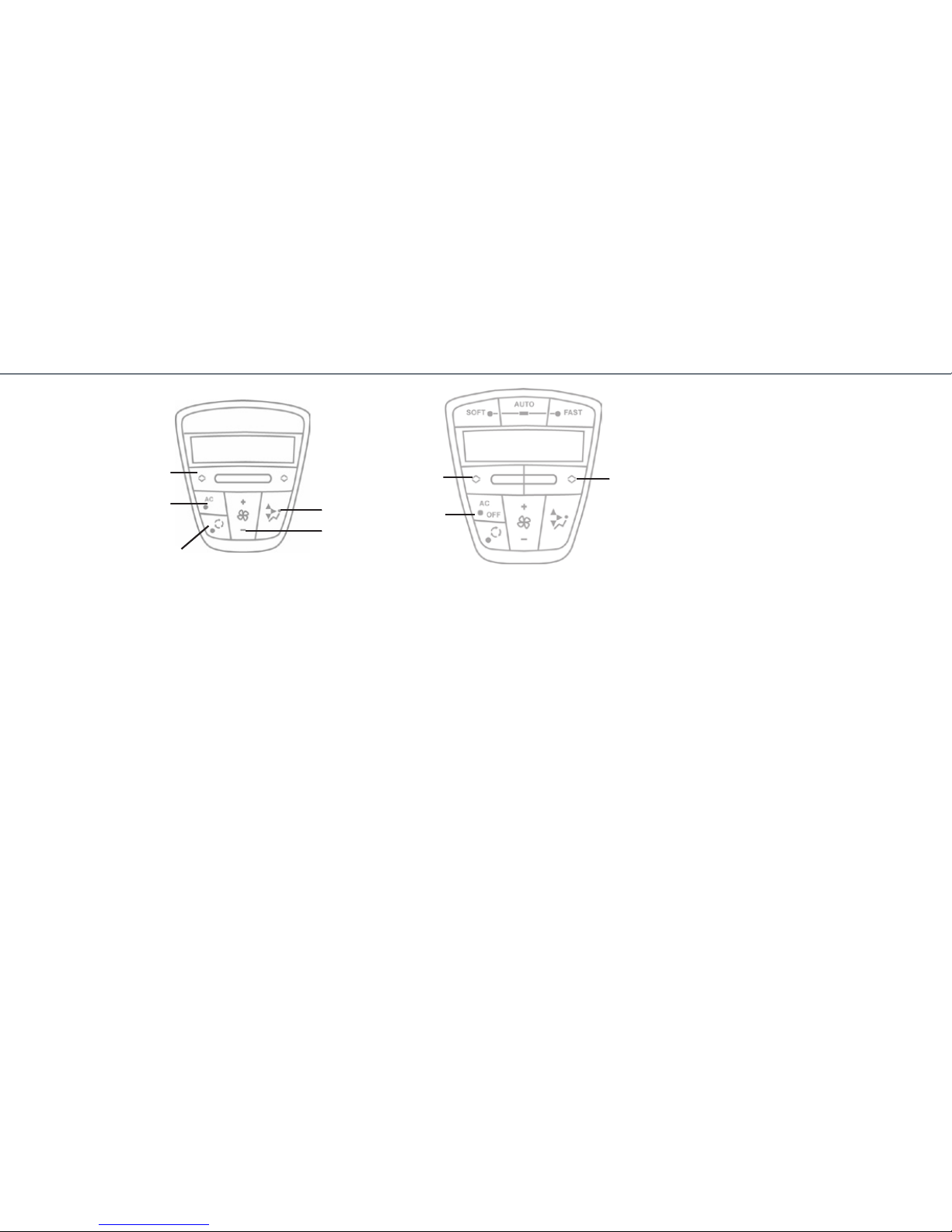

Heating and air conditioning system
Manual air conditioning
All the controls for the air conditioning system are
located between the air vents.
If you want to:
– activate the air conditioning: press switch 1;
– choose the temperature : move lever 2;
– modify the distribution of air : scroll through the
6 positions by pressing switch 3;
– adjust the ventilation speed: press switch 4;
– activate the air recirculation : press switch 5.
Automatic climate
control
To benefit from automatic climate control, choose
the right and left-hand temperatures required using
levers 7and 8and select one of the three auto-
matic programs:
– AUTO: mode where the temperature is reached
gradually;
– SOFT: mode where the temperature is reached
slowly;
– FAST: mode where the temperature is reached
quickly.
Note: pressing one of the other buttons will exit
automatic mode according to your requirements.
HEATING AND AIR CONDITIONING SYSTEM
5
1
2
3
4
78
AIR CONDITIONING
Button 6:
– authorises the air conditioning (AC OFF indica-
tor light off); in this case, the system decides
whether air conditioning is needed.
– prohibits the air conditioning (AC OFF indicator
light on); in this case, the air conditioning is de-
activated.
AUTOMATIC RECIRCULATION
Your automatic climate control is fitted with a
sensor that measures the external air quality. If
polluted air is detected, air recirculation will be ac-
tivated automatically.
Note: the integrated indicator on button 5only
comes on when air recirculation is activated manu-
ally.
6

ENG_UD13420_5
RV/LV/FPA (X91 - B91 - K91 - D91 - Renault)ENG_RP_814-6_BK91_Renault_0
19

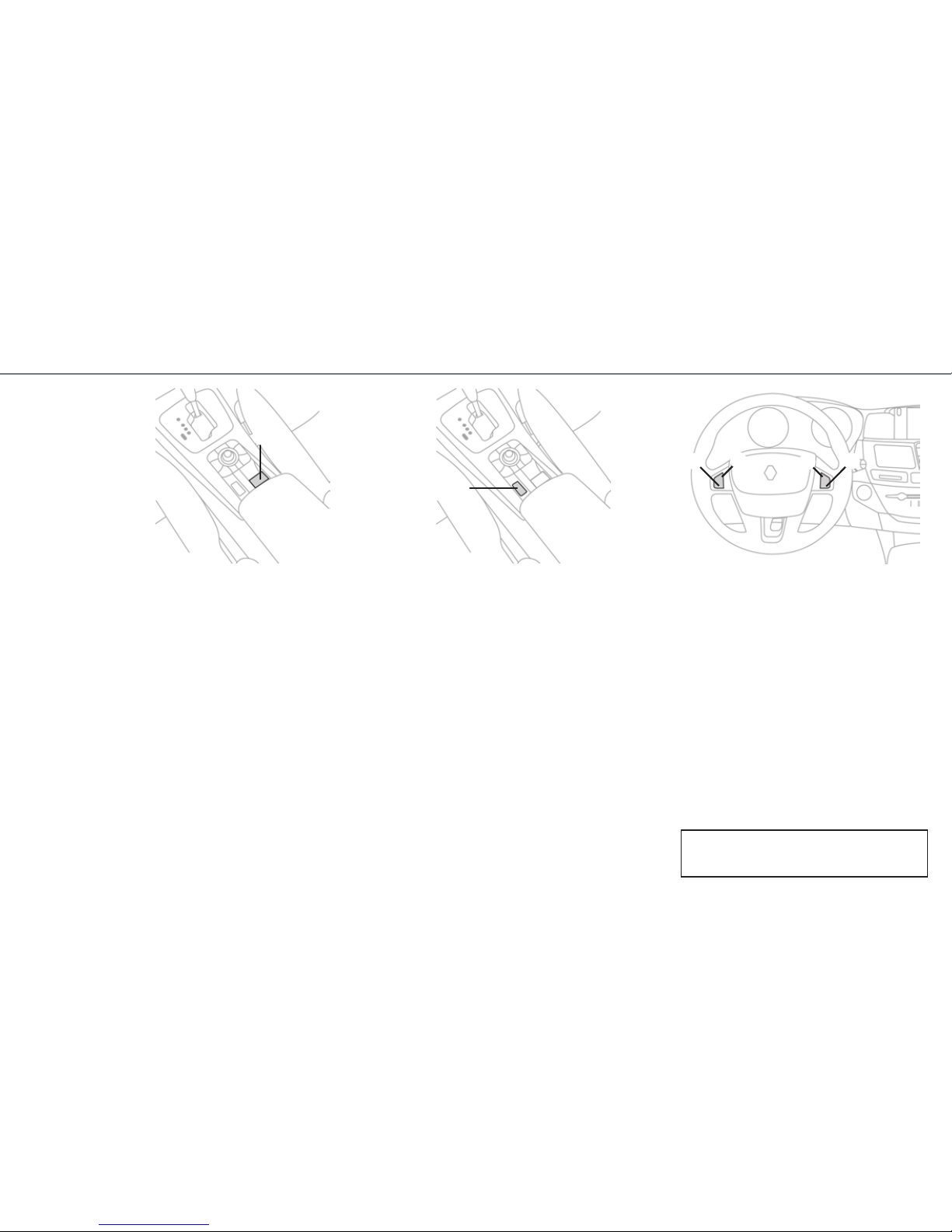

Electronic parking brake
Cruise control/Speed limiter
Electronic parking brake
Depending on the vehicle, the brake is automati-
cally activated when the engine is switched off by
pressing the engine start/stop button (unless the
engine has stalled).
The parking brake is automatically deactivated:
with the engine running and a gear engaged, as
soon as the clutch is released (manual gearbox)
when accelerating.
The assisted parking brake, like the manual parking
brake, also enables:
– manual engagement: lift the switch 1;
– manual release: with the brake pedal depressed,
press switch 1.
Cruise control/speed
limiter
If fitted to the vehicle, activate the cruise control or
speed limiter by moving switch 2:
Ï cruise control;
Note: you can always interrupt the cruise control
operation by pressing on either the brake pedal or
the clutch.
Ð speed limiter.
Note: you can always exceed the limiter speed by
depressing the accelerator pedal fully.
Cruise control/speed
limiter controls
2Main “On/Off” switch.
3Programmed speed activation, storage and de-
crease switch (-).
4Programmed speed activation, storage and in-
crease switch (+).
5Programmed speed activation, storage and
recall (R).
6Switching the function off (with stored pro-
grammed speed) (O).
DRIVER’S POSITION
1
2
346
5
Refer to Section 2 of your driver’s handbook.
