DA7210/11 USER MANUAL
January 2022
User manual for the set-up and operation of the DA7210/11
evaluation board and control software

DA7210/11 User Manual Rev 2.9 - January 2022 1
© 2022 Renesas Electronics
DA7210/11 USER MANUAL
Contents
Contents 1
1Introduction 2
2Hardware 2
2.1 Power Supplies 5
2.2 Jumpers and Link Positions 6
3Evaluation Board Features 13
3.1 USB Interface 13
4Control Software 13
4.1 Installation 13
4.2 Set-up Files 16

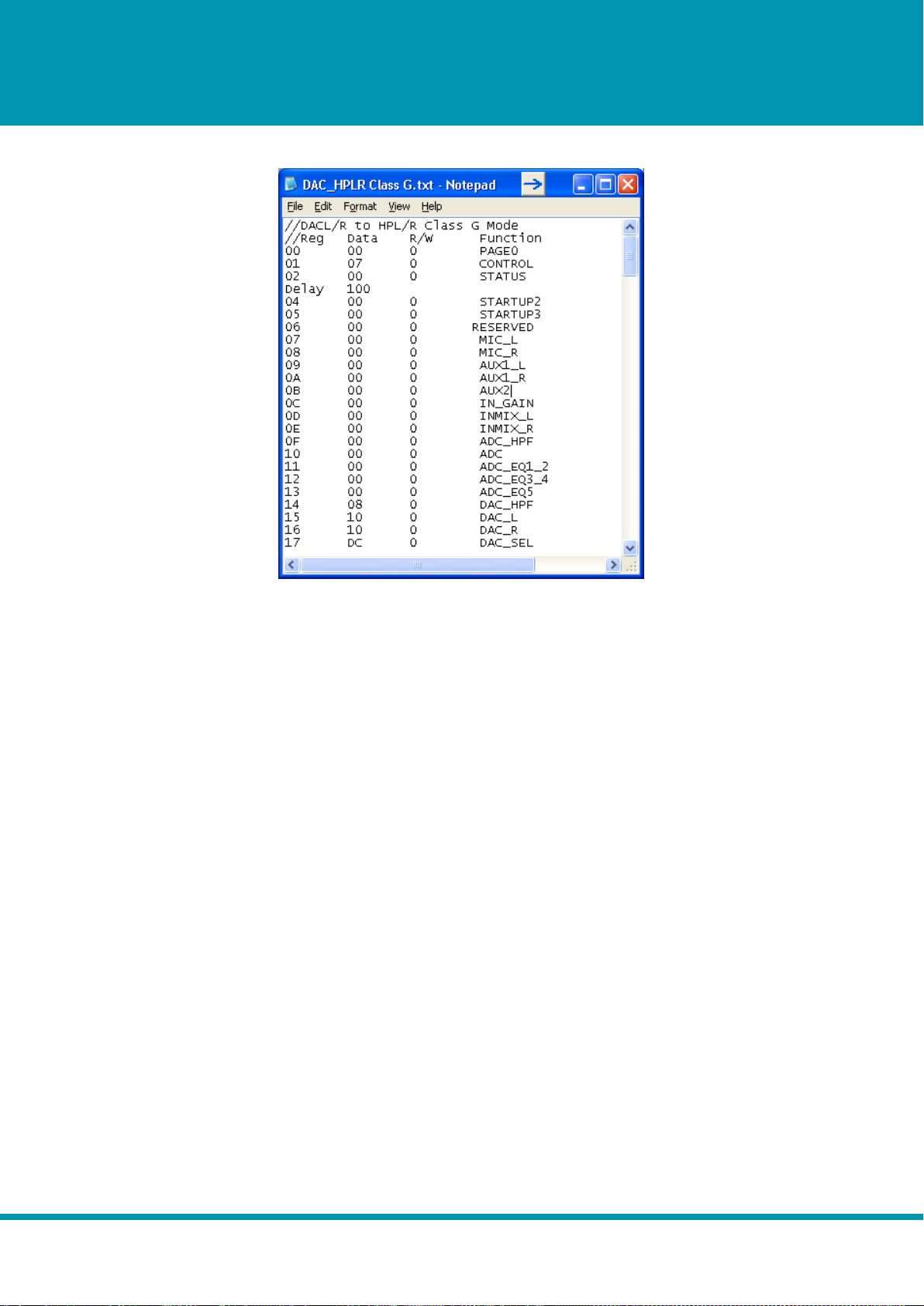

4.2.1 Text File 16
4.2.2 Spreadsheet File 17
4.3 Control Panels 19
4.3.1 Front Panel 19
4.3.2 Register Map Page 0 20
4.3.3 Register Map Page 1 21
4.3.4 GP Filters Register Map 22
4.3.5 Volume Control Panel 23
5RT Filters GUI 24
5.1 Software Installation 24
5.2 Control Panels 26
5.2.1 Running the Interface and USB Initialisation 26
5.3 Filter Setup Panel 28
5.4 Coefficients Tab 29
5.5 Five-band Equaliser and Voice Filter Panel 31

DA7210/11 User Manual Rev 2.9 - January 2022 2
© 2022 Renesas Electronics
DA7210/11 USER MANUAL
1 Introduction
The DA7210/11 evaluation board has been produced to allow measurement, evaluation and
programming of the DA7210/11 ultra-low power audio codec evaluation board and control software.
The evaluation PCB is supplied together with a DVD ROM containing documentation and driver files.
The driver software uses a simple graphical user interface (GUI), allowing the DA7210/11 device to
be controlled via a USB port of a PC. An additional GUI is available to control the highly configurable
filter paths within the DA7210/11; including general purpose, five-band equaliser and high pass filters
The board has a number of jumper links to allow configuration of the board and to provide
measurement test points.
Figure 1 DA7210/11 Block Diagram
The accompanying software requires a PC operating Windows 2000/XP with a USB1.1 or USB2
interface. The software will run under Vista if the default installation location is changed to ‘C:\Dialog
Semiconductor\’
The DA7210/11 device plus the USB Interface consume approximately 5mA in the standby state. The
evaluation board and software are not guaranteed to operate in a USB hub. See the section on Power
Supplies below.
The control software permits configuration of the device using either pre-prepared templates or
individual write and read operations to all control registers
2 Hardware
There are three options available when using the DA7210/11 evaluation mainboard, Figure 2:
1. A miniboard containing the DA7210 in a CSP 49-pin package connected to evaluation board
44-179-93-02-C via jumpers J28, J30, J36 and J38, Figure 3. This board can also be used
standalone or in conjunction with a customer development system.

DA7210/11 User Manual Rev 2.9 - January 2022 3
© 2022 Renesas Electronics
DA7210/11 USER MANUAL
2. A miniboard containing the DA7211-00 in a 36-pin CSP package connected to evaluation
board 44-179-93-02-B via jumpers J28, J30, J36 and J38, Figure 4. This board can also be
used standalone or in conjunction with a customer development system.
3. A miniboard containing the DA7211-01 in a 36-pin CSP package connected to evaluation
board 44-179-93-02-E via jumpers J28, J30, J36 and J38,. This board can also be used
standalone or in conjunction with a customer development system.
A USB-I2C bridge is used for communication with the device, and there are number of external active
components to reduce the requirement for external equipment.
Figure 2 Evaluation Board 44-179-93-02-C Mainboard

DA7210/11 User Manual Rev 2.9 - January 2022 4
© 2022 Renesas Electronics
DA7210/11 USER MANUAL

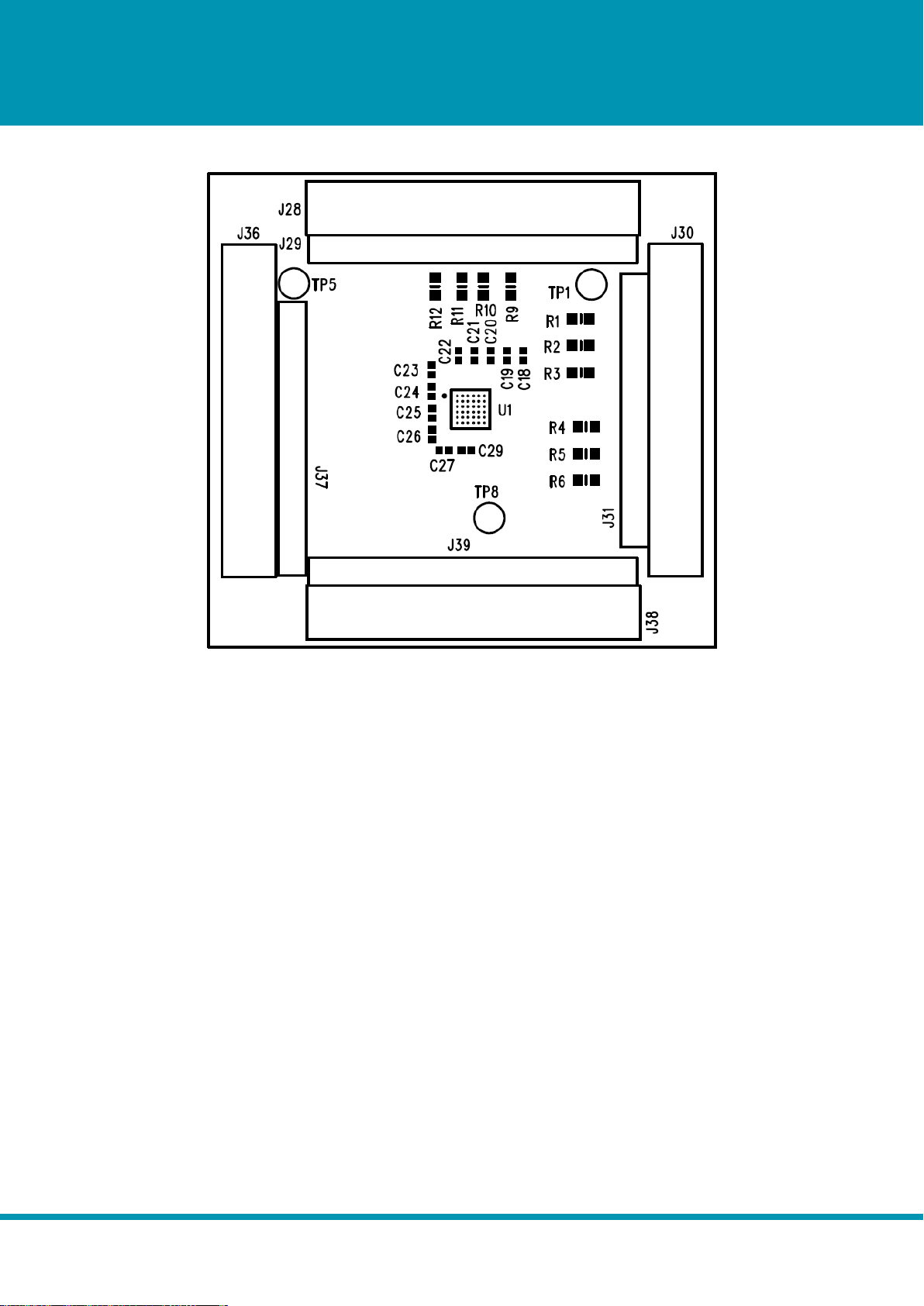

Figure 3 DA7210 44-179-93-04-C Miniboard
Figure 4 DA7211-00 44-179-93-04-B Miniboard

DA7210/11 User Manual Rev 2.9 - January 2022 5
© 2022 Renesas Electronics
DA7210/11 USER MANUAL
Figure 5 DA7211-01 44-179-93-04-E Miniboard
The passive components needed for noise decoupling or charge pump operation have been placed
as close as possible to the DUT pins to ensure optimum operational performance.
Gerber data for the board is available on request.
2.1 Power Supplies
The board is intended to be supplied by power supplies in the range +1.8Vdc to +2.5Vdc (nominal). The
power supplies are connected via 4mm sockets: AVDD, VDDCP, VDDDAC, VDDADC, VDDDIO,
DGND and AGND. LEDs D1 to D6 will illuminate when the power supplies are correctly connected.
Some devices on the board will be powered from the +5Vdc or +3.3Vdc supply produced by the USB
interface module.
For demonstration purposes the +5Vdc USB supply can be connected to regulator, U9, to produce
+1.8Vdc capable of supplying all of the DUT the power supply pins. This configuration allows complete
DUT operation using just USB and TOSLINK connections only, but maximum headphone power
output will be limited when using +1.8V VDDDCP power supply.

DA7210/11 User Manual Rev 2.9 - January 2022 6
© 2022 Renesas Electronics
DA7210/11 USER MANUAL
2.2 Jumpers and Link Positions
Header
Link
Position
Function
Notes
J5
OUT1_L speaker connection
External connection
J6
OUT1_R speaker connection
External connection
J8
On
OUT1_L 32Ω load selected
Off
OUT1_L no load
J9
On
OUT1_R 32Ω load selected
Off
OUT1_R no load
J10
MIC_L differential connection
External connection
J12
On
MICN_L single-ended input
Off
MICN_L differential input
J18
On
OUT1N_L differential output
Off
OUT1N_L single-ended output
J19
On
OUT1N_R differential output
Off
OUT1N_R single-ended output
J23
MIC_R differential connection
External connection
J25
On
MIC_R single-ended input
Off
MIC_R differential input
J26
Short link
Short VDDADC current measurement point
N/A for DA7211
DMM link
VDDADC current measurement point
J27
Short link
Short VDDDAC current measurement point
N/A for DA7211
DMM link
VDDDAC current measurement point
J29
On
Headphone sense ground connected
Should be disconnected
for DA7211
Off
Headphone sense ground disconnected
J31
1-2
HPL 16Ω load selected
2-3
HPL 32Ω load selected
J32
Short link
Short AVDD current measurement point

DA7210/11 User Manual Rev 2.9 - January 2022 7
© 2022 Renesas Electronics
DA7210/11 USER MANUAL
DMM link
AVDD current measurement point
J35
1-2
HPR 16Ω load selected
2-3
HPR 32Ω load selected
J37
Short link
Short VDDCP current measurement point
DMM link
VDDCP current measurement point
J39
Short link
Short XVDDD current measurement point
N/A for DA7211
DMM link
XVDDD current measurement point
J41
Short link
Short VDDDIO current measurement point
N/A for DA7211
DMM
VDDDIO current measurement point
J42
On
WCLK slave mode
Off
WCLK master mode
J43
On
CLK slave mode
Off
CLK master mode
J44 /
J47
1-2 / 1-2
16-bit I2S mode
J44 and J47 must both
be set for correct
S/PDIF receiver DAI
format and word length
1-2 / 2-3
24-bit I2S mode
2-3 / 1-2
24-bit left justified mode
2-3 / 2-3
16-bit right justified mode
J45
1-2
DAI input level shift enable
2-3
DAI input level shift high impedance
J46
1-2
DAI output level shift enable
2-3
DAI output level shift high impedance
J48
On
S/PDIF receiver +5V supply enabled
Off
S/PDIF receiver +5V supply disabled
J49
1-2
SPDIF word clock
Short links only if no
sources are connected
to J52
3-4
SPDIF bit clock
5-6
SPDIF data
7-8
SPDIF master clock

DA7210/11 User Manual Rev 2.9 - January 2022 8
© 2022 Renesas Electronics
DA7210/11 USER MANUAL
J50
1-2
MCLK output
External connections
3-4
CLK output
5-6
DATOUT output
7-8
WCLK output
11-12
SO output
J51
On
Control interface 2-wire ISK selected
Short only if J55 links
are removed
Off
Control interface 2-wire ISK de-selected
J52
1-2
DAI MCLK input
Short only if J49 links
are removed
3-4
DAI CLK input
5-6
DAI DATIN input
7-8
DAI WCLK input
J53
On
Control interface 2-wire SO selected
Short only if J55 links
removed
Off
Control interface 2-wire SO de-selected
J55
1-2
Control interface 4-wire nCS selected
Short only if J51 and
J53 links removed
3-4
Control interface 4-wire SI de-selected
5-6
Control interface 4-wire ISK selected
J56
On
XVDDD connected to VDDCP
Off
XVDDD disconnected from VDDCP
J57
On
XVDDD connected to VDDDIO
Off
XVDDD disconnected from VDDDIO
J59
On
VDDCP connected to AVDD
Off
VDDCP disconnected from AVDD
J60
On
REG_+1.8V supply connected
Off
REG_+1.8V disconnected
Table 1 Jumpers and Link Positions

DA7210/11 User Manual Rev 2.9 - January 2022 9
© 2022 Renesas Electronics
DA7210/11 USER MANUAL
The evaluation board can be set up to run solely from the +5V USB supply as the source for all board
supplies. It is necessary to remove all external power supplies and to add jumpers J56, J57, J59 and
J60 for this operation, which is the default configuration for the board.
The digital audio interface jumpers are set to receive a TOSLINK input and should be removed to
accept other external clocks at J52. Figure 9 shows the extra links required to enable the onboard
supplies.

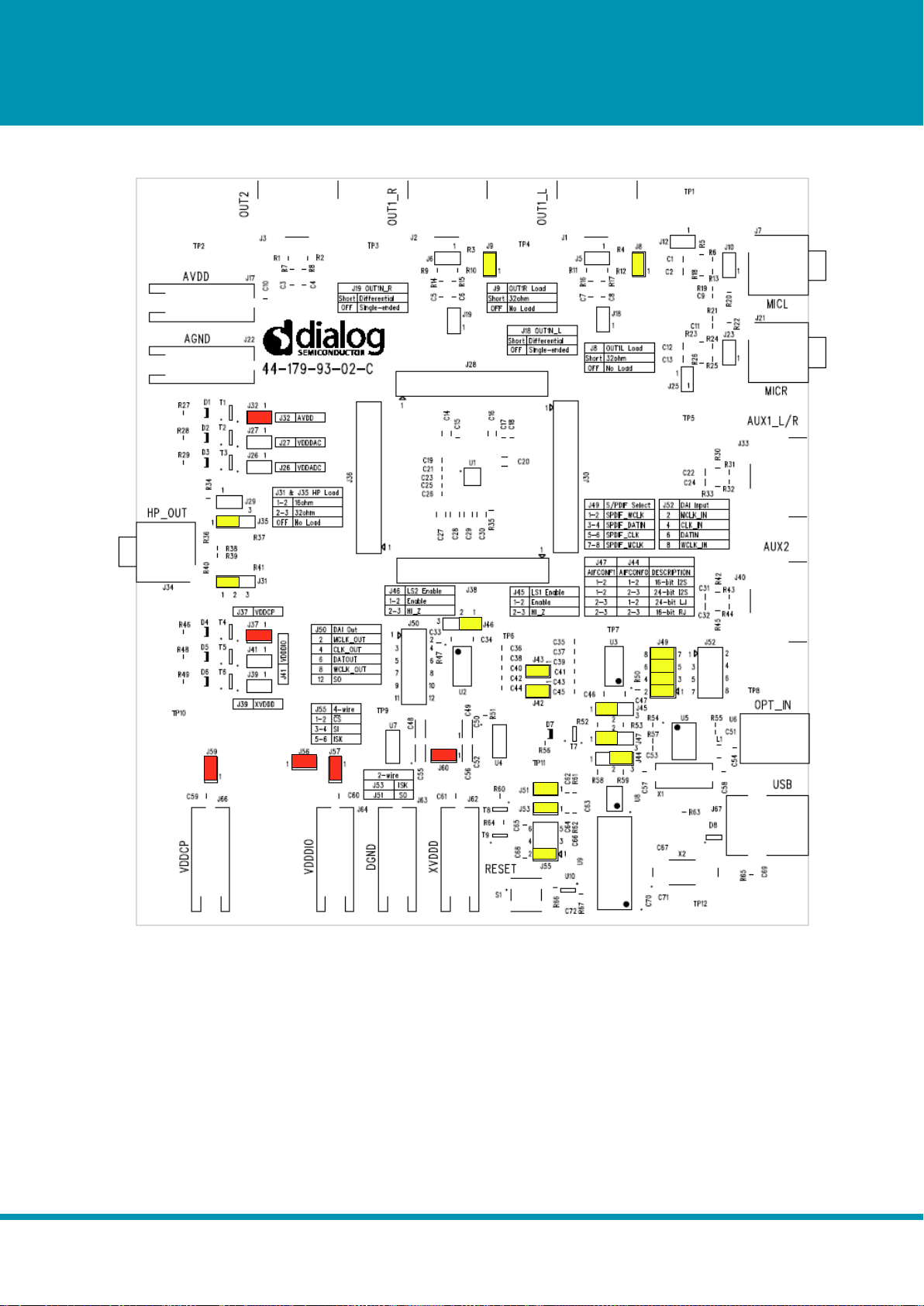

Figure 6 DA7210 Default Link locations

DA7210/11 User Manual Rev 2.9 - January 2022 10
© 2022 Renesas Electronics
DA7210/11 USER MANUAL
Figure 7 DA7211-00 Default Link Locations

DA7210/11 User Manual Rev 2.9 - January 2022 11
© 2022 Renesas Electronics
DA7210/11 USER MANUAL
Figure 8 DA7211-01 Default Link Locations

DA7210/11 User Manual Rev 2.9 - January 2022 12
© 2022 Renesas Electronics
DA7210/11 USER MANUAL
Figure 9 shows the locations of the jumper links when using the DA7210 with external power supplies
to AVDD J66, VDDCP J17, XVDDD J62 and VDDDIO J64. The digital audio interface jumpers are set
to receive a TOSLINK input and should be removed to accept other external I2S clocks at J52.

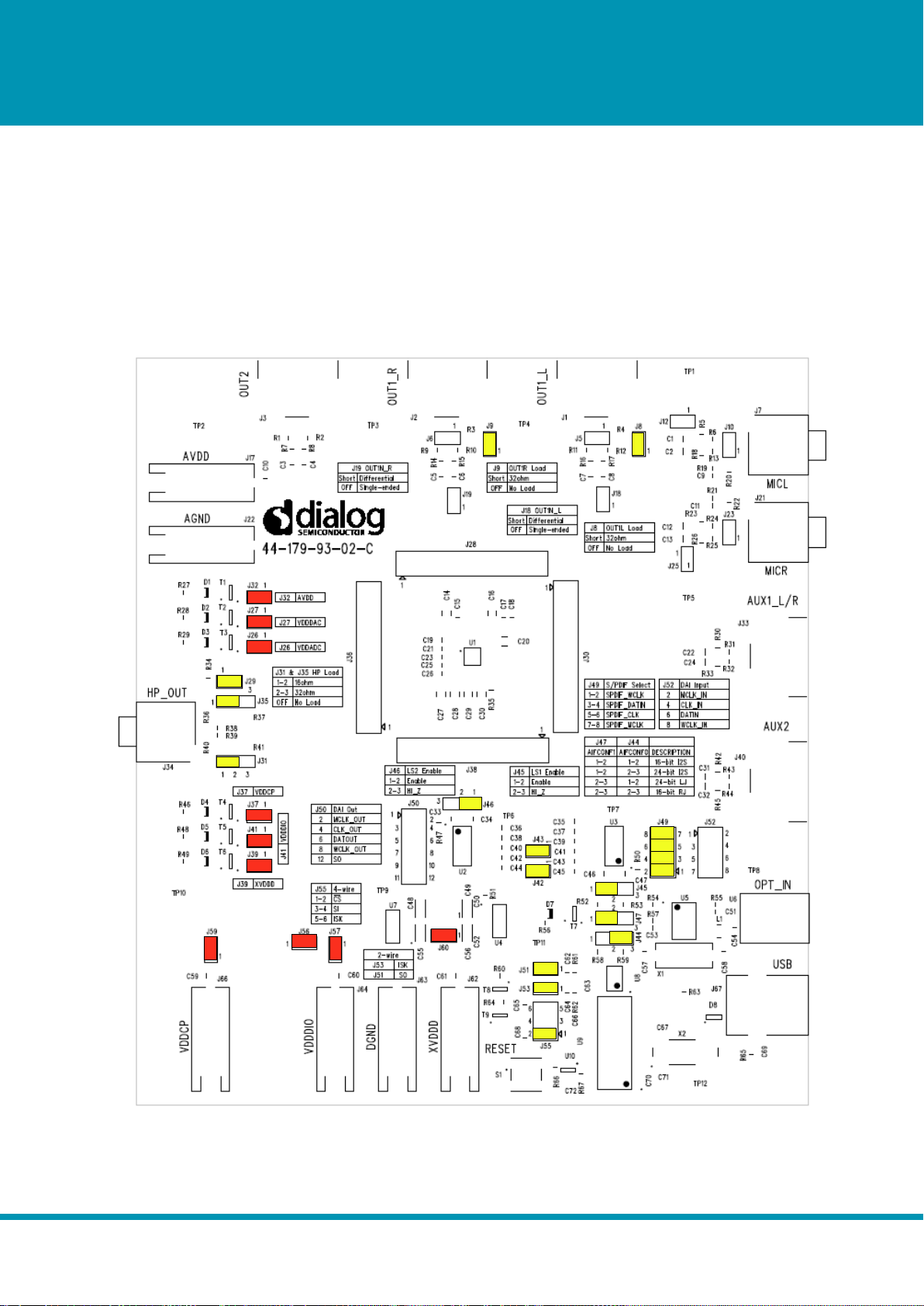

Figure 9 External Power Supply Jumper Configuration

DA7210/11 User Manual Rev 2.9 - January 2022 13
© 2022 Renesas Electronics
DA7210/11 USER MANUAL
3 Evaluation Board Features
3.1 USB Interface
The USB Interface is used here for the following purposes:
As a source of I2C and SPI control signals.
To provide a discrete signal to the power down pin PD (DA7210 only).
To provide level shifting voltages.
To allow standalone operation of the evaluation board using the +5Vdc USB power supply
only.
The USB control signal device is powered by the USB bus cable via a fixed +3.3Vdc regulator.
The USB interface control signals can be isolated from rest of the evaluation board by removing J51,
J53 and J55 described in Table 1. Removing these jumpers will allow external signal access to the
DA7210 control interface. The USB interface can also be used to supply the power supplies to the
DUT on the evaluation board.
The USB Interface implements multi-mastering on its I2C interface, permitting concurrent operation
with any other multi-mastering controller. This allows the software to control a DA7210/11 device
which is already part of the users system, and under control of the system processor.
4 Control Software
4.1 Installation
Insert the DVD-ROM containing the software into the controlling PC. If the installation does not start
automatically, run the program ‘setup.exe’ from the DVD-ROM containing the software. An automated
script will install the program to your PC. By default, the directory ‘C:\ProgramFiles\Dialog
Semiconductor\Audio\DA7210 Rev x.x’ will be used.
As Windows Vista imposes limitiations on the ‘C:\Program Files’ directory, change this default to
‘C:\Dialog Semiconductor\Audio\DA7210 Rev x.x’ when prompted.

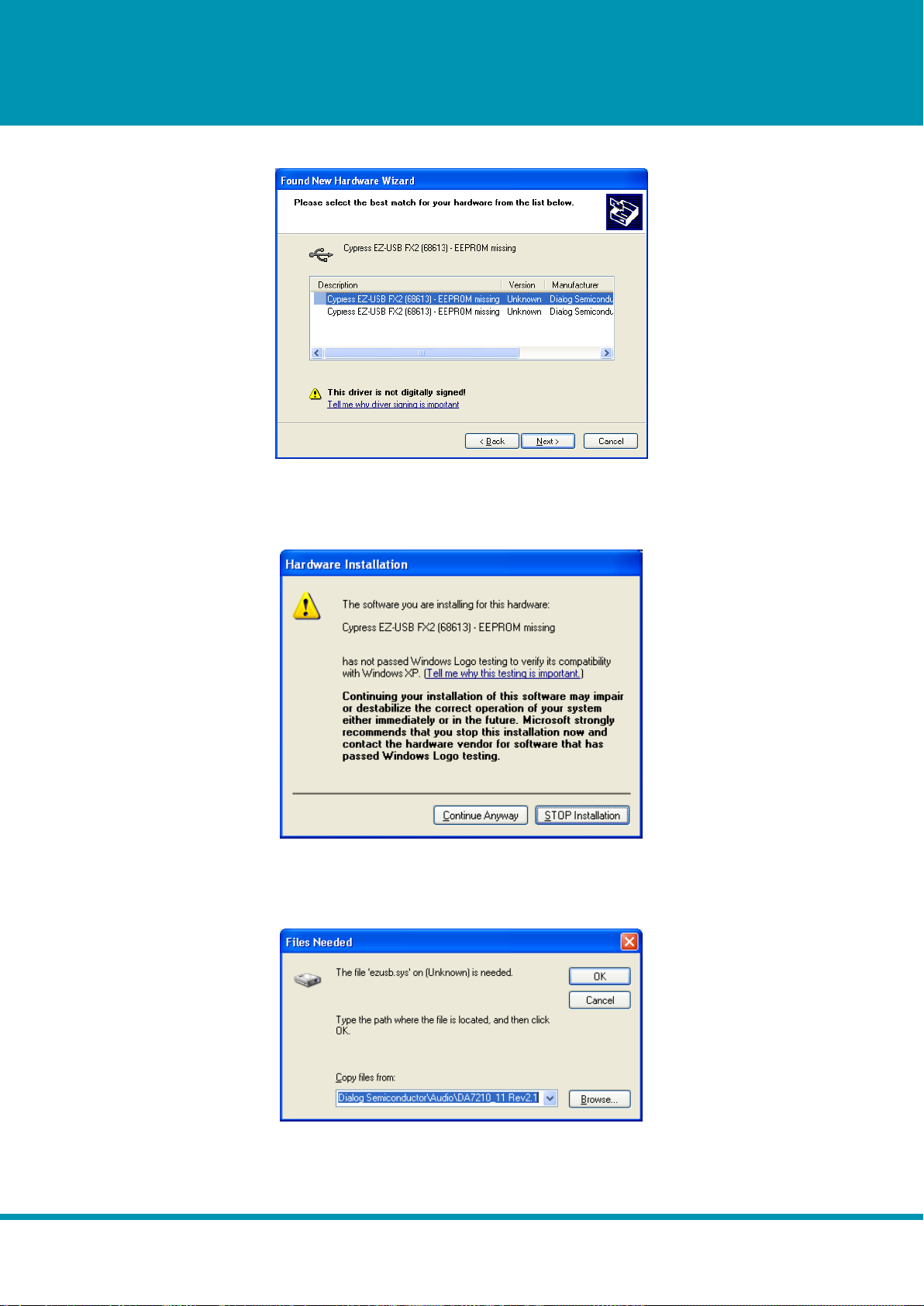

Plug in the USB cable, and Windows will detect the USB device. It will prompt for the drivers, which
should be automatically located on the root directory of the DVD-ROM. The setup file is '’dlgezusb.inf’
and the following description explains how to install the driver.
Select No, not this time and press Next >

DA7210/11 User Manual Rev 2.9 - January 2022 14
© 2022 Renesas Electronics
DA7210/11 USER MANUAL
Select Install from a list or specific location (Advanced) and press Next >
Select Browse and locate the folder
C:\Program Files\Dialog Semiconductor\Audio\DA7210_11 Rev x.x

DA7210/11 User Manual Rev 2.9 - January 2022 15
© 2022 Renesas Electronics
DA7210/11 USER MANUAL
Select dlgezusb.inf and press Next >
Press Continue Anyway
Select Browse and locate C:\Program Files\Dialog Semiconductor\Audio\DA7210_11 Rev x.x then
press OK

DA7210/11 User Manual Rev 2.9 - January 2022 16
© 2022 Renesas Electronics
DA7210/11 USER MANUAL
Select Finish
If you are using Windows XP, you may get a message saying that a USB2 device is attached to a
USB1.1 port. This can safely be ignored.
To uninstall the software please use the Windows ‘Add/Remove Programs’ function that can be found
under ‘Start->Settings->Control Panel’.
4.2 Set-up Files
4.2.1 Text File
The DUT registers can written to by submitting a text file containing the register values; Figure 10
shows an example file. Only the data in the first three columns is required: register, data, R/W; other
comments, such as those shown in the example, will be ignored. Lines of text that do not follow
register write entries should be preceded by // in order that the line is ignored when reading the text
file.
The text file can be created by saving the first three columns of the template spreadsheet file above
as a text file or can be created from scratch; it is only necessary for the text file to contain the
registers required for set up all others can be omitted.
To add a delay in the file the register value is entered as Delay followed by the delay time require in
milliseconds. The example in Figure 10 shows a 100ms delay added as the third entry.

DA7210/11 User Manual Rev 2.9 - January 2022 17
© 2022 Renesas Electronics
DA7210/11 USER MANUAL
Figure 10 Text Set-up File
A selection of text files can be found on the DVD containing the register control software setup files.
4.2.2 Spreadsheet File
The register settings can be prepared using a spreadsheet file template provided, Figure 11, and
saved as a tab delimited text file like Figure 10. The only bits that can be altered on the spreadsheet
are the individual register bits in columns G to N and the R/W bit in column O. If any of these bits are
set to 1 the bit will be highlighted in green on the register map. If the bit default setting is 1 and the bit
value is changed to 0 then the register map bit will be highlighted in grey. This highlighting allows
easy visual reference to the register changes from the default settings.

DA7210/11 User Manual Rev 2.9 - January 2022 18
© 2022 Renesas Electronics
DA7210/11 USER MANUAL
Figure 11 Spreadsheet Set-up File

DA7210/11 User Manual Rev 2.9 - January 2022 19
© 2022 Renesas Electronics
DA7210/11 USER MANUAL
4.3 Control Panels
Run the DA7210/11 program by clicking the shortcut on the appropriate item in the Start menu. The
best setting for the PC display size is 1024x768 pixels or above. Font size on the PC display should
be Normal (95dpi). It is important to note that a display size other than the recommended setting may
affect the way in which the panels appear.
4.3.1 Front Panel
The front panel allows selection of a number of methods for programming the registers of the DUT.
Submit a text file template, which allows register sequencing and time delays to be added.
Select register map page 0 for individual register read/write access.
Select register map page 1 for individual register write access.
Select general purpose filters register map for individual register write access.
Open a panel to access the volume control registers for real time volume control.
Direct read/write access to a single register.
Figure 12 Front Panel
Any file path required can be opened using the ‘…’ button to the right of the corresponding text box,
but it must then be submitted or saved using the submit button to the left of the corresponding text
box.
