Renishaw SPA3 User manual

SPA3 installation guide
Documentation part number: H-1000-7566-02-A
SPA3 installation guide
www.renishaw.com
Issued 01 2018
1

General information
©20132017Renishawplc.Allrightsreserved.
This document may not be copied or reproduced in whole or in part, or transferred to any other media or language, by any means, without
the prior written permission of Renishaw.
The publication of material within this document does not imply freedom from the patent rights of Renishaw plc.
Disclaimer
RENISHAW HAS MADE CONSIDERABLE EFFORTS TO ENSURE THE CONTENT OF THIS DOCUMENT IS CORRECT AT THE
DATE OF PUBLICATION BUT MAKES NO WARRANTIES OR REPRESENTATIONS REGARDING THE CONTENT. RENISHAW
EXCLUDES LIABILITY, HOWSOEVER ARISING, FOR ANY INACCURACIES IN THIS DOCUMENT.
Trademarks
RENISHAW® and the probe emblem used in the RENISHAW logo are registered trademarks of Renishaw plc in the UK and other
countries.
apply innovation is a trademark of Renishaw plc.
All brand names and product names used in this document are trade names, service marks, trademarks, or registered trademarks of their
respective owners.
Windows XP, Windows 2000, Vista, Windows 7 and Windows 10 are registered trade names of the Microsoft Corporation.
All trademarks and trade names are acknowledged.
WEEE
The use of this symbol on Renishaw products and/or accompanying documentation indicates that the product should not be mixed with the
general household waste upon disposal. It is the responsibility of the end user to dispose of this product at a designated collection point for
waste electrical and electronic equipment (WEEE) to enable reuse or recycling. Correct disposal of this product will help save valuable
resources and prevent potential negative effects on the environment. For more information, please contact your local waste disposal
service or Renishaw distributor.
Warranty
Renishaw plc warrants its equipment for a limited period (as set out in our Standard Terms and Conditions of Sale) provided that it is
installed exactly as defined in associated Renishaw documentation.
Prior consent must be obtained from Renishaw if non-Renishaw equipment (e.g. interfaces and/or cabling) is to be used or substituted.
Failure to comply with this will invalidate the Renishaw warranty.
Claims under warranty must be made from authorised service centres only, which may be advised by the supplier or distributor.
SPA3 installation guide
www.renishaw.com
Issued 01 2018
2

Care of equipment
Renishaw probes and associated systems are precision tools used for obtaining precise measurements and must therefore be treated
with care.
Changes to Renishaw products
Renishaw reserves the right to improve, change or modify its hardware or software without incurring any obligations to make changes to
Renishaw equipment previously sold.
Packaging
To aid end user recycling and disposal the materials used in the different components of the packaging are stated here:
Packaging component Material 94/62/EC code 94/62/EC number
Outer box Cardboard - 70% recycled content PAP 20
Packing foam Polypropylene PP 5
Packing foam Cross-linked polyethylene LDPE 4
Plastic bags Low density polyethylene bag LDPE 4
SPA3 installation guide
www.renishaw.com
Issued 01 2018
3

EU declaration of conformity
Contact Renishaw plc or visit www.renishaw.com/productcompliance for the full EU declaration.
SPA3 installation guide
www.renishaw.com
Issued 01 2018
4

FCC (USA only)
Information to user (47CFR section 15.105)
This equipment has been tested and found to comply with the limits for a class A digital device, pursuant to part 15 of the FCC rules. These
limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
installation manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to
cause harmful interference, in which case you will be required to correct the interference at your expense.
Information to user (47CFR section 15.21
The user is cautioned that any changes or modifications not expressly approved by Renishaw plc or authorised representative could void
the user's authority to operate equipment.
SPA3 installation guide
www.renishaw.com
Issued 01 2018
5

Safety
NOTE:Forambienttemperaturesunder40°CthemaximumoutputpowerfortheSPA3is800W.Fortemperaturesbetween40°C
and50°Cthemaximumpoweris400W.
WARNING:SPA3isnotrecommendedforuseinambienttemperaturesabove50°C.
WARNING: Earthing provisions for the complete machine is the responsibility of the OEM or installer.
WARNING: SPA3 is isolated from the power supply by disconnection of the ac power connector from the external PSU. If any
additional means of isolation is required, it must be specified and fitted by the machine manufacturer or the installer of the product.
The isolator must be sited within easy reach of the CMM operator and comply with IEC61010 and any applicable national wiring
regulations for the country of installation.
WARNING: The PSU must be single fault tolerant, approved to EN60950-1 and must be connected to a supply incorporating a
protective earth conductor. Earthing provisions and residual fault protection for the complete machine is the responsibility of the OEM
or installer.
Machine safety
WARNING: Switching off or isolating the SPA3 may NOT prevent unexpected machine movement. The user is advised to isolate the
machine from the electricity supply, compressed air or other energy sources in accordance with the machine manufacturer's
instructions before entering the danger zone or performing any maintenance operations.
If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired.

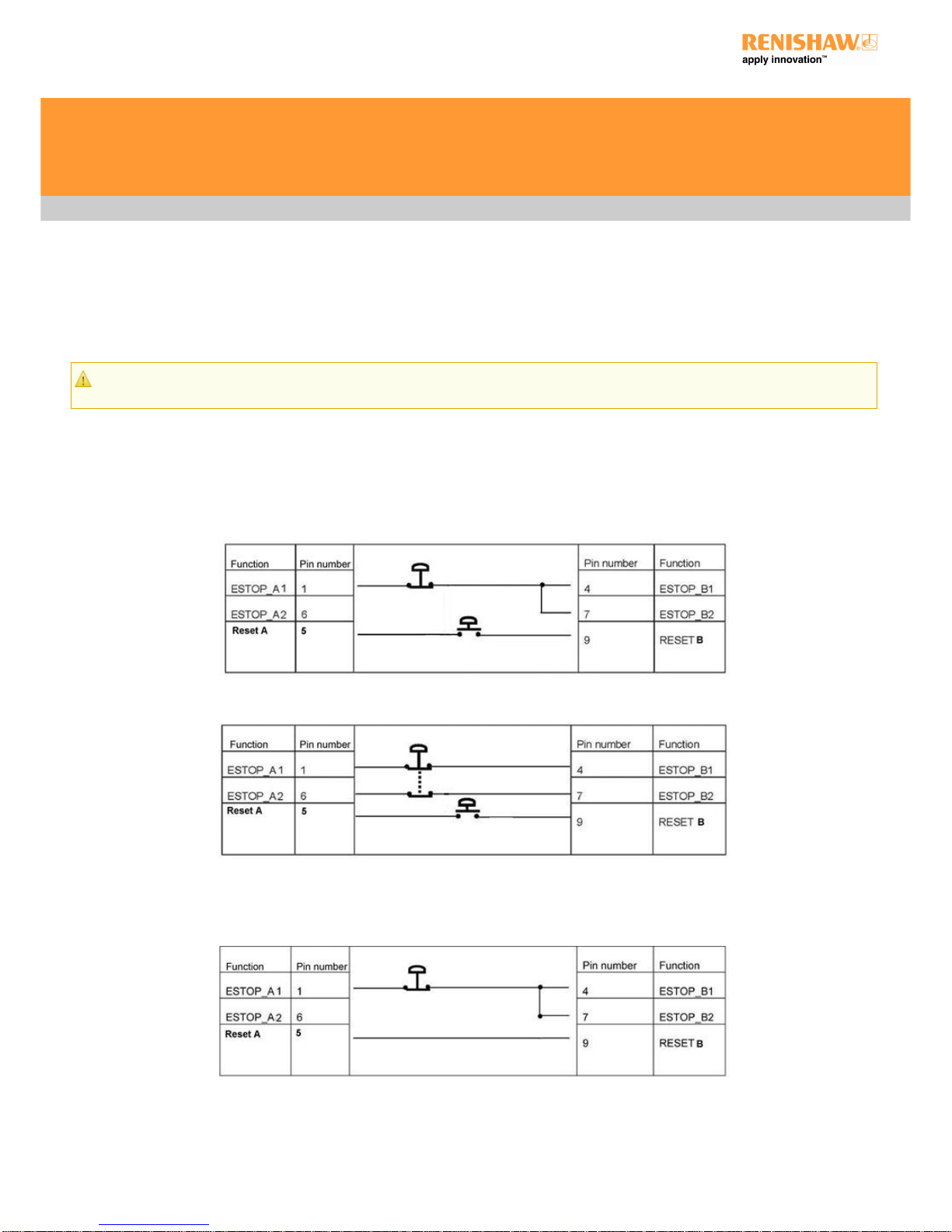

The emergency stop safety system that has been integrated into the SPA3 is designed to achieve category 2 to standard BS EN
ISO13849-1:2008. This can be hardware configured to obtain category B. The risk assessment made by the system installer on the
installation should therefore have determined which category is required.
CAUTION: It is strongly recommended that the CMM manufacturer or retrofitter includes a periodic test of the emergency stop and if
fitted, the associated reset switch in their maintenance instructions.
The SPA3 must only be commissioned through Renishaw software. Failure to do so may result in unexpected machine movement.
SPA3 installation guide
www.renishaw.com
Issued 01 2018
6

Environmental conditions
Indoor use IP30* (BS EN60529:1992)
Altitude Up to 2000 m
Operating temperature +5°Cto+50°C
Storage temperature 25°Cto+70°C
Relative humidity 80%maximum(noncondensing)fortemperaturesupto+31°C
Lineardecreaseto50%at+40°C
Transient voltages Installation category II
Pollution degree 2
*It may be necessary to house SPA3 in a suitable electrical enclosure according to the installation's environmental conditions to obtain a
higher IP rating.
SPA3 installation guide
www.renishaw.com
Issued 01 2018
7

SPA3 system overview
SPA3 is a servo power amplifier with enhancements for higher power and category 2 E-STOP.
SPA3 can be used with UCC2, UCC2-2 and UCC T5 and have different connection requirements.
The high power capability combined with a compact form enables use of the SPA3 across a wide range of machines.
The SPA3 CMM amplifier has the capability of:
Powering three axes of a CMM
Accepting input signals from air pressure, crash detection and all axis inner and outer travel limit switches (not connected when used
with UCC2 / UCC2-2)
Accepting two uncommitted general purpose input signals and generating one uncommitted general purpose output signal (not
connected when used with UCC2 / UCC2-2)
Directly supporting the TP1, TP2, TP6 and TP20 touch-trigger probes (not connected when used with UCC2 / UCC2-2)
Providing a +24 V supply for use by the CMM switches (not connected when used with UCC2 / UCC2-2)
The SPA3 supports the MCUlite-2 joystick, it can also support the MCU5, MCU5-2, MCU W and MCU W-2 (not connected when used
with UCC2 / UCC2-2)
Providing power output of up to 800 W continuous and 960 W for up to 1 second
Setting the voltage of each axis is independent allowing differing motor voltages to be used without damage
Supporting dc motors in the range 12 V to 80 V and currents up to 10 A
Supporting encoder / tacho or linear encoders (torque mode) for velocity feedback
Simulating linear power amplifier - drive outputs are free from switching edges eliminating noise from drive PWM, improving
repeatability and reducing emissions
Providing category 2 E-STOP
SPA3 installation guide
www.renishaw.com
Issued 01 2018
8

SPA3 installation software
The SPA3 is supported in UCCsuite version 4.4.6 software or later. The software can be obtained online at
www.renishaw.com/cmmsupport or from your local Renishaw supplier. Follow the prompts to install the UCCserver software.
CAUTION: Do not power down the SPA3 when the parameters or firmware is being updated. This can cause an error that requires
the unit to be returned to Renishaw.
UCCassist-2
The Renishaw UCCassist-2 program is a utility to assist the engineer to install, commission and maintain a UCC controlled CMM.
Capabilities of the software include:
Basic machine system diagnostics
Operation with Renishaw's machine checking gauge, enabling the user to complete frequent volumetric accuracy tests to ensure the
CMM is running within the specified operational tolerances
Automated CMM error mapping routines, when used in conjunction with the Renishaw ML10 or XL80 laser systems
SPA3 installation guide
www.renishaw.com
Issued 01 2018
9

SPA3 system components
The part numbers of the SPA3 kits are:
Kit Part number
SPA3 amplifier kit 1 comprising of:
SPA3 amplifier
PSU 600 W 48 V to 58 V (medium / large machines)
A-5518-2550
A-5518-2500
A-5518-0025
SPA3 for use with UCC2-2 A-5629-0100
SPA3 A-5629-0200
SPA3 5-axis A-5629-0300
Accessories Part number
PSU 600 W 48 V to 58 V (medium / large machines) A-5518-0025
Connector kit A-5518-0010
Bracket kit A-5518-0005
E-STOP cable required for UCC2 or UCC2-2 A-5629-0090
SPA3 installation guide
www.renishaw.com
Issued 01 2018
10

General wiring standards for the installation of the SPA3
To achieve reliable operation of the SPA3 plus UCC, the following should be observed:
The PSU must be single fault tolerant, approved to EN60950-1 and must be connected to a supply incorporating a protective earth
conductor (earthing provisions and residual fault protection for the complete machine are the responsibility of the OEM or installer)
The system must be PAT tested before the equipment is powered
All signal cables MUST be screened and all cable screens should be connected electrically to the cable connector's metal shells
It is recommended that screens for motor cables should be connected to the shell on the SPA3 end and connected to the motor housing
at the CMM end
Signal cables such as tacho and scale cables should be connected to the SPA3 and have a cable shield that runs to the machine but is
left unconnected at the machine end
Please refer to appropriate product installation guides when installing other Renishaw components
Supply and motor cables that are used to connect the SPA3 to the CMM (that are not data cables) must have a minimum cross section
of 0.3 mm2 (as specified in EN 60204-1 para.12.6.)
SPA3 has a maximum voltage of 80 Vdc and peak current is 10 A (the actual peak current will be dependent on the size of the motor
fitted and how hard it needs to be driven, so cable sizes need to be calculated by the system installer)
All cable connectors should be secured to the SPA3 by the connector jack screws.
The power input to the SPA3 is via a 3W3 connector; refer to the Connector and signals section for more information.
SPA3 power requirements
The SPA3 amplifier requires 30 W of power to operate. This must be factored into the power supply used.
SPA3 installation guide
www.renishaw.com
Issued 01 2018
11

Installation
Mounting the SPA3
The SPA3 unit draws air from the right hand side when viewed from the front and expels air out of the left hand side. A minimum clearance
gap of 10 mm is necessary between the sides of the unit and any potential obstruction. The dimensions shown on the above drawing are in
mm (in).
Fitting mounting brackets (optional)
NOTE:ThescrewssuppliedwiththiskitareM5×6mmcountersinktype.
SPA3 installation guide
www.renishaw.com
Issued 01 2018
12

System connection
Earth bonding scheme
SPA3 installation guide
www.renishaw.com
Issued 01 2018
13

Installation for 4 - 6 axes
Key Description Key Description
1Head cable 624 V power supply (supplied)
2CAT 5 300 mm cable (supplied) 725 V - 80 V power supply (not supplied)
316 / 0.2 mm earth connection 8E-STOP link cable (supplied)
4MCU connection 9TEC input
5CAT 5 ethernet cable (5 m cross-over cable supplied) to host PC
The head and CMM system are operated through UCCserver which uses I++DME command protocol to communicate between the system
application software and the UCC.
Full 5-axis scanning capability is achieved through interaction between the UCC, the head and the SPA3, to co-ordinate all the motion and
metrology aspects across the three CMM axes and the two head axes.
SPA3 installation guide
www.renishaw.com
Issued 01 2018
14

Connectors and signals for the SPA3

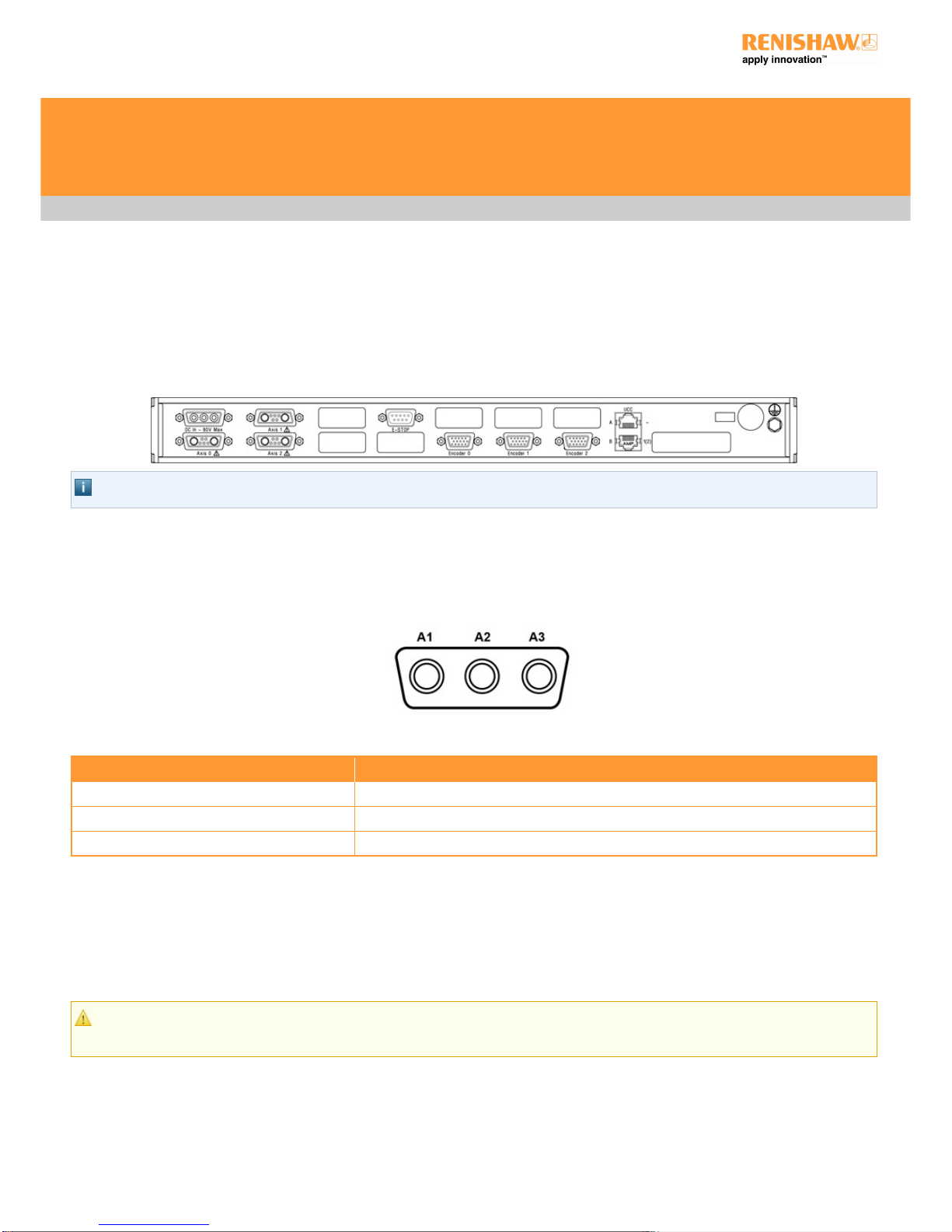

Rear panel
The connectors on the rear panel of the SPA3 controller enclosure are shown below:
NOTE: Do not remove the blanking plugs when used in conjunction with UCC2 or UCC2-2.
DC power in
3W3 socket. The SPA3 is powered from an external dc power source through this connector. This and all other connectors and shells can
be purchased in a connector kit from Renishaw (part number A-5518-0010).
Pin no. Function
A1 0 V
A2 24 V to 80 Vdc
A3 Reserved
DC power specification
•Voltage24Vto80Vdc
•Currentinputto10A
The SPA3 requires 30 W of power to support the controller functions integrated into the unit. This must be factored into the power supply
used.
CAUTION:Forambienttemperaturesbetween40°Cand50°C,themaximumoutputpowershouldbe400W.SPA3isnot
recommendedforuseinambienttemperaturesabove50°C.
SPA3 installation guide
www.renishaw.com
Issued 01 2018
15

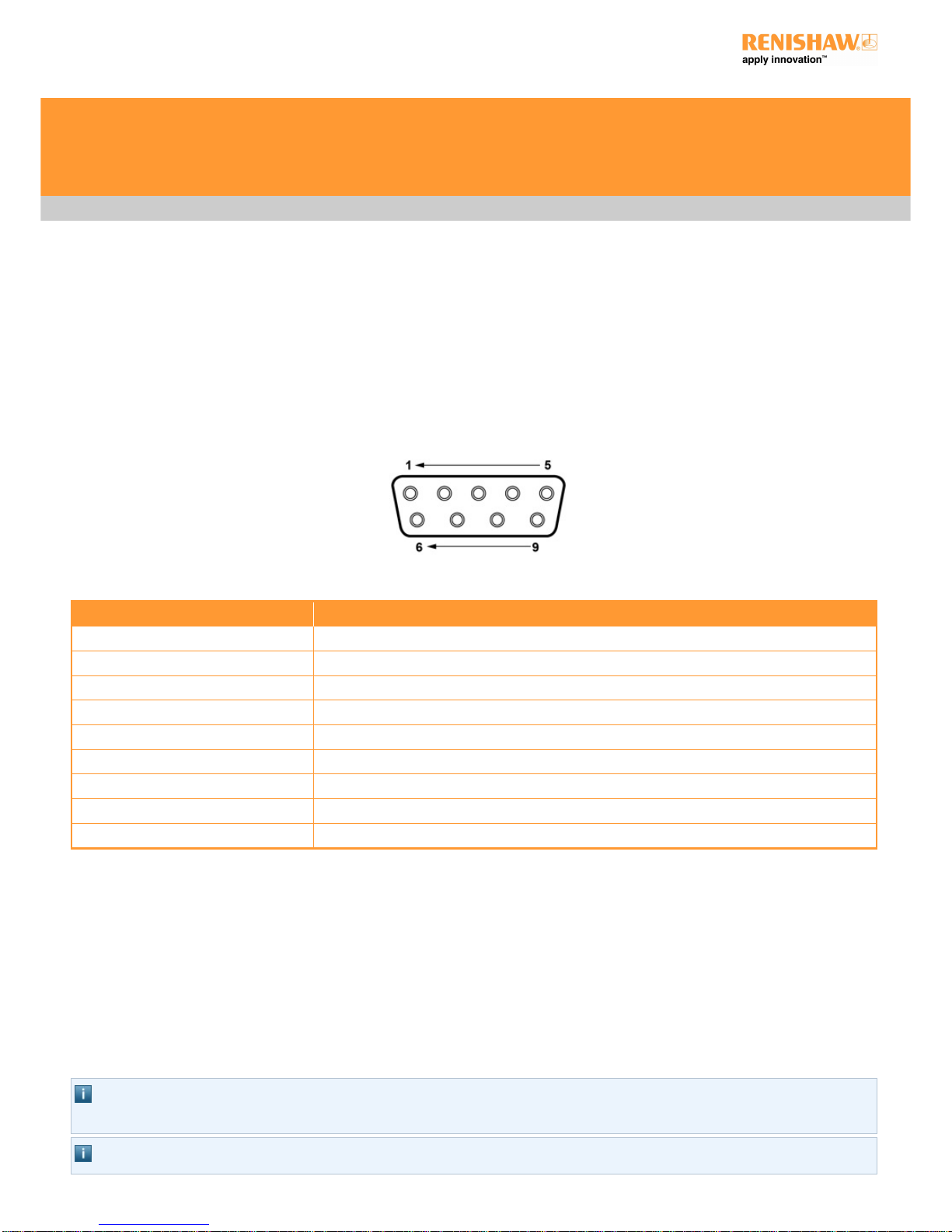

"Axis0, Axis1 and Axis2" motor drive connectors (7w2 D socket)
Each motor connection is a 7W2 connector for connection of a CMM motor to the SPA3,as shown below:
Pin no. Function
A1 Positive motor connection (default)
A2 Negative motor connection (default)
1Positive tacho input (default)
2* Negative tacho input
3(tacho) screen
4* Negative tacho input
5(tacho) screen
Shell Screen (motor)
The table shows the default polarity configurations for all pins.
NOTE: * The motor and tacho polarities on the SPA3 are software configured during the installation process. The maximum tacho
voltage is 100 V. If one terminal of the tacho is grounded the maximum voltage is reduced to 18 V. It is recommended that a
differential tacho is used.
CAUTION: The SPA3 motor connections must be blanked off if not being used to prevent accidental contact which could result in an
electric shock.
SPA3 installation guide
www.renishaw.com
Issued 01 2018
16

MCU connector (9-pin 'D' plug)
This connector is supplied pre-blanked for use with UCC2 or UCC2-2.
Remove the blanking plug AND jumper between pin 8 and 9 when installing with any other controller.
This is a 9-pin D-plug suitable for direct connection to the MCUlite-2, MCU5, MCU5-2, MCU W or MCU W-2 joystick.
Pin no. Function
1Ground
2RX_B
3RX_A
4TX_A
5Reserved
6+12 V
7TX_B
8E-STOP_B
9E-STOP_A
Shell Screen
SPA3 installation guide
www.renishaw.com
Issued 01 2018
17

E-STOP (9-pin 'D' plug)
The E-STOP connector is provided to allow connection of an external EMERGENCY STOP switch into the SPA3. The machine
manufacturer or product installer must perform a risk assessment to determine the requirements for emergency stopping and emergency
switching off. The SPA3 emergency stop safety system is designed to achieve category 2 or category B implementation as selected by
the installer's risk assessment (refer to BS EN ISO13849-1:2008 para. 5.2.2.).
The connection on the SPA3 is a 9WD plug connector with the following connections:
Pin no. Function
1E-STOP A1 (+24V)
2Not connected
30V
4E-STOP B1
5E-STOP RESET "A"
6E-STOP A2 (+24V)
7E-STOP B2
8Not connected
9RESET "B"
E-STOP electrical characteristics
Any emergency stop components fitted to this connector must have the following electrical characteristics:
Emergency stop system voltage : 24 V
Emergency stop system current : 300 mA max
All connections to this connector should be fitted by a competent technician or engineer and all wires should be sleeved. Any emergency
stopdevicesaddedtotheESTOPchainshouldmeettherequirementsofIEC6094751(Lowvoltageswitchgearandcontrolgear–Part
51:Controlcircuitdevicesandswitchingelements–Electromechanicalcontrolcircuitdevices)orUL1054(Standardforspecialuse
switches).
NOTE: If there are no additional emergency stop devices to be added to the system, connect pin 1 to pin 4, and pin 6 to pin 7 to
permit the SPA3 emergency stop switch to function.
NOTE: If the RESET signal is not used connect pin 5 (RESET "A") to pin 9 (RESET "B").
SPA3 installation guide
www.renishaw.com
Issued 01 2018
18

Ifindicatedbytheuser'sriskassessment,a‘manualreset'button(refertoBSENISO138491:2008para.5.2.2.)shouldbeincludedinthe
emergency stop system. A reset switch is required when there is limited visibility of the danger zone from the control position. The reset
switch must be positioned outside the danger zone and in a safe position from which it may be determined that no person is within the
danger zone before resetting the safety system.
CAUTION: It is strongly recommended that the CMM manufacturer or retrofitter includes a periodic test of the emergency stop and, if
fitted, the associated reset switch in their maintenance instructions.
E-STOP with reset implementation
There are five methods of implementing the E-STOP circuit;
Single pole E-STOP button with reset
Dual pole E-STOP button with reset
E-STOP without reset implementation
Single pole E-STOP button without reset
SPA3 installation guide
www.renishaw.com
Issued 01 2018
19

Dual pole E-STOP button without reset
Bypass plug
UCC2-2 installations
UCC2-2 installations require a special E-STOP cable (part number A-5629-0090). This cable has three tails, all marked with their function
and must be installed as per the diagram below. All E-STOP schemes connect to the cable marked 'external E-STOP' including all bypass
plugs.
SPA3 installation guide
www.renishaw.com
Issued 01 2018
20
