Renogy E.FLEX 50 User manual

E.FLEX 50
PORTABLE
SOLAR PANEL
User Guide
Model: R50EF
- 01 -

TABLE OF CONTENTS
IMPORTANT SAFETY INSTRUCTIONS 03
PACKAGE CONTENTS 04
FEATURES 03
PRODUCT OVERVIEW 04
SPECIFICATIONS
OPERATIONS
05
05
TROUBLESHOOTING 08
WARRANTY 09
- 02 -

IMPORTANT SAFETY INSTRUCTIONS
FEATURES
- 03 -
Please read the User Guide carefully before operating your E.FLEX 50.
IMPORTANT SYMBOLS
Premium solar cells with an energy conversion efficiency of up to 21%~23% guarantee sufficient power
output in all daylight conditions.
HIGHLY EFFICIENT
The voltage switchable DC output port, USB port, and USB-C port are ready to charge smart phones, tablets,
and laptops. MC4 connectors are available for rechargeable power supplies.
UNIVERSAL COMPATIBILITY
Indicates potentially dangerous conditions that could result in personal injury
Indicates conditions or practices that could result in damages to the unit or other
equipment
Indicates procedures or functions that are important for proper and safe operation of
the unit and/or other equipment
CAUTION
CAUTION
DO NOT operate the unit if it has been smashed, pierced, or otherwise damaged in any way.
WARNING
WARNING
WARNING
WARNING
WARNING
WARNING
DO NOT disassemble the unit or remove any attached components. Incorrect reassembly
may result in a risk of fire or electric shock.
Keep the unit out of reach of children unless supervised by an adult.
DO NOT place the unit on a surface constructed from combustible material. Keep the unit
away from explosives and corrosive substances.
DO NOT store the unit near heat sources or apply direct heat to it.
The unit is designed to withstand splashes and spills but is not fully waterproof. DO NOT
submerge the unit in water or leave it in the rain.
CAUTION Dispose of the unit according to the local recycling and environmental regulations.
CAUTION DO NOT step, walk, stand, or jump on the unit. Localized heavy loads may cause variances
of micro-cracks on the solar cells, which will ultimately compromise the reliability of the unit.
CAUTION DO NOT bend the unit. Doing so may break the solar cells.
Please use a wet sponge or cloth to clean the unit as necessary. A mild, non-abrasive
cleaning agent can be used to remove grime and dirt.
NOTE
NOTE

PACKAGE CONTENTS
PRODUCT OVERVIEW
- 04 -
An intelligent chip automatically identifies connected devices and adjusts output current to offer the fastest
possible charging speed.
OPTIMIZED CHARGING
Industrial-strength PET polymers and rugged polyester canvas provide lasting durability to protect against
unpredictable weather conditions.
SUPERIOR DURABILITY
1 x Renogy E.FLEX 50 Portable Solar Panel
1 x MC4 to 5.5mm DC Adapter Cable
1 x 5.5mm DC to 5.5mm DC Power Cable
8 x 5.5mm DC Adapter Connectors
1 x User Guide
1
6
2
3
4
5
7
8
9
10

SPECIFICATIONS
OPERATIONS
Place the E.FLEX 50 under direct sunlight and adjust the angle for maximum exposure. Steer clear of
trees or branches that can shade the E.FLEX 50 and slow down the charging process.
1
2
3
4
5

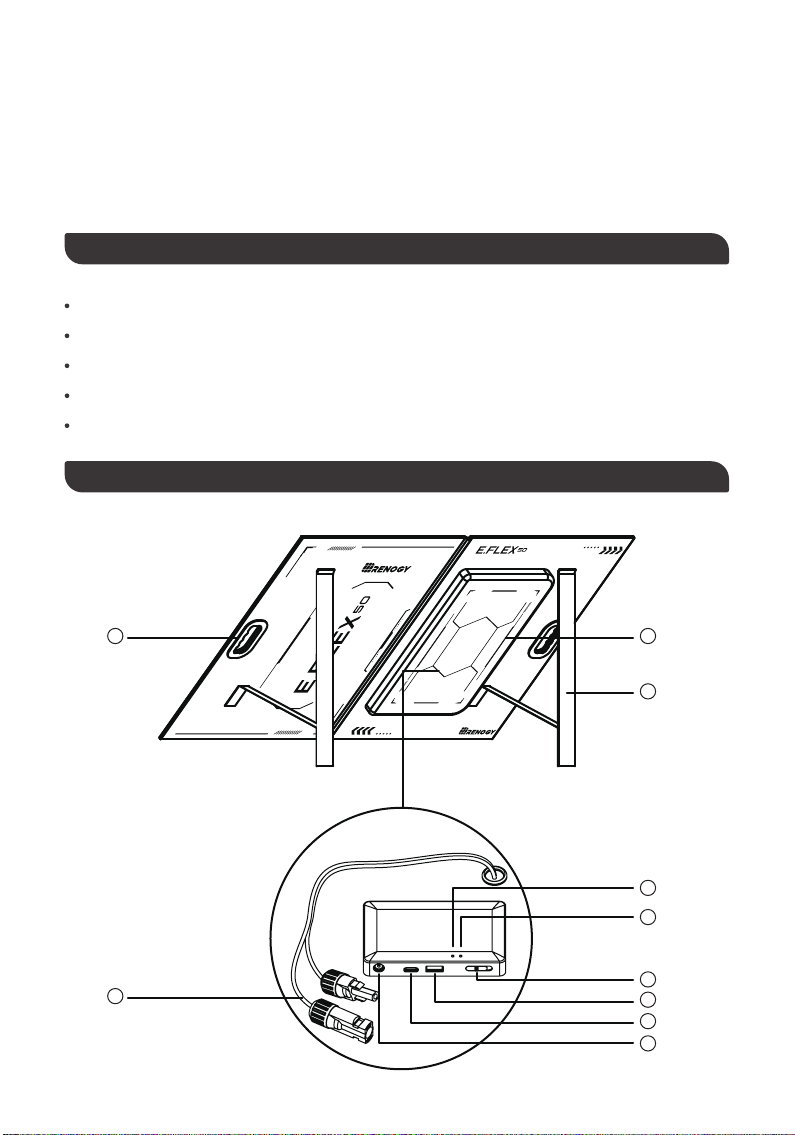

Handle
Pouch Bag
Kickstand
LED Indicator 1
LED Indicator 2
6
7
8
9
10
MC4 Connectors
DC Output Port
USB-C Port
USB-A Port
Slide Switch
General
Weight
Dimensions (Folded)
Dimensions (Unfolded)
5.25 lb. / 2.38 kg
19.9 x 16.1 x 0.8 inch / 506 x 408 x 20 mm
32.5 x 19.9 x 0.2 inch / 826 x 506 x 5 mm
Solar Panel
Rated Power
Open Circuit Voltage
Short Circuit Current
Optimum Operating Voltage
Optimum Operating Current
Solar Cell
50W
21.6V
3.04A
18V
2.77A
Monocrystalline
Output
DC Output Port
USB-A Port
USB-C Port
MC4 Connector
19V / 2.4A, 16V / 2.8A Max
5V / 2.4A Max
5V / 3A Max
18V / 2.77A Max

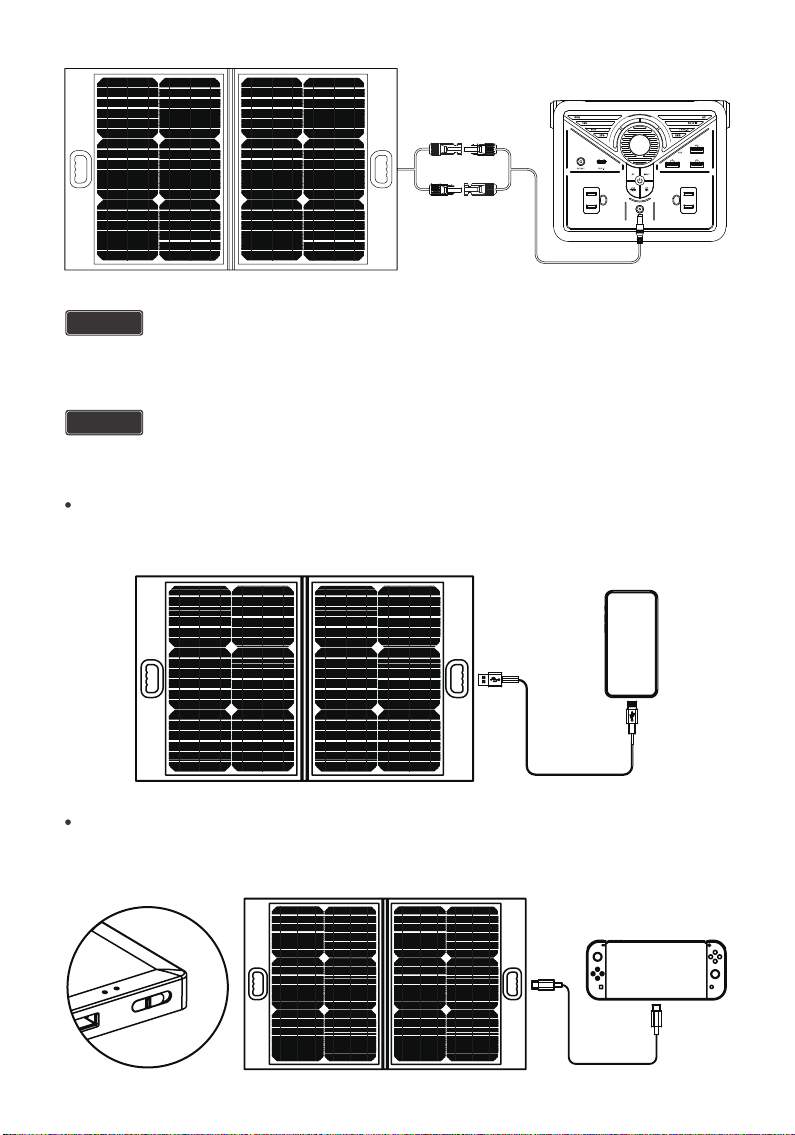

To charge PHOENIX 200/300 Power Stations, please connect the E.FLEX 50’s MC4 Connectors to the DC
Input Port of the PHOENIX 200/300 Power Station using the included MC4 to 5.5mm DC Adapter Cable.
The E.FLEX 50 will begin to charge the PHOENIX 200/300 Power Station automatically and one of the
Battery Level LED Indicators on the PHOENIX 200/300 Power Station will flash to indicate the current
battery level.
- 05 -

CAUTION Please place the PHOENIX 200/300 Power Station in the shade to prevent it from overheat-
ing.
The E.FLEX 50 can charge rechargeable power supplies from other manufacturers as long
as they accept 18V DC input. The included 5.5mm DC Adapter Connectors may be used with
the MC4 to 5.5mm DC Adapter Cable to connect the E.FLEX 50 to the rechargeable power
supply. Please follow the instructions provided by the manufacturer of the rechargeable
power supply.
NOTE
To charge smart phones, tablets, action cameras, or other USB enabled devices, please connect the
device to the E.FLEX 50’s USB-A Port using a USB charging cable (not included).
To charge handheld gaming consoles, DSLR cameras, or other USB-C enabled devices, please slide the
Slide Switch to the left position and connect the device to the E.FLEX 50’s USB-C Port using a USB-C
charging cable (not included).
- 06 -

CAUTION Please check the voltage rating of the laptop before charging it. DO NOT charge laptops with
voltage ratings other than 16V and 19V. Doing so may damage the laptop.
The USB-C Port of the E.FLEX 50 does not support the Power Delivery (PD) protocol and
cannot charge USB-C laptops.
NOTE
It is highly recommended to shut down the laptop or put it into sleep mode before charging it.
The DC Output Port of the E.FLEX 50 may turn on and off frequently if the laptop runs at full
capacity while charging.
NOTE

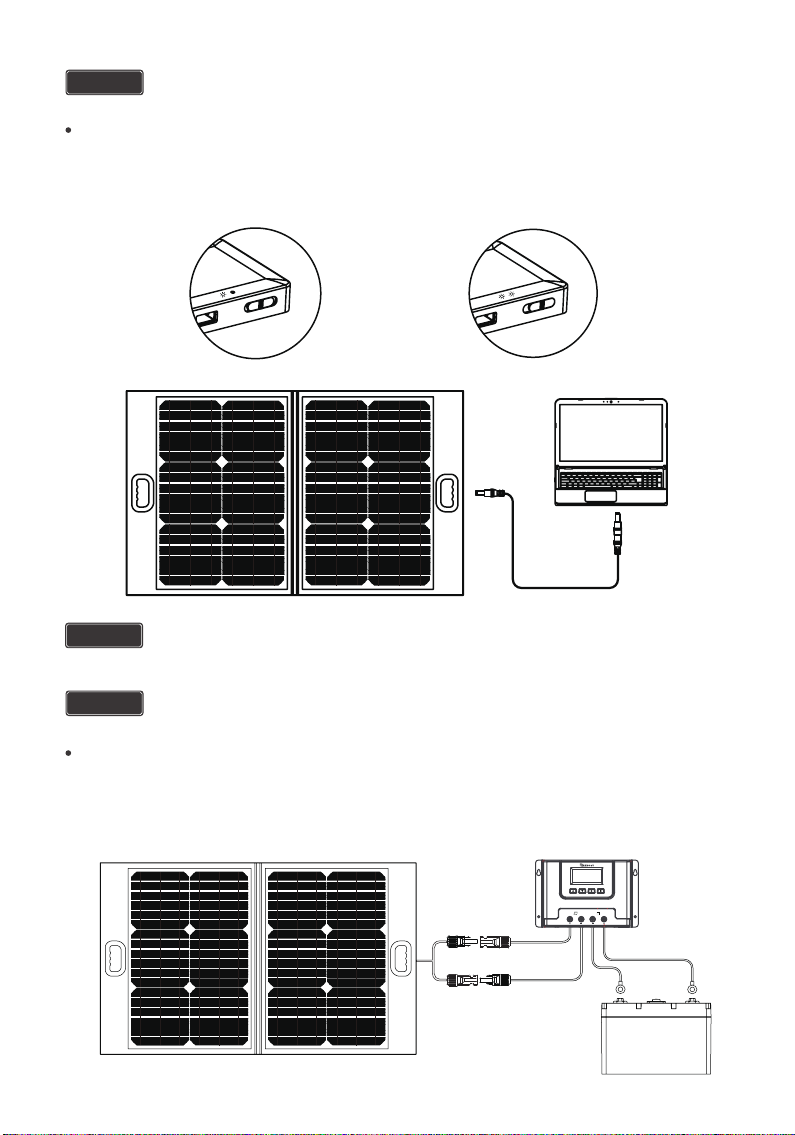

To charge laptops, please first select the output voltage of the DC Output Port based on the voltage rating
of the laptop. Slide the Slide Switch to the middle position for 16V DC output and the LED Indicator 1 will
illuminate blue. Slide the Slide Switch to the right position for 19V DC output and both the LED Indicator1
and LED Indicator 2 will illuminate blue. Then, connect laptop to the E.FLEX 50’s DC Output Port using the
included 5.5mm DC to 5.5mm DC Power Cable and 5.5mm DC Adapter Connectors.
To charge batteries, please first connect the MC4 Connectors of the E.FLEX 50 to the PV terminals of a
charge controller (not included) using adapter cables (not included). Then, connect the BATT terminals of
the charge controller to the battery terminals using tray cables (not included). Lastly, set the charging
parameters on the charge controller properly. The E.FLEX 50 will begin to charge the battery automatically
and the real-time battery level will be displayed on the LCD screen of the charge controller.
- 07 -
16V DC Output 19V DC Output

TROUBLESHOOTING
CAUTION DO NOT connect multiple E.FLEX 50 in series. Doing so may cause irreversible damage to
the E.FLEX 50.
To expand the output power, please connect multiple E.FLEX 50 in parallel by joining the female and male
MC4 Connectors of each E.FLEX 50 together with MC4 parallel branch connectors (not included).
If the E.FLEX 50 does not charge the device connected to it, please check the connection between the
E.FLEX 50 and the device. If all the connections are solid, please check if the Slide Switch is in the correct
position.
If the output port of the E.FLEX 50 turns on and off frequently during the charging process, please check
if the E.FLEX 50 is receiving enough sunlight and if the device is drawing a large amount of power from
the output port. The E.FLEX 50 cannot deliver more power to the device than the amount of solar power
it has captured.
If both the LED Indicator 1 and LED Indicator 2 illuminate red, one or more output ports of the E.FLEX 50
have been shut off due to over-current or short-circuit. Please connect only the devices that conform to the
specifications of output ports or remove the short circuit.
- 08 -

WARRANTY
RENOGY products are covered by a 12-month limited warranty from the original purchase date. If any
problems occur, please contact us for assistance. Refer to the last page of User Guide for contact informa-
tion.
We only provide after-sales services for products that are sold by RENOGY or retailers and distributors
authorized by RENOGY. If you have purchased your unit from other channels, please contact your seller
for more information about return and warranty.
Please register your purchase(s) directly at www.renogy.com/warranty-registration or your region’s
corresponding website so that we can stay in touch and contact you in the unlikely event that a safety
recall is required.
FCC Compliance：
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2) this device must withstand any interference received,
including interference that may cause undesired operation.
- 09 -
