1 History
Date
Editor
Description
22.07.16
DI HC Sigl
First version

RESI®
Titel:
Manual RESI-KNX-PS
Datum
Seite
Von
22.07.16
3
11
. Proprietary data, company confidential. All rights reserved. Confié à titre de secret d'entreprise. Tous droits réservés. Comunicado como segredo empresarial. Reservados todos os direitos. Confidado como secreto industrial. Nos reservamos todos los derechos. .
. Weitergabe sowie Vervielfältigung dieser Unterlage, Ver- wertung und Mitteilung ihres Inhalts nicht gestattet, soweit nicht ausdrücklich zugestanden. Zuwiderhandlungen ver- pflichten zu Schadenersatz. Alle Rechte vorbehalten, insbe- sondere für den Fall der Patenterteilung oder GM-Eintragung. .
2 Contents
1HISTORY.....................................................................................................................................................................2
2CONTENTS.................................................................................................................................................................3
3IMPORTANT SECURITY NOTES ..........................................................................................................................4
4GENERAL INFORMATION.....................................................................................................................................6
5MOUNTING AND CONNECTIONS........................................................................................................................8
5.1 ASSEMBLING .............................................................................................................................................................8
5.2 CLAMPS &LEDS.......................................................................................................................................................9
5.3 WIRING DIAGRAM....................................................................................................................................................10
6SPECIFICATIONS...................................................................................................................................................11
6.1 DIMENSIONS............................................................................................................................................................11

RESI®
Titel:
Manual RESI-KNX-PS
Datum
Seite
Von
22.07.16
4
11
. Proprietary data, company confidential. All rights reserved. Confié à titre de secret d'entreprise. Tous droits réservés. Comunicado como segredo empresarial. Reservados todos os direitos. Confidado como secreto industrial. Nos reservamos todos los derechos. .
. Weitergabe sowie Vervielfältigung dieser Unterlage, Ver- wertung und Mitteilung ihres Inhalts nicht gestattet, soweit nicht ausdrücklich zugestanden. Zuwiderhandlungen ver- pflichten zu Schadenersatz. Alle Rechte vorbehalten, insbe- sondere für den Fall der Patenterteilung oder GM-Eintragung. .
3 IMPORTANT SECURITY NOTES
Danger to life through electrical current!
Only skilled personal trained in electro-engineering should perform the described steps in the following
chapters. Please observe the country specific rules and standards. Do not perform any electrical work while the
device is connected to power.
Pay attention to the following rules:
1. Disconnect the system from power
2. Secure the system against automatic power on
3. Check that the system is de-energized
4. Cover other energized parts of the system
IMPORTANT HINT: Before you start with the installation and the initial setup of the device, you have to
read this document and the attached installation guide and the actual manual for the device very
carefully. You have to follow all the herein given information very accurate!
Only authorized and qualified personnel are allowed to install and setup the device!
The connection of the device must be done in de-energized state!
Do not perform any electrical work while the device is connected to power!
Disable and secure the system against any automatic restart or power on procedure!
The device must be operated with the defined voltage level!
Supply voltage jitters must not exceed the technical specifications and tolerances given in the technical
manuals for the product. If you do not obey this issue, the proper performance of the device cannot be
guaranteed. This can lead to fail functions of the device and in worst case to a complete breakdown of
the device!
You have to obey the current EMC regulations for wiring!
All signal, control and supply voltage cables must be wired in a way, that no inductive or capacitive
interference or any other severe electrical noise disturbance mayinterfere with the device. Wrong wiring
can lead to a malfunction of the device!
For signal or sensor cables you have to use shielded cables, to avoid damages through induction!
You have to obey and to apply the current safety regulations given by the ÖVE, VDE, the countries,
their control authorities, the TÜV or the local energy supply company!
Obey country-specific laws and standards!
The device must be used for the intended purpose of the manufacturer!
No warranties or liabilities will be accepted for defects and damages resulting from improper or incorrect
usage of the device!
Subsequent damages, which results from faults of this device, are excluded from warranty and liability!
Only the technical data, wiring diagrams and operation instructions, which are part to the product
shipment are valid!
The information on our homepage, in our datasheets, in our manuals, in our catalogues or published
by our partners can deviate from the product documentation and is not necessarily always actual, due
to constant improvement of our products for technical progress!
In case of modification of our devices made by the user, all warranty and liability claims are lost!
The installation has to fulfill the technical conditions and specifications (e.g. operating temperatures,
power supply, …) given in the devices documentation!
Operating our device close to equipment, which do not comply with EMC directives, can influence the
functionality of our device, leading to malfunction or in worst case to a breakdown of our device!

RESI®
Titel:
Manual RESI-KNX-PS
Datum
Seite
Von
22.07.16
5
11
. Proprietary data, company confidential. All rights reserved. Confié à titre de secret d'entreprise. Tous droits réservés. Comunicado como segredo empresarial. Reservados todos os direitos. Confidado como secreto industrial. Nos reservamos todos los derechos. .
. Weitergabe sowie Vervielfältigung dieser Unterlage, Ver- wertung und Mitteilung ihres Inhalts nicht gestattet, soweit nicht ausdrücklich zugestanden. Zuwiderhandlungen ver- pflichten zu Schadenersatz. Alle Rechte vorbehalten, insbe- sondere für den Fall der Patenterteilung oder GM-Eintragung. .
Our devices must not be used for monitoring applications, which solely serve the purpose of protecting
persons against hazards or injury, or as an emergency stop switch for systems or machinery, or for any
other similar safety-relevant purposes!
Dimensions of the enclosures or enclosures accessories may show slight tolerances on the
specifications provided in these instructions!
Modifications of this documentation is not allowed!
In case of a complaint, only complete devices returned in original packing will be accepted!

RESI®
Titel:
Manual RESI-KNX-PS
Datum
Seite
Von
22.07.16
6
11
. Proprietary data, company confidential. All rights reserved. Confié à titre de secret d'entreprise. Tous droits réservés. Comunicado como segredo empresarial. Reservados todos os direitos. Confidado como secreto industrial. Nos reservamos todos los derechos. .
. Weitergabe sowie Vervielfältigung dieser Unterlage, Ver- wertung und Mitteilung ihres Inhalts nicht gestattet, soweit nicht ausdrücklich zugestanden. Zuwiderhandlungen ver- pflichten zu Schadenersatz. Alle Rechte vorbehalten, insbe- sondere für den Fall der Patenterteilung oder GM-Eintragung. .
4 General Information
A KNX network consist out of various components with KNX interface and a KNX power supply. Our power
supply RESI-KNX-PS offers true 160mA to supply the KNX bus line with power.
KNX power supply for a KNX bus system
Maximum of 160mA load on the KNX bus
Primary power supply: 12..48V=
Primary power consumption: <5W
KNX power supply and primary power supply are galvanically insulated
Mountable onto a EN50022 DIN rail
Type
Description
Voltage
Power
Weight
RESI-KNX-PS
Power supply for KNX system with 12..48V=
input voltage and 160mA output current for KNX
bus system
12..48 V=
<5W
60 g

RESI®
Titel:
Manual RESI-KNX-PS
Datum
Seite
Von
22.07.16
7
11
. Proprietary data, company confidential. All rights reserved. Confié à titre de secret d'entreprise. Tous droits réservés. Comunicado como segredo empresarial. Reservados todos os direitos. Confidado como secreto industrial. Nos reservamos todos los derechos. .
. Weitergabe sowie Vervielfältigung dieser Unterlage, Ver- wertung und Mitteilung ihres Inhalts nicht gestattet, soweit nicht ausdrücklich zugestanden. Zuwiderhandlungen ver- pflichten zu Schadenersatz. Alle Rechte vorbehalten, insbe- sondere für den Fall der Patenterteilung oder GM-Eintragung. .
Technical Data
Power supply
Supply voltage
12..48 V= +/-10%
Storage temperature
-20...85 °C
Power LED
Yes
Operating
Temperature
0...60°C
Power consumption
<5W
Humidity
25...90 % rH non-
condensing
Protection Class
IP20 (EN 60529)
Dimensions LxWxH
17,5mm x 90mm x 58mm
Weight
60g
Mounting
on DIN EN50022 rail
KNX power supply
KNX bus cabling
KNX output voltage
Typ. 29Vdc
Cable type
J-Y(ST)Yh 2x2x0,8mm
grün
KNX output current
Max. 160mA
Cable connection
Via clamps
Galvanic insulation to
primary power supply
LED indicator
Yes
Clamps
Clamp wire cross section
Max. 1,5 mm²
Tightening torque
Max. 0.5Nm
CE conformity
Yes

RESI®
Titel:
Manual RESI-KNX-PS
Datum
Seite
Von
22.07.16
8
11
. Proprietary data, company confidential. All rights reserved. Confié à titre de secret d'entreprise. Tous droits réservés. Comunicado como segredo empresarial. Reservados todos os direitos. Confidado como secreto industrial. Nos reservamos todos los derechos. .
. Weitergabe sowie Vervielfältigung dieser Unterlage, Ver- wertung und Mitteilung ihres Inhalts nicht gestattet, soweit nicht ausdrücklich zugestanden. Zuwiderhandlungen ver- pflichten zu Schadenersatz. Alle Rechte vorbehalten, insbe- sondere für den Fall der Patenterteilung oder GM-Eintragung. .
5 Mounting and Connections
5.1 Assembling

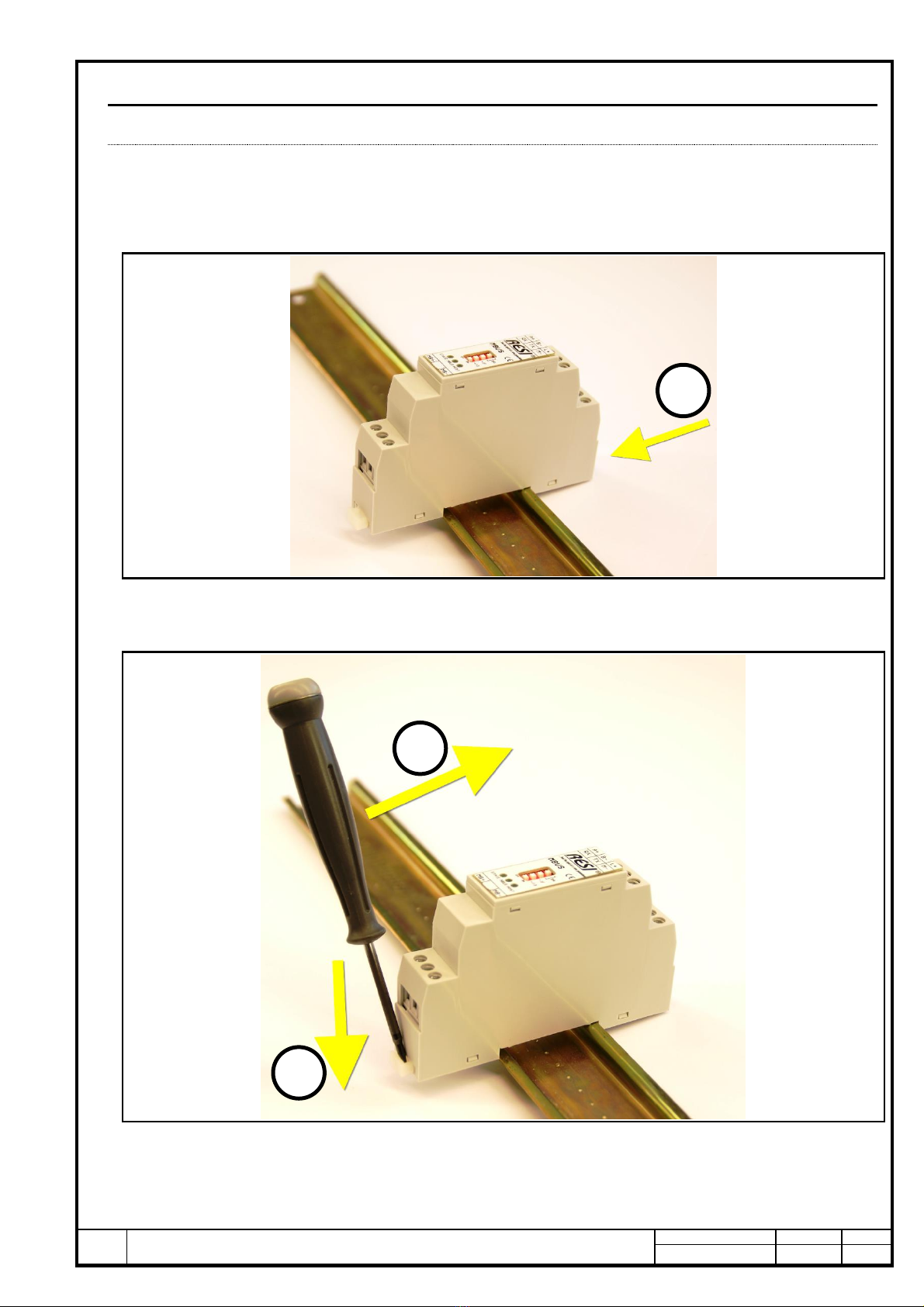

Our RESI-KNX-PS power supply is designed for mounting on a 35mm DIN-EN50022 rail. Please note, that
there are symbol photos used in the mounting pictures below.
At first, put the converter with the top side on the DIN rail (1).
Then open the clamp lever on the bottom side with a screw driver (2) and press the device on the DIN rail (3).
Release the clamp lever. The module is now placed correctly on the DIN rail.
1
2
3

RESI®
Titel:
Manual RESI-KNX-PS
Datum
Seite
Von
22.07.16
9
11
. Proprietary data, company confidential. All rights reserved. Confié à titre de secret d'entreprise. Tous droits réservés. Comunicado como segredo empresarial. Reservados todos os direitos. Confidado como secreto industrial. Nos reservamos todos los derechos. .
. Weitergabe sowie Vervielfältigung dieser Unterlage, Ver- wertung und Mitteilung ihres Inhalts nicht gestattet, soweit nicht ausdrücklich zugestanden. Zuwiderhandlungen ver- pflichten zu Schadenersatz. Alle Rechte vorbehalten, insbe- sondere für den Fall der Patenterteilung oder GM-Eintragung. .

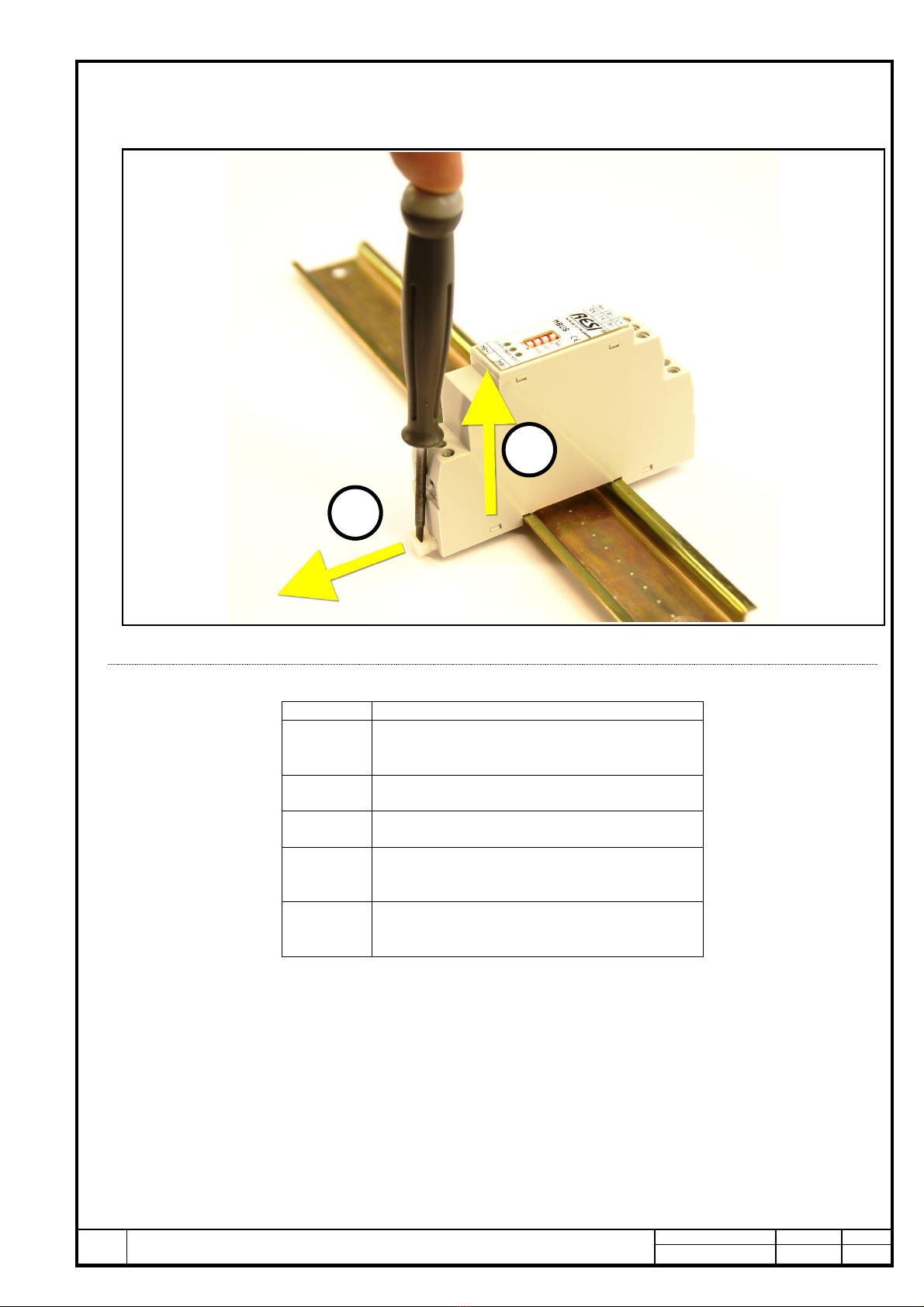

To dismount the module from the DIN rail first open the clamp lever with a screwdriver on the bottom side (4).
Hold the clamp lever opened while you lift the module from the DIN rail (5). Then remove the converter from
the bar with while pulling it on the top side.
5.2 Clamps & LEDs
RESI-KNX-PS
L+
M-
Power supply
L+: 12..48 V=
M-: Ground
K+
K-
Interface to KNX devices
POWER
Power-LED, is ON when the power supply has
input voltage
ERR
Error LED of Power supply: permanent on, the
power supply has a malfunction or there is a
bus error in the KNX system
KNX
KNX activity LED, is permanent on. When
transmitting a KNX telegram the LED switches
off of a few milliseconds.
Table: Description of connectors of the RESI-KNX-PS module
4
5

RESI®
Titel:
Manual RESI-KNX-PS
Datum
Seite
Von
22.07.16
10
11
. Proprietary data, company confidential. All rights reserved. Confié à titre de secret d'entreprise. Tous droits réservés. Comunicado como segredo empresarial. Reservados todos os direitos. Confidado como secreto industrial. Nos reservamos todos los derechos. .
. Weitergabe sowie Vervielfältigung dieser Unterlage, Ver- wertung und Mitteilung ihres Inhalts nicht gestattet, soweit nicht ausdrücklich zugestanden. Zuwiderhandlungen ver- pflichten zu Schadenersatz. Alle Rechte vorbehalten, insbe- sondere für den Fall der Patenterteilung oder GM-Eintragung. .
5.3 Wiring diagram
Illustration: Wiring diagram of the RESI-KNX-PS power supply
KNX+
KNX-
+12..+48V=
GND
KNX Bussystem
<160mA
Power Supply
Output:
12..48Vdc

RESI®
Titel:
Manual RESI-KNX-PS
Datum
Seite
Von
22.07.16
11
11
. Proprietary data, company confidential. All rights reserved. Confié à titre de secret d'entreprise. Tous droits réservés. Comunicado como segredo empresarial. Reservados todos os direitos. Confidado como secreto industrial. Nos reservamos todos los derechos. .
. Weitergabe sowie Vervielfältigung dieser Unterlage, Ver- wertung und Mitteilung ihres Inhalts nicht gestattet, soweit nicht ausdrücklich zugestanden. Zuwiderhandlungen ver- pflichten zu Schadenersatz. Alle Rechte vorbehalten, insbe- sondere für den Fall der Patenterteilung oder GM-Eintragung. .
6 Specifications
6.1 Dimensions

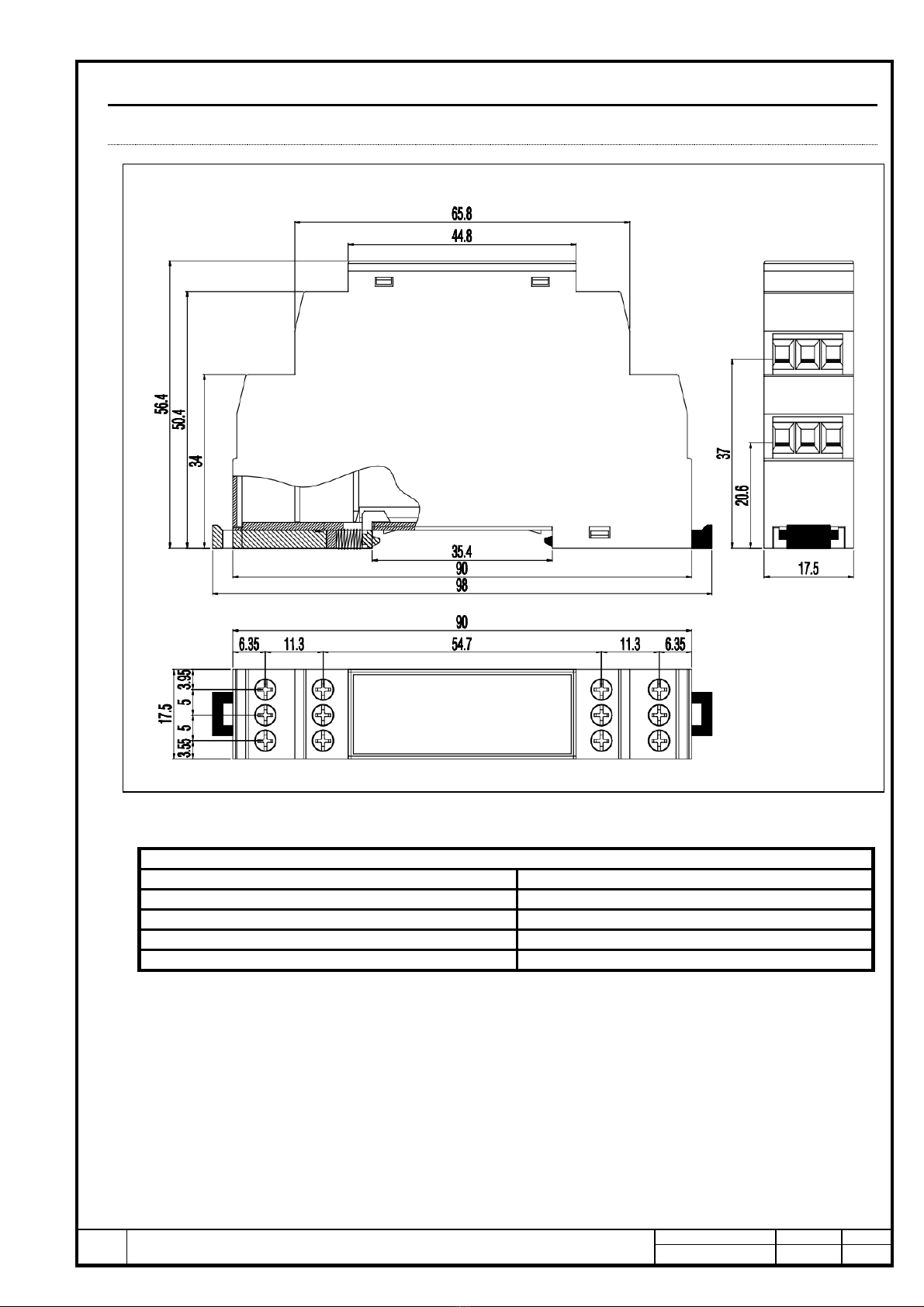

Illustration: dimension illustration in mm
Dimensions
Enclosure dimensions L x W x H (mm)
17,5 x 90 x 58
Weight
60 g
Colour
Grey RAL7035
Material
PA - UL 94 V0
Protection class
IP20 based on DIN 40050/EN 60529
Table: Data of enclosure
