Residentia InAlto Classique IWC46 User manual

USER MANUAL
V 1.0
MODEL
IWC46
WINE CHILLER
46 BOTTLE

02
Congratulations on purchasing your new wine fridge. The InAlto brand is proudly
distributed within Australia by Residentia Group Pty Ltd.
Please refer to the warranty card at the rear of this manual for information regarding
your product’s parts and labour warranty, or visit us online at www.residentia.group
At Residentia Group, we are customer obsessed and our Support Team are
there to ensure you get the most out of your appliance. Should you want to learn
more about recommended temperatures, the various features of your wine fridge,
and importantly taking care of your appliance when cleaning, our Support Team
are here to help. You can use our online Support Centre at anytime by visiting
http://support.residentiagroup.com.au, or you can contact us via calling us on
1300 11 HELP (4357).
It is important that you read through the following use and care manual thoroughly
to familiarise yourself with the installation and operation requirements of your
appliance to ensure optimum performance.
Again, thank you for choosing an InAlto appliance and we look forward to being
of service to you.
Kind Regards,
The Residentia Team
Residentia Group Pty Ltd
ACN 600 546 656
—
Head Office.
165 Barkly Avenue, Burnley
VIC Australia 3121
—
Support.
1300 11 4357
[e-mail]
—
Online.
residentia.group
A RESIDENTIA
GROUP INITIATIVE

03
Contents 02
Welcome
04
General
Safety
06
Product
Overview
07
Getting
Started
07
Installation
08
Operation
11
Door
Reversal
14
Maintenance
 Care
15
Troubleshooting
16
Specications
17
Purchase
Details
18
Warranty

04
General Safety
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
Read this manual thoroughly before rst use, even if you are familiar with this type of product.
The safety precautions enclosed herein reduce the risk of re, electric shock and injury when
correctly adhered to. Make sure you understand all instructions and warnings.
Keep the manual in a safe place for future reference, along with the completed warranty card
and purchase receipt. If you sell or transfer ownership of this product, pass on these instructions
to the new owner.
Always follow basic safety precautions and accident prevention measures when using an
electrical appliance, including the following:
WARNING: This is a wine cellar, this is NOT to be used to preserve or store fresh food or
consumables.
A wine cellar is designed for the storage of bottles at a set temperature that is particularly
suitable for wine. The temperature maintained in this wine cellar is too high for safe storage of
perishable foods.
Electrical Safety
• Voltage: Before connecting and turning on the wine cellar, ensure the electrical voltage and
circuit frequency correspond to that indicated on the appliance rating label.
• Earthing: This wine cellar should be properly earthed for your safety. The power cord of this
wine cellar is equipped with a three-prong plug for use in standard wall outlets to minimise
the possibility of electrical shock. Do not modify the cord and/or plug provided with the
appliance. Improper use of the earthed plug can result in the risk of electric shock.
• Connection: This wine cellar requires a standard 220-240 V AC 50Hz electrical outlet. Do not
overload the electrical circuit.
• Power cord: Do not kink or damage the power cord; do not leave it exposed or dangling.
Secure it at the back of the appliance so no one steps on or places anything on the cord or
against it. Keep the cord out of reach of children. When moving the appliance, make sure not
to damage the power cord.
• Auxiliary Items: Do not use an inverter, adaptor or extension cord with this wine cellar. If the
cord is too short, have a qualied electrician install an outlet near the appliance. Use of an
extension cord and an inverter can negatively aect the performance of the unit.
• Protect from moisture: To protect against the risk of electric shock, do not immerse the
unit, cord or plug in water or spray it with any other liquid. Do not connect or disconnect the
electric plug when your hands are wet. Turn the power switch o before removing the plug
from the socket.
• WARNING: Disconnect! To reduce the risk of re, electric shock or personal injury, always
unplug the appliance from the socket when not in use, when moving and before cleaning or
servicing. Never unplug the unit by pulling the power cord. Always grip the plug rmly and
pull straight out from the power point.
• Electrical work: Any electrical work required for the installation of this appliance should be
carried out by a qualied electrician.
Usage Conditions and Restrictions
• Domestic use only: This wine cellar is intended for indoor household use only. It is not
intended for commercial, industrial or outdoor use. It is not intended for use in a recreational
vehicle.
• Purpose: Do not use this wine cellar for anything other than its intended purpose. Other uses
are not recommended and may cause re, electric shock or personal injury.
• Attachments: The use of attachments is not recommended by the appliance manufacturer
and distributor as they may be hazardous.

05
• Improper use: Damage due to improper use, or repairs made by unqualied personnel will
void your warranty. We assume no liability for any eventual damages caused by misuse of the
product or noncompliance with these instructions.
General Safety Instructions Cont.
• WARNING: Do not use mechanical devices or other means to accelerate the defrosting
process, other than those recommended by the manufacturer.
• Usage restriction: This wine cellar is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instructions concerning use of the appliance by a person
responsible for their safety.
• Children: Supervise young children to ensure they do not play with the appliance. Never
allow children to operate, play with or crawl inside the wine cellar.
• WARNING: Do not use electrical appliances inside the wine cellar, unless they are of the type
recommended by the manufacturer.
• Explosive or ammable substances: Do not store explosive substances such as aerosol
cans with a ammable propellant in this wine cellar. Do not store or use petrol or any other
ammable vapours and liquids in the vicinity of this or any other appliance. Do not use such
substances for cleaning the wine cellar. The fumes can create a re hazard or an explosion.
• Damage: Do not use the wine cellar if the power cord, plug or the wine cellar itself is
damaged. If the cord is damaged, contact the after sales support line and have the cord
replaced by qualied personnel in order to avoid a hazard.
• WARNING: Do not damage the refrigerant circuit.
• Do not modify: Do not attempt to alter or modify this wine cellar in any way.
• Repair: Do not attempt to repair or replace any part of your wine cellar unless it is
specically recommended in this manual. All other servicing should be referred to a qualied
technician. Contact the after sales support line for advice.
• WARNING: Keep ventilation openings, in the wine cellar enclosure or in-built structure, clear
of obstruction.
This symbol alerts you to take care as this wine cellar contains
a ammable refrigerant (isobutane) and insulation blowing gas
(cyclopentane). Do not expose it to high heat, sparks and open ames.
The refrigerant isobutane (R600a) is contained within the refrigerant
circuit of the appliance, a gas with a high level of environmental
compatibility, which is nevertheless ammable. During transportation and
installation of the wine cellar, ensure that none of the components of the
refrigerant circuit become damaged.
Never use a wine cellar with a damaged refrigerant circuit! If the coolant circuit becomes
damaged, avoid proximity to open res and all types of heat sources. The room in which the
wine cellar is located should be ventilated for a few minutes.
It is hazardous for anyone other than an authorised service person to service this wine cellar.
In Queensland, the authorised service person MUST hold a Gas Work Authorisation for
hydrocarbon refrigerants to carry out servicing or repairs which involve the removal of covers.
The room for installing the appliance must be at least 1m³ per 8g of refrigerant. The amount and
type of refrigerant in the appliance can be found in the technical specications on page 17 and on
the appliance rating plate.
CAUTION
RISK OF FIRE

06

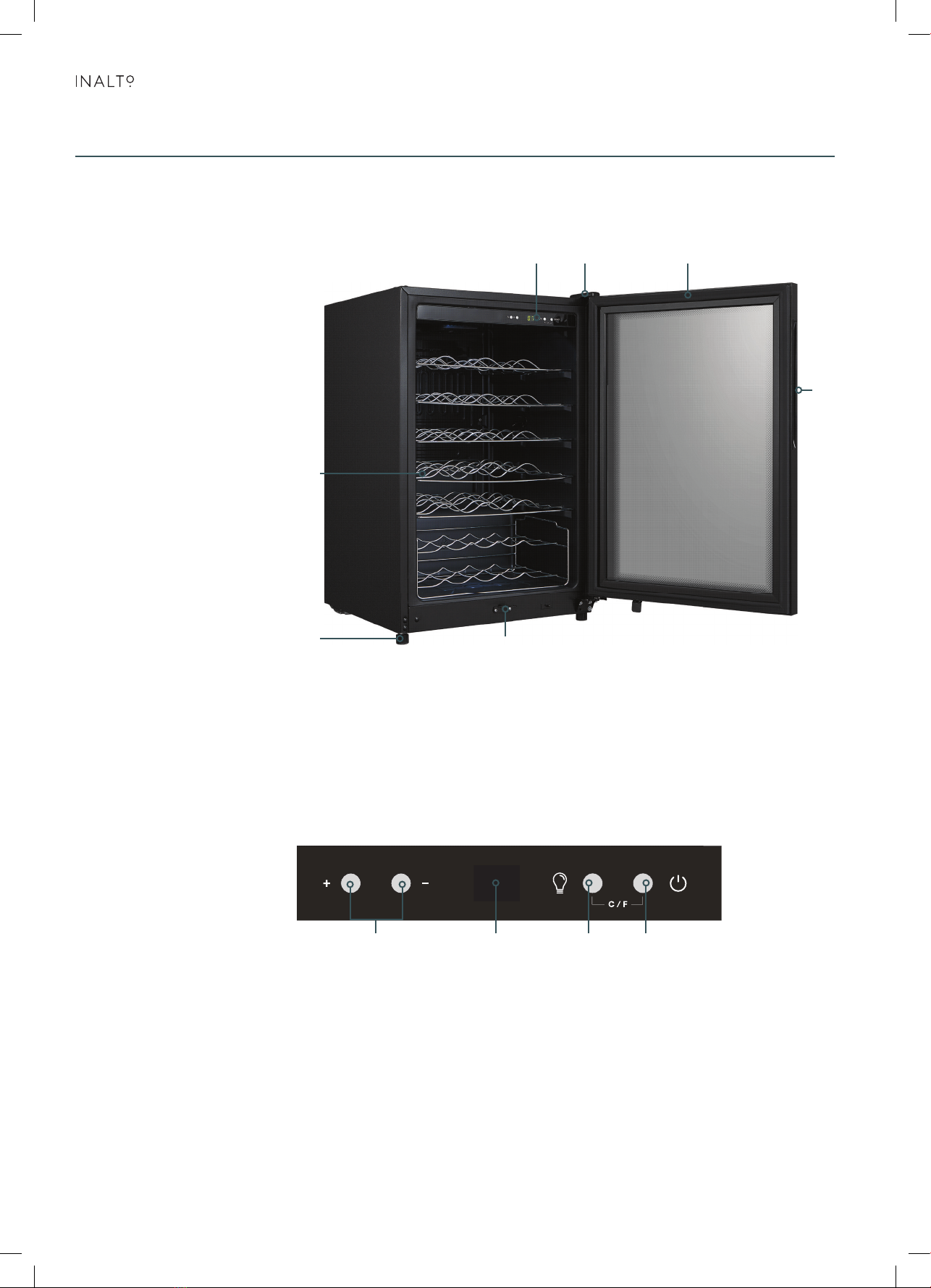

WINE CELLAR LAYOUT
CONTROL PANEL LAYOUT
Product Overview
5
7
1 2
6
3
4
1. Electronic Control Panel
2. Hinge Cover
3. Glass Door
4. Recessed Handle (on both sides)
5. Chrome Shelves (5) + Chrome Basket (1)
6. Security Lock (centred beneath glass door)
7. Levelling Legs (4)
8. Keys for lock (not shown)
KEY:
1
1. Temperature “+” & “-” Controls
Press the Up or Down buttons to increase
or decrease the temperature inside the
wine
cellar cabinet in 1°C intervals.
2. LED Display
Displays the current temperature inside
the wine cellar cabinet.
3. Light Control Button
Press the light control button to turn
the interior light ON and OFF.
4. Power Control Button
Press the power button to turn the
wine cellar ON and OFF.
Note:
• Temperature Units
Press and hold the Light and Power button
together for 5 seconds to change the
temperature display units from Celsius to
Fahrenheit
KEY:
432

07
UNPACKING
• Packaging materials: This wine cellar has been packaged to protect it against transportation
damage. Remove all packaging materials from around and inside the wine cellar and keep
the original packaging carton and materials in a safe place. It will help prevent any damage if
the product needs to be transported in the future, and you can use it to store the wine cellar
when it is not in use. In the event the carton is to be disposed of, please recycle all packaging
materials where possible.
• Suocation: Plastic wrapping can be a suocation hazard for babies and young children, so
ensure all packaging materials are out of their reach and disposed of safely.
• Power cord: Unwind the power cord to its full length and inspect it for damage. Do not use
the wine cellar if it or its cord have been damaged or are not working properly. In case of
damage, contact our after sales support line for advice on examination, repair or return of the
damaged product.
• Read the manual: Read this manual to familiarise yourself with the wine cellar. Pay particular
attention to the safety instructions on the previous pages.
• Clean: To remove any dust from transit and storage, clean the interior and exterior surfaces
of the wine cellar with lukewarm water and a soft cloth. Dry thoroughly.
• Two person installation: Use two or more suitably qualied people to move and install the
wine cellar. Failure to do so can result in back or other injury.
• Freestanding design: This wine cellar is designed to be freestanding only, and should not be
recessed or built-in.
• Floor surface: This wine cellar must be properly positioned on a dry, sturdy, level surface that
is strong enough to support it when it is fully loaded.
Do NOT install/use the wine cellar in the following locations/situations:
• In a garage or any other outside installation.
• In moist areas or areas of high humidity.
• In a recreational vehicle, or for use with an inverter.
• In direct sunlight, near heat sources, next to an open ame, cooking or heating appliance, or
near any other source of high heat.
• Direct sunlight may aect the acrylic coating and heat sources may increase the unit’s power
consumption. For best energy eciency install the wine cellar in the coolest area of the room.
• In an area with extreme cold ambient temperatures.
• In an area with excessive moisture and high humidity. Make sure it is protected from elements
such as wind, rain, water spray or drips.
• In an area where petrol or other explosive and/or ammable liquids or fumes are used or
stored. The fumes can create a re hazard or explosion.
• Levelling: It is important for the wine cellar to be level in order to work properly. To level the
unit, adjust the levelling legs at the bottom of the wine cellar.
• Ventilation: To allow for proper air ventilation, leave a minimum 5cm of space between the
back, sides and top of the wine cellar and make sure that the front of the unit is completely
unobstructed. Ensure that the ventilation openings are never blocked or covered. Never cover
shelves with aluminium foil or any other material, which may prevent air circulation.
• Door swing: The door on this appliance can be opened from either the left or the right side.
Should you wish to change the door swing direction, follow the instructions on pages 16–17.
Getting Started
Installation

08
• Suggested ambient temperatures: Choose a well ventilated area for the wine cellar with
temperatures above 16°C and below 32°C. Ambient temperatures above or below this range
may aect the performance of the unit.
• Settling: Before connecting the wine cellar to the power source, let it stand upright for
approximately 4 hours. This will allow any refrigerant gasses that may have been disturbed
during the transportation process to settle and reduce the possibility of a malfunction in the
cooling system from handling during transport.
• Electrical connection: Plug the wine cellar into a dedicated, properly installed wall outlet. Do
not under any circumstances cut or remove the third (earth) prong from the power cord. Any
questions concerning power and/or earthing should be directed toward a licensed electrician
or our after sales support centre.
• After plugging the wine cellar in, turn the unit on and allow it to cool down for 3–4 hours
before placing wine bottles or beverages in the appliance.
FIRST USE
• Powering on: Press and hold the POWER button for three seconds to turn the appliance on.
• First cooling down: When you rst switch on the wine cellar, the compressor will run
continuously until the wine cellar reaches the set temperature. During this period of time, try
not to open the door frequently or place bottles inside the appliance. After about 3–4 hours,
you can start loading the wine cellar.
• Odour: You may notice an odour when you rst switch on the wine cellar. This is due to the
parts being new and is no cause for concern. The odour will subside as the wine cellar starts
to cool.
IMPORTANT
• When you use the wine cellar for the rst time or restart it after it has been turned o for a
long time, there could be a few degrees variance between the temperature you select and the
one indicated on the LED display. This is normal and it is due to the length of activation time.
Once the wine cellar has been running for a few hours, everything will return back to normal.
• When loading several bottles of wine at once, it will take longer for the appliance to cool the
individual bottles than when adding a bottle at a time.
• If the unit is switched o or unplugged, you must allow at least 5 minutes before restarting
the wine cellar or reconnecting it to your mains supply.
TEMPERATURE CONTROL
This wine cellar enables you to store your wine in a stable temperature environment and free
from light exposure and vibrations. These are most important factors when it comes to storing
wine. A stable, temperature-appropriate environment will help maintain the quality of your wine
and prevent spoilage.
• Selecting the right temperature: You can store your wine at the most appropriate serving
temperature (see the table below). Set the temperature according to the type of wine that is
mostly stored in the wine cellar.
Installation (Cont...)
Operation

09
WINE TYPE RECOMMENDED STORAGE TEMPERATURE
Bordeaux Red 18ºC
Burgundy / Bordeaux Red 16ºC
Port 15ºC
Young Burgundy Red 14ºC
Young Red Wines / Rosé 12ºC
Aged White Wines / Chardonnay 10ºC
Sherry 7–9ºC
Young White Wines 5–7ºC
Setting and adjusting the temperature:
You can set and adjust the temperature in the cabinet to anywhere within the cooling range
(5°C – 18°C).
1. To adjust the temperature, press the UP or DOWN button repeatedly.
2. With every press, the temperature will increase
(or decrease) by one degree.
3. The current temperature inside the cabinet is
shown on the LED display.
4. To view the set temperature at any time, press
the UP or DOWN button and the set temperature will temporarily ash in the LED display
for a few seconds.
Temperature display:
The temperature inside the cabinet can be displayed in either degrees Celsius (°C) or degrees
Fahrenheit (°F). The default setting is in °C.
To change the display to °F
1. Press and hold the LIGHT and POWER button together for approximately 5 seconds.
2. The temperature value will change and the °F indicator will be illuminated on the control
panel.
Press both to change
from ºC to ºF
light power
c/f
F
light power
c/f
C

10
Fig. 1
LOADING THE WINE CELLAR
Standard bottle capacity: Your wine cellar holds a maximum of 46 standard (traditional
750mL bottles). Do not overload the cabinet, and only store wine in sealed bottles.
Larger bottles: Storing wine in larger or dierent shaped bottles may aect its storage
capacity. If storing larger bottles, make sure that they do not prevent the door from
shutting properly. Before shutting the door, always check that you can close it without
bottles falling down inside the cabinet.
Shelving conguration: The shelves in the wine cellar may be removed to suit various

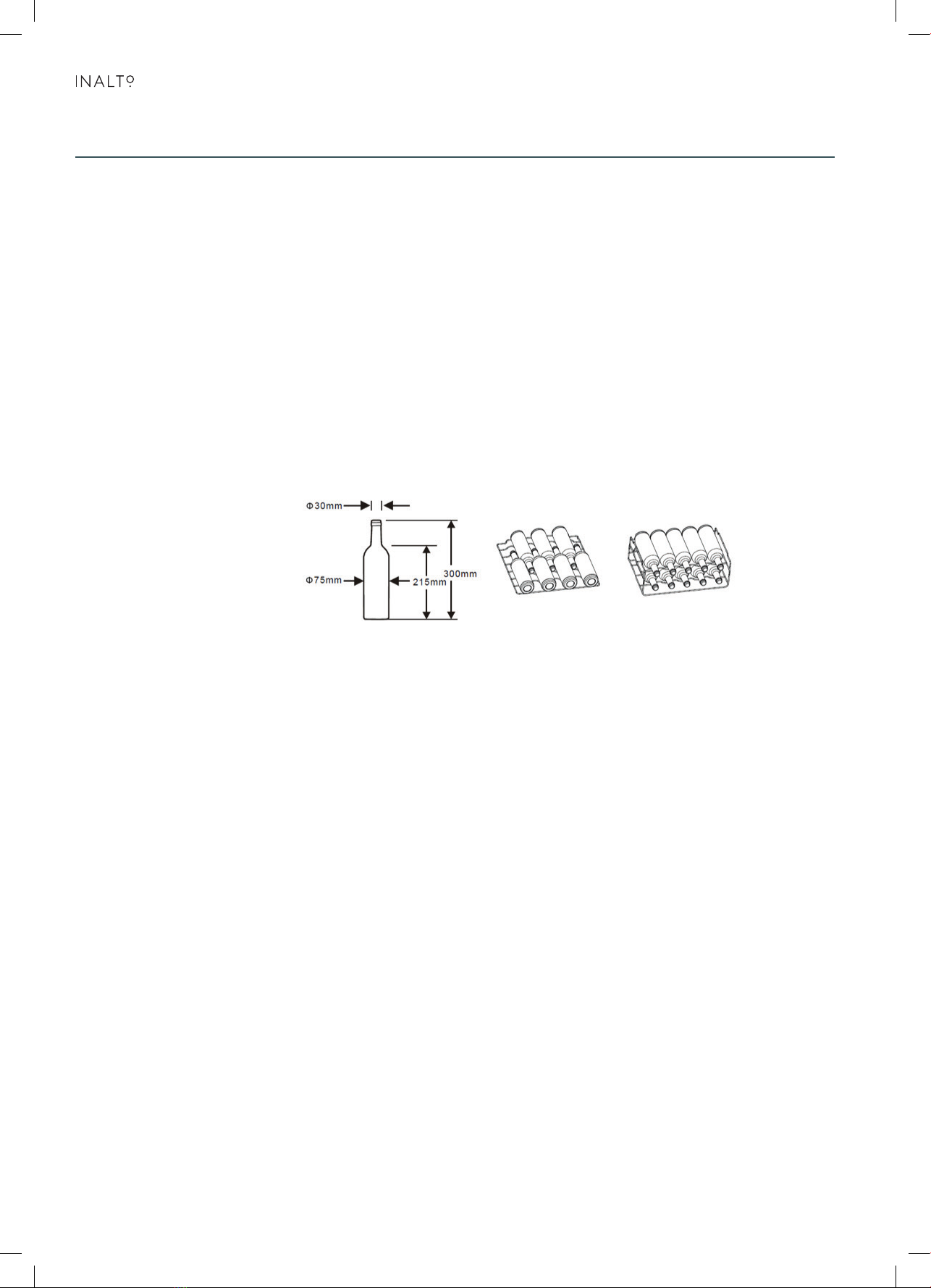

wine bottle shapes and sizes. The loading diagram (Fig. 1) shows how to t the maximum
amount of standard size and shape bottles. (See page 14 for instructions on how to remove
a shelf)
Operation (cont...)
Access: To prevent damaging the door gasket, make sure the door is fully open when pulling
shelves out
of the rail compartment. For easy access to the bottles stored, pull the shelves out
approximately one third. The shelves are designed with an emergency stop to prevent them
being removed too far when loaded.
For ecient operation: Do not open the door unnecessarily. Only keep it open for as long as
necessary when removing or adding a bottle.
Interior Light
• Your wine cellar has an LED interior light for your viewing convenience. To activate the light,
press the LIGHT button on the control panel and check the contents, then press the button
again to switch o
the light.
• For best wine storage conditions, always leave the light o during normal operation.
• Note: If the light is not working or needs to be replaced, please call our After Sales Support
on
1300 11 4357 for further guidance.
Door Lock
• Your wine cellar is equipped with a lock and key for safe storage of wine.
• The keys are located inside the plastic bag that contains the instruction manual.
• Insert the key into the lock and turn it counter clockwise to unlock the door.
• Turn the lock clockwise to lock the door, making sure the metal pin is engaged completely
• Remove the key and place it in a secure place for safekeeping.
Fridge Door Detector Alarm
• If the cellar door is accidentally left open for more than one and a half minutes, an audible
alarm will sound. To stop the beeping, press any button on the controls or simply close the
cellar door.
