Rest Lords A302 User manual

SAVE THESE INSTRUCTIONS
Operation Instructions
A302-8 MASSAGE CHAIR

01
02
04
06
07
08
17
Thanks for purchasing this product. Please read this manual instruction carefully in
order to know how to use this product correctly before operation. Please pay more
attention to some important safety warning and keep this manual book properly for
future use.
Note: Our Company reserves the right to revise the design and description of this
product without any further notice. Please refer to the actual color of this product.
CONTENTS
Safety and maintenance
Safety warning
Name and function of components
Function
Method of usage
Product specification

0302
Safety and maintenance Safety and maintenance
1.Important Safety Warning.
·Please do not allow children to touch moveable part of this product.
·Please use well-grounding power supply suited to this product.
·Please pull out the plug after use or before cleaning to avoid injury or damage to the
product.
·Please operate this product according to this manual instruction.
·Please do not use accessories which are not recommended.
·Please do not use this product outdoors.
·Please read this manual instruction carefully before operation.
·Any other usage that is not listed in this manual instruction is forbidden.
·20 minutes of usage each time is recommended.
·Please do not use it if the leather is broken or damaged.
·Please do not use it if the cover or leather is damaged.
·Please do not use it if the radiator hole is covered or blocked.
·Please do not drop anything into this product.
·Please do not fall asleep while using this product.
·Please do not use it if drunk or feel unwell.
·Please do not use it within one hour after having meal.
·Please do not make the massage function too strong for avoiding Injury.
·Please do not carry fragile, explosive and combustible materials in your pocket such as
mobile phones, lighters and so on, when using massage chair.
2. Environment for usage.
·Please do not use it under high temperature and moist environment such as bathroom.
·Please do not use it immediately while the environmental temperature changes sharply.
·Please do not use it under heavy-dusty or caustic environment.
·Please do not use it where there is not enough space or not good ventilation.
·Normal room temperature 0 °C to 35 °C.
·Please do not use this product in an excessively humid room (such as a bathroom) at a
relative humidity of 20% to 80%).
·Please do not use this product outdoors.
·Avoid direct sunlight.
·Keep this product away from heat source (such as the fireside, the air outlet of the air
conditioner).
·Please do not use this product in lightning weather.
·Please do not use this product in dusty places.
3. People who are not suitable to use this product.
·People who are suffering from osteoporosis are not suitable to use this product.
·People who are suffering from heart disease or carrying electronic medical equipment
such as heart pacemaker are not suitable to use this product.
·People who are suffering from fever are not suitable to use this product.
·Pregnant women or women that are in menses period are not suitable to use this
product.
·People who got injured or skin disease are not suitable to use this product.
·Children under 14-year old or people mentally unbalanced without being Supervised
are not allowed to use this machine.
·People who are told by doctor to have rest or people who feel unwell are not suitable to
use this product.
·People whose bodies are wet are forbidden to use this product.
·The appliance has a heated surface. persons insensitive to Heat must be careful when
using the appliance.
4. Safety.
·Check the voltage if it is suitable to the specification of this product.
·Please do not use wet hand to pull the plug.
·Please do not make water go inside this product to avoid electric shock or cause
damage to this product.
·Please do not damage the wires or change the circuit of this product.
·Please do not use wet cloth to clean the electric parts such as switch and plug.
·Be away from this product under power cut state to avoid injury if the power comeback
suddenly.
·Stop using this product while it works abnormal, and please consult local agent
immediately.
·Stop using this product if you feel unwell, and please consult health care doctor.
·This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
·Children should be supervised to ensure that they do not play with the appliance.
·If the supply cord is damaged, it must be replaced by the manufacturer, its Service
agent or similarly qualified persons in order to avoid a hazard.
5. Maintenance.
·This product should be maintained by certain appointed agents, users are prohibited to
disassemble or maintain by themselves.
·Please do not forget to cut the power after usage.
·Please do not use this product if the socket looses.
·If this product will be left unused for long, please curl up the wires and reserve this
product in dry and dustless environment.
·Please do not reserve this product under high temperature or near fire and avoid
longtime direct sunshine.
·If the detachable cord / supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in order to avoid a Hazard.
·Please clean this product by dry cloth. do not use thinner, benzene or alcohol.
·The mechanical components of this product are specially designed and made, it is not
necessary to be specially maintained.
·Please do not use edged res to thrust this product.
·Please do not roll or pull this product above uneven ground, it should be lifted before
moving.
·Please use it intermittently; please do not make this product work continuously for long.
6. Solution of ordinary malfunctions.
·It is nature movement voice if the motor sounds while in usage.
·If the controller can’t work normally, please check the plug and socket if they are
connected strongly and make sure the switch is turned on.
·If the rated working time is over, the product will automatically activate the power-off
button; If this product works continuously for long, the temperature protector will make
the product automatically power-off, it should be used again after half an hour's rest.
7. Storing conditions
·Storage room temperature -5 °C ~ 35 °C.
·Relative humidity 20% to 80%, no corrosive gas and well ventilated room.

0504
Safety warning Safety warning
Warning
Warning
Warning
Warning
When the footrest lifting, people should not apply pressure on the footrest to avoid
the massage chair falling forward to damage the product or cause personal injuries.
Prohibit pressing
Before sitting on the massage chair, make sure that the massage hand stays in the
seat cushion position to avoid discomfort to the buttocks during the body pressing
down and damage to the massage hand.
Do not strive to pull out the control cable or power cord during standby or power-on
state to avoid product damaged or electrocution accidents. Advise you unplug the
controller cable and power cord and put away after you use the chair.
When start the zero gravity lying function, be sure to check whether there are
children and pets under the bottom of the footrest and backrest, may cause the
product damaged or personal injuries.

06 07
Name and function of components Function
1.Pillow
2.3D Audio Speakers
3.Upper arm airbags
component
4.Remote bag
5.Arm airbags component
6.Seat cushion
7.Calf frame
8.Foot frame
9.Calf sealing plate
10.Back cushion
11.Armrest decoration
12.LED Lights
13.Armrest
14.Side cover
15.Back cover
16.Remote
17.PCB box cover
18.Caster
19.Power cord and plug
20.Fuse
21.Controller jack
22.No/off
23.Power input
·Designed with a set of vertically movable, four wheel driven muted intelligent
massage hands.
·There are five kinds of simulated massage techniques: shiatsu, kneading,
tapping, knocking, kneading & tapping.
·Set with six kinds of characterized auto massage function: comfort, relax, energy,
waist & buttock, neck& shoulder, fullbody.
·It has the upper body manual massage function (area, fixed point, full back, upper
body, lower body, five massage partsselection, each massage technique speed
can be adjusted in three steps. In the fixed point and partial module state,
themassage ball can move up and down to adjust the massage point accurately.
In the state of tapping, shiatsu and knockingmassage, the width between the two
kneading balls is adjustable with three levels: wide, medium and narrow.
·Air pressure massage function with three modes: Full body air pressure, arms air
pressure, leg air pressure, with 3intensity adjustable.
·Combined with human back curve technology, makes you enjoy personal
massage from the head to the leg.
·The audio speakers are located on the upper arm area of the product, music
canbe played by connecting the blue tooth to a smart phone or tablet device.
·With sole roller massage function
·The back heating function use carbon fiber as an infrared heating source
·The footrest can be extended to suit different leg lengths.
·The motor drives the footrest and the backrest synchronically and lay down
automatically two regulatory functions.
·The backrest of the massage chair should be kept at least 275 mm away from the
wall.
·Natural magnet is placed at the heel of the heel.
·LCD colorful screen remote controller
·Design with LED light on each side of the armrest.
·The chair will be reset when switch off. The massage hands will be restore as
well.
20 21 22 23
FUSE:
T5AL 250V POWER INPUT
CONTROLLER JACK ON /OFF
1
3
6
7
10
8
16
15
14
9
17
19
11
4
13
18
5
2
12

0908
Method of usage Method of usage
Note: The specific displays refer to the actual object of this product!
1
2
3
4
5
6
7
8
9
10
11
12
13
14

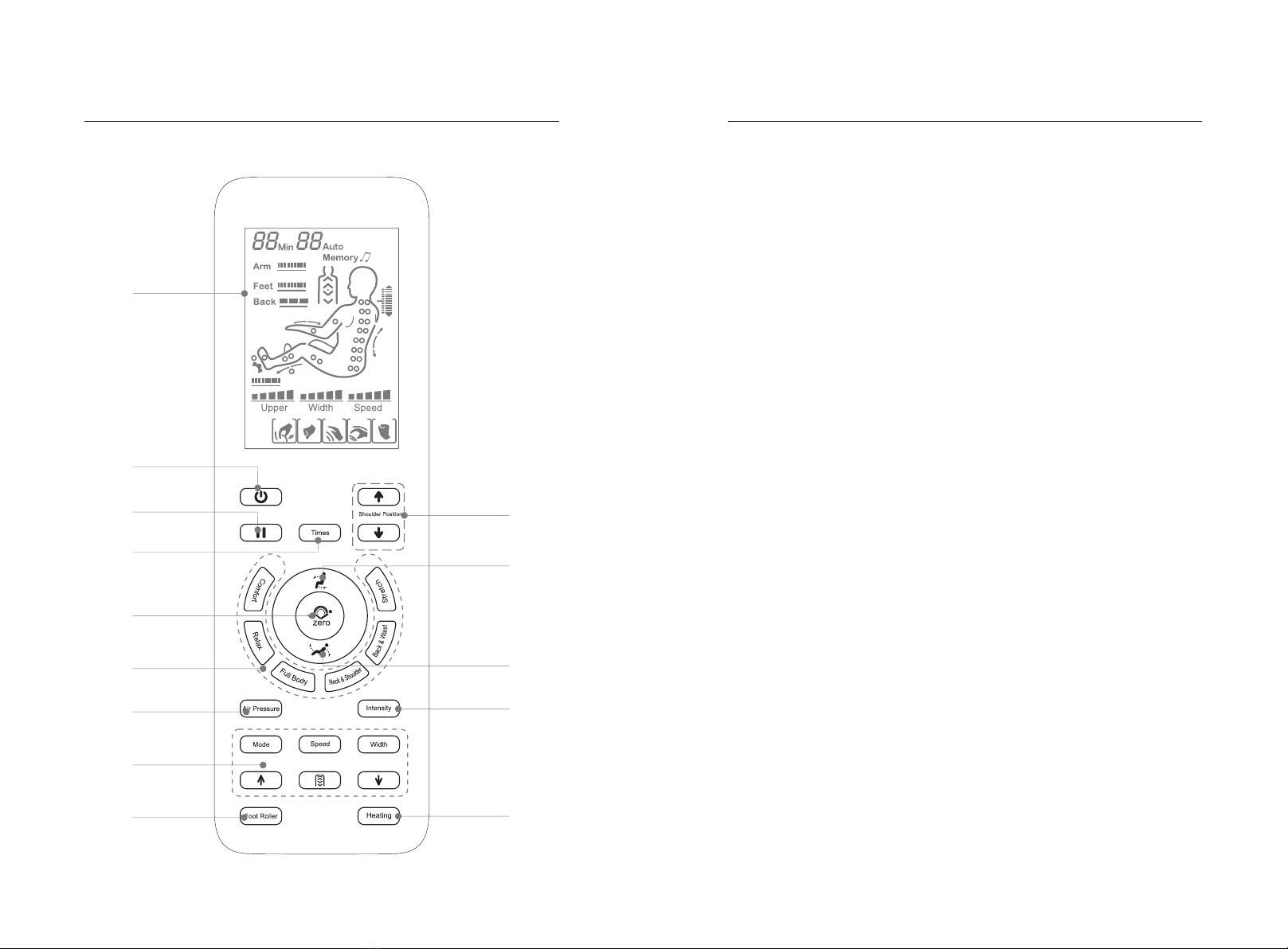

1.LCD display:
·Display all massage functions
2.Power switch:
·Turn on or Turn off all massage functions.
3.Pause button:
·Stop or start all massage functions..
4.Timing button
·Time setting
5.Auto lying Button
·There are three automatic lying position, choose your favorite one.
6.Auto massage Button
·Please refer to page 11 of this manual for details.
7.Air pressure mode Button
·Turn on/off the air pressure massage function (refer to page 12 of this manual for
details).
8.Manual massage button
·Please refer to page 11 of this manual for details.
9.Sole roller button
·Turn on/off sole roller massage function
10.Shoulder adjust button
·Make the adjustment on shoulder acupressure points.
11.Lifting button
·Rise up the backrest and lower down the footrest.
12.Lying button
·Lower down the backrest and rise up the footrest.
13.Air pressure intensity button
·Make the adjustment on air pressure intensity.
14.Heating
·Turn on/off heating massage function

1110
Method of usage Method of usage
·Features automatics massage
·Upper body manual massage
H0
H1
H2
H3
H4
F1 Auto
F2 Auto
F3 Auto
F4 Auto
F5 Auto
F6 Auto
Function Button Description Display
Features automatics massage
Comfort
Relax
Full body
Neck & shoulder
Back&waist
Stretch
Loosen the muscles.
Deep-tissue massage throughout key
acupressure points to relax the sore area.
Full body massage, relaxing the sore areas.
Focus on the neck and shoulder area
Focus on the back waist area.
The footrest and backrest lifting together,
combined with air pressure massage to stretch
the legs, remove fatigue, and recover your body.
Function Button DisplayMassage ball adjustment
Massage
Speed
Width
Back
stretch
Shiatsu Speed, width
Kneading: Speed
Tapping: Speed, width
Kneading and tapping: speed
Knocking: Speed, width
3 adjustable level
3 adjustable level
The massage hand stay in fixed positon
The massage hand will move up and down in a
partial position
The massage hand will move up and down on
full back
The massage hand will move up and down on
back and shoulder area
The massage hand will move up and down on
back and waist area
Massage position adjustment (in
fixed point, partial mode, the
massage position can be
adjusted).
Massage hand move up
Massage hands go down
During the body scan process (the shoulder position adjustment icon will be
displayed on the screen of the controller and sounds “DiDi”, and then press the
shoulder position up and down keys to adjust the shoulder position). You can also
press any of the six automatic massage function keys (comfort, ease, full body, neck
shoulder, back waist, stretch) and start massage (you can skip step 4 directly).
1.Switch power supply on
Diagram of plug in Diagram of the switch position of power supply
FUSE:
T5AL 250V POWER INPUT
CONTROLLER JACK ON/OF F
2.Start to massage
①.Press the power button to start massage.
②.The chair conduct a body scan and testing your shoulder position and massage
point, waiting for detection to be completed
③.If the body scan deviates from the actual shoulder position, adjust the up and
down buttons to the appropriate position. There are 10 levels to adjust, and you
have10 seconds to make the adjustment. After 10 seconds, enter in to massage
automatically.
Button Description Display
Move the massage balls upward to a suitable position
Move the massage balls downward to a suitable position
Shoulder
adjust
High shoulder position
suitable shoulder position
Low shoulder position
④、Choose massage function and start massage

12 13
Method of usage Method of usage
·Air pressure massage
·Foot roller manual massage function
·Pause/start massage button
·Backrest and calf position adjust
Function Button Description Display
Air
pressure
mode
Intensity
Full air pressure: air pressure massage on arm,
leg and foot.
Arm: Air pressure massage focus on arm.
Legs: Air pressure massage focus on leg and foot.
3 levels adjustable
Function Button Description Display
Foot roller The foot roller massage function turn on or off.
Function Button Description Display
Pause/
Start
Press this button during the massage, all massage
actions are stop immediately (the timer will
continue to count down), and press this button
again, all the massage will be resume.
Function Button Description
Lifting
button
Lying
button
Press and hold this button, it will raise the backrest and lower
the footrest simultaneously, a "Di.Di sound indicate that it has
reach the maximum position and stop. Press this button again
while lifting, then immediately stop.
Press and hold this button, it will lower the backrest and raise
the footrest simultaneously, a "Di.Di sound indicate that it has
reach the maximum position and stop. Press this button again
while lifting, then immediately stop.
·Heating
Function Button Description Display
Heating Heating
Press this button to turn on/off the back infrared
heating, and it will be warm after turning on 3
minutes.
·Other manual functions
Function Button Description Display
Timing Timing
Timing adjustment, press one time, add 5
minutes, not more than 30 minutes. If it
exceeds 30 minutes, it will return to 5 minutes.
Automatic
lying mode
Switch to an auto lying mode when you press key each time,
total 3 modes, cycle switching change.
20 min
FUSE:
T5AL 250V POWER INPUT
CONTROLLER JACK ON/ OFF
3.Turn off the power and stop massage.
·When pressing the power button during the massage, it will stop all the massage
functions immediately, the backrest and footrest will go back to the default posit
on.And when the massage time up, the massage hand will go back to the default
position, all the massage function will stop, the backrest and footrest will not go
back to the default position.
·Cut off the power of the whole machine. Figure (switch power off)
Diagram of the power switch position Unplug the power cord
5.The calf installation.
·After connecting the wires and the air hose between the chair seat and the leg
rest , unfasten the fixed pipe belt and insert the connecting part into the seat
frame(figure 1).
·Place the round tube from calf left and right sides to the legs brackets.(figure 2)
1 2
1.Enter the smart device main menu. Open "Settings" and select the "Bluetooth"
option. Open "Bluetooth", and Bluetooth will automatically "Search for a New
Bluetooth Device".
2.The smart device will search for the corresponding Bluetooth model (e.g. IMCM-
XXXX). Click the "Match" button. If you are asked whether to match with the
device, you just select "Match" to complete matching.
3.Turn on "Music Player" in the smart device and select the song to play.
4.Operation Instructions for Bluetooth Speaker Play

14 15
Method of usage
6.Head cushions and backrest pad's dismounting and use manual
·The head cushion allows you to contr ol the intensity of the neck and shoulder
massage, You can decide whether to use the head cushion (Recommend to use).
The backrest cushion and the backrest is connected by zipper (1), head cushion
and the backrest cushion connected by the Velcro as show in the illustration (2).
Method of usage
·Then turn the legs fixing cover over the round tube on both sides of the legs
(figure 3)
·Then use 2pcs M4 screws fix the legs on the massage chair, turn up and down to
check if there are any problems, the wires and air hose get stuck or not, finish the
installation. (figure 4)
·Put the heavy massage chairs on the wood floor for a may damage the floor,
so please place a carpet or other object to avoid this damage.
Caution: Do not move the chairs with its wheels on wood floor, rough ground or in
a narrow space. Two people are required to lift the chair. During the lifting period,
take the calf rest end sealing plate and backrest cover grooves as the force-bearing
point(Please do not lift armrest directly.)
7.Floor Protection
8.Method of movement
Warning : Massage chair rear wheels are only suitable for short distance movement
for long distances, pls use other assistive tools to move the massage chair.
·Make sure that all wires are far above the ground, tilt the backrest backward to a
certain degree (with the gravity center resting on the wheels), push the chair
forward or backward with your hands and finally resume the chair to the normal
position in a slow and gentle manner.(Note: During movement you must turn off
the power first and then unplug the power cord and the controller cord.)
3 4
2
12
Zipper Zipper

16
Product specification
Material introduction: PVC, PA, steel parts and electric & electron parts
MATERIAL PU LEATHER CLOTH WOOD
·When you place the massage chair, the backrest should always be kept at least
275mm away from the wall. If the backrest is too close to the wall, it will be collide
the wall and cause damage to the product when it lifting down.
9.The distance from the wall
Method of usage
Model: A302
Configure: 8
Name: Massage Chair
Rated voltage: 110-120V~ 60Hz
220-240V~ 50Hz/60Hz
Rated power: 120W
Rated time: 20Min
Safety structure: Class I
275mm
