SantaMedical TEM-210 User manual

TEM-210
Operation Manual
Read Before Using
0120

TABEL OF CONTENTS
INDICATIONS AND CONTRAINDICATIONS ……………………………… 1
WARNINGS AND PRECAUTIONS……………………………………………. 2
PACKAGE CONTENTS..………………………………………………………. 6
ABOUT THE DEVICE.………………………………………………………..… 6
STEP BY STEP OPERATION GUIDE FOR TREATMENT…………….…… 7
 Preparing Skin for Running a Session.………………………………
 Inserting 3 AAA Batteries..……………………………………………

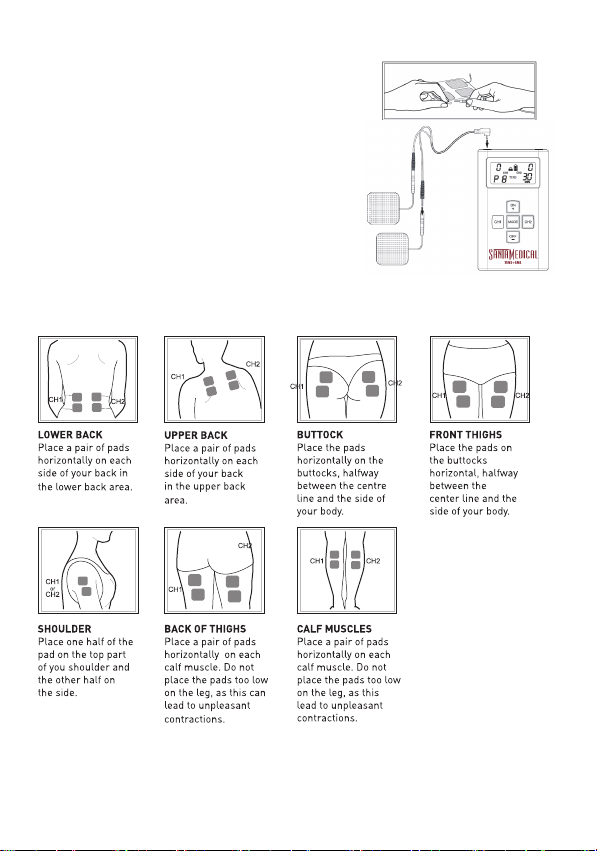

 Placement of the Pads for TENS (Treatment of Pain) ……………
 Placement of Pads for EMS (Muscle Stimulation) …………………
 Turning ON the Device…………………………………………………
 Turning OFF the Device ………………………………………………
 Selecting the Treatment Time…………………………………………
 Selecting the Program.…………………………………………………
 Selecting the Therapy Intensity Level…………………………………
7
7
8
9
11
11
11
12
15
SPECIAL FEATURES.………………………………………………………….. 16
CARE AND MAINTENANCE…………………………………………………... 17
TROUBLESHOOTING.………..………………………………………………... 18
TECHNICAL SPECIFICATIONS……………………………………………..... 19
WARRANTY…………………………………………………............................. 24

- 1 -
INDICATIONS AND CONTRAINDICATIONS
Read the operation manual before using.
Read instruction manual before operation. Be sure to comply with all “CAUTIONS” and “WARNINGS” in the manual.
Failure to follow instructions can cause harm to user or device.
Please read the following information carefully before using SantaMedical TENS+EMS.
What is TENS?
The more precise term is Transcutaneous ( meaning “through the skin”) Electrical Nerve Stimulation (TENS). A TENS
unit is an electrically powered device used to apply an electrical current to electrodes on a patient’s skin to relief pain
associated with sore or aching muscles.
What is EMS?
EMS stands for Electrical Muscle Stimulation. An EMS device is used to stimulate healthy muscles in order to improve
muscle performance.
Indications for Use
The SantaMedical TENS+EMS is to be used:
- for temporary relief of pain associated with sore and aching muscles in the lower back due to strain from exercise or
normal household and work activities. (Choose TENS Modes P1 through P7)
- for temporary relief of pain associated with sore and aching muscles in the upper and lower extremities ( arm and/or leg)
due to strain from exercise or normal household and work activities. (Choose TENS Modes P1 through P7)
- for symptomatic relief and management of chronic, intractable pain and relief of pain associated with arthritis.
(Choose TENS Mode P8)
- for use by healthy adults for the stimulation of healthy muscles in order to improve or facilitate muscle performance.
(Choose EMS Modes P1 through P6)
Contraindications
Do not use the SantaMedical TENS+EMS if any of the following conditions are present:
z Do not use this device if you have a cardiac pacemaker, implanted defibrillators or any other implanted metallic or
electronic device. Such use could cause electric shock, burns, electrical interference, or death.
z Do not use this device if you have undiagnosed chronic pain.
z You are pregnant. The safety of electronic muscle stimulation over the pregnant uterus has not been established.
z You suffer from cancer. The effects of electronic stimulation on cancerous tissue are unknown.
z You are under medical supervision for cognitive dysfunction as you may not be able to comply with safety instructions.
z The unit is in close proximity to shortwave or microwave diathermy equipment or you are connected to high-frequency
surgical equipment, because of risk of device interference.
z Wearing the device necessitates placement over areas at which drugs/medicines are administered (short-term or
long-term) by injection (e.g. hormone treatment).
z You have epilepsy.
z You have recently undergone a surgical procedure.
z Following acute trauma or fracture.
z In case of critical ischemia of the limbs.

- 2 -
WARNING AND PRECAUTIONS
Warnings
z If you are under the care of a Physician, consult with your Physician before using this System.
z The long-term effects of this System are not known.
z Do not place the pads on or close to your heart.
z Do not place the pads around or close to your neck. Do not apply stimulation over the neck. Severe spasm of the
muscles may occur and the contractions may be strong enough to close the airway or cause difficulty in breathing.
Stimulation over the neck could also have adverse effect hearing or blood pressure.
z Do not apply stimulation across the chest because the introduction of electrical current into the chest may cause
rhythm disturbances to the heart.
z Do not place the pads on or around your head. The effects of stimulation of the brain are unknown.
z Do not use the pads over or close to sores.
z Do not place the pads on the front or sides of the neck across or through the heart (one pad on the front of the chest
and one on the back), in the genital region, or on the head, because of the risk of stimulating inappropriate muscles
and organs.
z Do not place pads t over any recent scars, broken or inflamed areas of infection or susceptibility to acne, thrombosis
or other vascular problems (e.g. varicose veins), or any part of the body where feeling is limited.
z Do not place the pads over areas of injury or restricted movement (e.g. fractures or sprains).
z Do not use this System while sleeping.
z Do not use if you feel numbness.
z Do not use this System in or close to water.
z Do not apply stimulation across the chest because the introduction of electrical current into the chest may cause
rhythm disturbances to the heart, which could be lethal.
z Do not use the pads over or close to cancerous lesions.
z Use the pads only on normal, healthy, clean and dry skin. Do not use the pads on open wounds or rashes, or over
swollen, red, infected or inflamed skin.
z If you have ever had back surgery, consult your Physician before using this System.
z You must position the pads and operation the unit ONLY as indicated in this manual.
z Avoid areas in injury or restricted movement ( e.g. fractures or sprains)
z Avoid placing the pads over metal implants.
z Do not use in the bath or shower, or in an environment of elevated humidity (e.g. Sauna, hydrotherapy, etc).
Wait before using next until:
z At least 6 weeks after the birth of your baby (you must consult your doctor before use).
z One month after an IUD contraceptive device (e.g. coil) has been fitted (you must consult your doctor before use).
z At least 3 months after having a caesarean section (you must consult your doctor before use).
z The heavy days of your period have finished, because vigorous abdominal exercise is not recommended at this time.
Precautions
z Read User Manual before using this System for the first time.
z Keep this manual available whenever you use your System.
z The System is intended for personal use on healthy adult muscle only.
z The safety of using the System during pregnancy or birth has not been established.
z The effectiveness of the System depends greatly on a person’s individual physical condition. It may not always be
effective for every user.
z The safety of neuromuscular stimulation during pregnancy has not been established.
z Use caution when/if:
- User has skin areas that lack normal sensation.
- Following surgical procedures if muscle contractions might impede the healing process.
- Over a menstruating or pregnant uterus.
- There is a tendency to hemorrhage following acute trauma or fracture.
z Place electrodes in accordance with illustrations in the User Manual.
z This unit should not be used while driving, operating machinery or during any activity in which involuntary muscle
contractions may place the user at undue risk of injury.
z Some users may experience skin irritation or hypersensitivity due to the electrical stimulation or the conductive
medium.
z Keep the stimulator out of the reach of children.
z Application of moderate heat (thermal wrap) to muscles as well as moistening skin prior to treatment improves
treatment efficacy; use of cold packs on treated muscles after treatment is likewise recommended.
z This unit should only be used with the leads, electrodes and accessories provided by the manufacturer.

- 3 -
z The device is not intended for medical use, for the treatment of any medical condition or for any permanent physical
changes.
z An effective session should not cause discomfort.
z For first time users, muscle stimulation can be an unusual sensation. We recommend that you begin in a seated
position with low stimulation intensity settings to familiarize yourself with the sensation before progressing to higher
intensity settings.
z The leads and pads must not be connected to other objects.
z Do not over exert yourself while using muscle stimulation. Any workout should be at a comfortable level for you.
z Do not place pads over jewelry or body piercings.
z Start all sessions in a sitting position (fig.a). If necessary,
secure the limb(s) to be exercised before using this device. fig.a
Use Caution and consult your Physician before using System if any of the following conditions
apply to you:
z You have any serious illness or injury not mentioned in this guide.
z You have recently undergone a surgical procedure.
z You take insulin for diabetes.
z You use the unit as part of a rehabilitation program.
z If you have suspected or diagnosed heart problem.
z If you have suspected or diagnosed epilepsy.
z If you have a tendency to bleed internally following an injury.
z If you recently had surgery, or have ever had surgery on your back.
z If areas of skin lack normal sensations, such as skin that tingles or is numb.
z During menstruation or during pregnancy.
z Some people may feel skin irritation or experience a very sensitive feeling in the skin due to electrical stimulation. If
this occurs, stop using your System and consult your Physician.
z If skin under one of more pads feels irritated after using the stimulator for a long period of time, use the stimulator for
a shorter period of time.
z Minor redness at stimulation placement is a normal skin reaction. It is not considered as skin irritation, and it will
normally disappear within 30 minutes after the electrodes are removed. If the redness does not disappear after 30
minutes from the removal of electrodes, do not use the stimulator again until after the excessive redness has
disappeared.
z Turn off the stimulator if the stimulation feels unpleasant or does not provide pain relief.
z Keep your System out of the reach of children.
z Use your stimulator only with the pads, snap cables and accessories recommended by the manufacture.
z Do not use this System when driving, operating machinery or when swimming.
z Before removing the belt and pads, be sure to power off device to avoid unpleasant stimulation.
After strenuous exercises or exertion:
z Always use lower intensity to avoid muscle fatigue.
Important:
z Do not use your unit at the same time as any other device which transfers an electrical current into the body ( e.g.
another muscle stimulator).
z Cease using your unit if you are feeling light headed or faint. Consult doctor if this happens.
z Do not touch the pads or metal studs while the unit is switched on.
z Do not use unit if you are wearing a belly button ring. Remove ring before session.
Note: If you are in any doubt about using device for any reason, please consult your doctor before
Pad/Electrode Precautions
z To reposition the pads during a session, always pause the program currently running, reposition the pads as directed
on page 7 and then restart the program again.
z Only use pads supplied by Santamedical with your device. Any others many not be compatible with your unit and
could degrade the minimum safety levels.
z The pads are for single person use only.
z Do not plunge the pads into water.
z Do not apply solvents of any kind to the pads.
z Always ensure the unit is OFF before removing the pads.
z Apply the whole surface of the pads firmly to the skin. Do not use pads which do not adhere properly to the skin.
z If your skin is red under the pad after a session, do not start another session in the same area until your redness has

- 4 -
completed disappeared.
Adverse Reactions
z You may experience skin irritation and burns beneath the stimulation electrodes applied to your skin.
z You may experience headache and other painful sensations during or following the application of electrical stimulation
near your eyes and to your head and face.
z You should stop using the device and should consult with your physician if you experience adverse reactions from the
device.
Conditions that may affect your System
Since the stimulator is a battery-operated electronic System, its output performance and safety may be affected greatly in
extreme humidity. Therefore, it is very important to keep the stimulator dry to ensure the safety and performance of the
stimulator.

- 5 -

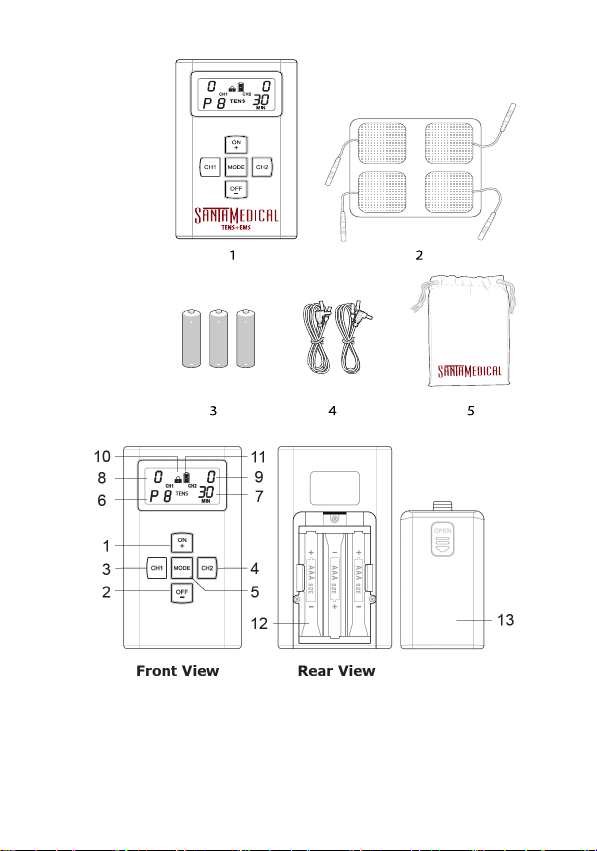

PACKAGE CONTENTS
1. SantaMedical TENS+EMS
2. Electrodes CM5050, sized
50x50mm, 4 pieces/pack
3. 3 AAA batteries
4. 2 lead wires1 storage bag
5. Soft bag
ABOUT DEVICE
1. Power on / adjust / increase setting key
2. Power off / adjust / decrease setting key
3. CH1 key
4. CH2 key
5. Therapy Time/Mode/Program selection Key
6. Program number
7. Therapy time remaining
8. CH1 intensity level
9. CH2 intensity level
10. Lock status indicator
11. Battery status indicator
12. Batteries compartment
13. Battery cover

- 6 -
STEP BY STEP OPERATION GUIDE FOR TREATMENT
Preparing the Skin for Running a Session
Proper preparation of the skin covered by the electrodes allows more stimulation to reach targeted tissues, prolongs
electrode life, and reduces the risk of skin irritation. After connecting the lead wire(s) to the stimulator, use the following
steps to prepare your skin at the electrode placement sites:
1. Determine the placement sites for the electrodes.
2. Wash the area with mild soap and water (do not use alcohol). Rinse and dry thoroughly.
3. Trim excess body hair from the area with scissors (do not shave).
4. Optionally, apply skin prep to the area to form a protective barrier on your skin. Apply, let dry, and apply electrode as
directed. This will both reduce the chance of skin irritation and extend the life of your electrodes.
5. When removing electrodes, always remove by pulling in the direction of hair growth.
6. It may be helpful to apply skin lotion on electrode placement area when not wearing electrodes.
Inserting/Changing the Batteries
1. Open the battery compartment at the back of the device by pushing the battery cover labelled “Open” downward (this
area features raised marks for easy identification).
2. Insert 3 AAA (1.5 V) batteries in the battery compartment; make sure to match up the symbols (+/–).
3. Close the battery cover by carefully placing the stud into the slot in the rear area and sliding it upward, applying slight
pressure.
4. Follow the same procedure when replacing the battery at a later date.
ġ
ˏ
ˏ
Note : for important precautions regarding the batteries ,please be informed:
x Always use only 3x1.5V (AAA) batteries.
x Keep away from children.
x Do not recharge.
x Do not short-circuit.
x Do not throw into a fire.
x Please recycle. Do not dispose of old batteries with your household waste; dispose of them safely at your
recycling centre or business where the batteries were purchased.
NOTE: the batteries should last between 30 and 60 application depending on stimulation times and frequencies.

- 7 -
Connecting the Cable to The Device
1.Connecting the lead wire to the electrodes before applying to the Skin.
2.Insert the connector plugs into sockets at the top of unit.
Placement of the Electrode Pads for TENS (Treatment of Pain)
Note: 1. Recommended Electrodes size 130x90 mm, for larger (e.g. leg muscles, lower back) ,and
Size 50x50 mm for smaller areas such as forearm muscles etc.
2.You may need help placing the Electrode Pads onto hard to reach areas (lower & upper back).

- 8 -
Placement of the Electrode Pads for EMS
1. Connecting the lead wire to the electrodes before applying
them to the Skin. Use the large Electrode Pads for EMS.
2. The pad placement chart hereafter illustrates the correct
placement of the pads for a selection of target muscles.
Note: Always start with a low intensity level, increase gradually. You may use any of the modes for EMS.

- 9 -
Turning On the Device
1. Press and hold the ON+ button for one (1) second to turn on the
device.
2. The most recently selected treatment time and program will flash
when the unit is turned on.
Ÿ1RWH: Do not turn the unit on until all electrodes and lead
wires are properly attached.
Ÿ1RWH: When stimulating the muscles of the arms or legs in the EMS
Mode, bear in mind that the muscle contraction may cause
involuntary limb movement which could cause injury to you or
others. Always ensure the limb is secured to prevent
movement.
Turning Off the Device
1. The device turns off automatically after the therapy session time has
elapsed.
2. To turn the unit off manually, press the OFF- button for three (3)
seconds. The display will go blank and the device will turn off.
3. In an emergency you may also pull the connector(s) from the device
and then remove the belt.
Ÿ1RWH: To prevent unpleasant electric shocks, never remove the
Electrodes while it is still turned on.
Selecting the Treatment Time
1. Press MODE. The preset (default) treatment time will flash on the display.
2. To increase or decrease the treatment time, press the button ON + (to increase) or the button OFF – (to decrease)
repeatedly until the desired duration appears on the display.
3. Press MODE again to save your selection. The treatment time you selected will appear on the display the next time
you turn the device on.
ŸNote: If you change programs during the course of a therapy session, the treatment time will not reset unless you
manually reset it by performing the steps described above.

- 10 -
Selecting the Program
The Device offers 8 different preset treatment programs respectively for TENS /EMS modes; the programs
differ with respect to varying pulse widths and frequencies.
Choice of the appropriate mode
The mode you choose determines the kind of work that is imposed upon the stimulated muscles. Choose the mode that is
appropriate to your needs or gives you the greatest pleasure.
For TENS programs:
When using any of the 8 programs for pain relief always start with the lowest intensity and gradually increase the
level of intensity until you feel a “tingling” sensation. All programs are different and therefore feel differently. You may
try all 8 programs in the beginning and choose one that feels pleasant. Never increase the intensity to a level so that it
hurts, always stay under the point of discomfort. Start with short sessions of 5 or 10 minutes until your body gets used to
the stimulation.
Program Max. Phase duration Rate Function mode
P1 80mA 260uS 15Hz Constant
P2 80mA 260uS 60Hz Modulated
P3 80mA 260uS 60Hz Constant
P4 80mA 260~150uS 2 ~ 60Hz Modulated
P5 80mA 260~150uS 60Hz Modulated
P6 80mA 260uS 7 <->60Hz Modulated
P7 80mA 260~156 uS 60Hz Modulated
P8 80mA 210 uS 2.45~245 Hz Cycle
All electrical specification ±20%
Program./mode Benefits You should feel
P1
-for temporary relief of pain associated
with sore and aching muscles in the lower
back due to strain from exercise or
normal household and work activities.
- for temporary relief of pain associated
with sore and aching muscles in the
upper and lower extremities ( arm and/or
leg) due to strain from exercise or normal
household and work activities.
Continuous comfortable tingling. The underlying pain
should decrease gradually after treatment.
P2 Comfortable pulsing sensation.
The underlying pain should decrease almost
immediately.
P3 Comfortable pulsing sensation. The underlying pain
should decrease almost immediately.
P4 Variable comfortable tingling and pulsing sensation
(sensation should appear to come in waves).
Pain should ease and there should be relief after
treatment.
P5 Variable comfortable mild tingling sensation
(sensation will appear to come in waves).
P6 Variable comfortable pulsing and pumping action
(action will appear to come in waves).
P7 Variable comfortable tingling and pumping action
(action should appear to come in waves).
P8 -for symptomatic relief and management of
chronic, intractable pain and relief of pain
associated with arthritis.
Variable comfortable tingling and pulsing sensation
(sensation should appear to come in waves).
Pain should ease and there should be relief after
treatment.

- 11 -
For EMS programs:
When using the device for muscle stimulation (EMS) any of the 6 programs may be used. The intent is to cause a muscle
to contract, and then release. All 6 programs will achieve contraction and vary mainly by the rate and duration of the
contractions. As with any exercise regiment, start out slowly with low intensity levels for a warm-up (5~10min). You may
increase intensity level and treatment time as you progress with your muscle performance. Use the device regularly over
a longer period of time as to maintain the benefit you may have gained during “ exercise”. ġ
Pulse Width
(uS)
Ramp up
(sec)
Hold on
(sec)
Ramp
down
(sec)
Off Time
(sec)
Pulse rate
(Hz)
P1 300 - 2 - 1 40~99
P2 200- - --4
P3 300- - --5
P4 200 - 2 - 1 99
P5 200 2 6 21 4~20
P6 300 2 5 31050
All electrical specification ±20%
Mode / Exercise
Program You should Feel & Benefits Suggestion
P1
Exercise Preparation
This program gently warms up the muscles
prior to exercise; it feels like a rhythmic
massage.
Increase the intensity until you get a
strong but comfortable muscle movement,
10 min/duration.
P2
Active Recovery
This program produces muscle twitches at
very low frequency and it feels like a tapping
massage, for muscle recovery from fatigue
and becoming more relaxed with reduced
stiffness.
Use it after intense exercise to promote
recovery and relaxation, 30 min/duration.
P3
Active Recovery
This program is similar to P2, except that the
muscle twitch rate slows down during the
session. It feels like a tapping massage, but
softer than P2.
Use it after intense exercise to promote
recovery and relaxation, 20 min/duration.
P4
Active Recovery
This program activates the muscle in a short
contraction/relaxation cycle.
It feels like a kneading massage, smother
than P2/P3.
Use it after intense exercise to promote
recovery and relaxation, 20 min/duration.
P5
Build Endurance
This program uses a low frequency pulse
train which favours slow twitch fibers, for
developing aerobic capacity and capillary
supply. It improves fatigue resistance during
long duration moderate intensity exercise.
The exercise comprises an alternating
sequence of work and rest phases lasting
several seconds. Increase the intensity
until you get a strong and deep muscle
contraction. Do not exceed your comfort
level, 20min/duration.
P6
Muscle
Strengthening
This program uses a pulse frequency
appropriate to fast twitch muscle fibers.
It improves their anaerobic capacity and is
used for improving maximum muscle
strength.
The exercise comprises a sequence of
work phases separated longer relaxation
phases. Increase the stimulation intensity
until you get a strong and deep
contraction. Do not exceed your comfort
level, 20 min./Duration.

- 12 -
1. Press MODE after treatment time is set. The preset (default)
therapy mode TENS/EMS will flash on the display.
Use ON + or the button OFF – , if you would like to change the
therapy mode.
2. Press Mode again, the numeric number of program is then
flashing.
Press the button ON + (to increase) or the button OFF – (to
decrease) for choice of program of the selected modality.
3. Press MODE again to save your selection. The treatment time
you selected will appear on the display the next time you turn
the device on.
Ÿ1RWH: If you change programs during the course of a therapy
session, the treatment time will not reset unless you
Manually reset it by performing the steps described above.

- 13 -
Selecting the Therapy Intensity Level
This device offer a maximum of 25 intensity levels.
The design of the device does not allow the user to modify any of the electrical parameters. The only adjustment that can
be made is the electrical intensity which is set to a predetermined maximum current that is well with in safe limits. The
intensity of the electrical current determines the number of working fibers in the stimulated muscles. The lower the
current intensity the lower the number o f working fibers in the muscle. The higher the current intensity the greater the
number of working fibers in the muscle.
If using the device for help with temporary relief of pain associated with sore and aching muscles then you will find that
setting the current intensity to your own comfortable and pleasing level will give you much satisfaction. This level is
different for each user so adjusts slowly and accordingly.
If you desire to stimulate healthy muscles (EMS) in order to improve and facilitate muscle performance then you want to
achieve a significant number of working fibers. You require a minimum intensity (approx. 30mA) to accomplish this . This
can be achieved relatively quickly (2 to 3 sessions) by progressively increasing the intensity during the session. Once this
threshold is reached, continue to progressively increase the current intensity making the session more effective.
1. Intensity is adjustable according to the channel selected.
Select the channel you wish to adjust by pressing CH1 or CH2.
“CH1” or “CH2” will flash on the display.
2. To increase or decrease the intensity, press ON + (to increase) or
OFF – (to decrease) repeatedly until the desired intensity level
flashes on the display.
ˏ
ˏġ
Note : You will feel the intensity increase or decrease as you select
the intensity level. You can use this as a guide
to select a level that is comfortable for you.
Ÿ Note : If you change therapy mode/program during the course of a
therapy session, the intensity level will reset to “0” showing on
the screen, for safety reason.
3. Press MODE to save your selection.
Ÿ Note: It is suggested that treatment frequency is 3 times per day
Never set intensity so that the stimulation becomes extremely uncomfortable.

- 14 -
SPECIAL FEATURES
Treatment Time
The device offers 12 preset times: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55 and 60 minutes.
Time will countdown on the display in 1-minute increments for the duration of your session.
x The device turns off automatically when the therapy time has elapsed.
x The most recently set therapy time is stored.
x If you alter the program mode during your therapy, the therapy time won’t restart, unless you reset the therapy time.
x The last treatment program you used will appear on the display, when you turn on the device.
x To change the program, press ON + or OFF – repeatedly until the desired program appears on the display.
x Press MODE to save your selection. The program you selected will appear on the display the next time you turn on the
program.
Lock Function
Press and hold the ON + and OFF – keys simultaneously for 1 second to lock/unlock the device.
The Lock Function prevents accidental intensity changes when buttons are “ bumped”.
Automatic Shut off
x The device automatically turns off when no button is pressed for 60 seconds.
x The device automatically turns off when the time for your therapy session has elapsed.
Intensity Level Reset
For your safety and comfort, the intensity level will reset to ”0” each time the device turns off and after the therapy
session has elapsed.
The treatment will discontinue if the electrodes are not properly placed well, and/or any entry for changing the mode
setting during therapy session, it shall initiate to lowest intensity level, showing “0” on the screen.
Low Battery Status Indicator
The battery status indicator will light whenever the battery is low. This means that soon you have to replace the batteries.
The batteries should last between 30 and 60 applications depending on stimulation times and frequencies.

- 15 -
CARE AND MAINTENANCE
Stimulator
The stimulator may be wiped clean with a small amount of soapy water on a clean cloth. Do not submerge the stimulator
in liquids or expose it to large amounts of water.
x Never use aggressive cleaning products of stiff brushes to clean the device.
x Remove the battery before cleaning the device.
x Do not use the device again until it is completely dry.
x Do not expose the device to direct sunlight and protect it from dirt and moisture.
Cables
x Disconnect the cables from the stimulator and electrodes.
x Do not pull on the cables, but on the connectors attached to the ends of the cables.
x Store the stimulator with the cables in a clean, dry place.
Electrode
The electrode pads are disposable and use an adhesive that will dry after prolonged usage or storage. Pads should be
replaced when they lose their adhesive quality, or you sense a change in stimulation sensation.
To order replacement pads, please visit http://gurinproducts.com/, or contact authorized distributor(s).
How to Store Your System
1. Store your System at room temperature in a dry place, out of the reach of children.
2. If the stimulator will not be used for more than a week, remove the battery from the stimulator.

- 16 -
ADDITIONAL TECHNICAL SPECIFICATIONS
Pulse Amplitude: Adjustable 0 – P$SHDNLQWRȍ load each channel;
RMSV at 3.5 V(max.), RMSA at 1.3mA(max.)
Wave Form : Symmetrical Bi-Phasic square pulse.
Max Charge per Pulse: 20.8 micro-coulombs maximum.
** All electrical specifications are ±20% at 500ȍ load.
Operating Conditions: + 50°F (10°C) to +104° (40°C), 40-90% max. Relative humidity
Transportation & Storage Condition: +14°F (-10°C) to +140° (60°C), 30-95% max. Relative humidity
Weight: 2 ounces
Dimensions: 3.5” x 2” x 0.75”
TROUBLESHOOTING
If you are having problems with your SantaMedical TENS+EMS, make sure the cables fit tightly into the connection
sockets of the device and that the batteries have sufficient charge and are not corroded.
WARRANTY
This SantaMedical TENS+EMS carries an industry leading 2-year warranty from the date of purchase.
The warranty applies to the SantaMedical TENS+EMS and necessary parts and labor relating thereto.
The warranty does not include the electrode pads, which do need to be replaced over time.
The warranty does not apply to damage resulting from failure to follow the operating instructions, accidents, abuse,
alterations or disassembly by unauthorized individuals. The manufacturer reserves the right to replace or repair the unit
at their discretion.
PRODUCT REGISTRATION
To ensure your full warranty, receive product updates, and streamlined customer support, don’t forget to register your
product at http://gurinproducts.com/warranty/
Gurin Products, LLC
2522 Chambers Rd, St100
Tustin, CA-92782, USA
Support/Warranty - [e-mail]
Tel no.:888-666-1557
http://gurinproducts.com/
Made in Taiwan
