Restek 24134 Quick guide

21401
21400 21402
*Please call Customer Service at 1-800-356-1688, ext. 3, or contact your Restek representative. Specify dip tube length or % outage
when ordering (maximum length = 5.25"/ 13.3 cm). Note: End of part will not be treated after cutting tube to length.
Sulfinert Treated
Description cat.#
1/4" Male NPT x 1/4" Male NPT 21400
1/4" Male NPT x 1/4" Female NPT 26299
1/4" Male NPT x 1/4" Male Compression 21401
1/4" Male NPT x 1/4" Male NPT w/5.25" Dip Tube* 21402
1/4" Male NPT x 1/4" Male NPT w/1,800 psi Rupture Disc 26303
1/4" Male NPT x 1/4" Female NPT w/1,800 psi Rupture Disc 26305
26307
26309
26311
26313
26315
26317
3,500 5,000
cat.#
Treatment Layer Troubleshooting
Under normal use, your treated items should deliver outstanding performance for
years to come. However, effective lifetime is dependent on the severity of the environ-
ment. Factors that can impede performance are:
Contamination Failure to properly clean the surface can allow increased surface
activity. If performance changes, thoroughly clean the surface
and inspect the layer for damage.
Erosion Contact with abrasives can accelerate surface wear.
Bases Contact with a base (pH 8 or higher) can accelerate deterioration
of the layer.
Surface finish and color should stay consistent throughout the life of the product.
Changes in the finish or color may indicate a partial loss of the layer. To prevent
further loss, ensure no exposure to bases or abrasives. For additional information, visit
www.restek.com or contact our technical service department at 1-800-356-1688, ext. 4.
Sulfinert®-Treated Sample Cylinders
Assembly & Maintenance Guidelines
www.restek.com
24134
24133
24131

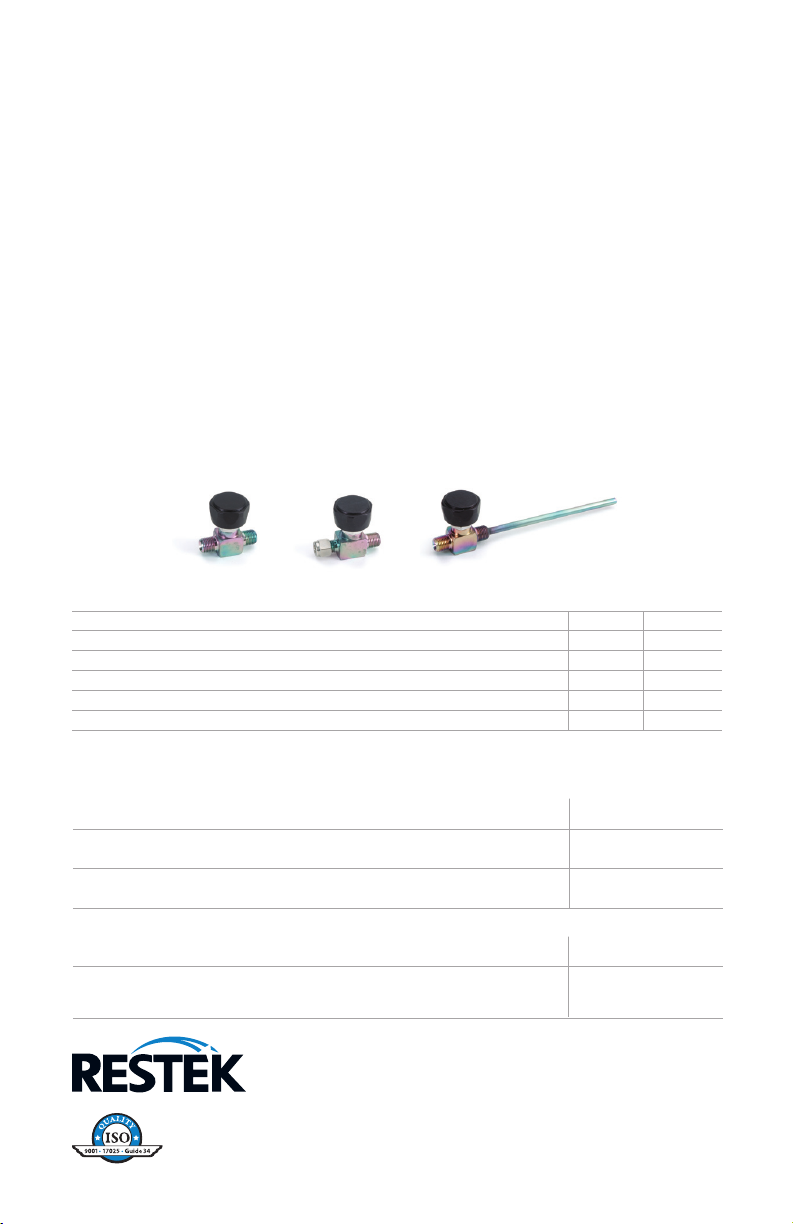

Sample Cylinder Valves
• Multiple valve configurations, including dip tube and rupture disks.
• Large, durable, Kel-F® seat ensures leak-free operation.
• Temperature range: -40 °C to 120 °C
Metering Control Valves Sulfinert Treated
Description cat.#
3,500 psig DOT Pressure Rating
Metering Control Valve, 1/4" Male NPT x 1/4" Male NPT 26327
Rupture Disc Tee Sulfinert Treated
Description cat.#
1,800 psig DOT Pressure Rating
Rupture Disc Tee, 1/4" Male NPT x 1/4" Female NPT 26319
2,850 psig DOT Pressure Rating
Rupture Disc Tee, 1/4" Male NPT x 1/4" Female NPT 26323
cat.#
3,500 psig 5,000 psig
cat.#
#500-05-001
Rev. date: 03/12
Restek U.S. • 110 Benner Circle • Bellefonte, PA 16823 • www.restek.com
phone: [phone] • 1-800-356-1688 • fax: [phone] • e-mail: [e-mail]
Restek France • phone: [phone] • e-mail: [email protected]
Restek GmbH • phone: [phone] • e-mail: [email protected]
Restek Ireland • phone: [phone] • e-mail: [email protected]
Restek Japan • phone: [phone] • e-mail: [email protected]
Thames Restek U.K. LTD • phone: [phone] • e-mail: [e-mail]
© 2010 Restek Corporation.
All rights reserved.
Printed in the U.S.A.

Assembling the Sample Cylinder and Valve
We recommend using a new valve with your new cylinder. If a valve has been used
previously, the threads might be damaged and possibly will not make a proper seal.
1. Clean the threads on the valve and cylinder, then examine the threads for dam-
age such as burrs, dents, nicks, or gouges. Reject or repair a valve or cylinder with
threads showing these defects.
2. Apply 3 wraps of PTFE tape (e.g., ResTape, cat.#22486) to the valve threads, leaving
the first (lead) thread exposed.
3. Install the valve onto the cylinder by inserting and hand tightening to engage
at least 2 but no more than 3 threads. If the valve fails to start easily, examine to
confirm the valve is to gauge. Also, recheck the valve and cylinder for damaged
threads.
4. Secure the valve and cylinder assembly in a holding device, using protective mate-
rial around the cylinder to prevent gouging of the sidewall. Using a torque wrench,
tighten the valve to 8 to 10 foot-pounds, maximum. This torque should produce
another 2 to 3 threads engagement, for a total engagement of 4 to 6 threads.
Cleaning
To clean a treated part, rinse with a solvent that will dissolve probable surface contami-
nants (i.e., use a nonpolar solvent to remove hydrocarbon contaminants, or a more
polar solvent to remove more active contaminants). Avoid using cleaners containing
abrasives as they can scratch the surface layer. Mild sonication might assist in remov-
ing contaminants, but do not oversonicate—this could damage the surface layer.
Do not use basic solutions with pH>8.
Do not steam clean any Restek treated system components or line, as this could
damage the surface layer.
Treatment Layer Appearance
The appearance of a Restek treated surface can vary from lot to lot. Small variations in
surface thickness (measured in angstroms) affect layer appearance. The surface finish
should be bright and free of defects, but original surface condition can have a major
impact on final surface quality.
Your parts are cleaned after treatment; however, the surface may contain some trace
silicon (black particles) as a byproduct of the treatment process. Residual silicon can
be removed by rinsing with a solvent or by sonication in water (do not oversonicate).
Galling
As with any threaded fitting, galling may occur when assembling two treated thread-
ed parts. To prevent thread damage, use a thread lubricant or PTFE tape (e.g. ResTape
Stainless Steel Thread Sealing PTFE tape, cat.# 22487). Galling potentially can be
reduced when assembling a treated part and an untreated part.
(Sulfinert® Treated) High Pressure Sample Cylinders
• Sulfinert® coating provides stable storage of sulfur and mercury at ppb levels in petro-
leum samples.
• Inert coating doesn’t flake; more durable than PTFE.
• TPED compliant cylinders now available for shipping into EU countries.
• All cylinders have 1/4” female NPT threads on both ends.
Refinery and natural gas samples often contain trace amounts of sulfur-containing
compounds which can interfere with reactions or poison catalysts in petrochemical
processes. Because sulfur compounds quickly react with stainless steel surfaces, accu-
rate determination of these compounds is impossible when samples are collected and
stored in untreated sample cylinders. The Sulfinert® passivation technique bonds an
inert silica layer into the surface of stainless steel, preventing active compounds from
reacting with or adsorbing to the
steel. These Swagelok® high pres-
sure sample cylinders are Sulfinert®
treated for greater stability of sulfur
compounds and mercury. DOT rat-
ing to 1,800 and 5,000 psig allows
sampling at gas wellheads as well
as in the refinery. Use of high pres-
sure sample cylinders is cited in
ASTM D1265, Standard Practice for
Sampling Liquefied Petroleum (LP)
Gases, Manual Method.
Sulfur compounds are stable in Sulfinert®
treated stainless steel systems.
17 ppbv hydrogen sulfide in 500 mL cylinders
Relative response: hydrogen
sulfide:dimethyl sulfide
also available
Certificates are available upon request.
304L Stainless Steel
1,800 psig TPED, 1,450 psig
Size qty. Swagelok part # cat.# price Swagelok part # cat.# price
75cc ea. 304L-HDF4-75 24130
150cc ea. 304L-HDF4-150 24131 304L-HDF4-150-PD 24131-PI
300cc ea. 304L-HDF4-300 24132 304L-HDF4-300-PD 24132-PI
500cc ea. 304L-HDF4-500 24133 304L-HDF4-500-PD 24133-PI
1000cc ea. 304L-HDF4-1000 24134 304L-HDF4-1000-PD 24134-PI
2250cc ea. 304L-HDF4-2250 21394 304L-HDF4-2250-PD 21394-PI
316L Stainless Steel
5,000 psig TPED, 4,350 psig
Size qty. Swagelok part # cat.# price Swagelok part # cat.# price
150cc ea. 316L-50DF4-150 22111 316L-50DF4-150-PD 22111-PI
300cc ea. 316L-50DF4-300 22112 316L-50DF4-300-PD 22112-PI
500cc ea. 316L-50DF4-500 22113 316L-50DF4-500-PD 22113-PI
304L-HDF4-75-PD 24130-PI
