Reval Caprice 7101.01 UK User manual

EN Instruction manual
Baignoire à Hauteur Variable avec Lève-personne
Variable Height Bath and Integral Transfer ystem
Caprice
7101.01 UK
7101.02 UK

SUMMARY
CONTENTS PAGES
DIMEN ION 2
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
DE CRIPTION / HAND CONTROL 3
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
TECHNICAL PECIFICATION 4
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
OPERATION / AFETY 5
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
AFETY IN TRUCTION AND WARNING 6
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
INITIALI ATION PROCEDURE OF THE CONTROL BOX OFTWARE 7
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
DIRECTION FOR U E
TRAN FER 8
PO ITIONING THE EATING Y TEM 8
EATING Y TEM AND HOI T INTERFACE 8
RAI ING THE EATING Y TEM 9
LOWERING THE EATING Y TEM 9
AUTOMATIC EQUENCE FUNCTION 9
TEMPERATURE CONTROL 10
DRAIN PLUG OPERATION 11
HYDRO-MA AGE OPERATION (OPTIONAL) 11
CHROMOTHERAPY (OPTIONAL) 12
HYDRO-AROMATHERAPY (OPTIONAL) 13
AUDIO PA (OPTIONAL) 14
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
MAINTENANCE
DI INFECTION 15
CLEANING METHOD 15
DI INFECTION METHOD 15
CLEANING PROCEDURE - AIR WHIRLPOOL Y TEM 16
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
PERIODIC IN PECTION 17
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
MAINTENANCE FORM (LOGBOOK) 18
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
1/18

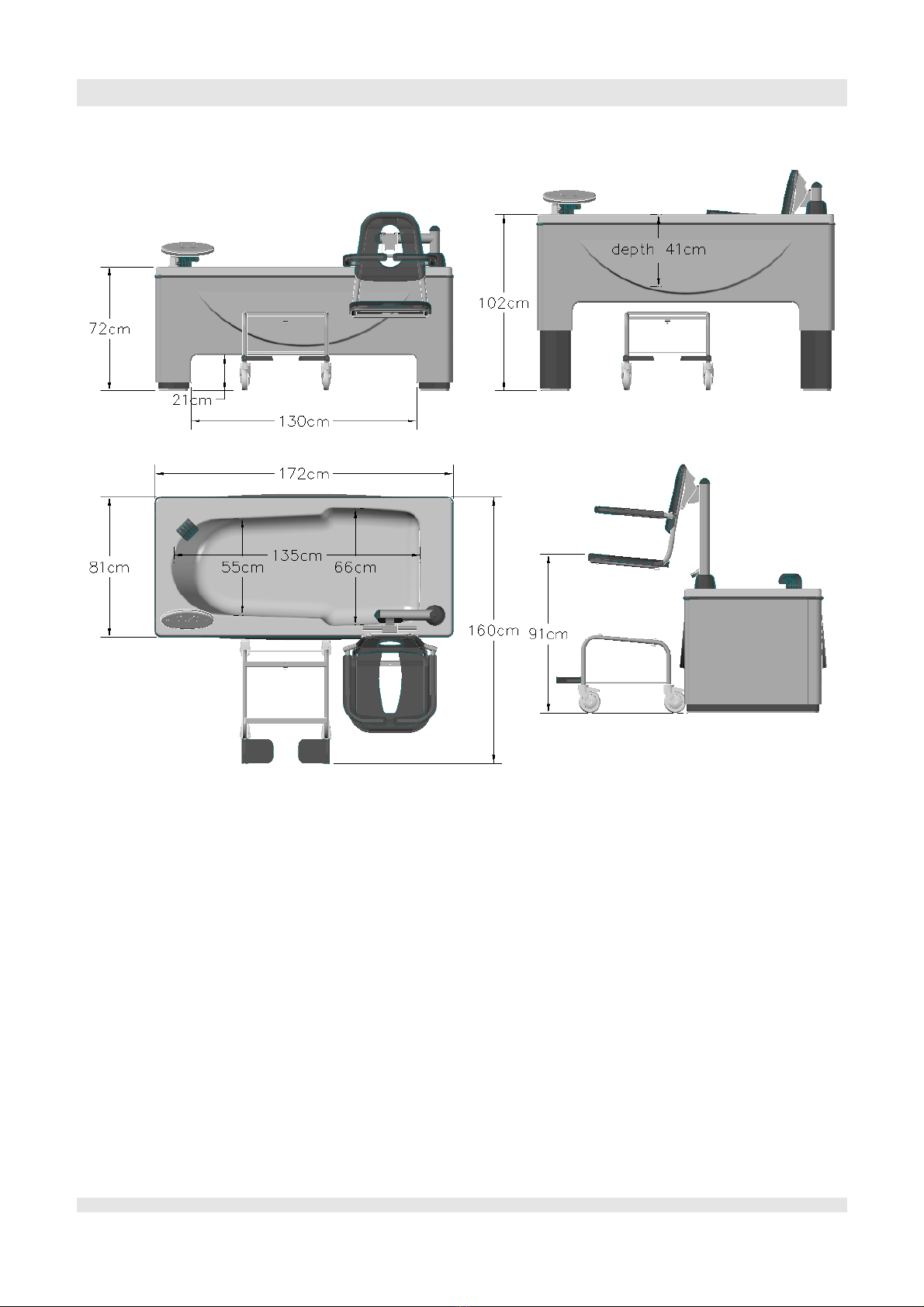

DIMENSIONS
2/18

DESCRIPTION
HAND CONTROL
3/18
Filling spout
eat height function
eat lowering function
Rotation to bath
Rotation to transfer
Tub height function
Tub lowering function
Automatic transfer to trolley :
equence A:
1. Tub fully comes down.
2. Hoist fully rises.
3. eat fully turns to
transfer.
Automatic transfer to bath :
equence B:
1. Hoist fully rises.
2. Tub fully comes down.
3. eat fully turns to bath.
4.
eat comes down until
Rada ense
Control
Flow adjustment
eating chassis
eating system
Drain plug control
& overflow
afety armrests
Locking mechanism

TECHNICAL SPECIFICATIONS
VERSIONS:
REF. 7101.01 UK Bathtub "CAPRICE" access by the left side.
REF. 7101.02 UK Bathtub "CAPRICE" access by the right side.
OPTIONS :
REF.7100.10 Trolley system
REF.7300.20 Air whirlpool.
REF.7300.60 Chromotherapy.
REF7300.70 Aromatherapy.
BATHTUB:
Construction - Reinforced fibreglass tub with polished white gel coat colour finish.
Variable height adjustment with dual 24V electric actuators.
TMV 3 scheme approved thermostatic anti-scold mixer.
8 functions hand control IP66 rated for hoist and tub.
TMV 3 cheme approved thermostatic anti-scold shower system.
INTEGRAL HOIST :
tainless steel chassis.
Polyurethane seat and backrest cushions.
tailess steel seating system frame.
Bath chair braked castors Ø125mm.
Foot rests – fixed position flip up type.
PERFORMANCE :
Max water volume: (overflow limit = 240 litres)
Flow: 54 litres/min.
Tub lifting range: 300mm
Hoist lifting range: 320mm
Filling time @ 3 bars: 4 min
afe working load ( WL) 125Kg
Working capacity for Hi/ o tub : unlimited – 6 min/hours
Working capacity for hoist : unlimited – 6 min/hours
ELECTRICITY :
Electric supply requirements: 230V - 50hz - 180W
CONFORMITY:
73/23/CEE (low voltege directive)
89/336/CEE (EMC directive)
NF EN 60335-1 (electric standard for bathtub..)
NF EN 60335-2-60 (electric standard for bathtub...)
NF EN 1717 (Anti-pollution)
NF C 15100 (Electric installations…)
NB. Please be advised that the image's used in this brochure may not represent the product marketed in your country. e.g.
Many products marketed in the UK are WRA certified. Therefore, there products may be fitted with controls and apparatus such as
thermostatic mixers, and shower up-stands which may not be illustrated in this or any other documentation. For specific information
please contact Reval customer services.
Also, Reval Reserves the right to change or modify its documentation, and product at any time without prior notification, for full details of
our standard terms and conditions, please contact Reval Customer ervices on 01656 721 001!
4/18

OPERATION
Variable height adjustment is via dual 24V synchronised actuators.
Raise and lower function of the integral hoist is via a single 24V actuator.
Rotate function via a single 24V actuator.
8 function hand control pendent controls - seat rotation/ seat rise and lower - variable tub height – automatic cycle for
transfer and bath
Electric Jacks are controlled via an electronic control box installed with unique software Designed specifically for the
Caprice appliance.
Bath fill via TMV 3 scheme approved thermostatic anti-scold mixer which complies with the requirements of WRA fluid
category 5 backflow prevention.
TMV 3 scheme approved thermostatic anti-scold shower system complies with the requirements of WRA fluid category 5
backflow prevention.
Water temperature control and adjustment is via the thermostatically controlled TMV 3 scheme approved deck mixer tap.
A compressor drives the variable flow control hydro-massage system (optional).
Heated air is blown under pressure into the bath via 12 diffuser nozzles equipped with anti-return valves integrated in to
the bottom of the bath tub. The three button control is located on the tub.
SAFETY
For safety reasons, the seating system will only rotate when the tub is in OW position and the hoist in HIGH
position.
To raise the tub is only possible if the seating system is ABOVE TUB EVE !
owering the seat into the bath is only possible if the seat is in the High position and is positioned, in the in
bath position which prevents accidental transfer in to the side of the bath!
Care givers transferring service users to and from a bathroom in the mobile seating system, should take
special care not exert excess force or exceed a slow constant and controlled walking pace. Care should also
be taken when crossing room thresholds or very small obstacles’ which may require the adverse handling of
the seating system. The seat and trolley are two separate components which if handled incorrectly or in a
careless manor, could become detached which may result in separation causing a serious accident and
injury!
Take extra care when docking the seating system into the bath prior to transfer. Ensure that the two back
posts of the seating system are securely located in to the two black clip locators positioned on the side of the
bath tub. This will insure the hoist and seat index pins are correctly located prior to transfer. Remove the
trolley from the clip locators at the side of the bath before the tub is height adjusted to provide working
space beside the bath!
5/18

SAFETY INSTRUCTIONS AND WARNINGS
IMPORTANT! DO NOT USE THIS APP IANCE BEFORE READING AND UNDERSTANDING THIS USER GUIDE.
To ensure safe operation, read this manual carefully. Please pay particular attention to sections explaining "Safety
Instructions and Warnings", before installing, operating, or servicing this equipment.
If in any doubt contact Reval Continuing Care td for more details [phone]) or assistance do not take a
chance!
Failure to comply with warnings in this manual may result in injury!
Keep this manual with the tub and refer to it as required. Contents of this manual are subjected to change without
prior notice to users!
•The CAPRICE bathing system MUST be installed by a contractor or a certified installation technician!
“NOTE TO INSTA ATION TECHNICIANS”
The Caprice bath is supplied with four floor fixings (rawl bolts M10-60mm) and a template to be used to mark and drill the
holes required on the floor.
Please ensure that these fixings which are located at all four corners at the base of the mast are made effectively. Failure to
floor fix the bath can seriously damage the mast mechanism and cause serious risk of injury to service user and care worker.
FAI URE TO F OOR FIX THE CAPRICE BATH CAN CAUSE THE BATH SYSTEM TO TOPP E OVER WHEN BEING USED
AND UNDER OAD.
•DO NOT immerse the hand control in water!
•DO NOT try to lift the tub!
•DO NOT work underneath the tub during lowering!
•DO NOT fill over the maximum water level line!
•DO NOT operate the air whirlpool pump without water!
•DO NOT pull on the shower head too forcibly!
•DO NOT place any object underneath the tub!
•DO NOT use any electrical appliances near the tub!
•DO NOT use any electrical appliances (hair dryer or electric razor, etc) while in the tub!
•DO NOT force controls or taps!
•A WAYS perform a daily check before using the bathing system!
•A WAYS prepared yourself the environment, and the service, user prior to transferring a user!
•A WAYS check the water temperature prior to transferring or showering a user!
•A WAYS check the seat and hoist interface is correctly positioned and engaged prior to operation.
•User ability MUST be professionally assessed prior to using this system to ensure user safety!
•For health, safety, and hygiene reasons clean the bath after each user cycle!
•For health, safety, and hygiene reasons disinfect the bath after each user cycle!
•When disinfecting the bathing system, wear protection e.g. rubber gloves, safety clothing and Eye protection!
•In case of eye or skin contact, follow the procedures on the disinfectant container or safety manual! ( BFR4.0)
•A weekly safety check should be performed to ensure all hoses, pipes, connections and securing devices are in safe
working order. Keep all tub components clean and dry!
•DO NOT TAKE A CHANCE!
6/18
Floor fix at all
four positions.

INITIALISATION PROCEDURE OF THE CONTROL BOX SOFTWARE
Whenever an actuator is connected/re-connected to the CB an initialisation should be performed.
The end stop is used as a reference for the actuator position and all further movement is made referring to this end stop
position. Thus it is recommended to calibrate the position measurement system by initialising regularly to prevent position
errors to accumulate in the system.
All channels initialise in end stop inwards.
The initialisation procedure is as follows:
1) Press on the button to endstop (sound signal)
then
2) Press on the button to endstop (sound signal)
then
3) Press on the button to endstop (sound signal)
If these 3 stages are not enough, press simultaneously on the keys(touches) of sequences A and B during 7s up to a sound
signal then take back 3 stages of reset described above.
If these 3 stages are not enough, press simultaneously on the keys(touches) of second line of buttons until the alarm stopsl
then take back 3 stages of reset described above.
This procedure should always be done if a channel has position lost.
7/18

DIRECTIONS FOR USE
__________________________________________________________________________________________________
WARNING: This symbol is intended to alert the user to hazards or unsafe practices which
could result in serious bodily harm.
CAUTION: This symbol is intended to alert the user of the presence of important operating
and maintenance instructions which could prevent product damage or possible personal injury.
NOTE: This symbol offers helpful information concerning certain operating procedures.
__________________________________________________________________________________________________
TRANSFERRING A SERVICE USER
Before transfer, ensure the user is safely positioned in the seat with the armrests in down
position! Care givers transferring service users to and from a bathroom in the mobile
seating system, should take special care not exert excess force or exceed a slow
constant and controlled walking pace. Care should also be taken when crossing room
thresholds or very small obstacles’ which may require the adverse handling of the
seating system. The seat and trolley are two separate components which if handled
incorrectly or in a careless manor, could become detached which may result in
separation causing a serious accident and injury!
Position the bath- hair near the bath.
POSITIONING THE BATH-CHAIR
Before positioning the bath-chair ensure the
hoist is in the low position!
SEAT AND HOIST INTERFACE
Please make sure the mast in its lowest position before attempting to dock the seat system into the hoist.
Check to ensure the seat is fixed securely and the latch gate is in the down position !
With the bath-chair correctly positioned raise the hoist using the hand control take care
to ensure the male and female connectors insert/interface correctly!
Raise button on the pendent!
Take extra care when performing this operation!
8/18

DIRECTIONS FOR USE
RAISING THE BATH SEAT
To raise the seating system
press the UP button on the
hand control until endstop eat rise button
(sound signal)
SEAT ROTATION
To rotate the seating system to go out the bath
press the ROTATE button
until endstop (sound signal)
or to go in the bath
BATH HEIGHT ADJUSTMENT
Raise the bath tub to the required
height, then lower the seating
system into the bath by pressing
the EAT LOWERING button on
the hand control
AUTOMATIC SEQUENCES FUNCTIONS
Automati transfer to trolley:
= then then then
Automati transfer to bath:
= then then then
9/18

DIRECTIONS FOR USE
TEMPERATURE CONTROL
To adjust the water temperature, pass your finger in front of the cold water sensitive captor (blue triangle) or in front of the hot water (red
triangle) according to the temperature desired.
Factory pre-set with PDA:
-Max outlet temperature for bath: 44°C.
-Max outlet temperature for shower: 41°C.
-Min outlet temperature for bath: 37°C.
-Min outlet temperature for shower: 33°C.
-Default outlet temperature for bath: 38°C.
-Default outlet temperature for shower: 36°C.
-Flow times (bath): 7min30s, allow to fill until max water level.
-Flow times (shower): 2min
BATH FILLING
Check the water temperature. If necessary , adjust it via the digital mixer.
Close the drain plug by turning the button in a clockwise direction.
Pass the finger in front of the pictogram of the tap.
PATIENT SHOWER
The shower head can be operated at any time.
Pass the finger in front of the pictogram of the shower head and adjust the flow intensity with the tap in
front of the bath.
elect the desired temperature by adjusting the temperature valve as described above.
The shower head spray can be adjusted from a wide to narrow flow.
After each use, turn off the valve.
THERMIC DESINFECTION
The « rada sense » control box is equipped with a system of thermic disinfection for its pipes, which is controlled by a PDA. Only a
recognised technician can do this operation, so please call REVAL CC.
10/18
Cold
adjustment
sensor
Warm
adjsutment
se
nsor
Bath control
hower control
ervice activation
Temperature display
Full cold

DIRECTIONS FOR USE
DRAIN PLUG OPERATION
Turn the button lever in a clockwise direction to close the drain plug and anti clockwise to open it
OPEN CLO E
HYDRO-MASSAGE (OPTION)
A compressor drives variable flow control hydro-massage system (optional).
Heated air is blown under pressure with adjustable flow control via 12 diffuser nozzles equipped with anti-return valves
integrated in to the bottom of the bath tub. The three button control is located on the tub.
ystem afety - Drying cycle & auto switch off : If the hydro-massage function is used at any time. 30 minutes
after use the hydro-massage bower automatically re-starts and runs for a period of 4-5 minutes cycling from high to low
speed. After 4-5 seconds the system automatically switches its self off! This is the systems unique means drying the
internal airways to ensure humidity is dried helping to prevent the build up of harmful bacteria and can reduce the risk
of cross contamination!
11/18
+/-
blower on / off
blower variable speed blower massage mode
~
LED green colour

DIRECTIONS FOR USE
CHROMOTHERAPY (OPTION)
Chromotherapy is dynamic LED (light emitting diode) therapy which utilises no less than two pairs of 51 coloured LED’s
positioned under the bathwater level, designed to colour the bathwater and room lighting to provide a uniquely relaxing
and atmospheric experience for service users. The LED’s automatically alternate in colour and on/off switching. This can
also be set to manual adjustment for fine tuning the mood of the bathroom to suit the mood and requirements of the user.
There are several lighting sequences that will create the perfect atmospheric sensation. This coupled with Reval's Hydro-
Aromatherapy system deliver the ultimate in bathing comfort, relaxation and rehabilitation.
The Chromotherapy control button allows the user or care giver total control when using the chromotherapy function.
The chrome circular surface mounted button pad with function mode LED which informs the user as to the function status.
There are three main function modes:
1. On/Off - press function button once to switch on (led stable)
2. Auto colour change sequence - press button again for
two seconds to activate auto colour sequence
(LED flashes intermittently)
3. Manual colour sequence – press once to switch to manual
colour sequence then again when you wish to change colour.
After the sequence has run the system will switch to off mode!
To reactivate, follow steps 1-3.
12/18

DIRECTIONS FOR USE
AROMATHERAPY (OPTION)
Reval give all areas of patient well being and safety careful consideration. Its unique “Aromatherapy” system combines the
benefits of hydro-massage with the relaxing aromatic effects, of infused aroma essence, providing the ultimate bathing and
rehabilitation experience. The “Aromatherapy” system is compressed heated fresh air technology, which infuses aroma
therapy oils at temperature into the hydrotherapy air jet which explodes into the bath water delivering controlled therapy
with sensual and relaxing aromas assuring a totally unique and wonderful experience. Reval's new “Aromatherapy” system
has an ultra safe auto-clean function which self dries and cleans the internal air ducting pipe work after use automatically.
The auto-clean function significantly reduces the risk and development of micro -biological organisms that can develop in
humid and wet environments. Reval's unique air ducting system can be dismantled without the need for tools and can be
termically cleaned during routine servicing in a matter of minutes.
.
TO OPERATE:
1. imply remove the chrome cap, take the wooden spatula, soak in aromatherapy oil and replace it in to the essence
well. Replace the chrome cap) finger tight). Do not over tighten!
2. witch the Aromatherapy system on via the circular control panel. Once up to temperature the heated air infuses with
the aroma oil and releases its fragrance into the water via the diffuser jets positioned in the bottom of the bath tub.
The aroma is carried inside the bubbles and explodes on contact with the water releasing the sensual aromatic
fragrances in to the air.
3. For extended use switch off and re-soak the spatula as described in points 1&2.
4. The hydro Aromatherapy has an alternating intensity function. To activate this potion press the  button on the control
panel. The intensity will increase and decrease automatically providing needed therapy without sensitivity and
discomfort for those with sensitive joints and skin conditions.
5. The intensity can also be set at a fixed pressure for those who enjoy the continuous sensation and work-out. To fix the
intensity level simply press the + or – button on the control panel until the desired intensity has been found.
6. To switch off press the middle button on the control panel marked 1/0.
7. The Aromatherapy system has a self cleaning function called “Auto Clean” Once the system has been switched off the
status LED on the On/Off button changes from ON to Intermittent flashing. This indicates that the system has gone
into stand-by mode and will
Automatically switch on again and run for 5 minutes self drying any build up of humidity in the internal hydro
plumbing system. After five minutes the system will shut down.
13/18

DIRECTIONS FOR USE
AUDIO SPA (OPTION)
The “Audio spa” option consists of two loudspeakers, a waterproof amplifier, a MP3 player and a control panel including the
commands "One / Off" and "volume" as well as an embeded box with removable panel allowing to receive and to connect
the MP3 player.
Operation :
•Take the MP3 player.
•et it and add in musics of your choice.
Respect the legislation.
•Connect the MP3 player (headphone plug) to the DIN plug located
inside the embeded black box.
•Read your MP3 player.
•Push on the button 0/1 located on the control panel.
•Adjust the volume thanks to the potentiometer.
•In case the tone would not be sufficient, increase the volume
from the MP3 player.
To guarantee the longevity of the amplifier, think to switch off it by pressing on the button "On / off".
14/18

MAINTENANCE
CLEANING & DISINFECTING THE APPLIANCE
Cleaning:
To wash clean the bath use a soft not abrasive soap and water mix wash the appliance thoroughly ensuring maximum
coverage of the tub the controls and the seating system. Rinse the soapy water of the bath and wipe dry any residual water
away with a clean soft cloth.
Disinfe tion
The appliance is supplied with a hand held spray applicator which should be used to apply REVAL disinfectant BFR 0.4 The
applicator hold 600 ml of diluted disinfectant sufficient to thoroughly clean and disinfect the appliance. Reval disinfectant is
specifically designed to clean and disinfect your appliance whilst protecting it’s the smooth polished gel coat finish. Other
products may not be suitable such as any powder based products which if not diluted carefully can mark or scratch the
smooth easy to clean gel coat surface. cratch marks can harbour soap or greasy deposits which can harbour bacteria and
increase the risk of cross infection.
NB. REVA disinfectant is specifically designed to provide maximum protection for both the service users and the
appliance!
Dilution Ratio:
The REVAL disinfectant (BFR 4.0) has final dilution of 0,4%.per litre of cold fresh water
Health and Safety:
When mixing or applying REVA disinfectant always ware protective rubber gloves, safety clothing, and
appropriate eye protection!
Method:
•For 2,4 mltrs of neat Reval disinfectant into the hand held spray applicator.
(The exact dilution ration ratio should be 0.4% per litre of fresh cold water)
•Add 597,6 mltrs of water to the neat Reval disinfectant replace the top and mix well.
•pray a suitable amount of solution over the total area of the bath and seating system
to ensure total area coverage.
•Leave the solution on the surface area to activate for a minimum of two minutes.
•After the two minute period, rinse off the disinfectant with the fresh water shower.
•Wipe any fresh residual water up with a clean soft cloth.
•The appliance is them clean safe and ready for the next user.
CLEANING THE CONTROL PANEL
To clean the “rada sense” control panel, take the magnetic key located behind
the security door in front of the bath and pass it in front of the infra red of the control
panel to desactivate it. To reactivate the control panel, do the inverse operation.
DISINFECTING THE TUB
•pray a suitable cleaner or disinfectant onto the interior tub surface.
•Let the disinfectant activate for 2 minutes on the bath surface then rince off using the patient.
•Thoroughly rinse the interior tub surfaces.
•Dry the interior tub surfaces with a soft cloth.
15/18

MAINTENANCE
CLEANING THE HYDRO-MASSAGE DIFFUSERS
For the efficient functioning of the whirlpool system, the nozzles have to be cleaned on a regular basis(at least once a year).
Functioning of a whirlpool’s nozzle. Air is lown through the nozzle an dis discharged under the chromed air jet cap.
There is a risk of heating the air jet cap is the nozzles are not regularly cleaned. Layers of soap or deposit can hinder the
circulation of the air.
To clean the nozzles, please follow the next stages :
1) witch off the whirlpool option and empty the bath..
2) Unscrew the air jet cap.
3) Clean the chromed air jet cap, the nozzle and the ball. Then the air jet cap on the nozzle.
4) witch on the bath and the whirlpool system to check they are working properly.
16/18
AIR
BUSE
CAPSULE
CHROMEE

PERIODIC INSPECTION
1) Periodic inspection of the appliance should be undertaken at the time intervals stated by the manufacturer, OR at least
once annually. ervice means a full physical and visual examination of all the functions and fixtures and fitting on the
appliance in particular the safety systems.
2) Periodic inspection should be performed by a Reval trained and approved engineer who is qualified and well acquainted
with the design, use and care of the appliance. The scope of the periodic inspection should be included in the manual
supplied with the appliance.
3) All service and repair work out on the appliance should be recorded in the service logbook provided and should be
retained by the owner of the appliance for reference. Do not use the product if the service logbook has not been signed
after every service or repair. This constitutes that the product has not been signed off as fit for use! The service provider
must sign the service logbook to constitute the appliance has been re-commissioned and safe for use!
4) If in any doubt contact Reval Continuing Care Ltd for further help and assistance. Any feedback provided by the Reval or
the service provider should be recorded in the service logbook for future reference.
5) It is important to ensure your appliance is serviced in line with the manufacturer’s service policy. Failure to meet this
requirement will render your product warranty void!
17/18

MAINTENACE FORM (LOGBOOK)
Service providers
signature
Clients
signature
Parts fitted
Service providers Comments
Service or repair
undertaken
Date
18/18

FRANCE :
Reval®
Z.A. Fief des Prises
Usseau 17220 ainte oulle
Tel: [phone]
Fax: [phone]
www.groupe-reval.com
UNITED KINGDOM :
Reval® Continuing Care Limited
Unit 17 Brynmenyn Busines Centre
t Theodore's Way - Brynmenyn
CF32 9TZ BRIDGEND - WALE
Tel: [phone]
Fax: [phone]
www.reval-group.com
