Reveal NR3651RRSV User manual

Rev B Date: 12.15.2021
Manuals\Reveal_Over-Under Refrigerated Service Case Operating Manual_21-22964.pub
Structural Concepts Corporation ∙ 888 E. Porter Road ∙ Muskegon, MI 49441 Phone: [phone] Fax: [phone] ∙ www.structuralconcepts.com
SCC P/N
21-22964
INSTALLATION
AND OPERATING
MANUAL
Reveal
®
READ AND SAVE THESE INSTRUCTIONS
REVEAL® FREE STANDING OVER-UNDER REFRIGERATED CONVERTIBLE MERCHANDISERS
> CONVERTIBLE UPPER SECTION MAY BE EITHER AMBIENT OR REFRIGERATED
> REFRIGERATED LOWER SECTION
> SELF-CONTAINED OR REMOTE UNITS
> UPPER SECTION: REAR SLIDING DOORS and SINGLE SHELF
> LOWER SECTION: REAR SLIDING DOORS WITH PERFORATED
ACRYLIC PLENUMS
> DEPENDING UPON OPTIONS CHOSEN, LOWER SECTION MAY
HAVE NO SHELVING, SHELVING OR RISERS (IN LIEU OF SHELVING)
--- --- --- --- ---
> CAUTION! DO NOT PUSH OR PULL ON UPPER GLASS ENCLOSURE!
> ONLY USE HANDLES (AT EACH END OF CASE) TO PUSH OR PULL CASE INTO POSITION!
Reveal® Model NR3651RRSV /
Rear Sliding Doors and Acrylic
Perforated Plenums / Shown As
Shipped From Factory (Without
Attached Components) / Rear Slide-
Out Access To Condenser Package
Reveal® Model NR3658RRSV
Rear Sliding Doors and Acrylic
Perforated Plenums / Cladding
Shown Attached
Reveal® Model NR3651RRSV
Rear Sliding Doors and Acrylic
Perforated Plenums / Optional
Product Steps / Shown As Shipped
From Factory (Without Attached
Components) / Front Slide-Out
Access To Condenser Package
Models Are Shipped WITHOUT
Panels and Cladding Attached.
See Pages 10 & 11 For Component
Attachment Instructions.
Note: Illustrations Shown May Not
Reflect Every Feature Or Option Of
Your Particular Model. See Page 3
Of Manual For List Of Models To
Which This Manual Is Applicable.

2
TABLE OF CONTENTS
TABLE OF CONTENTS …………………………………………………………………………………...…...
REVEAL® REFRIGERATED OVER-UNDER CONVERTIBLE MODEL APPLICABILITY &
DIMENSIONS …………………………………………………………………………………………..
OVERVIEW / DISPLAY TYPE I vs. II / COMPLIANCE / WARNINGS / PRECAUTIONS ……………...
INSTALLATION: TOE-KICK & GRILLE REMOVAL / DISCONNECTING CASE FROM SKID ……….
INSTALLATION, CONT’D: CASTER ADJUSTMENT / LOCK / UNLOCK / CASE REMOVAL
FROM SKID .……….………………………………………………………………………..………….
INSTALLATION, CONT’D: SHELVING ASSEMBLY COMPONENTS ...………………………………...
INSTALLATION, CONT’D: MAIN POWER SWITCH / TOE-KICK & AIR INTAKE GRILLE / PLUG-IN
INSTALLATION, CONT’D: SHIPPING BRACE / ATTACHING FRONT PANEL COMPONENTS /
HANDLES ……………………………………………………………………………………………….
INSTALLATION, CONT’D: ATTACHING SIDE PANELS, REAR PANEL AND REAR GRILLE ……..
CASE DESIGN: FRONT OF CASE (UNITS WITH REAR ACCESS CONDENSER PACKAGES) ......
CASE DESIGN, CONT’D: REAR OF CASE (UNITS WITH REAR ACCESS CONDENSER
PACKAGE) ..…………………………………………………………………………………………….
CASE DESIGN, CONT’D: CONTROLLER / DC DRIVERS / MAIN POWER SWITCH /
THERMOSTAT, ETC………. ….………………………………………………………………………
CASE DESIGN, CONT’D: UPPER SECTION - AMBIENT VS. REFRIGERATED STATE …..………..
CASE DESIGN, CONT’D: TUB AREA (AFTER DECK PAN REMOVAL) - 36” MODELS …………….
CASE DESIGN, CONT’D: TUB AREA (AFTER DECK PAN REMOVAL) - 48, 60” and 72”
MODELS ………………………………………………………………………………………………...
CASE DESIGN, CONT’D: LED LIGHT SWITCH LOCATION / LED LIGHTS / THERMOMETERS ….
CASE DESIGN, CONT’D: REAR SLIDING DOOR REMOVAL / REAR PERFORATED PLENUM
CONTROL ………………………………………………………………………………………………
CASE DESIGN, CONT’D: CONDENSER PACKAGE (SELF-CONTAINED UNITS ONLY) …………..
PRODUCT PLACEMENT: PRODUCT PLACEMENT / LOAD LINES (NO LOWER SHELF) ………...
PRODUCT PLACEMENT, CONT’D: PRODUCT PLACEMENT / LOAD LINES (WITH LOWER
SHELF) …………………………………………………………………………………………………..
CLEANING SCHEDULE (TO BE PERFORMED BY STORE PERSONNEL) ..…....…...…………...….
PREVENTIVE MAINTENANCE (TO BE PERFORMED BY TRAINED SERVICE PROVIDER) ……....
TROUBLESHOOTING (TO BE PERFORMED BY STORE PERSONNEL ONLY) ...………………......
TROUBLESHOOTING (TO BE PERFORMED BY TRAINED SERVICE PROVIDERS ONLY) ……….
TROUBLESHOOTING (TO BE PERFORMED BY TRAINED SERVICE PROVIDERS ONLY) -
CONDENSING SYSTEM ..………………………………………………………………………...….
TROUBLESHOOTING (TO BE PERFORMED BY TRAINED SERVICE PROVIDERS ONLY) -
EVAPORATOR SYSTEM ...…………………………………………………………………………...
SERIAL LABEL INFORMATION & LOCATION ..…………………………….……...…....……………..…
TEMPERATURE CONTROLLER - CAREL® ...…..……………………..…….……………………..……..
TECHNICAL SERVICE CONTACT INFORMATION & WARRANTY INFORMATION ...…...…...….....
2
3
4-5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24-25
26-27
28-31
32
33
34
35-37
38

3
REVEAL® REFRIGERATED OVER-UNDER COMBO MODEL APPLICABILITY & DIMENSIONS
Model Upper Display
Case Height Overall Case Height Case Depth x Width
NR3651RRSV 16” 50 3/4” 33”D* x 35 3/4”W
NR3658RRSV 16” 57 1/2” 33”D* x 35 3/4”W
NR4851RRSV 16” 50 3/4” 33”D* x 47 3/4”W
NR4858RRSV 16” 57 1/2” 33”D* x 47 3/4”W
NR6051RRSV 16” 50 3/4” 33”D* x 59 3/4”W
NR6058RRSV 16” 57 1/2” 33”D* x 59 3/4”W
NR7251RRSV 16” 50 3/4” 33”D* x 71 3/4”W
NR7258RRSV 16” 57 1/2” 33”D* x 71 3/4”W

4
OVERVIEW / DISPLAY TYPE I vs. II / COMPLIANCE / WARNINGS / PRECAUTIONS - PAGE 1 of 2
WARNING
Hazardous moving parts. Do not operate unit with covers removed.
Fan blades may be exposed when deck panel is removed.
Disconnect power before removing deck panel.
WARNING
Risk of electric shock. Disconnect power before servicing unit.
CAUTION! More than one source of electrical supply is
employed with units that have separate circuits.
Disconnect ALL ELECTRICAL SOURCES before servicing.
WARNING
ELECTRICAL
HAZARD
WARNING
KEEP
HANDS
CLEAR
OVERVIEW
 These Structural Concepts Reveal® cases are
designed to merchandise packaged products at
40 °F (4 °C) or less product temperatures.
 Cases should be installed and operated according to
this operating manual’s instructions to insure proper
performance. Improper use will void warranty.
TYPE I vs. TYPE II ENVIRONMENTAL CONDITIONS
This unit is designed for the display of products in
ambient store conditions where temperature and
humidity are maintained within a specific range.
 Type I display refrigerators are intended for use in an
area where environmental conditions are controlled
and maintained so that the ambient temperature does
not exceed 75 °F (24 °C) and 55% maximum humidity.
 Type II display refrigerators are intended for use in an
area where environmental conditions are controlled and
maintained so that the ambient temperature does not
exceed 80 °F (27 °C) and 55% maximum humidity.
 If unsure if your unit is Type I or II, see tag next to serial
label. See SERIAL LABEL LOCATION & INFORMATION
LISTED / TECH INFO & SERVICE section in this
manual for sample serial labels.
COMPLIANCE
 Performance issues when in violation of applicable
NEC, federal, state and local electrical and plumbing
codes are not covered by warranty. See below:
WARNINGS
 Please read the important warnings in this document
carefully as they can prevent injury or death.
 See next page for PRECAUTIONS.
COMPLIANCE
This equipment MUST be installed in compliance with
all applicable NEC, federal, state and local
electrical and plumbing codes.
ATTENTION
CONTRACTORS
CAUTION! IF YOUR UNIT IS SELF-CONTAINED, YOU MUST
CHECK CONDENSATE PAN POSITION & PLUG!
Water on flooring can cause extensive damage!
Before powering up unit, check and confirm that:
 Condensate pan is DIRECTLY UNDER condensate drain.
 Condensate pan plug is securely plugged into receptacle.
 Overflow pan has plug connected to its box. Units with optional Clean
Sweep® MUST HAVE two plugs connected.
WARNING: This product can expose you to chemicals, including
Urethane (Ethyl Carbamate), which are known to the state of
California to cause cancer and birth defects or other reproductive
harm. For more information go to P65Warnings.ca.gov.

5
OVERVIEW / DISPLAY TYPE I vs. II / COMPLIANCE / WARNINGS / PRECAUTIONS - PAGE 2 of 2

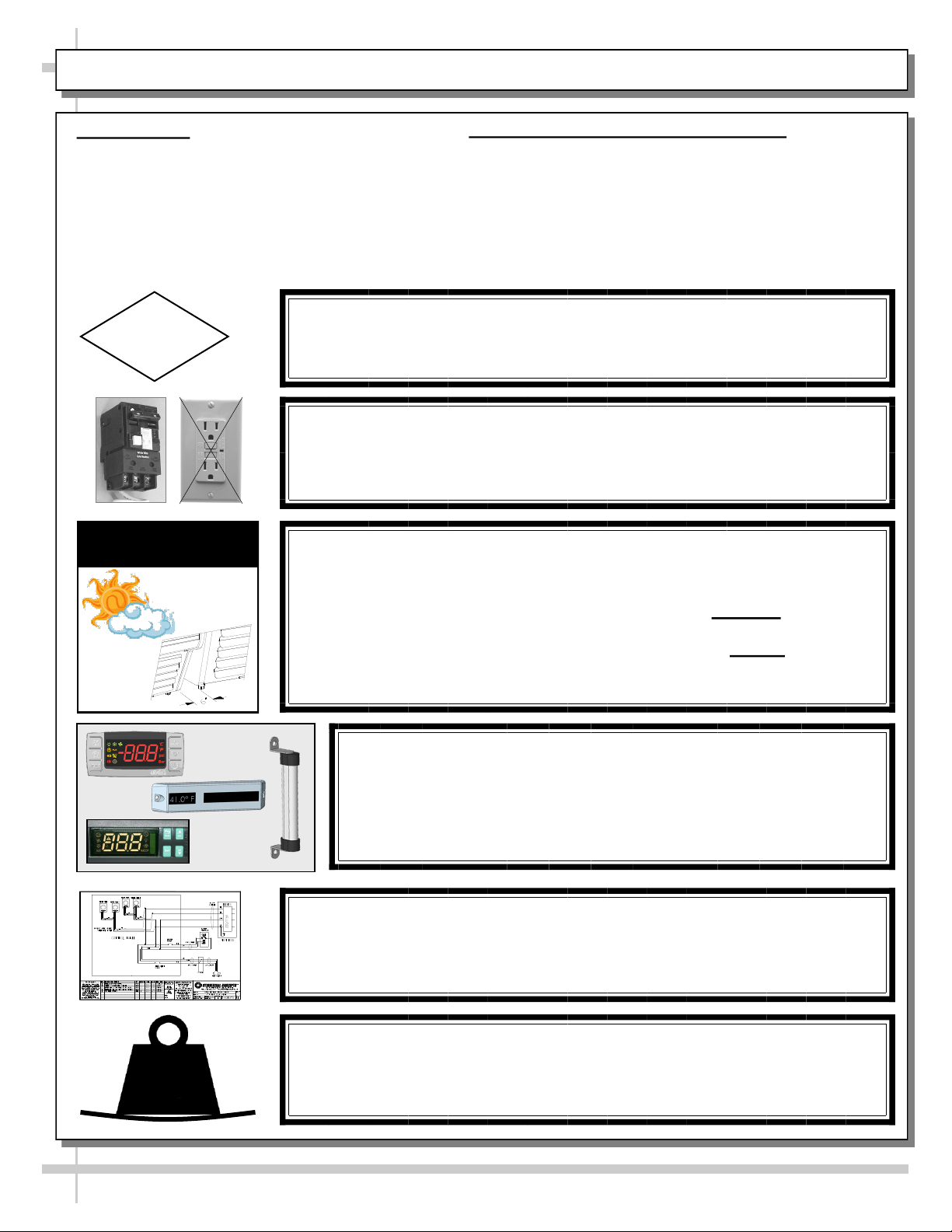

PRECAUTIONS
 Following are important precautions to prevent
damage to unit or merchandise. Read carefully!
 See previous page for specifics on OVERVIEW,
NSF TYPE, COMPLIANCE and WARNINGS.
REFRIGERANT DISCLOSURE STATEMENT
 This equipment is prohibited from use in California with
any refrigerants on the “List of Prohibited Substances” for
that specific end-use, in accordance with California Code
of Regulations, title 17, section 95374.
 This disclosure statement has been reviewed and
approved by Structural Concepts and Structural Concepts
attests, under penalty of perjury, that these statements
are true and accurate.
CAUTION! ADVERSE CONDITIONS / SPACING ISSUES
 Performance issues caused by adverse conditions are NOT covered
by warranty.
 End panels must be tightly joined or kept at least 6-inches away from
any structure to prevent condensation.
 To maintain proper temperatures, keep unit at least 15-feet from
exterior doors, overhead HVAC vents or any air curtain disruption.
 Do not expose to direct sunlight or heat source (ovens, fryers, etc.).
CAUTION
CAUTION! LAMP REPLACEMENT GUIDELINES
LED lamps reflect specific size, shape and overall design.
Any replacements must meet factory specifications.
CAUTION
WIRING DIAGRAM FORMAT & LOCATION
 Each case has its own wiring diagram folded & in its own packet.
 Wiring diagram placement may vary; it may be placed near field
wiring box, raceway, or other related location.
CAUTION!
DO NOT RELY ON THERMOMETERS OR THERMOSTATS
FOR ACTUAL PRODUCT (FOOD) TEMPERATURES.
 Thermometers and thermostats reflect air temperatures ONLY.
 For PRECISE food temperatures, use calibrated food
thermometers ONLY.
CAUTION! GFCI BREAKER USE REQUIREMENT
If N.E.C. (National Electric Code) or your local code
requires GFCI (Ground Fault Circuit Interrupter) protection,
you MUST use a GFCI breaker in lieu of a GFCI receptacle.
CAUTION!
 To prevent sagging or breakage, do not exceed 5 LBS (2.3 KG)
weight load per top glass section (between vertical supports).
 To prevent scratching or marring, do not place ANY items on glass.
5
LBS

6
INSTALLATION: TOE-KICK & GRILLE REMOVAL / DISCONNECTING CASE FROM SKID
1. Remove Front Toe-Kick From Case
 To prevent damage to case, remove front
toe-kick from case before removing from Skid.
 Toe-kick is held in place by magnets only. No
screw removal is required.
 Place front toe-kick in secure location while
removing case from Skid.
2. Remove Air Intake Grille From Case
 To prevent damage to case, lift air intake grille
UP and OFF case.
 Air intake grille is held in place by magnets.
Toe-Kick
No screw removal is required.
 Place air intake grille in secure location
while removing case from Skid.
3. Disconnect Case From Skid
 Use Phillips driver to remove screws
from shipping brackets. Remove and
discard shipping brackets from Skid.
 Place J-bar/pry bar under base frame.
Raise case up from Skid to take
weight off casters.
 With case raised, lower casters all the
way down against Skid (see next step
for detailed instructions on lowering or
raising casters).
 Remove rubber shipping blocks.
Skid
Rubber
Shipping Block
Shipping
Bracket
Air Intake Grille

7

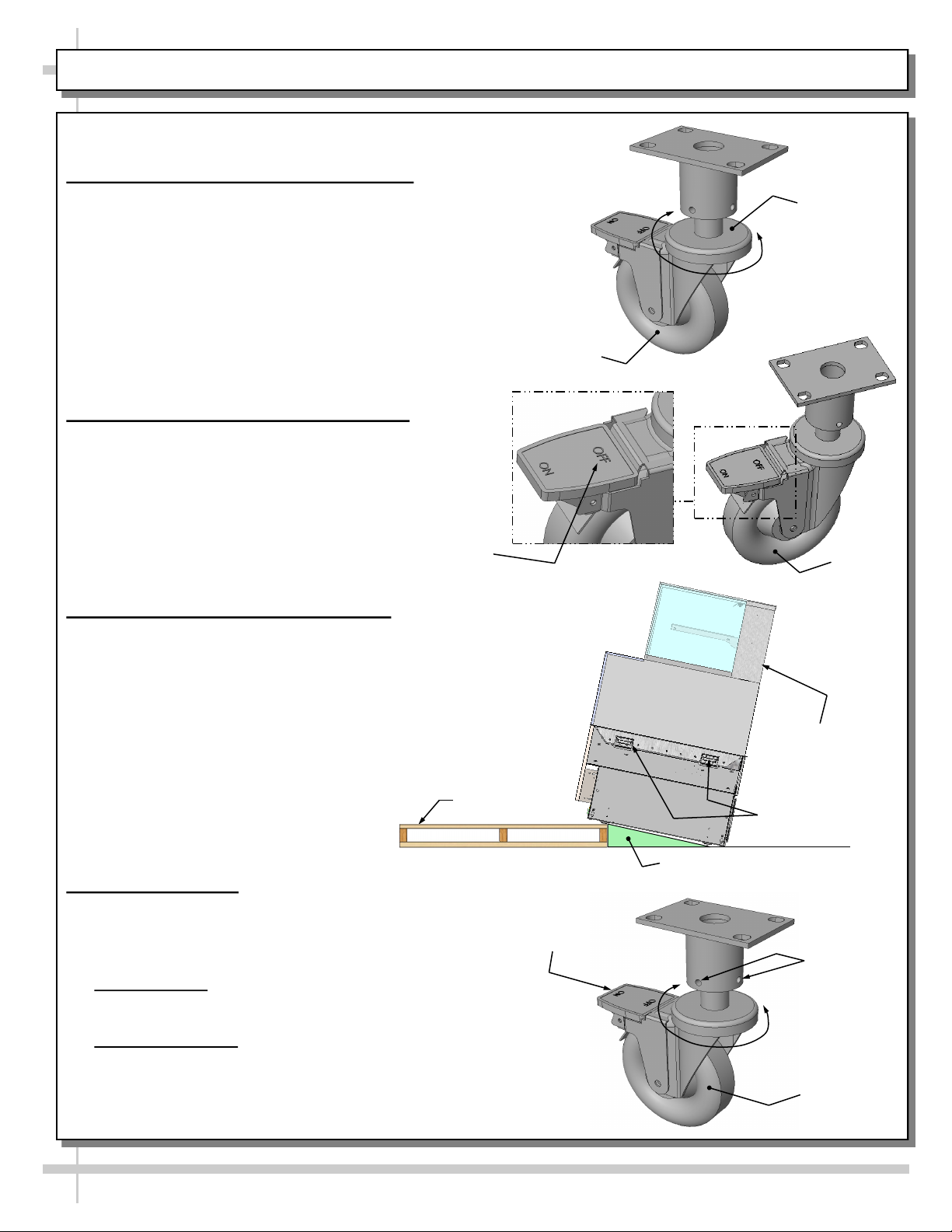

4. Caster Height: Raising and Lowering
 Raise or lower casters (to adjust case height) by
rotating casters’ vertical adjustment rings.
 Rotate vertical adjustment ring clockwise to lower
caster (and increase height of case).
 Rotate vertical adjustment ring counter-clockwise
to raise caster (and decrease height of case).
5. Caster Rolling Capability: Unlocking
 Important! Case is shipped with caster mechanisms
factory set at ON (locked) to prevent case from
rolling.
 Unlock casters by pressing OFF on the caster
mechanism.
 See illustration at right.
6. Carefully Remove Case From Skid
 Check that casters are lowered as far down as they
will go (as instructed in step #4).
 Use handles to carefully slide case to rear of Skid (see
illustration at right).
 Caution! 4 people are required for this task!
 Carefully lower to floor (using ramp if available).
 Slide Skid from under case as required.
 Maintain support of case at all times or center
of gravity may cause case to fall.
 See illustration at right.
7. Casters: Locking
 After case is at desired position (and height),
use level to check that case is level and plumb.
 Readjust height as needed (as instructed in
step #4).
 Locking Height: After proper height (and positioning)
of case is attained, tighten the two (2) set screws to
lock each caster’s height in place.
 Locking Movement: Then, to prevent casters’ rolling
capability, lock casters by pressing ON atop the “ON”
and “OFF” lever mechanism (shown at right). Case
will now be secured at its new location.
Vertical
Adjustment
Ring
Skid
Support case
while removing
from Skid
Caster
Tighten Set
Screws To
Lock Caster
Height In
Place
Press “ON” Lever To
Lock Caster In Place
(And Prevent Caster
From Rolling)
Press “OFF” Lever To
Unlock Caster (And
Allow Casters To Roll)
Caster
Caster
INSTALLATION, CONT’D.: CASTER ADJUSTMENT / LOCK / UNLOCK / CASE REMOVAL FROM SKID
Handles
Ramp

8
INSTALLATION, CONT’D: SHELVING ASSEMBLY COMPONENTSINSTALLATION, CONT’D: SHELVING ASSEMBLY COMPONENTS
8. Shelving Assembly Components
 Check that glass shelving is in proper position
before placing product in case
 Shelves may be adjusted vertically or entirely
removed from merchandiser.
 Metal shelving brackets ARE NOT able to be
angled. They are at a fixed 90° position.
 There are 12 components comprising each
shelf assembly:
A. Right bracket (with hooks to attach to slots in
upright)
B. LED light with magnets
C. Front shelf support rail (LED light attaches to
its inner cavity via magnets)
D. Cover (rests atop front shelf support rail)
E. Left bracket (hooks to attach to slots in upright)
F. Nylon thumb screws (4 per shelf) secures
shelving during shipment. Note: Remove
(using pliers, if necessary) and discard
thumbscrews after case is installed so shelves
can be disassembled (to clean or service).
G. Rear shelf support rail
H. Left and right glass shelf/cover assemblies (glass
is affixed to covers with 2-sided tape from factory).
Caution! Glass pieces ARE NOT IDENTICAL!
Notches on underside metal covers determine
placement in case.
I. Nylon retainer clips (2 per shelf) secure brackets
during shipment. Note: To adjust or remove
shelves, you must remove retainers; pliers may
be required to accomplish this task.
Glass Shelving
Glass Shelving
E
A
B
C
D
G
From Factory: Transparent
2-Sided Tape Holds
Glass To Top Of Rear
Shelf Support Rail
H
Right Glass
Shelving Piece
Left Glass
Shelving Piece
Nylon Retainer
Clip (Typ.)
I
F
--- Model NR7851RRSV ---

9
INSTALLATION, CONT’D: MAIN POWER SWITCH / TOE-KICK & AIR INTAKE GRILLE / PLUG-IN
9. Plug Case In / Turn Main Power Switch On
 Power cord with plug is factory-supplied.
 Plug case into customer-supplied electrical outlet.
 Note 1: Partially-disassembled view at right is
shown with casters removed for illustrative
purposes only. View/location of floor receptacle
is for illustrative purposes only.
 Note 2: Due to space constraints, it may be
necessary to pull out condenser package to
maneuver power cord plug around components
and into receptacle.
 Turn main power switch on.
 Check that case is energized. Lift deck pans
to confirm that evaporator fans are rotating.
 Turn on LED light switch (located on rear-right
upright cover). See CASE DESIGN, CONT’D:
LED LIGHT SWITCH LOCATION section in
this operating manual for illustration.
10. Toe-Kick To Case
 After case has been fully assembled and is in
position, return toe-kick to case.
 Toe-kick is held in place by magnets only.
 No screw replacement is required.
11. Return Air Intake Grille To Case
 After case has been energized and main power
switch has been turned on, return air intake
grille to case.
 Air intake grille is held in place by magnets.
Screw replacement is not required.
 See illustration below. Front Toe-Kick
Air Intake Grille
Factory-Supplied
Power Cord
With Plug
Main Power
Switch
Note: Shipping Brace That Is At Air
Intake Side of Condenser Package
(Shown) Must Be Removed!
Air Intake Grille
Main Power
Switch

10
INSTALLATION, CONT’D: SHIPPING BRACE / ATTACHING FRONT PANEL COMPONENTS / HANDLES
 Then, slide front panel into case until it attaches
to case via lower magnets.
 See illustration below.
14. Handles On Sides of Case
 Handles may remain on case after it has been
moved into position and cladding is attached.
 However, if handles interfere with the placement
of cladding, they may be removed.
>> See Next Page For Instructions on ATTACHING
SIDE PANELS, REAR PANEL AND GRILLE.
12. Shipping Brace (Air Intake Side) vs. Air
Exhaust Side
 Shipping brace keeps condenser package secure
during shipment & while moving case into position.
 After case is in position, remove shipping brace
that is just below condenser package by removing
(2) screws.
 Note: Shipping brace that is opposite to air intake
side of condenser package (shown below) is NOT
to be removed.
13. Attaching Front Panel Components
 Carefully remove components from packaging.
 Note: All front panel components may be attached
to case via magnets (WITHOUT screw
attachments).
 Attach front toe-kick to case (via lower magnets).
 Slide front panel horizontal support bracket
into case’s support slot (line up arrows).
Note: Model NR3651RRSV (shown)
may not reflect every feature or
option of your particular case.
Shipping Brace Stays In Air Exhaust Side
Of Case. It Is ONLY To Be Removed From
Air Intake Side Of Condenser Package
(At Opposite End Of Illustrated Case).
Front Toe-Kick
Support Slot (For Front
Panel’s Horizontal
Support Bracket)
Front Panel
Horizontal
Support Bracket
Front Panel
Magnet (Typ.)
Front Panel
Handles (on Both Sides of
Case) May Be Removed If
They Interfere With Cladding

11
INSTALLATION, CONT’D: ATTACHING SIDE PANELS, REAR PANEL AND REAR GRILLE
15. Attaching Side Panels
 Attach side panels to case using slot/hook method.
 Use latches at case rear to firmly attach side
panels to case.
 See illustrations below.
16. Attaching Rear Upper Panel
 Place rear upper panel onto care rear.
 Four (4) magnets will hold it firmly in place.
 See illustration below
17. Attaching Rear Grille
 Use finger holes to place rear grille’s inner hooks
onto case rear’s lower shoulder screws.
 Snap onto case’s two (2) rear vertical magnets.
>> Note: Components may be removed in reverse
order they were shown being attached on this sheet.
Unlocked
Latch (Typ.)
Side Panel (Typ.)
Rear Upper Panel
Slots
Side Panel And
Hook (Typ.) Insert
Handles
Locked Latch
Hook
Insert
Note: Model NR3651RRSV (shown)
may not reflect every feature or
option of your particular case.
Rear Grille

12
CASE DESIGN: FRONT OF CASE (UNITS WITH REAR ACCESS CONDENSER PACKAGES)
1. Front of Case (Units With Rear Access Condenser Packages)
 Model NR4851RRSV is shown below. Your model may differ.
 Acrylic perforated plenums are controlled by rear door brackets’ opening and closing action.
 See illustration below
Deck Pans
Acrylic
Perforated
Plenums
(Optional)
Upper Shelving
Air Return
Grille
UV-Bonded
Glass Upper
Air Return
Grille (Similar
Position as
Lower Section)
Convertible Upper Section
(Ambient /Refrigerated)
Refrigerated
Lower Section
Handles For
Pushing or Pulling
Unit Into Position
Note: Do Not Remove
Shipping Brace That
Is Opposite Air Intake
Side of Condenser
Package (Shown).
UV-Bonded
Glass Upper
Front Caster
Front Caster
Note: Illustration shown reflects rear access condenser
package. Units with front access condenser packages will
have condenser package accessible at front of case.

13
CASE DESIGN, CONT’D: REAR OF CASE (UNITS WITH REAR ACCESS CONDENSER PACKAGE)
2. Case Design: Rear of Case (Units With Lower Rear Doors)
 Model NR4851RRSV with lower rear sliding doors is shown below.
 Acrylic perforated plenums are in lower section.
 Power cord route may differ depending upon customer request.
 Side cladding, air intake grille, etc., has been removed for illustrative purposes only (see below).
Upper Section
Removable
Rear Doors
Lower Section
(With Rear Doors
And Acrylic
Perforated
Plenums)
Condenser Package /
Clean Sweep Coil Cleaner
Handles For Pushing
or Pulling Unit Into
Position (Typ.)
Rear Caster
Electrical Box (With
Thermostat and Main
Power Switch
UV-Bonded Glass Upper
Upper Shelving
Note: Remove Shipping
Brace On Air Intake Side of
Condenser Package.
Magnet For
Rear Grille
Magnets For
Rear Panel
Magnet For
Rear Grille
Rear Caster
Magnets For
Rear Panel
Note: Illustration shown reflects rear access condenser
package. Units with front access condenser packages will
have condenser package accessible at front of case.

14
CASE DESIGN, CONT’D: CONTROLLER / DC DRIVERS / MAIN POWER SWITCH / THERMOSTAT, ETC.
3. Controller / DC Driver Access / Components
 Remove air intake grille with slot/hook method; no
screw removal is required.
 Magnetic condenser coil filter is directly accessible.
See CLEANING SCHEDULE (TO BE PERFORMED
BY STORE PERSONNEL) for cleaning
instructions.
 Remove base support bracket by removing 4 screws.
 Remove 4 screws from the controller/DC
driver box cover to access electrical
components.
 Note: Only certified electricians are to access
electrical components in case.
 After accessing controller and/or DC drivers,
return components to case in reverse order
they were removed.
Main Power
Switch
Thermostat
Terminal Block
DC Driver
Contactor
Magnetic
Condenser
Coil Filter
Note: Only The Shipping
Brace That Is At Air Intake
Side Of Condenser Package
(Shown) Is To Be Removed!
Air Intake
Grille

15
CASE DESIGN, CONT’D: UPPER SECTION - AMBIENT VS. REFRIGERATED STATE
4. Ambient vs. Refrigerated Upper Section
 Illustrations shown with rear sliding doors removed
for illustrative purposes. Doors do not need to be
removed to access air discharge cover/baffle.
 Upper section of case can be either ambient (room
temperature) or refrigerated depending upon air
discharge cover position.
 Use finger holes to remove horizontal air discharge
cover from air discharge chamber.
 For upper section to be ambient, cover must be
positioned to BLOCK airflow (as shown in “A”).
 For upper section to be refrigerated, cover must be
positioned to ALLOW airflow to enter upper section
(as shown in “D”).
Air Return
A. Upper section in ambient state (cover in horizontal
position preventing airflow into upper section).
B. Air discharge cover shown removed from case via
finger holes (for illustrative purposes only).
C. Air discharge cover shown removed from case
and rotated vertically (for illustrative purposes only).
D. View of upper section in refrigerated state (cover in
vertical position ALLOWS refrigerated airflow into
upper section).
>> IMPORTANT! The air discharge cover MUST
BE placed in the air discharge chamber (in either
position) for case to properly function!
A
D
C
Air Discharge
Cover
Air
Discharge Cover
Air Discharge
Cover Rotated
To Allow
Refrigerated
Airflow To Enter
Upper Section
Air Discharge
Chamber
Finger Hole
Finger Hole
Air Discharge Cover In Horizontal
Position To Prevent Refrigerated
Airflow To Enter Upper Section
B
Air Discharge Chamber

16
CASE DESIGN, CONT’D: TUB AREA (AFTER DECK PAN REMOVAL) - 36” MODELS
5. Tub Area After Deck Pan Removal
Note: Refrigeration service to be accomplished by refrigeration / electrical contractors only.
Caution! Turn main power off before accessing tub area.
 Illustration below reflects single evaporator fan (36” units). It is shown after removal of deck pans.
 After cleaning or servicing in tub area, return deck pans to case and return power to case.
Refrigeration
Line Route
--- Case Rear ---
--- Case Front ---
Drain
Evaporator
Coil Cover
TXV
Valve
Evaporator
Fan
Refrigeration
Lines
Evaporator
Coil
Air
Discharge
Rear Inner
Door
Rear Outer
Door
Rear Inner
Door
Evaporator
Fan Cover
UV-Glass
(Front Outer)
Air Return
Grille
Evaporator
Coil
Trough

17
CASE DESIGN, CONT’D: TUB AREA (AFTER DECK PAN REMOVAL) - 48, 60” and 72” MODELS
6. Tub Area After Deck Pan Removal
Note: Refrigeration service to be accomplished by refrigeration / electrical contractors only.
Caution! Turn main power off before accessing tub area.
 Illustration below reflects dual evaporator fan (48”, 60” and 72” units) after removal of deck pans.
 After cleaning or servicing in tub area, return deck pans to case and return power to case.
Refrigeration
Line Route
--- Case Rear ---
--- Case Front ---
Drain
Evaporator
Coil Cover
TXV
Valve
Evaporator
Fans
Refrigeration
Lines
Evaporator
Coil
UV-Glass
(Front Outer)
Air
Discharge
Trough
Evaporator
Fan Cover
Rear Inner
Door
Air
Return Grille
Rear Outer
Door
Tub

18
CASE DESIGN, CONT’D: LED LIGHT SWITCH LOCATIONS / LED LIGHTS / THERMOMETERS
7. LED Light Switch Location
 LED light switch is in upper section of case (as
shown below).
 See illustrations below.
8. LED Lights
 LED lights are located at both header and
shelving of case (as shown below).
 Check that ALL of the light plugs are properly
connected to the LED light.
 Plug must be inserted ALL THE WAY into the
LED light orifice (with no gap) to work properly.
 See TROUBLESHOOTING (TO BE PERFORMED
BY STORE PERSONNEL) section in manual
if LED lights malfunction.
9. Thermometer Function & Placement
 Separate thermometers are located in both
upper and lower sections of case.
 Thermometer provides temperature of
refrigerated section of case.
 Thermometers reflect warmest air
temperature in merchandiser. They do not
provide actual food temperature.
 Use probe thermometers to determine
actual product temperatures.
Upper Section LED Light
Switch And Thermometer.
Note: Light Switch Controls
LED Lights In Entire Case.
--- Case With Lower Rear Sliding Doors ---
LED Light
Plug
LED Light
(Upper
Section)
LED Light
(Lower
Section)

19
CASE DESIGN, CONT’D: REAR SLIDING DOOR REMOVAL / REAR PERFORATED PLENUM CONTROL
10. Rear Sliding Door Removal
 Separate rear sliding doors are in both upper
and lower sections of the case.
 To remove rear sliding doors, move doors
toward center of the case.
 Individually lift each door up toward the top of
the case; pivot the bottom of the door out.
 Return doors to case in reverse order they
were removed.
11. Rear Perforated Plenum Control
 Acrylic perforated plenums are used on all cases.
 Acrylic perforated plenums have sliding doors with
angled brackets that insert into acrylic perforated
plenum slots (as shown below).
 As doors open and close, acrylic perforated
plenums follow.
Acrylic Perforated
Plenums
Door Bracket
(Typ.)
Slot For Door
Bracket (Typ.)

20
CASE DESIGN, CONT’D: CONDENSER PACKAGE (SELF-CONTAINED UNITS ONLY)
Refrigeration
U-Tubes
Filter Dryer
Electrical
Starter Unit
Condenser Coil
Housing
Condenser Coil
Fans & Motors
Overflow
Condensate Pan
(With Electric Coil)
Hot Gas Loop
Condensate Pan
Sight Glass Compressor
11. Condenser Package (Self-Contained Units)
Assembly/disassembly and servicing to be performed by licensed refrigeration contractor.
Condensate Package Configuration
 Illustration shown is from model NR3658RRSSV. Your unit’s component layout may slightly vary.
Controller DC
Driver
Evaporator
Section
Drain PVC
Optional Clean Sweep®
Condenser Coil
Cleaning System
