Revez HD500MOD User manual

USER MANUAL V1.0
4 input Full HD encoder/modulator
HD500MOD

USER MANUAL
HD500MOD
PAGE 2
REVEZ©2015
Contents
1 - Safety considerations.............................................................................3
2 - Description of the different elements........................................................4
3 - Installation ..........................................................................................5
3.1 - Installation ........................................................................................5
3.2 - Downloading and installing the programming software.............................5
3.3 - Powering up.......................................................................................5
3.4 - Setting the input parameters................................................................6
3.5 - Setting the output parameters (DVBT mode) ..........................................7
3.6 - Adding services to the modulator. .........................................................7
3.7 - Conversion to DVB-C mode..................................................................8
4 - Technical specifications ..........................................................................8
Congratulations on your purchase of the HD500MOD !
This ‘state of the art’ product, is a 4 input HD encoder. The video and audio input or
taken from HDMI.
After compressing the video into H264 and audio in AAC or MPEG1-L2, the output is
available as DVB-T or as DVB-C signal.
To make the conguration of the HD500MOD ultra simple, a special software DTVIface
is available that you can download on our website www.revez.eu

USER MANUAL
PAGE 3
REVEZ©2015
HD500MOD
1 - Safety considerations
1.1 CONNECTING TO THE MAINS SUPPLY
This product has to be connected to the mains supply. If there is the slightest doubt concerning the
type of connection available on the installation, please contact your supplier of electricity. Before car-
rying out maintenance operation or modication of the installation, the modulator has to be discon-
nected. Remark : only use the supplied power adaptor.
1.2 OVERVOLTAGE
An overvoltage on the mains supply,can cause shortcircuits or re. Never overload the power lines.
1.3 LIQUIDS
This module should be protected from splashes. Please assure yourself that no containers containing
liquids are placed on this module. Also be aware of other persons splashing liquids on the module.
1.4 CLEANING
Disconnect the module before cleaning. Use only a humid cloth without solvant.
1.5 VENTILATION
In order to assure an adequate air circulation and to prevent overheating, the ventilation holes should
not be obstructed. The module may not be installed in a hermetically sealed environment. Other elec-
tronic products or heat producing items may not be placed upon or near the module.
1.6 ACCESSORIES
The use of accessories not manufactured by the manufacturer can cause damage to the module.
1.7 INSTALLATION OF THE MODULE
The module must be installed in a place well protected from direct sunlight. All measures have to be
taken to avoid installation in humid or sunny place.Do not install near heating elements or other devic-
es producing heat. Assure yourself that the module is placed at least 10 cm from other equipment with
is susceptible to electromagnetic radiation. Do not install the module on instable items. A fall can cause
physical or material damage.

USER MANUAL
PAGE 4
REVEZ©2015
2 - Description of the different elements
HD500MOD
C1 Power supply input (5V/4A)
C2 USB input (for programming the HD500MOD by PC)
C3 RF output
C4 RF input
C5 HDMI A input
C6 HDMI B input
C7 HDMI C input
C8 HDMI D input
L1 Status of 4 input HD encoder
L2 Status of DVBT/DVBC modulator
L3 (LED on the front panel) Power LED
HDMI D HDMI AHDMI BHDMI C
DC IN USB
IN
OUT
C8 C7 C6 C5
C1 C2 C3 C4
L1 L2

USER MANUAL
PAGE 5
REVEZ©2015

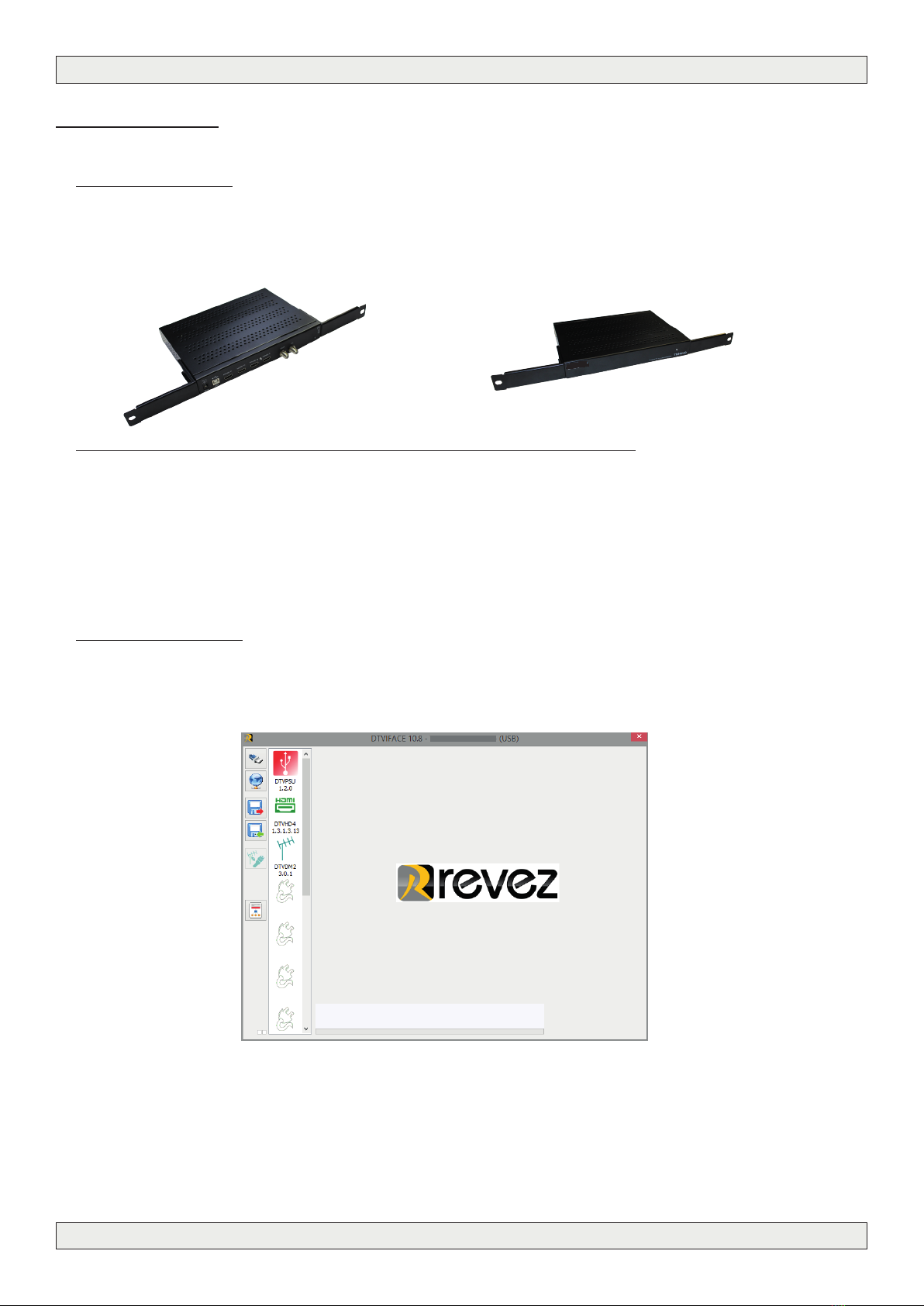

3 - Installation
3.1 - Installation
The HD500MOD can be used as a desktop model. The HD500MOD also comes with 19 inch brack-
ets and screws. These can be tted to the HD500MOD in order to install them in a 19 inch rack.
The position of the brackets can be chosen in order to select the back or frontpanel facing forward.
3.2 - Downloading and installing the programming software
The HD500MOD is programmable via the DTViFace which is a Windows based USB software
which can be downloaded from www.revez.com The software les are located in a zip le on the
‘downloads’ tab on the product page.
DTViFace supports Windows XP, Windows 7 (32bit) and Windows 7 (64bit) and Windows 8.
Follow the instructions in the set up wizard to download the software from the website.
Install the software on your PC, generating a desktop icon if required,and connect the modulator
via the USB cable (supplied) to your PC.
3.3 - Powering up
Power the modulator up with the PSU supplied. Once all the LED’s on the front panel of the
modulator have turned green, launch the DTViFace software. The start up screen will appear:
Select the DTVHD4 HDMI icon to navigate the programming screen. The following window will ap-
pear.
HD500MOD

USER MANUAL
PAGE 6
REVEZ©2015
HD500MOD

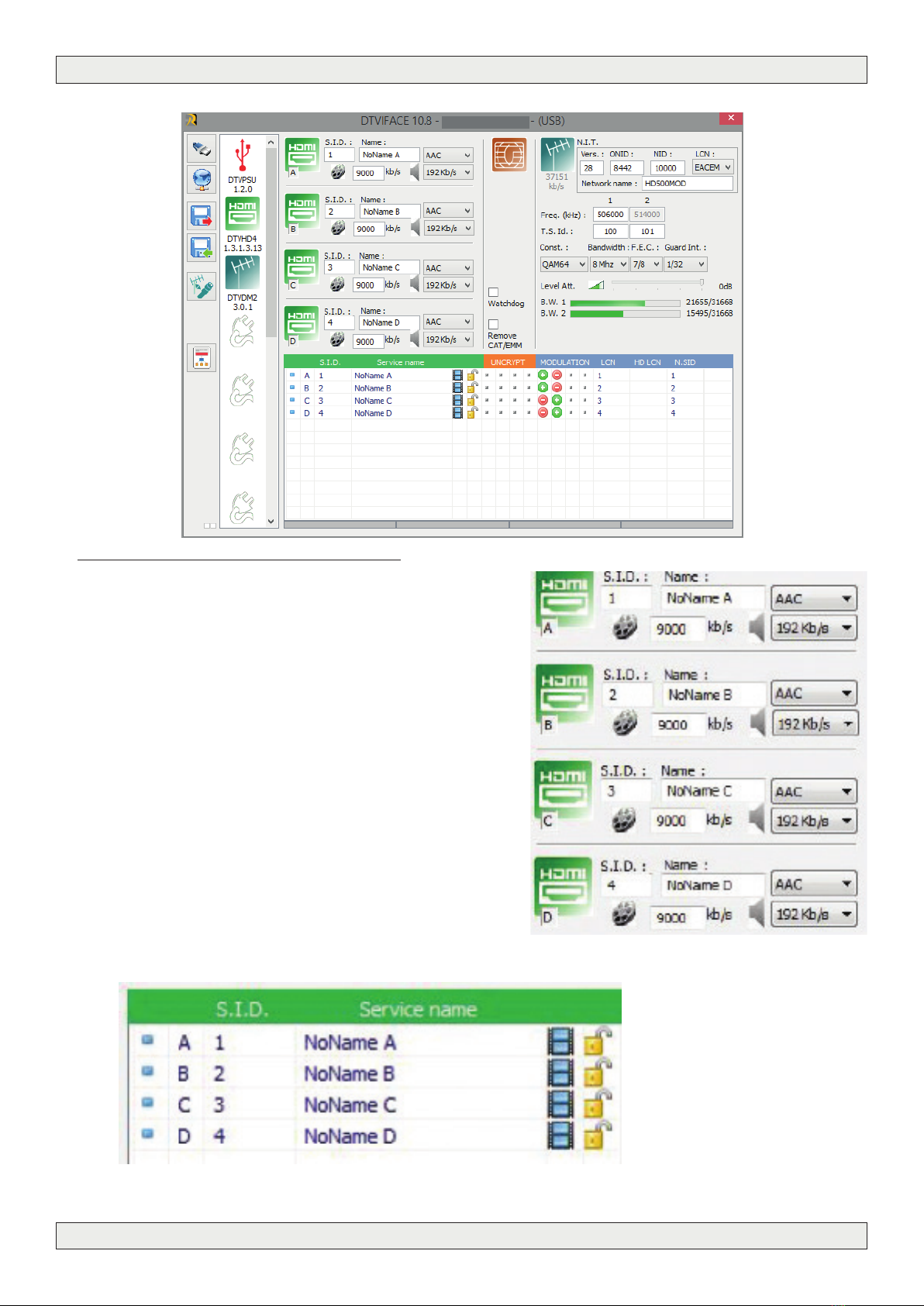

3.4 - Setting the input parameters
Below in the screen you can see the program list :
For each HDMI input you can adjust fol-
lowing parameters :
- S.I.D : set the service ID
- Name : set the programe Name
- Bit rate : choose a value between 5000
and 15000 kb/s
- Audio encoding : select between AAC
and MPEG2-1
- Select the audio bit rate/

USER MANUAL
PAGE 7
REVEZ©2015
HD500MOD
3.5 - Setting the output parameters (DVBT mode)
b) a module DTVDM4 is selected
For the modulator following parameters can be
set.
N.I.T Version : enter the NIT version
ONID : enter the decimal code for the Original
Network ID. The original network ID is the coun-
try where you are located.
NID: enter the network ID.
Network Name : enter the network name.
Under the N.I.T. parameters you will nd the output frequency of the modulator. As the HD-
500MOD, has adjacent output channels, you can only set the output frequency of the rst chan-
nel.
The frequency of the other channel is automatically adjusted, so you can not change the output
frequency of the second channel.
T.S. Id : for each channel a T.S.Id should be assigned.
Modulation parameters : furthermore, you can set the modulation parameters for the modula-
tor.
Please select the constellation, Bandwidth, F.E.C and Guard Interval.
Output level of the modulator : an internal attenuator allows to lower the output level of the
modulator. The attenuator can be adjusted between 0 dB (max. output) and -20 dB.
3.6 - Adding services to the modulator.
In the list of programs, you will nd two columns with a GREEN + symbol or RED - symbol.
The columns indicate the output channels of the modulator (column 1 is rst channel, column 2 is
second channel.
If a green + symbol appears besides a certain program, this means that this program is added to
that specic channel in the modulator.
The status can be changed by double-clicking the activation symbol besides the requested pro-
gram.
In the most right colums you can add a LCN number or HDLCN number for channel numbering.

USER MANUAL
PAGE 8
REVEZ©2015
HD500MOD
3.7 - Conversion to DVB-C mode.
The HD500MOD can also act as DVB-C modulator instead of DVB-T. In order to change you have to
press the DVBT/C conversion button.
This will convert the DVBT modulator in a DVBC modulator or vice versa. Please note that this op-
eration takes a couple of minutes.
Video inputs Inputs x 4 HDMI
Resoluons 720p - 1080i - 1080P
Compression H.264 - bitrate 5-15 Mb/s
Audio inputs Inputs HDMI
Sampling rate HDMI (32kHz / 44.1 kHz / 48 kHz)
Compression AAC-LC / MPEG1-L2 –symbol rate 128-384 Kb/s
DVB processing Table Inseron PAT, PMT, SDT, NIT, EIT
Conguraon Program/network name , SID, LCN, TSID, ONID, NID, EIT, versions, audio, video PIDs…
DVB-T output
2 adjacent channels
Frequency/level 170-230 MHz + 470-862 MHz / > 95dBµV
Constellaon - FEC QPSK/16QAM/64QAM - 1/2, 2/3, 3/4, 5/6, 7/8
Guard Interval 1/4, 1/8, 1/16, 1/32
Mode - MER 2K/8K - 35 dB
DVB-C output*
2 adjacent channels
Frequency level 50-862 MHz / > 95 dBµV
Constellaon - Symbol rate 16, 32, 64, 128, 256 QAM (EN 300 429) - 4,00 - 6,96 Msps
Power DC - 2.1 mm - connector +5V
Consumpon 15 Was
Dimensions LxWxH 250x200x38mm
Weight 0.6 kg
4 - Technical specifications
