Revo iBlik Wi-Fi User manual

www.revo.co.uk
NorwayItalianoDeutschFrançaisEnglish
Operating Guide
mode d’emploi Bedienungsanleitung Mode d emploi Bruksanvisning
iBLIK Wi-Fi Manual.qxd 21/6/08 19:38 Page 1

2
English
Contents
Welcome to iBLIK Wi-Fi 3
iBLIK Overview 3
Warranty + Warranty Registration 3
Before Getting Started 3
Wi-Fi Internet Connection 3
Registering Your Radio 3
Controls and Connections 4
Remote Control Operation 4
Powering iBLIK 4
Getting Started 5
iBLIK’s Control Method 5
iBLIK’s Menus Explained 5
Setting The Time and Date 6
Internet Radio Mode 7
Connecting To Wi-Fi network 7
Using Internet Radio Features 8
Choosing A Station 8
Choosing A Podcast 8
My Favourites 9
My Added Stations 9
Help 9
Internet Radio Portal 9
Access Additional Features 9
Registering Your Radio 9
Music Player Mode 10
Windows PC Set-UP 10
Apple Mac Set-Up 11
FM Mode 12
MPort Mode 12
iPod Mode 13
Alarms Mode 14
Sleep Mode 15
System Setup 15
Info 15
Troubleshooting 16
User Licence 17
Copyright and
Acknowledgements
Copyright © 2008 Revo Technologies Ltd.
All rights reserved.
Revo Technologies Ltd
The Inox Building
Caldwellside
Lanark
Scotland, United Kingdom
ML11 7SR
Tel. [phone]
Int. Tel. [phone]
Fax. [phone]
Int. Fax. [phone]
Email. [email protected]
Website: www.revo.co.uk
The information in this guide is believed to
be correct at the time of publication.
However, our policy is one of continuous
development and so the information is
subject to change without notice.
Revo, iBLIK and M-Port are trademarks or
registered trademarks of Revo Technologies
Limited.
iPod® is a registered trademark of Apple
Computer, Inc.
Safety Warnings
Do not operate this radio near water.
Avoid small objects and liquids from getting
into this product.
Do not remove screws or casing parts.
Use only the power supply unit supplied.
EEC: This product has been designed and
type-tested to comply with EU requirements
and carries a CE mark.
Technical Support
Should you encounter any difficulties with
the operation of your Revo radio, or should
you suspect that it may be faulty in some
way, please call our technical support
department on the number below:
01555 66 61 61
Alternatively, email or
visit the troubleshooting section of our
website at: www.revo.co.uk/support
“Made for iPod” means that an electronic accessory has been designed to connect specifically
to iPod and has been certified by the developer to meet Apple performance standards.
Preface
iBLIK Wi-Fi Manual.qxd 21/6/08 19:38 Page 2

3
English
Benefits of Internet Radio
Access to 11,000+ internet radio stations
Search by genre or country
Access ‘Listen Again’ services
Station list updates automatically
No subscription charges
iBLIK Wi-Fi Overview
iBLIK Wi-Fi is your portal to thousands of
radio stations around the world.
iBLIK Wi-Fi also includes an iPod dock for
music playback and charging, as well as
coverage of traditional FM radio, and
comprehensive electronic alarm clock
functionality.
Throw-in class-leading audio performance
and the ability to stream music from your
PC or Mac, and iBLIK Wi-Fi becomes the
radio of choice for the digital generation.
Warranty
Revo Technologies Ltd warrants to the
purchaser that this product will be free
from parts and manufacturing defects in
the course of normal use for a period of
one year from the date of purchase.
This warranty does not apply in cases of
accidental damage, where the case has
been removed, wear and tear, negligence,
modification or inappropriate use.
Should you encounter problems with this
product, please contact your supplier or
alternatively see page 2 of this guide for
technical support contact details.
Warranty Registration
It is a warranty condition that you register
your purchase by either completing the
warranty card enclosed with your radio or
alternatively registering online at
www.revo.co.uk/register
Network Connection
In order to use the internet radio functions
of your iBLIK Wi-Fi, you will require either a
wireless (Wi-Fi) or wired LAN broadband
internet connection.
For setup instructions please see page 7.
NB. If your wireless network is configured
to use Wired Equivalent Privacy (WEP), or
Wi-Fi Protected Access (WPA or WPA2)
data encryption, you need to know the WEP
or WPA code (Web Key) in order to allow
iBLIK to connect to your wireless network.
Thank you for buying our iBLIK Wi-Fi internet radio, we feel sure that it will
provide you with years of enjoyment and reliable service.
This guide has been designed to quickly get you up-and-running and listening
to internet radio, offer guidance on the more complex features of this
product and provide information on safety, warranty and registration.
Welcome to iBLIK Wi-Fi
Before Getting Started
IMPORTANT
To ensure that your iBLIK Wi-Fi radio is
running the latest software release (and
therefore has access to the latest software
I
features), we advise you to perform a
software update. Please see page 15
of this operating guide for full details.
Registering Your Radio and
Accessing Additional Services
Some of iBLIK Wi-Fi’s more advanced
internet radio features can only be accessed
by visiting the Frontier Internet Radio Portal
(www.wifiradio-frontier.com).
These features include the ability to create a
“Favourites” list and add unlisted radio
stations and podcasts. See page 9 for
instructions on how to register your radio.
iBLIK Wi-Fi Manual.qxd 21/6/08 19:38 Page 3

4
English

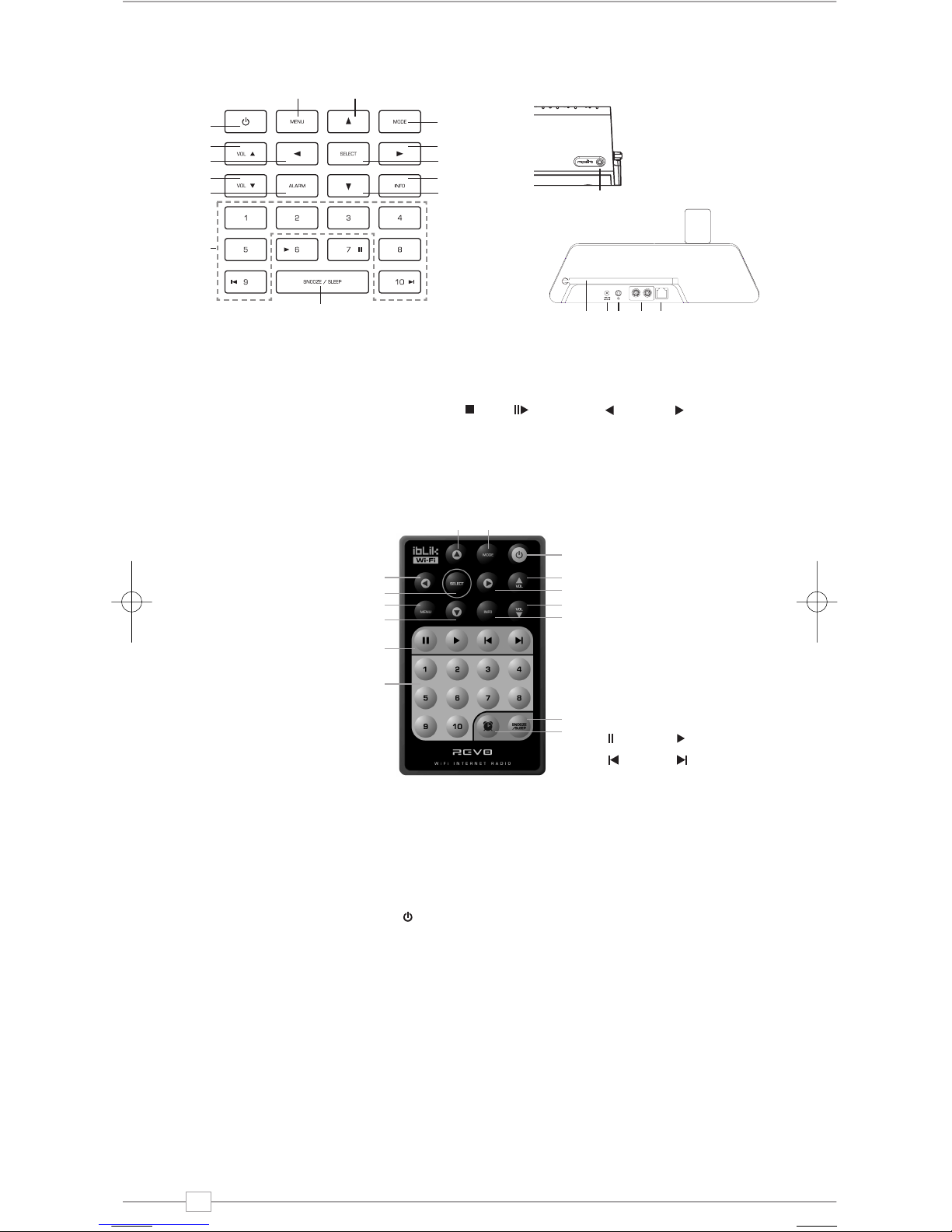

Controls and Connectors
Remote Control
Your iBLIK Wi-Fi radio can be powered from the mains using the power adaptor supplied.
To power from the mains, insert the power adaptor plug into the DC power socket on the
rear of iBLIK Wi-Fi. Pressing the button will switch iBLIK Wi-Fi on.
Only use the power adaptor supplied. Replacements can be purchased from our website
www.revo.co.uk , or alternatively call us on 01555 66 61 61.
1. Scroll Back
2. Select
3. Menu
4. Scroll Down
5. Media Player Controls
6. Presets 1-10
7. Alarm / Clock
8. Snooze / Sleep
9. Info
10. Volume Down
11. Scroll Forward
12. Volume Up
13. Power On / Off
14. Mode
15. Scroll Up
5. Media Player Controls
Pause
Skip Back Skip Forward
Play
1.
3.
6.
7.
8.
9.
10.
11.
12.
13.
14.15.
2.
4.
5.
Powering iBLIK Wi-Fi
1. Power On / Off
2. Volume Up
3. Scroll Back
4. Volume Down
5. Alarm
6. Presets 1-10
7. Snooze / Sleep
8. Scroll Down
9. Info
10. Select
11. Scroll Forward
12. Mode
13. Scroll Up
14. Menu
LINE OUTRL
1. M-Port
2. Telescopic Antenna
3. DC Power Socket
4. 3.5mm Headphone Socket
5. Audio Outputs
6. Wired LAN Connector
3.
1.
2.
3.
5.
4.
6.
8.
9.
10.
11.
12.
7.
13.14.
2. 4. 5. 6.
1.
Media Player Controls
Stop Skip Back Skip Forward Play / Pause
iBLIK Wi-Fi Manual.qxd 21/6/08 19:38 Page 4

5
English
Getting Started
ward
Socket
or
ard
iBLIK Wi-Fi is a sophisticated digital radio
device, with several modes of operation and
many advanced features.
In order for you to get the most out of
iBLIK’s functions, it is important that you
learn how to use the cursor based control
system, and also understand how iBLIK’s
menus work.
iBLIK Wi-Fi Control Method
iBLIK Wi-Fi’s control method is based
around seven main keys as identified below.
Scroll Up:
Press to scroll through menu options
Scroll Back:
Press to return to the previously selected
menu entry. Repeatedly pressing will return
you to the top level of the Mode menu (for
the mode you are in).
Scroll Forward:
When in text entry screens, this key can be
used to navigate through the characters.
It can also be used to move through to the
next menu level.
Scroll Down:
Press to scroll through menu options
SELECT – Press to select the current menu
entry. In FM mode, pressing SELECT will
initiate an FM scan.
Menu:
Press to enter (or return to) the Mode
menu for the mode of operation you are
currently in. Pressing for a second time will
return you to the ‘playing’ screen.
Mode:
Sequentially cycles through each of the
modes of operation.
Using these keys, you will be able to
perform most functions and navigate
through iBLIK Wi-Fi’s various menus
iBLIK Wi-Fi’s Menus Explained
iBLIK Wi-Fi has three types of menu as
follows:
Main Menu
This is iBLIK Wi-Fi’s principle (top level)
menu, and allows you to enter different
operating modes, setup the radio, and view
information such as software version and
your radio’s ID number.
Mode Menus
The Mode menus are so called because
they show the functions available within the
context of each of the operating modes
(internet radio mode, iPod mode, FM mode
etc.).
Pressing the MENU button at any time will
take you to the Mode menu of the operating
mode your radio is currently in. Each Mode
menu includes a listing for Main Menu –
selecting this option will return you to the
top level Main Menu (as described above).
Main Menu
The Main menu provides access to the
following modes and sub-menus:
Internet Radio
Music Player
FM
Mport
iPod
Sleep
Alarms
System Setup
Info
On powering-up iBLIK Wi-Fi for the first
time, you will be presented with this menu.
To select an option from the menu, simply
use the or keys to move through the
menu options, and press SELECT or to
make a selection or move to the next menu
level.
