10CX

Wet Sounds REVO CX Operations / Installation Manual
1REVO 10 CX OPERATION
REVO 10 CX
MARINE COAXIAL / FULL RANGE
SPEAKER SYSTEMS
OPERATION / INSTALLATION MANUAL
PLEASE TAKE A MOMENT TO READ THE INSTRUCTION MANUAL BEFORE STARTING
YOUR INSTALLATION. IF YOU HAVE ANY QUESTIONS OR CONCERNS, PLEASE
CONTACT YOUR CERTIFIED WET SOUNDS DEALER OR WET SOUNDS AT:
877-WET-SPKR (1-877-938-7757)
www.wetsounds.com

Wet Sounds REVO CX Operations / Installation Manual
THANK YOU FOR PURCHASING WET SOUNDS! 2
CONGRATULATIONS!
Thank You for purchasing the Wet Sounds REVO10 CX series Speaker
System.
Wet Sounds professional marine audio products represent the ultimate
in high performance marine audio. Wet Sounds products are specifically
engineered to withstand the rigorous marine environment.
The REVO series are state of the art Marine Speaker Systems designed
to provide great reproduction for your marine or off-road audio system.
The REVO 10 CX series is equipped with a 1.25” titanium dome tweeter. RGB
LED lighting is included on the underside of the tweeter for a wide variety of
colors to be viewed on the cone. REVO 10 CX series speakers are built with
Aluminum baskets, providing improved marine stability and strength over
conventional materials used in most marine speakers.
Wet Sounds has developed a rubber spider that is built to last much
longer than the traditional cotton spiders used in most marine speakers.
The tweeter on REVO speakers is mounted on the grill, which keeps the mid
woofer sealed eliminating any chance of water intrusion through the pole
piece as common on many marine coaxial speaker systems. Eight different
grill designs are available.
SPECIFICATIONS
REVO Specifications REVO10 CX
Power Handling RMS 350 Watts
Power Handling Peak 700 Watts
Frequency Response 35Hz – 22kHz
Sensitivity (@ 1 Watt/1 Meter) 90 dB
Weight (pair) 29.8 Lbs (13.5 Kg)
Diameter 11.02 inches w/grill (279.9mm)
Mounting Depth 4.72 inches (119.8mm)
Hole Cut Out 9.45 inches (240.03mm)

Wet Sounds REVO CX Operations / Installation Manual
3REVO 10 CX INSTALLATION INSTRUCTIONS
1. Make sure that the Tweeter wires & RGB LED Wires are properly
attached to the underside of the grill. The Tweeter wires are attached
using the fixtures on the grill, while the RGB LED wire is attached using
both fixtures & 2-sided tape.
2. The tweeter wire on the woofer should be routed through the opening in
the basket. The RGB wire has a separate opening in the basket.

Wet Sounds REVO CX Operations / Installation Manual
REVO 10 CX INSTALLATION INSTRUCTIONS 4

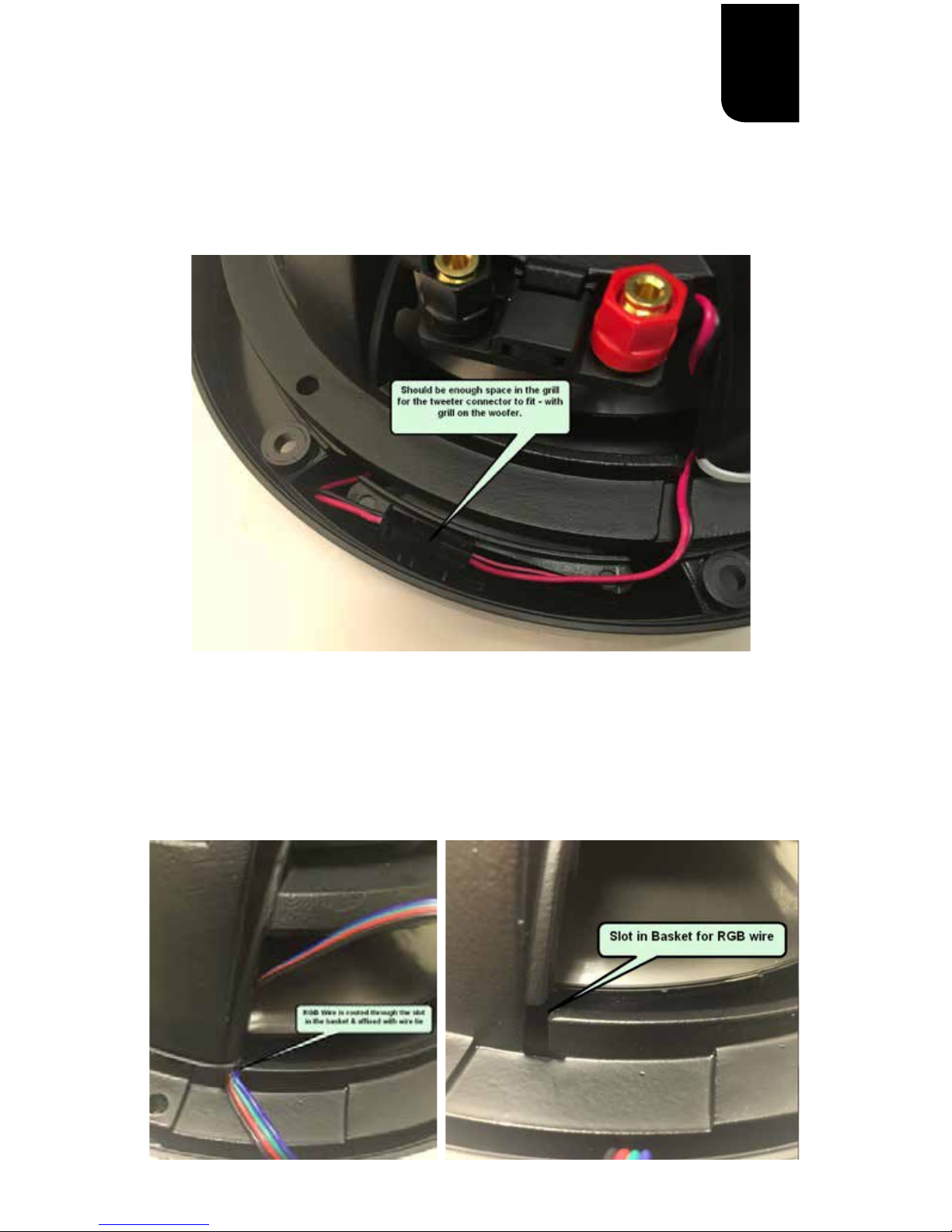

3. Place the grill on the basket, making sure to connect the tweeter from the
basket to the grill using the supplied connector. There should be enough
space under the lip of the grill for the tweeter connector to fit.
4. With the grill in place, route the RGB LED wire through the slot in the
basket & make sure the RGB wire is flat against the lip of the basket. Affix
the RGB wire into the slot using a wire tie.

Wet Sounds REVO CX Operations / Installation Manual
5REVO 10 CX INSTALLATION INSTRUCTIONS
5. After connecting the main speaker leads to the screw on terminals and
routing the 4 wires of the RGB LED cable through the cut out in the basket,
place the assembled speaker in the pre-cut opening, using the supplied
rubber gasket between the basket & the opening. With the grill in place,
screw in the provided stainless steel screws into the openings located
at the 3 O’clock & 9 O’clock position. These screws should only affix the
woofer, not the grill. Once these 2 screws are in place, affix the remaining
screws, which will attach both the woofer and the grill.
YOU HAVE NOW SUCCESSFULLY INSTALLED THE REVO 10 CX SPEAKER!

Wet Sounds REVO CX Operations / Installation Manual
6LIMITED WARRANTY
WHAT THIS WARRANTY COVERS
This is a “limited” warranty. This warranty covers any defect in materials
and workmanship. This warranty only covers the original purchaser and is
not transferrable. This warranty is also only valid if the original purchase
was made from an authorized Wet Sounds TM dealer.
HOW LONG COVERAGE LASTS
This warranty extends for 2 years from the date of purchase. It is
recommended to REGISTER your warranty online within 45 days of purchase
at www.wetsounds.com – click on “warranty registration”.
WHAT IS NOT COVERED
This warranty does not cover fading or discoloration caused by exposure to
sunlight or chemicals such as ammonia, household bleach, or any cleaning
material that contains abrasive substances. Wet Sounds, Inc. does not cover
the expense for removal or reinstallation. Additionally, shipping TO Wet
Sounds, Inc. must be paid for by the purchaser. This warranty is void and
inapplicable if Wet Sounds deems that the product was abused or misused;
including but not limited to damage caused by accident, mishandling,
improper installation, removing the inline fuse on the power connection,
negligence, normal wear and tear, excessive water or heat damage, freight/
shipping damage, or products that have been disassembled by anyone other
than Wet Sounds technical staff. Wet Sounds will not be responsible for
any incidental or consequential damages, except to the extent provided (or
prohibited) by applicable law. This warranty gives you specific rights, and
you may also have other rights which vary from state to state.
WHAT WET SOUNDS, INC. WILL DO
Wet Sounds, Inc. will repair any part of your product that proves to be
defective in materials or workmanship. In the event repair is not possible,
Wet Sounds will replace the product in question. If it is deemed necessary
Wet Sounds, Inc. will either replace the entire product with a refurbished unit
or it will be replaced with a model that is similar in price if that model is no
longer available. Labor costs and materials needed to complete this service
will be at No Charge to the purchaser. Additionally, return shipping FROM Wet
Sounds, Inc. to the purchaser will be paid for by Wet Sounds.

7LIMITED WARRANTY
HOW TO GET SERVICE
Contact Wet Sounds, Inc. either by phone [phone]) or by email
([email protected]). A service representative will assist you in
confirming that the problem you are experiencing is caused by a defective
product and if that product is covered under warranty. The service
representative will issue you a Return Manufacturer’s Authorization (RMA)
and other details to obtain service for your product.
DO NOT RETURN YOUR PRODUCT WITHOUT THE PROPER
RETURN AUTHORIZATION (RMA)!
INTERNET WARNING
Wet Sounds, Inc. products sold on any non-authorized web site or internet
auction site are void of any and all manufacturer’s warranty. Please contact
Wet Sounds (877-938-7757) or visit our web site (www.wetsounds.com) for
a list of authorized online sellers or to find an authorized installing retailer
near you.
WET SOUNDS INC.
www.wetsounds.com •877-938-7757
10621 S Sam Houston PKWY W •Suite 100
Houston, Texas 77071
USA
