Contents
1
Welcome..............................................2
Setup............................................................ 3
Scope of delivery......................................... 3
Safety........................................................... 3
Installation - Safety advice......................... 4
Safety measures ......................................... 5
Regulations pertaining to the unit .............. 6
Front panel CD player.................................. 7
Connection panel CD Player....................... 8
Explanation of the connections.................. 8
Operation .............................................9
Operation through the front panel.............. 9
Operation with remote control ................. 10

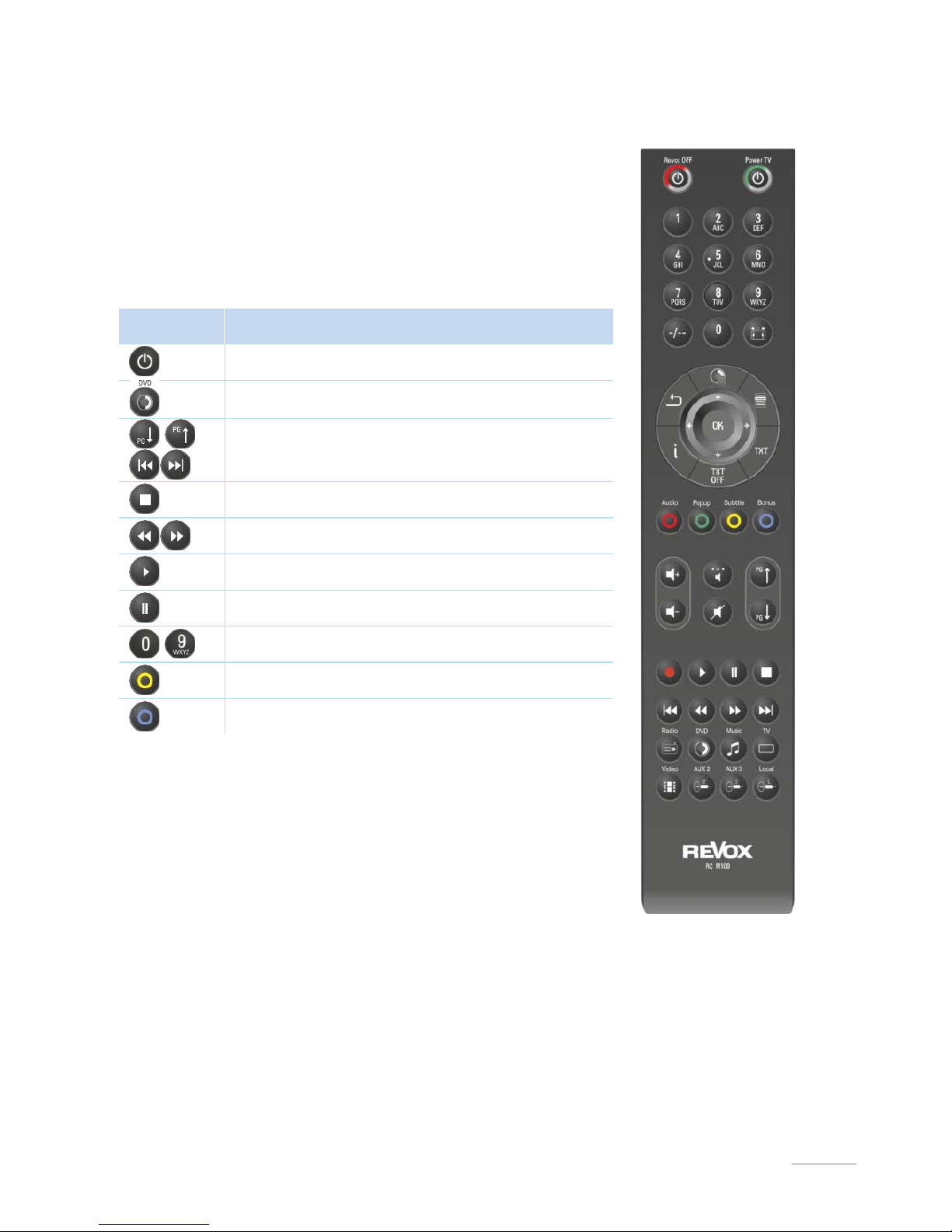

RC M100 (optional)............................11
M208 (optional)..................................12
S208 (optional)...................................13
S208 Comfort programming ...................... 14
Comfort control operating steps............... 15
Joy CD Player RS232 commands ....16
General ...................................................... 16
Basic commands....................................... 18
Drive commands 1/2.................................. 19
Drive commands 2/2.................................. 20
Appendix ............................................21
Warranty.................................................... 21
Environmental protection.......................... 21
Technical Data .......................................... 22
Supported disc types ................................ 23
Pressed audio compact discs .................. 23
Digital CD-R-, CD-RW audio discs............ 23

cd player Introduction
2
Welcome
Congratulations on purchasing your new
Revox cd player and thank you for your
trust in our high-quality products.
Before you start using your Joy cd player
Player, we recommend that you take a
look through this Operating manual, in
order that you can take full advantage of
the options and the audio qualities of this
device.
More than 30 years after the introduction
of the Compact Disc, Revox is again
offering a CD player that as well as
having an elegant appearance, shines in
particular through the quality of its
internal components. The latest digital
analogue converters built using SMD
technology to ensure short signal paths
and with a sophisticated power supply
are used, which is not only reflected in
exceptional audio data (see
Technical
Data)
, but also in the listening pleasure
they invoke from the first bar of the
music.
The CD drive floats on a rubber buffer
and mechanically, it is completely
disconnected from the housing. The cd
player will fit into every environment
thanks to its wide range of output and
control options.
The glass front panel with Touch
function makes operating the device a
tactile pleasure. Together with its solid
aluminium construction, the Joy CD
Player stands out as a true investment
component for life.

Introduction cd player
3
Setup
Please check the unit and accessories
after unpacking, to ensure that
everything is there and that there are no
signs of transit damage. Read the User
manual through carefully before starting
to use the unit. Keep the manual for later
reference.
A unit that shows signs of mechanical
damage or which has had liquid in it
should not be connected to the mains
supply.
Only use the mains cable supplied. The
unit’s power supply and connections
values (mains voltage, frequency) must
be checked before connecting it to the
mains.
Scope of delivery
Joy CD Player (1x)
Power cable (1x)
Coaxial cable (1x)
Power cable
Quick-Reference-Guide
CD- User Manual cd player *
* Contains the complete S119/S120 German/English
User manual in PDF format. A PDF Reader is required.
Safety
Take note of the label on the back of the
unit.
In order to avoid the risk of an electric
shock, do not open the housing.
Maintenance and repairs should only be
carried out by qualified experts.

cd player Introduction
4
Installation - Safety advice
Please follow the instructions in the
User manual supplied.
Do not position the unit close to strong
heat sources or in direct sunlight.
Please take note of the following, if the
CD player is to be installed in a cabinet
or closed shelves. Allow at least 5 cm
of free space around the device, so
that the air can circulate freely and
that there is no build-up of heat. Do not
cover openings on the back wall or in
the base of the unit.
It must be ensured that the correction
functioning of the unit's ventilation
openings is not affected by being
covered, e.g. by curtains, newspapers,
table cloths, or similar.
This unit conforms to protection class
2. This means that with this unit, the
ground cable is not connected to the
housing, in order to effectively
eliminate sound-damaging ground-
loops. With these network receivers
however, Revox uses the ground cable
for the reduction of noise fields. For
this reason, both the supplied cable
and the connection panel are fitted
with a ground cable.
The power plug should be removed
from the socket during longer periods
of non-use, for instance during an
absence.
Unplug the unit from the mains during
storms. Voltage peaks through the
mains power supply caused by
lightning strikes can damage the unit.
There must be easy access to the
power plug so that the unit can be
unplugged at all times.
Lay the power cable such that it
cannot be damaged. The power cable
should not have kinks or be laid over
sharp edges. It should not be walked
on or be exposed to any chemicals.
The last point is valid for the whole
unit. A power cable with damaged
insulation can lead to electric shocks
and represents a fire hazard.
Never pull on the cable when plugging
the unit in or out. Always hold the plug.
Liquids, flammable or other objects
should not be inserted in the unit’s
openings as this can lead to faults, fire
or an electrical shock.
Do not expose the device to splash
water or high levels of humidity. Do not
stand containers filled with liquid, e.g.
flower vases, on the device.
It is only designed for operation in
temperate, non-tropical climates.
Take note of and follow the safety
advice on the following pages.

Introduction cd player
5
Safety measures
Read and take note of the following
safety advice for your own safety and to
avoid unnecessary damage to your
equipment. Please keep this safety
advice in a safe place for future
reference.
Avoid locating the unit in a position
which:
-is exposed to direct sunlight
-is directly next to a source of heat
-has poor ventilation
-has a dusty atmosphere
-is unstable
-has high humidity
The guarantee covers the intended
usage of the unit.
High build-ups of dust and humidity
cause creepage current in the unit that
can cause a risk of shocks when
touching the unit or lead to a fire.
If you have moved the unit from a cold to
a warm environment, leave it switched
off for about two hours because of a
possible build up of condensation
dampness.
You should always switch your CD player
off before connecting or disconnecting
other devices or speakers.
Protect your unit from:
-damp, dripping water and steam
-impacts and mechanical loads
-magnetic and electrical fields
-cold, heat, direct rays of the sun and
severe changes of temperature.
-dust
-accesses to the inside of the device
Do not stand any articles with open
flames, e.g. lit candles on the unit.
Please note
In order to exclude the risk of an electric
shock, do not remove the housing. Only
have repair work carried out by a Revox
specialist dealer.
Supervision
Do not allow children to handle the
equipment without supervision. Do not
allow children in close proximity to the
unit. Do not operate the CD player
without supervision. Switch the power
switch off or unplug the unit if you are
going to be absent for a longer period of
time.
Cleaning
The unit should be cleaned using just a
damp, soft and clean cloth without any
abrasive cleaning agents.

cd player Introduction
6
Regulations pertaining to the unit
In EU and EEC countries, Revox offers a
guarantee on units bought in the EU,
over and above the statutory rights of
guarantee claims against the seller. The
guarantee covers material and labour
during the period of the guarantee,
which is defined by the Revox Sales
Partners in the individual countries that
make up the EU.
In all countries, the guarantee services
offered by the Revox Sales Agents are
over and above the statutory regulations.
They are only valid in the country of
purchase. Proof of purchase from an
authorised Revox Partner must be
produced to make a claim on the
guarantee.
The guarantee is made null and void in
the case of incorrect intervention
measures or non-professionally executed
repairs.

Description cd player
7
Front panel CD player
Touch sensors
All the basic functions of the CD player
can be controlled through the 5 Touch
sensors on the front of the device. Just a
light touch with the fingertip is enough to
trigger the desired function (see also
Page 9). The status LED dims briefly as a
confirmation.
IR Receiver
The IR eye, shown here in red, accepts
infrared commands from various Revox
remote controls. You will find the
corresponding control commands in the
databases of the Revox M208 and S208
system remote controls. As an option,
the Revox RC M100 Remote control can
also be ordered under the Part number:
1.553.095.00
Frontansicht cd player
CD insertion
The CD player has a high-quality CD
drive with slot-loader function, i.e. it pulls
the disk in automatically as soon as more
than 2/3 of the disc has been inserted
into the feed slot.
Status LED
The LED informs you about the current
status of the CD player:
Blue : Standby
White : Operation
Green : Search forward/reverse /
Shuffle / Repeat
Red : Fault

cd player Description
8
Connection panel CD Player
Explanation of the connections
Name
Function
AC Power Power cable connection 100-240 VAC ~ / 50-60 Hz
Analogue Output* Fixed analogue audio output, e.g. for Joy Network Receiver
Coaxial Output * Fixed digital audio output over a coaxial cable . 44.1 kHz
CD-Link RJ45 link connection for future applications
Power switch
Power switch - no power consumption when in off position
Please note: If the power cable is connected, certain internal
switching areas are live, even if the switch is in the off position.
Optical* Fixed digital audio output over an optical cable - TOSLink - 44.1
kHz
RS 232 Control Control for external control systems - see RS232 protocol
* All three audio outputs are available for use in parallel

Operation cd player
9
Operation
Operation through the front panel
The blue standby LED on the glass front
panel lights up after you have made all
the necessary connections and
switched the CD player on through the
switch on the rear of the device. Now,
you can switch the device on by lightly
tapping on the Power button. The LED
now shows white and is ready to accept
a CD1into the CD slot. If there is a CD in
the drive already, you can start playback
with the /buttons.
The following table gives an overview of
the individual functions of the sensor
buttons on the glass front panel.
Sensor buttons
Function
Short press: switch on/off (
OFF
: min 0.5 sec.)
Long press: Complete reset - (min. 5 sec.)
Short press: Skip to previous track
Long press: Reverse search2; LED flashes green
Short press: Switch Pause-Play
Long press: Stop (minimum duration: 1 sec)
Short press: Skip to next track
Long press: Forward search2; LED flashes green
Long press: Eject disc (minimum duration: 0.5 sec)
1
See Page 23 for supported CD formats
2Double search speed is activated automatically after 5 seconds

cd player
Operation
10
10
Operation with remote control
The Joy CD Player is equipped for
operation through IR signals. Three
Revox remote controls are available, RC
M100, M208, S208, which include all
commands for controlling the CD player.
There is an overview of the button
layouts of these remote controls starting
from Page 11.
If you want to control the CD player
using a different programmable remote
control, you will find the RC5 codes for
the corresponding control functions in
the following table. The RC5 codes are
shown in hexadecimal notation.
1Double-digit entry, e.g. Track 12, is
determined/defined by the time lapse
between the input of the individual digits.
Quick access through 0x for tracks 1 - 9, e.g.
05 for track 5
.
Button
RC5 Code
IR Function
OFF $100C /$140C Switch CD player off
ON $143F Switch CD player on
$1421/ $1420 Select previous/next track
$1432/ $1434 Rewind / forward wind
$1436 Stop
$1428 Play
$1430 Pause
$1400 - $1409 Direct rack selection 0-991
$142D Start/end SHUFFLE
$142F Start/end REPEAT

Operation cd player
11
RC M100 (optional)
1Double-digit entry, e.g. Track 12, is
determined/defined by the time lapse
between the input of the individual digits.
Quick access through 0x for tracks 1 - 9, e.g.
05 for track 5
Button
IR Function
Switch CD player off
Switch CD player on with [DVD]
Select previous/next track
Stop
Reverse / forward search
Play
Pause
Direct track selection 0-991
Start/end SHUFFLE
Start/end REPEAT
The function buttons on the optional RC M100 Remote
control always reference the previously selected source
button. Therefore, the DVD source must be selected for
the CD player before operating the function buttons.

cd player
Operation
12
12
M208 (optional)
1Double-digit entry, e.g. Track 12, is
determined/defined by the time lapse
between the input of the individual digits.
Quick access through 0x for tracks 1 - 9, e.g.
05 for track 5
Button
IR-Function
Power Off Switch CD player off
Power On Switch CD player on with [DVD]
Select previous/next track
Stop
Reverse / forward search
Play
Pause
Direct track selection 0-991
Shuffle Start/end SHUFFLE
Repeat Start/end REPEAT
The optional M208 Remote control from Revox has a
pre-defined CD player device in its configuration
programme
M208 Project Manager , which can be used
for infrared control of the Joy CD player. The assignment
shown below can be modified in
Expert Mode if
required.

Operation cd player
13
S208 (optional)
1Double-digit entry, e.g. Track 12, is
determined/defined by the time lapse
between the input of the individual digits.
Quick access through 0x for tracks 1 - 9, e.g.
05 for track 5
Button
IR Function
Switch CD player on
Switch CD player on
Switch CD player off
Select previous/next track
Stop
Reverse / forward search
Play
Pause
Direct track selection 0-991
Start/end SHUFFLE
Start/end REPEAT
The optional S208 Remote control from Revox has a pre-
defined CD player device in its configuration programme
M208 EasyCreator , which can be used for controlling the
Joy CD Player through infrared. The assignment shown
below can be modified if required.

cd player
Operation
14
14
S208 Comfort programming
Revox has created a S208 project for
customers who want to operate the CD
player in combination with a Joy series
receiver (S118, S119, S120, Symphony),
which contains a comfort operation
option with switch-on and switch-off
scenarios. This project is pre-installed
on all S208s from June 2014. It can also
be called up in the Joy S208 Download
area.
The project contains a dummy receiver
that takes on the identity of the receiver
that is already installed on the remote
control.
The following conditions must be met for the configurations contained in the
project to work:
1) Receiver - CD player audio connection:
Coax-1
2) The receiver should preferably be in Quickstart mode (ON)
3) Always target the CD player with the S208 Remote control (IR commands)
In details, the comfort programming consists of the following components:
•Switch-on macro
*CD
[Switch CD player and receiver on together]
•Mixed device
CD+Joy
[Combination of CD player IR control and bidirectional
receiver wireless connection]
•Switch-off macro
*OFF
[Switch CD player and receiver off together]
•
Joy CD
[CD player IR control - see Page 13]
•
S37
[IR control for optional S37 Audio server]
•
Receiver
[Bidirectional wireless control for Joy Receiver]

Operation cd player
15
1Double-digit entry, e.g. Track 12
The buttons in the S208 Remote control
navigation compass (see picture on the
right) only control the receiver. In this
way, you can access other receiver
sources while playing a CD, without
having to exit the mixed device.
Button
Function of the CD+Joy mixed device
Switch CD player and receiver off together
Switch CD player on
Switch CD player off
Select previous/next track
Volume: soft-loud (Receiver)
Mute: Mute (Receiver)
Reverse / forward search
Play
Pause
Direct rack selection 0-991
Start/end SHUFFLE
Start/end REPEAT
Comfort control operating steps
1) Parallel switch-on with the Hotkey
*CD
2)
2) Combi-operation of CD player and Joy Receiver with
CD+Joy
(Mixed device)
3) Parallel switch-off using the button in the mixed device (CD+Joy)

cd player
External control
16
16
Joy CD Player RS232 commands
The CD player can be controlled completely, including status feedback, through
the green RS232 screw connector.
Baudrate: 57600
Data bits: 8
Parity: No
Stop bits: 1
General
All number values are in the HEX format.
Command structure:
Each command contains a start byte 0x02 ($2: shortened way of writing 0x02), a
header, a data block (optional) and a stop byte 0x03. Start and stop bytes are
entered as HEX values; header and data block as String values.
The header consists of 4 bytes; the data block consists of a maximum of 10 bytes.
$2 “ZC CM RW LL D0 D1 ..” $3
$2 : Start
“ : Start of String
ZC : Target code (Start of Header)
CM : Command code
RW : Write: 0; Read: 1
LL : Number of subsequent data bytes (End of Header)
DX : Data bytes
..
“ : End of String
$3 : End
As the command records are receiver-specific, the target code (ZC) handles the
correct assignment of the received telegrams. Therefore, the same command
code (CM) can have different meanings, depending on the receiver.

External control cd player
17
Three target codes are used:
43 Drive
53 Sensor
56 Version
RW has no meaning with the drive (always 0)
LL just defines the number of data bytes.
(Please note: CD Link commands cannot be transmitted over the RS232 interface)
Example: Start Play in repeat mode
$2 “43 11 00 01 05” $3
$2 : Start
“ : Start of String
43 : Command to drive
11 : AC_Play [Mode] | CD80-
LW command with additional
parameter [Mode]
00 : without meaning
01 : Number of subsequent data bytes
05 : Data byte for additional parameter Mode | 05 = REPEAT DISC
“ : End of String
$3 : End
EEPROM
Address
0: Glass colour [ Black: 0; White: 1 ]
1: Sensor configuration in the EEPROM [ No: 0; Yes: 1 ]
2: CD in the drive [ No: 0; Yes: 1 ]
The default setting is 0.
Non-configured EEPROM cells have the value 0xFF (255 decimal). 0xFF is read as
0.

cd player
External control
18
18
Basic commands
Name
Command
Info
POWER EXAMPLE DATA BYTES
Power_Toggle $2 “53 A1 00 00” $3
Power_On $2 "53 A5 00 01 01" $3
Power_Off $2 "53 A5 00 01 00" $3
Get_Power $2 "53 A6 01 00" $3
EEPROM
Write Write Adr 1, Val 1
$2 “53 A2 00 02 01 01” $3
Byte 0 = Adr;
Byte 1 = Value;
Read Read Adr 2
$2 “53 A2 01 01 02” $3
Byte 0 = Adr;
GLASS COLOUR
Write_BlackGlas $2 “53 A3 00 02 00 21” $3 Byte 0 = Epr Adr;
Byte 1 = Sensor Val
Write_WhiteGlas $2 “53 A3 00 02 00 2C” $3 Byte 0 = Epr Adr;
Byte 1 = Sensor Val
EPR_SENSOR_CONFIG
Reload_Epr $2 “53 A4 00 01 01” $3 Byte 0 = Reload;
Glass colour:
The value for the glass colour is written to the EEPROM and the sensor. This
means that the defined colour can be read out from address 0 of the EEPROM but
just changing address 0 is not enough for changing the colour.
Sensor configuration:
The sensor factory settings are located in the Flash and written to the EEPROM
the first time the device is booted up. Later changes over RS232 are saved in the
EEPROM. If you want to revert to the factory setting, using the command
Reload_Epr, the CD player can be forced to write the original Flash values to the
EEPROM on the occasion of the next cold start. All manual changes are then
overwritten.
