This instruction manual includes detailed docking station functionality and features.
Before using the docking station, please read this manual to ensure safe and proper use.
The docking station is supplied with default settings based on device.
Images and screenshots may differ from the actual product appearance.
User awareness of data protection should be strengthened in order to avoid unnecessary loss of
confidential personal information.
The user manual is strictly checked and collated, we will continue to improve the user manual.
Editing the registry settings or modifying the operating system software is not advised, Rewire
Security does not take responsibility if the changes result with performance problems or
incompatibility.
Unofficial modifications on the device's operating system or software may result in equipment
malfunction and damage or loss of data. These actions violate Rewire Security's license agreement,
and your warranty.
Copyright Notice
Rewire Security may change the contents of the user manual without written notification.

3
Table of Contents
About The User Manual.................................................................................................................................1
Copyright Notice ....................................................................................................................................2
1、Introduction .............................................................................................................................................4
Product Appearance ..............................................................................................................................4
Package Contents...................................................................................................................................6
Installation of the Device .......................................................................................................................6
Switching the Docking Station ON or OFF .............................................................................................8
2、Overview................................................................................................................................................10
Description...........................................................................................................................................10
Features .......................................................................................................................................10
Specifications ...............................................................................................................................10
Software Features................................................................................................................................11
Performance ........................................................................................................................................11
3、Basic featrues.........................................................................................................................................12
Using the Touch Screen........................................................................................................................12
Touch Screen gestures .................................................................................................................12
How Remotely Access the Docking Station .........................................................................................13
How To Set Static IP Address for the Docking Station .........................................................................15
4、Quick Guide............................................................................................................................................15
Turnin on the Docking Station .............................................................................................................16
Plug in RX-3 Body Worn Camera..........................................................................................................17
Upload Data .........................................................................................................................................18
5、Docking Station Management System...................................................................................................18
Login System ........................................................................................................................................18
Review Files Menu ...............................................................................................................................19
Division Menu ......................................................................................................................................22
Personnel Menu...................................................................................................................................23
Docking Station Menu .........................................................................................................................24
Report Menu........................................................................................................................................25
Log Menu .............................................................................................................................................26
Securtity Menu ....................................................................................................................................26
Options Menu ......................................................................................................................................27
Storage Cloud Services.........................................................................................................................28
Setting Docking ....................................................................................................................................30
Upload Policy .......................................................................................................................................31
6、Troubleshooting.....................................................................................................................................32
Touch Screen........................................................................................................................................32
Network ...............................................................................................................................................32
System..................................................................................................................................................32
Storage .................................................................................................................................................33

4
1、Introduction
Product Appearance
.

5
Keep the touch screen away from water. The touch screen may malfunction in humid conditions
or exposure to water. Please make sure the docking station is placed on a flat surface, enabling the
fans the intake cool air.
Cooling fan
1
Cooling fan
2

6
Package Contents
The RX-3 Pro Docking Station package contents:
Docking Station
Power cable
RJ45 network cable
Hard disk lock key
Factory inspection report
Use only licensed accessories. Use of unauthorized parts, accessories or cameras with the
docking station my cause malfunction and is not covered by the warranty.
Installation of the Docking Station
This device can only be used with the supplied power cable.
Installation steps：
1、Open the Docking station package.
2、Insert the supplied power cable in the power socket.
3、Turn the Docking station ON.

7
4、Required power supply : AC 100V --- 220V.
Turn on the docking station power switch, check if the main power indicator lights up normal.
If the main switch indicator is not properly lit, check if the power cable is inserted properly.
Switch

8

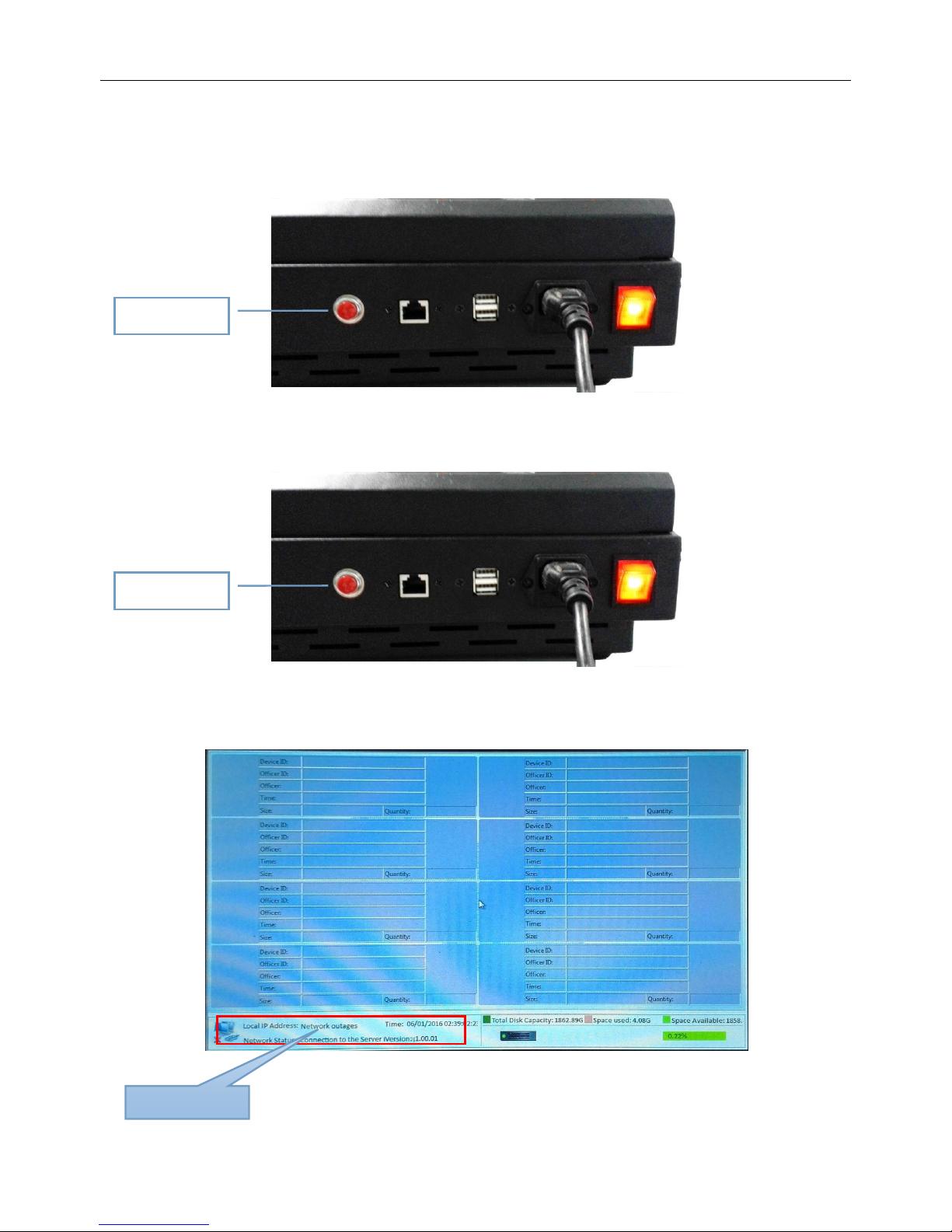

Switching the device On or Off
1、When you start the device, press the power switch to turn on the docking station.
2、To reset the device, press the "Reset" button。
3、If you want to switch off the docking station from software, click on the lower left corner of the screen
by your finger and navigate to the Control Panel and click "Power Off".
Reset
Button
Reset
Button
Click Here

9
Control Buttons on the Screen:
Restart: Restart docking station system.
Exit System: Exit the docking station system and enter desktop of the operate system.
Power Off: Switch the docking station OFF.

10
2、Overview
Description
The Docking Station uses high-performance low-power system, processor and hard drive with high,
stable performance. It supports eight body cameras to charge and upload data at the same time. The
Docking Station comes with a Web management system, allowing the users to easily playback files and
download files using a PC.
Features
Compact design with integrated hardware.
Embedded operating system and Web management system.
Large-capacity hard disk storage space to store data.
Supports Microsoft Azure cloud for saving and storing the video files.
Specifications
Hardware Configuration
Screen Size
7 Inch
Display brightness
50
Display Contrast
50
USB2.0
≤8 Ports
SSD
64G
Hard disk
2T~4T
Software Configuration
Operating System
Microsoft windows 7 Embeded
Application
Docking Station Management System
for Web
Size
Dimension
36*26*12（cm）
Weight
6.7KG
External Interface
Power Interface
AC 100V---220V
Network Interface
RJ45
External USB Interface
2Ports USB 3.0

11
Performance
Boot operate system: <=30 s
Storage: 64G SSD for system, >=2T hard disk for storing video file.
Support camera：Supports 8 body cameras to sync and recharge at the same time.
Screen Resolution：1024 x 600
Data transmission speed：>300M/min.
Software Features
1）Product Compatibility：Rewire Security RX-3 Body Worn Camera.
2）Video files can be automatically uploaded：After inserting the RX-3 body camera in the docking
station, all files saved in the body camera TIF card will be automatically uploaded to the docking
station and uploaded files are automatically associated with the corresponding information officers.
3）Automatic time synchronization：After inserting the RX-3 body camera in the docking station, Time
of the body camera will be automatically synchronized with the time of the docking station.
4）Auto clear camera TIF card：After all files in the body camera are uploaded to the docking station,
the docking system will clear the storage of the RX-3 Body worn camera.
5）Fast charging：After inserting the RX-3 body camera in the docking station, the docking station will
automatically start recharging the body camera.
6）Search Files：Authorized users can search files using the docking station based on the type of media
(date, time, video, audio, photos, log, HD, SD) to quickly locate video files.
7）Playback files：Authorized users can playback files using the web interface.
8）Protect files：Protected files can’t be removed by an unauthorized user.
9）Lock files：Locked files can’t be played back, downloaded or removed by an unauthorized user.
10）Protected file transfer：If the files transfer process is interrupted (USB disconnect etc.) the
upload process will continue without damaging the video files.

12
11）Download files：You can download the files from the docking station using the web system, and
save the downloaded file to any storage of your choice.
12）Automatic management docking station disk space：The docking station can automatically
delete the expired files for making room for the next upload operation.
13）Cloud storage：The docking station is embedded with the Microsoft Azure cloud services, you
can upload the important files to the Microsoft Azure cloud，However, user needs to open a
Microsoft's cloud services account.
14）Remote manage docking station：You can manage the docking station remotely by web system.
3、Basic Features
Using the touch screen
Only use the touch screen by pressing your finger!
Do not allow the touch screen contact with other electronic devices. Electrostatic
discharges can cause the touch screen to malfunction.
Do not allow the touch screen to contact water. The touch screen may malfunction in
humid conditions or when exposed to water.
To avoid damage to the touch screen, do not use any sharp objects on the touch screen.
Avoid pressing your finger heavily on the screen.
Touch screen gesture
While using the touch screen, interact with the software just like any other touch-screen enabled
device such as a smartphone. Press on the icons with your finger to navigate the menus.

13
How to access the docking station remotely
1、Run the remote desktop application "mstsc" on your windows PC.
2、Enter the docking station’s IP address in computer Remote Destop application;

14
3、Enter user name : "station" and the default password is "zb2017", then click "ok" button.

15
How to set static IP address for the docking station
1、Please click the lower left corner of the screen and display the control panel, then please click button
"Exit System"
Please select "Exit system" button, then enter default password "2015", you will be sent to the windows
desktop.
3、While on the windows desktop, navigate to "Control Panel-->Network and Internet--->Network
Connections", and locate the network adapter and setting properties.
Click the zone

16
Turn ON the docking station
1. Plug in the power，and press the docking station "Power Switch" button.
2. After switching the docking station on, the software will automatically start in 20 seconds, once it’s
ON enter the docking station system interface.
Power Switch
Reset

17
Plug in the RX-3 body worn camera

18
Upload Data
The docking station system will automatically mount the body camera on the interface and start
downloading all files from the RX-3 Body worn camera.
5、Docking station management system
Login system
1、Enter the docking station IP from any browser on a PC which is located in the same local network,
and enter the user name and password ,then you will be able to access the docking station management
system.

19
The administrator account is "admin" and the default password is "888".
Review files
Please click the video thumbnail and you will be able to playback the video files
.

20
If you have not installed the adobe flash plug-in in your PC, You have to install the flash plug-in to
be able to view the video files.
You can also display a list of files by clicking on "Review files"
About Permission Definition
