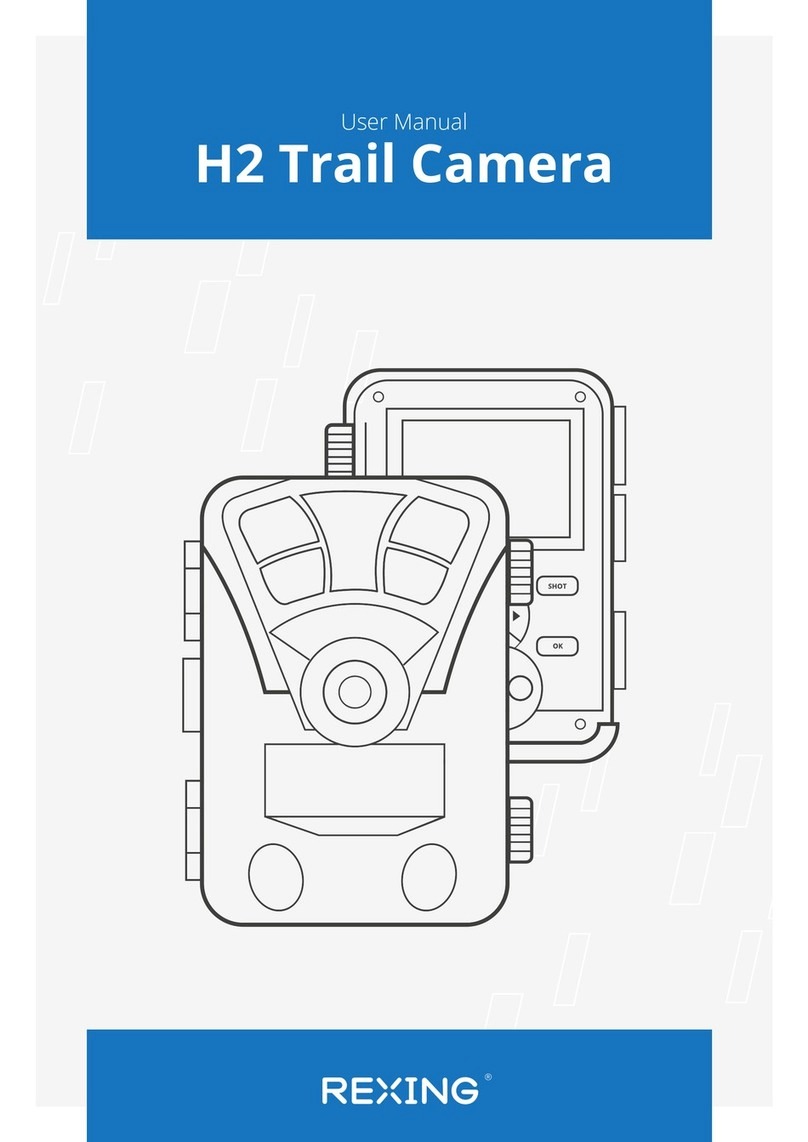

Rexing H2 Trail Camera
USER MANUAL

2

3
4
7
8
10
11
16
21
24
29
30
TABLE OF CONTENTS
Introduction
HANDLING THE CAMERA
Camera Overview
Basic Operation
Installation
Camera Operation
Viewing/Deleting Photos/Videos
Wi-Fi Features
TROUBLE SHOOTING
FAQs
Camera Specifications
WARRANTY PROTECTION
FCC Statement
Warranty and Disclaimers
19

4
Introduction
With its highly sensitive 120° Passive Infra-Red (PIR) sensor,
the camera detects the sudden change of exterior
temperature caused by the moving subjects in a Region of
Interest (ROI), triggers to take pictures/videos, so you won’t
miss anything appearing in front of your camera.

5
Introduction
Features
Application
• Programmable 3, 5, 8, 12 or 16 Mega-pixel
high-quality resolution.
•Infrared night vision LEDsforflashrange
as far as 65 feet.
• In Cam + Video mode, camera takes both
pictures and videos at each trigger time.
• Impressively quick trigger time (0.2 - 0.5
second, pre boot 0.2 second)
• Unique side Prep Sensor design provides
wider sensing angle and enhances cameras’
response speed.
•In Time Lapse setting, the camera
automatically and constantly takes pictures/
videosatspecifiedtime internals. Thisisvery
useful whenobservingplantsflowering,birds
building nest, or when monitoring unattended
properties such as parking lots.
• With Timer Setting is ON, the camera can be
programmedtoonlyworkinspecifiedperiod
every day. This feature can work together with
Time Lapse feature.
• Trail camera for hunting.
• Animal or event observation.
• Motion-triggered security camera, for home,
office,andcommunity.
• All other indoor/outdoor surveillance where
invasion evidence needed.
•Serial Number setting enables you to mark
your locations in the photos. This helps multi
camera users identify the location when
reviewing the photos.
•Ultra low standby power consumption.
Extremelylongin-field-life (Instandbymode,
up to 8 months with 8 x AA batteries).
•Built-in 2.4” TFT color display to review
images and videos
•Date, time, temperature and moon phase
can be stamped in the pictures.
•Backpack-looking tree grabber makes
mounting and aiming a snap.
• Perform in extreme temperatures from -4°F
to 140°F.
•Compact size (5.3 x 3.5 x 3.0 inches). Well
designed to deploy covertly.
• Lockable and password protected.
•IP56 water resistant.

6
Handling
the Camera

7
Camera Overview
01 08 15UP Button DOWN Button Infrared LEDs
RIGHT Button TF Slot
SHOT Button AV Port
OK Button USB Port
LEFT Button OFF
Lens
Front Motion Sensor
Side Motion Sensor
Display Screen
DC Port
MENU Button TEST
REPLAY Button ON
02 09
03 10
04 11
05 12
16
17
18
19
20
06 13
07 14
7
1
2
3
4
5
6
7
8
9 10
14
19
11 12 13
15
16
17
18
18
20

8
Basic Operations
8
01
03
02
04
Install batteries
Switch to TEST Mode
Insert a Micro SD Memory Card
Press MENU to enter Setting

9
Basic Operations
9
05
07
06
08
Format the Memory Card
Set the Date & Time
Reset to Factory Setting
Switch to ON Mode (Test Device)

10
Installation
Power Supply
Batteries Installation
Openthecamerabyunlockingtwo latchfirst.
Thebattery compartment is the right part of the
camera. Open the protective cover of the battery
compartment and insert eight (8x)1.5v LR6/AA
batteries into the battery slots. Make sure to
insert each battery with correct polarity (+ and -
end)against the long spring of each battery slot.
Using an External Power Source
Optionally, you can connect an external 6V DC
power source with at least 1.5A to the DC Port
port at the bottom of the camera. The power
connector is a 3.5x1.35 mm coaxial DC power
plug with positive tip (inside pin) polarity. Leave
internal batteries in the camera during use.
• Insert the SD card into the card slot. A click
sound indicates that the card is installed
successfully. If the wrong side of the card is
facing up, you will not be able to insert it
without force (There is ONLY ONE correct
way to insert cards).
•To take out the SD card, just gently push in
the card (do not try to pull it out without
pushinginfirst).Thecardwill bereleased
from the slot and ready to be removed
when you hear the click.
Inserting the SD Card
The camera uses a Micro SD (Secure Digital)
memory card to save photos (in .jpg format)
and/or videos (in .AVI format). SD and SDHC
(High Capacity) cards up to a maximum 32GB
capacity are supported.
Insert the SD card (when the camera in OFF
Mode) before beginning to operate the camera.
(DO NOT insert or remove the SD card when the
camera is in ON Mode)
Before inserting amemory card, please open
the front cover and make sure that the write
-protect switch on the side of the card is OFF
(NOT in the Lock position).
Note:
Note:
• NEVER INSTALL DIFFERENT TYPES
OF BATTERIES or NEW AND OLD
BATTERIES in the product at the
same time.
• Anytime you load or unload
batteries, make sure that the
camera is OFF. If using external
power source, do not remove
internal batteries.
• Be sure the camera’s power is
switched OFF before inserting or
removing SD cards or batteries.
•Camera cannot be operated
without an SD memory card
