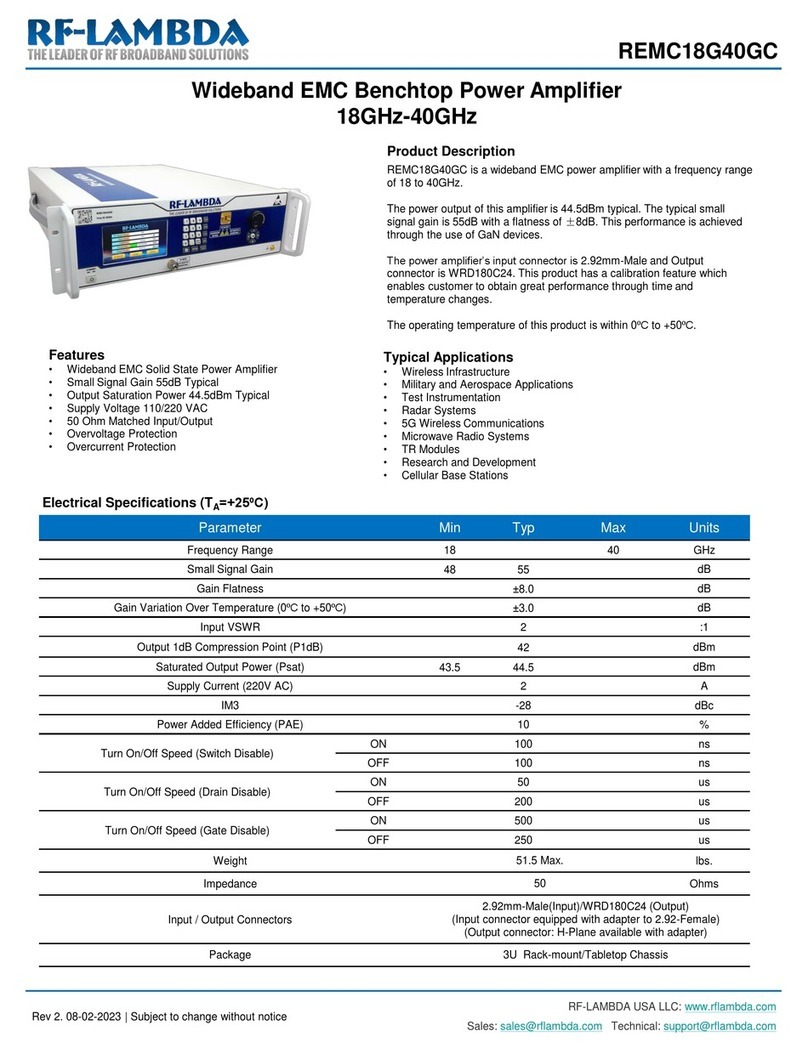

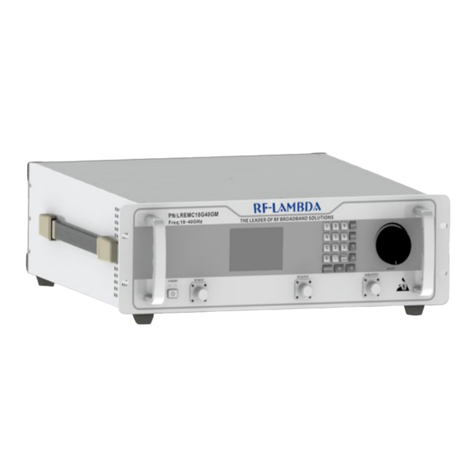

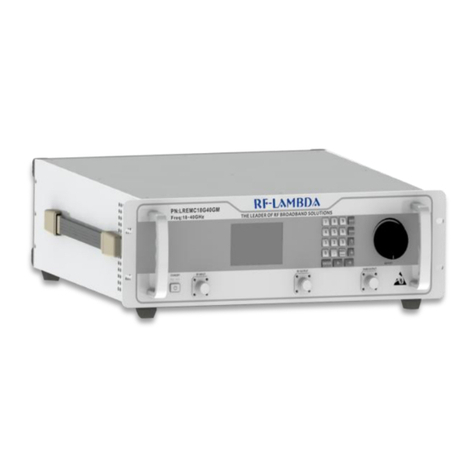

RF-Lambda REMC18G40GC User manual

RF-LAMBDA USA www.rflambda.com
Sales: [e-mail] Technical : [e-mail]
Wide Band EMC Benchtop Power Amplifier 18GHz ~ 40GHz
REMC18G40GC
Rev 1. 02-02-2021
Wide Band EMC Benchtop Power Amplifier
18GHz ~40GHz
Electrical Specifications, TA= +25⁰C
Features
•Wideband Power Amplifier
•Gain: 50dB
•Output Power +44.5dBm typical
•Supply Voltage: 110V/220V AC
Typical Applications
•Wireless Infrastructure
•Military & Aerospace
•Test and Measurement
Parameter Min. Typ. Max. Units
Frequency Range 18 40 GHz
Gain 48 50 dB
Gain Flatness ±5 dB
Gain Variation Over Temperature
(0℃~+50℃)±3 dB
Input VSWR 2:1
Output 1dB Compression Point (P1dB) 42 dBm
Saturated Output Power ( Psat)
(CW) 44.5 dBm
Isolation S12 60 dB
Supply Current (110V/ 220V AC) 2 A
Efficiency at Psat 10 %
Weight 360 ounces
Impedance 50 Ohms
Input / Output Connectors 2.92mm-Female
Finish White Painted Finish

RF-LAMBDA USA www.rflambda.com
Sales: [e-mail] Technical : [e-mail]
Wide Band EMC Benchtop Power Amplifier 18GHz ~ 40GHz
REMC18G40GC
Rev 1. 02-02-2021
Operating Voltage 230VAC
RF Input Power +5dBm Step 1
Connect input and output with 50 Ohm
source/load. ( in band VSWR<1.9:1 or
>10dB return loss)
Step 2 Turn on AC power
Step 3 Enable RF output
Power OFF Procedure
Step 1 Turn off RF output power
Step 2 Turn Off AC power
Step 3 Disconnect input and output
Absolute Maximum Ratings Biasing Up Procedure
Environmental Specifications and Test Standards
Parameter Description
Operational Temperature 0℃~+50℃
(Ambient Temperature)
Storage Temperature -40℃~+85℃
Thermal Shock 0℃+50℃
(5 Cycles / 10 hours)
Random Vibration
MIL-STD-202G
Table 214-I, Test Condition Letter C
1.5 Hours Per Axis
High Temperature Burn In Temperature +50℃for 72 Hours
Shock
1. Weight >20g, 50g half sine wave for 11ms, Speed variation 3.44m/s
2. Weight <=20g, 100g Half sine wave for 6ms, Speed variation 3.75m/s
3. Total 18 times (6 directions, 3 repetitions per direction).
Altitude Standard: 30,000 Ft (Epoxy Sealed Controlled Environment)
Optional: Hermetically Sealed (60,000 ft. 1.0 PSI min)
Hermetically Sealed
(Optional) MIL-STD-883 (For Hermetically Sealed Units)

RF-LAMBDA USA www.rflambda.com
Sales: [e-mail] Technical : [e-mail]
Wide Band EMC Benchtop Power Amplifier 18GHz ~ 40GHz
REMC18G40GC
Rev 1. 02-02-2021
Ensure that the amplifier input and output ports are safely terminated into aproper 50 ohm load before turning on the power.
Never operate the amplifier without aload. A proper 50 ohm load is defined as aload with impedance less than 1.9:1 or return
loss larger than 10dB relative to 50 Ohm within the specified operating band width.
Power Supply Requirements
Power supply must be able to provide adequate current for the amplifier.Power supply should be able to provide 1.5 times the
typical current or 1.2 times the maximum current (whichever is greater).
In most cases, RF -Lambda amplifiers will withstand severe mismatches without damage.However, operation with poor loads
is discouraged.If prolonged operation with poor or unknown loads is expected, an external device such as an isolator or
circulator should be used to protect the amplifier.
Ensure that the power is off when connecting or disconnecting the input or output of the amp.
Prevent overdriving the amplifier.Do not exceed the recommended input power level.
Adequate heat-sinking required for RF amplifier modules.Please inquire.
Amplifiers do not contain Thermal protection, Reverse DC polarity or Over voltage protection with the exception of afew
models.Please inquire.
Proper electrostatic discharge (ESD) precautions are recommended to avoid performance degradation or loss of functionality.
What is not covered with warranty?
Each RF -Lambda amplifier will go through power and temperature stress testing.
Since the die, ICs or MMICs are fragile, these are not covered by warranty.Any damage to these will NOT be free to repair.
Amplifier Use
Part No. Description
REMC18G40GC 18-40GHz Power Amplifier
Ordering Information

RF-LAMBDA USA www.rflambda.com
Sales: [e-mail] Technical : [e-mail]
Wide Band EMC Benchtop Power Amplifier 18GHz ~ 40GHz
REMC18G40GC
Rev 1. 02-02-2021
EMC Equipment User Manual
Front Panel
Rear Panel
ON/OFF switch
Power Indicator
Alarm Indicator
Keypad
Gain Adjustment Knob
RF Output
RF Input
Instrument AC power supply switch
Fuse Holder
Main AC connector
GND connector
USER CONTROL, D-SUB Connector
low-voltage (3.3V) TTL control signals.
See page below for more information.
USB Port (upon request)
LAN Port (upon request)

RF-LAMBDA USA www.rflambda.com
Sales: [e-mail] Technical : [e-mail]
Wide Band EMC Benchtop Power Amplifier 18GHz ~ 40GHz
REMC18G40GC
Rev 1. 02-02-2021
Self Calibration Screen
Instrument Protection Alarms
The front panel LCD screen will display the error code or error message when instrument self protection is
triggered. Front panel alarm indicator will light up.
To eliminate the error code, press “RESET” on front panel keypad to reboot the instrument and clear the alarms.
If error code can not be eliminated after reboot, please contact [e-mail]
Calibration is may be recommended
“[1] Calibrate” to execute instrument self calibration
process.
“[2] Reset” to reboot the instrument.
*Please turn OFF RF input power, and terminate the RF
output port while applying calibration function
Switching On Instrument
Please follow the instructions on the front panel LCD screen after switching on the power.
Press “1” on keypad to continue.
Front Panel LCD Screen Display

RF-LAMBDA USA www.rflambda.com
Sales: [e-mail] Technical : [e-mail]
Wide Band EMC Benchtop Power Amplifier 18GHz ~ 40GHz
REMC18G40GC
Rev 1. 02-02-2021
Instrument temperature
RF output attenuation (change with adjustment knob)
RF input signal center frequency
Instrument RF output power
Switches On or Off for instrument RF output port
Indicates instrument RF output status. It will display:
Output is Ready to Turn on or RF Output is ON
Press “Menu” on keypad to enter instrument functions
selection menu
Instrument Function Selection Page
Instrument Status Display Page
To enter this function selection page, press “Menu” on front
panel keypad while the instrument is showing the status page.
Press the corresponding number on front panel keypad to
select:
“[1] Calibrate”calibrates the instruments.
“[2] Frequency” enters RF input signal center frequency.
“[3] RF ON/OFF” switches the RF output port on or off.
“[4] Reset” Restarts the instrument (Turns RF output off)
“[5] Status” enters instrument status display page.
“[6] Product Info” displays product part number and serial
number
All action functions will ask for confirming execution when selected from function selection menu.
User can set a constant gain for the unit. Equipment will
automatically adjust the gain at certain frequency

RF-LAMBDA USA www.rflambda.com
Sales: [e-mail] Technical : [e-mail]
Wide Band EMC Benchtop Power Amplifier 18GHz ~ 40GHz
REMC18G40GC
Rev 1. 02-02-2021
Pin # Name Function Initial State Description Applied
1Reset Control Resets PA when logic LOW is applied and released Yes
2Driver Disable Control LOW Appling logic HIGH disables driver of amplifiers Yes
3Drain Disable Control LOW Applying logic HIGH disables drain of amplifiers Yes
4RF IN Over Indicator LOW Pin will be latched to logic HIGH when input signal is
over limit No
5Temp Over Indicator LOW Pin will be latched to logic HIGH when amplifier is
driven over temperature Yes
6Current Over Indicator LOW Pin will be latched to logic HIGH when drain current
limit is reached Yes
7ID Imbalance Indicator LOW Pin will be latched to logic HIGH when an imbalance
in the drain current of the combining branches occurs Yes
8PA input
power Indicator PA input power is represented by voltage No
9PA output
power Indicator PA output power is represented by voltage No
10
PA output
reflection
power
Indicator PA output reflection power is represented by voltage No
11 VSWR Indicator LOW Pin will be latched to logic HIGH when output
reflection is over limit No
13 +5V Power Supply +5V +5V DC is supplied for reference Yes
14 GND Ground GND Ground Yes
15 GND Ground GND Ground Yes
User Control Connector on Rear Panel
HIGH/LOW voltages are standard TTL signals:
0.0V-0.8V = LOW
2V-5V = HIGH
Notes:
DB15 cable is configured for power connection port by default(RFCBLADB15)
Male

RF-LAMBDA USA www.rflambda.com
Sales: [e-mail] Technical : [e-mail]
Wide Band EMC Benchtop Power Amplifier 18GHz ~ 40GHz
REMC18G40GC
Rev 1. 02-02-2021
Important Notice
Amplifier Outline Drawing:
All Dimensions in mm [inches]
The information contained herein is believed to be reliable.RF-Lambda makes no warranties regarding the information contained herein.
RF-Lambda assumes no responsibility or liability whatsoever for any of the information contained herein.RF-Lambda assumes no responsibility
or liability whatsoever for the use of the information contained herein.The information contained herein is provided "AS IS, WHERE IS" and
with all faults, and the entire risk associated with such information is entirely with the user.All information contained herein is subject to
change without notice.Customers should obtain and verify the latest relevant information before placing orders for RF-Lambda products.The
information contained herein or any use of such information does not grant, explicitly or implicitly, to any party any patent rights, licenses, or
any other intellectual property rights, whether with regard to such information itself or anything described by such information.
RF-Lambda products are not warranted or authorized for use as critical components in medical, life-saving, or life sustaining applications, or
other applications where afailure would reasonably be expected to cause severe personal injury or death.
506.94 [19.958]
25.75 [1.014] 46.11 [1.815]
482.6 [19.000]
465 [18.307]
133.2 [5.244]
11 [0.433]
7 [0.276]
447 [17.598]
436.8 [17.197]
PN:REMC18G40GM
Freq:18-40GHz
